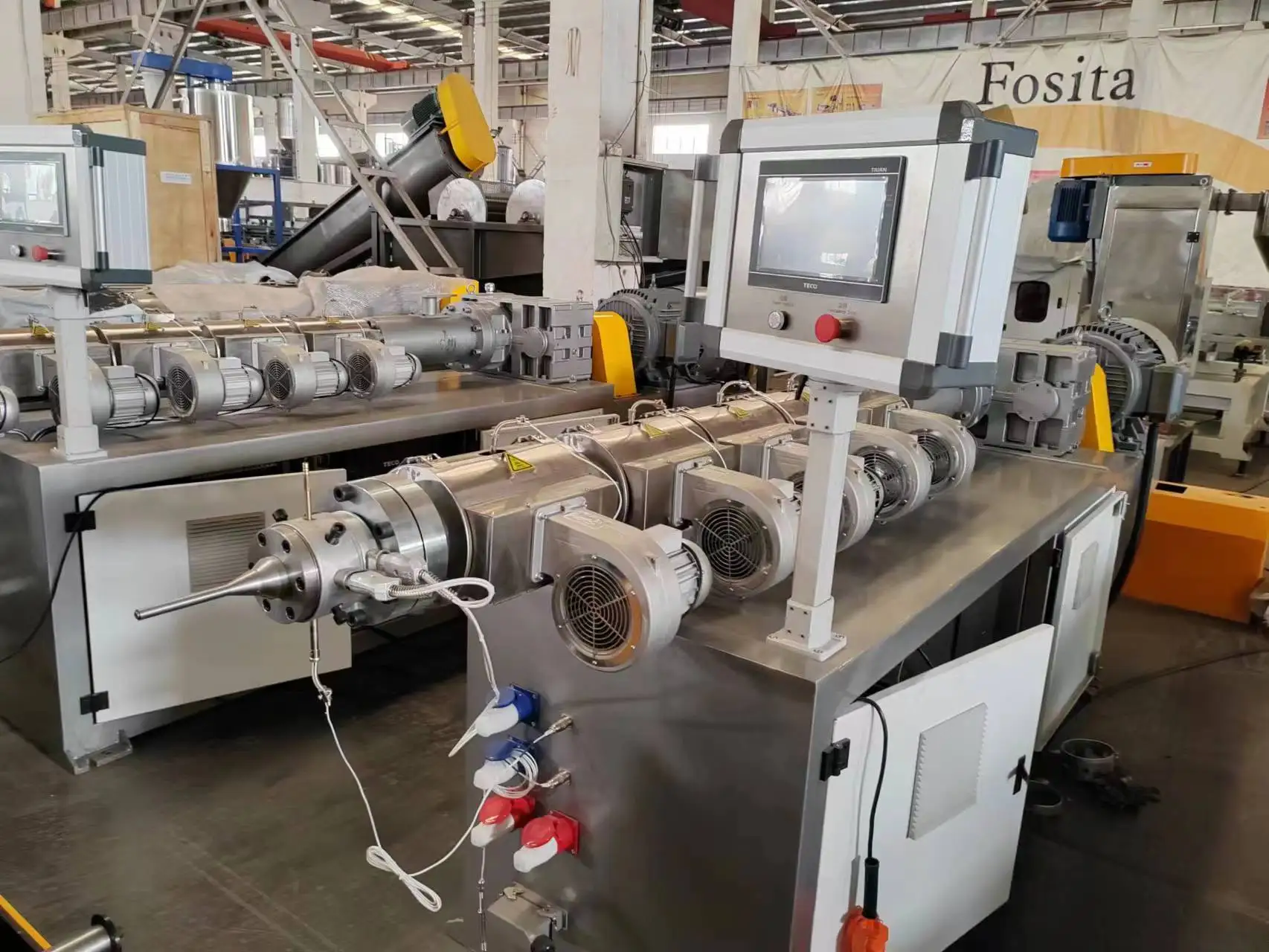

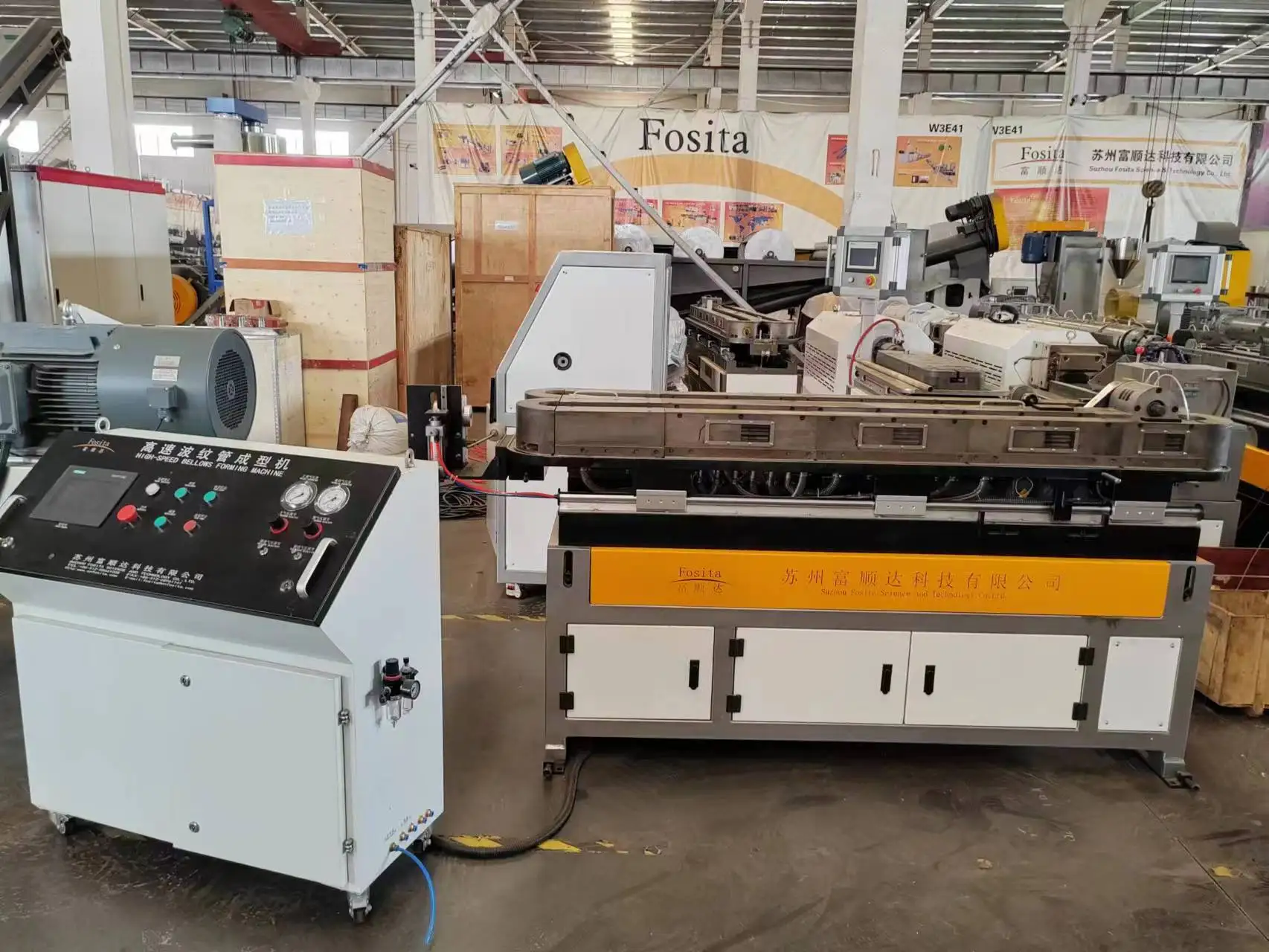

Fosita Automatic High Speed PP PE Plastic Shisha Hookah Hose Corrugated Pipe Making Production Machine
- Category: >>>
- Supplier: Suzhou Fosita Science And Technology Co. Ltd.
Share on (1601007536048):
Product Overview
Description
Product Overview

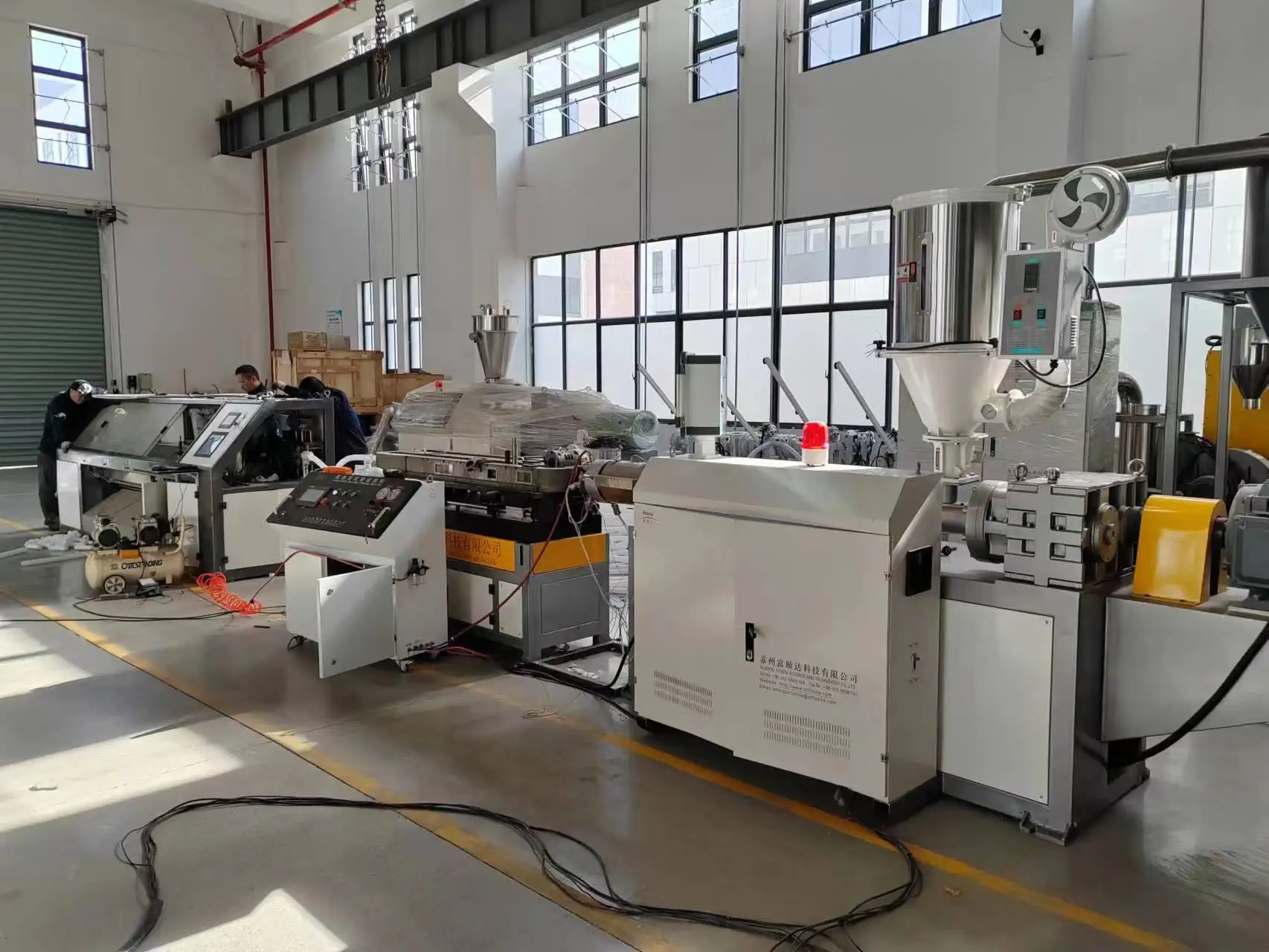

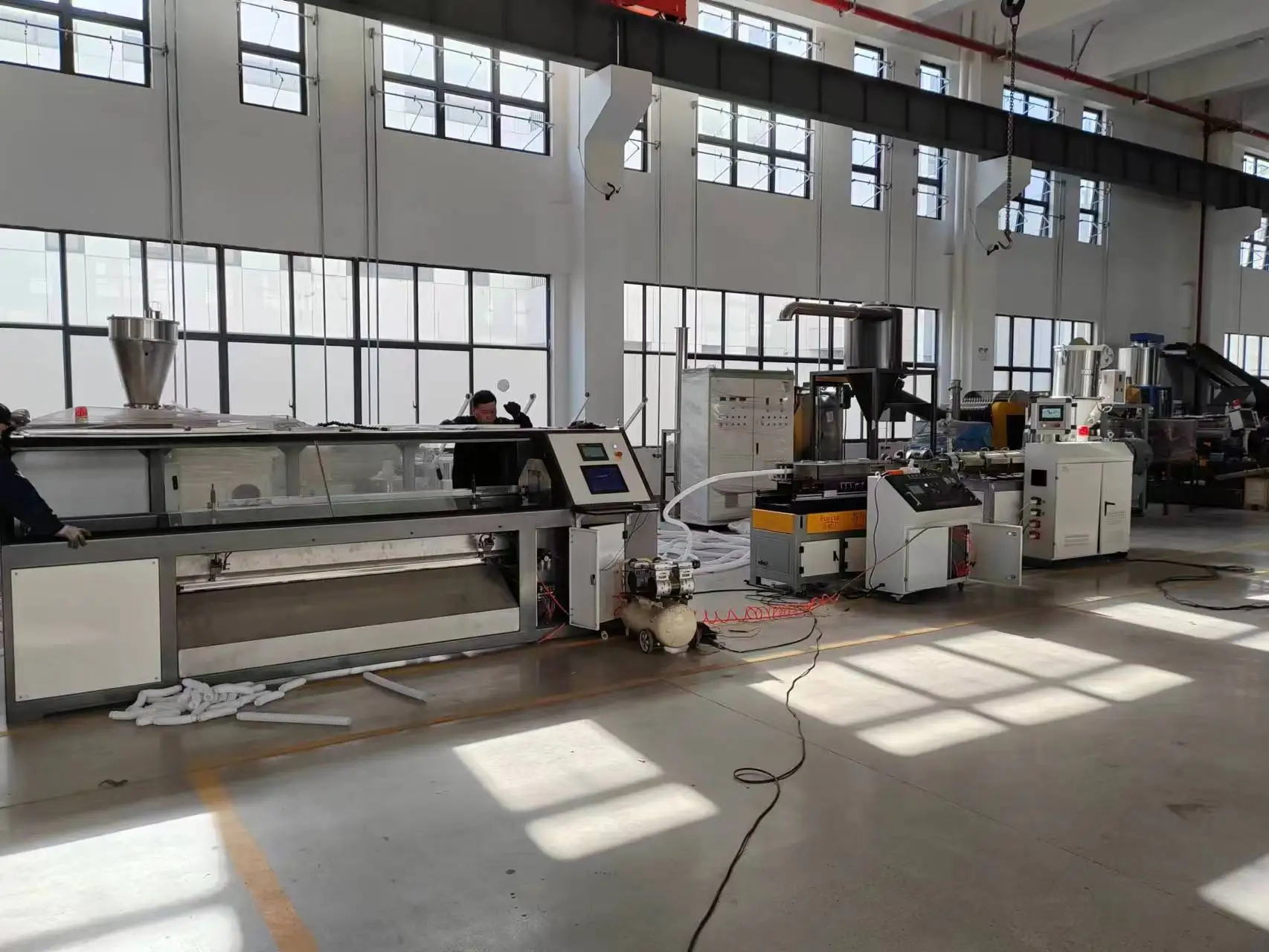

PP PVC PE Corrugated Pipe Production Line

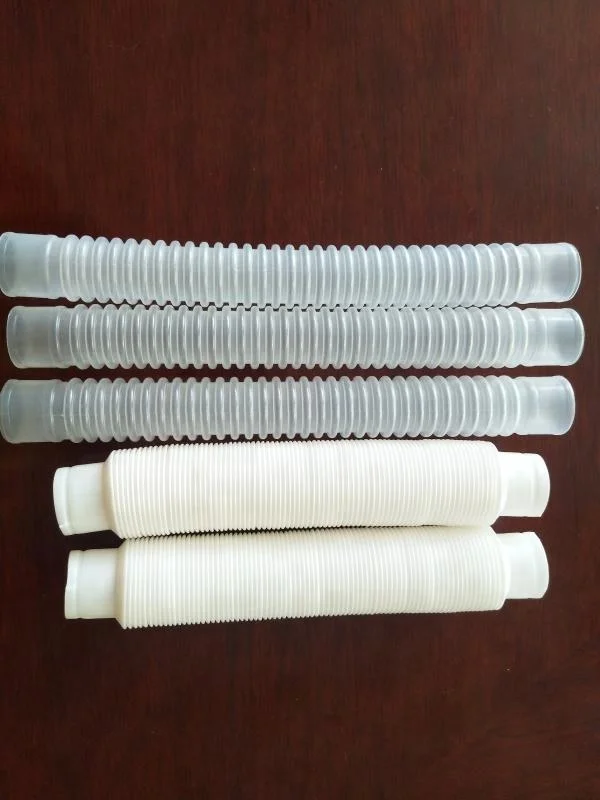

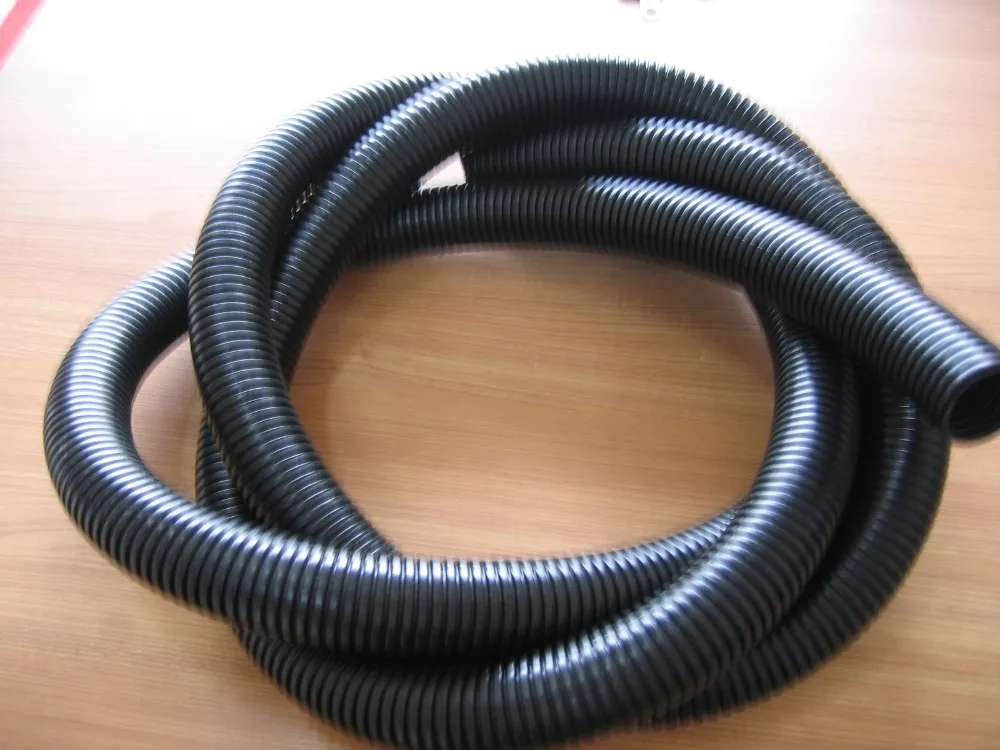

Plastic corrugated pipe is very widely used in our daily life, It can be used such as threading pipe, drain pipe, pipes, Shisha pipe, shrinking pipe and so on.There are many advantages of plastic corrugated pipes:
1.Compared with the plate pipe, corrugated pipe has lighter weight, save material, lower energy consumption, cheaper;
2.Corrugated pipes with smooth inner wall can reduce the flow resistance of liquid in the pipe, improve the transmission capacity;
3. Good performance in resistance to chemical corrosion, can resist the effect of alkali in the soil.
1.Compared with the plate pipe, corrugated pipe has lighter weight, save material, lower energy consumption, cheaper;
2.Corrugated pipes with smooth inner wall can reduce the flow resistance of liquid in the pipe, improve the transmission capacity;
3. Good performance in resistance to chemical corrosion, can resist the effect of alkali in the soil.
Fosita high-speed single-wall corrugated pipe production line has good stability, fast forming speed, long service life, convenient operation and convenient module replacement.
FEATURES AT A GLANCE
1.Gear rack is designed with good performance of corrugator machine.
2.Mold block is durable and wear-resistant, also suitable for medical use.
3.Maximun speed can reach 40m/min by Fosita design.
4.All line is equipped with Siemens PLC.
2.Mold block is durable and wear-resistant, also suitable for medical use.
3.Maximun speed can reach 40m/min by Fosita design.
4.All line is equipped with Siemens PLC.
Extruder
Shaping Machine
Winder
PRODUCT SPECIFICATIONS
Pipe Line Model | Diameter Range(mm) | Extruder Model | Max.Output(kg/h) | Max. Machine Speed(m/min) | Main Motor(KW) |
FST-12 | 12-32 | SJ45 | 50 | 25 | 22 |
FST-50 | 32-50 | SJ65 | 100 | 25 | 45 |
Details Images

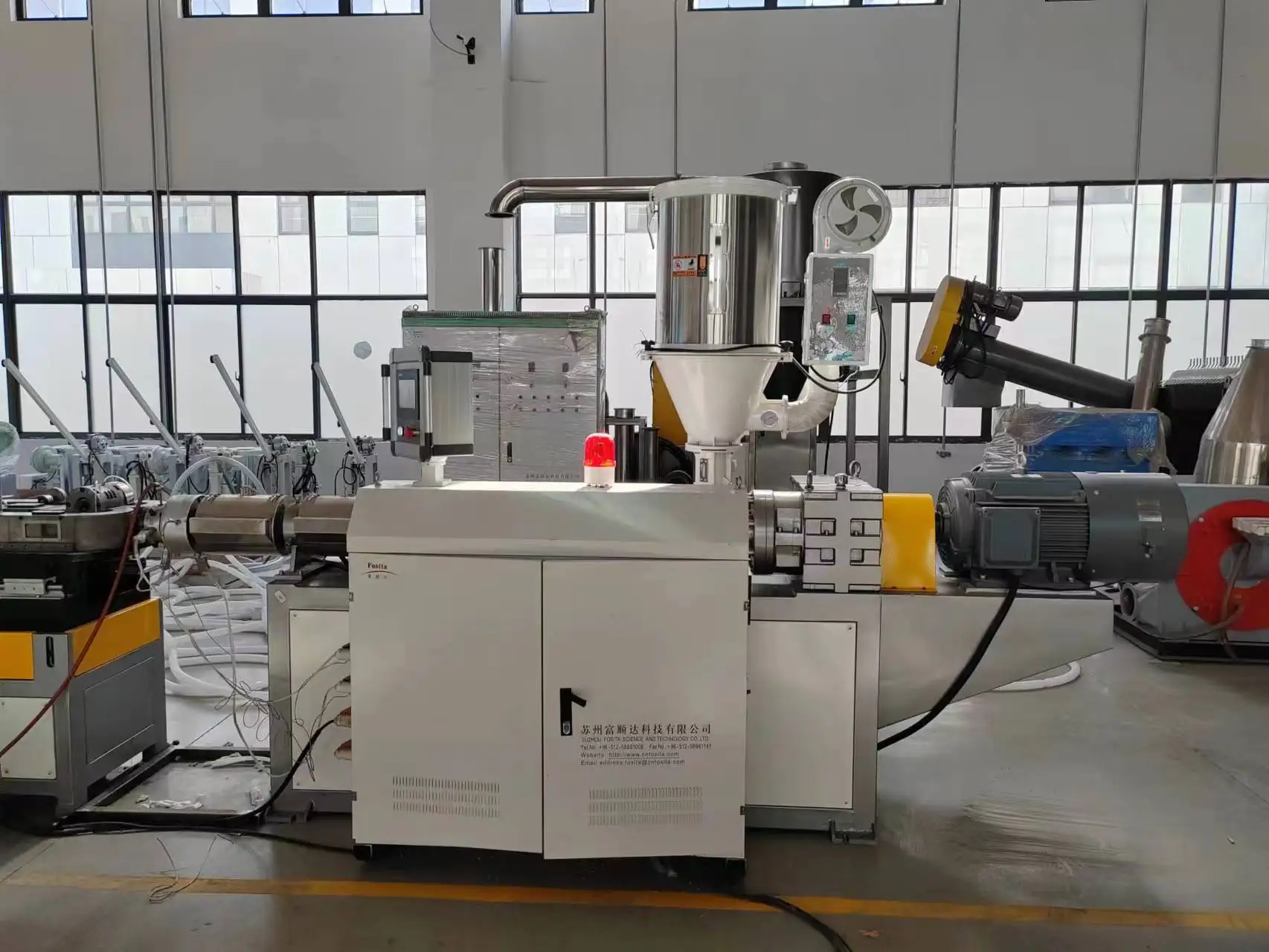

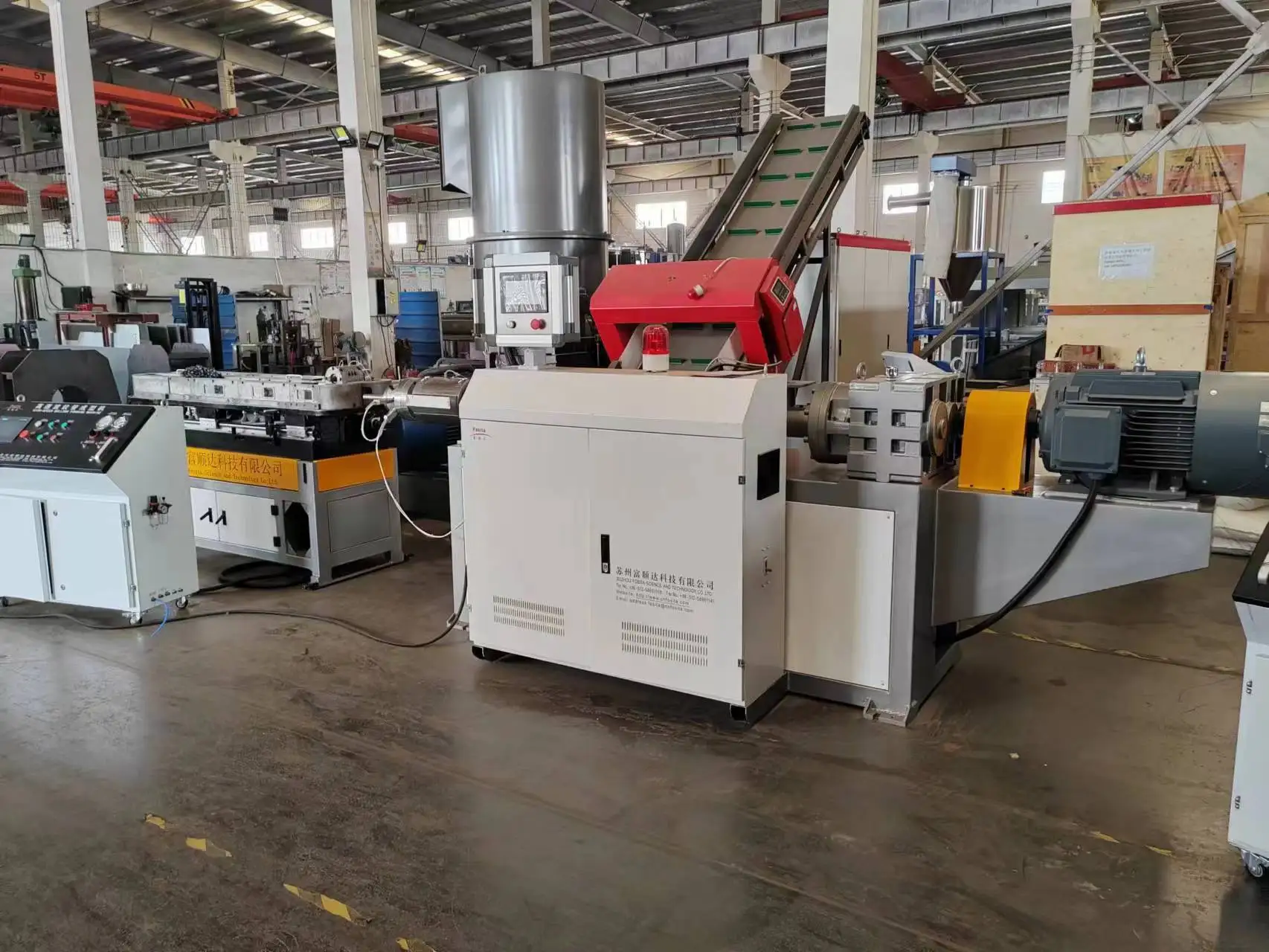

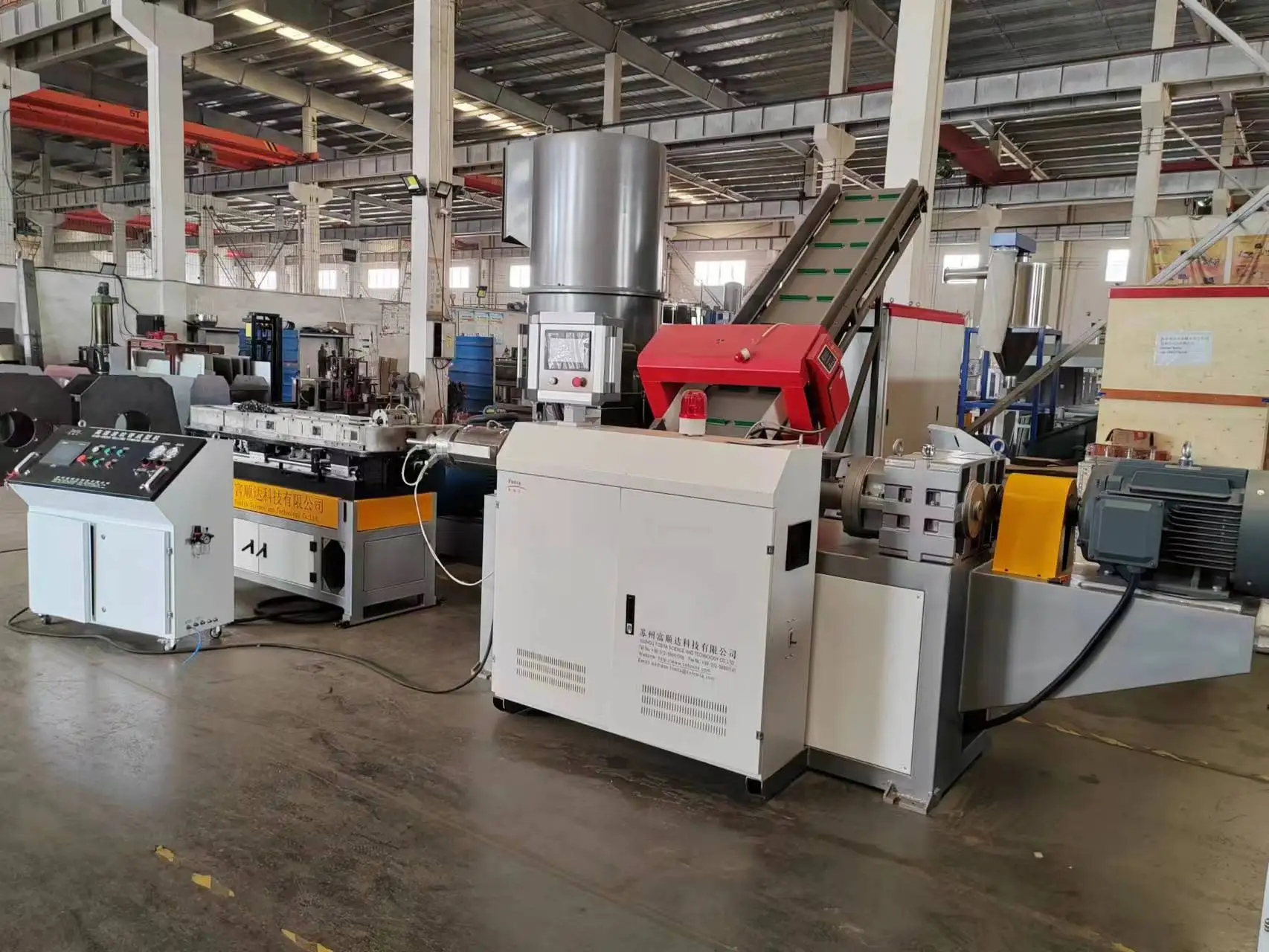

65/33 Single Screw Extruder
Screw diameter: 65mm
L/D Ratio: 33:1
Screw&barrel material: 38CrMoAlA
Motor: 45kw
Barrel heating method:Cast-alumium heating, with stainless steel protection
Output:120-180kg/h
Temperature Control: Ormon
Contactor: Dexili.
L/D Ratio: 33:1
Screw&barrel material: 38CrMoAlA
Motor: 45kw
Barrel heating method:Cast-alumium heating, with stainless steel protection
Output:120-180kg/h
Temperature Control: Ormon
Contactor: Dexili.

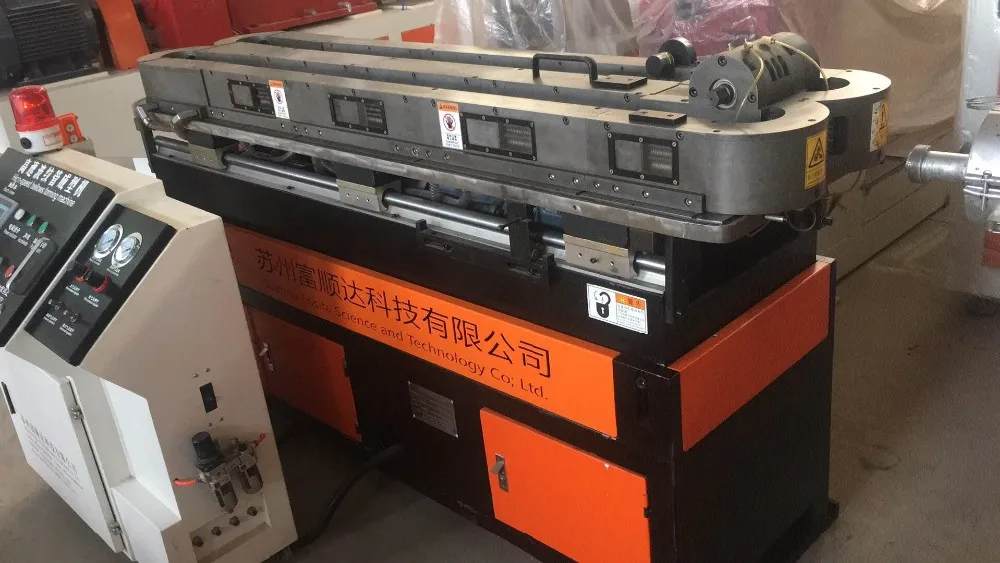

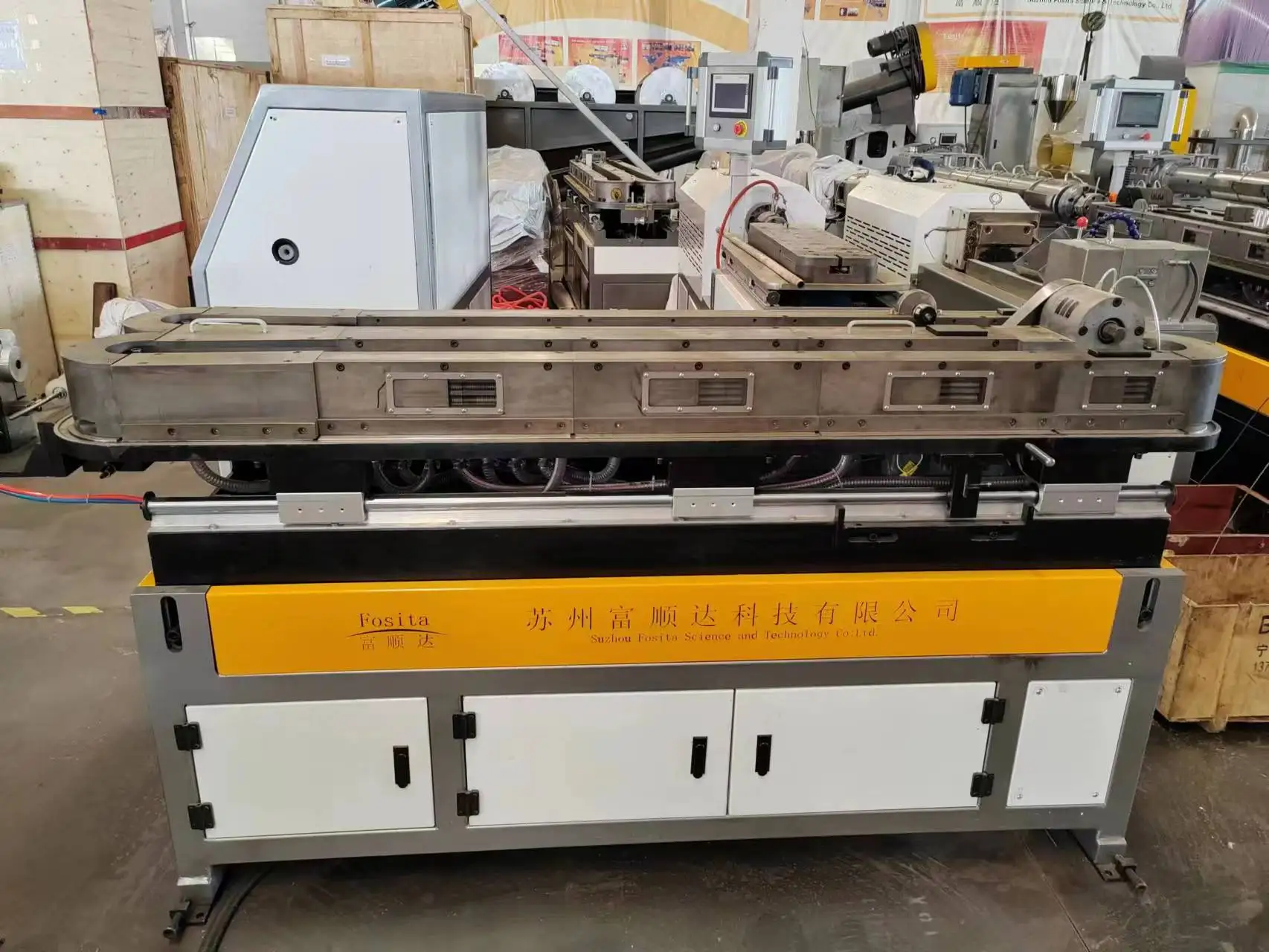

Corrugated pipe forming machine
Motor: 2.2kw
Production speed:25m/min
Quantity of shaping mould:72 pairs per set
Cooling method:Water cooling
Production speed:25m/min
Quantity of shaping mould:72 pairs per set
Cooling method:Water cooling

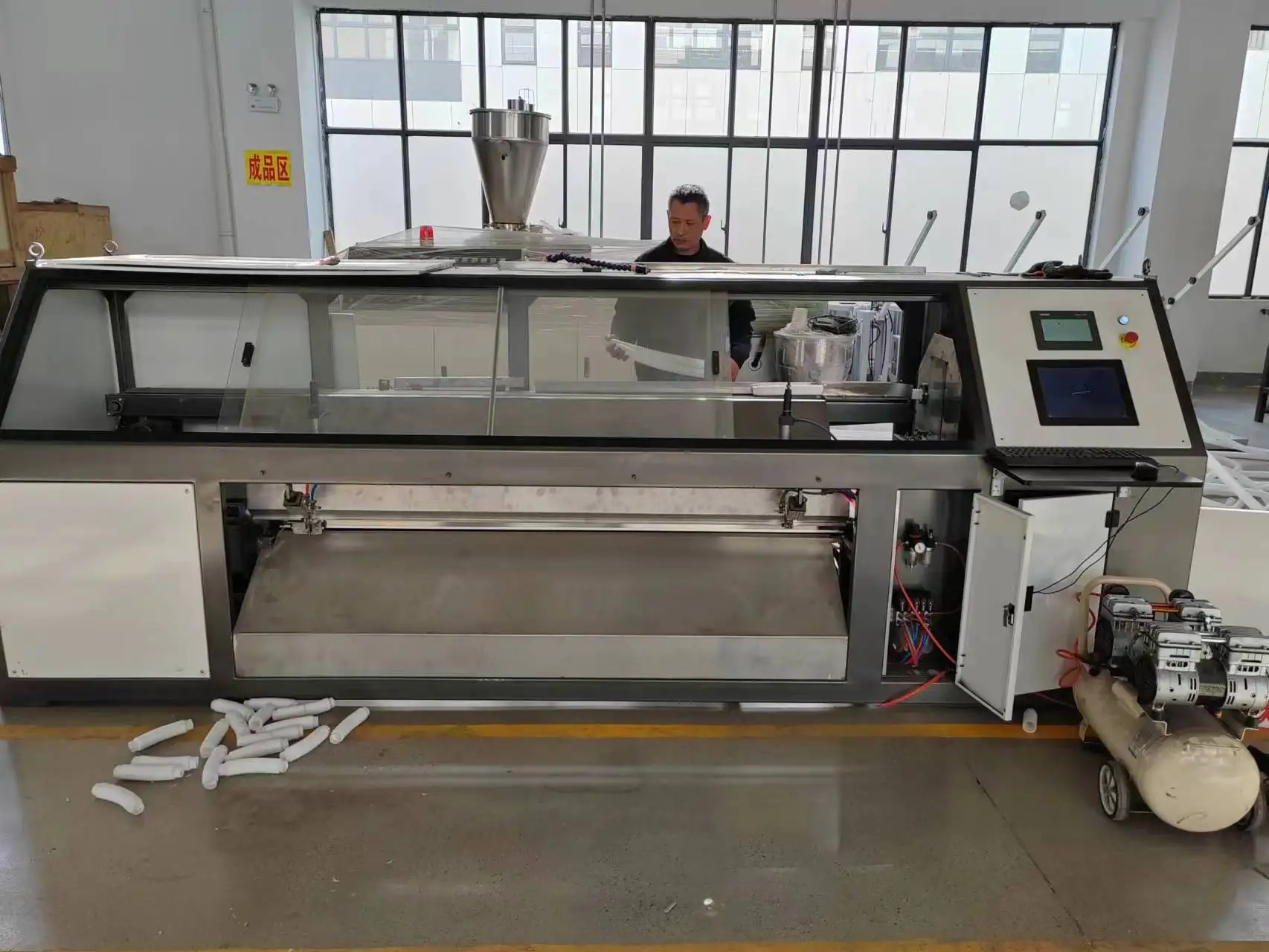

Shrinkable and Cutting machine
Working method: Pneumatic
Product Details
Schneider Brand Configuration
Ciemens Brand PLC touch screen
40Cr Shaping Mold
