Npk Compound Fertilizer Sieving Equipment Rotary Screen Machine
- Category: >>>
- Supplier: Zhengzhou Chengxiang Heavy Industry Machinery Co. Ltd.
Share on (1601007566616):
Product Overview
Description

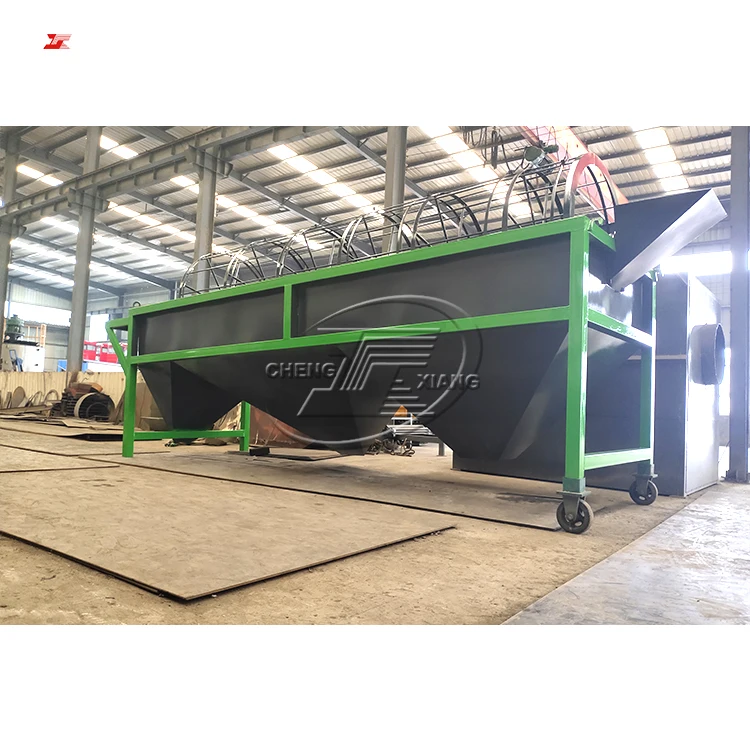

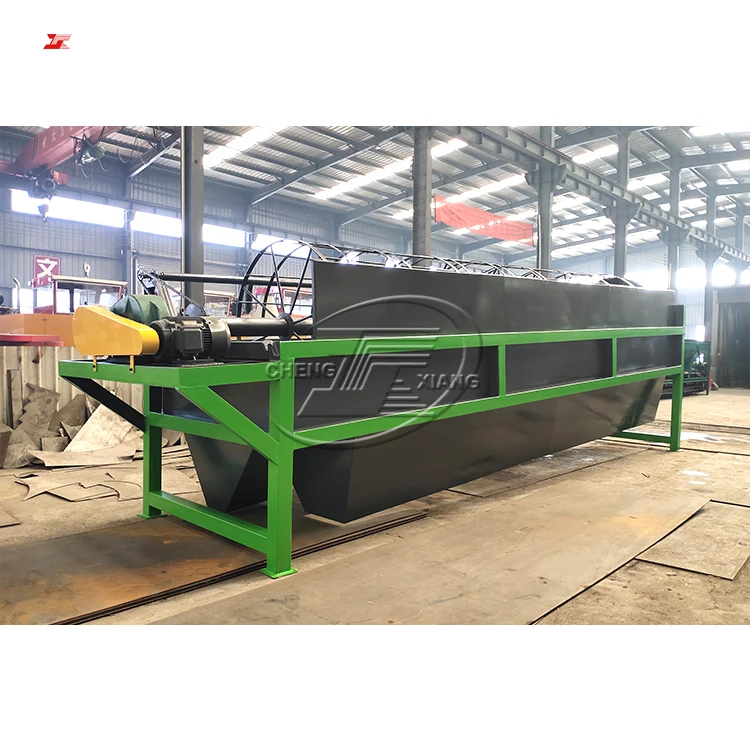

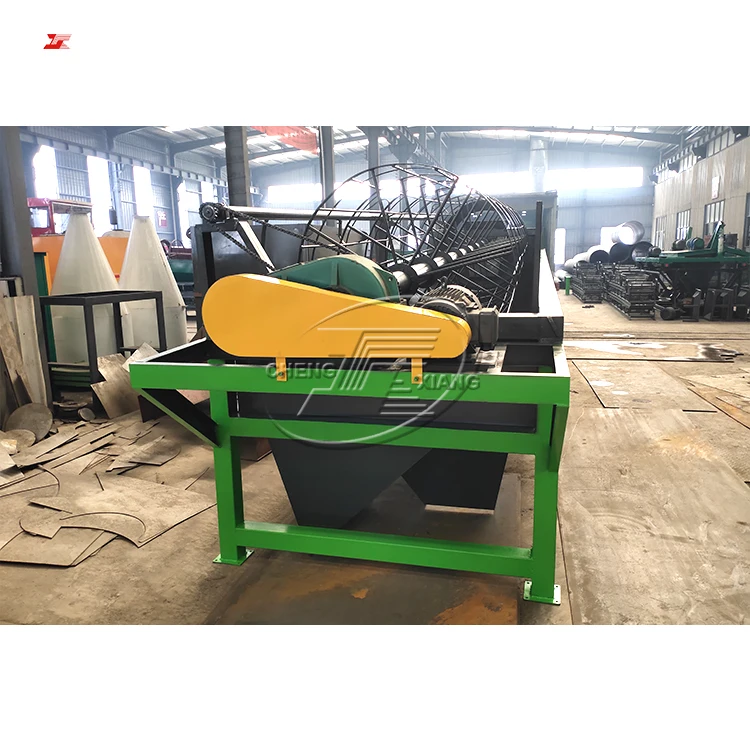

Rotary Sieving Machine
The rotary sieving machine is mainly used for the separation of the finished products ( powder or granules ) and the return material, and can also realize the grading of the products, so that the finished products ( powder or granule ) can be evenly classified.
This machine is adopts a combined screen mesh for easy maintenance and replacement. This machine has simple structure, convenient operation and stable operation etc advantage , and it is an ideal equipment in the production process of organic fertilizer and compound fertilizer.
The rotary sieving machine is mainly constitute of motor, gear reducer , roller device, frame, sealing cover, and inlet and outlet etc . The roller device is obliquely mounted on the frame, and the motor transmits power through the gear reducer , and is coupled to the roller device through the coupling to drive the roller device to rotate about its axis . After the material ( granule ) enters the roller device, due to the tilting and rotation of the roller device, the material on the screen is turned over and rolled , so that the right size material (the product under the sieve) is discharged through the discharge hole at the bottom of the rear end , and the unqualified material (on the sieve) is discharged through the discharge hole at the end of the sieving device. The material continuously flip and scroll in the sieving device , so that the material stuck in the sieve hole can be ejected to prevent the screen hole blocked . The screening cylinder can be closed, easy to close and collect dust, and meet the requirements of environmental protection.
Equipment Features
1. The screening cylinder can be closed, easy to close and collect dust, and meet the requirements of environmental protection.
2. The cylinder material is optional, and the specifications and models can be customized.
Product Range
Model | Model | Cylinder speed | Tilt Angle | Power | Production capacity | Dimensions | Weight | |
Diameter (mm) | Length (mm) | |||||||
GS1.0×3.0 | 1000 | 3000 | 22 | 2-2.5 | 2.2 | 1-3 | 3.5×1.4×2.2 | 0.8 |
GS1.2×4.0 | 1200 | 4000 | 16 | 2-2.5 | 3 | 2-4 | 5.2×0.6×2.4 | 1.2 |
GS1.2×4.5 | 1200 | 4500 | 17 | 2-2.5 | 4 | 3-5 | 5.7×1.6×2.4 | 1.6 |
GS1.5×6.0 | 1500 | 6000 | 14 | 2-2.5 | 5.5 | 5-10 | 6.9×1.9×3.0 | 2 |
GS1.6×7.0 | 1600 | 7000 | 12 | 2-2.5 | 7.5 | 10-20 | 7.3×2.0×3.0 | 2.8 |
GS1.8×8 | 1800 | 8000 | 11.5 | 2-2.5 | 11 | 20-30 | 9.0×2.2×3.2 | 3.5 |
Company Profile

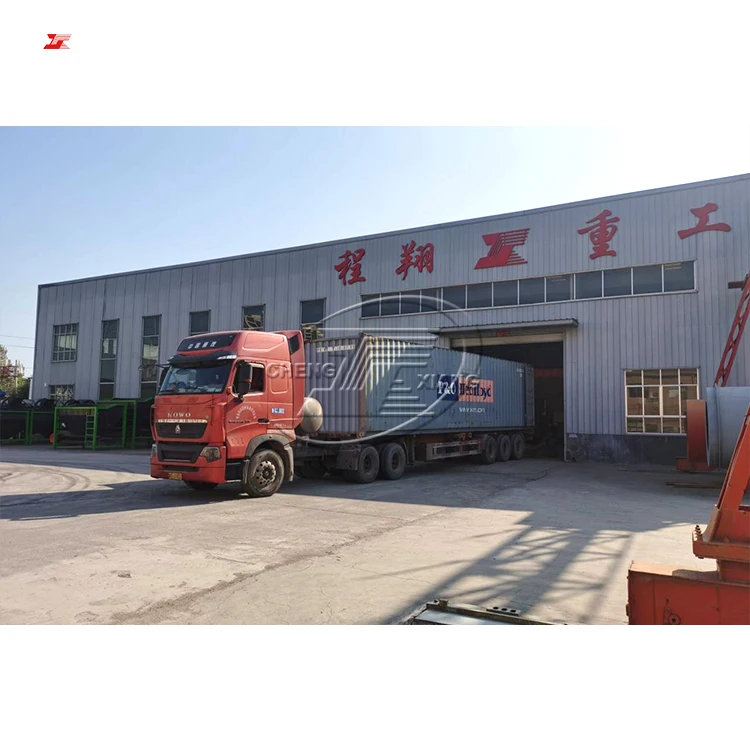

Cheng Xiang Heavy Industry founded in 1995, located in xingyang industrial park, Zhengshang new district, zhengzhou city. The company, has standardized R&D department, and has accumulated many years of production experience, is oriented to realize the automation of fertilizer equipment, implements of design and manufacturing. The development aim of our company is to achieve the goal of intellegence, automation, mechanization of fertilizer machinery industry in China.
Our company's products are distributed in domestic provinces and regions in China, and have been exported to Russia, Vietnam, Thailand, Malaysia, Philippines, Myanmar and other countries etc.
