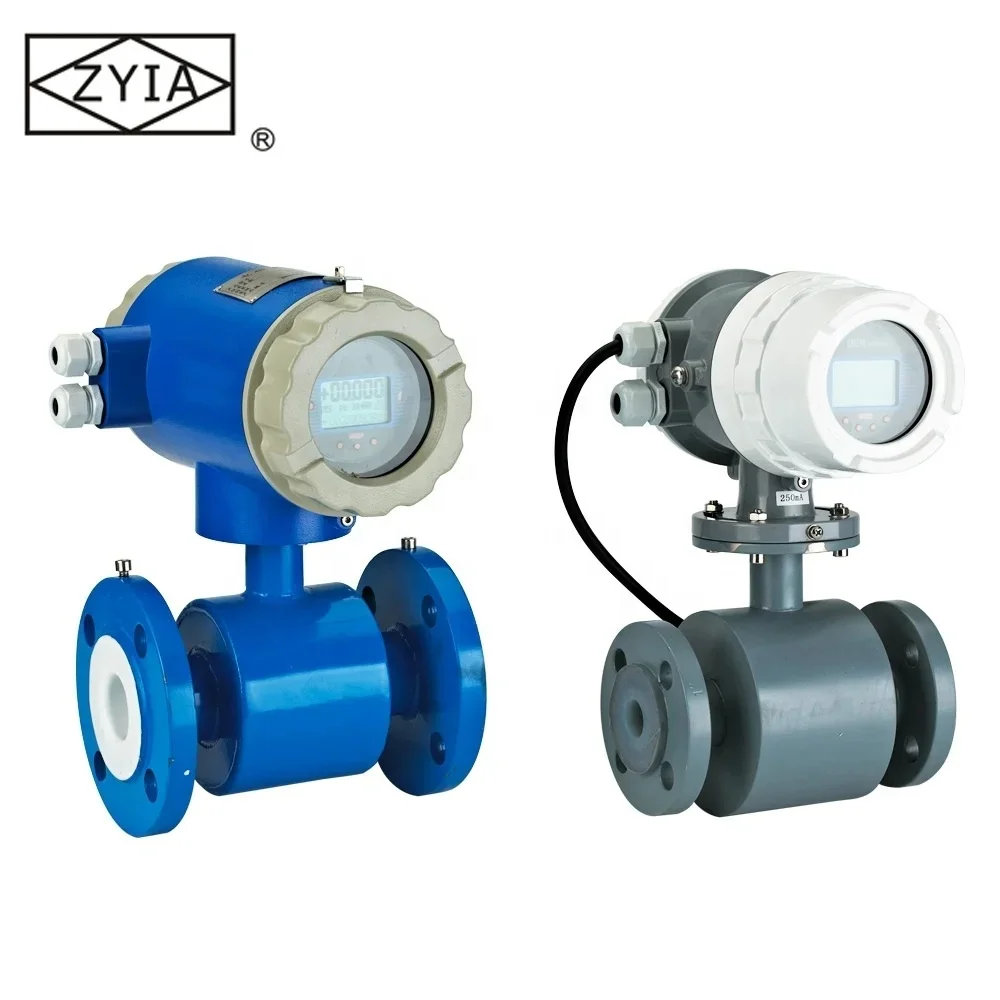

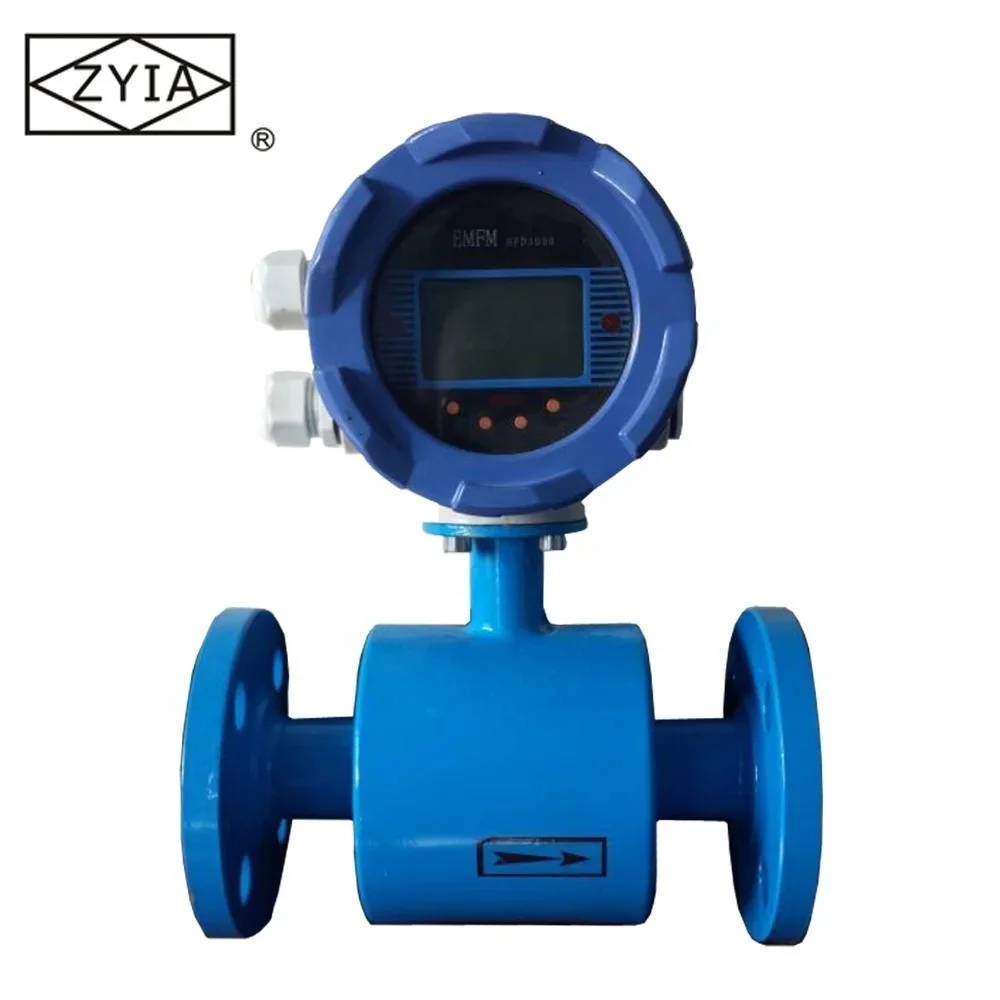

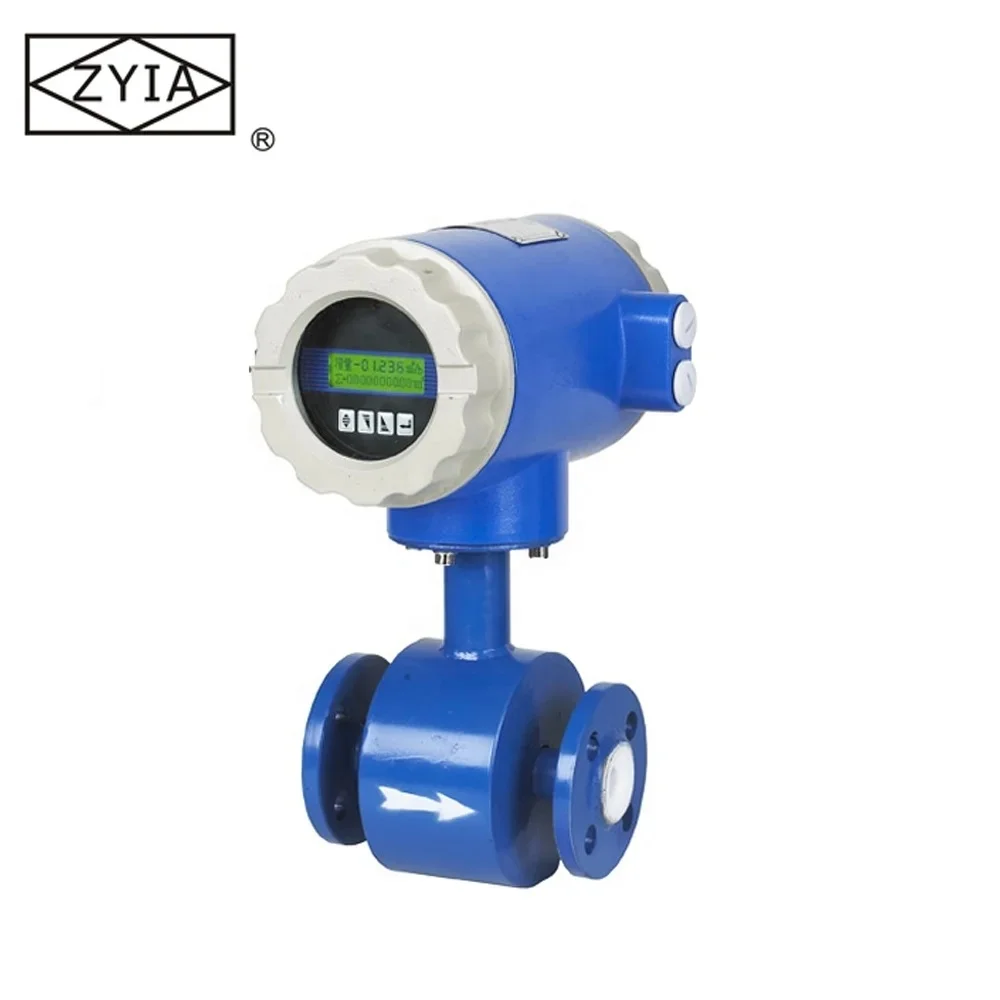

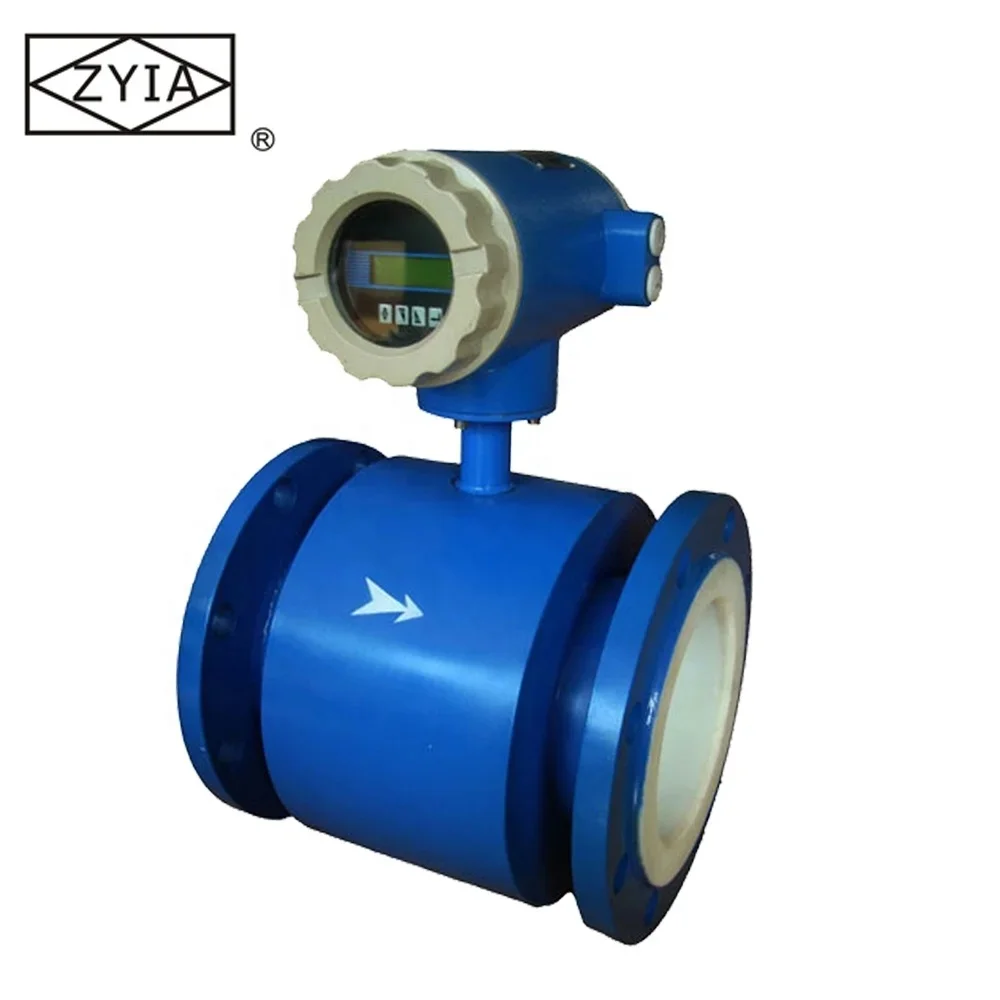

Pipe 50mm low cost stainless steel sanitary milk flow meter ,magnetic remote 485 flowmeter,liquid flow meter
- Category: >>>
- Supplier: Yuyao Kingtai Instrument Co. Ltd.
Share on (1601007575079):
Product Overview
Description
electromagnetic sewage flowmeter
LD intellegent electromagnetic flowmeter is a knd of bulk flow to measure the electric liquid,whose conductance exceeds 5uS/cm,it can be used to measure the general electric liquid such as water,slop,mine slurry as well as the flow of strong caustic liquid as strong acidic and strong alkaline and so on.
Features of electromagnetic flowmeter
1.There is no movable parts in the pipeline,unimpeded flow components,no pressure loss in measurement,not easy tostop up.
2.The measurement won't be effected by the density,temperature,pressure and electrical conductivity.
3.Corrosion resistance and wearability standard among other indexes are met via selecting different materials for lining and electrodes.
4.It is convenient to use and operate,high legible background and LCD show,with Chinese & English menu,and consumers can amend the process on line.
5.Have communciation agreements such as RS485,RS232,HART and MODBUS.
6.Programmable low frequent rectangle excitation,improving the stableness of flux,reducing the consuming of power.
7.Having the power-cut off protection and annunciator,it can set up the flow direction of liquid in sensor,therefore the installment of the sensor won't limited by the flow direction of liquid.
8.The product can not to measue the gas and no the electric conduction liquid
Main technical parameter
Nominal path series DN(mm)
Piped PTFE Lining:
10 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350 400 450 500 600
Piped rubber lining:
40 50 65 80 100 125 150 200 250 300 350 400 500 600 800 1000 1200
1.Flow direction:positive and negative net flow
2.Measure extention ratio:150:1
3.Repeating erro:±0.1% of the meterage
4.Accuracy grade :pipeline style: 0.5 1.0
5.The temperature of themeasured medium:
Ordinary rubber underlay:-20~+60
High temperature rubber underlay:-20~+90
Polythene underlay: -30~+100
High temperature underlay:-30~+180
6.Rating work pressure:
Pipeline style : DN10-65:≤2.5MPA
DN80-DN150:≤1.6MPA
DN200- DN 1200:≤1.0MPA

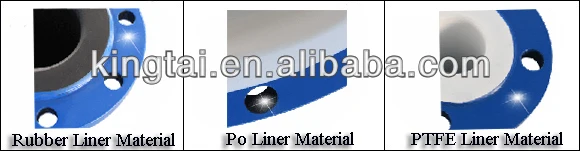

Liner material

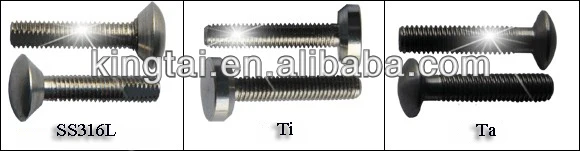

Electrode material
COPMANY INFORMATION
Yuyao Kingtai Instrument Co.,Ltd specializes in the research and development, manufacture. sales and services of industry instruments. our main products are flowmeter, pressure gauge and solenoid valve.we are one of the biggest manufaccturer of flowmeter in china.we have establish friendly and long term relationshs with famous corporation in the world.
We win our good repulation among customers, our goods passed though ISO9001:2008.We are committed to producing products with high quality and new technology to meet the demands of our customers.
We have a professional production team to ensure the quality and safety.adcanced equipment to make production more fast and efficient.
OUR SERVICE
1. Professional and patient pre-sale and after-sale service on our products;
2. Stable quality and reasonable price for you to gain long term cooperation;
3. OEM & ODM service for quantity orders;
4. Sample orders welcomed for quality test.
1.Why do you order from the KINGTAI?
The KINGTAI company can provide you competitive price.
2.What about the delivery time?
Honestly, it depends on the order quantity and the season you place the order .for bulk order which production lead time is within 1~3 weeks.Generally speaking, small QTY are in stock
3.What is your payment method?
T/T, Western Union, Moneygram, Paypal are available for us
4.Can you make my logo on product?
Of course! we are factory,we supply OEM ,You only need provide us your original logo file or clear picture, so we can make it.
5. How to delivery ?
Shipped by express for sample order and small order, express include DHL, UPS, TNT, EMS, etc. Shipped by sea or by air for bulk order.
6.What is your terms of delivery?
We accept EXW, FOB, CIF etc. You can choose the one which is the most convenient or cost effective for you.
