Fully Automatic Transformer Oil Filtration Machine 4000L

Product Overview

Description

Fully Automatic Transformer Oil Filtration Machine 4000L

Fully Automatic Transformer Oil Filtration Machine 4000L is mainly used to improve the properties of transformer oil for 66KV to 500KV power transmission project. It can remove trace water, gas, particulate matters etc. from the insulating oil effectively and rapidly so as to boost performance of transformers, circuit breakers, mutual inductors, cable and capacitors which has insulation system.  Transformer oil maintenance is the key to transformer reliability, performance and longevity. Your transformer’s insulating oil should be free from moisture, dissolved gases and particles that accumulate as the oil ages. Even some new oils may require treatment to limit these contents to acceptable levels.   We are a designing, engineering and manufacturing company capable of application customization for best solutions.



Features of Fully Automatic Transformer Oil Filtration Machine 4000L:

1. Used in the electric power system (66kV~500KV power transmission line).

2. Features include high working vacuum, fast oil filtering and sound oil protection.

3. Suitable for oil treatment, vacuum oil injection and cyclic hot oil drying in the installation and maintenance of large capacity transformers.



Specification of Fully Automatic Transformer Oil Filtration Machine 4000L:

Item	Parameter		Type Unit	ZJA1.8KY	ZJA3KY	ZJA6KY	ZJA9KY	ZJA12KY	ZJA18KY
Technical Parameter	Flow Rate		L/H	1800	3000	6000	9000	12000	18000
	Working Vacuity		Pa	≤80
	Working Pressure		Mpa	≤0.35
	Temperature Range		oC	45-65
	Power Supply			50Hz    380V    3-Phase 4-Wire  (or as requested)
	Total Power		KW	18+2.25	30+6	2X30+6.6	3X30+8.2	4X30+10	5X30+16.5
	Inlet/Outlet Diameter		mm	32 / 25	38 / 32	44 / 38	48 / 44	64 / 48	76 / 64
	Size	Length	mm	1200	1500	1870	1930	2160	2250
		Width	mm	950	1150	1250	1400	1600	1750
		Height	mm	1600	2000	2200	2460	2650	2650
	Weight		Kg	650	900	1200	1600	2200	3000
Oil Treatment Index	Breakdown Voltage		KV	70-75
	Water Content		ppm	3~5
	Gas Content		%	≤0.2
	Filtering Accuracy		µm	1~3

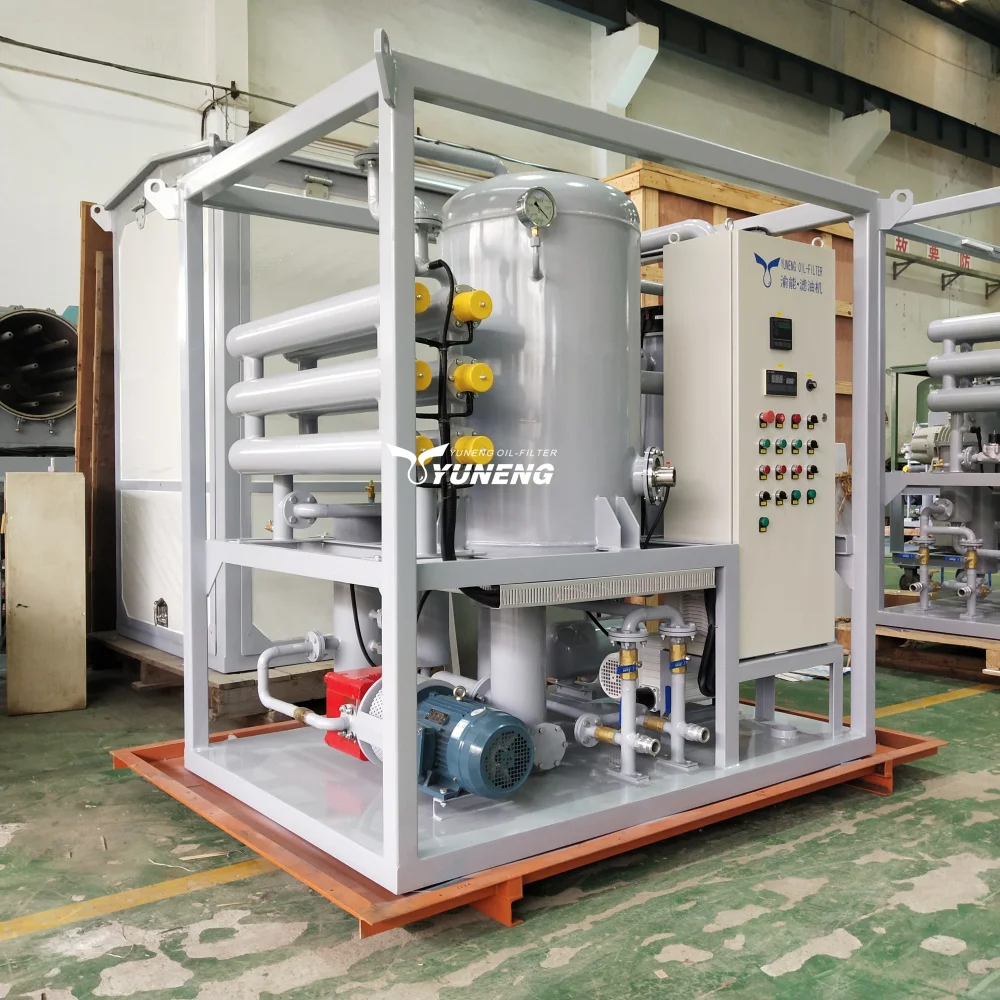

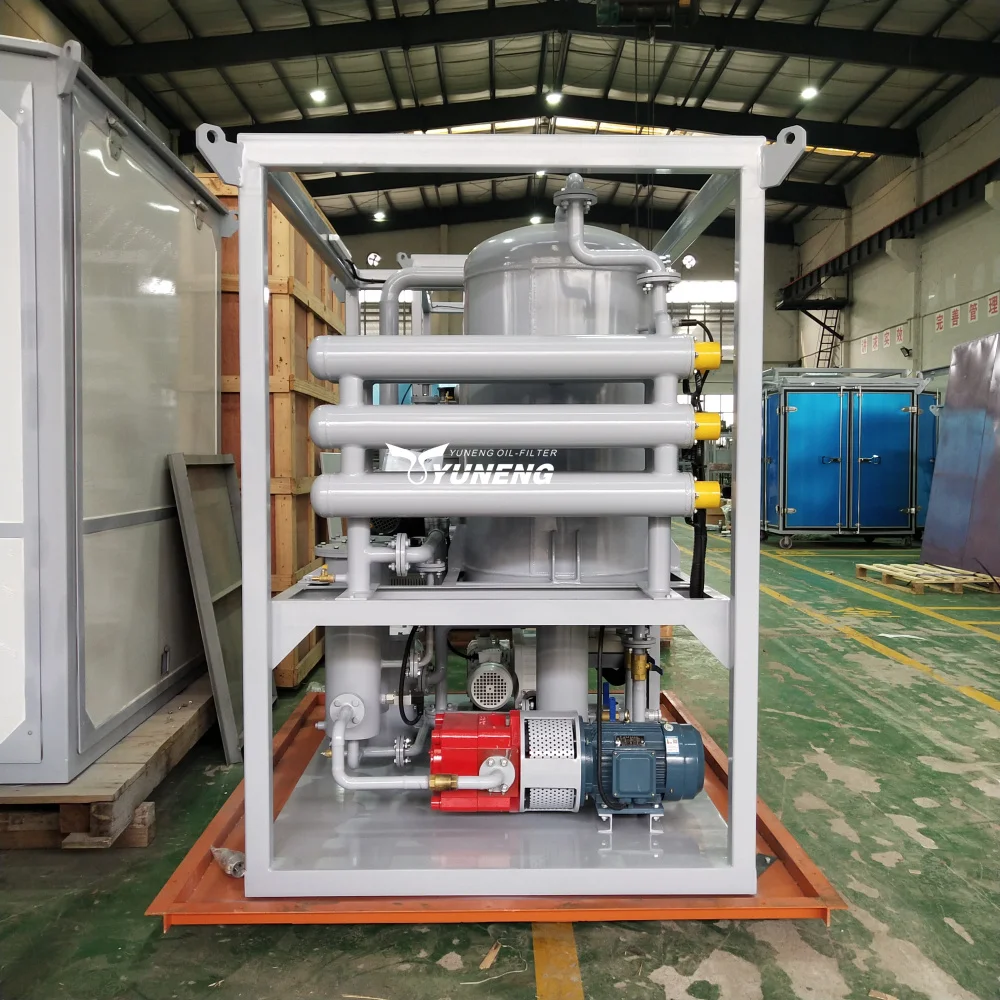

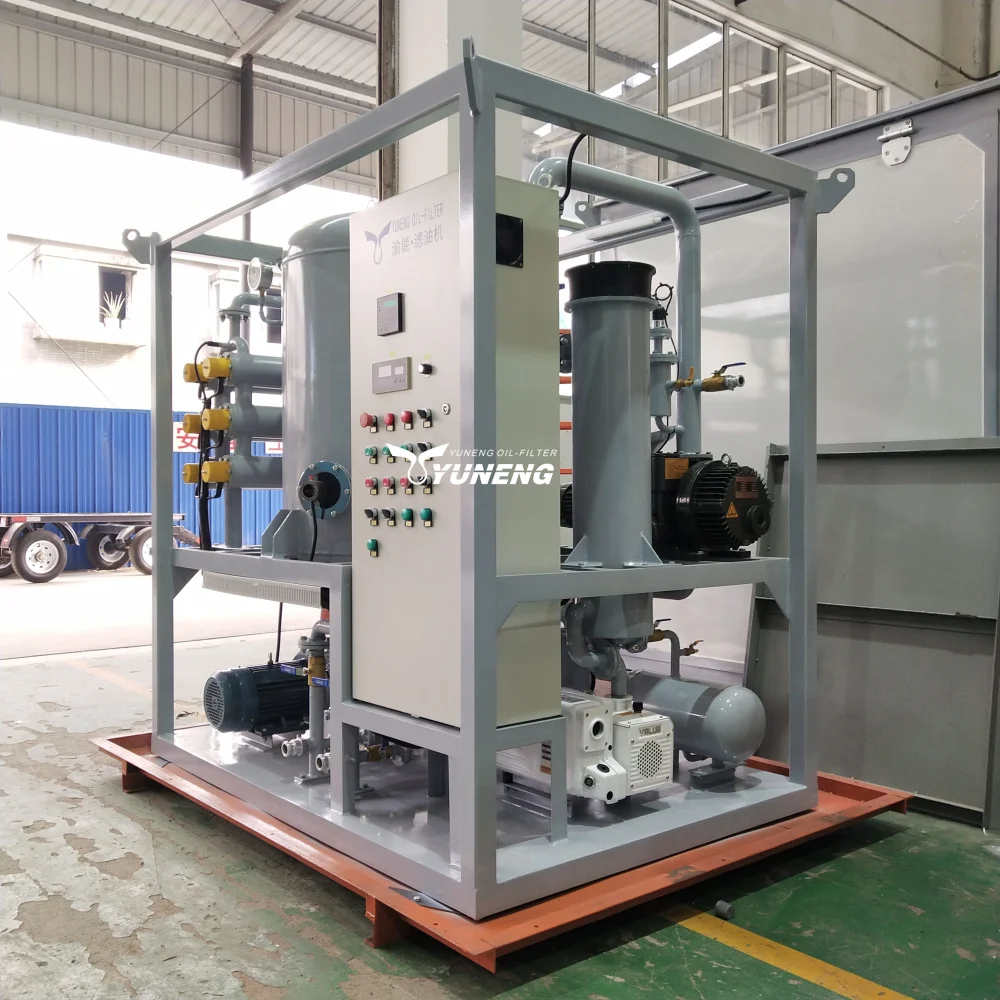

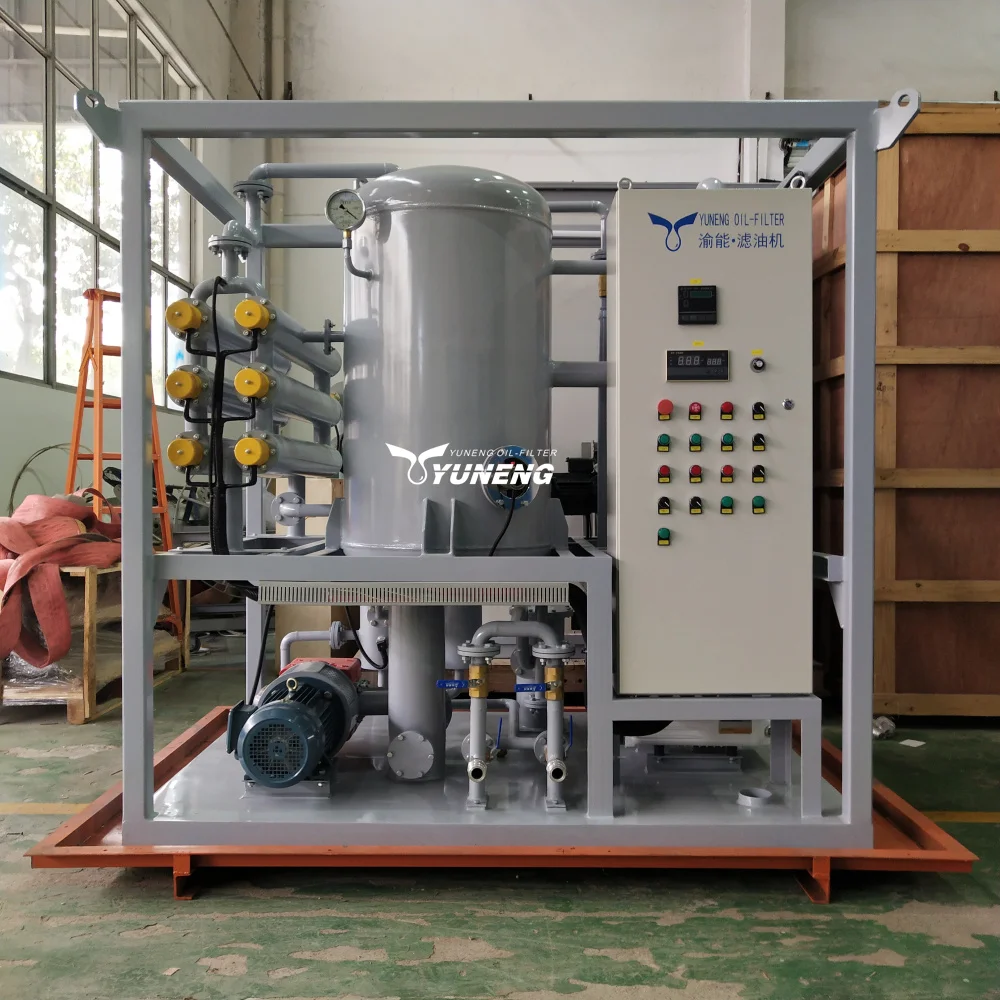

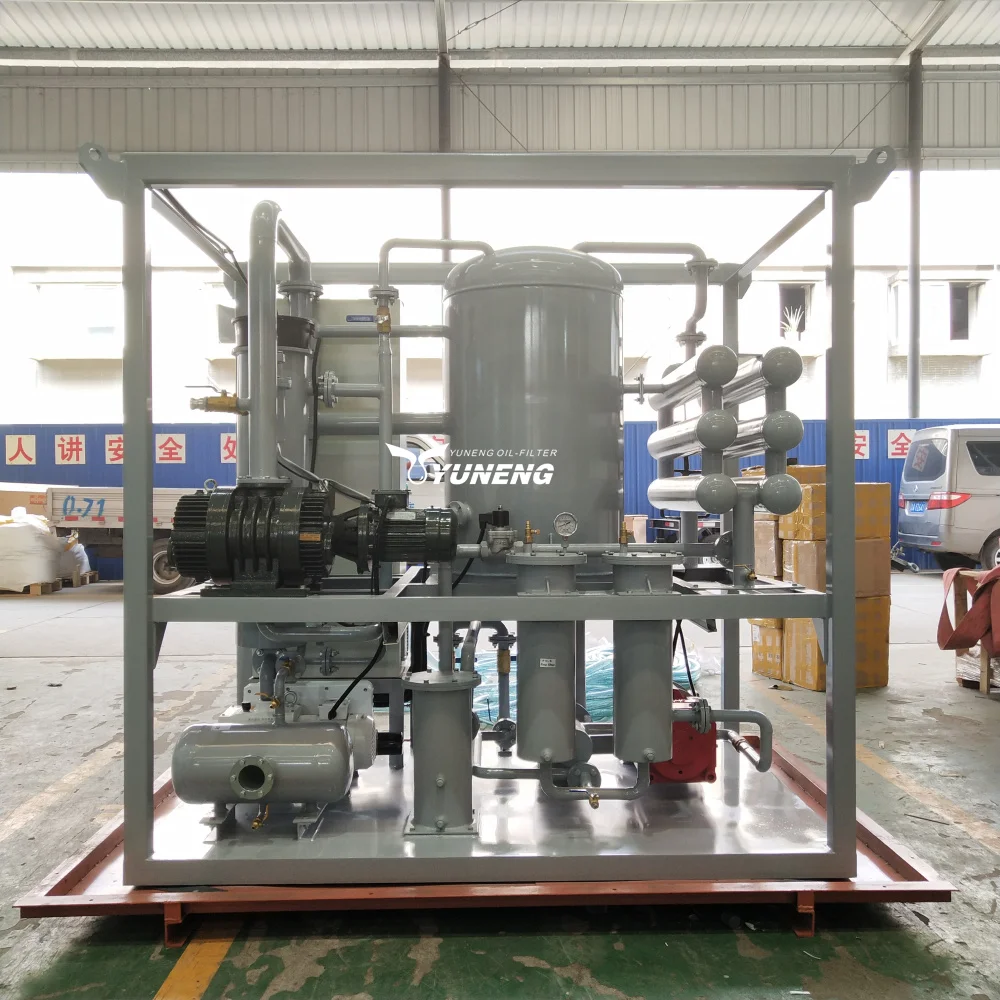

Photos of Fully Automatic Transformer Oil Filtration Machine 4000L:
