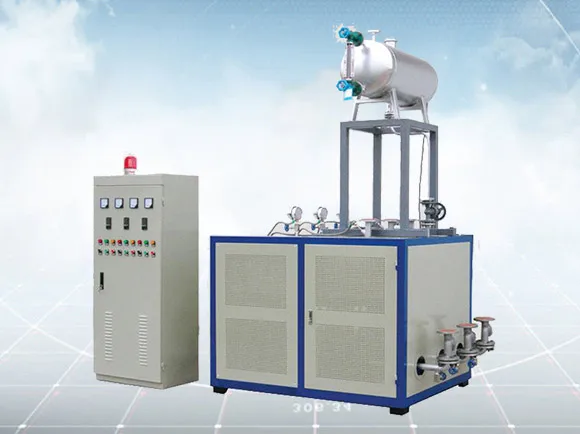

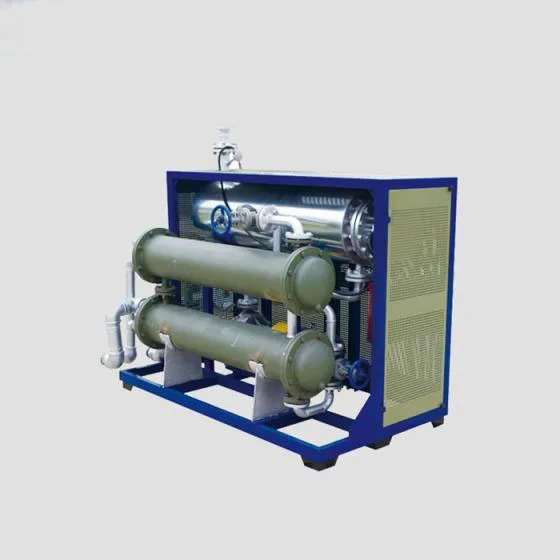

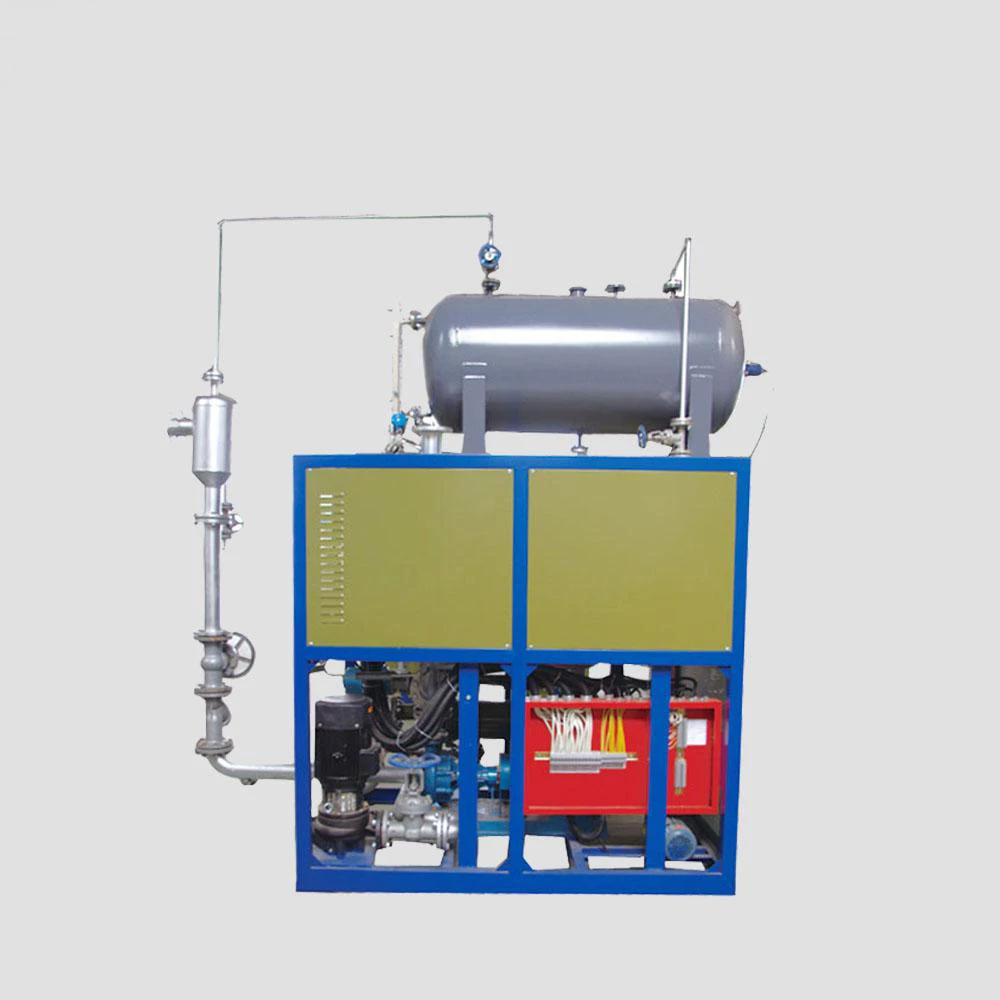

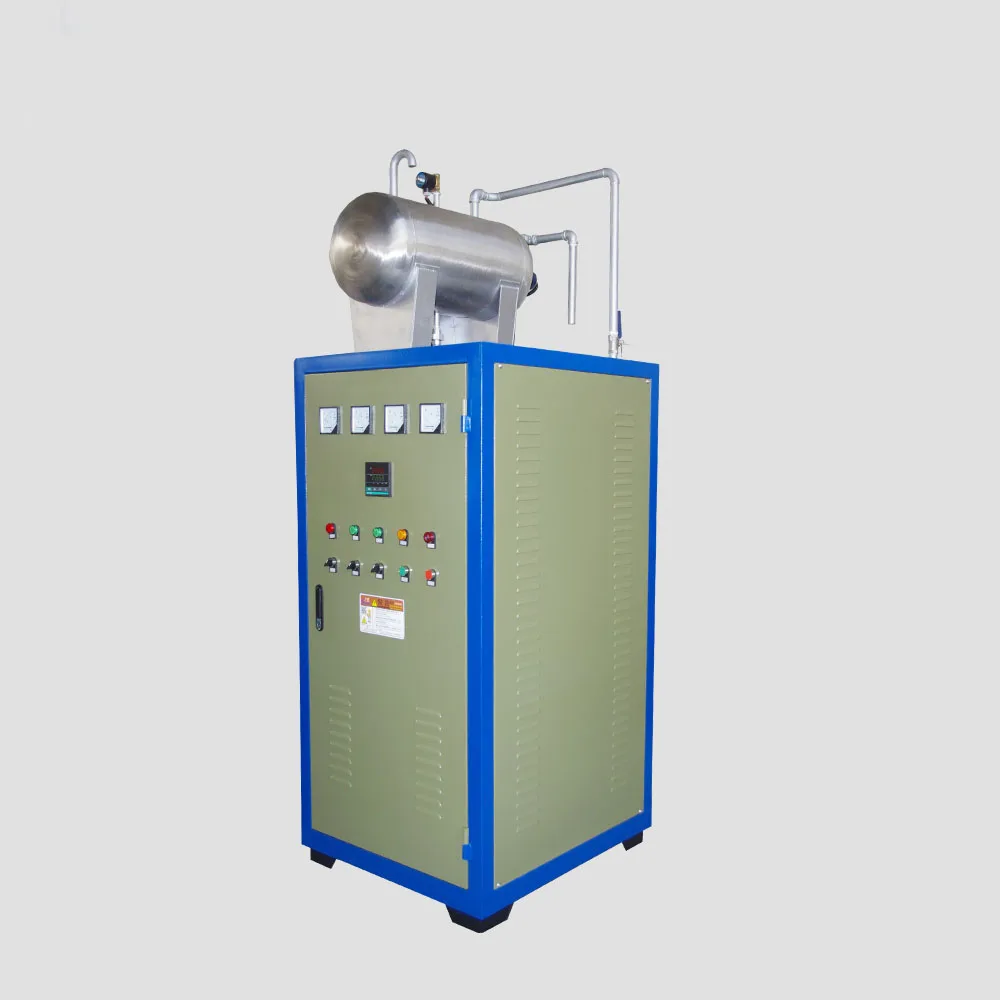

Vertical electric hot thermal oil boiler complete sets
- Category: >>>
- Supplier: Henan Yuanda Boiler Corporation Ltd
Share on (1601007587511):
Product Overview
Description
Product Description

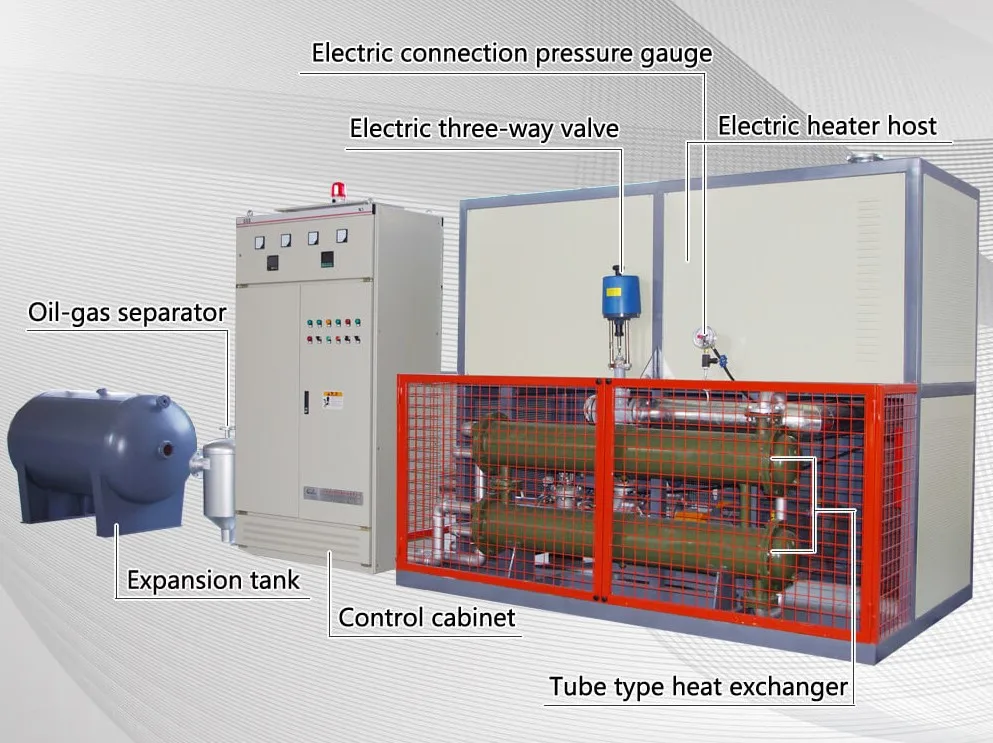

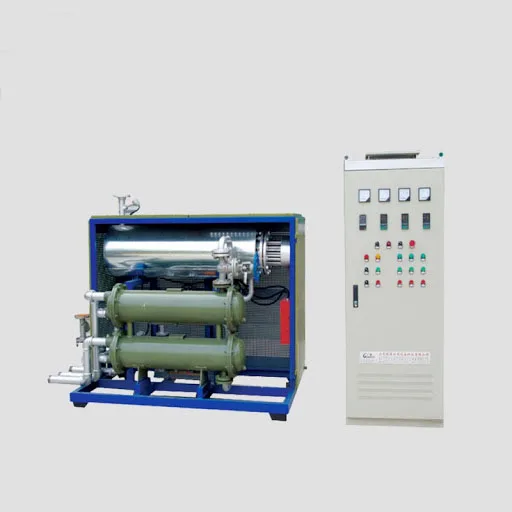

Electric heating thermal oil heater consists of the main parts (including electric heater host , high-temperature oil pump and Y-shape filter) expansion tank, control cabinet and piping. All the components of the system must work together in harmony for proper performance. Electricity as energy source, covert electric energy into heat energy through flanged immersion heater. The organic heat fluid (hot oil) as heat transfer medium is circulated in the whole system pushed by oil pump. And then the using-heat equipment takes heat from the hot oil, which returns back to the boiler after heat exchange. So it is an organic heat circulation system.

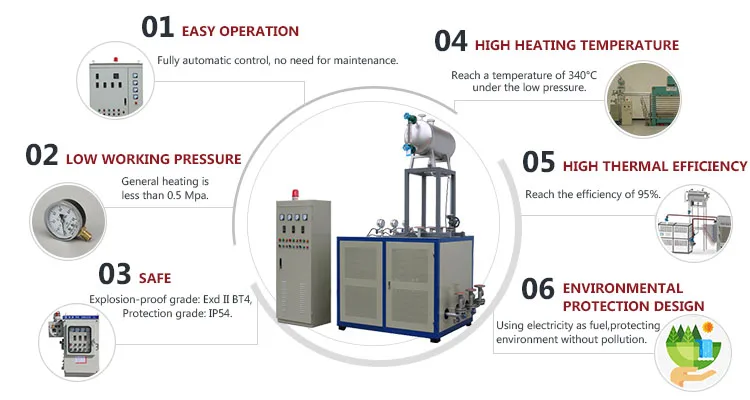

Advantages
Working Principle
It is a type of indirect heating in which thermal oil as a liquid phase heat transfer medium is heated and circulated to one or more heat energy users within a closed loop system. The electric heating tube is directly inserted into the thermal oil for direct heating. A circulating pump is used to create liquid-phase circulation of heat using equipment, the heat conduction oil will return to the heater via the circulating pump, again to absorb heat, and transfer the heat to the heat using equipment.This process is repeated again and again, realizing continuous transfer of heat. As a result, the temperature of objects being heated rises, and heating requirements are fulfilled.
Technical Parameter
Model | Heating Power | Pressure | Heater Oil Capacities | Operating Temperature | Thermal Efficiency | Weight | ||
kw | x10000kcal/h | Mpa | L | °C | kg | |||
GYD10 | 10 | 0.8 | 0.6 | 15 | Up to 340°C | More than 95% | 200 | |
GYD18 | 18 | 1.5 | 23 | 200 | ||||
GYD24 | 24 | 2 | 28 | 350 | ||||
GYD36 | 36 | 3 | 48 | 350 | ||||
GYD48 | 48 | 4 | 48 | 350 | ||||
GYD60 | 60 | 5 | 52 | 350 | ||||
GYD70 | 70 | 6 | 60 | 550 | ||||
GYD90 | 90 | 7.5 | 68 | 550 | ||||
GYD120 | 120 | 10 | 105 | 750 | ||||
GYD150 | 150 | 12.5 | 195 | 750 | ||||
GYD180 | 180 | 15 | 230 | 1200 | ||||
GYD240 | 240 | 20 | 260 | 1200 | ||||
GYD300 | 300 | 25 | 358 | 1750 | ||||
GYD500 | 500 | 40 | 510 | 1850 | ||||
GYD600 | 600 | 50 | 562 | 1950 | ||||
GYD700 | 700 | 60 | 638 | 2200 | ||||
... | ... | ... | ... | ... | ||||
GYD1400 | 1400 | 120 | 2100 | 6500 | ||||

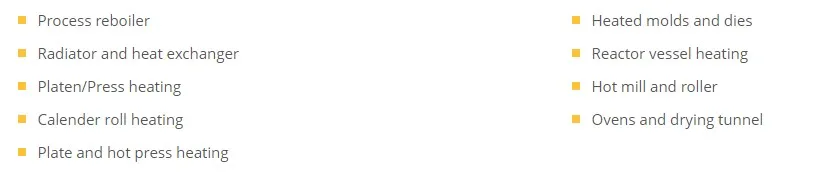

Application
Packing & Delivery

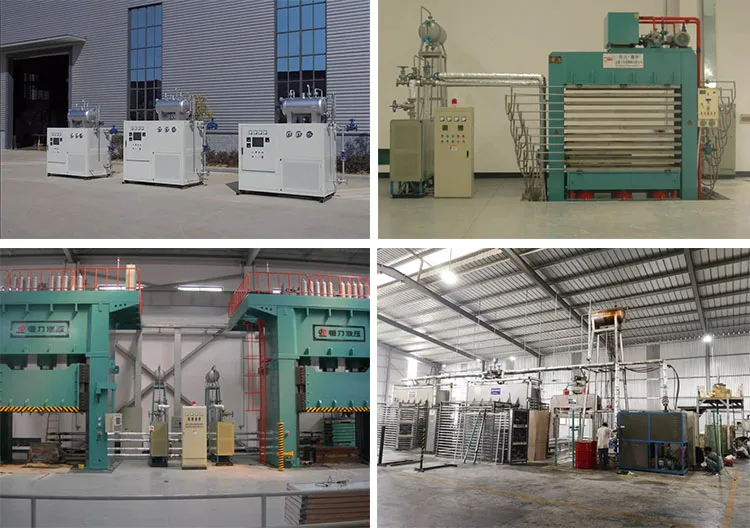

Typical Projects
Company Profile
1.Professional industrial boiler manufacturer from China since 1956.
2.Class A boiler manufacturer,ASME,CE,EAC,ISO certificates.
3.Export to 102 countries,more than 20,000 cases and 0 accidents.
4.Nearly 200 employees and 20 advanced engineers(The Father of China Boiler professor Zhiguang Li is our technical consultant).
5.Our company keep the business philosophy of "Quality Oriented,Sincerity Promoted" to create greater value for customers and make
greater contributions to the society.
2.Class A boiler manufacturer,ASME,CE,EAC,ISO certificates.
3.Export to 102 countries,more than 20,000 cases and 0 accidents.
4.Nearly 200 employees and 20 advanced engineers(The Father of China Boiler professor Zhiguang Li is our technical consultant).
5.Our company keep the business philosophy of "Quality Oriented,Sincerity Promoted" to create greater value for customers and make
greater contributions to the society.
Customer Visit
Our Exhibition
Our Service
Contact us
Dear friend,you can contact us through my contact information or send us inquiry directly. Click "Send Inquiry" or "Chat Now"!
