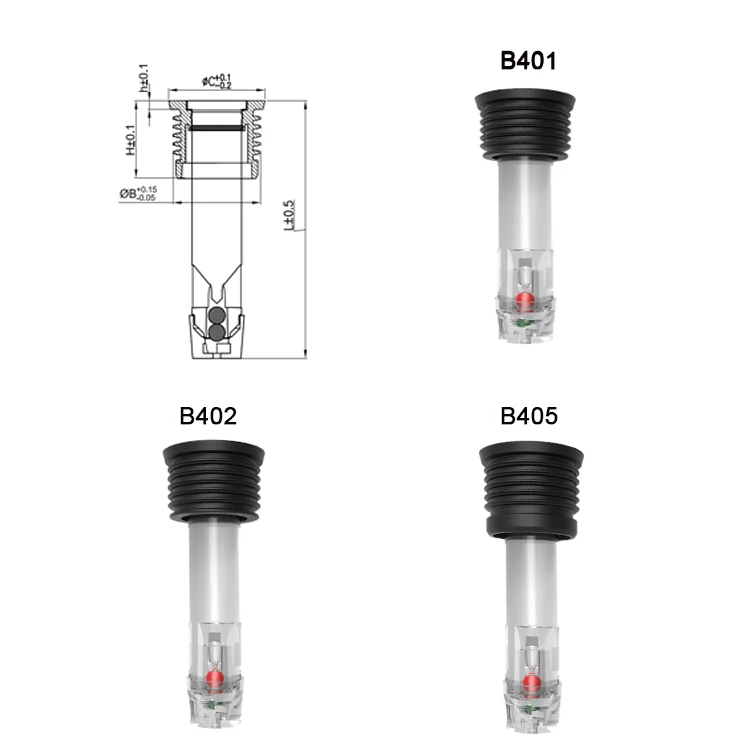

Description | ltem NO | Specifications(mm) | ||||||||
Head Diameter (C) | Head Thickness (h) | Sealing Diameter (B) | Sealing Length (H) | Lenght (L) | ||||||
Push-in type with 2 balls | B401 | φ21.3 | 2 | φ19.16 | 14.5 | 35/40/45/50/53/55/58/60/65/68/70/80 | ||||
B402 | φ22.9 | 2 | φ20.77 | 14.5 | ||||||
B405 | φ22.9 | 2 | φ20.77 | 18 | ||||||
Push-in type with 2 balls transparent | B501 | φ21.3 | 2 | φ19.35 | 15.8 | 58 | ||||
