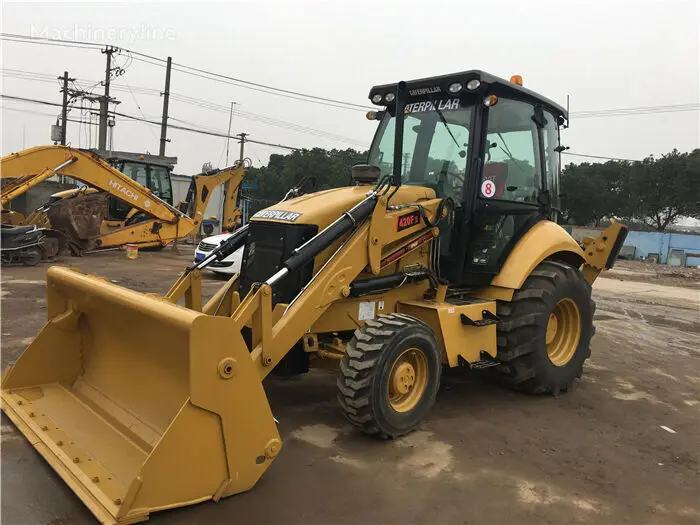

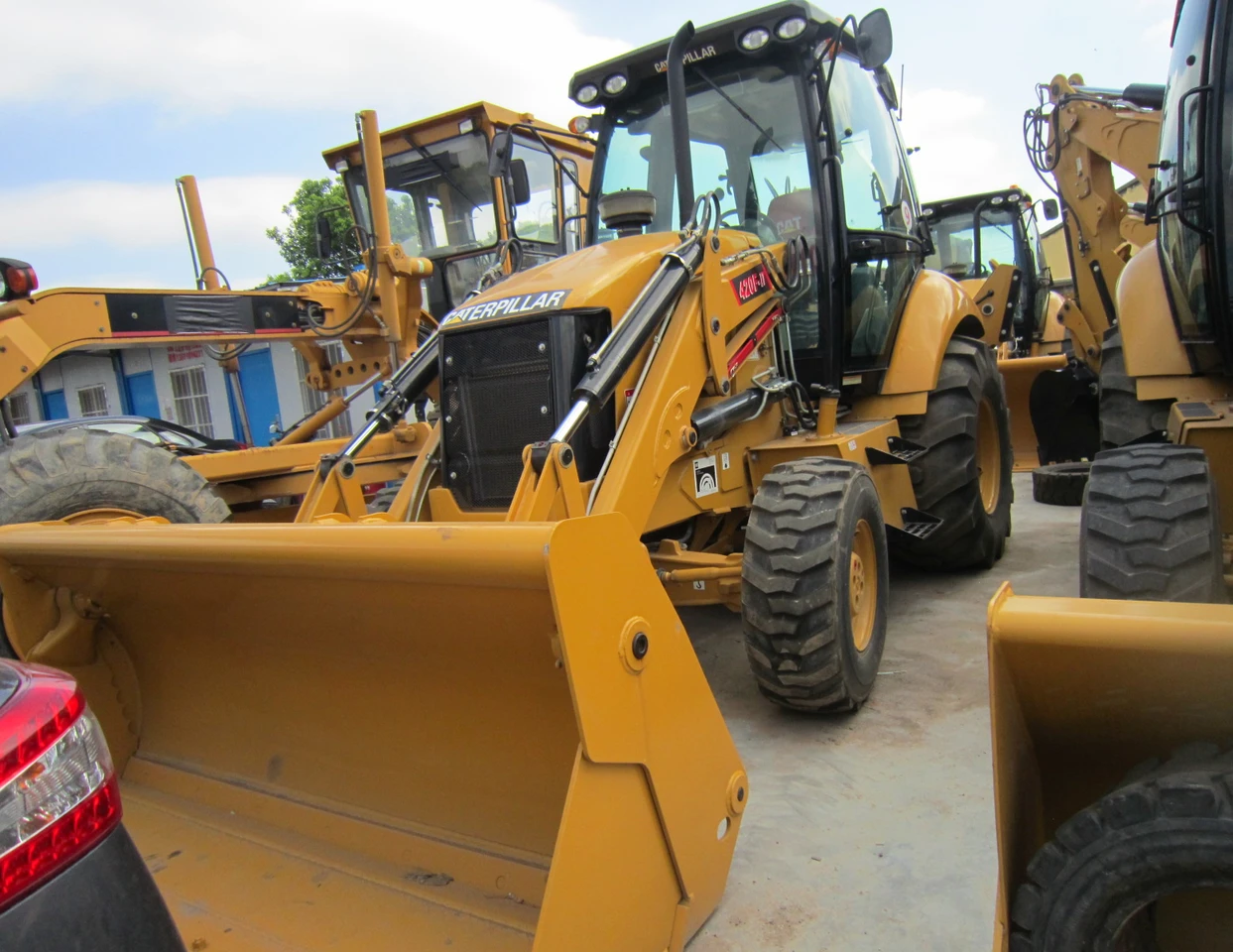

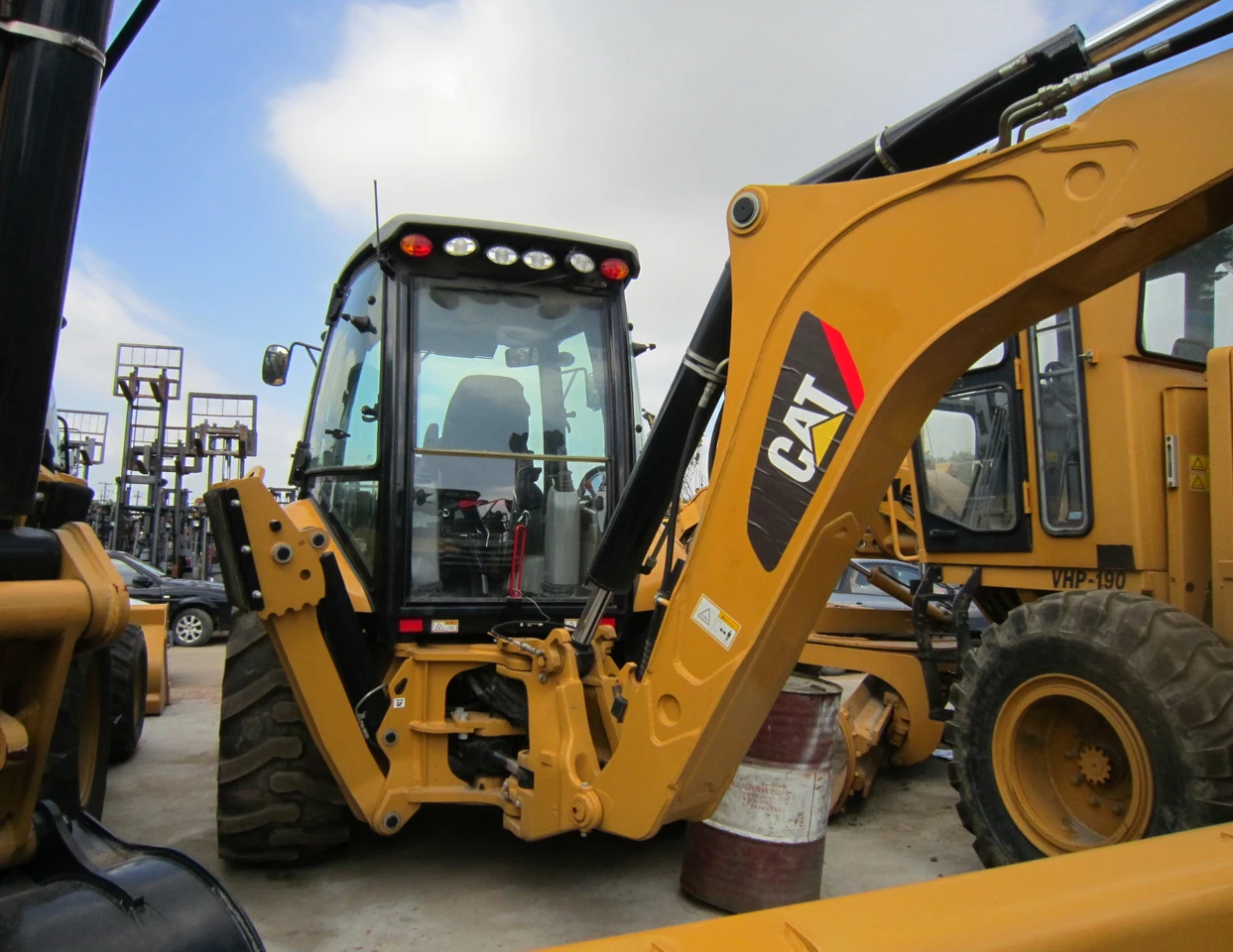

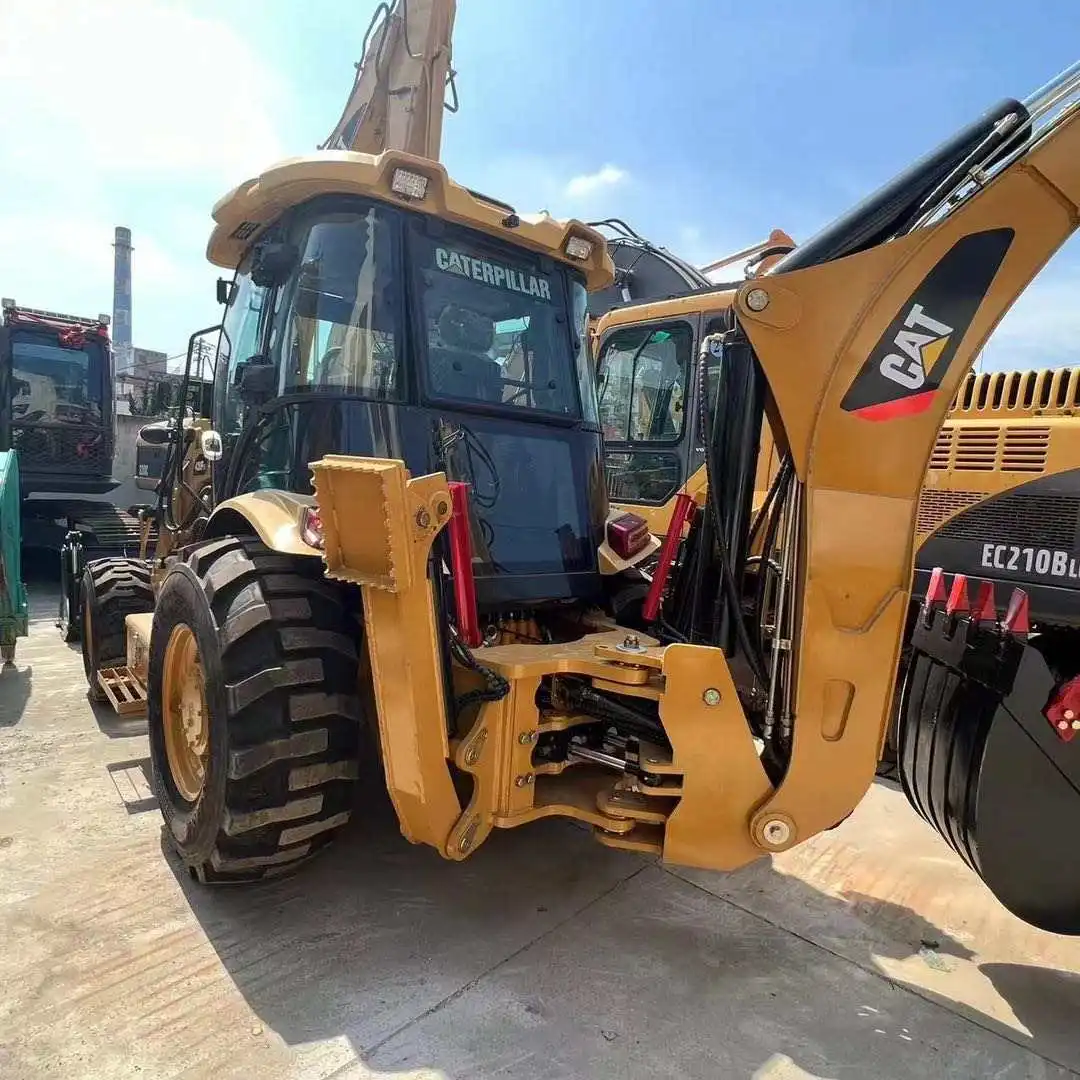

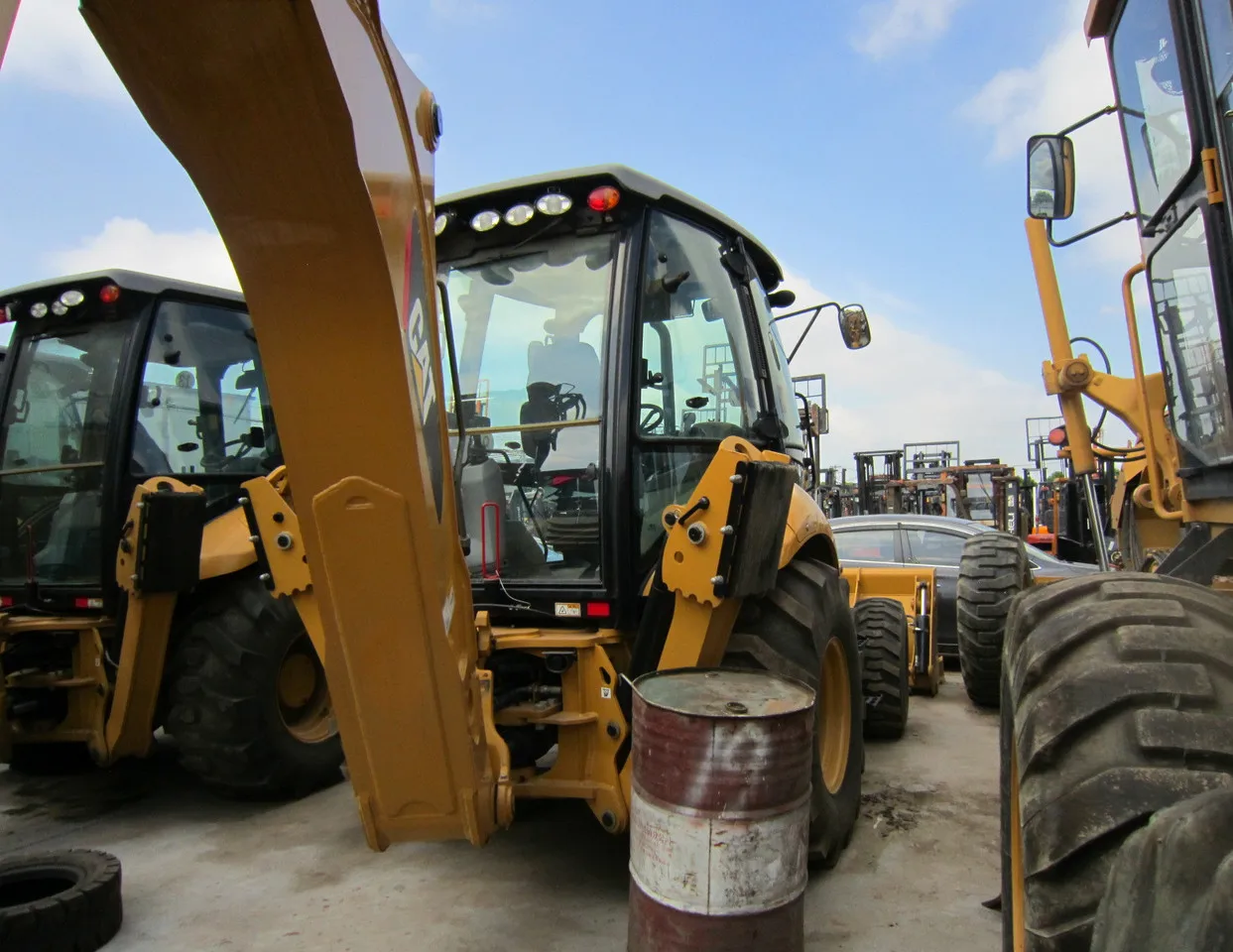

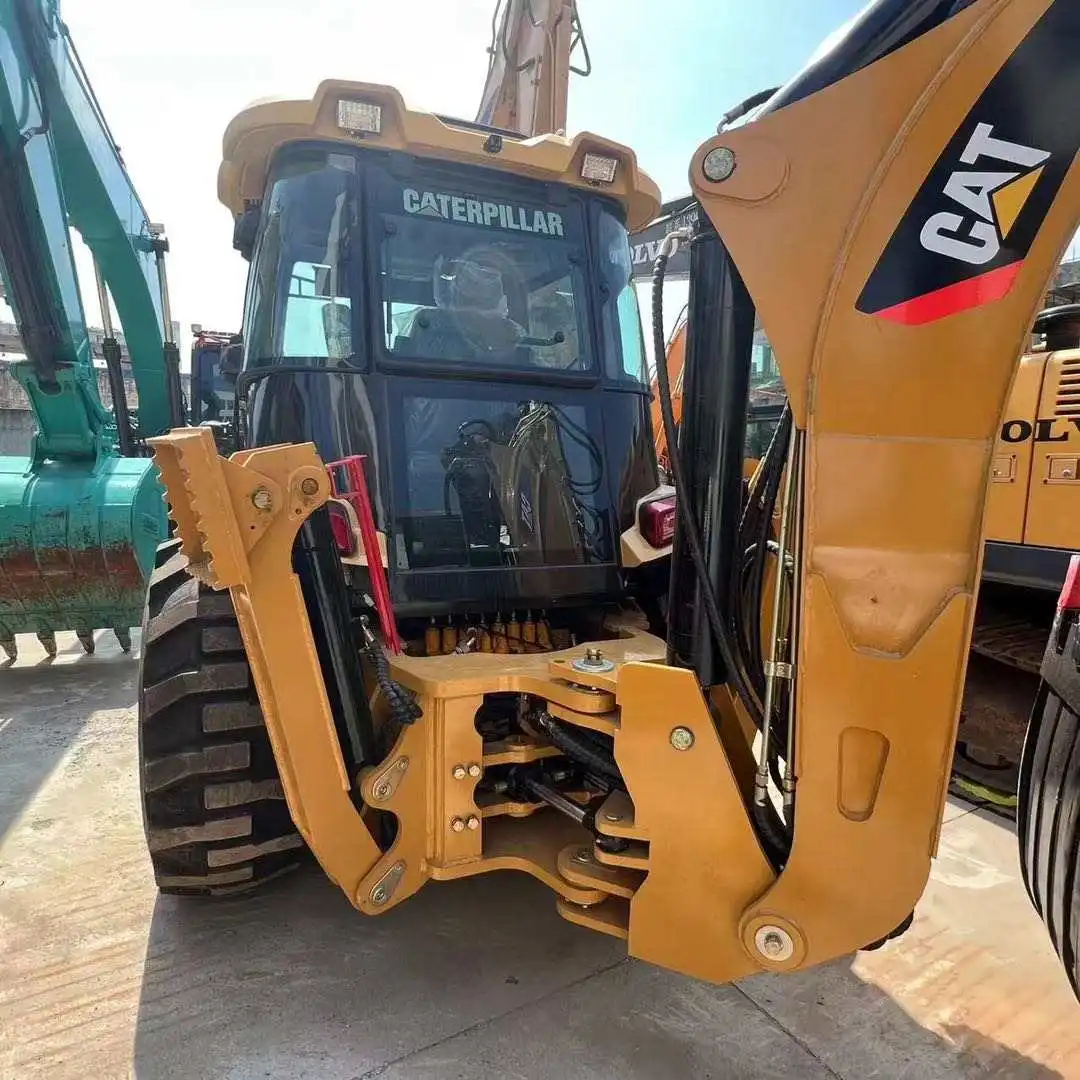

Used Cat 420F Caterpillar Backhoe Loader for Sale

Product Overview

Description

OVERVIEW

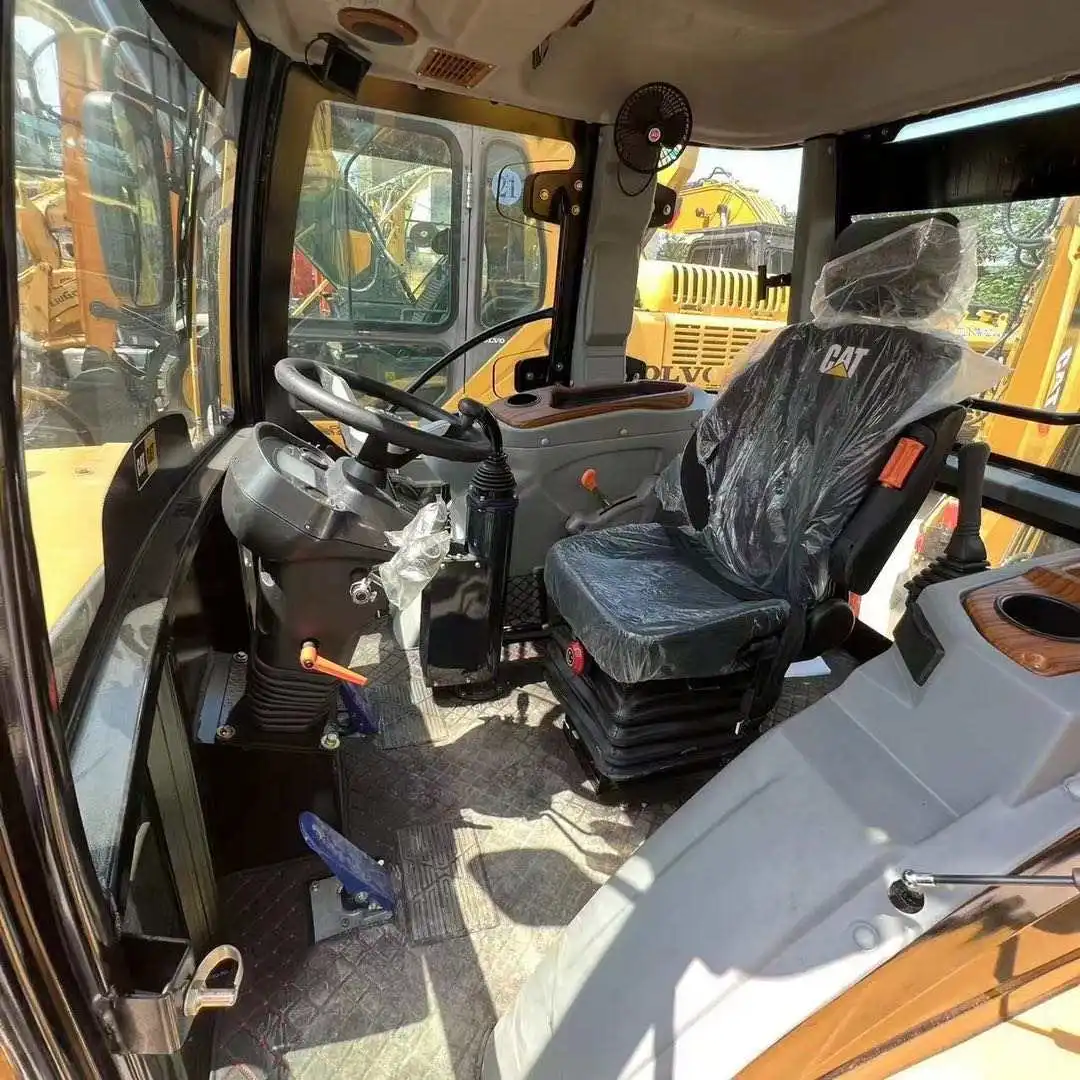

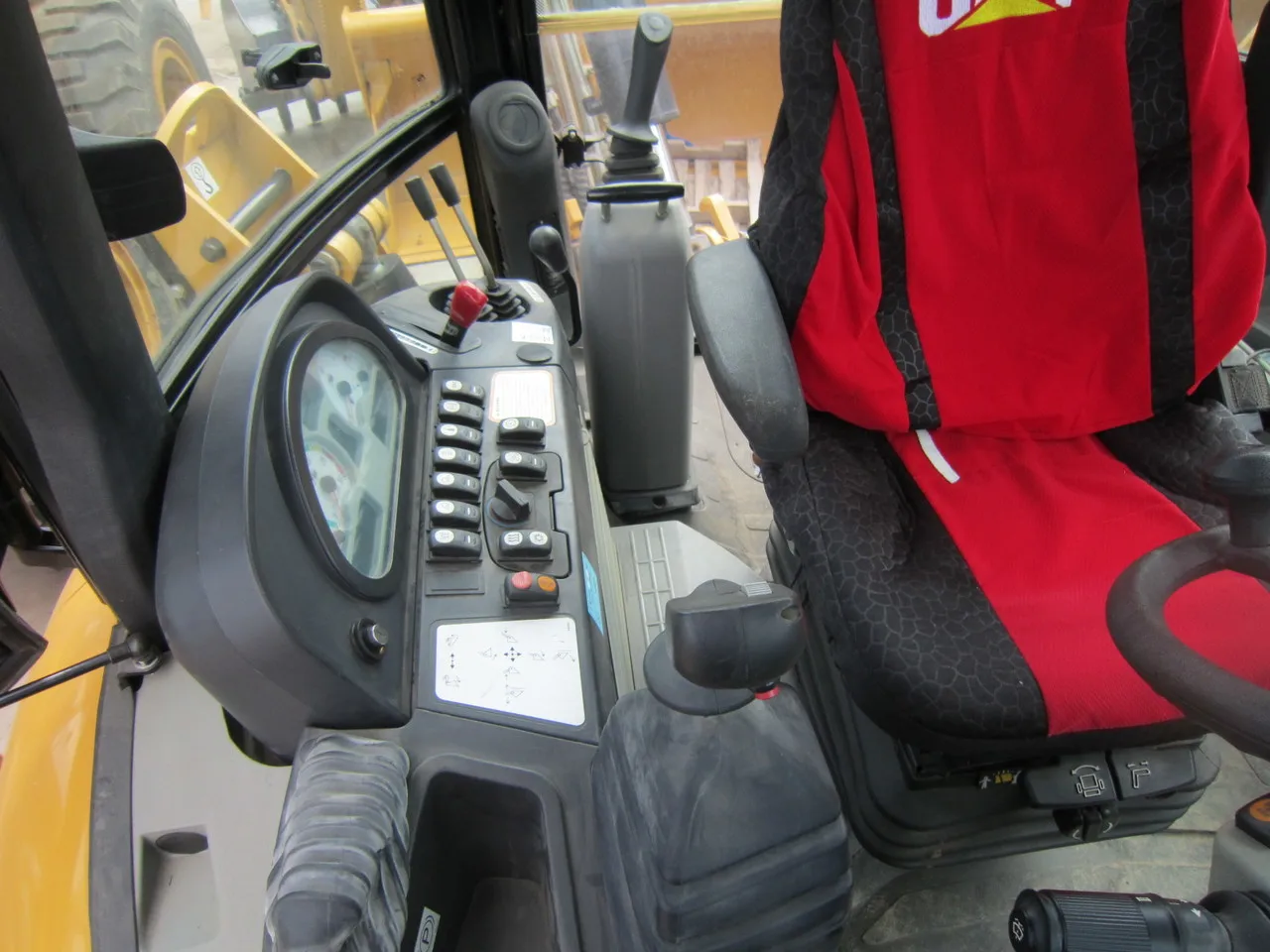

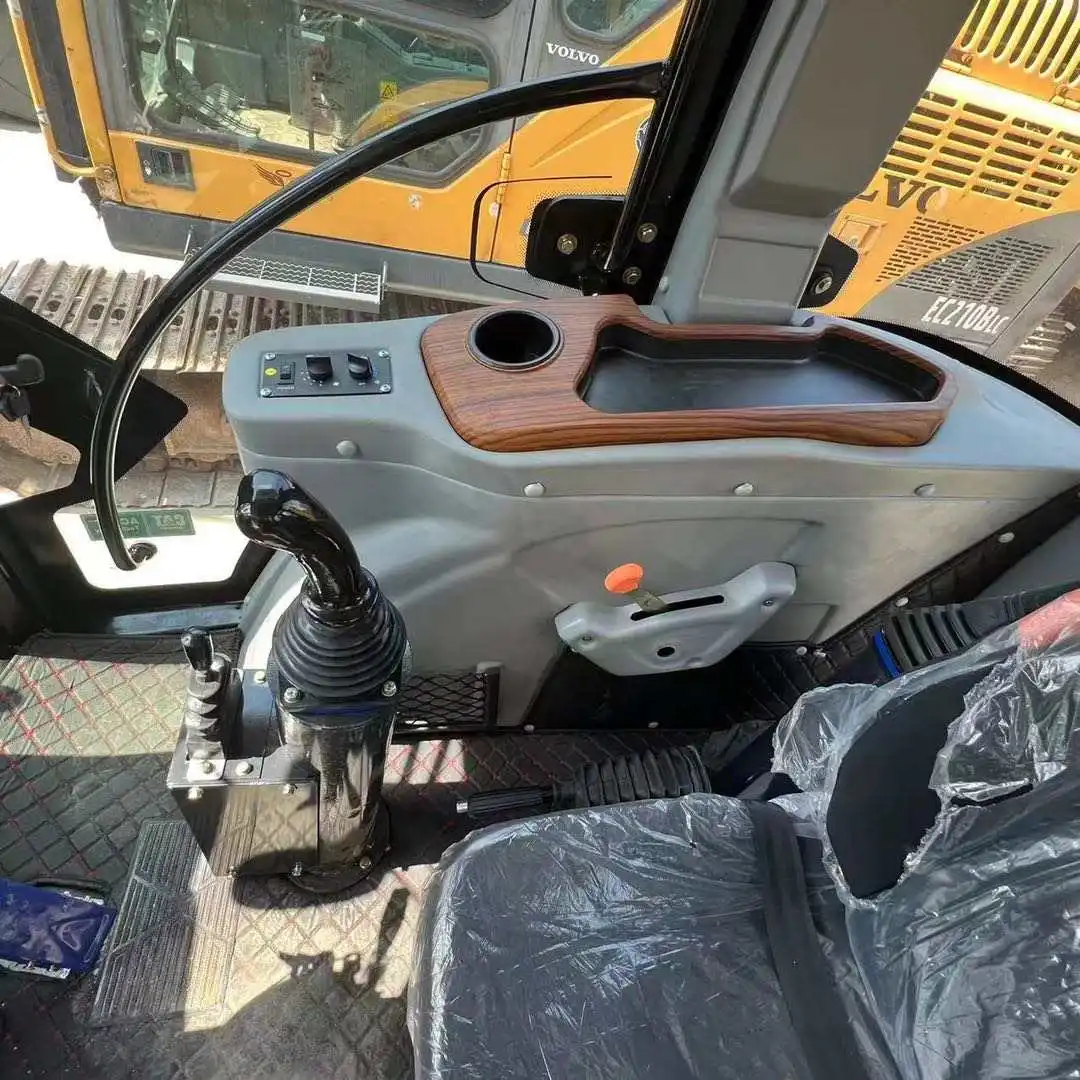

Experience the Backhoe Loader designed around customer feedback. The Cat 420F2 Backhoe Loader puts all the machine controls at the operator's fingertips. Operate all auxiliary controls with thumb rollers. Move from job site to job site quickly and smoothly with the additional 6th gear on the autoshift transmission and optional lock-up torque converter.
ENGINE

Net Power – SAE J1349
93.00 hp
Engine Model
Cat® C4.4 ACERT™
Gross Power – SAE J1995
102.00 hp
Gross Power – ISO 14396
100.00 hp
Rated Net Power @ 2,200 rpm – SAE J1349
93.00 hp
Rated Net Power @ 2,200 rpm – ISO 9249
94.00 hp
Rated Net Power - 2,200 rpm - EEC 80/1269
94.00 HP
Net Peak Power - 1,800 rpm - SAE J1349
105.00 HP
Net Peak Power - 1,800 rpm - ISO 9249
106.00 HP
Net Peak Power - 1,800 rpm - EEC 80/1269
106.00 HP
Bore
4.13 in
Stroke
5.00 in
Displacement
268.00 in3
Net Torque Rise - 1,400 rpm - SAE J1349
46%

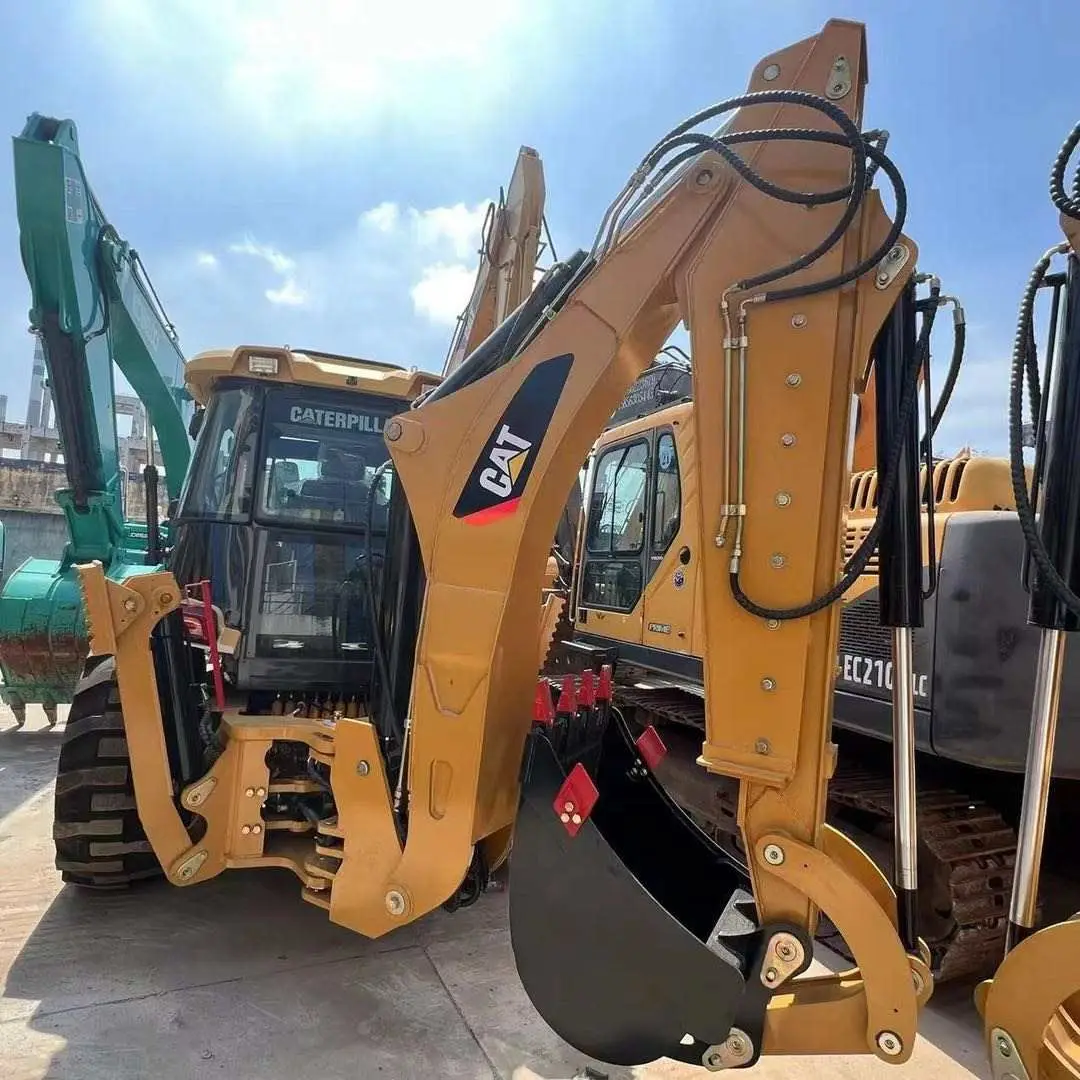

BACKHOE

Dig Depth - Standard
14.30 ft
WEIGHTS

Operating Weight – Maximum
24251.00 lb
Operating Weight - Minimum
17033.00 lb
Operating Weight - Maximum - ROPS Capacity
24251.00 lb
Auto-Shift Transmission
525.00 lb
AutoShift Transmission
525.00 lb
Ride Control
31.00 lb
Air Conditioning
93.00 lb
Four Wheel Drive
364.00 lb
Air Conditioning
93.00 lb
Four Wheel Drive
364.00 lb
Extendible Stick
672.00 lb
Extendible Stick
672.00 lb
Counterweights (Option 2)
530.00 lb
HYDRAULIC SYSTEM

Type
Closed Center
Pump Type
Variable Flow, Axial Piston
Pump Capacity @ 2,200 rpm
43.00 gal/min
System Pressure - Backhoe
3600.00 psi
System Pressure - Loader
3600.00 psi
TRANSMISSION

Power Shuttle Transmission - Forward 1st
3.40 mile/h
Power Shuttle Transmission - Forward 2nd
5.60 mile/h
Power Shuttle Transmission - Forward 3rd
13.00 mile/h
Power Shuttle Transmission - Forward 4th
25.00 mile/h
Power Shuttle Transmission - Reverse 1st
3.40 mile/h
Power Shuttle Transmission - Reverse 2nd
5.60 mile/h
Power Shuttle Transmission - Reverse 3rd
13.00 mile/h
Power Shuttle Transmission - Reverse 4th
25.00 mile/h
Auto-Shift - Optional - Forward 1st
3.60 mile/h
Auto-Shift - Optional - Forward 2nd
5.70 mile/h
Auto-Shift - Optional - Forward 3rd
7.00 mile/h
Auto-Shift - Optional - Forward 4th
12.00 mile/h
Auto-Shift - Optional - Forward 5th
16.00 mile/h
Auto-Shift - Optional - Forward 6th
25.00 mile/h
Auto-Shift - Optional - Reverse 1st
3.60 mile/h
Auto-Shift - Optional - Reverse 2nd
7.60 mile/h
AXLE RATINGS

Front Axle (2WD) - Static
50582.00 lb
Front Axle (2WD) - Dynamic
20233.00 lb
Front Axle, 4WD – Static
50582.00 lb
Front Axle (4WD) - Dynamic
20233.00 lb
Rear Axle – Static
50582.00 lb
Rear Axle - Dynamic
20233.00 lb
