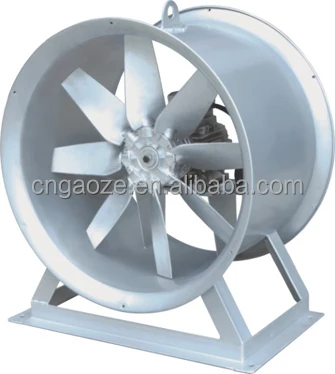

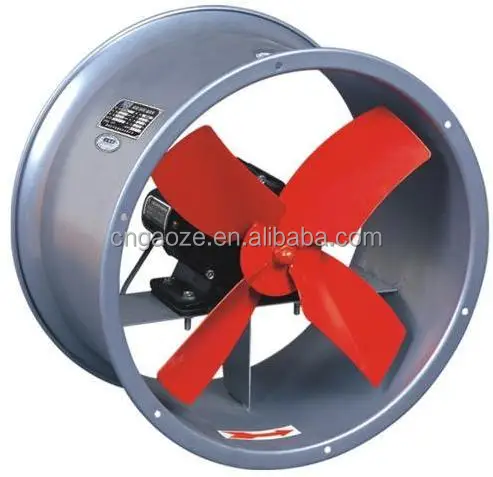

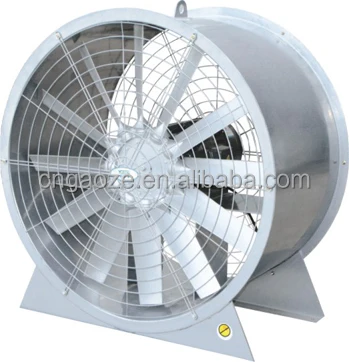

YT pedestal axial scythe fan ventilation exhaust extractor air mover cooling circulation fan blower
- Category: >>>
- Supplier: Guangdong Gaoze Ventilation Equipment Co. Ltd.
Share on (1601008040972):
Product Overview
Description

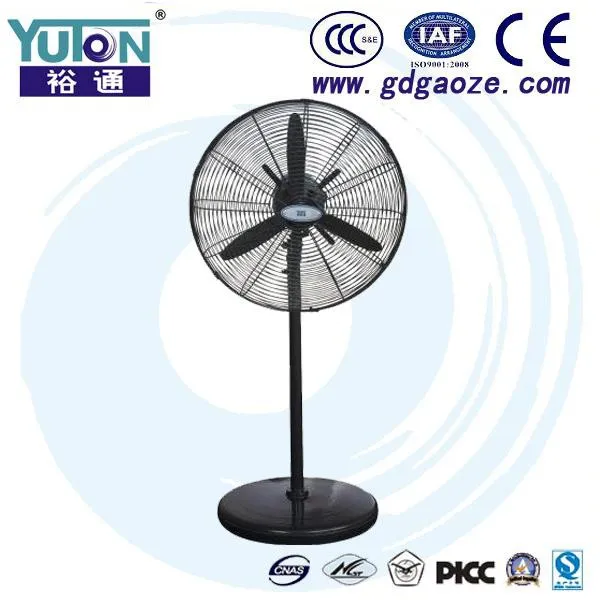

Free Standing Mounting and Stainless Steel Blade Material Industrial Fan
1.Typical Feature and Application
Optimized structure blade |
Large air volume and low noise |
Motor with a long service life |
Three speed, oscillation angle adjustable, high density wire mesh, two or three blades for choice |
Suitable for heat-stroke prevention and cooing-down, ventilation and improving the environment in mineral factories, workshop and warehouse, etc |
18,20,26,30 inch, 4 different size |
2. Performance Range
Fan Type | Powerful Industrial Fan |
Certificate | CE,CCC |
Electricity Current Type | AC(Alternating Current) |
Voltage | 220V/380V |
Frequency | 50HZ |
Power | 0.12KW-0.26KW |
Speed | 6900-18000RPM |
Air Volume | 1800m³/h up to 65950 m³/h |
Static Pressure | 56Pa up to 73Pa |
Motor | Standard Motor |
3.Composition
Fan Housing | fan housing, fan casing, Double flanged casing manufactured with mild steel or galvanized sheet steel. Casing covers the overall length of motor and impeller. It is welded with mild steel plate with connecting flanges at both ends. Casing can also provided with foot mounting arrangement to install fan on the ground. |
Impeller | the punch forming blades are made of aluminum or galvanized steel. |
Motor | Standard Motor, cast Iron with pure copper |
4.Fan Operation
Before set up the fan, check gap sizes of all parts of the fan to make sure the rotating parts will not hit the fixed parts. |
When the fan is rotating, check the temperature of the bearing after the impellers reach normal speed. If there is no special request for the temperature of the bearing, it can not higher than ambient temperature 40 °c |
If the fan has very severe shock, hitting ,and bearing temperature rise rapidly, please stop the fan right away. |
5.Fan Certificate and Quality Control
By our efforts, our company Gaoze was selected as the member of China General Machinery Industry Association Ventilation Fan Branch. Our products enjoy good reputation among our customers . Our Products were awarded as "Brand-name and High Quality Products" by "China Quality Evaluation Center" &"Guangdong Branch of Social Servey Institute China"; Furthermore, a number of products are applied patents, which are up to the advanced standard. We are "Guangdong Private Scientific and Technological Enterprise" and past the "National Industrial Products License Certificate". Energy saving axial duct fan and multi-blade centrifugal fan developed by our company obtained the standard certification, most of our products past the certificate of "CCC" and "CE". We are fully implementing ISO 9001:2008 Quality System. |
6.Fan Maintain
Periodically clean the inner dust, dirt and other impurities |
Periodically check the fan to avoid rusting |
Change the lubricating oil after opening the fan .The lubricating oil shall be changed according to the actual situation. |
7.Technical Specification
Model (No.) | Size | Voltage | Power | Revolution | Air Flow | Noise | Volume | G.W |
(V) | (W) | (rpm) | (m3/h) | dB(A) | (CBM) | (KG/PCS) | ||
YT-75 | 750mm (30") | 220/50Hz | 260 | 1450 | 18000 | 73 | 0.135 | 24.7 |
380/50Hz | 260 | 1450 | 18000 | 73 | 0.135 | 24.7 | ||
YT-65 | 650mm (26") | 220/50Hz | 230 | 1450 | 13800 | 70 | 0.12 | 23.5 |
380/50Hz | 230 | 1450 | 13800 | 70 | 0.12 | 23.5 | ||
YT-50 | 500mm (20") | 220/50Hz | 160 | 1450 | 7800 | 62 | 0.104 | 21.4 |
380/50Hz | 160 | 1450 | 7800 | 62 | 0.104 | 21.4 | ||
YT-45 | 450mm (18") | 220/50Hz | 160 | 1450 | 6900 | 62 | 0.104 | 21.4 |
380/50Hz | 160 | 1450 | 6900 | 62 | 0.104 | 21.4 |
8.Packing Detail
Bubble Packing: a cost-effective packing method, it is suggested when order is one full container |
Carton Packing: standard packing ,it is suggested when order is one full container |

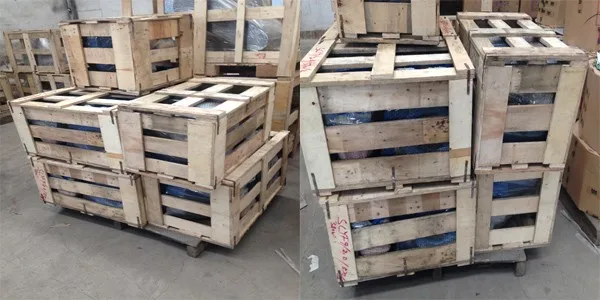

Wooden pallet: more safe packing, it is suggested when order is not enough one full container |
9.Company Introduction:
Brand Name "YUTON","YUFENG" series ventilation products manufacturer-Guangdong Gaoze Ventilation Equipment Co. ltd is located in the prosperous centre of "Pearl River Delta" we are a professional manufacturer in all kinds of ventilation products with strong strength in ventilation products development, production, testing and marketing. We also can provide full services to design, manufacturing, processing, installing and maintaining all kinds of non standard and customized ventilation fans to customers. |
Please kindly help us collect below information before you send inquiry:
air volume required ? (CFM or m³/h) |
static pressure required?(Pa) |
What is the working condition of the fan ? |
