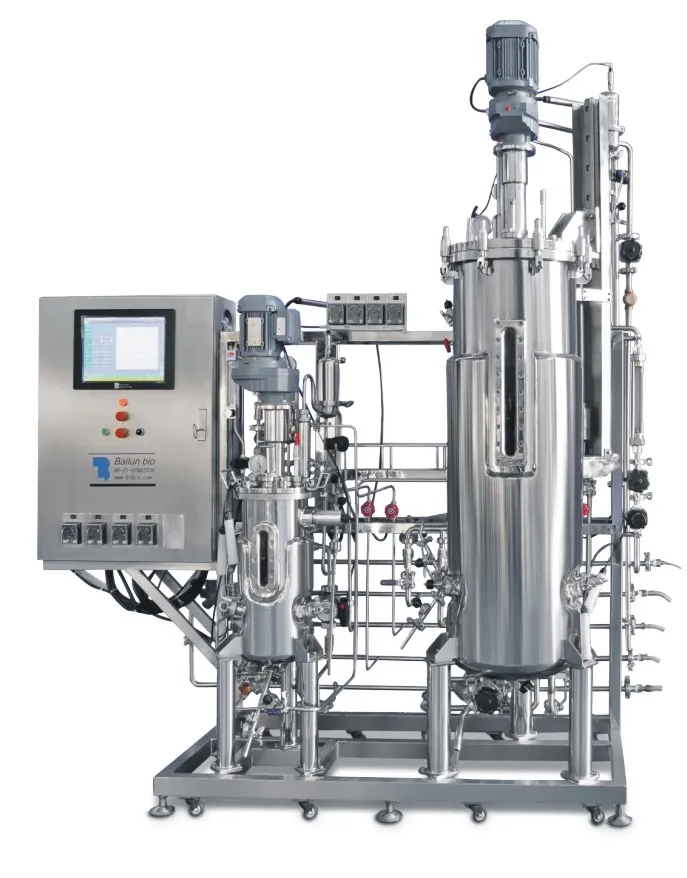

Wholesale popular 15 100L stainless steel fermentor BLBIO SJA model which clean in place (CIP) by spray ball
- Category: >>>
- Supplier: Shanghai Biochemical Co. Ltd.
Share on (1601008058567):
Product Overview
Description
Parameter | Description |
Total volume | 5L,10L,15L,20L,30L,50L,100L,200L,500L,1000L, 5KL, 50KL, 200KL etc. |
Working volume | 30%~70% |
Tank | Jacket tank, made by SS316 and SS304, tank design pressure 0.3Mpa, jacket design pressure 0.35Mpa, polishing 0.4-0.6um, ratio of diameter and height is 1:2.2-2.5 |
Stirring system | Mechanical drive on the top/bottom or Magnetic drive on the top, 3pcs height adjustable six-blade paddle Stir speed: 50~1000rpm/50-400rpm |
Sterilization | Sterilize in place(SIP), auto control by program |
Clean | Clean in place (CIP) by spray ball |
Gas control | Control by rotor meter, air flow 1 vvm |
Feeding | Automatically feeding by peristaltic pump |
Anti-foam control | Automatically add antifoam by peristaltic pump |
Temperature control | Auto-control, electric heating range: water source add 5℃ to 70℃ |
PH control | PH 2.00-12.00±0.1, auto-control adding acid/base by peristaltic pump, pH sensor from Hamilton/Mettler, Switzerland. |
Do control | 0-150±3% displaying precision 0.1%, DO sensor from Hamilton/Mettler, Switzerland. DO coupling with agitation, oxygen. |
Sampling | Sampling valve, can sterilization separately, manual |
Harvest | Zero dead zone bottom valve(Gemu/Burket,Germany), can sterilization separately, manual/auto |
Lid lift system | 30L-500L have lid lift system, 700-1000L have human hole. |
Pressure | Auto control, BD Germany pressure transmitter |
Exhaust | Have condenser before exhaust, control by diagram valve / Proportional control valve. |
Control parameters | 10 or 15 inch touch screen , Siemens PLC with control parameters (stirring, pH, DO, temperature, feeding, alarm, gas etc.), data analysis, data record, data output, language(RU/EN/CN) and other customized functions |
Optional configuration | Remote control, Mass flow meter(auto control gas), O2/N2/CO2, gas flow 2vvm, gas(CO2) exhaust analysis, Level sensor, Turbidity(OD) sensor, ORP sensor, Weight system, Live cell sensor(Biomass), Printing, Siemens touch screen, Double mechanical seal, 4-Valves-group for feeding, Bottom valve auto discharge, ASME certificate, CSA certificate, Batch culture, Seed transfer, etc. |
Q:Are you factory or trading company?
A:We are a factory.
Q:What's the MQQ?
A:1 unit.
Q:Do you offer overseas service?
A:Yes,We are dispatch engineer to overseas.
Q:Can we visiting your factory?
A:Yes,warmly welcome.
Q:How about your delivery time?
A:1 week to 3 months.Depend on the size and quantity.
A:We are a factory.
Q:What's the MQQ?
A:1 unit.
Q:Do you offer overseas service?
A:Yes,We are dispatch engineer to overseas.
Q:Can we visiting your factory?
A:Yes,warmly welcome.
Q:How about your delivery time?
A:1 week to 3 months.Depend on the size and quantity.
