1600x3000 laser cutter for fabric roller blind fabrics

Product Overview

Description

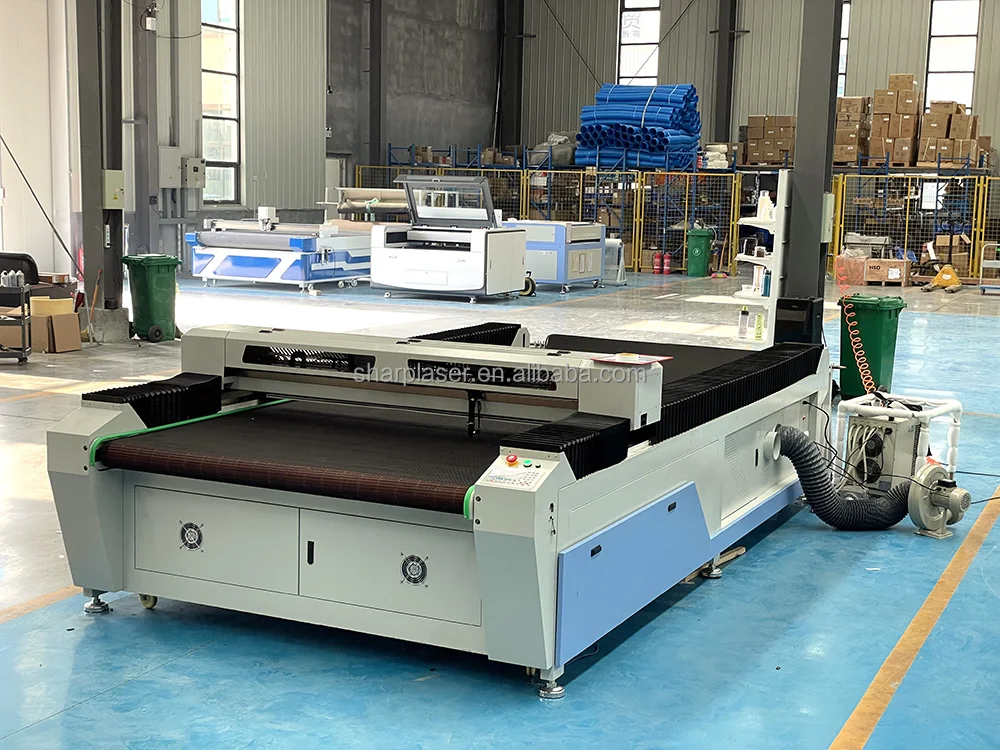

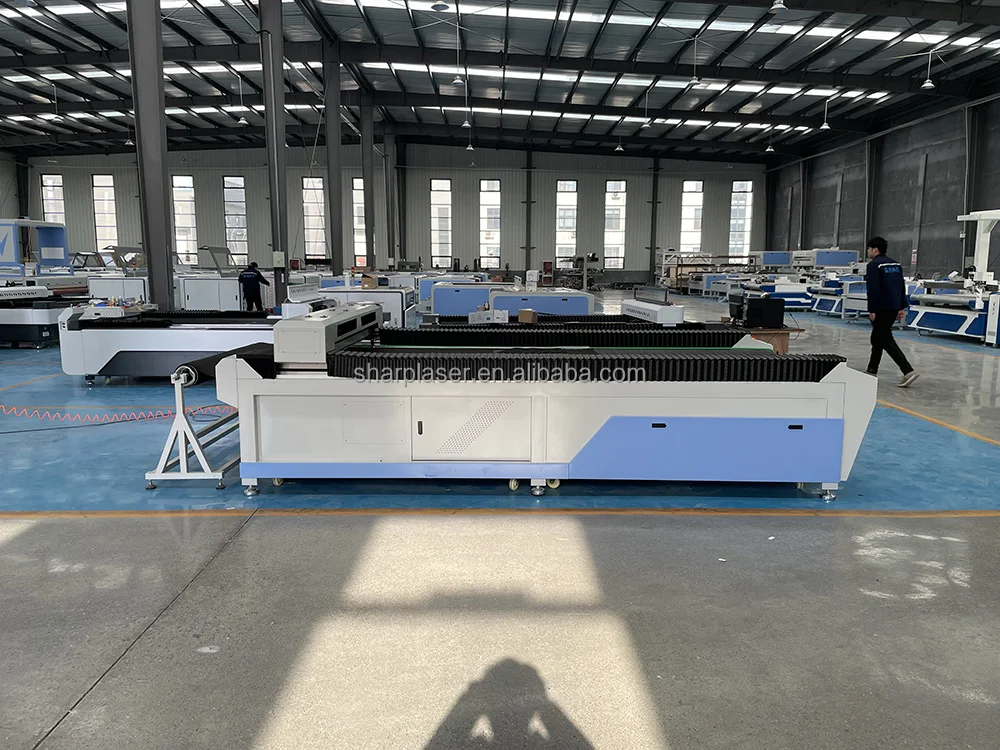

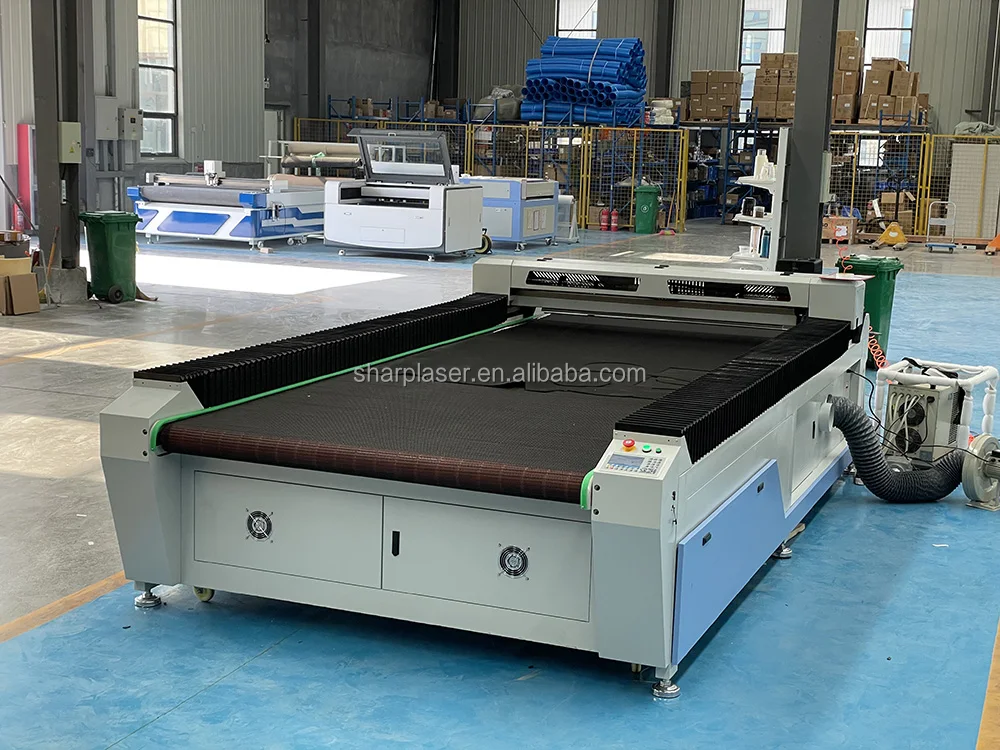

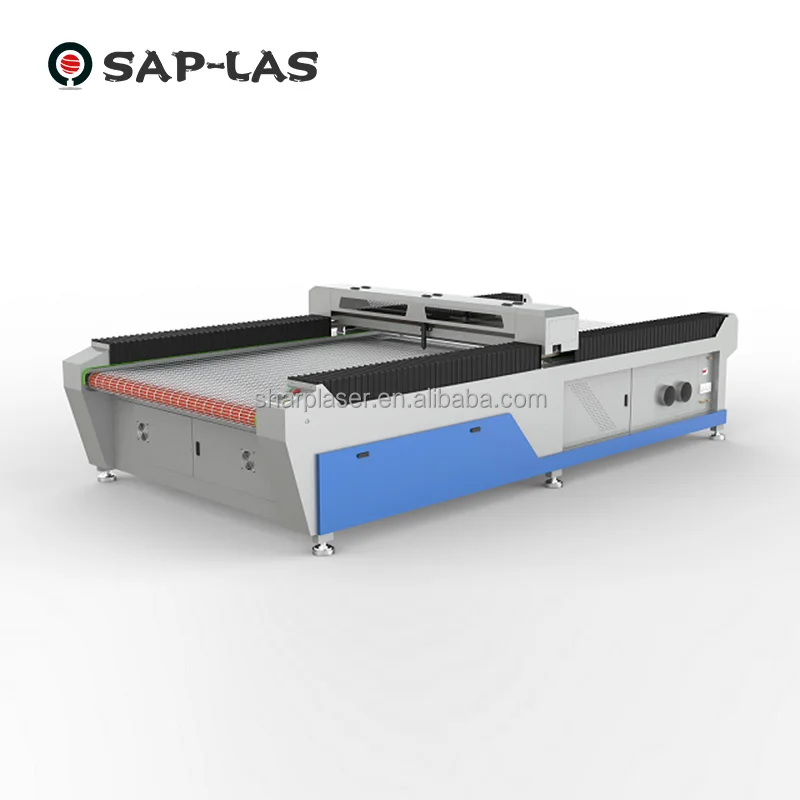

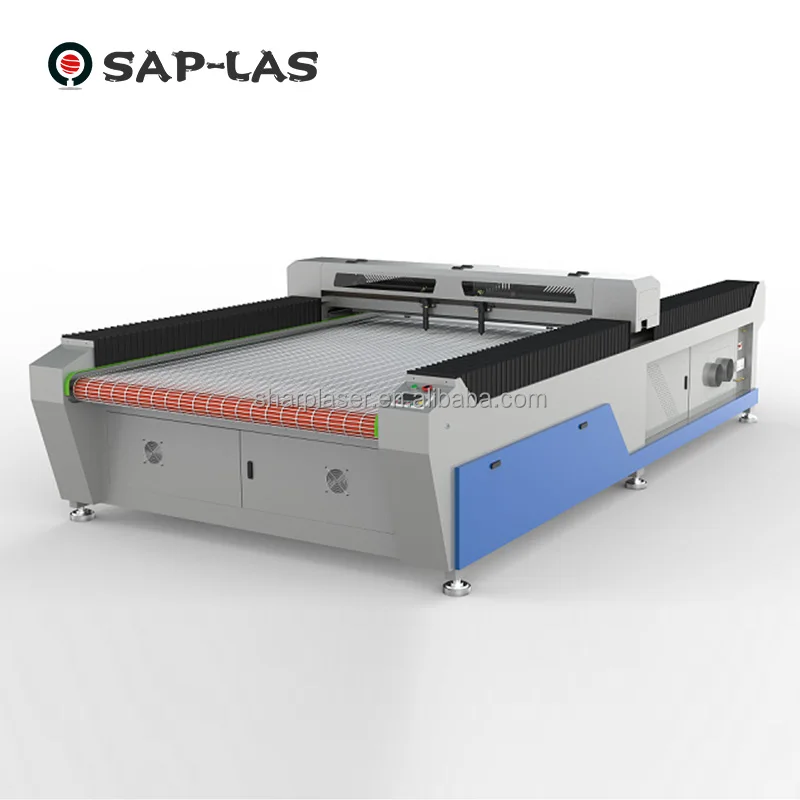

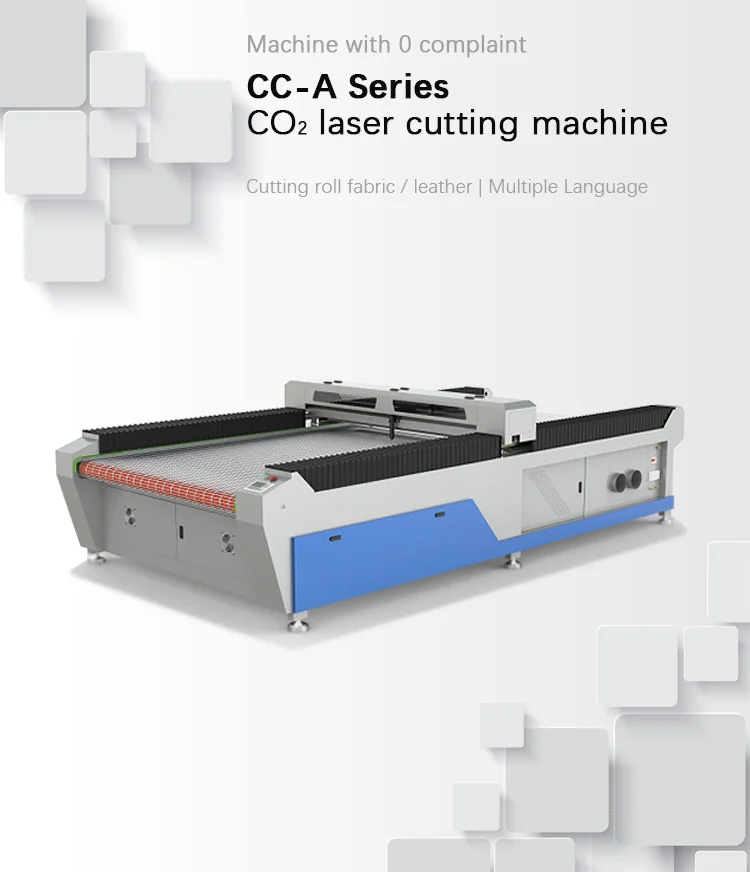

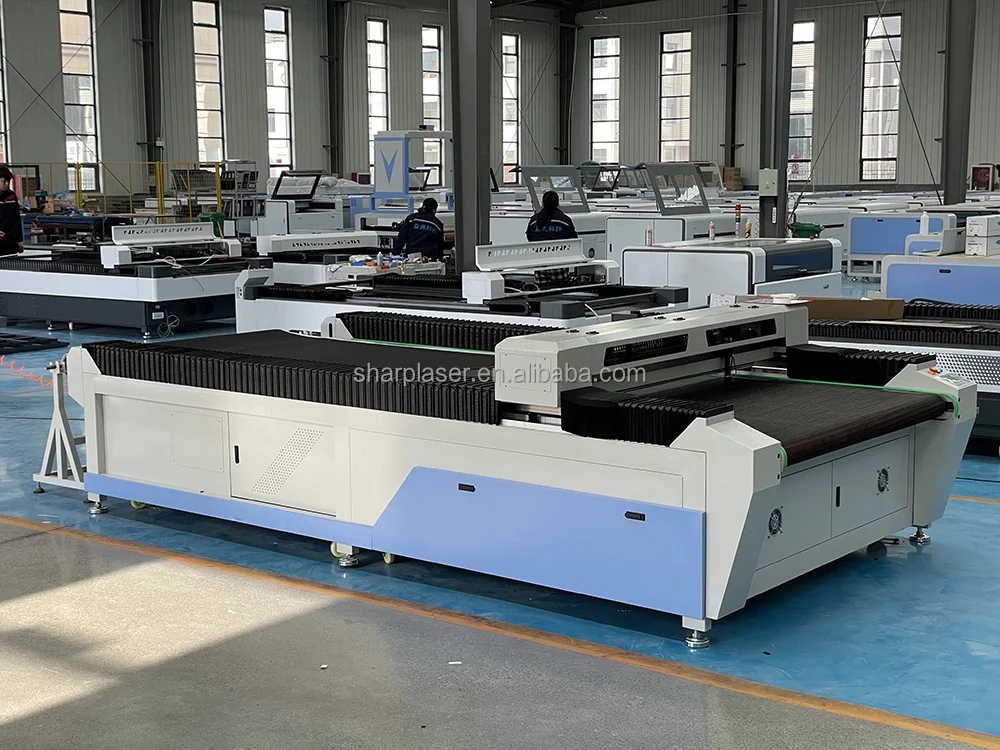

CC1630A auto-feeding roll fabric laser cutting machine

auto feeding ccd camera computerized embroidery textile leather wool felt cotton home fabric laser cutting machine price

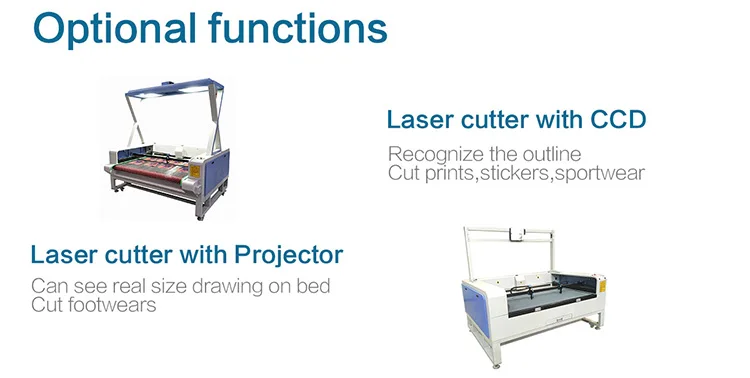

This model is CO2 laser cutting machines with full frame CCD camera  designed for efficient processing of printed fabric, leather, textiles and many more,to cut T-Shirt,Logo,shoe upper,leather wallet,key wallet,and many more. Available in different workstations sizes with several power options, these laser cutting systems provide high-quality results at maximum speed.



Parameter
Name	CO2 laser cutting machine with projector
Model	CC1630A
Working area	1600*3000mm(1300*900mm,1800*1000mm,1600*1000mm optional)
Cooling ways	Water cooling
Engraving speed	0-40000mm/min
Cutting speed	0-40000mm/min
Laser power	150w
Laser type	CO2 laser,RECI brand,service life >10000hrs
Laser output control	0-100% controlled by software
Min engraving size	English letters,1*1mm
Scanning resolution	4000DPI
Locating accuracy	≤0.01mm

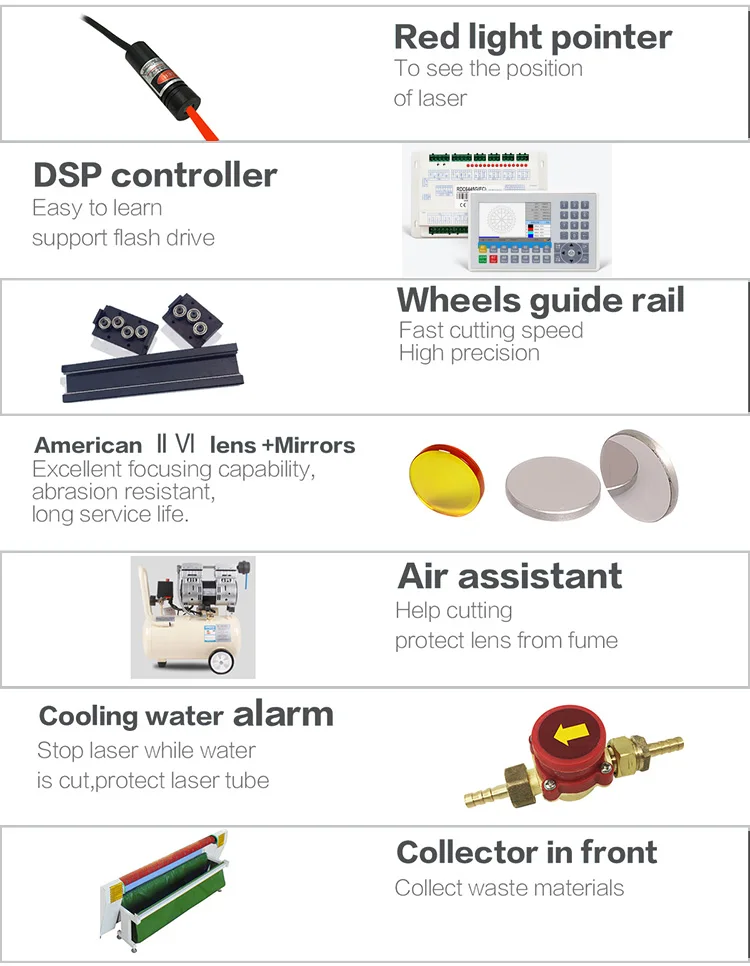

Controlling software	DSP controlling system,RDWORKS V8
Format supported	DST,PLT,DXF,AI,LAS,BMP,JPG,PNG,etc
Software environment	Windows xp/7/8/10
Compatible software	Coreldraw,Autocad
Color separation output	Yes
Slope engraving	Yes
Driving system	Stepper motor

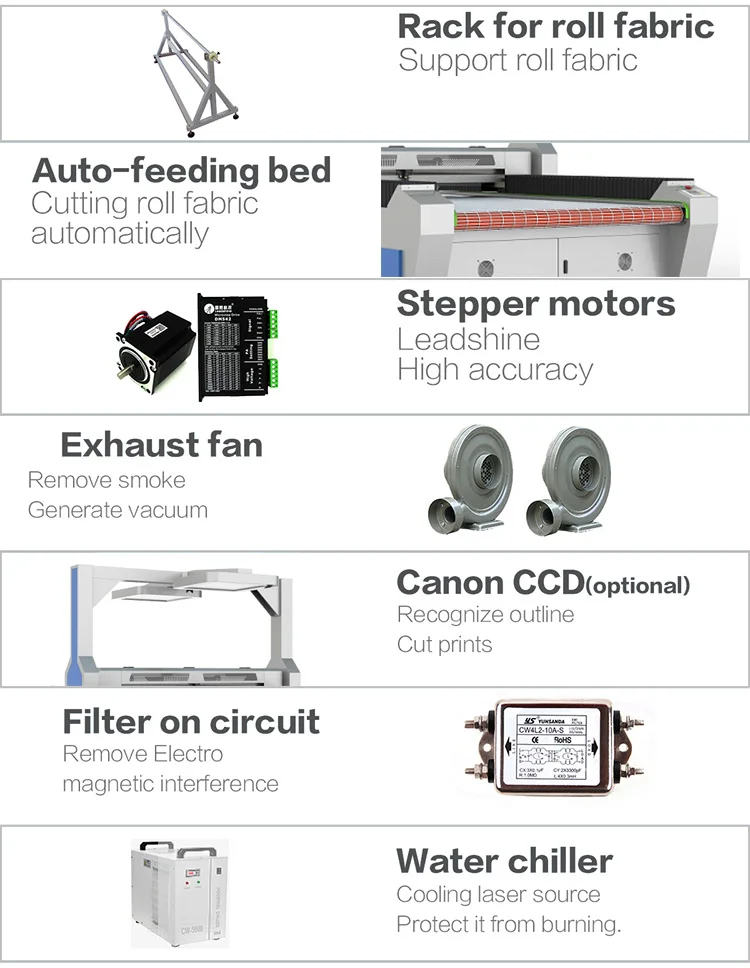

Auxiliary accessories	Exhaust fan,fume tubes,air pump

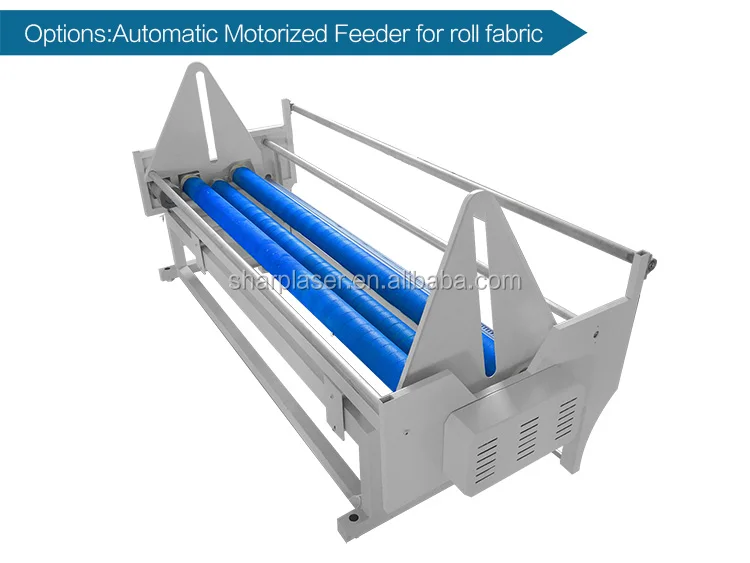

Working table	Stainless steel net +Auto-feeding working table
Applicable materials	Fabric,leather,wood,MDF,glass,stone,plastic,rubber ,    etc
Working environment              Temperature	0-45℃,Humidity5-95%(no condensate water.)
Power supply	110v/220v,50hz/60hz
Weight	800kg
Dimension	3500*2100*1100mm

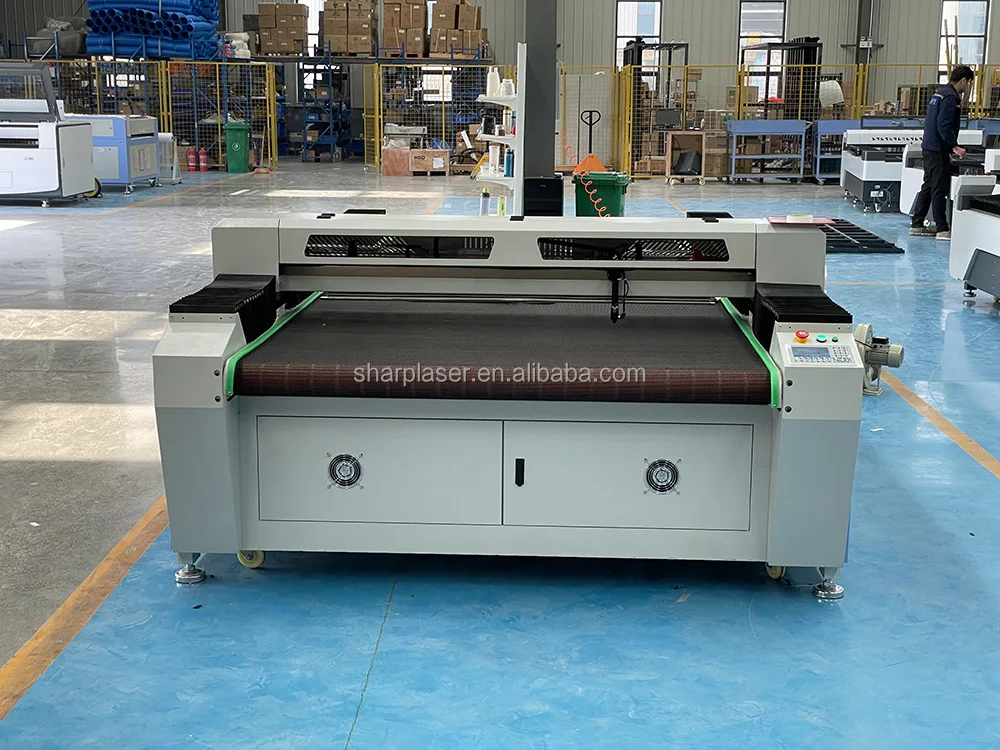

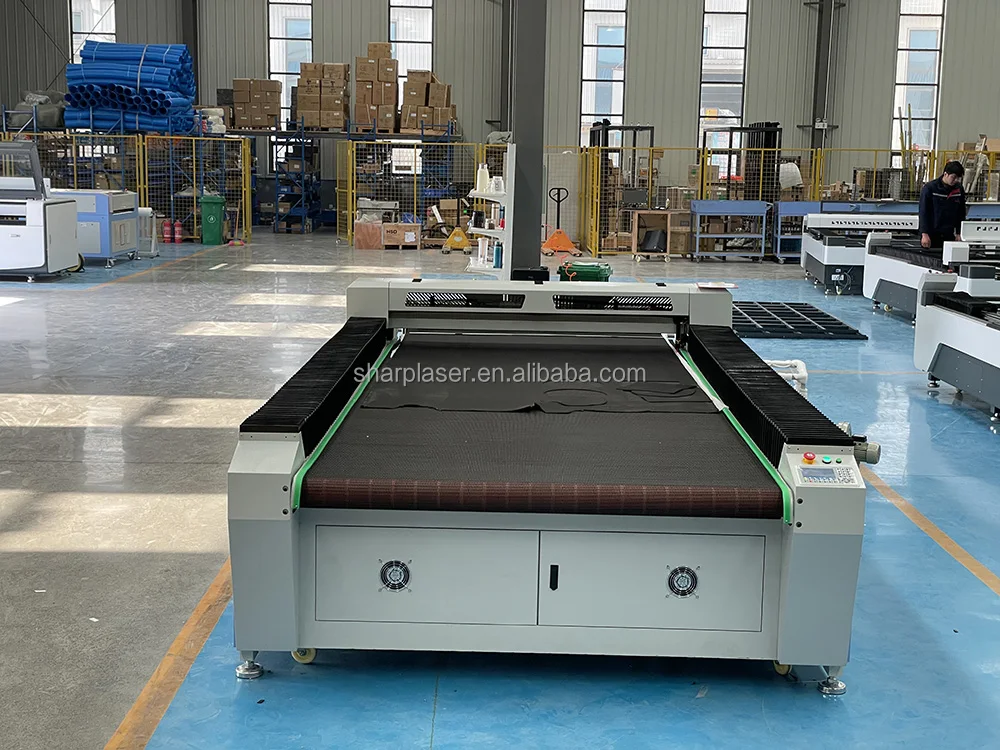

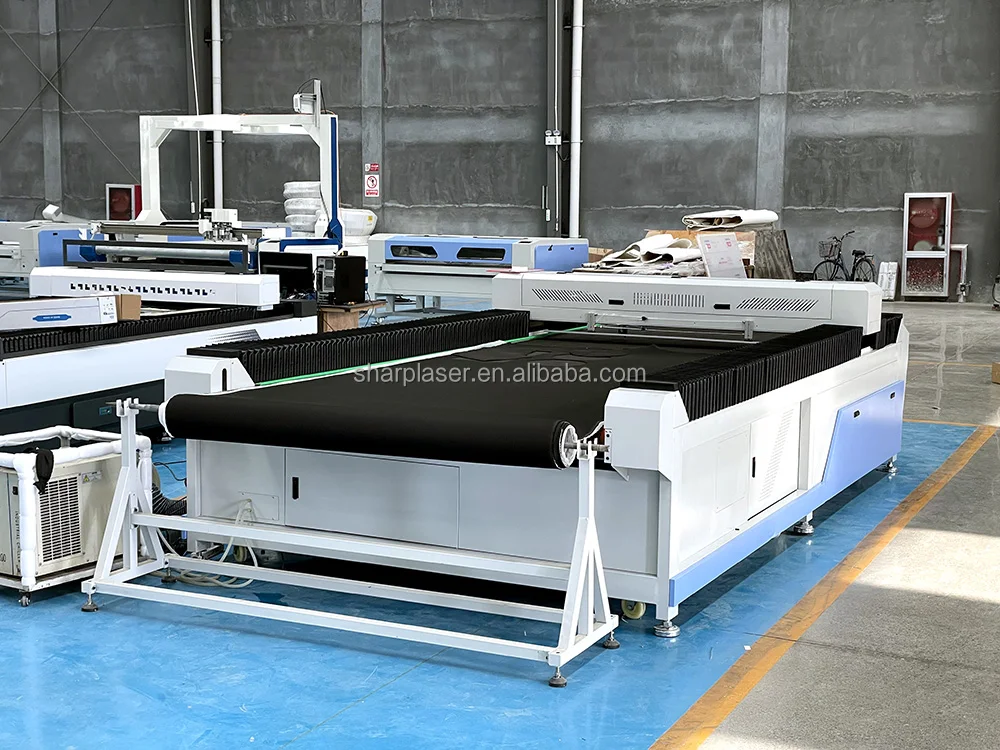

Auto Feeding Cloth Laser Cutting machine1. Professional design for cutting Non Woven fabric, fabric, leather, textile, cloth, jens, as well as wood, acrylic and so on.2. DSP controlling system, rich functions, can effect engraving on plane, gradient engraving by 360 degree, cutting and drilling holes etc.

3. Owns functions of restoring from power off, continuation on break point.4. Transmit files directly in Coreldraw, AutoCAD,etc.5. Adopt international linear rail, more precision.
