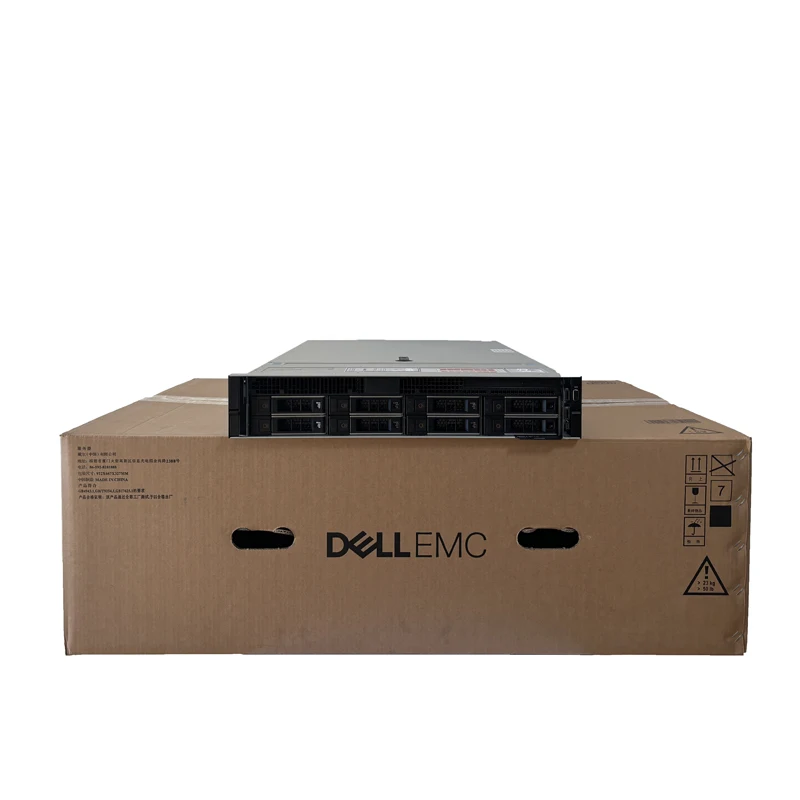

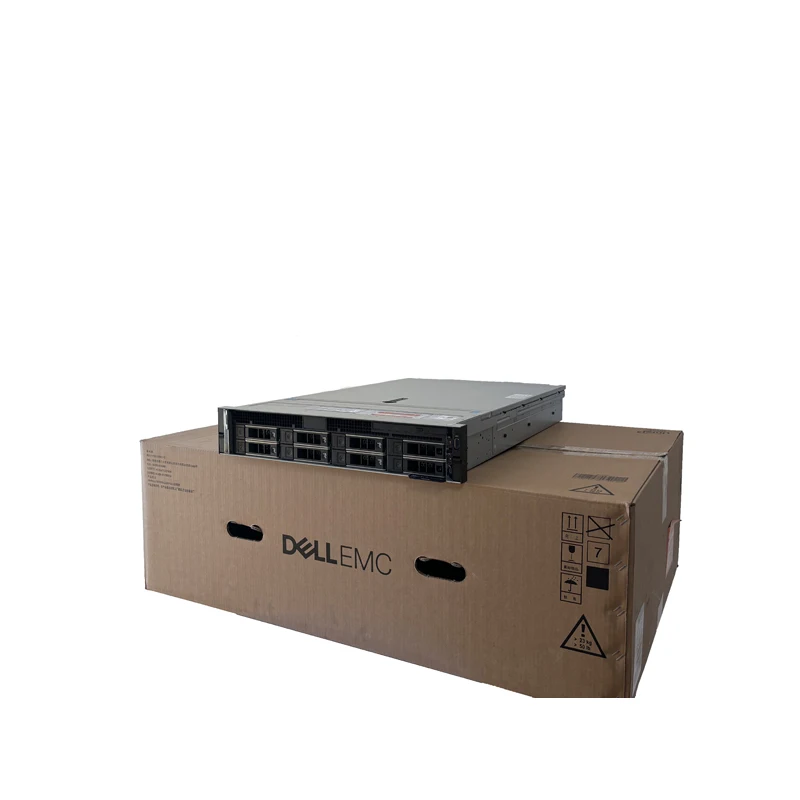

dell server r740xd 2U rack server dell emc powerflex r740xd
- Category: >>>
- Supplier: Beijing Haoyuan Shichuang Technology Co. Ltd.
Share on (1601008095239):
Product Overview
Description
contact us
Product display

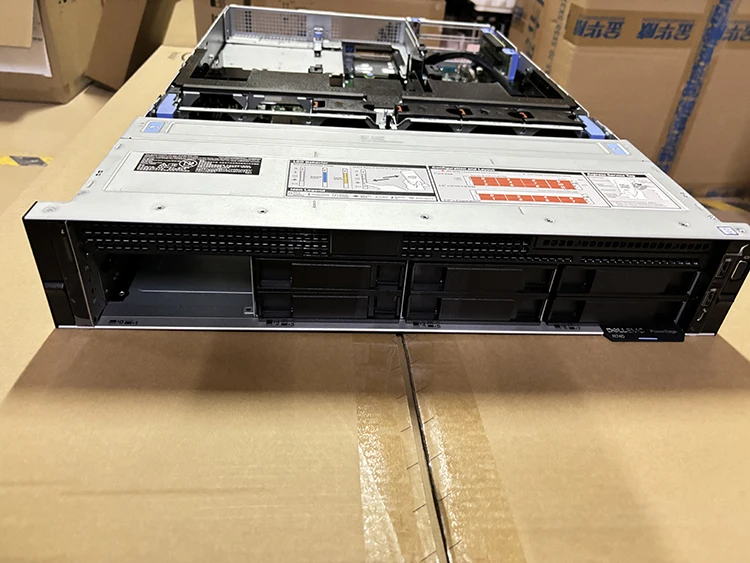

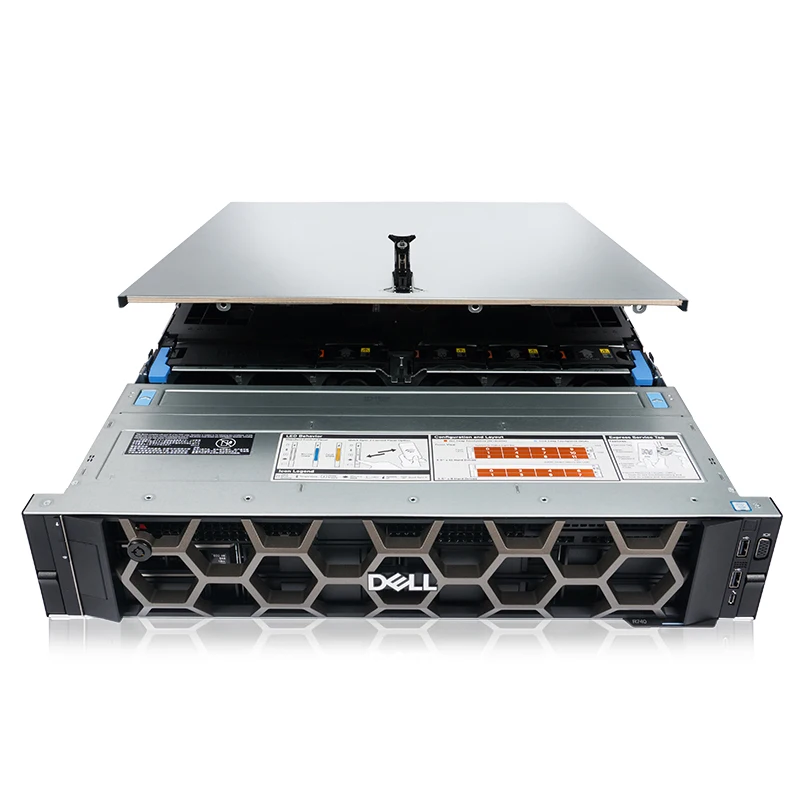

PowerEdge R740xd Rack server
The Dell EMC PowerEdge R740xd2 helps you plan for the future with large internal storage and cost-effective hard drive capacity. It offers dual computing performance with flash memory and fast networking options to meet streaming requirements. Automated management features and maintainable hard drives from the front end simplify the management of large data sets. The R740xd2 has built-in security to keep your local data safe even as you expand capacity.
Ideal workloads:
Video surveillance
Content Delivery Network (CDN)
Microsoft Storage Spaces (S2D) and vSAN
Microsoft Exchange
Hadoop
The R740xd2 features a space-saving design with flexible storage and performance resources to meet growing capacity and business demands.
Up to 26 3.5" hard drives (364 TB) can be scaled up in this 2U rack server. For vertical expansion, up to 520 3.5" hard drives (7.2 PB) can also be scaled in a 42U rack.
Up to two second-generation Intel ® Xeon ® scalable processors and 44 cores give you dual-path performance.
The combination of 2.5" SSD and 3.5" hard drives in a hybrid configuration enables data layering.
Eliminate bottlenecks with fast networking options and memory with up to 16 DIMMs.
It can be configured with up to 5 PCIe slots for easy expansion.
Simplify management across the data center
Reduce the time required to manage medium to large scale environments.
Automate and unify the management of servers and internal storage across your PowerEdge infrastructure with OpenManage Enterprise.
Quickly deploy configurations on multiple bare metal servers to meet unique workload requirements.
Provides complete lifecycle management, including health, firmware updates, and automatic problem resolution.
Use OpenManage Integrations to manage in VMware vCenter, Microsoft System Center, and BMC Truesight.
Easily deploy OpenManage Ansible modules using Red Hat Ansible.
Ideal workloads:
Video surveillance
Content Delivery Network (CDN)
Microsoft Storage Spaces (S2D) and vSAN
Microsoft Exchange
Hadoop
The R740xd2 features a space-saving design with flexible storage and performance resources to meet growing capacity and business demands.
Up to 26 3.5" hard drives (364 TB) can be scaled up in this 2U rack server. For vertical expansion, up to 520 3.5" hard drives (7.2 PB) can also be scaled in a 42U rack.
Up to two second-generation Intel ® Xeon ® scalable processors and 44 cores give you dual-path performance.
The combination of 2.5" SSD and 3.5" hard drives in a hybrid configuration enables data layering.
Eliminate bottlenecks with fast networking options and memory with up to 16 DIMMs.
It can be configured with up to 5 PCIe slots for easy expansion.
Simplify management across the data center
Reduce the time required to manage medium to large scale environments.
Automate and unify the management of servers and internal storage across your PowerEdge infrastructure with OpenManage Enterprise.
Quickly deploy configurations on multiple bare metal servers to meet unique workload requirements.
Provides complete lifecycle management, including health, firmware updates, and automatic problem resolution.
Use OpenManage Integrations to manage in VMware vCenter, Microsoft System Center, and BMC Truesight.
Easily deploy OpenManage Ansible modules using Red Hat Ansible.
Product Paramenters
model | POWEREDGE R740XD | ||
Form Factor | 2U, 2-socket rack server | ||
Processor | Up to two Intel® Xeon® Scalable processors, up to 28 cores per processor | ||

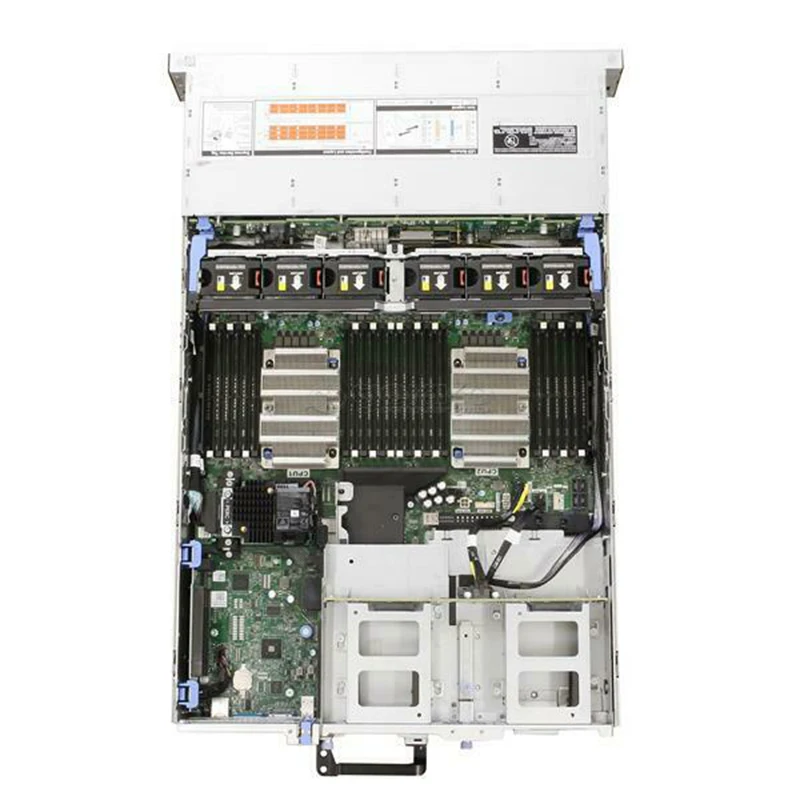

Memory | •24 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2666MT/s, 3TB max •Up to 12 NVDIMM, 192 GB Max •Supports registered ECC DDR4 DIMMs only | ||
Storage controllers Internal Boot | •Internal controllers: PERC H730P, H740P, Software RAID (SWRAID) S140 •Boot Optimized Storage Subsystem: HWRAID 2 x M.2 SSDs 120GB or 240 GB •External PERC (RAID): H840 •12Gbps SAS HBAs (non-RAID): External-12Gbps SAS HBA (non-RAID): Internal- HBA330 (non-RAID) | ||
Drive bays | •Front bays: Up to 24 x 2.5” SAS/SATA (HDD/SSD), NVMe SSD max 153TB or up to 12 x 3.5” SAS/SATA HDD max 144TB •Mid bay: Up to 4 x 2.5”, max 25TB SAS/SATA (HDD/SSD), NVMe SSD max 25TB or up to 4 x 3.5”, max 48TB •Rear bays: Up to 4 x 2.5”, max 25TB SAS/SATA (HDD/SSD), NVMe SSD or up to 2 x 3.5” max 24TB SAS/SATA HDD | ||
Power supplies | Titanium 750W, Platinum 495W, 750W, 1100W, 1600W, and 2000W 48VDC 1100W, 380HVDC 1100W, 240HVDC 750W Hot plug power supplies with full redundancy | ||
Fans | Up to 6 hot plugs fans with full redundancy | ||
Dimensions | Max depth: 715.5 mm | ||
Embedded management | •IPMI 2.0 compliant •iDRAC9 with Lifecycle Controller (Express, Enterprise) •Quick Sync 2 wireless module optional | ||
Bezel | •Optional LCD or security bezel | ||
OpenManage™ Software | •OpenManage Enterprise •OpenManage Essentials •OpenManage Mobile •OpenManage Power Center | ||
Integrations and connections | Integrations: •Microsoft® System Center, •VMware® vCenter™, BMC Software •Connections: Nagios & Nagios XI, OracleEnterprise Manager, | HP Operations Manager, •IBM Tivoli Netcool/OMNIbus, •IBM Tivoli® Network Manager, •CA Network and Systems Management | |
Security | •System Lockdown •Secure erase | ||

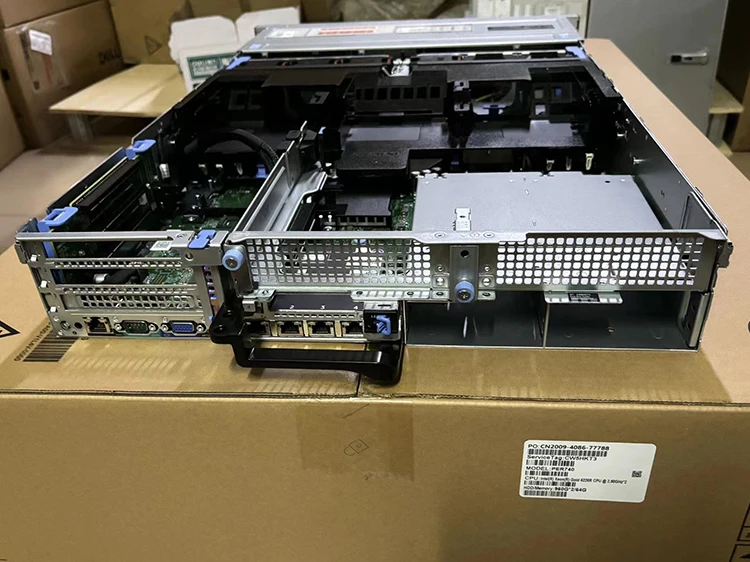

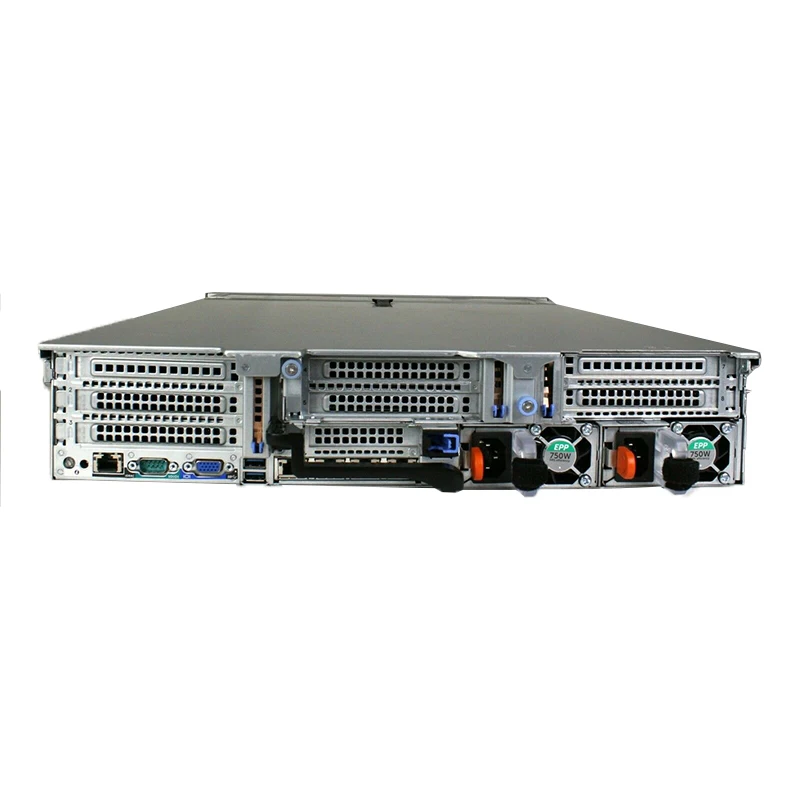

I/O & Ports | Network daughter card options •4 x 1GE or 2 x 10GE + 2 x 1GE or 4 x 10GE or 2 x 25GE •Front ports: VGA, 2 x USB 2.0, dedicated IDRAC Direct Micro-USB •Rear ports: VGA, Serial, 2 x USB 3.0, dedicated iDRAC network port •Video card: VGA •Riser options with p to 8 PCIe Gen 3 slots, maximum of 4 x 16 slots | ||

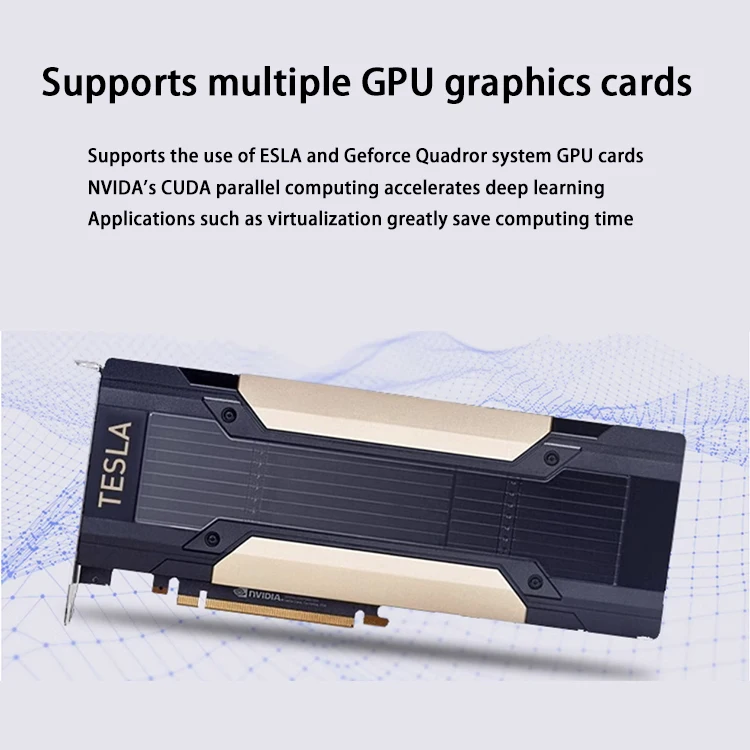

Accelerator options | GPU and FPGA options are available only on 24 x 2.5” drive chassis. Nvidia Tesla P100, K80, K40, Grid M60, M10, P4, Quadro P4000, NVIDIA V100 or Intel Arria® 10 GX | ||
Supported operating systems | Canonical® Ubuntu® Server LTS Citrix® XenServer Microsoft Windows Server® LTSC with Hyper-V Red Hat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi For specifications and interoperability details, | ||
Operating System and Hypervisors | • Canonical Ubuntu Server LTS • Citrix Hypervisor • Microsoft Windows Server with Hyper-V • Red Hat Enterprise Linux • SUSE Linux Enterprise Server • VMware ESXi | ||
