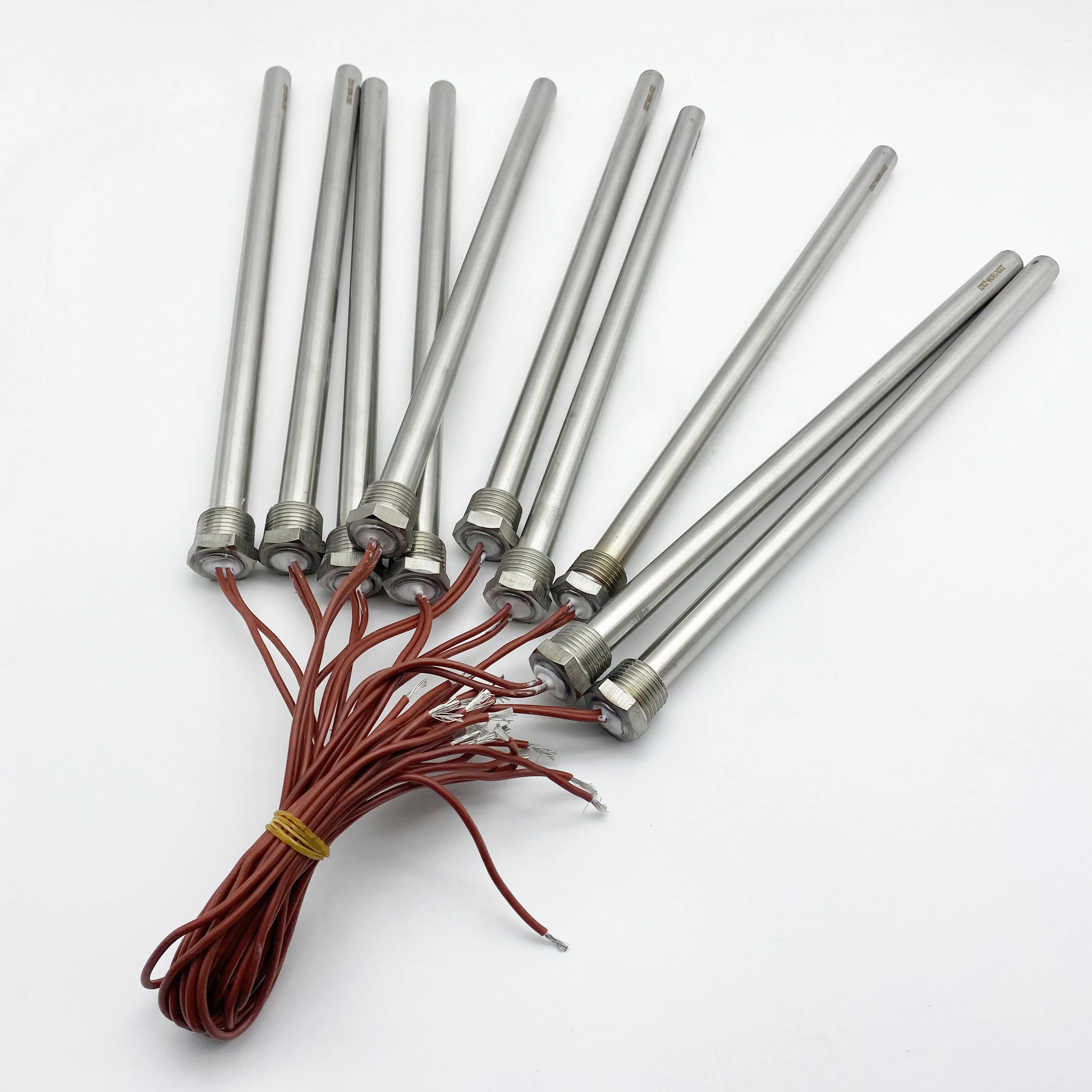

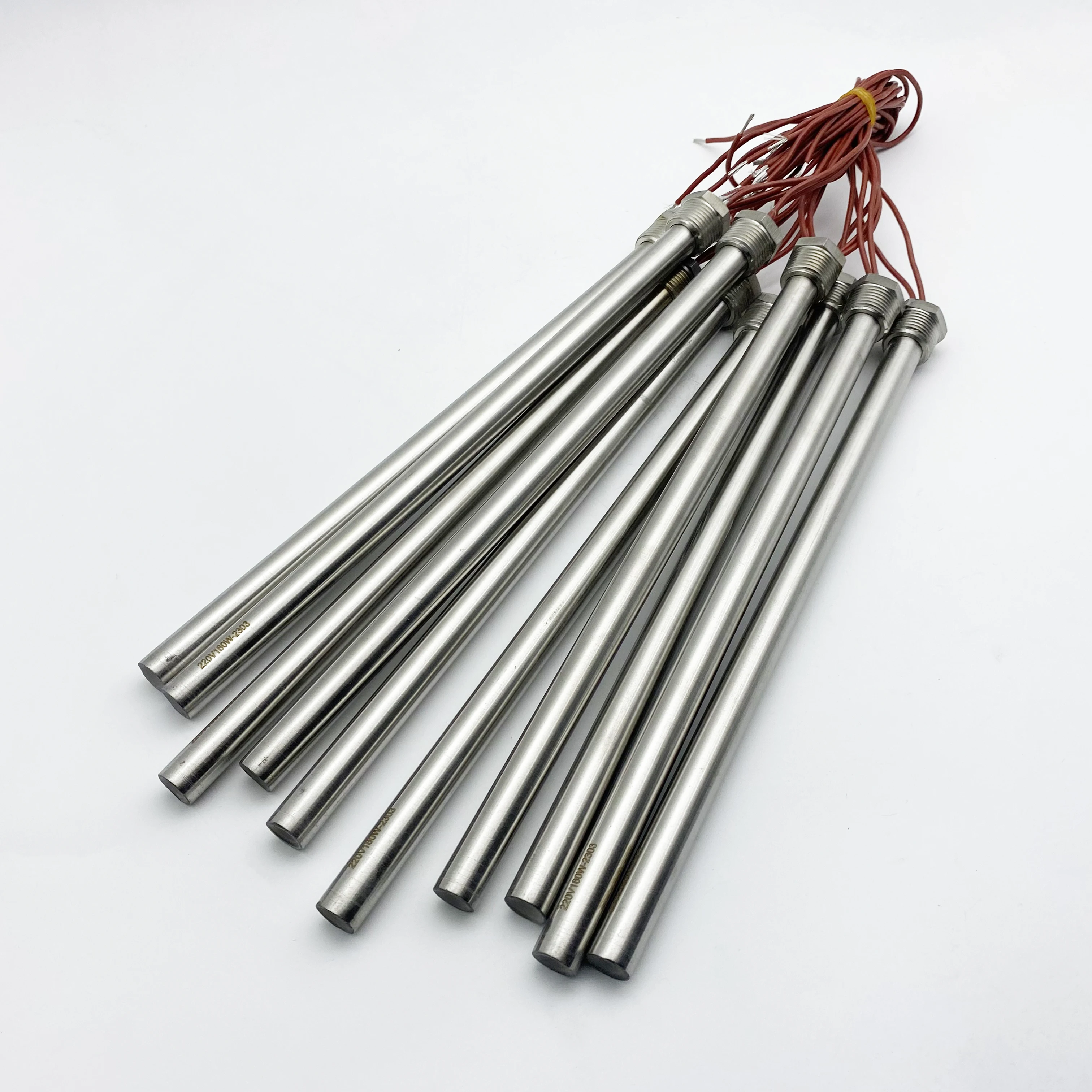

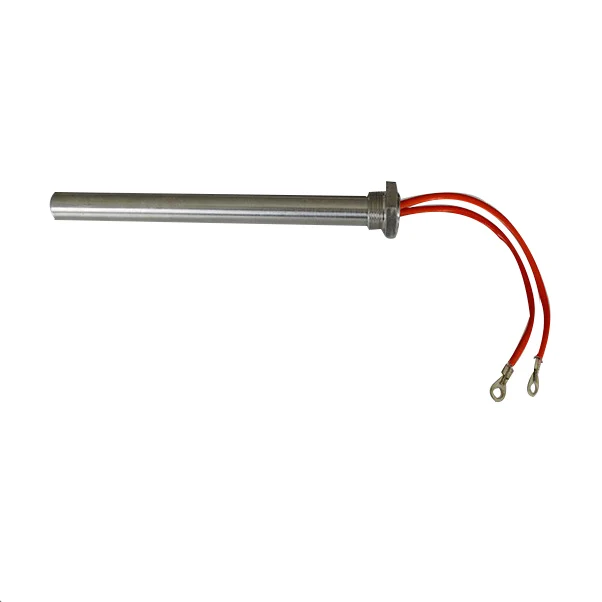

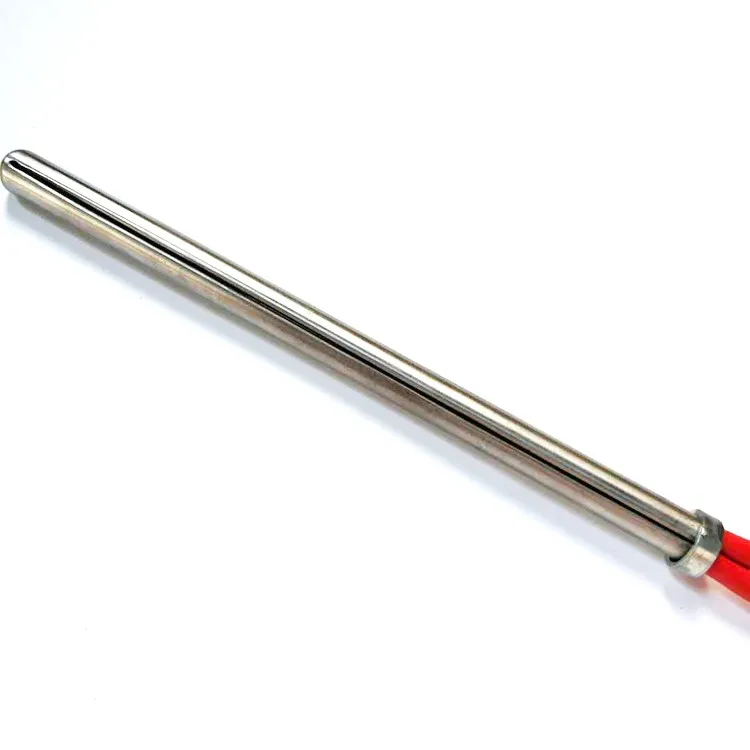

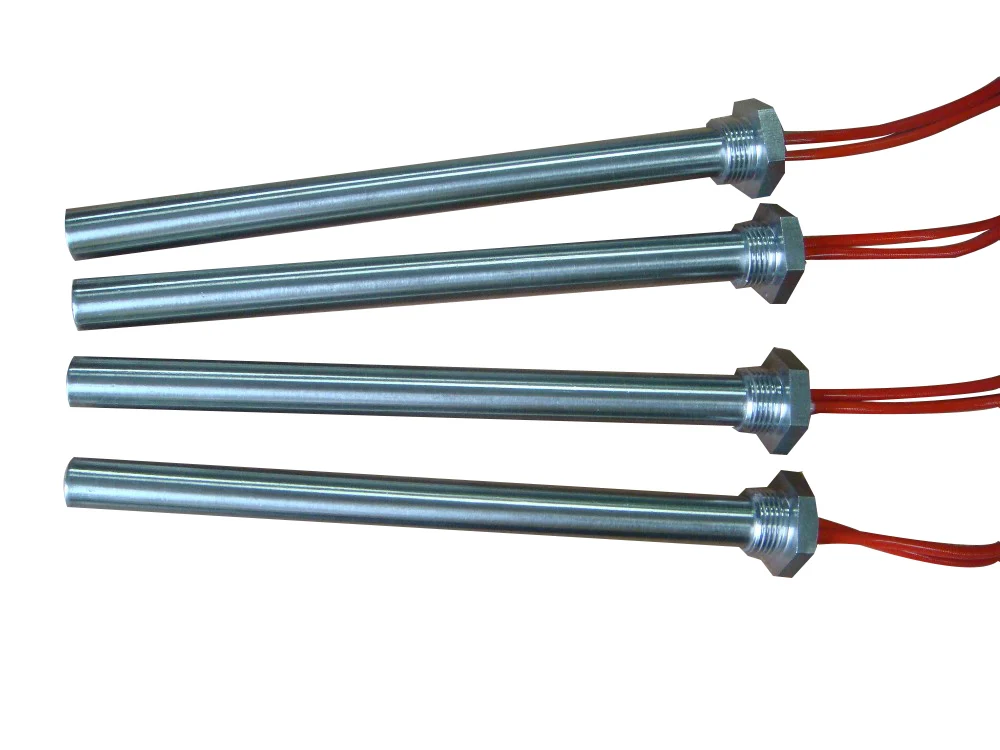

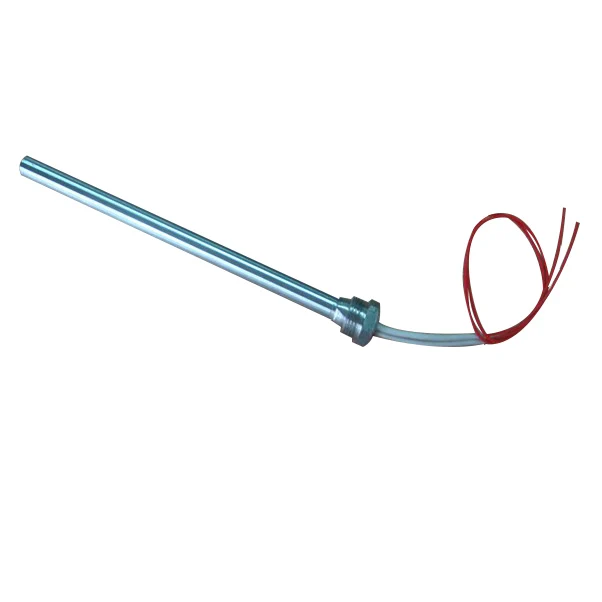

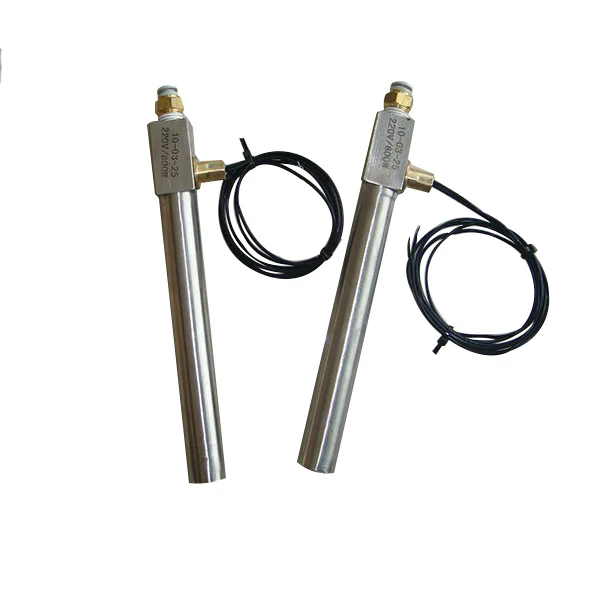

220V 240V 1000w water immersion cartridge heater for Petrochemical Industry
- Category: >>>
- Supplier: Sinton Electric Co. Ltd.
Share on (1601008110935):
Product Overview
Description
Product Description

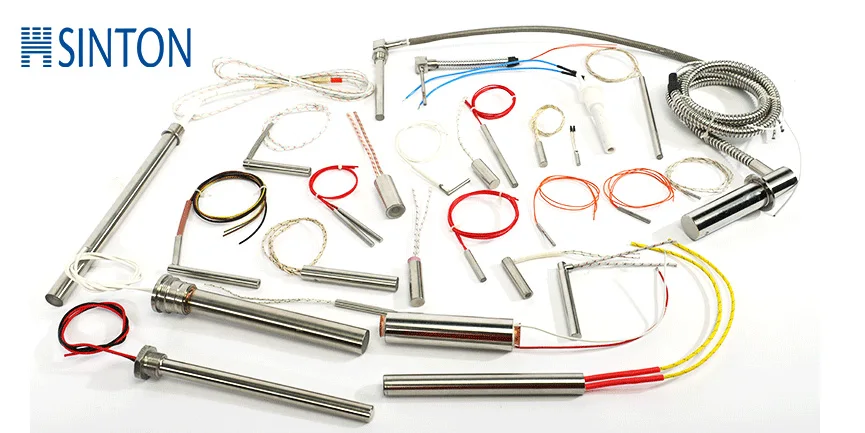

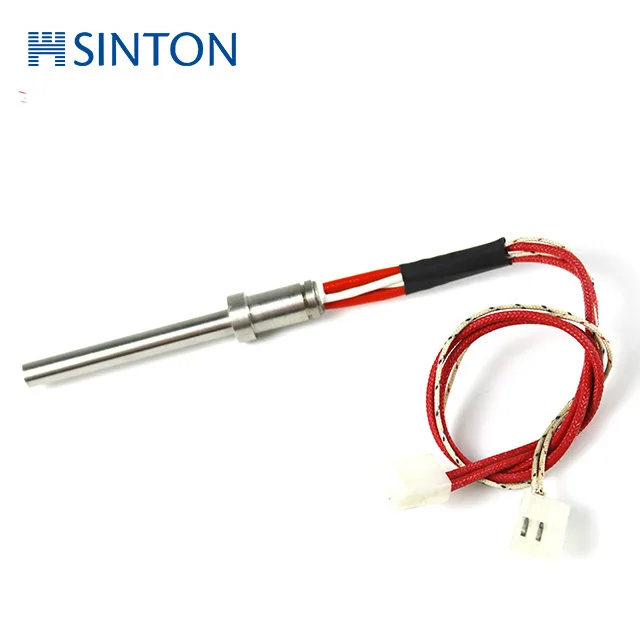

Cartridge heaters are cylindrical electrical heating elements.Mostly used for heating up solids such as injection presses heating plates or various tools,they can also be used for heating up water of gases under certain conditions.Widely used for manufacturing plastic and rubber parts in the car industry or in the food processing industry,etc they are also commonly found in the chemical,electronics,packing and nuclear industries.
Product name: | Cartridge heater |
Material: | SS 304,SS 316,SS 321,NICOLOY 800 |
Tube diameter: | 3 mm-30mm |
Insulation material: | High purity magnesium oxide powder |
Heating wire: | Fe-Cr-Al or Ni-Cr |
Lead wire: | swage or outside |
Lead material: | 300 MM standard glass fiber wire(silicone wire,Teflon wire) |
Tube length: | According to customer's requests |
Feature of Cartridge Heater :
1. The smallest diameter could be 3 mm.
2. Unlimited length, 15 to 6000mm
3. High power density, and the highest power density could be 50W per square centimeter.
4. Long life time
5. Warranty: One year
6. Different type of wire available according to the usage environment.
1. The smallest diameter could be 3 mm.
2. Unlimited length, 15 to 6000mm
3. High power density, and the highest power density could be 50W per square centimeter.
4. Long life time
5. Warranty: One year
6. Different type of wire available according to the usage environment.

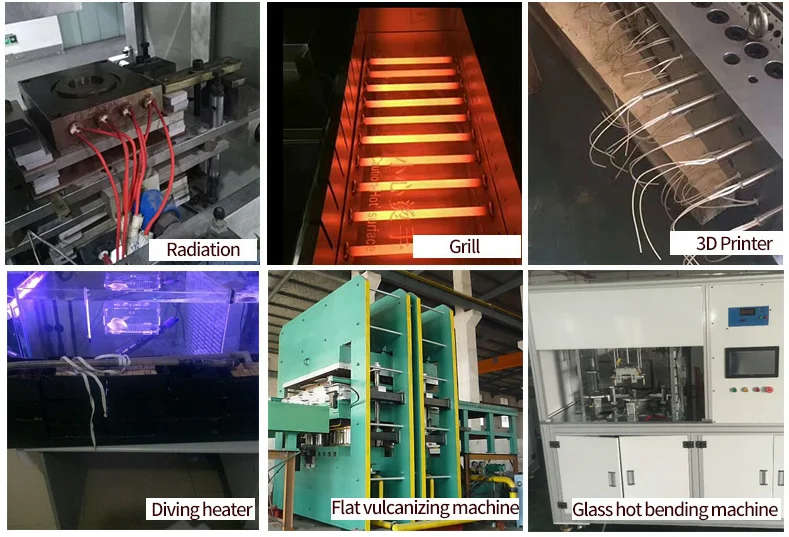

Applications of Cartridge Heater :
* 3D printer.
* Extruder.
* Injection & blow moulding.
* Food processing machinery.
* Packing machine.
* Hot runner bushing.
* Hot plates, molds & dies.
* Extruder.
* Injection & blow moulding.
* Food processing machinery.
* Packing machine.
* Hot runner bushing.
* Hot plates, molds & dies.

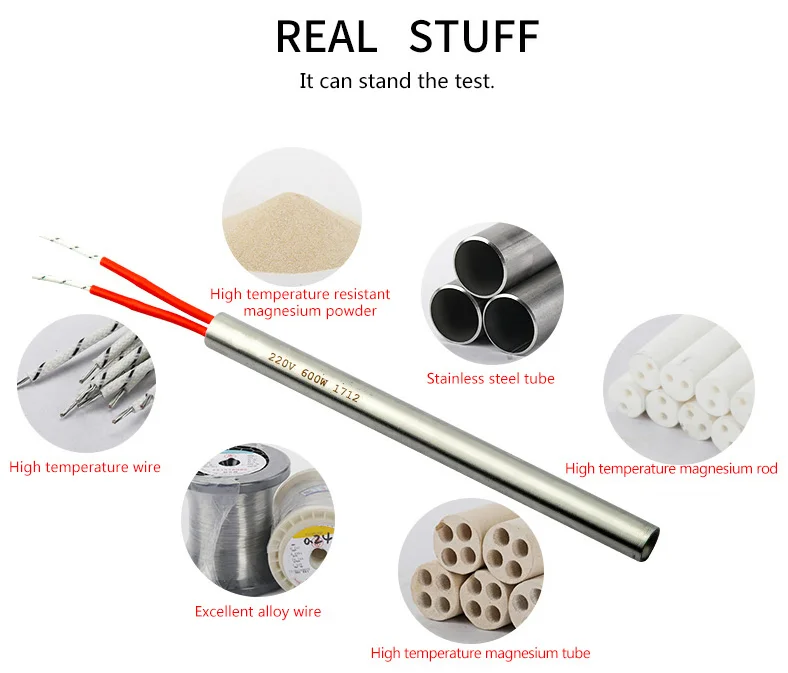

\t\t\t\t\t\t\t\t\tProduct details \t\t\t\t\t\t\t
1. Sheath material: stainless steel ss304/316/321/Incoloy 800 etc.
2. Insulation Material:High-purity Mgo powder
3. Heating resistance wire:Cr20Ni80
2. Insulation Material:High-purity Mgo powder
3. Heating resistance wire:Cr20Ni80
4. Working temperature: max 800°C
5. Diameter range (mm):2.6mm-30mm
6. Length range (mm):15mm-3000mm
5. Diameter range (mm):2.6mm-30mm
6. Length range (mm):15mm-3000mm
7. Rated voltage (110-220):max1.27 times
8. Insulation resistance: min5Ω
9. With(and voltage:1500v/min)
10. Designed life:3000 hours
8. Insulation resistance: min5Ω
9. With(and voltage:1500v/min)
10. Designed life:3000 hours

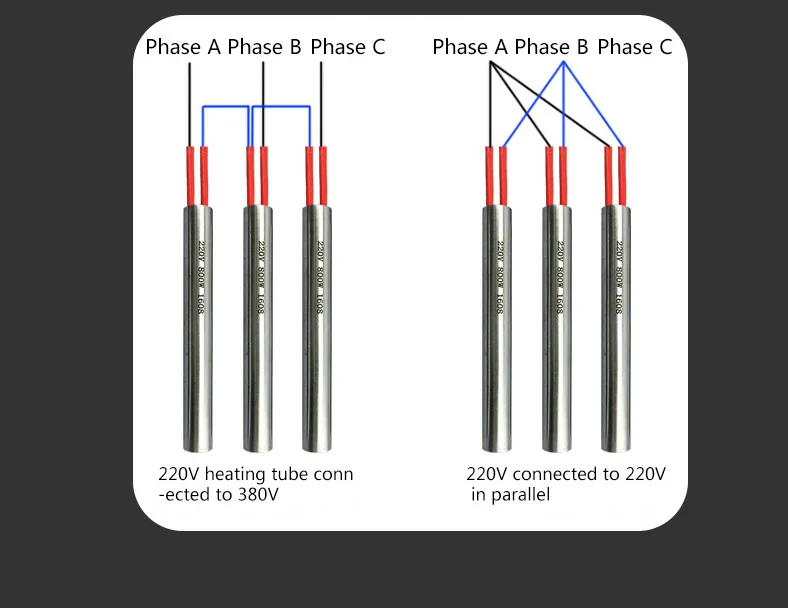

Measurement method:
\t\t\t\t\t\t\t\t\tRelated products \t\t\t\t\t\t\t
Company Profile
SINTON GROUP was founded in 2001,formerly known as the trade of electric heating and instrumentation, the group's total assets are RMB120 million, with 360 employees. In 2010, we had our own factory building and 5A office production environment, From trade mangement to self-built factory, office building production and sales of explosion-proof heater ,air duct heater,pipeline heater, drying oven, gas mould temperature machine, electromagnetic thermal oil furnace, thermal oil furnace and all kinds of heating elements.From embarrassingly short of money to group mangement model, at present, we integrated research, development, production and sales the products are exported to 12 countries in the world,Mainly Europe and America with strong product independent research and development capabilities and technological innovation. The work has obtained the explosion proof authentication,many patents authentication, the quality system authentication.
Certifications
Packing & Delivery
Custom packaging
Package
Loading and delivery
FAQ
Q:What is our competitive advantage?
A:You are ordering directly from the factory.We provide one-stop service, from order taking, customized research and development, to product follow-up, after-sales, etc. If you buy our products, we are responsible for you to the end.
Q: What is the lead time for Heater products?
A: Samples - within 3 working days with materials in stock Mass production - usually 7-14 working days (depends on quantity and raw material situation, please further discuss with our team. )
Q: What is the MOQ for Heater products?
A: Reheat products produced with common materials can be ordered at 1pcs. If infrequently used materials required, it depends on the situation of the materials.
Q: Do you manufacture custom parts?
A: Yes. We have thousands of designs in our files of custom heaters and sensors designed for every imaginable application. Our Sales and Engineering teams are here to help you design a product that fits your needs.
Q: If we have heating projects, how to progress project design or select a product?
A: We have professional sales to provide pre-sale consulting services and engineering team for technical support. Any questions about products or technical questions please communicate with our sales team and provide specific applications and requirements.
A:You are ordering directly from the factory.We provide one-stop service, from order taking, customized research and development, to product follow-up, after-sales, etc. If you buy our products, we are responsible for you to the end.
Q: What is the lead time for Heater products?
A: Samples - within 3 working days with materials in stock Mass production - usually 7-14 working days (depends on quantity and raw material situation, please further discuss with our team. )
Q: What is the MOQ for Heater products?
A: Reheat products produced with common materials can be ordered at 1pcs. If infrequently used materials required, it depends on the situation of the materials.
Q: Do you manufacture custom parts?
A: Yes. We have thousands of designs in our files of custom heaters and sensors designed for every imaginable application. Our Sales and Engineering teams are here to help you design a product that fits your needs.
Q: If we have heating projects, how to progress project design or select a product?
A: We have professional sales to provide pre-sale consulting services and engineering team for technical support. Any questions about products or technical questions please communicate with our sales team and provide specific applications and requirements.
