Product Overview
Description
Product Description
Color | selectable |
Production Capacity | 1-15m/min |
Pipe range | 16-32mm |
Length | 20-24m |
Material | stainless steel |
Temperature controller | OMRON |
Converter | ABB Inventer |
Motor brand | SIMENS |
Plastic Processed | PPEX-AL-PEX |
Voltage | 3phase 380v 50hz |
Product Display

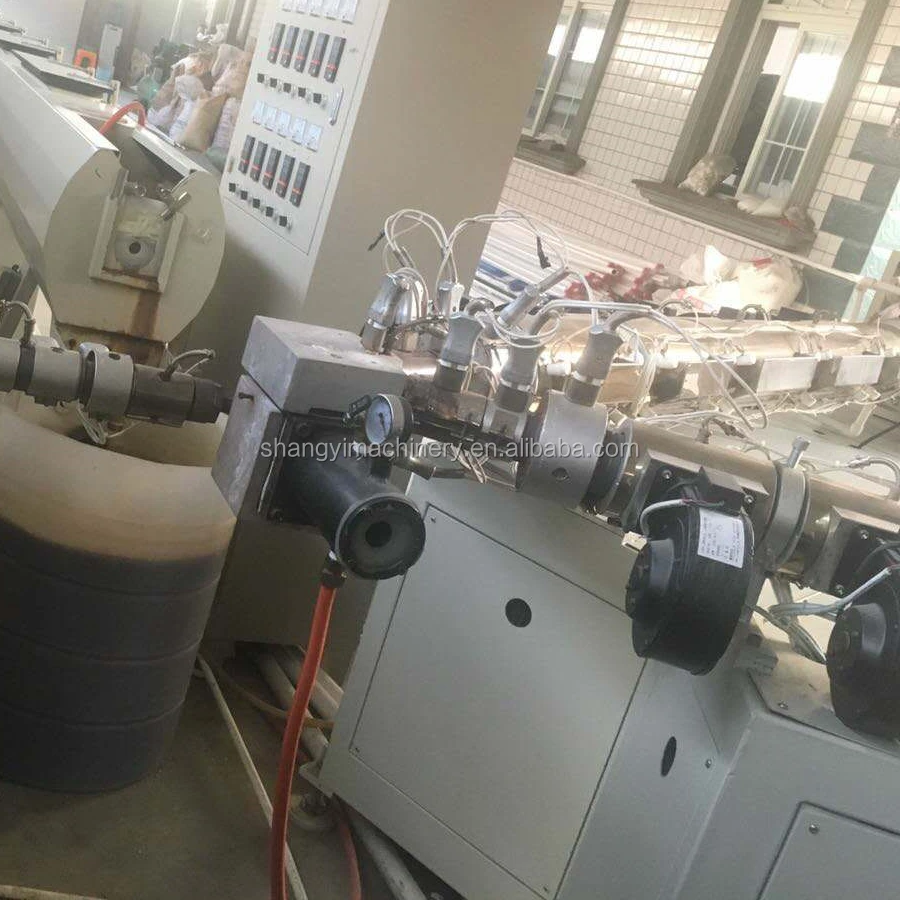

The screw of the extruder equipped with barrier unit and mixing structure, and the barrel owns new stype grooves.
All of these offer good plastification and mixing effect.
Special design of pex-al-pex extrusion die, low melting point, even stirring,
Low cavity pressure, stable production.
All of these offer good plastification and mixing effect.
Special design of pex-al-pex extrusion die, low melting point, even stirring,
Low cavity pressure, stable production.
Feature and advantage:

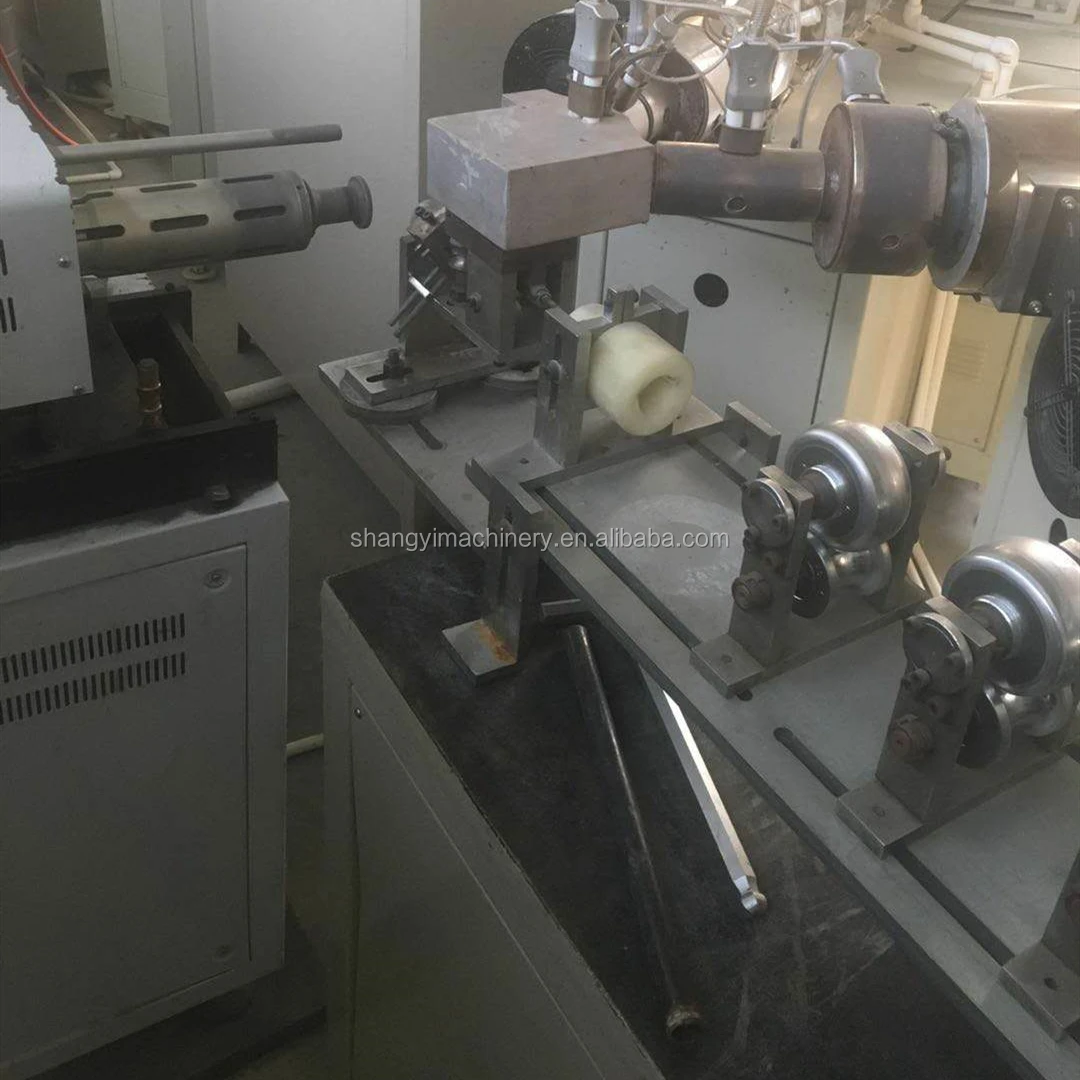

1. By adopting precision forming technique of aluminum tube, ultrasonic welded aluminum tube will have precise size and nice
roundness.
2. By adopting the process of co-extrusion in steps for inner and external tubes, binding strength between tubes is increased,
heat accumulation between tubes are avoided, hence, ensure a more smooth surface of both inner and external tubes.
3. PLC control system is adopted by this production line, it has friendly human-computer dialogue interface, easy to operate and
with interlock function.

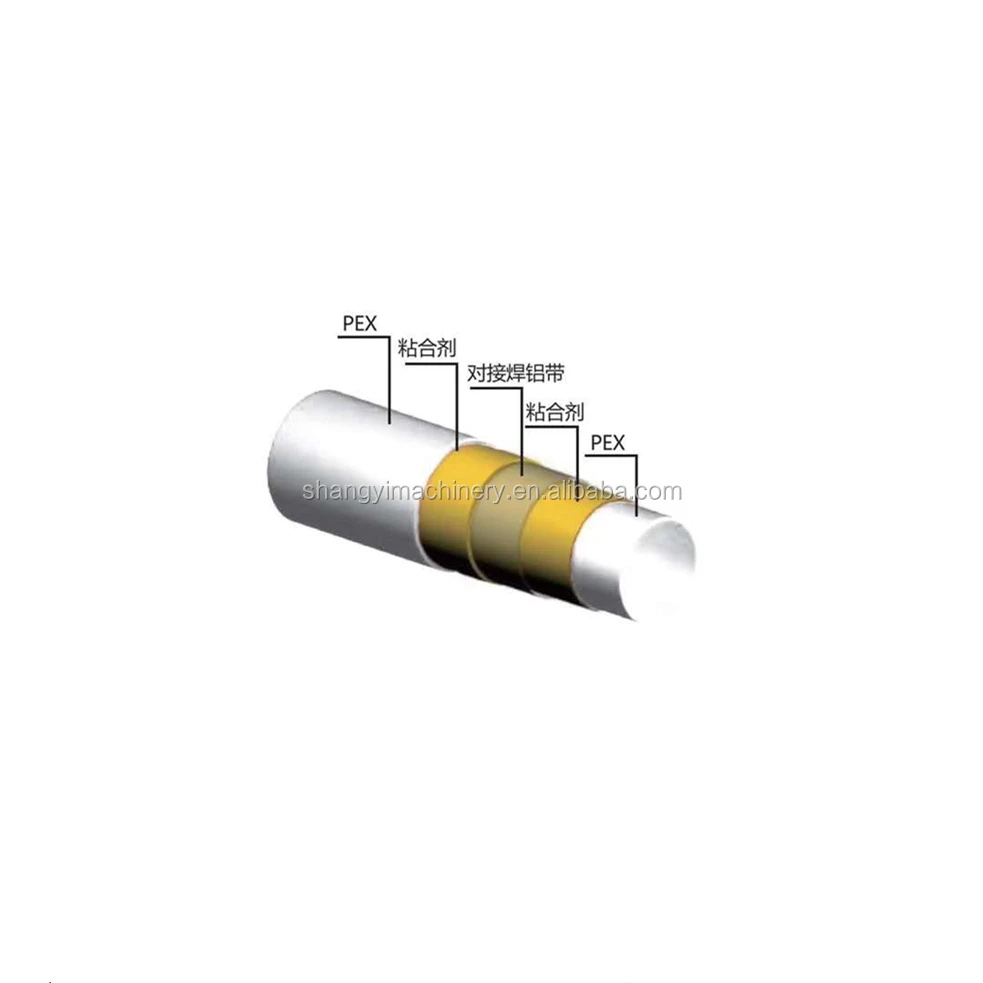

This production line is used to manufacture aluminum plastic tubes and aluminum tubes. Laminated tubes will be formed in one step
by ultrasonic welding and Co-extrusion process. Such aluminum and plastic laminated tubes are widely applied for cold and hot city
water pipes and running pipes of acid, alkali, salt, other kinds of liquids, fuel gas, oxygen and compressed air etc.
roundness.
2. By adopting the process of co-extrusion in steps for inner and external tubes, binding strength between tubes is increased,
heat accumulation between tubes are avoided, hence, ensure a more smooth surface of both inner and external tubes.
3. PLC control system is adopted by this production line, it has friendly human-computer dialogue interface, easy to operate and
with interlock function.
This production line is used to manufacture aluminum plastic tubes and aluminum tubes. Laminated tubes will be formed in one step
by ultrasonic welding and Co-extrusion process. Such aluminum and plastic laminated tubes are widely applied for cold and hot city
water pipes and running pipes of acid, alkali, salt, other kinds of liquids, fuel gas, oxygen and compressed air etc.
Details Images
Model | Screw diameter | L/D | Extruder Qty. | Pipe range | Capacity | Main motor power | Total power | Line length |
PEx-AL-PEx32 | 45mm | 25:1 | 2 | 16-32 | 80-150 | 11 | 90 | 25 |
50mm | 28:1 | 2 | 18.5 | |||||
PEx-AL-PEX-63 | 50mm | 25:1 | 2 | 32-63 | 100-180 | 18.5 | 160 | 30 |
65mm | 28:1 | 2 | 30 |
Over-lap welding PE AL PEX pipe production line Process flow:
Al plate unlocking→Al plate forming machine→Pex material→Vacuum Feeding→Single screw extruder→Single screw extruder→Co-extrusion
mould→Al plate ultrasonic roll welding machine→Single screw extruder→Single screw extruder→Co-extrusion mould→Dip-in cooling
tank→Dip in cooling tank→Spray code printer→Belt haul off→Double winder→Steaming for 24hours→Finished product inspecting& packing.
mould→Al plate ultrasonic roll welding machine→Single screw extruder→Single screw extruder→Co-extrusion mould→Dip-in cooling
tank→Dip in cooling tank→Spray code printer→Belt haul off→Double winder→Steaming for 24hours→Finished product inspecting& packing.
