Cheap Gold Testing Machines XRF Spectrometer Portable Gold Tester and Silver






Product Description





Analysis of Precious Metals and Identification of Carats





At present, the use of XRF analyzer for chemical composition analysis and purity determination of precious metals has become a widely used, extremely popular, and supported by national standards, and reliable methods. The use of XRF for the analysis of precious metals is a faster and more economical method of multi-element detection than spark test and chemical reagent testing.








Advantages and Characteristics of Analysis





1. Integrated an inbuilt computer with high industrial motherboard and multi- point hand touch, you don’t need to prepare other computers, it can bring you super smooth experience feelings


2. Three core components inside the instrument are all imported, so it determines that the instrument can accurately distinguish different gold samples especially 99.9% gold and 99.99% gold


3. The instruments possess own unique mode of “one-key test”, it is China first and same as Europe's top spectrometers. No matter any unknown metal material, the operators don’t need to choose test templates and software intelligently matches the best way to measure and calculate. They are capable of fast, precise and non-destructive metal testing, making them suitable for use by jewelry retailers, jewelry manufacturers, precious metal refineries, pawn shops, government quality inspection departments, banks, laboratories and tertiary institutions


4. Super long warranty, confidence comes from pure European spectrometer production technology


5. The instruments have an innovative function that can help customers identify gold-plated  samples


6. The users can see sample test position accurately by camera and cabin lighting system, and it can improve the testing confidence of users


7. Equipped with a variety of optical collimator, breakthrough solved test problems of tiny metal samples (such as spun gold and gold thread samples)


8. We can download and upload test data from network, and it is easy to view and share test results


9. Temperature drift rate of all the parts inside instrument is controlled within one over one million, ensuring the strong stability and high precision of instrument. Testing results can show 4 digits after the decimal point, beyond all domestic spectral type precious metals analyzer


10. Ultrahigh resolution, Super clear camera, Super convenient operation, Super fast detection speed, Perfect human interface





Application and Examples





Accurate analysis of precious metals Au, Pt, Ag, Pd


On-site gold level identification of gold: 0-24 kt


Check the gold content in scrap metal


Identifying impurity materials


Identify unknown metals





Hardware Performance and Advantages


High-resolution, high-definition camera, convenient operation, fast detection speed, user-friendly interface





Instrument Performance and Configuration






















































































































Brand



DahoMeter



Model



DX-800



DX-800M



DX-2800



DX-2800M



Computer Built In



No



Yes



Yes



Yes



Detector Type



Proportional Counter tube



Si-pin (USA)



SSD(USA)



Multichannel Analyzer



Digital multichannel



DahoMeter-DMCP



Sample Chamber Size



300 *300 *100 (mm)



280 *280 *90 (mm)



380 * 380 * 60 (mm)



Test Time



10sec ~ 100sec



5sec ~ 30sec



Measuring Element



 Au Ag Pt Pd Cu Ni Zn Rh Cd Ru Fe Co Ir W Os Pb (16 elements )
Au, Ag, Pt, Pd, Cu, Mo, Mn ,Ga,Co ,Ir(Ir≥5%)



72 elements from sodium (Na) touranium (U) between all the elements



Analysis Range



0.01% to 99.99%



1ppm to 99.99%



Accuracy



0.05% ~ 0.1%
0.1% (Au≥96%)



0.03% (A≥96%)



0.01% (Au≥96%)



Sample Form



Solid, powder, liquid



Tube Voltage



5KV ~ 50KV



High Voltage Power Supply



0 ~ 50KV



Camera



HD camera



Filters



Selectable customized switches



Analysis Software



Qualitative and quantitative analysis software



External Dimensions



450 * 400 * 290 (mm)



410 * 390 * 280 (mm)



480 * 480 * 390 (mm)



480 * 480 * 390 (mm)



Weight



33Kg



30Kg



38Kg



38Kg



Instruments Environmental Requirements



Ambient Temperature



-5 ° C ~ 40 ° C (Suggested that in air conditioning room)



Relative Humidity



15% ~ 90%



Power Requirements



AC 220V ± 5V, 50/ 60 HzNo high power electromagnetic and vibration interference sources nearby




























Packaging & Shipping





International Express:DHL/UPS/FEDEX/TNT
Air shipment
Sea shipment Train shipment
Road shipment
We will choose the best way to ship the items ASAP

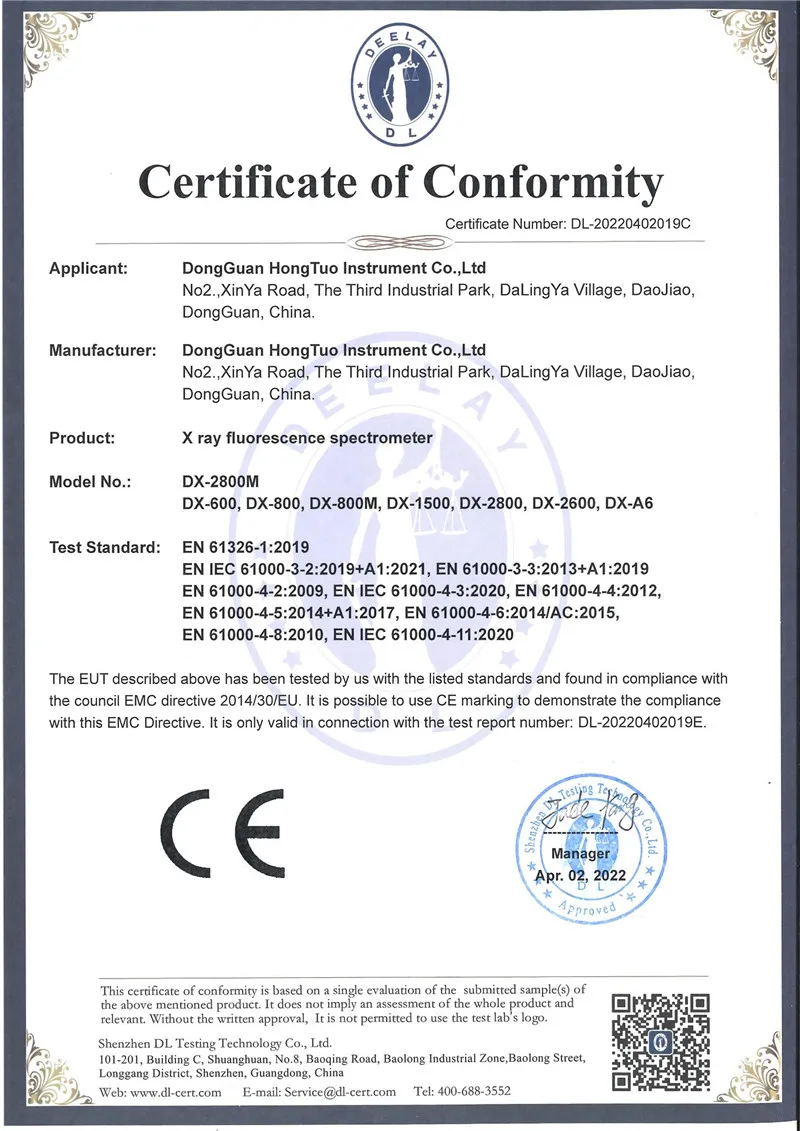

Certifications


 DX-2800M EN 61326 .jpg





Company Information





We, Dongguan Hongtuo Instrument Co., Ltd, a China based company, are pleased to introduce ourselves as a notable testing equipments and machines manufacturer.Our company was established in the year 2000 with two primarily motto, which includes complete client satisfaction and to reach top-most position in the international market. The exceptional quality of our products like Gold Tester,Gold Testing Machine,Density Meter,Universal Tensile Testing Machine,Climatic Chamber,Melt Flow Index Tester,Charpy Impact Testing Machine,Tap Density Tester,Abrasion Tester,Ultrasonic Flaw Detector,Surface Roughness Tester and other Laboratory Testing Equipment, etc. is our company's USP.
