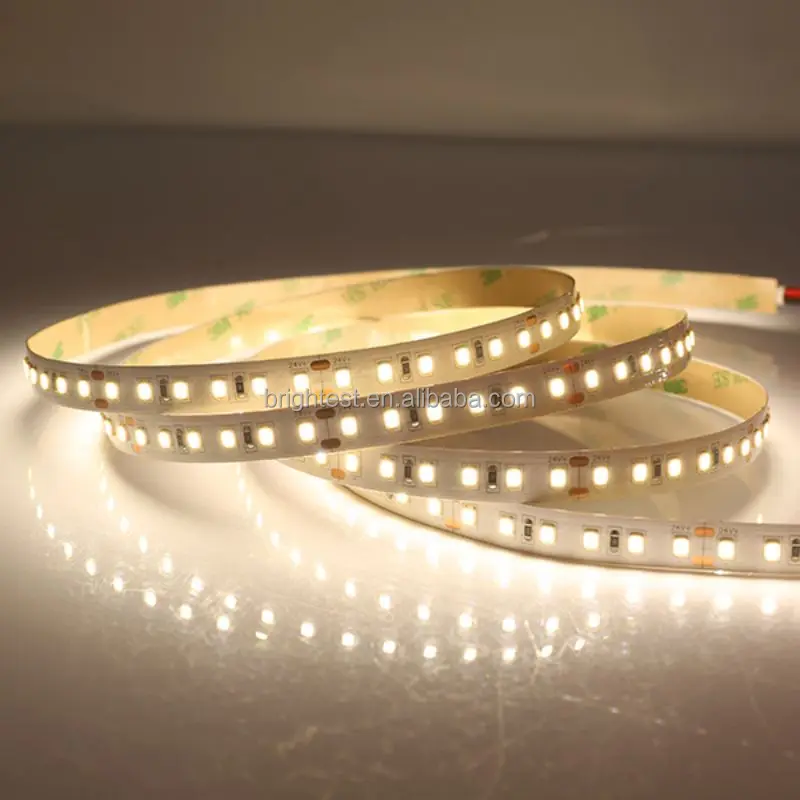

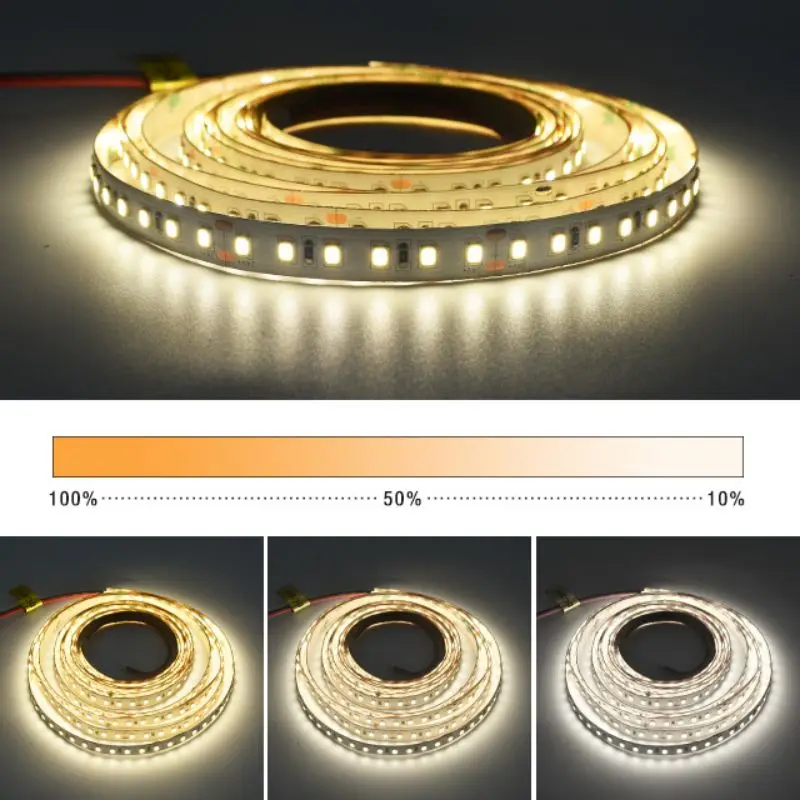

120leds SMD2835 Flexible LED Strip DC12V 24V 19.2W/M High CRI90 RA95 LED Ribbon
- Category: >>>
- Supplier: Shenzhen Bright Technology Industrial Ltd.Shenzhen Ltd.
Share on (1601008334577):
Product Overview
Description
Product Description

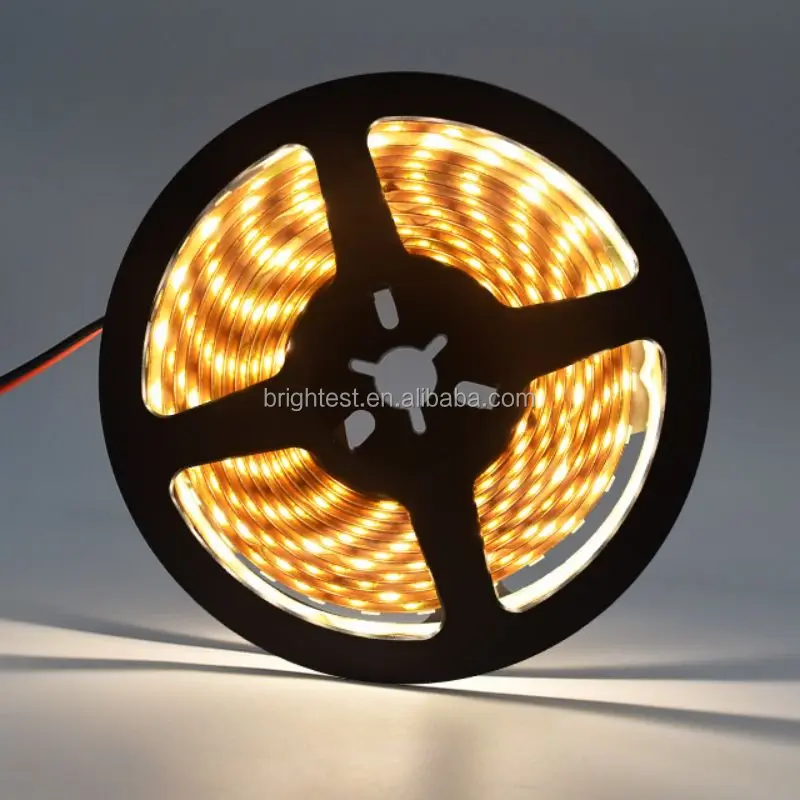

1. Dimensions：10mm, 5m/roll
2. Power: 19.2W/M
3. Led type: SMD2835, high brightness led
4. Led quantity: 120leds/m, 600leds/roll
5. Led color: white、red、green、blue、yellow etc.

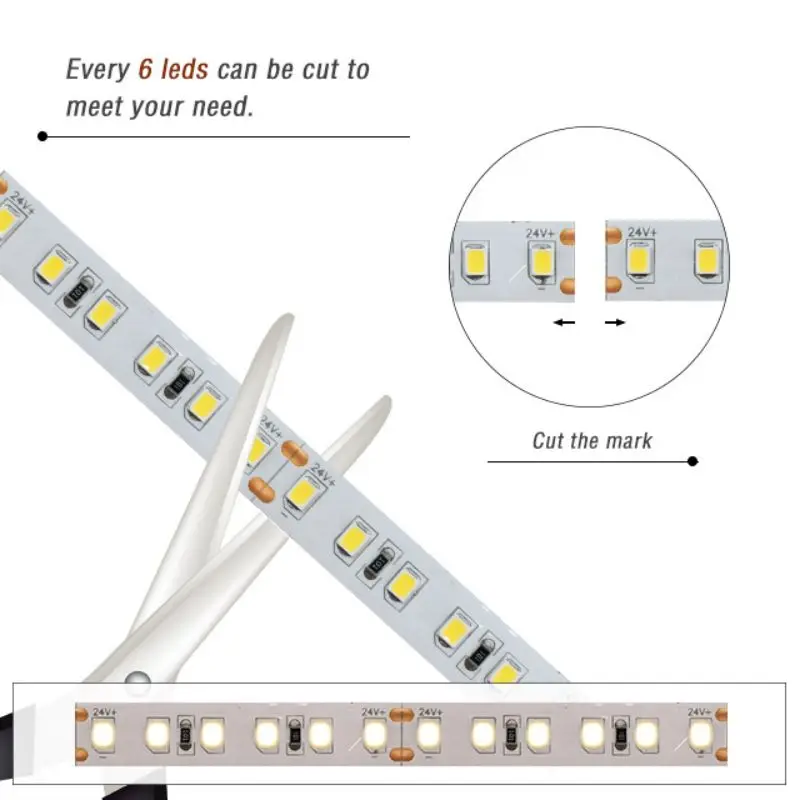

6. Cut length: 12V 3leds/25mm, 24V 6leds/50mm
7. PCB material: double sides FPC
8. Life time: 36000hours
9. IP grade：IP20/IP66
2. Power: 19.2W/M
3. Led type: SMD2835, high brightness led
4. Led quantity: 120leds/m, 600leds/roll
5. Led color: white、red、green、blue、yellow etc.
6. Cut length: 12V 3leds/25mm, 24V 6leds/50mm
7. PCB material: double sides FPC
8. Life time: 36000hours
9. IP grade：IP20/IP66
Logo and Website Printing
Custom Retail Packaging Available
Custom cut lengths

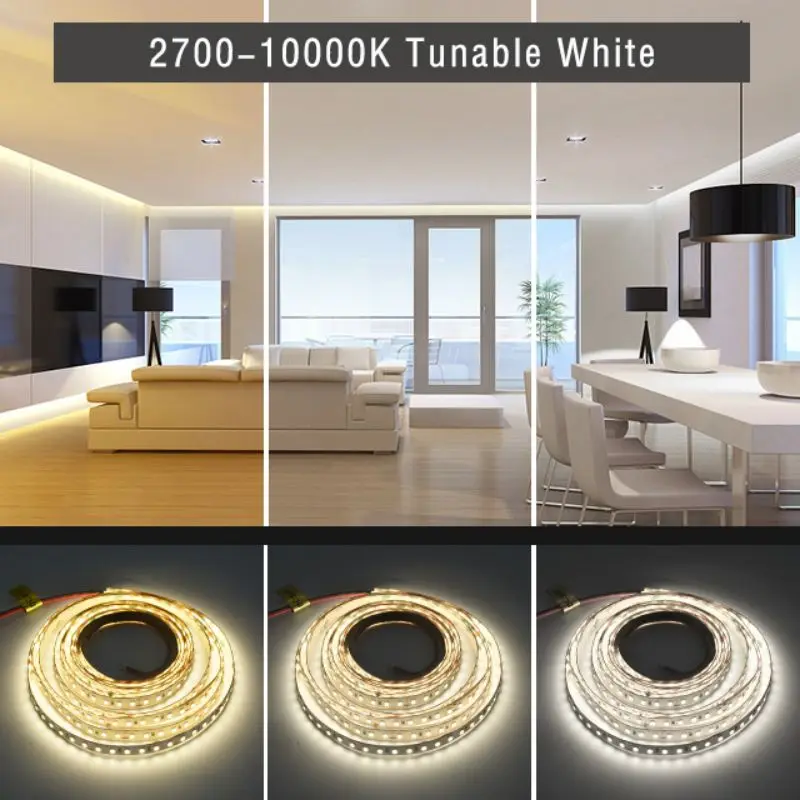

Available in Various Color Temperatures:
Warm White: 2500K, 2700K, 3000K
Neutral White: 4000K
Cool White: 6000K
Warm White: 2500K, 2700K, 3000K
Neutral White: 4000K
Cool White: 6000K
1.LED chips are encapsulated with pure gold wire and large chips for optimal performance.
Single Bin selection per order ensures consistent color matching across future orders.
2.Lead-free SMT (RoHS compliant) with strong, rounded solder joints.
3.Double-layer PCB ensures stable electrical performance.

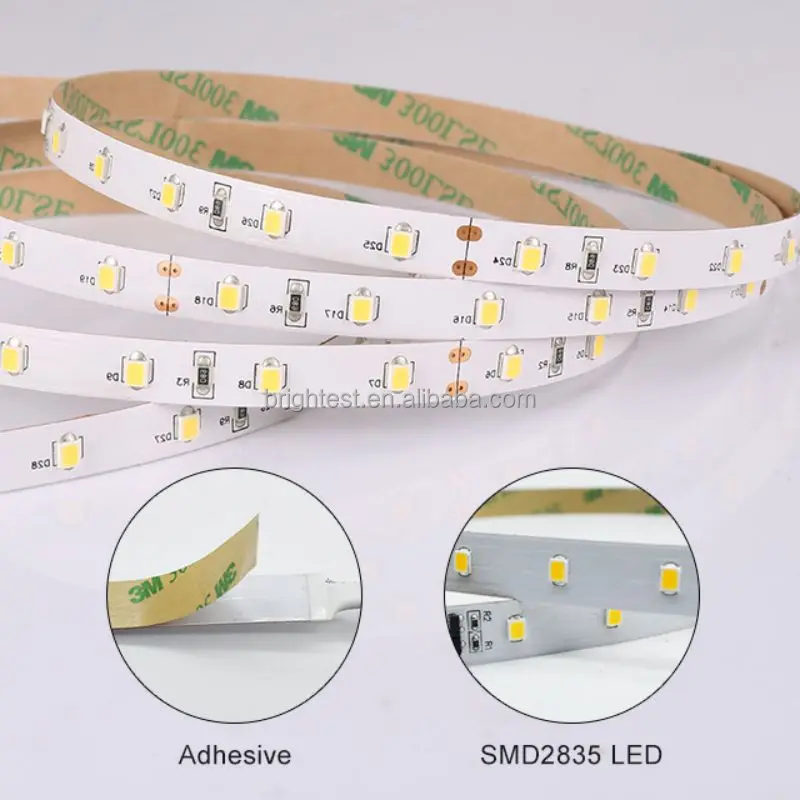

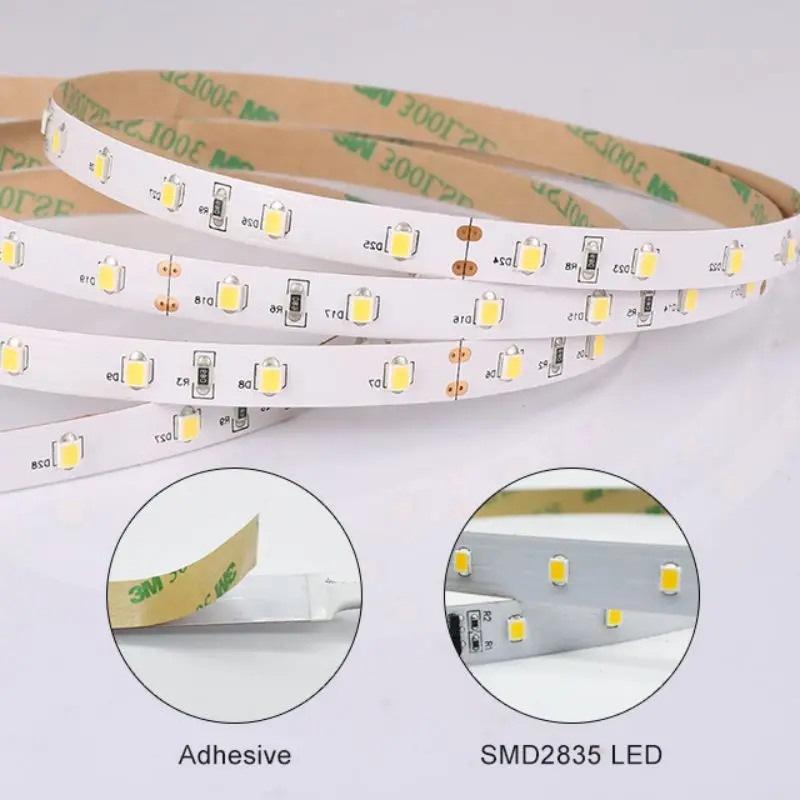

4.Genuine 3M adhesive tape provides superior adhesion.
5.A range of fittings available for easy installation.
5.Available in multiple waterproof ratings: IP20, IP65, IP66, IP68.
6.Premium silicone used for effective waterproofing.
Single Bin selection per order ensures consistent color matching across future orders.
2.Lead-free SMT (RoHS compliant) with strong, rounded solder joints.
3.Double-layer PCB ensures stable electrical performance.
4.Genuine 3M adhesive tape provides superior adhesion.
5.A range of fittings available for easy installation.
5.Available in multiple waterproof ratings: IP20, IP65, IP66, IP68.
6.Premium silicone used for effective waterproofing.
Rigorous inspection, aging test, and integrating sphere test conducted before shipment, with data and test reports retained.

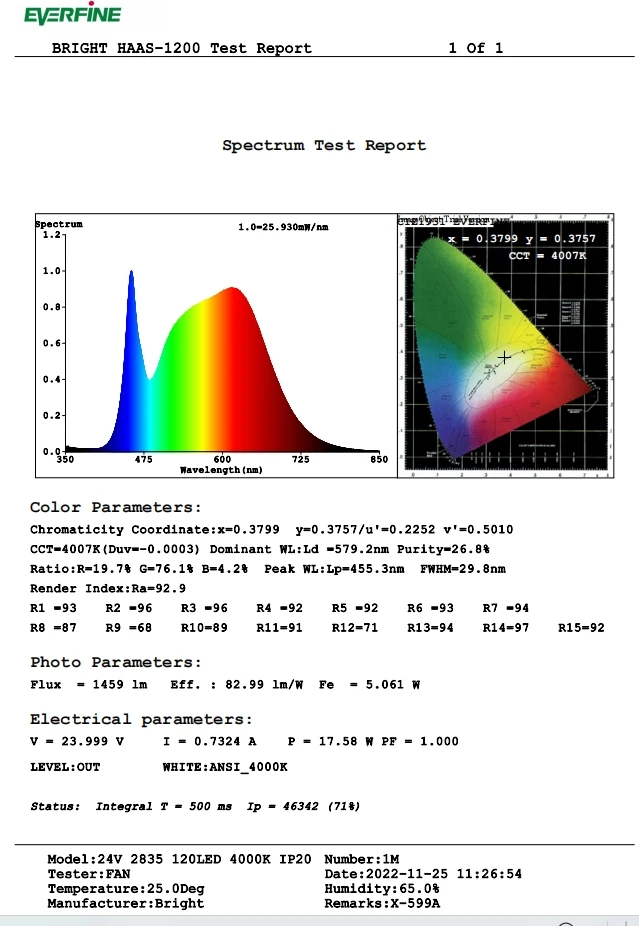

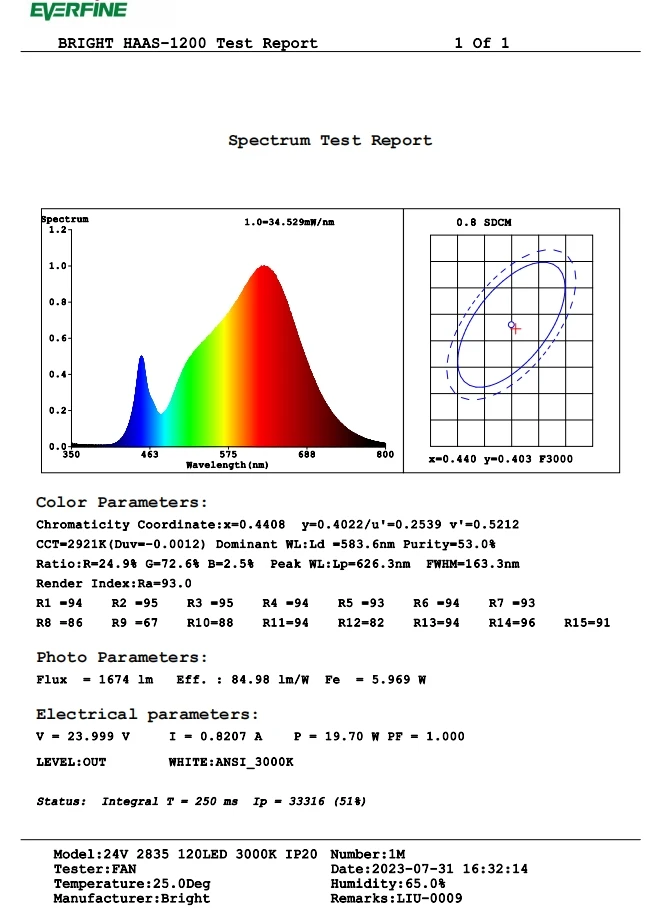

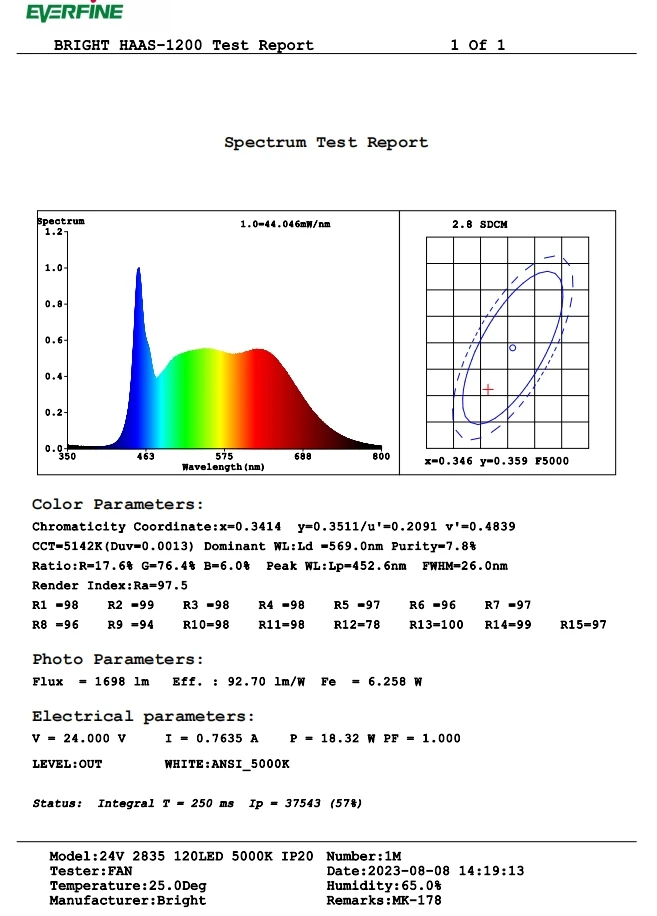

Integrating Sphere Test Report
SMD2835 LED Light Strip | ||||||
Product No | BG-B-241-2835-600 | Energy efficiency grade | A | |||
Luminous | 1850Lm/m | Storage temperature | -20~+60℃ | |||
Color temperature | 2200-6500K | Working temperature | -20~+60℃ | |||
CRI | Ra>80 | Life time | >36000 hours | |||
Beam angle | 120° | Warranty | 3 years | |||
Voltage | 12Vdc/24Vdc | Power | 22W/m | |||
Company Profile
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we
will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we
will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
