500 ml 4 cavity plastic bottle making machine pet bottle blow molding machine for 100ML to 2L plastic bottle machine factory
- Category: >>>
- Supplier: ZHEJIANG HANYU AUTOMATION TECHNOLOGY CO. LTD
Share on (1601008342147):
Product Overview
Description
Product Description
Product Application

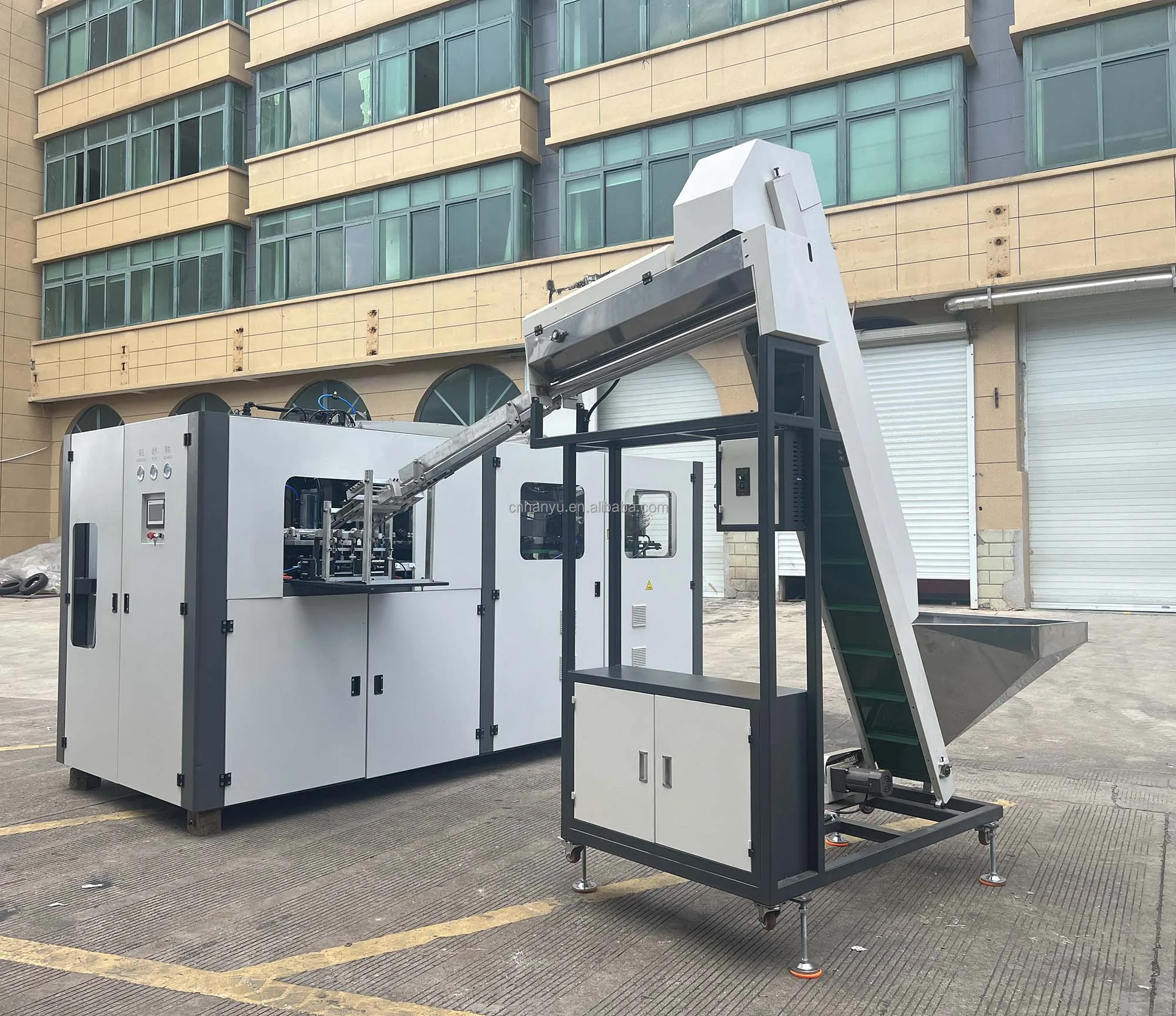

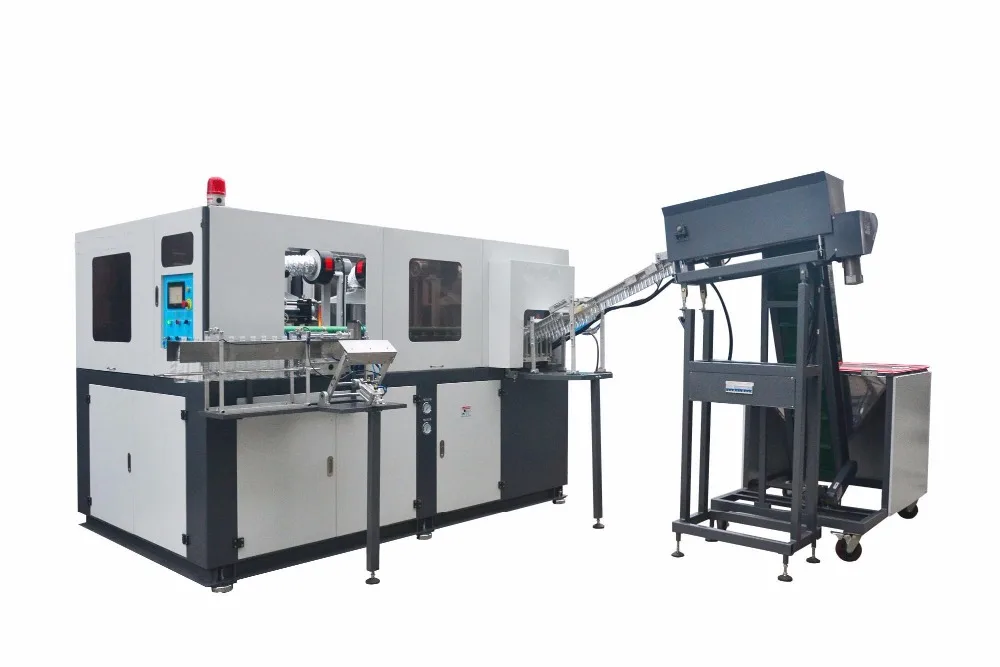

HY-4000 is the fastest liner blow molding machine in mainland of China by now. HY-4000 reaches around 4000BPH for 350ML bottle. Its baking tunnel is separated from the blow station so that time for mold opening is shortened with a result of speedy blowing and high output, damage to machine is lessened so as to keep reliable performance and prolong service life, as well as machine runs more smoothly and steadily.
HY-4000 is controlled by PLC. The whole process from preform feeding to bottle discharging is completed automatically with advantages of labor saving and no pollution. HY-4000 consists of three main parts: preform loading system, Heater channel & blow station.
HY-4000 is controlled by PLC. The whole process from preform feeding to bottle discharging is completed automatically with advantages of labor saving and no pollution. HY-4000 consists of three main parts: preform loading system, Heater channel & blow station.
4 cavity fully automatic blow molding machine | ||||||
CONTAINER | Max Container Volume | L | 2 | |||
Cavity | 4 | |||||
Theoretical Output | BPH | 4000 | ||||
ELECTRICAL | Heating Power | KW | 42 | |||
Max Heating Power | KW | 60 | ||||
Installed Power | KW | 64 | ||||
MACHINE | Clamping Force | KN | 400 | |||
Size(L*W*H) | M | 3.6*2.0*2.03 | ||||
weight | KG | 35 | ||||
Operating Power | MPA | 0.7 | ||||
Blowing pressure | MPA | 3.0 | ||||
Detailed Images

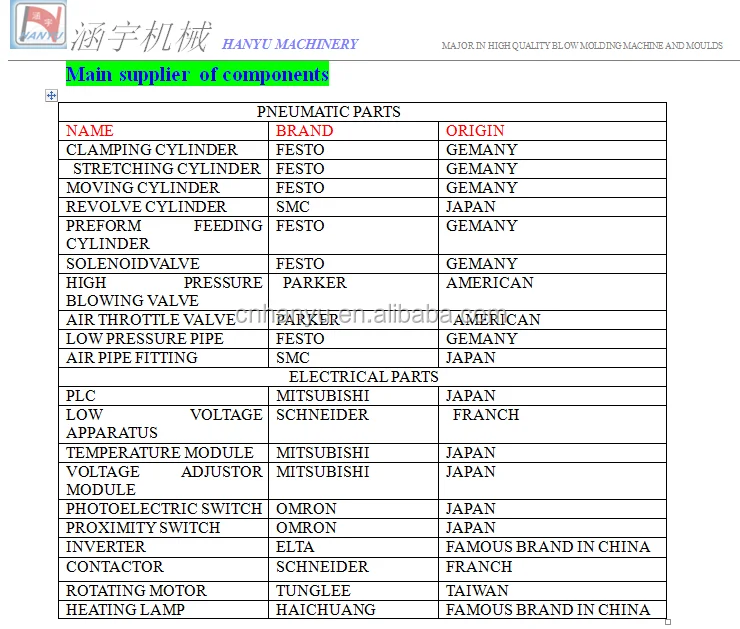

Machine Parts

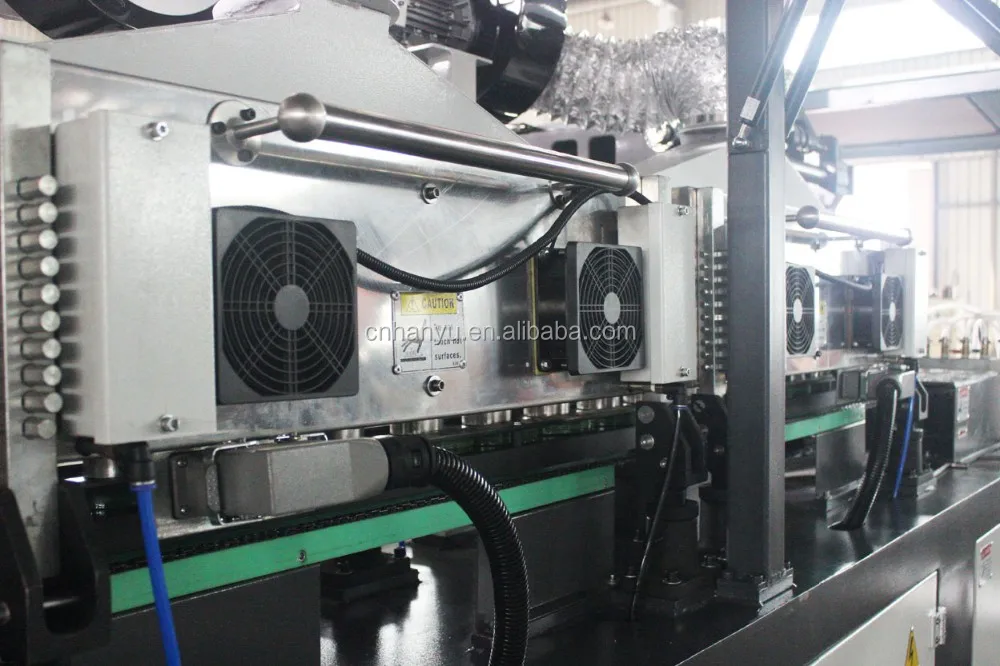

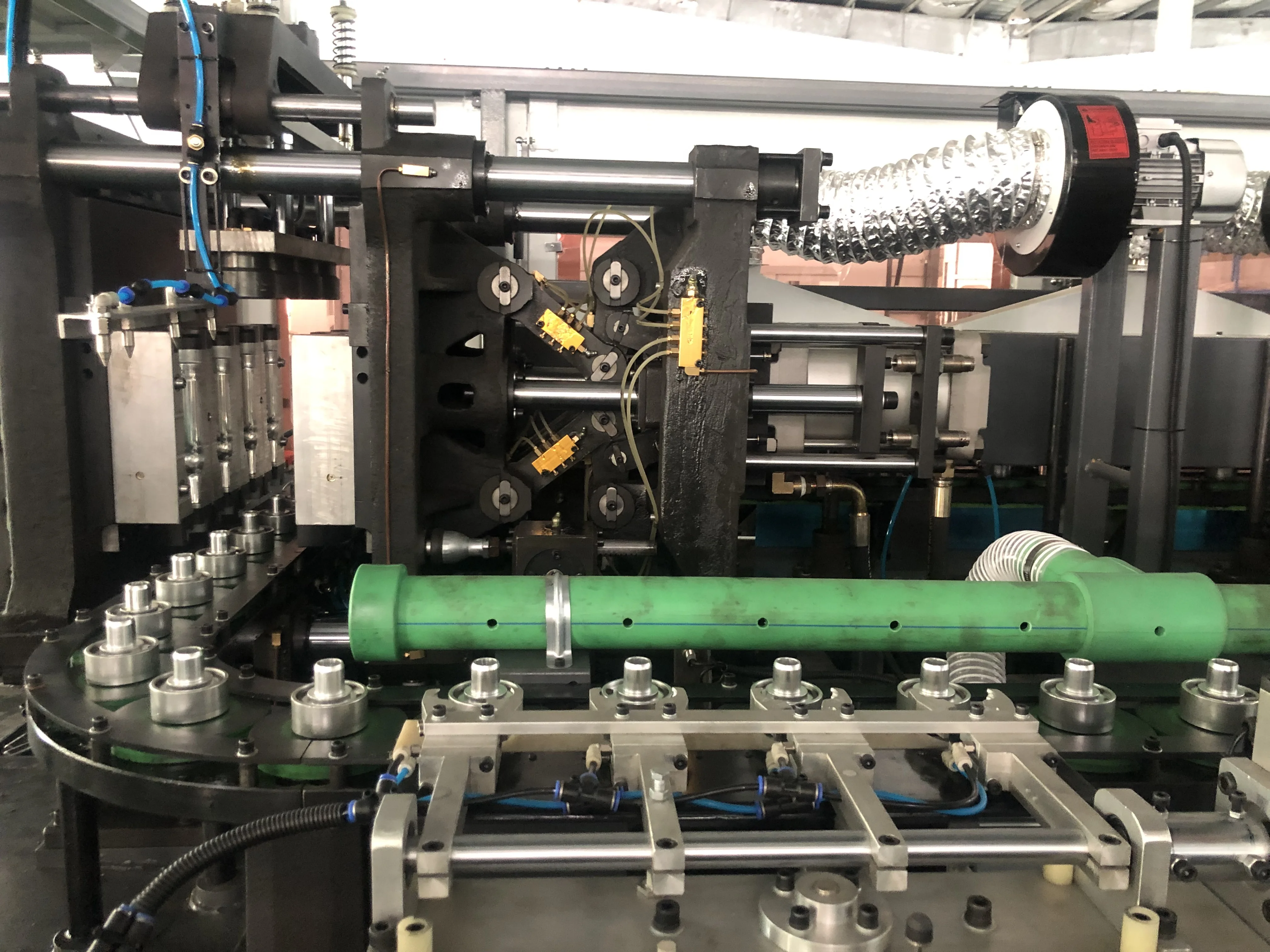

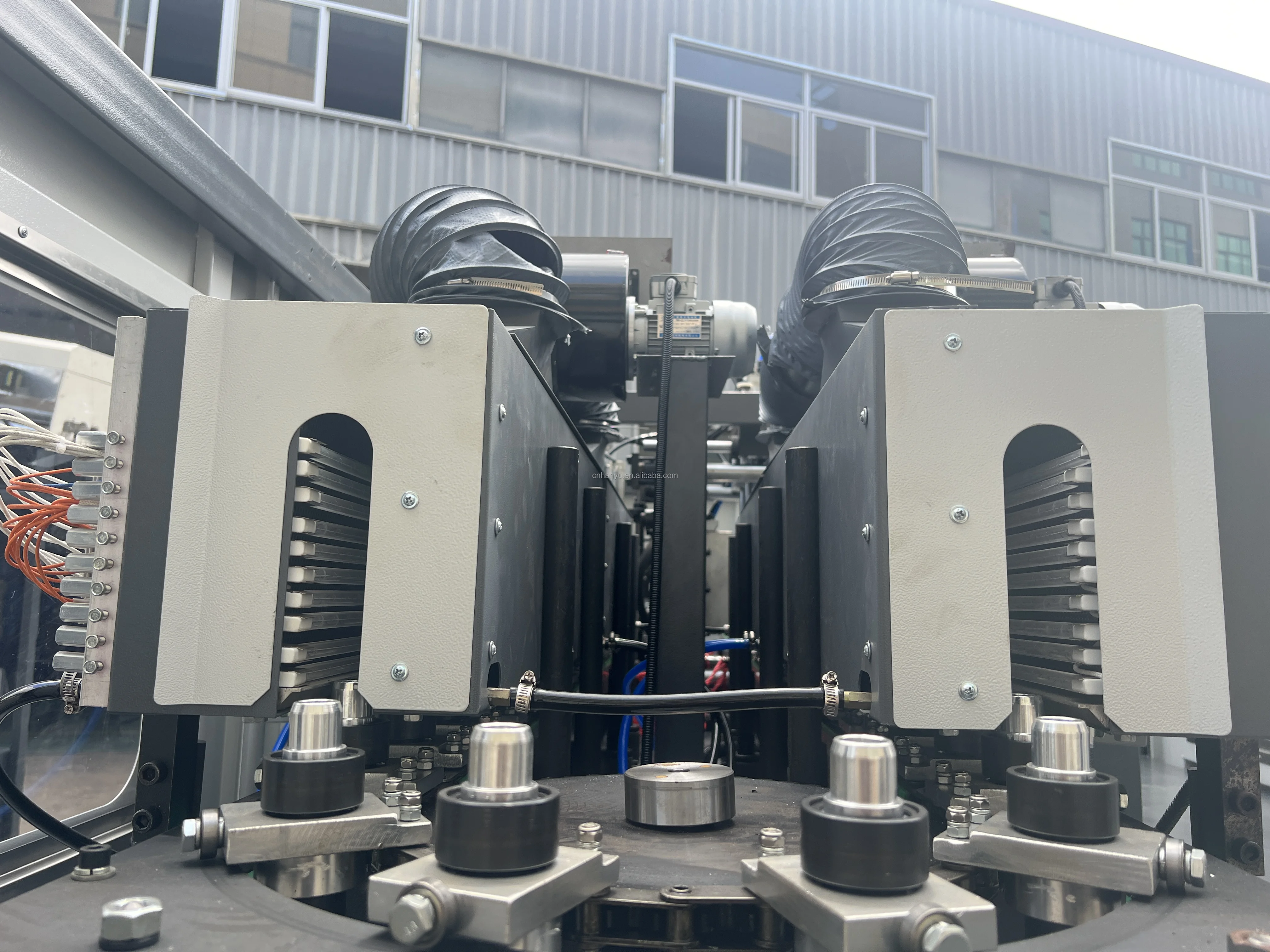

Name: Heating Parts
Main Features

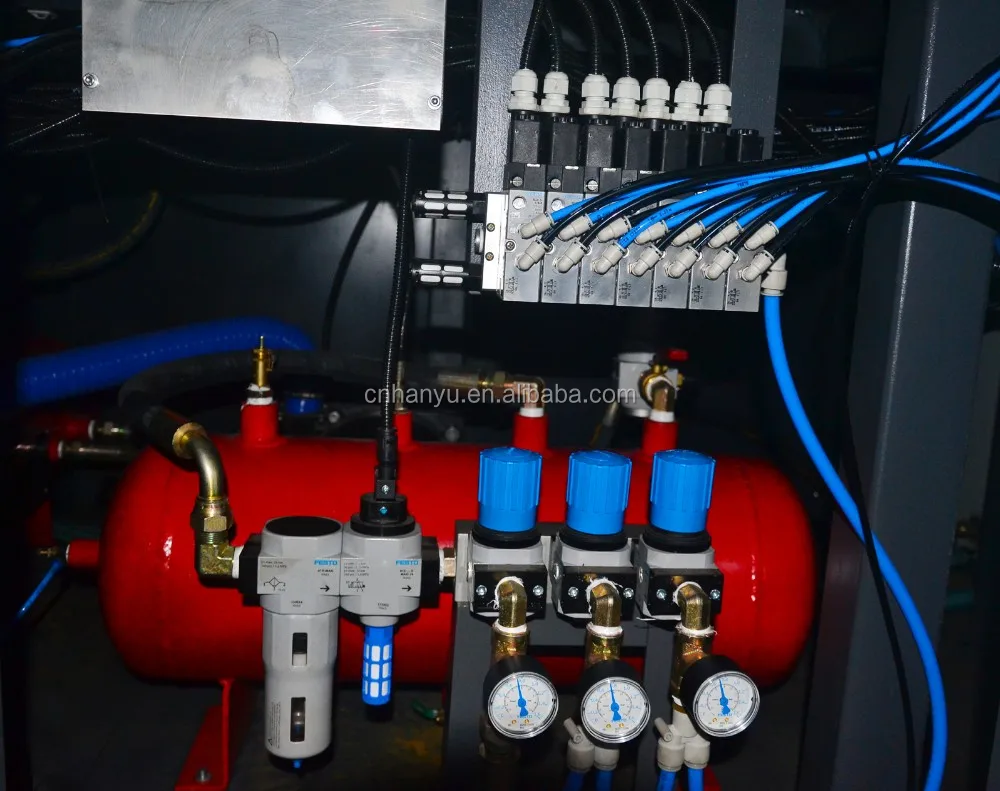

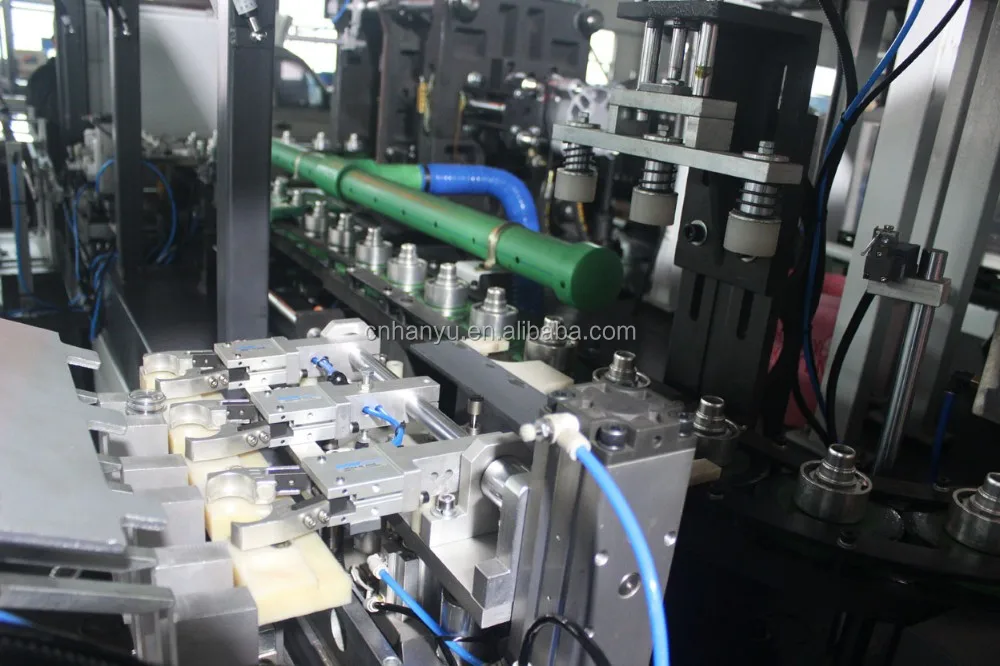

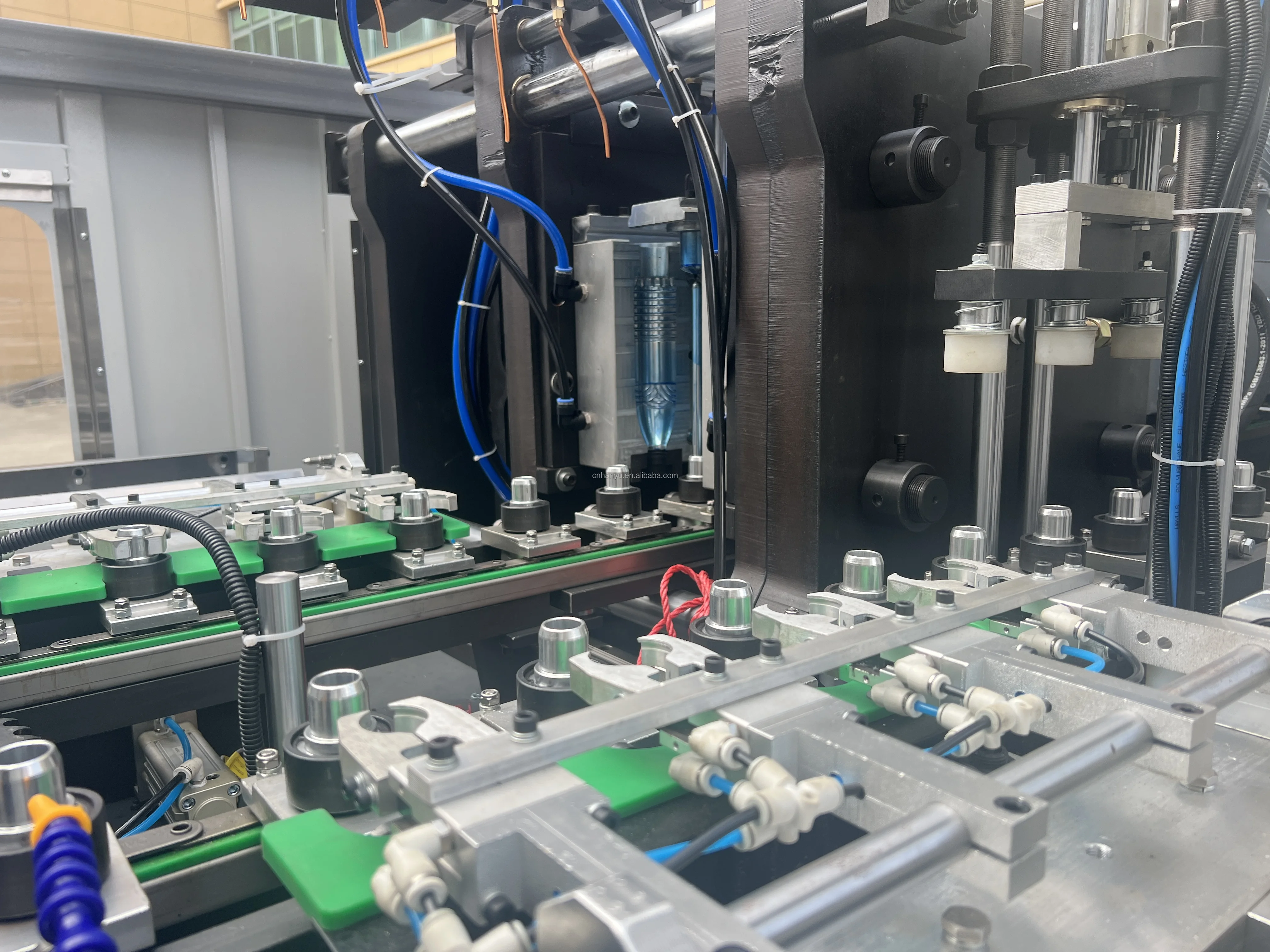

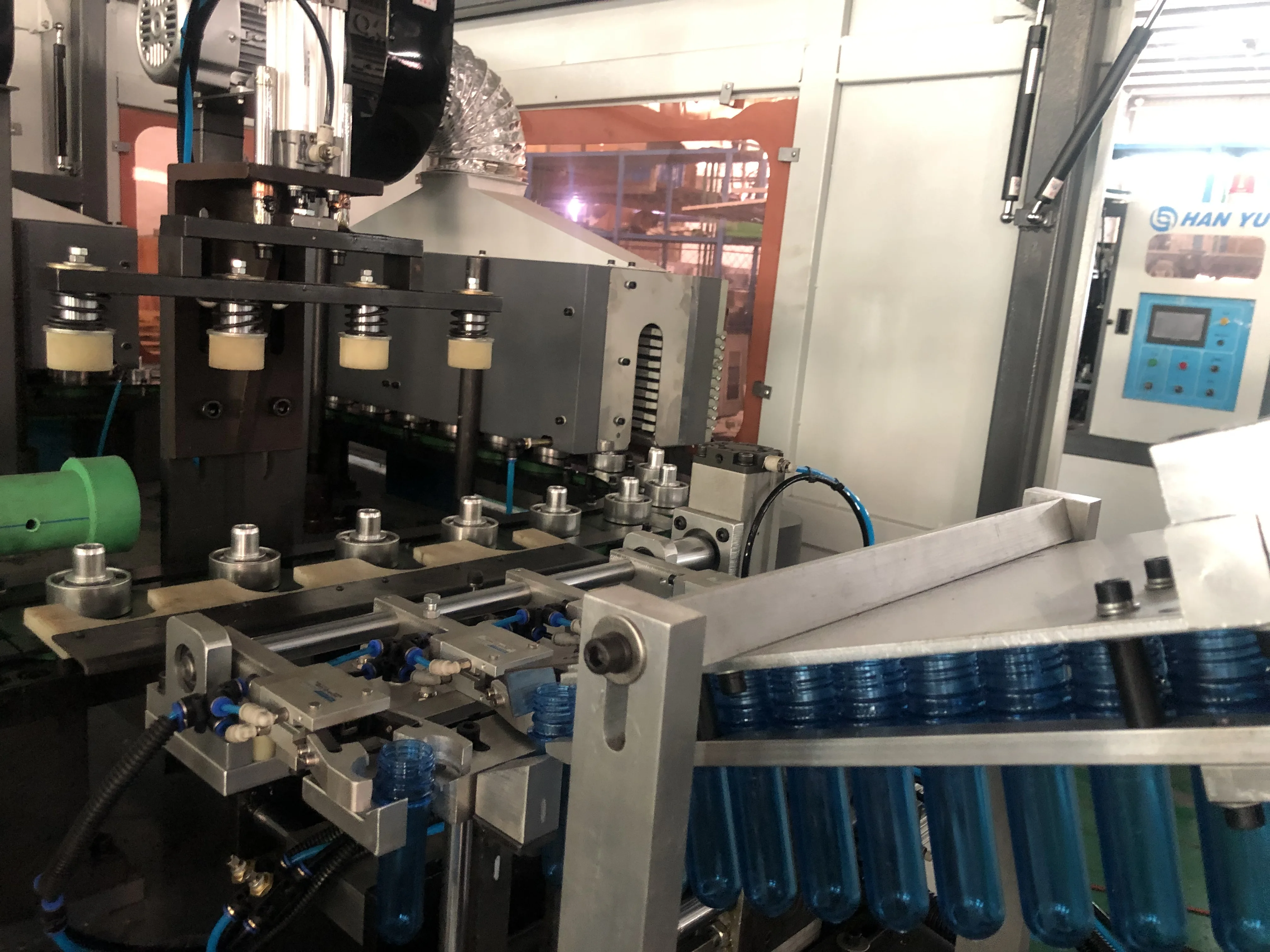

Name:Feeding parts
Brand: FESTO
Original: Germany

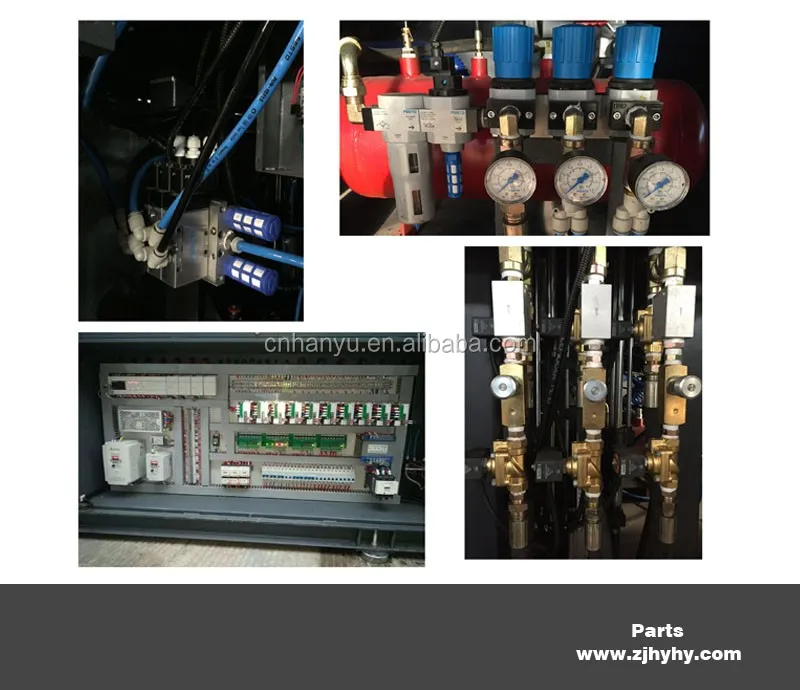

Machine Parts
Brand: FESTO
Original: Germany
Main Features

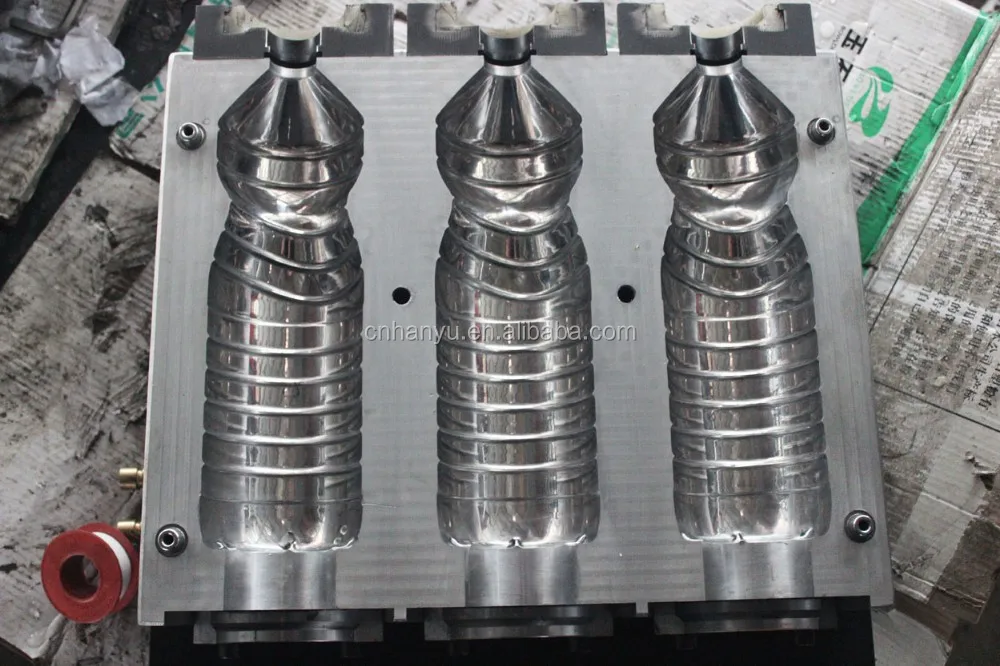

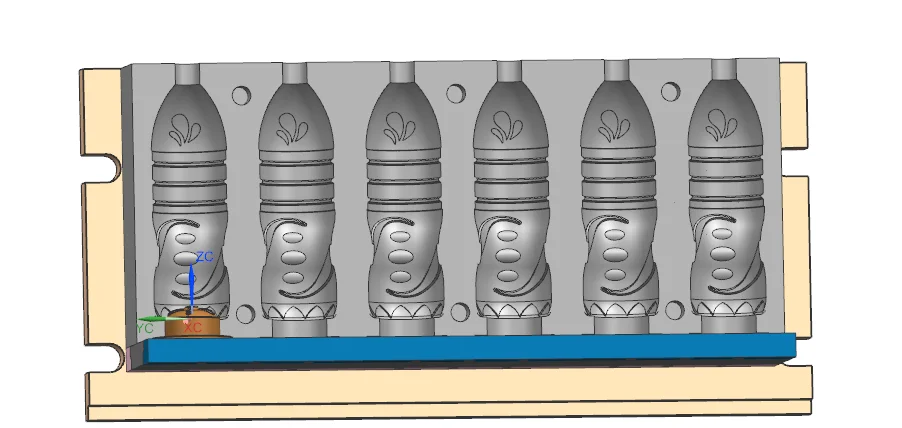

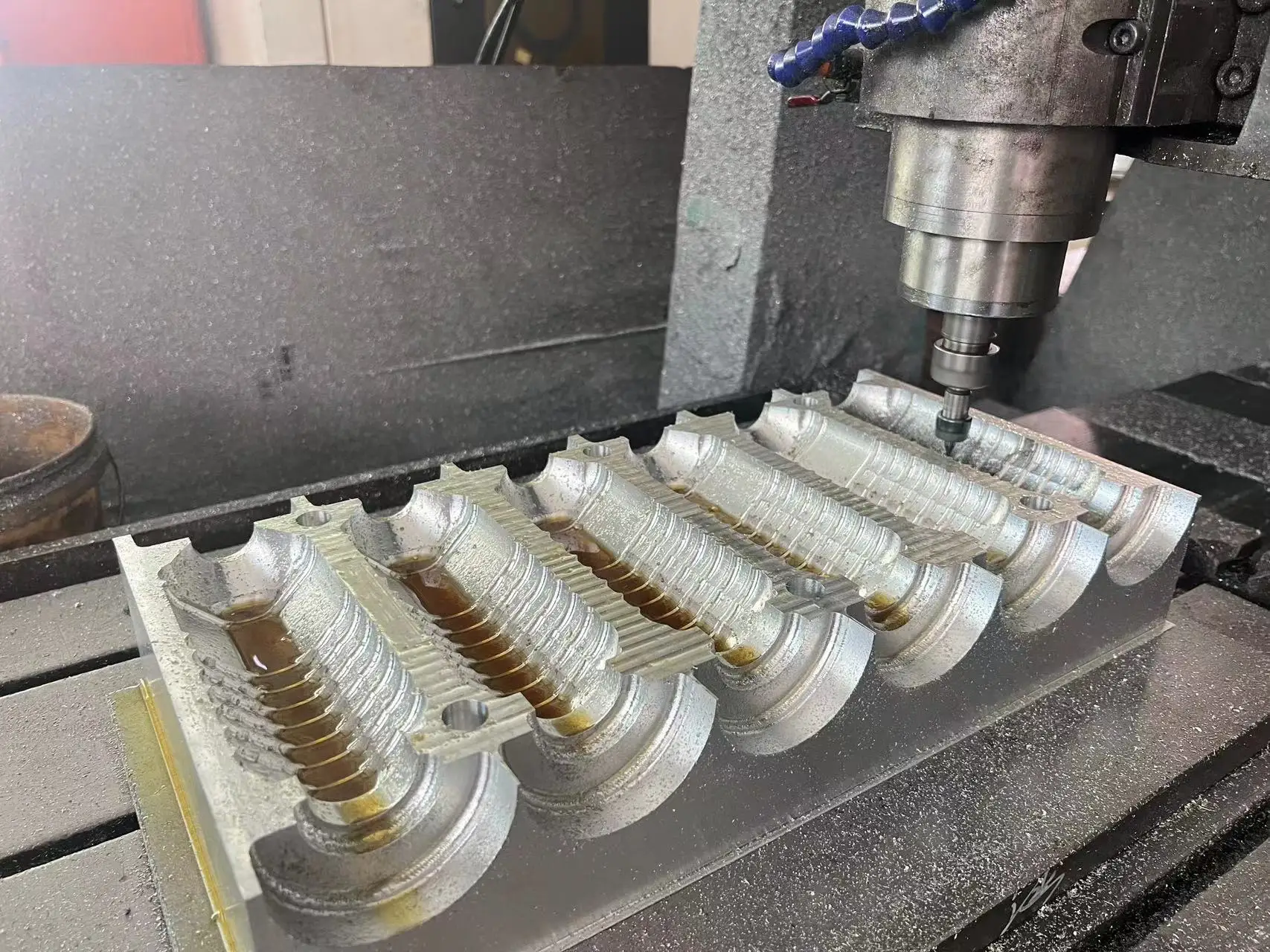

Name: Blowing mold
Material: 7075
Original: America

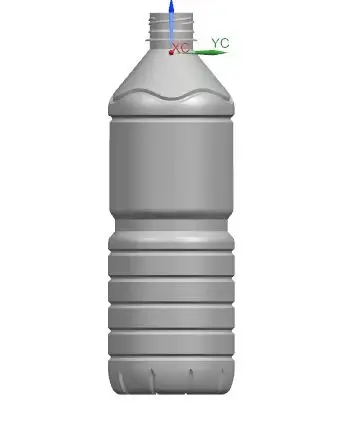

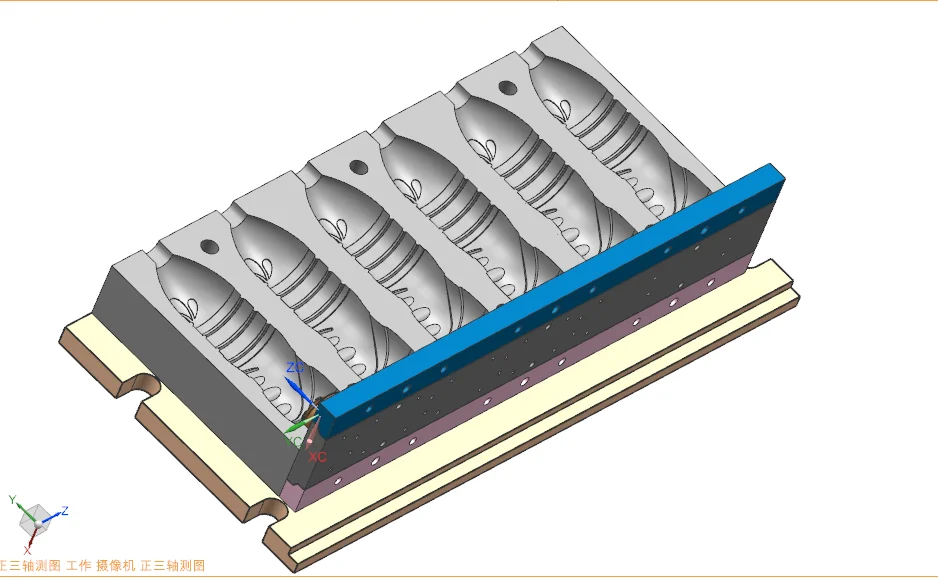

Provide whole drawing for the perform mould and bottle mould. Free charge for word design on the mould

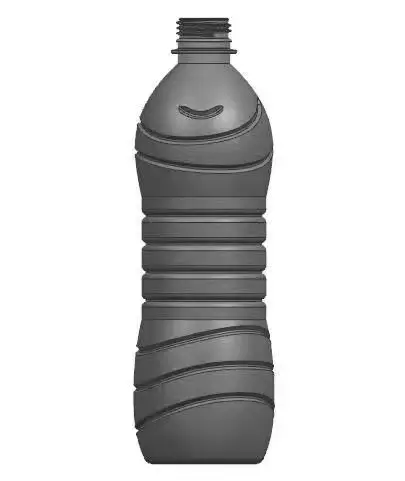

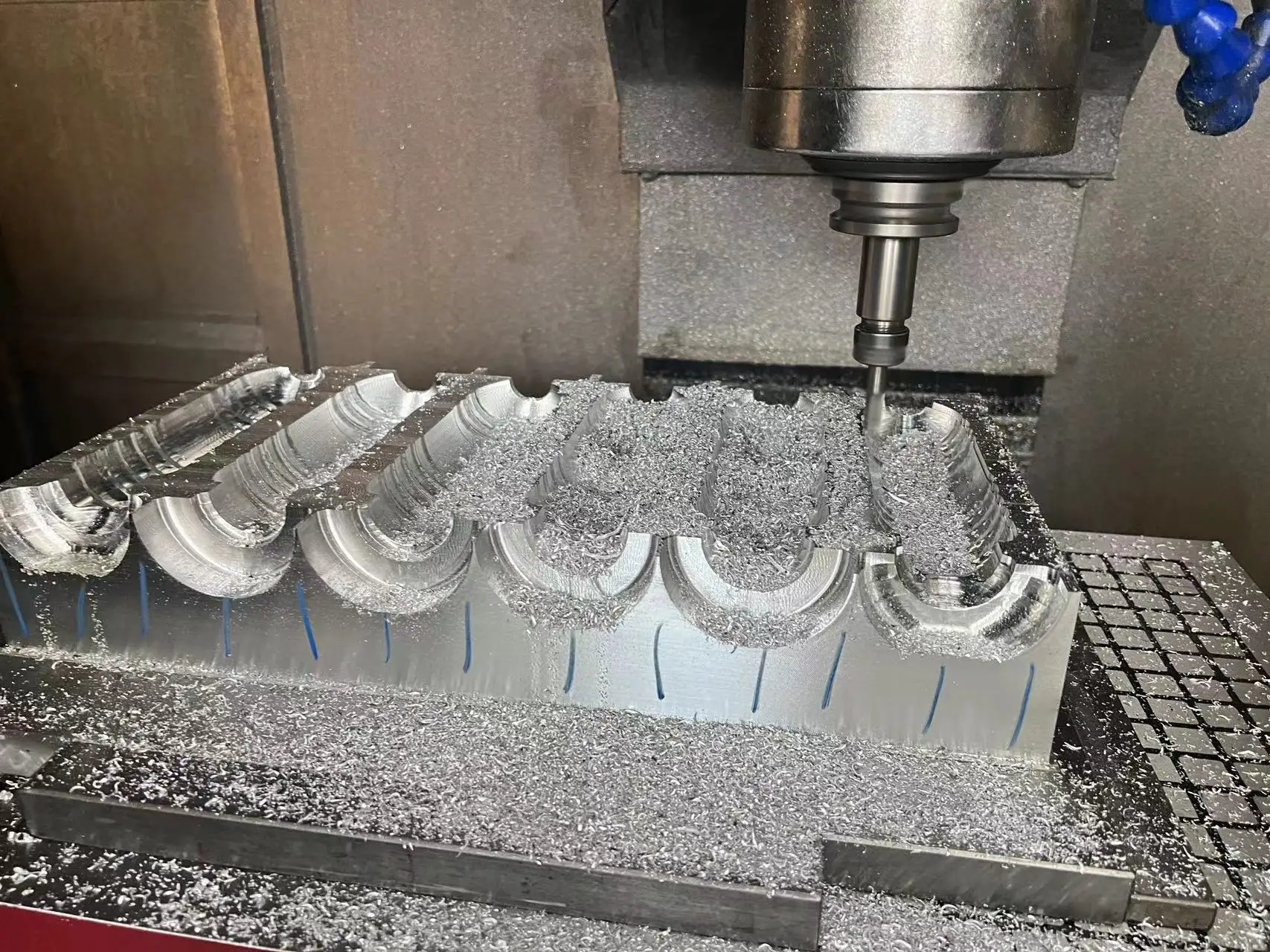

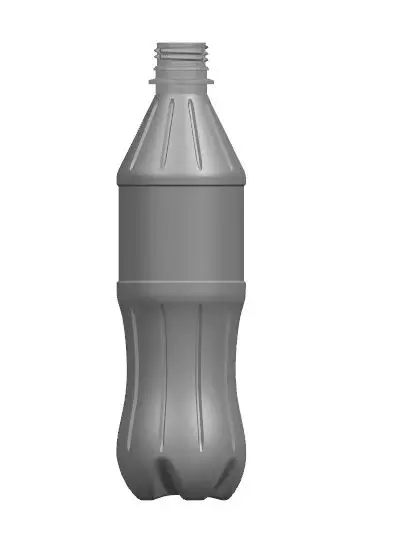

All moulds are designed by CAD/CAM.
333

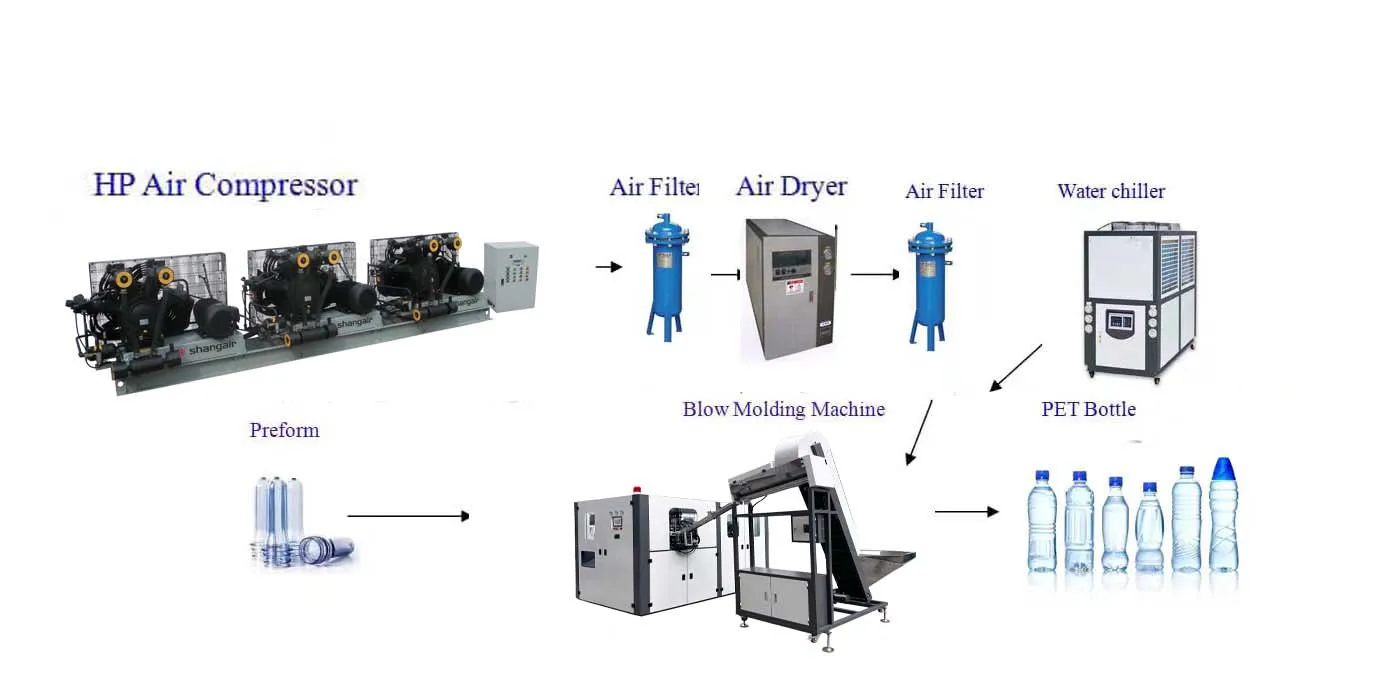

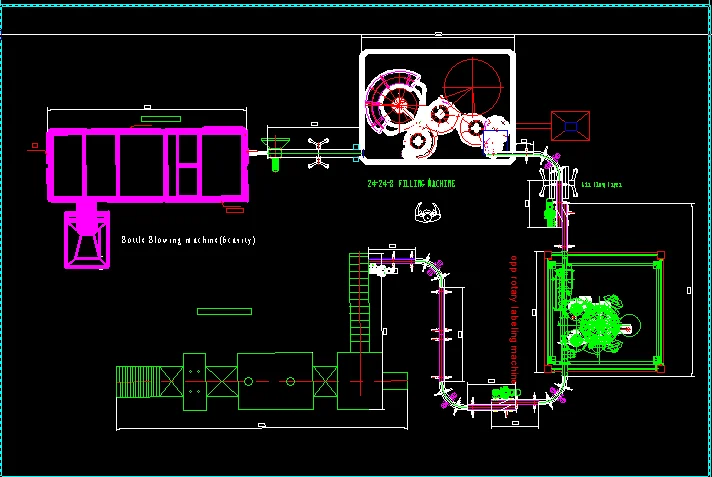

production line
1）PET bottle manufacturing: preforms are sent into automatic blow molding machine via elevator and blow PET bottle, which is suitable for the requirement. Then bottles are sent into 3 in 1 filling system via air conveyor by bottle unscramble or directly.
2)Water Preparation : raw water is treated into requested water by water treatment and pump into filling system.
3)Washing water: the treated water is pumped into washing system of filling machine.
4)Air cleaning system for the filling system: after pre filtering by filter, air is supplied into filling machine in order to the air is up to 10000 class standard. The inner of the machine is up to 1000 class standard. At the sametine, there is buffer room, clothing room, fan room to keep inside cleaning.
5)Cap sterilizing and unscrambling: caps are sent into caps sterilizer, then sent into cap unscrambling system by cap elevator. After cap unscrambling system, caps are feed into capper.
6)Filling and capping: after filling machine, bottles are full of water and sent into capper to cap. And it becomes half-finished goods.
7)Second packaging: fulled bottles are storage in ware house after lamp checking, drying, inserting and shrinking label, and PE film shrinking machine.
2)Water Preparation : raw water is treated into requested water by water treatment and pump into filling system.
3)Washing water: the treated water is pumped into washing system of filling machine.
4)Air cleaning system for the filling system: after pre filtering by filter, air is supplied into filling machine in order to the air is up to 10000 class standard. The inner of the machine is up to 1000 class standard. At the sametine, there is buffer room, clothing room, fan room to keep inside cleaning.
5)Cap sterilizing and unscrambling: caps are sent into caps sterilizer, then sent into cap unscrambling system by cap elevator. After cap unscrambling system, caps are feed into capper.
6)Filling and capping: after filling machine, bottles are full of water and sent into capper to cap. And it becomes half-finished goods.
7)Second packaging: fulled bottles are storage in ware house after lamp checking, drying, inserting and shrinking label, and PE film shrinking machine.
FAQ
Q1: Where is your factory located? How can I visit there?
Yes warmly welcome to visit us ，we are in Taizhou City, Zhejiang Province, China.
Q2: How long is the warranty ?
A2: All of products have one years warranty.
Q3: How can I install my machine when it arrives?
A3: We will provide detailed installation videos for semi-automatic machine and provide 24-hour online support.
and if you need we will send our engineer to your side as soon as you get all your machines to testing and teaching your technicians how to run the machines.
Q4: How long is the delivery time?
Q4: How long is the delivery time?
A4: Under normal conditions, products are delivered within 45 working days for fully-auto machine，15days for semi-automatic machine
Q5: Where is the Shipping departure port?
Q5: Where is the Shipping departure port?
A5: Ningbo or shanghai port.
Q6: What’s the payment
Q6: What’s the payment
A6: T/T, L/C,Western Union, paypal.
Q7. What products does your company offer by yourself?
Q7. What products does your company offer by yourself?
A7: We are specialized in PET Blow Molding Machine, PET Blow Mold, Injection Machine, PET Preform Mold,Cap mold.
Q8: How about the quality of machine?
Q8: How about the quality of machine?
A8: We have been producing bottle blowing machines since 1996 with extensive experience and
undergo repeated testing and inspection before shipment
Packing & Delivery
Packaging | ||
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Our Factory
Zhejiang Hanyu Automation Technology Co., Ltd
Zhejiang Hanyu Automation Technology Co., Ltd is a professional manufacturer of blow molding machines, Our team have been involved in blow molding machine and mould industry since 1996 Machine manufacturing. integrating development and production together. Our main products include P E T full- automatic blow molding machine, semi-automatic blow molding machine, B O P P blow molding machine, hot-filling bottle blow molding machine, 5 gallon blow molding machine, preform mold, cap mold, bottle mold, plastic mold, injection machine and other related products. Hanyu Machinery has perfect manufacturing equipment and manufacturing system, with a high-quality, professional , persistent team.we can provide all technology to the customers from design to successful install.
