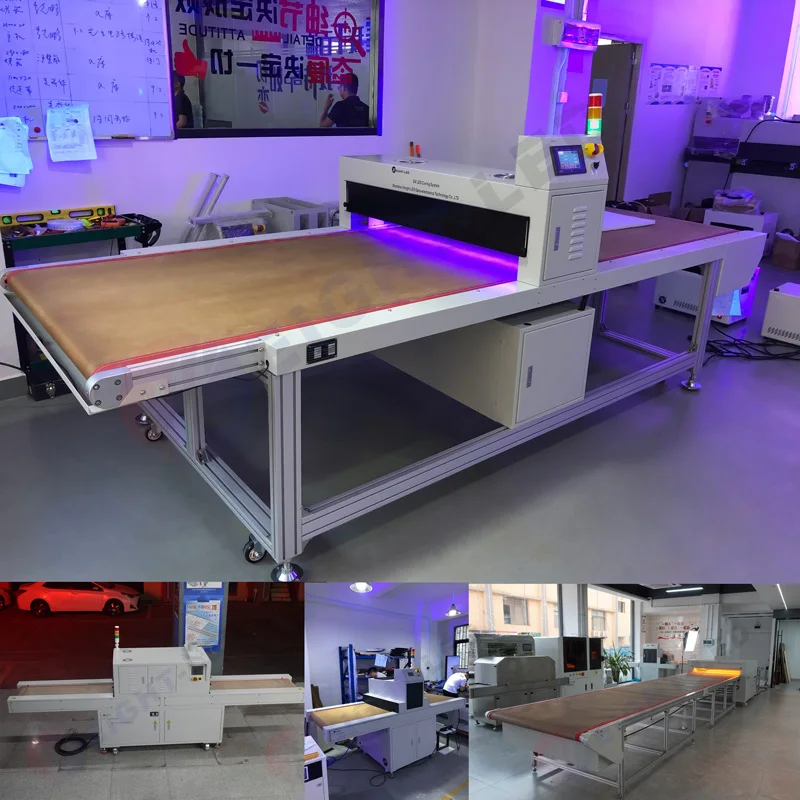

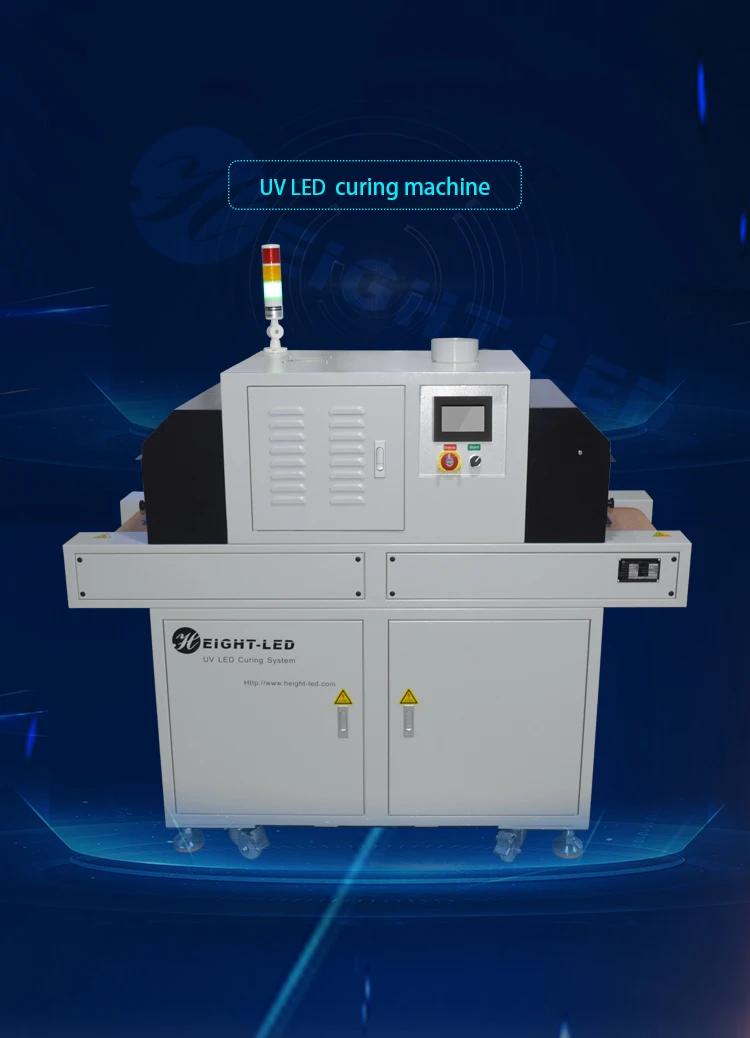

Screen Printing UV Dryer Led Light Lamp Drying UV Curing Machine Tunnel For UV Glue and Ink Drying

Share on (1601008349890):


Price:$2,999.00-5,499.00

Quantity:


Product Overview

Description



uv curing machine conveyor curing uv led lamp 365nm 385nm 395nm 405nm uv curing system details








Product Parameter


Model
HTCS-II-FS300200-BH
Dimension
L1500*W570*H1500mm
Dimension of UV LED Lamp
L373mm*W224mm*H110mm

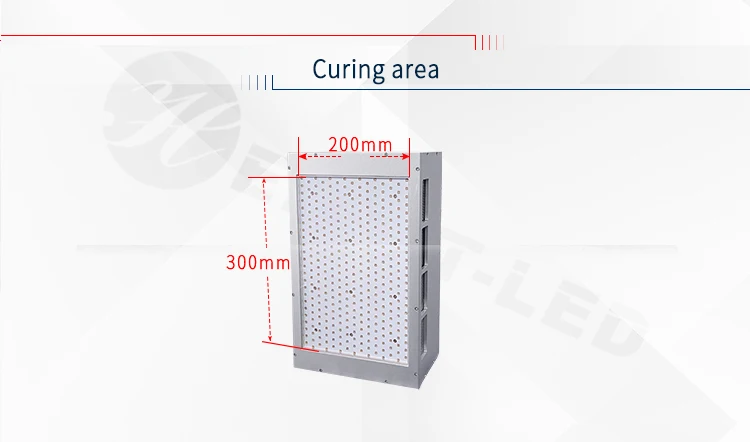

Curing area
300X200mm
Wavelength
365/385/395/405nm(Optional)
Optical intensity
365nm 385nm 0.8W/cm² (10mm irradiation distance)
395nm 405nm 1.2W/cm² (10mm irradiation distance)
Lamp beads
imported LED lamp beads
Lamp beads life
≥20000H
Cooling method
Fan cooling
Control style
PLC
Parameter setting
Touch screen operation
Power adjustment
digital dimming(1-100%)
Voltage
AC100V-AC240V (50/60Hz)
Total power consumption
1200W
Net weight
135KG
Ambient temperature
-20°C—40°C
Relative humidity
25%—80%RH
Customized service
parameters can be customized according
to customer needs






Company Profile




FAQ


1. who are we?
We are based in Guangdong, China, start from 2011,sell to Domestic Market(55.00%),North America(15.00%),Eastern Europe(10.00%),Western Europe(7.00%),South America(5.00%),Mid East(5.00%),Africa(3.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?

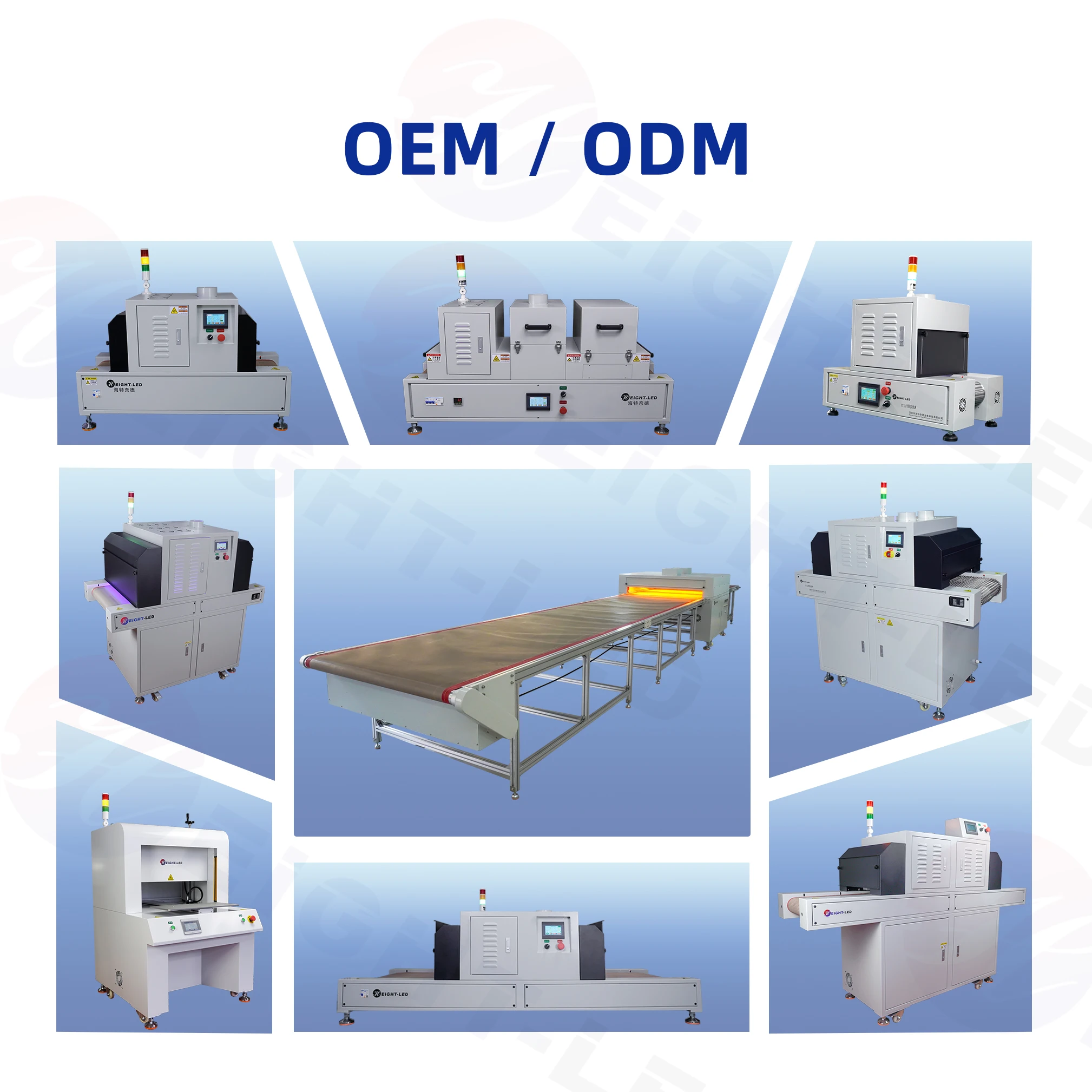

UV LED Curing System,UV Curing Lamp,UV LED Curing Oven,UV Curing Machine

4. why should you buy from us not from other suppliers?
Starting in 2007, Height-LED engaged in UV-LED curing UV ink, UV adhesive, UV paint, UV varnish and other UV sensitive materials.
Our team has more than 12 years combined experience in UV curing systems and can meet the requirements of each client.

5. How to proceed an order for UV LED curing system?
Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

6. Is it OK to print my logo on UV LED curing system?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

7. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
