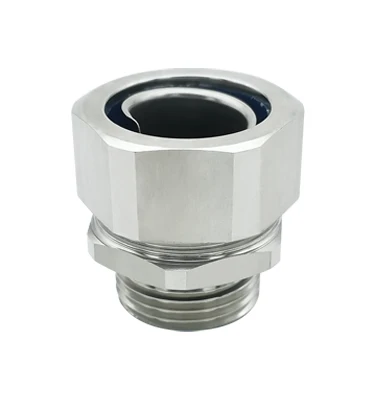

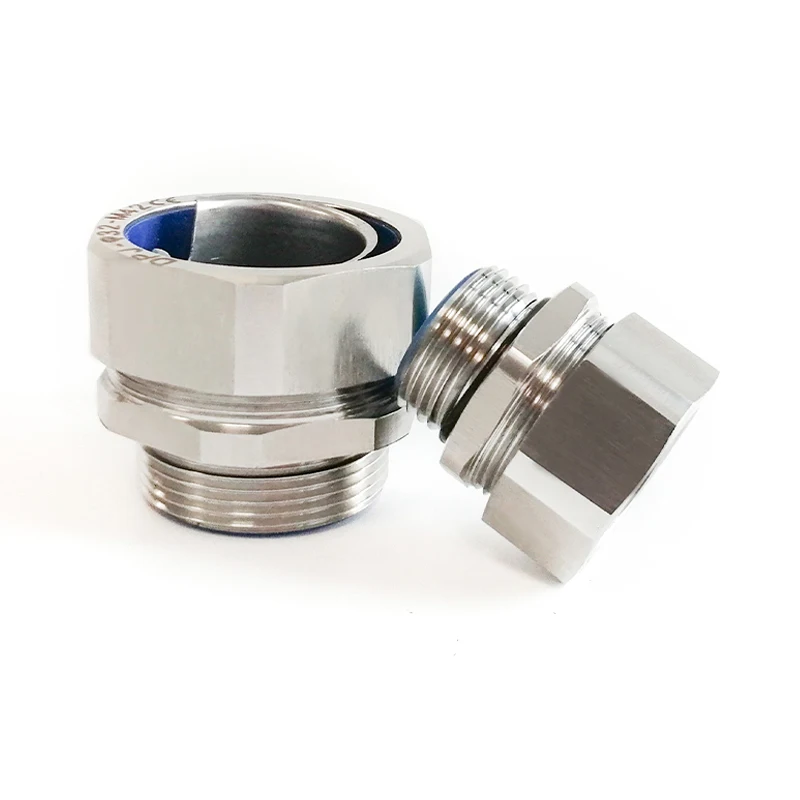

Straight Liquid Tight Stainless Steel Cable Joint Cable Gland Connector 053
- Category: >>>
- Supplier: Jiangsu Yikawei Electronic Technology Co. Ltd.
Share on (1601008364435):
Product Overview
Description
PRODUCT INTRODUCTION
1. Item: Customized Stainless Steel Liquid Tight Electrical Conduit Fittings Connectors
2. Material: Stainless Steel/Brass nickel plated/ZincAlloy
3. Thread: M metric/PG/G/NPT
4. Seal& O-Ring: TPE
5. Protection Degree: IP66
6. Temperature: from -40℃ to +105℃
2. Material: Stainless Steel/Brass nickel plated/ZincAlloy
3. Thread: M metric/PG/G/NPT
4. Seal& O-Ring: TPE
5. Protection Degree: IP66
6. Temperature: from -40℃ to +105℃

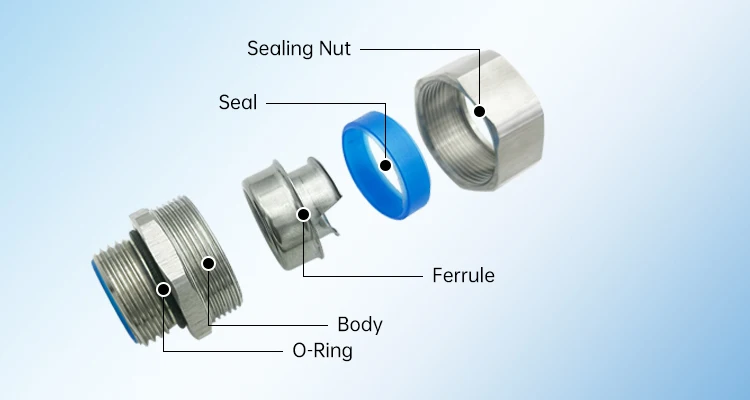

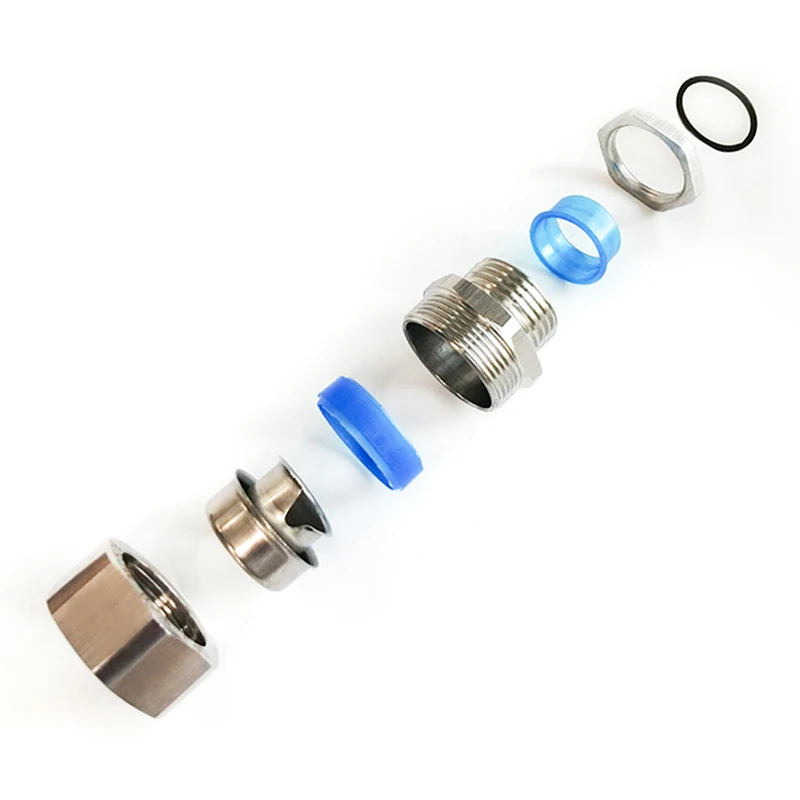

PRODUCT STRUCTURE

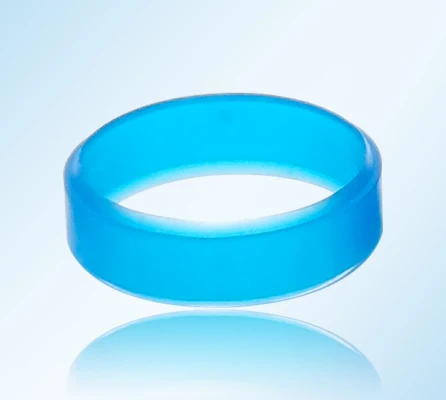

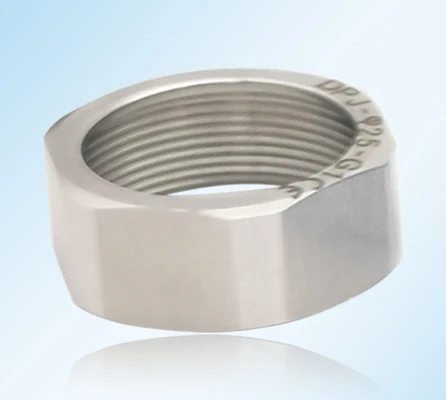

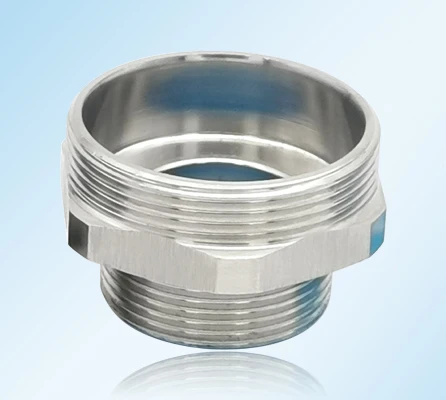

Sealing Nut, Seal, Ferrule, Body, O-Ring and Lock nut.
PRODUCT SELLING POINT
Anti-UV Shell
Material: 304/316L stainless steel, Zinc,
Brass nickel plated, Iron etc.
Advantages: High toughness, strong pressure resistance, salt and acid resistant, fire prevention, firm and reliable use, ensuring a longer service life.
Advantages: High toughness, strong pressure resistance, salt and acid resistant, fire prevention, firm and reliable use, ensuring a longer service life.
The desigh of hose sheath and the hose fastening assembly phase, time saving, convenience, strong tensile.
Waterproof, dust proof. The desigh of hose sheath and the hose fastening assembly phase, time saving, convenience.
PRODUCT CUSTOMIZATION
Fe/AI/Cu/SS304/SS316/PA66, or according to your request material.
We offered M/PG/NPT/G thread, etc.
The cable gland can be customized made according to cable range.

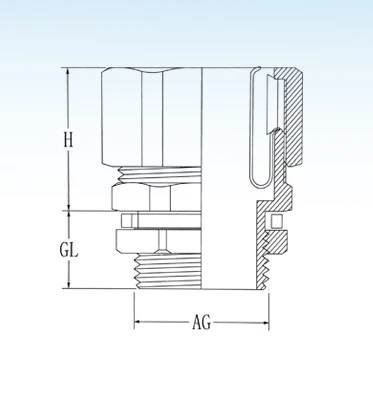

PRODUCT PARAMETERS
型号 Model | 适配软管尺寸 Adapted Hose Size | 英制螺纹 G Thread | 螺纹长度 GL (mm) | 公制螺纹 Metric Thread | 螺纹长度 GL | 德制螺纹 PG Thread | 扳手尺寸 Wrench Size (mm) | ||
公制 Metric | 英制 inch | ||||||||
YKWS-DPJ6 | φ6 | 3/16" | 3/4" | 7 | M12/M14 | 7 | PG7 | 18/16 | |
YKWS-DPJ8 | φ8 | 5/16" | G3/8" | 7 | M14/M16 | 10 | PG9 | 24/22 | |
YKWS-DPJ10 | φ10 | 1/4" | G3/8" | 8 | M16 | 10 | PG9 | 24/22 | |
YKWS-DPJ12 | φ12(13) | 3/8" | G3/8" | 10 | M16/M18/M20 | 10 | PG11/PG13.5 | 26 | |
YKWS-DPJ15 | φ15(16) | 1/2" | G1/2" | 12 | M20/M22/M24 | 10 | PG13.5/PG16 | 30 | |
YKWS-DPJ20 | φ20(19) | 3/4" | G3/4" | 12 | M25/M27/M30 | 12 | PG21 | 35 | |
YKWS-DPJ25 | φ25 | 1" | G1" | 14 | M32/M33/M36 | 12 | PG29 | 43 | |
YKWS-DPJ32 | φ32 | 1 1/4" | G1 1/4" | 14 | M40/M42/M48 | 14 | PG29 | 52 | |
YKWS-DPJ38 | φ38(40) | 1 1/2" | G1 1/2" | 16 | M43/M50 | 14 | PG36/PG42 | 60 | |
YKWS-DPJ51 | φ51(50) | 2" | G2" | 16 | M60/M63/M64/M72 | 16 | PG48 | 75 | |
YKWS-DPJ64 | φ64(70) | 2 1/2" | G2 1/2" | 24 | M76 | 20 | 89/87 | ||
YKWS-DPJ75 | φ75(80) | 3" | G3" | 25 | M88 | 22 | 102/97 | ||
YKWS-DPJ100 | φ100 | 4" | G4" | 25 | M114 | 28 | 133/128 | ||
YKWS-DPJ125 | φ125 | 5" | G5" | 25 | M140 | 29 | 158 | ||
YKWS-DPJ150 | φ150 | 6" | G6" | 25 | M164 | 29 | 183 | ||
SPECIFICATIONS CONFIRMED
Installation Cable Diameter
Installation Hole Diameter

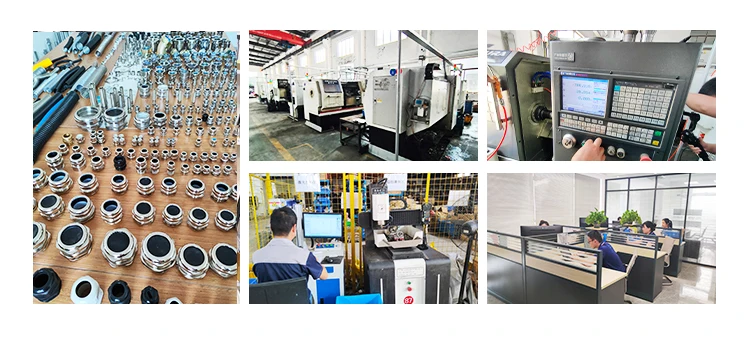

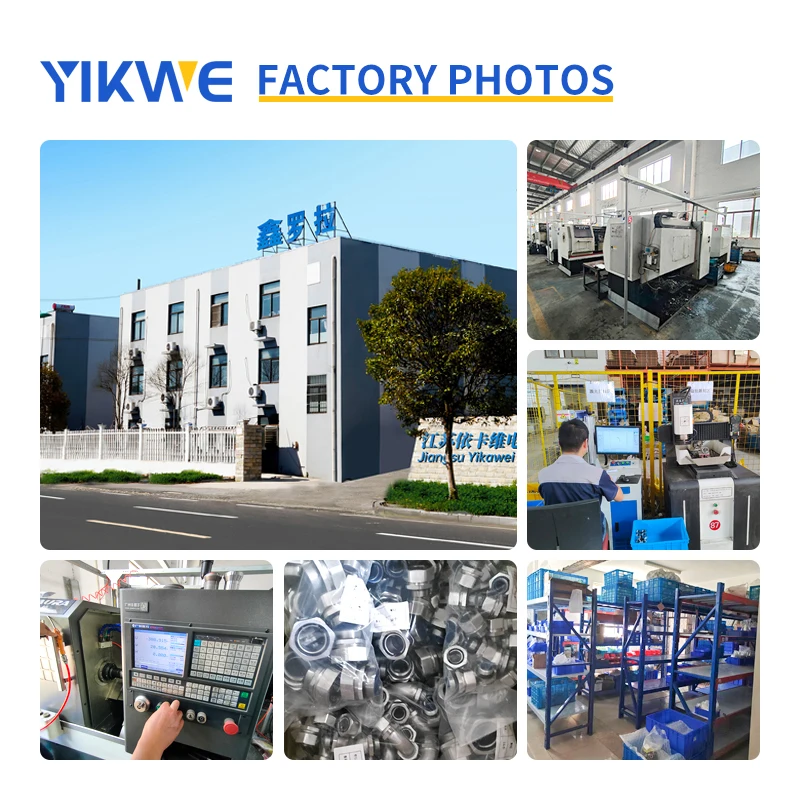

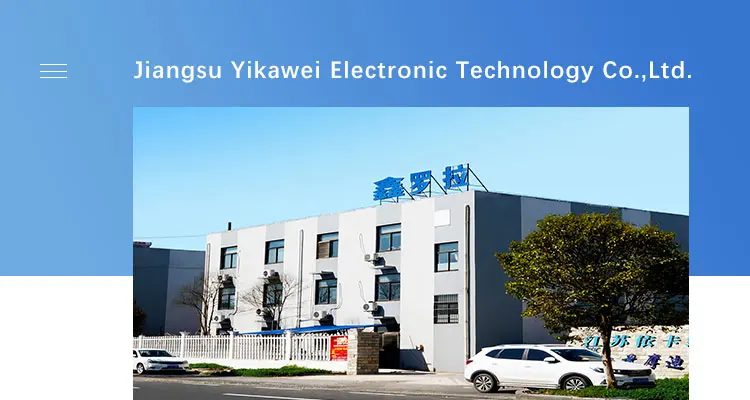

COMPANY PROFILE
