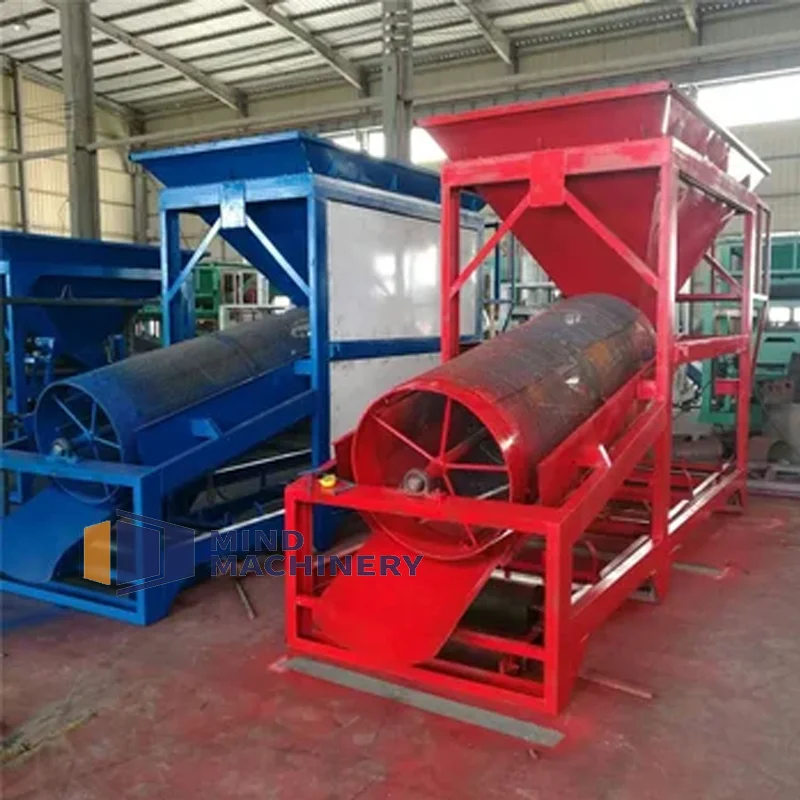

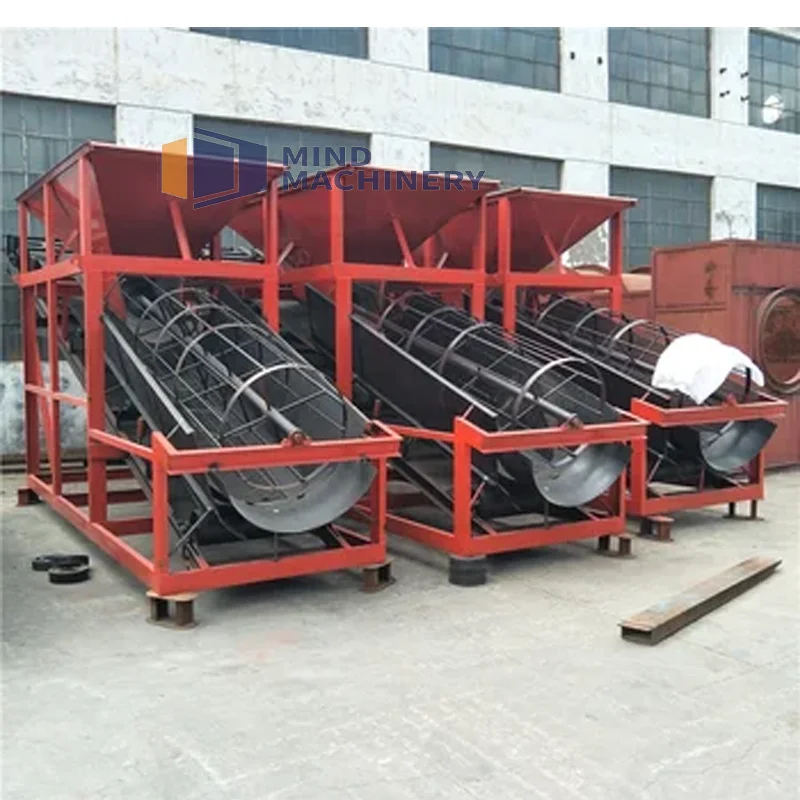

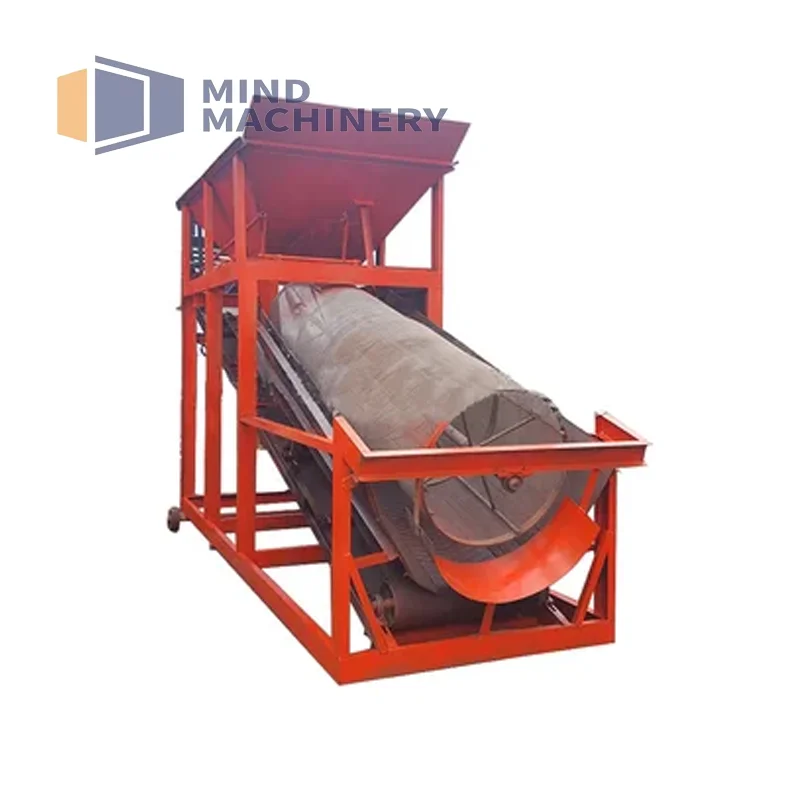

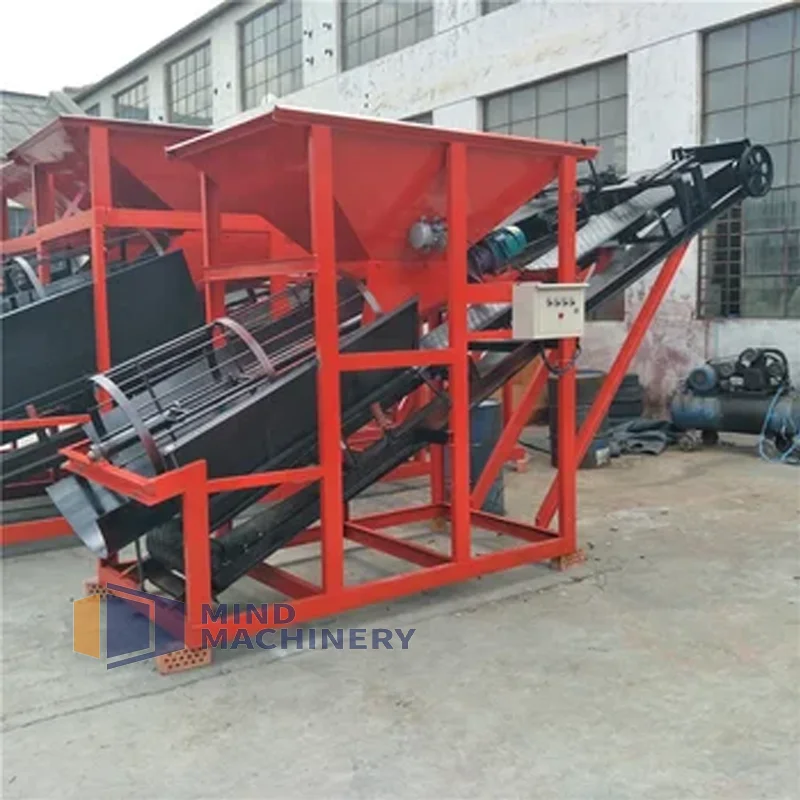

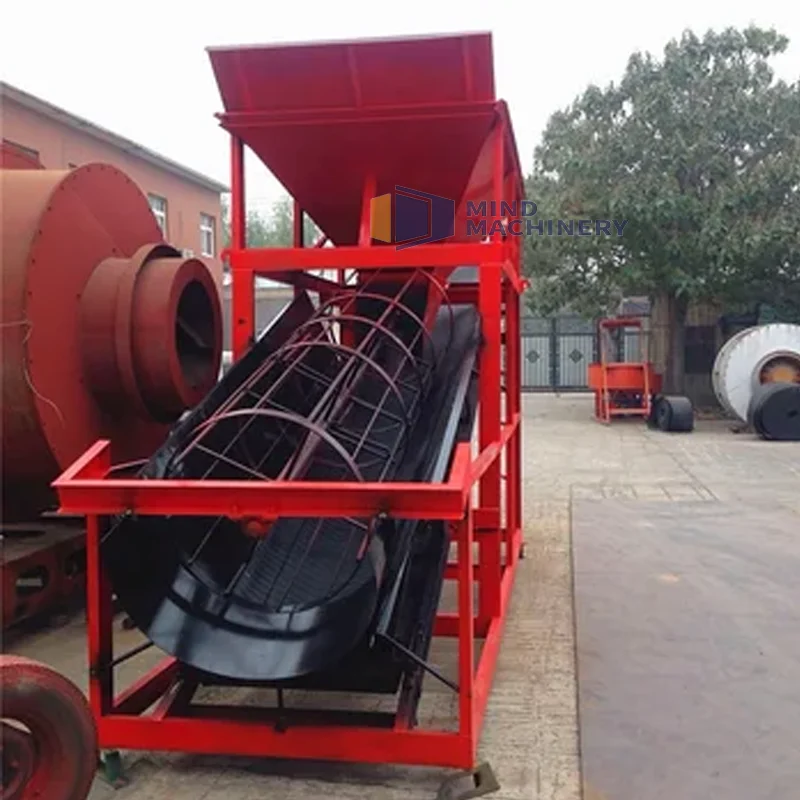

Mobile stone and sand screening machine

Product Overview

Description

Introductions of Trommel Screen:

1.The trommel screen uses the centrifugal force and jigging action of the drum roation to screen material.

2.It is suitable for construction and decoration waste, landfill waste and domestic waste, etc. It is screened out one by one through the sieves of different meshes.

3. After being screened out, the waste materials of diffenent specifications are dropped into the belt conveyor through the funnel and sent to the finished product yard.



Specifications:

Model	Capacity(t/h)	Power(kw)	Drum diameter(mm)	Drum Length(mm)	Dimension(mm)	Weight(kg)
GTS1050	50	3	1000	1500	2600*1400*1700	2200
GTS1020	100	4	1000	2000	3390*1400*2140	2800
GTS1225	160	5.5	1200	2500	4146*1600*2680	4200
GTS1530	250	7.5	1500	3000	4460*1900*2820	5100
GTS1545	350	11	1500	4500	5960*1900*3080	6000
GTS1848	450	15	1800	5000	6500*2300*4000	7500
GTS2055	600	22	2000	5500	7500*2550*4800	9600
GTS2265	800	30	2200	6500	8500*2750*5000	12800



Structures of Trommel Screen: 1.Rack components  2.Sieve cylinder 3.Bag breaking blade 4.Rack drive device 6.Feeding and unloading device 7.Feeding cover 8.Feeding hopper 9.Emergency stop device 10.Limit switch







Working Principles of Trommel Screen:

1. The trommel screen is mainly composed of a motor, reducer,trommel device, frame, sealing cover, and inlet and outlet.

2.The trommel device is installed obliquely on the frame. The motor is connected with the trommel device through the reducer and the coupling, and the trommel device is driven around it.

3. When the material enters the trommel device, the materials on the screent surfave are turned over and rolled due to the inclination and rotation of the drum device, so that the qualified materials( under-screen  products) are discharged through the outer screen of drum, and the unqulified materials (over-screen products) are discharged through the end of the drum.

4.The material stuck in the screen in the screen hole can be ejected to prevent the screen hole from being blocked due to the overturning and rolling of the material in the drum.



Main Features:

1.This equipment has the characteristics of large processing capacity, stable operation, high screening efficiency and  accurate particle size sorting.

2.The device has a bag breaking function, and detachable blades are set inside.

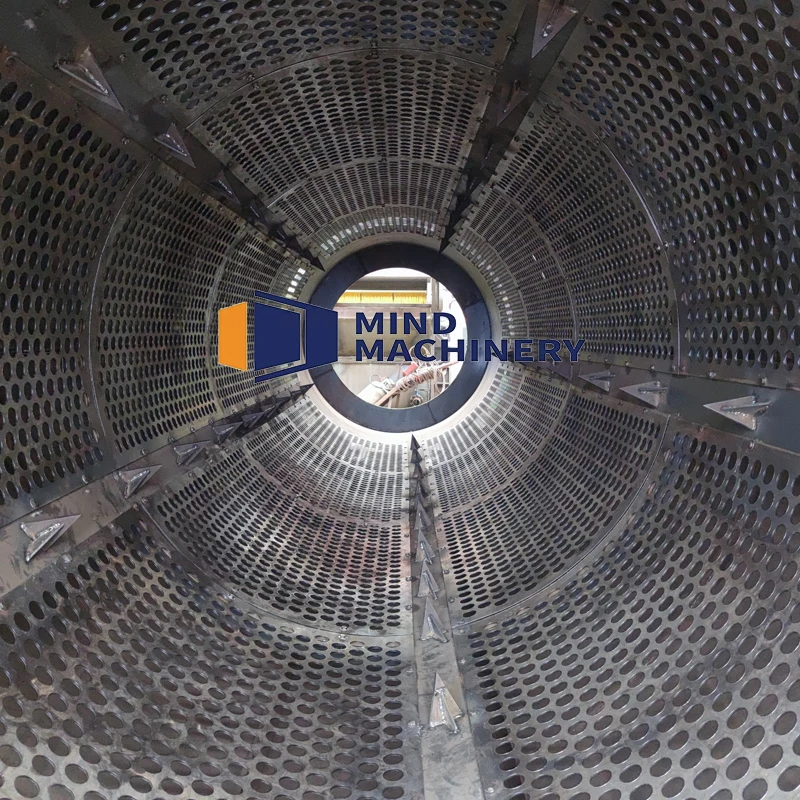

3.The screen inside the tromml screen is replaceable, which is convenient for future maintenance.



Technological support:

1. Mind insists on providing clients with overall solutions from equipment recommendation to debugging and installation, worker training, technical support and maintenance.
2. Our high reputed engineers and technicians can provide users with overall technical support, including material characteristic analysis, crushing test and process optimization of flow simulation.
3. Our professional engineers will design the most reasonable scheme for the real production line.

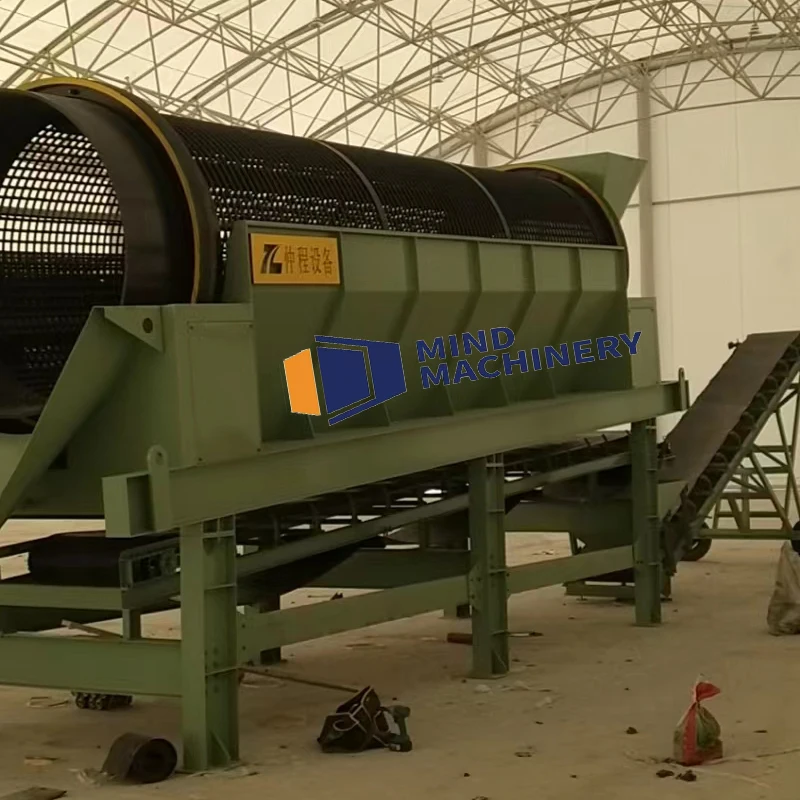

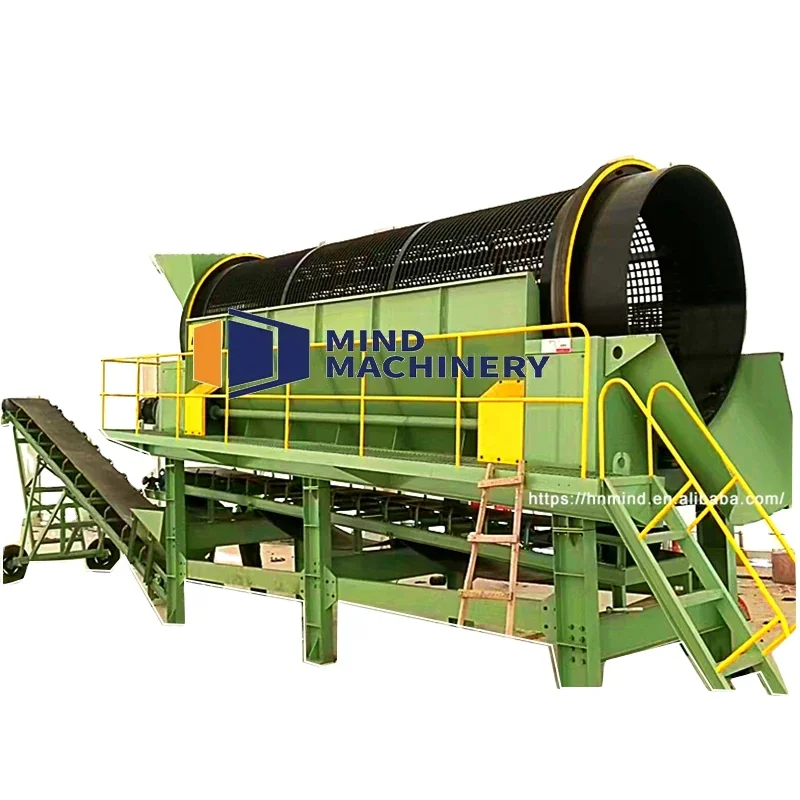

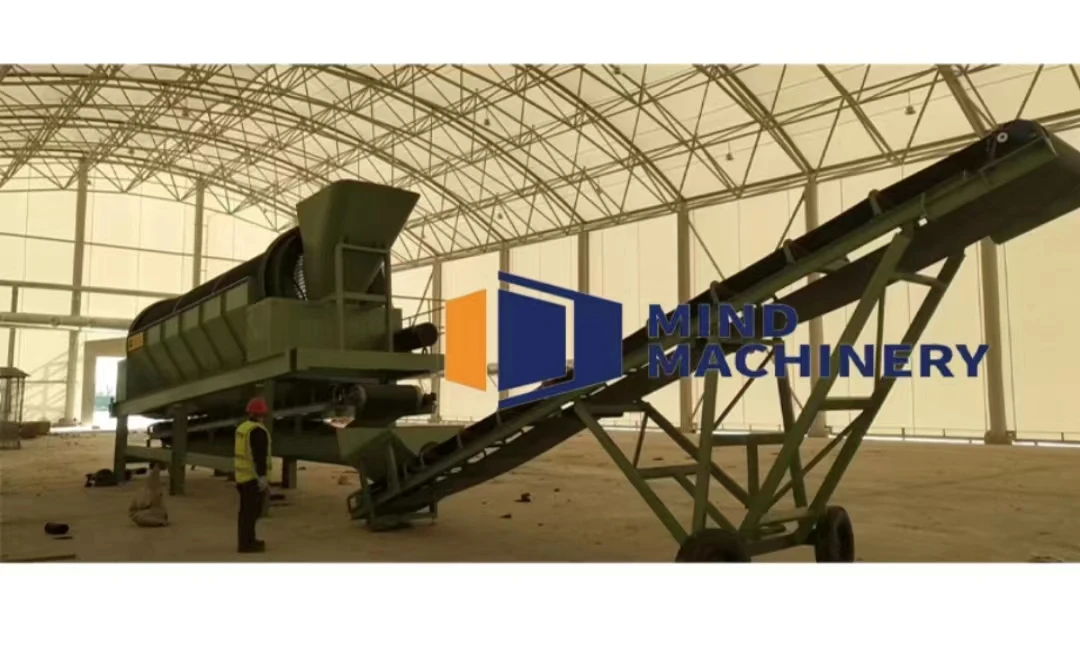

Detailed Images



CertificationAbout us:

1. Henan Mind Machinery Equipment Co., Ltd., a professional enterprise specialized in machinery designing and manufacturing.

2.Since the very begining of our established, we have always taken customer-oriented as our management philosophy.

3. And continuous sound growth makes us striding to well-professional. In the profess of growth we never stop continuous efforts in technology innovation and pioneering.

4. Advanced technology and scientific management make our products the best in term of quality, function, price and after-sales service before sales among this field.



Our service:

1. Pre-sale service: We can provide you with project design, process design, suitable purchase program for your equipment.
2. Sale service: We will accompany you to visit our factory and all kinds of machinery and equipment if you come here, also show you construction plan and assist in the development process in detail.
3. After Sale service: We will send technicians to the scene to guide the equipment installation, commissioning and training your operating personnel.

FAQ:

Q1: Can you give me a solution and quotation?/h2>

Answer: Absolutely sure, we can provide accurate solution and quotation, please give us background information, including, raw material, the capacity, max. input size, the output size, the usage of final products, etc.

Q2: Way of payment

Answer: Welcome clients place the order by alibaba online one-touch! Mind also offers various ways of payment, T/T, against copy of B/L, L/C, D/A, D/P, West union, etc. All can be negotiated.

Q3: What’s the delivery time after I pay the deposit ?

Answer: Normal delivery time within 10 to 20 working days, complete production line or larger equipment may take longer. Exact delivery shall be confirmed when place the order.
