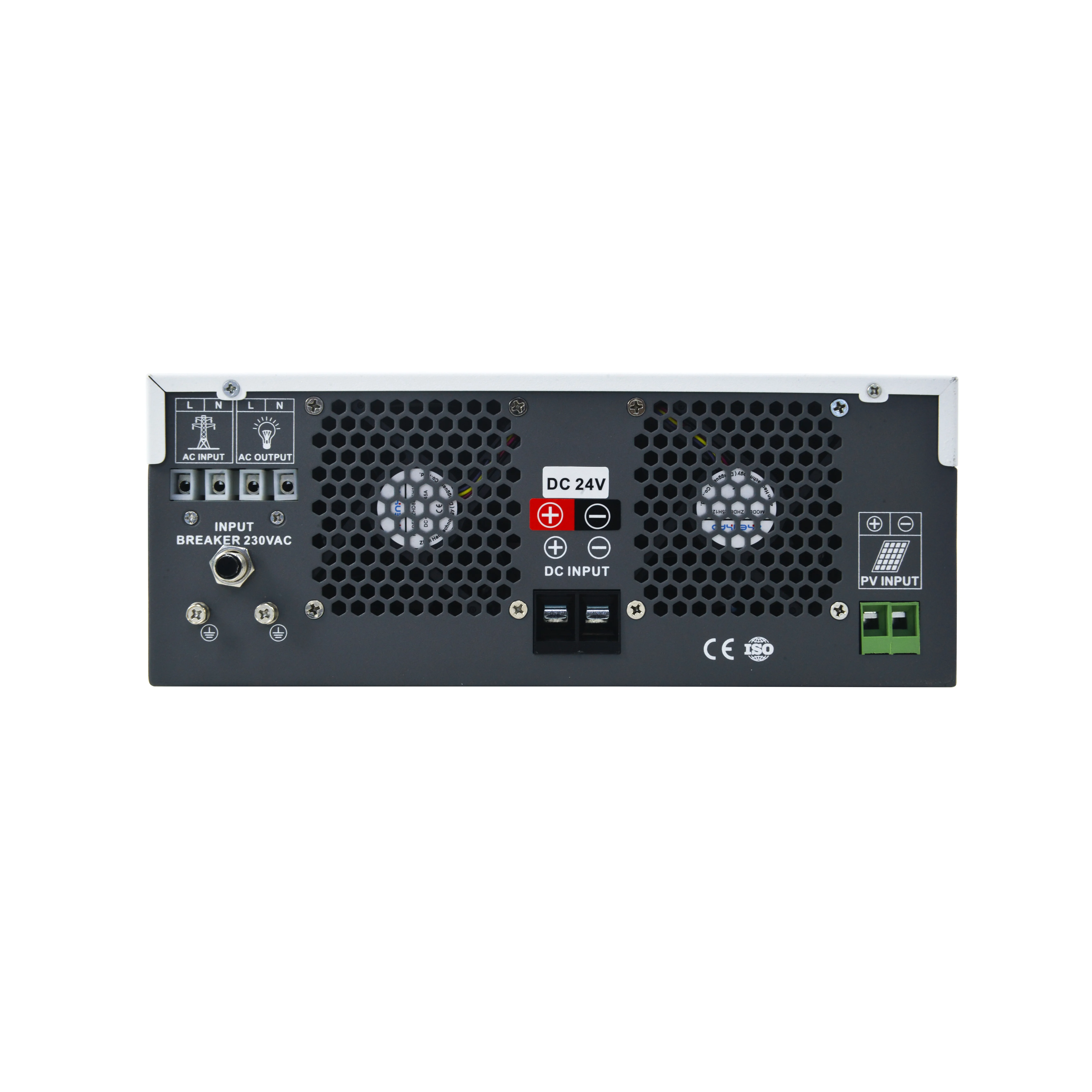

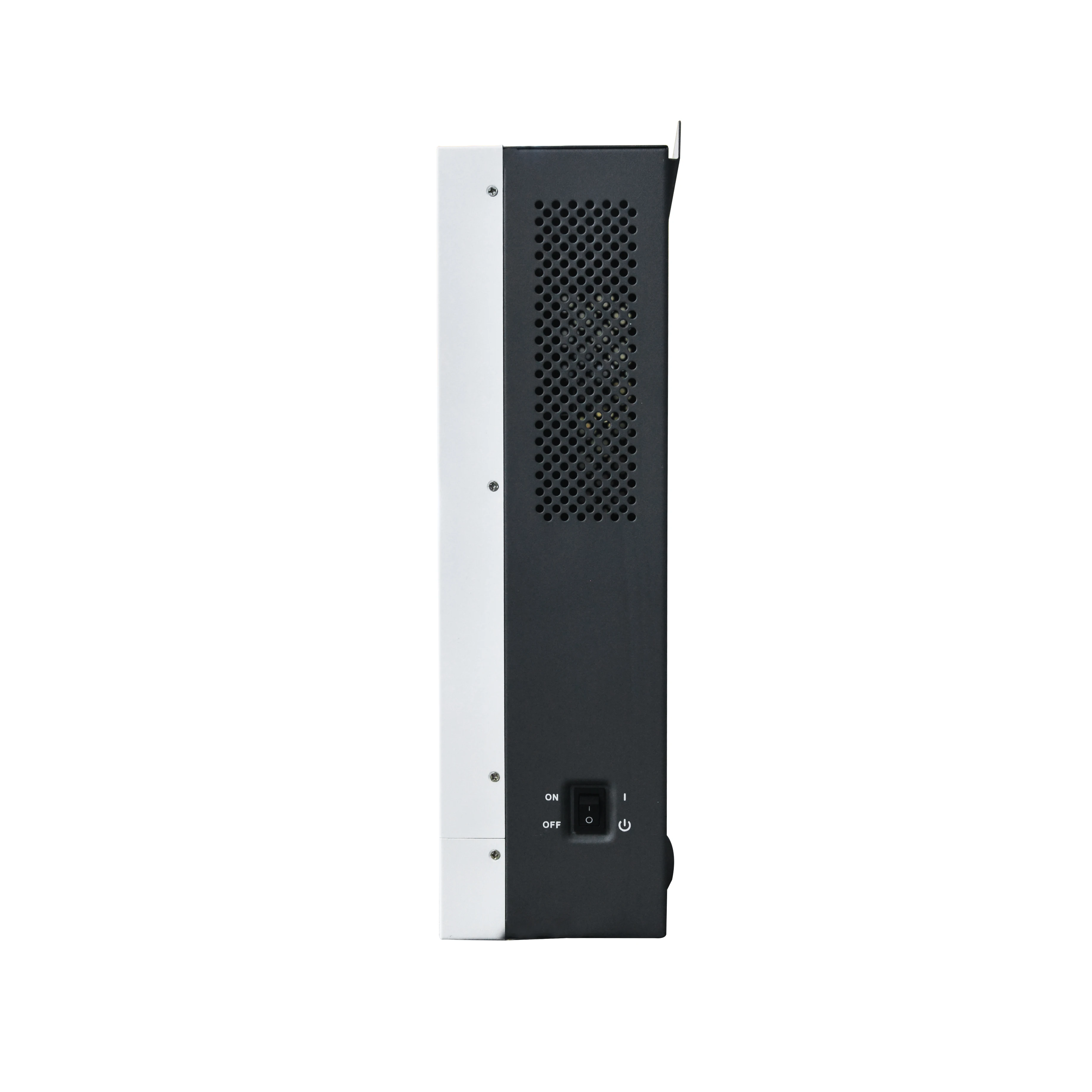

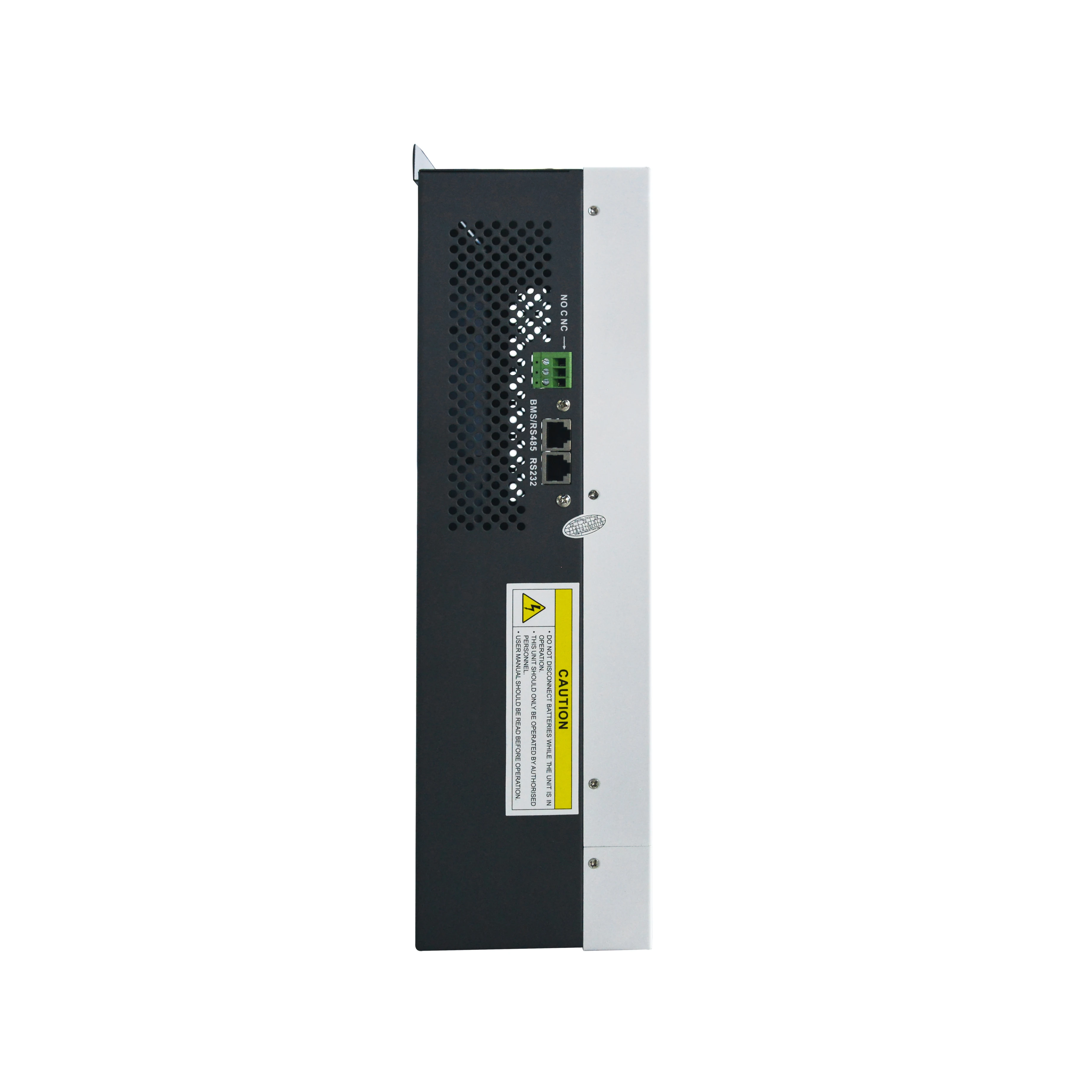

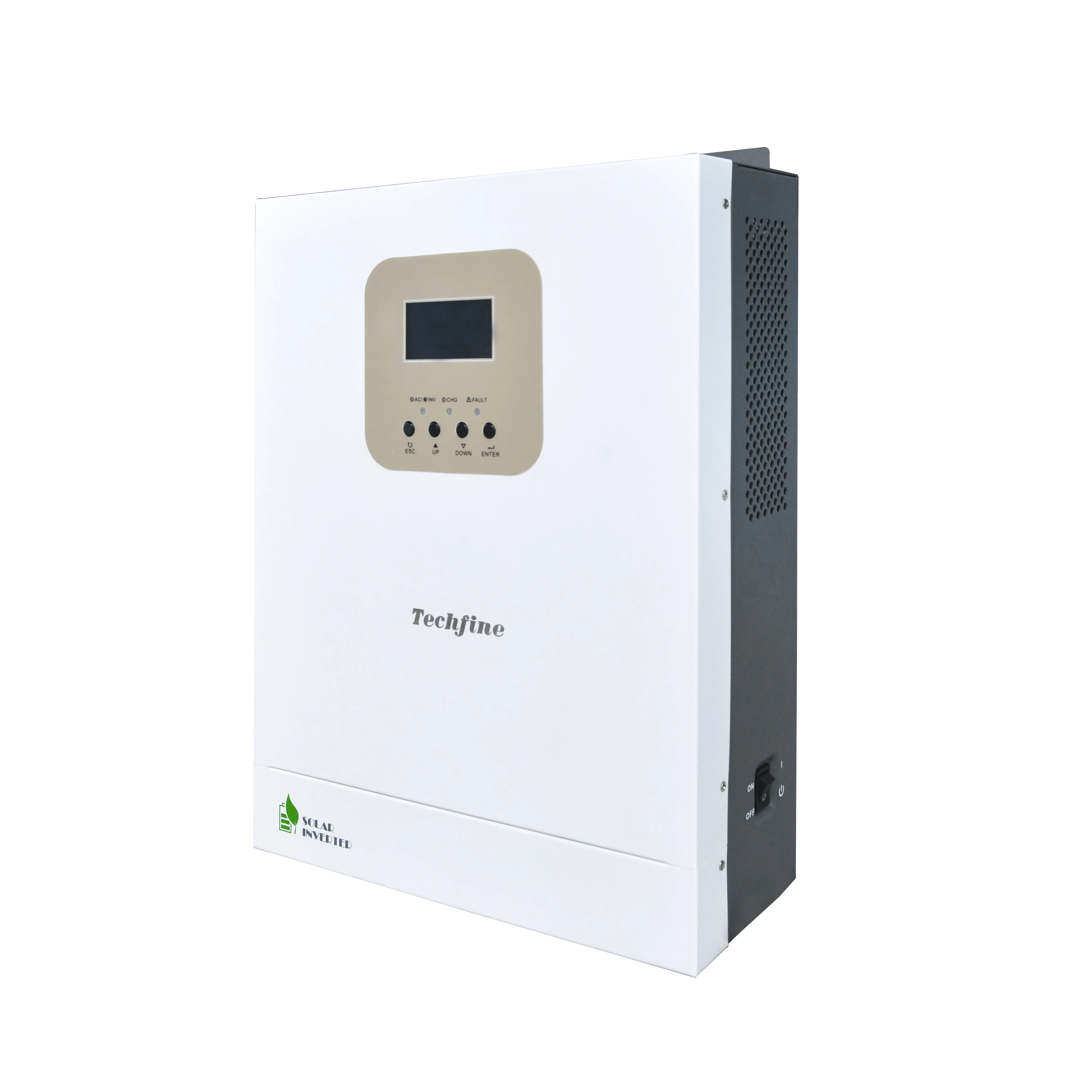

high quality 1kw 3kw 5kw 220 230 240vac 24 48v adaptive inverter solar high frequency off grid solar inverter
- Category: >>>
- Supplier: FOSHAN KOMISTAR ELECTRONIC CO. LTD
Share on (1601008430290):

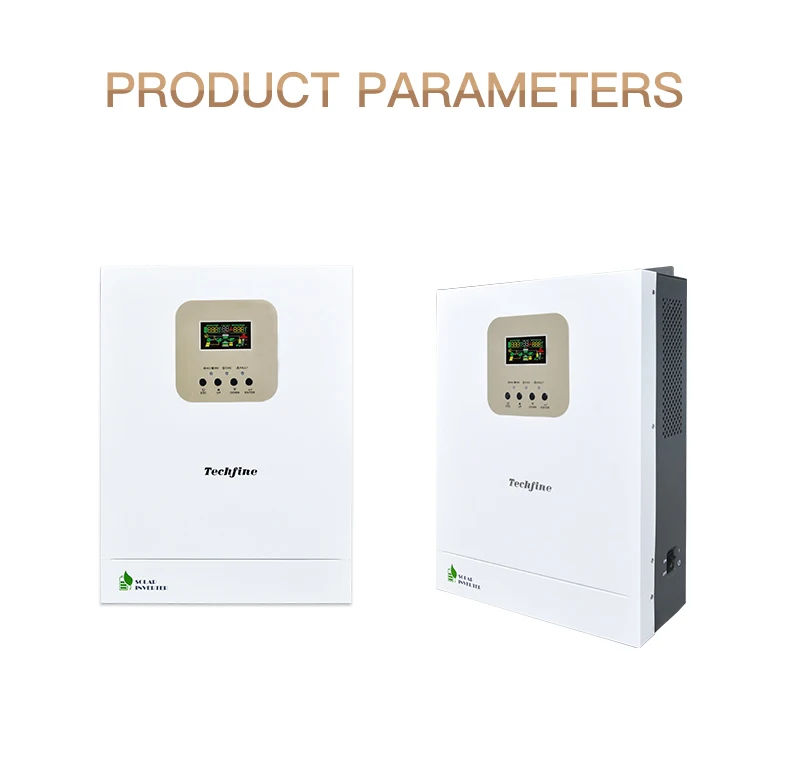

Product Overview
Description
Model | GA3024EMH |
Output rated power | 3000W |
Input | |
Input system type | L+N+PE |
Rated input voltage | 220/230/240VAC |
Voltage range | 90-280VAC+3V (Normal mode )170-280VAC+3V(UPS mode)50Hz/60Hz(Self-adaption) |
Frequency range | 50Hz/60Hz(Self-adaption) |
Output | |
Output voltage | 220/230/240VAC+5% |
Output frequency | 50/60Hz+0.1% |
Waveform | Pure sine wave |
Switching time (can be set) | Computer equipment10ms，Domestic appliance 20ms |
Peak power | 6000VA |
Overload capacity | Battery mode:10.5s@110%~150% Load |
Peak efficiency (battery mode) | >94% |
Battery | |
Rated voltage | 24VDC |
Constant voltage charging voltage (can be set) | 28.2VDC |
Floating charging voltage (can be set) | 27VDC |
Charge | |
PV charging method | MPPT |
PV maximum input power | 3000W |
MPPT input voltage range | 30-400VDC |
Maximum PV input voltage | 400VDC |
Maximum PV charging current | 80A |
Maximum charging current | 80A |
Show | |
LCD interface | Operation mode / load / input / output, etc |
Interface | Baud rate2400 |
RS232 | Lithium battery BMS communication card, WiFl card, |
Extended slot communication interface | No parallel function |
Parallel interface | |
Environmental parameters | |
Operating environment humidity | 0~40℃ |
Operating environment humidity | 20%~95%(No condensation |
Storage temperature | -15~60C |
Elevation | The altitude shall not exceed 1000m, and over 1000m dropthe highest 4000m,refer to 1EC62040 |
Noise | ≤50db |
Physical parameters | |
Depth x width x height (mm) | 399x285x118 |
Weight (for reference) KG | 6 |

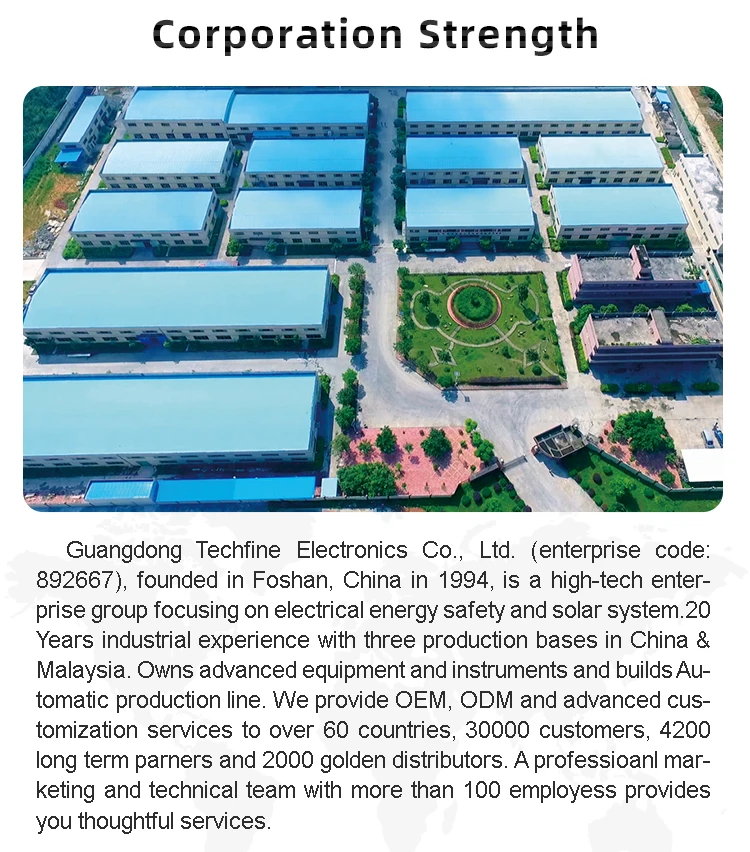

Q1: Why choose us?
---More than 20 years solar products factory experiences ---Professional sales team and R & D team ---Qualified product and competitive price
---Sincerely services
---Sincerely services
Q2: How is the after-sale service?
---We provide 1-2years warranty and 1% sapre parts for free ---We will repair the PCB or provide new one
Q3: What kind of certification you have?
--ISO9001,ISO14001, CE,ROHS,UL,and so on ---All series solar products pass different labor testing according to different countries’
requirements.
requirements.
Q4: Delivery time:
---Standard products could be delivered within 15 days;
Q5. Can I have a sample order?
---Yes, we welcome sample order to test and check quality.
Q6. Do you have any MOQ?
---Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.
Q7. Do you support OEM?
---Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
