LC Fiber Laser Marking Machine Metal Stainless Steel Plastic Nameplate Engraving Gold and Silver Jewelry Engraving Machine
- Category: >>>
- Supplier: Luen Cheong Printing Equipment Ltd.
Share on (1601008437223):
Product Overview
Description
Product Description

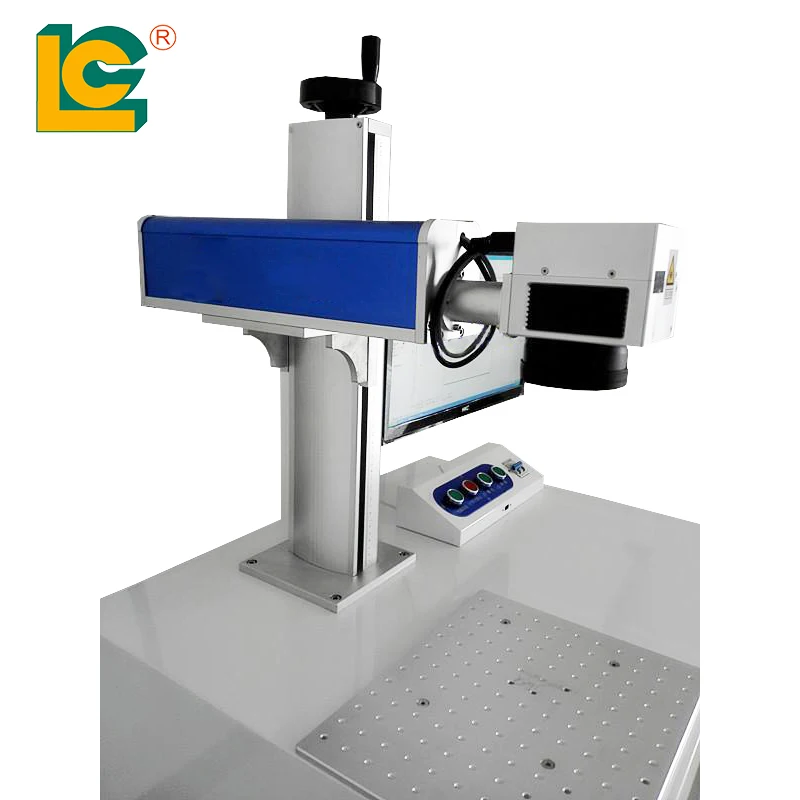

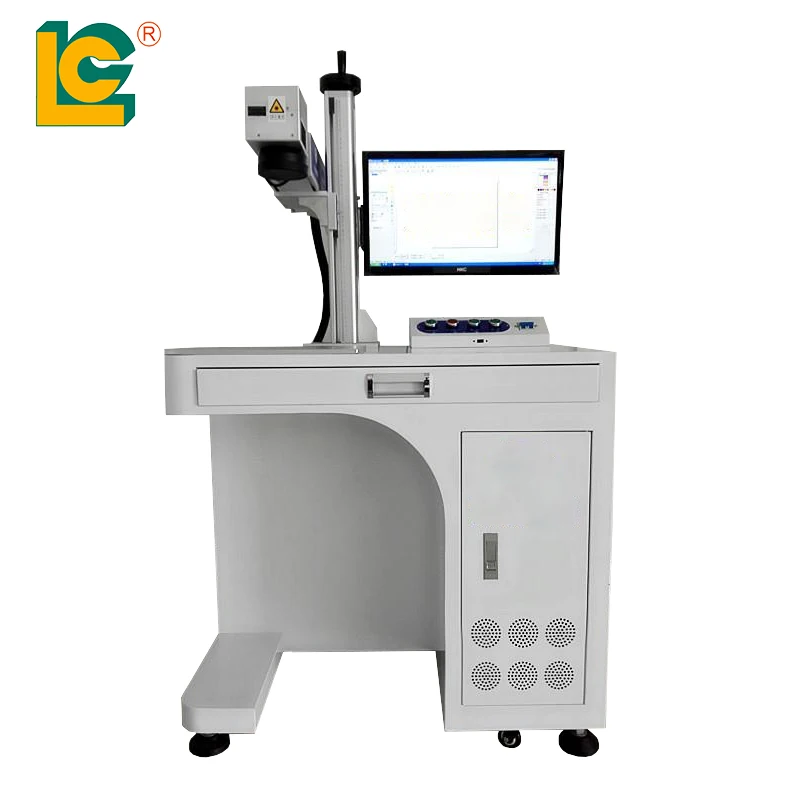

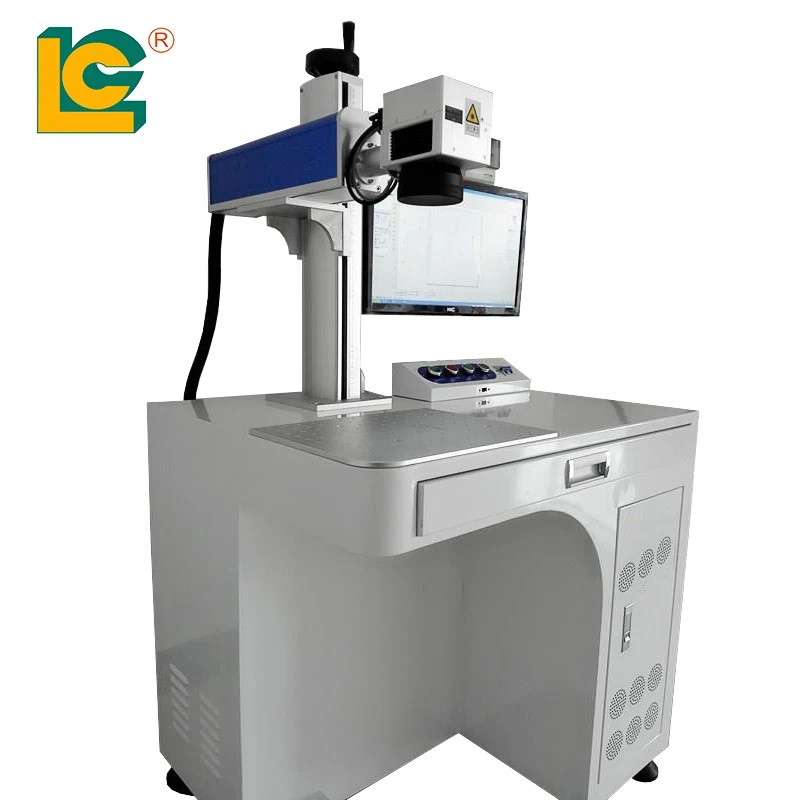

Fiber Laser Marking Machine
Fiber laser marking machine using the domestic top fiber laser, high quality galvanometer scanning system, stable output power, good optical mode, excellent beam quality, marking speed, good effect, high efficiency, can fully meet the mass production needs of customers.
The machine has beautiful appearance, simple operation, no consumables, low depreciation cost, long-term operation without fault, maintenance-free, and can fully meet the continuous work needs of industrialization.
Specification
Machine Performance | Performance Parameter | Power | 0.5KW |
Marking range | It varies according to the focal length of the lens selected | ||
F =254mm Mark range： 160mm×160mm | |||
F =160mm Mark range： 100mm×100mm | |||
Laser engraving speed | Linear Scanning 7000mm/s | ||
Minimum Linewidth | 0.015mm | ||
Single Engraving Depth | ≤0.05mm | ||
Repeated Accuracy | ±0.01mm | ||
Minimum Character | 0.3mm | ||

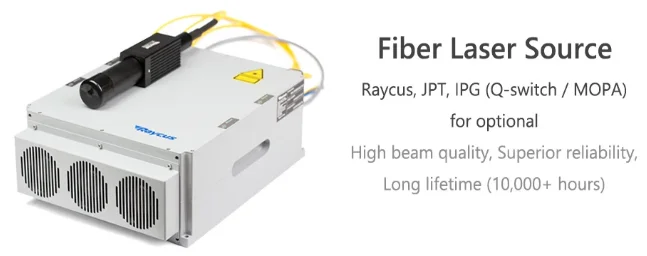

Laser | Laser Power | 20W | |
Single pulse energy | ＜0.1mJ | ||
Beam Mass M² | ＜1.3 | ||
Optical Maser Wavelength | 1064nm |
Galvanometer scanning system and software control system
Vibroscope scanning system adopts high-precision and high-reliability scanning vibroscope, high scanning accuracy, fast speed, stable performance, and has the requirements of long-term continuous work.
Software control system with WINDOWS XP as the operating platform, all Chinese interface, compatible with AUTOCAD, CORELDRAW, PHOTOSHOP, CAXA and other software output files, can be barcode, QR code, graphic text and other marking, support PLT, PCX, DXF, BMP and other file formats. Use the SHX and TTF libraries directly. The system can automatically encode, print serial number, batch number, date and so on.
The main characteristics
1) Integrated overall structure, equipped with automatic focusing system, humanized operation process.
2) Use imported isolators to protect the fiber laser window and enhance stability and laser life.
3) The beam quality is much better than the traditional solid laser marking machine, for the fundamental mode (TEM00) output, the focused spot diameter is less than 20um. The divergence Angle is 1/4 of that of a semiconductor pumped laser. Especially suitable for fine, precision marking.
4) The electro-optical conversion efficiency is high, the whole machine consumes less than 500W, which is 1/10 of the lamp pump solid laser marking machine, greatly saving energy consumption.
5) Without any maintenance, long service life, small size, suitable for harsh environment work.
6) The processing speed is fast, 2-3 times that of the traditional marking machine.
1) Integrated overall structure, equipped with automatic focusing system, humanized operation process.
2) Use imported isolators to protect the fiber laser window and enhance stability and laser life.
3) The beam quality is much better than the traditional solid laser marking machine, for the fundamental mode (TEM00) output, the focused spot diameter is less than 20um. The divergence Angle is 1/4 of that of a semiconductor pumped laser. Especially suitable for fine, precision marking.
4) The electro-optical conversion efficiency is high, the whole machine consumes less than 500W, which is 1/10 of the lamp pump solid laser marking machine, greatly saving energy consumption.
5) Without any maintenance, long service life, small size, suitable for harsh environment work.
6) The processing speed is fast, 2-3 times that of the traditional marking machine.
Machine Details
Operation is simple and easy to learn, the function is powerful

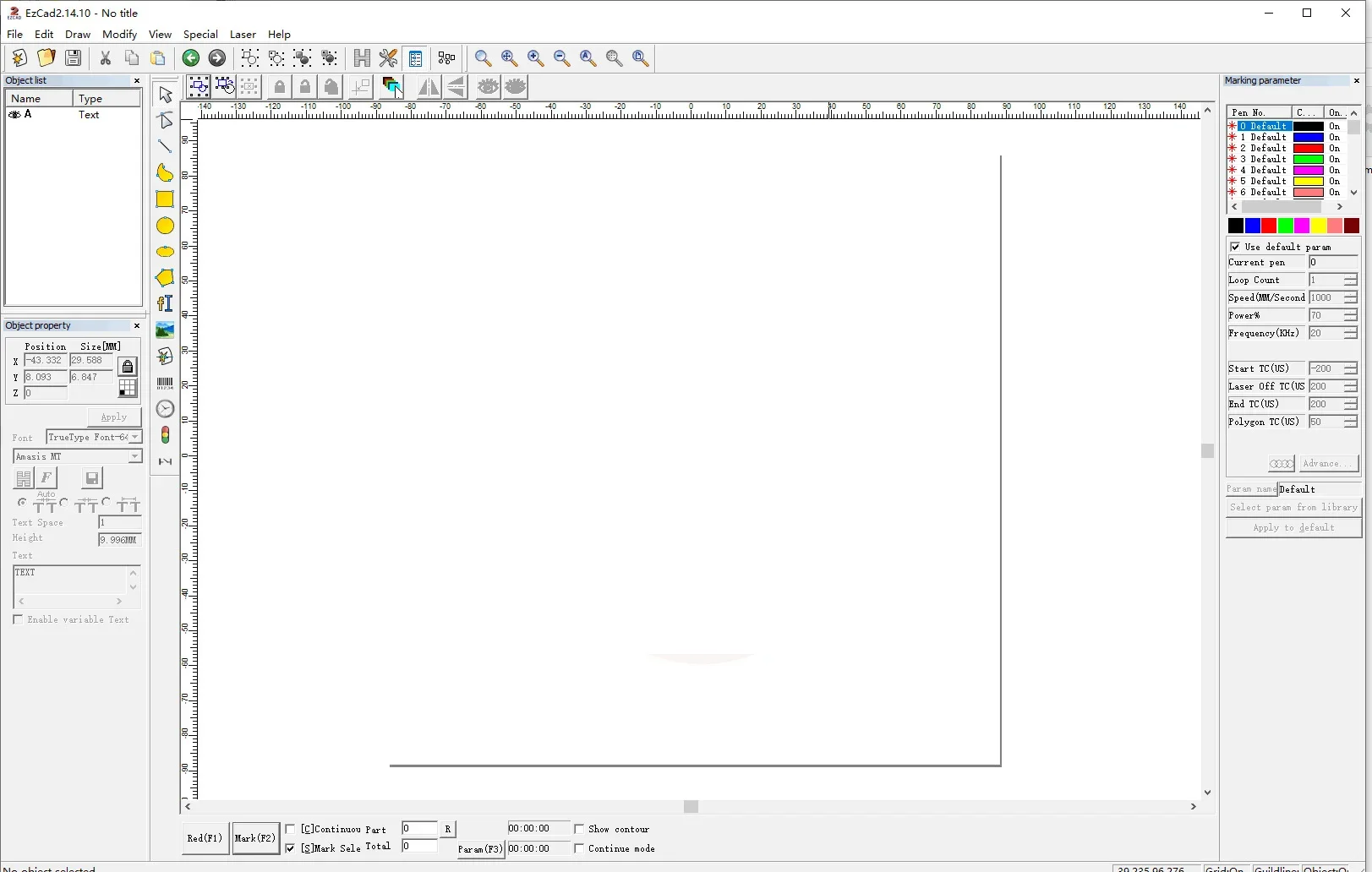

The control software is developed by the company itself, the control software works under the Windows platform, can be compatible with AutoCAD, Coreldraw, Photoshop and other software output PLT, BMP and other file formats, can mark patterns, bar codes, Chinese and English characters, product flow serial number (automatic jump number), and can directly use SHX, TTF fonts in the software, but also the size of the character, spacing and arrangement can be very convenient adjustment.
Systematic Name | Name of parts | Specifications and models |
Optical System | Laser | Laser |

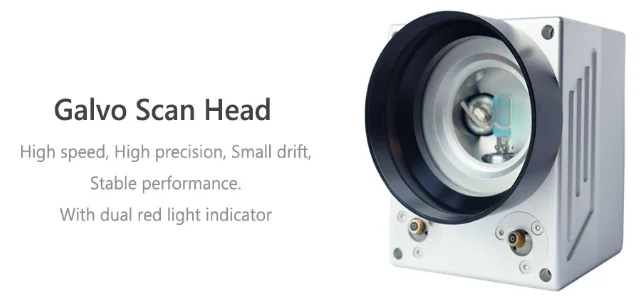

Galvanometer | High speed scanning galvanometer | |

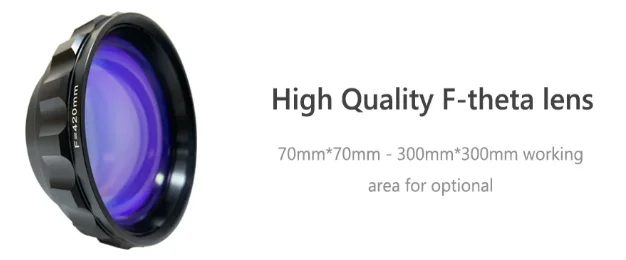

Focusing lens | F-Theta flat field focusing mirror | |
Control System of Microcomputer | Computer | Industrial control |

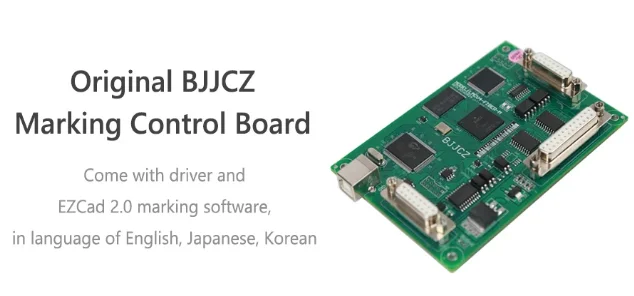

Marking control card | Control card | |
Marking software | EZCAD | |
Cooling system | Cooling system | Forced air cooling |
Work system | Workbench | Manual precision lifting main beam |

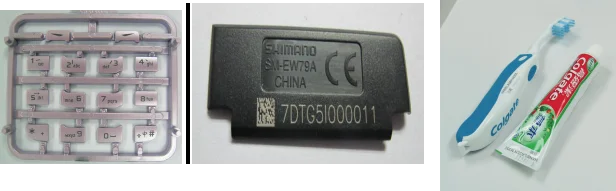

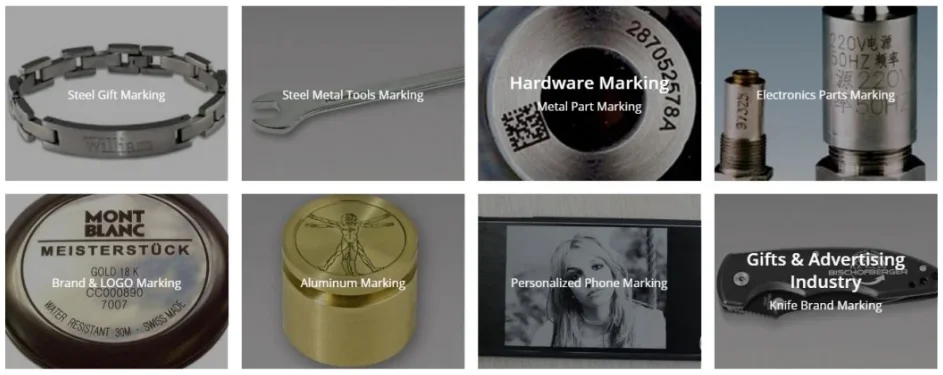

Printing samples
Usb flash drive shell mark
Marking gold-plated parts
Mobile phone key marker Marking of plastic parts Packaging material marking
