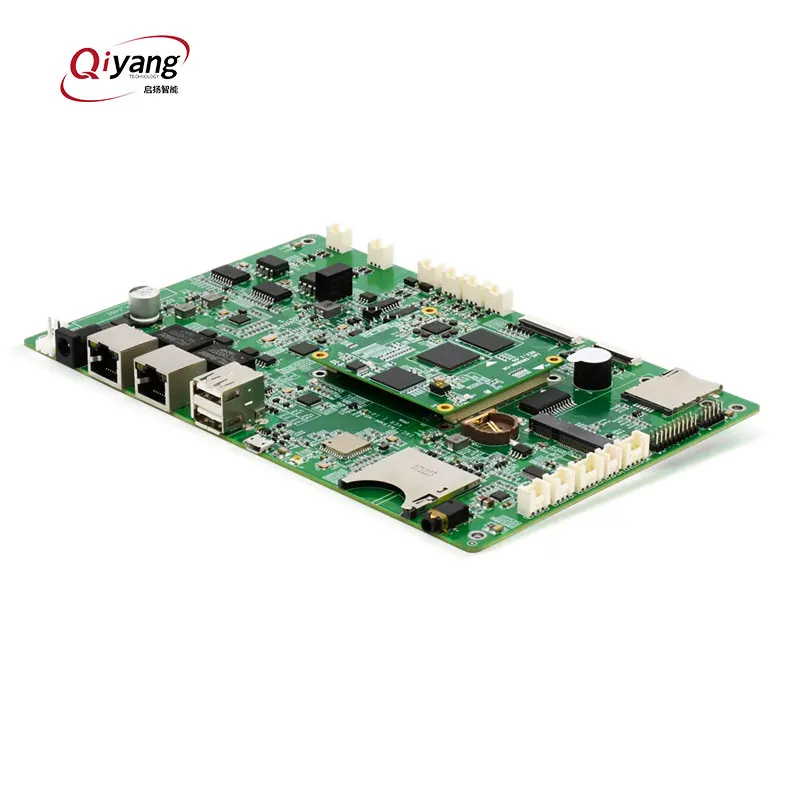

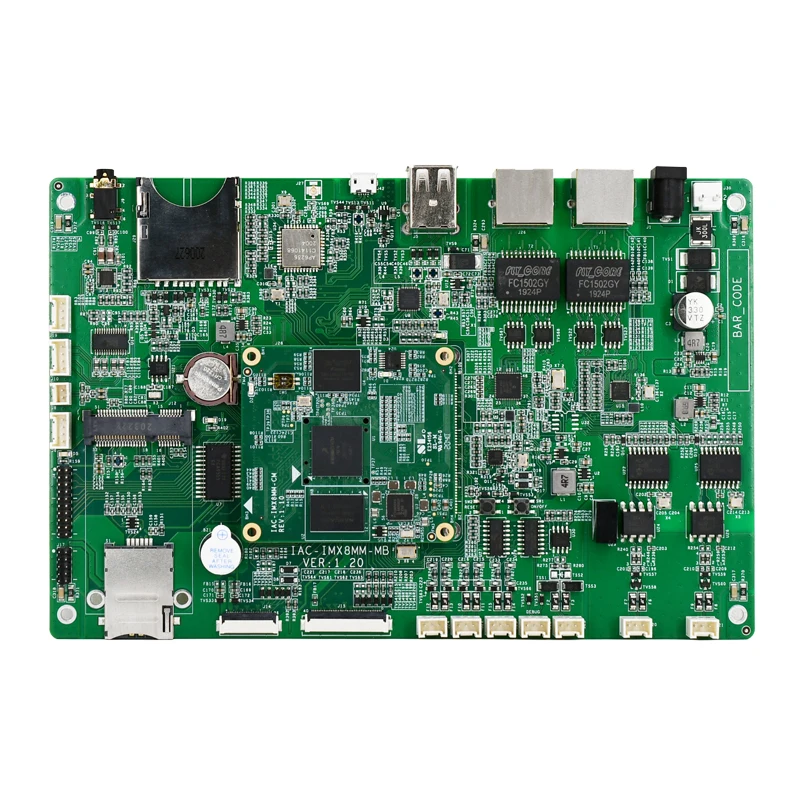

ARM system on module i.MX8M MINI support USB UART WIFI Android Linux embedded board
- Category: >>>
- Supplier: Zhejiang Qiyang Intelligent Technology Co. Ltd.
Share on (1601008439834):
Product Overview
Description
Product Description

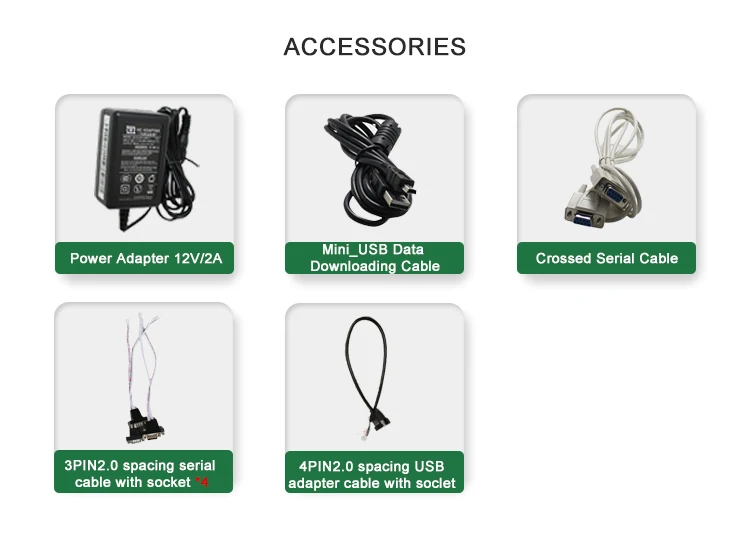

Accessories

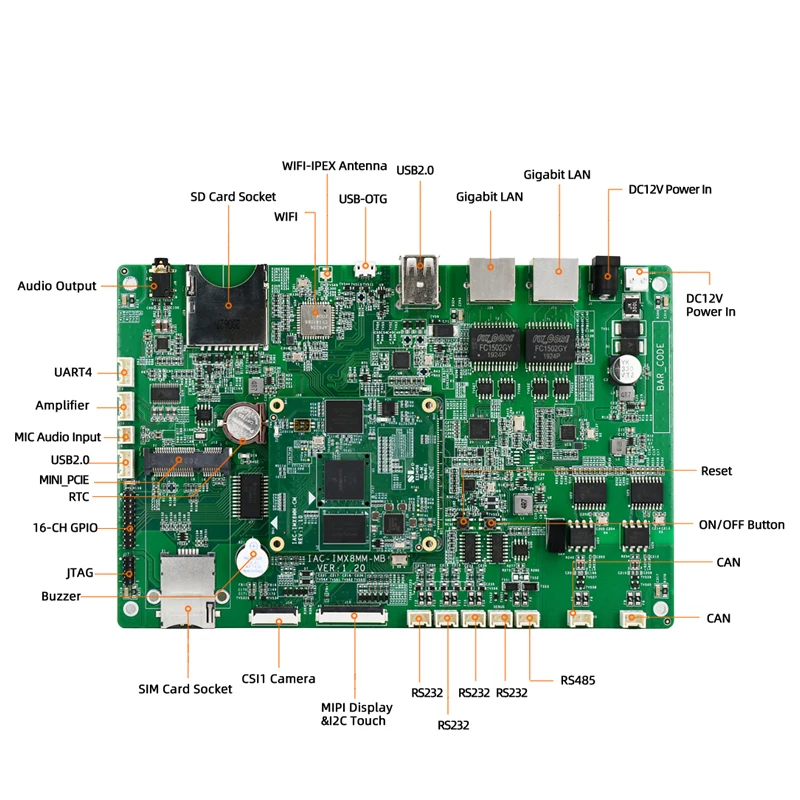

Product Paramenters
CPU | NXP i.MX8M MINI | ||||||
Architecture | 4*Cortex-A53+1*Cortex-M4 | ||||||
Frequency | 1.8GHz | ||||||
RAM | 2GB LPDDR4 | ||||||
FLASH | 8GB EMMC (16GB Opt.) | ||||||
UART | 4*RS232, 2*UART Debug | ||||||
Ethernet | 4*RS232, 2*UART Debug | ||||||
CAN | 2*CAN 2.0 | ||||||
USB | 4*USB 2.0, 1*USB-OTG | ||||||
I2C | 3*I2C | ||||||
Wi-Fi/BT | Onboard WIFI (AP6236) | ||||||
Display Interface | 1*4-Lane MIPI, Max.1920 * 1200 | ||||||
Audio | McASP Audio Interface; Binaural Output; MIC Audio Input | ||||||
Camera | 1*CSI Camera | ||||||
Storage interface | 1*SD Card | ||||||
Extension Interface | MINI PCI-E Interface; SIM Card ; GPIO Interface | ||||||
Other | Reset Circuit, Watchdog, RTC, Buzzer, JTAG Interface | ||||||
Power Supply | +12V | ||||||
Operating System | Linux4.14.98+QT5.10.1 ; Android9.0 | ||||||

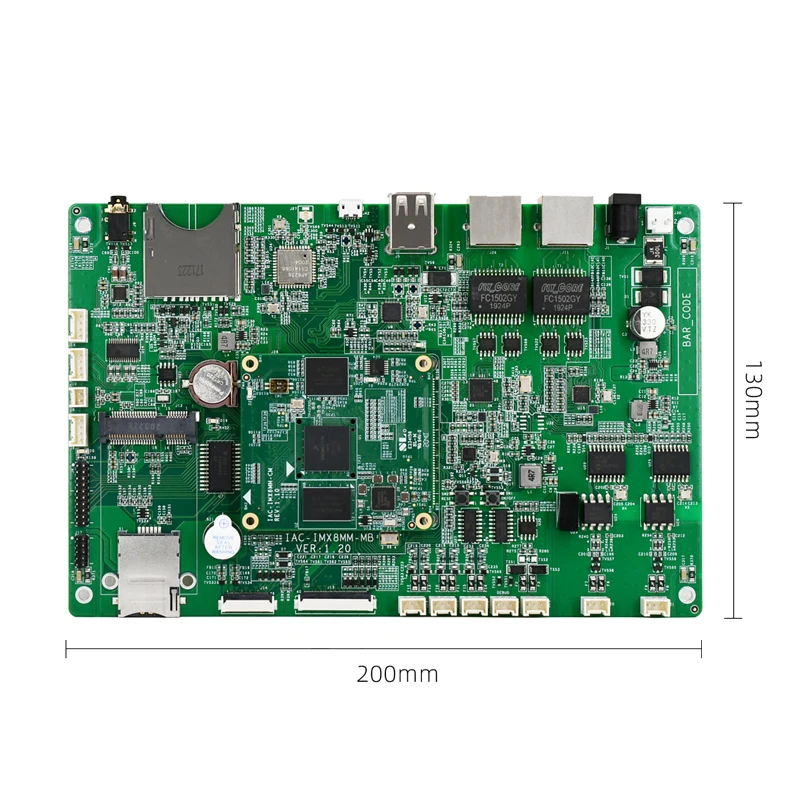

Size | SOM Module :60mm*55mm; Carrier Board：200mm*130mm | ||||||
Operating Temperature | 0℃ ~ +70℃ (-40 ~ +85℃ Opt.) | ||||||
Power Consumption | ≤5W | ||||||
Working Humidity | Power Consumption | ||||||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
