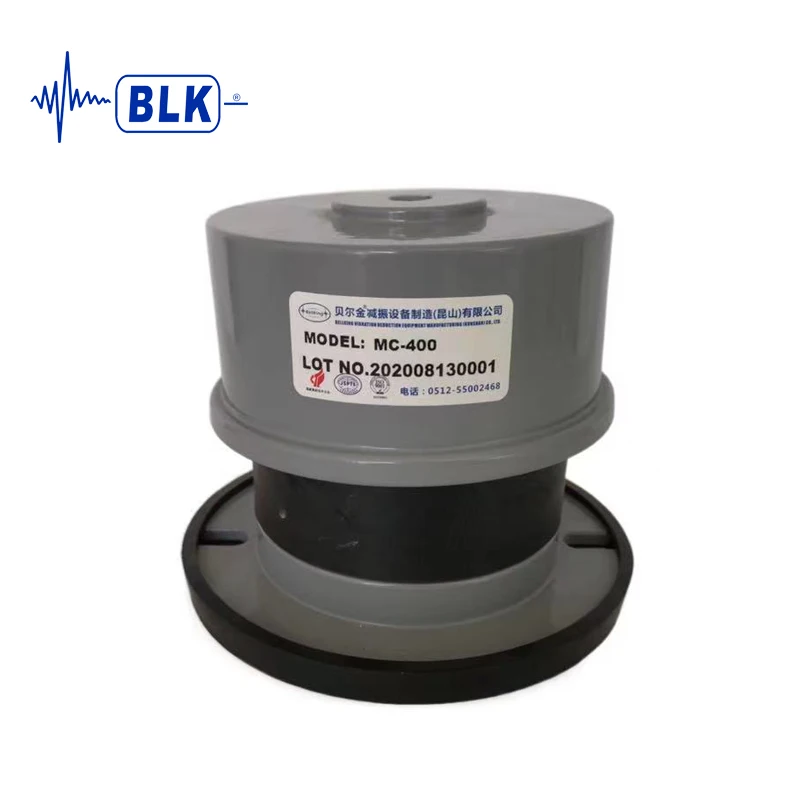

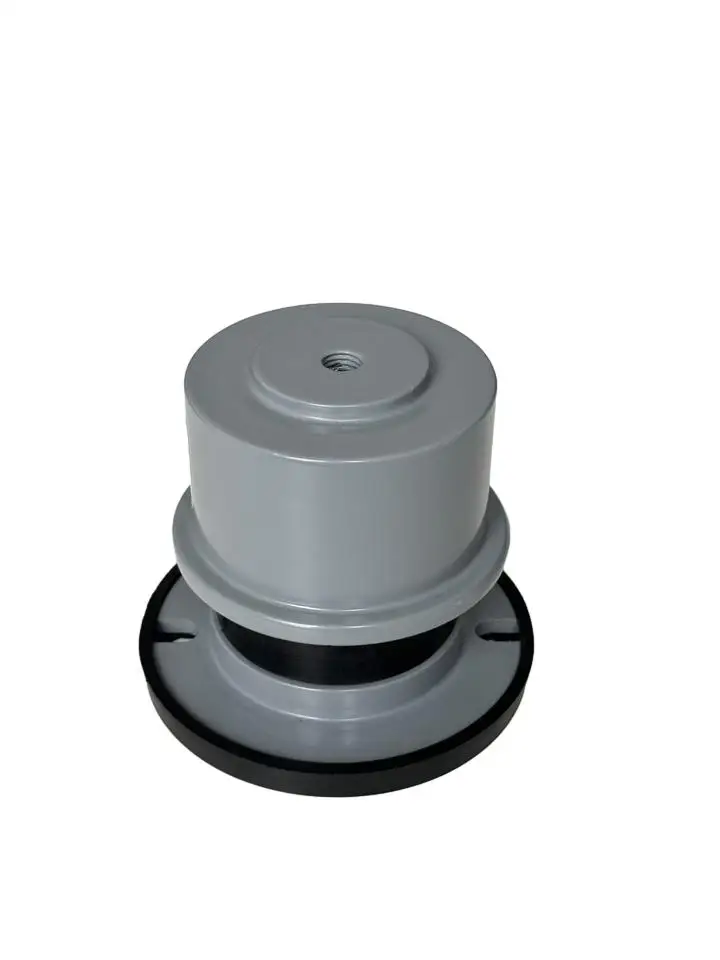

Top Suppliers Water Pump Use Spring Vibration Isolator Housed Spring Isolators Noise Control Spring Isolators
- Category: >>>
- Supplier: Bellking Vibration Reduction Equipment Manufacturing (kunshan) Co. Ltd.
Share on (1601008442015):
Product Overview
Description
Product Description
CHARACTERISTICS
● The spring is designed with low natural frequency value and is treated with ED and paint.
● Spring are heat treatment and stress elimination treatment, long service life.
● Body adopts Dak rust treatment, load deflection 25mm.
● Bottom anti - slip and anti - shock bolt design, high safety.
● The installation is simple and the height and level can be adjusted according to the actual need.
● Can eliminate mechanical structure vibration, and protect and prolong mechanical life.
● Spring are heat treatment and stress elimination treatment, long service life.
● Body adopts Dak rust treatment, load deflection 25mm.
● Bottom anti - slip and anti - shock bolt design, high safety.
● The installation is simple and the height and level can be adjusted according to the actual need.
● Can eliminate mechanical structure vibration, and protect and prolong mechanical life.
APPLICATION
Water chilling unit , cooling water tower.
Fire pump and exhaust fan.
Generator, air compressor.

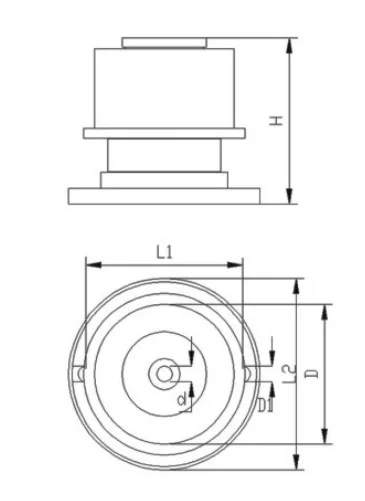

Size Information
Type | Rated Capacity(kg) | Spring Rate (kg/mm) | Rated Deflection (mm) | Dimensions (mm) | ||||||||||
H | D | L1 | L2 | d | D1 | |||||||||
MC-030 | 20-30 | 1.2 | 25 | 110 | 103 | 100 | 120 | 12 | 10 | |||||
MC-050 | 30-50 | 1.9 | 25 | 110 | 103 | 100 | 120 | 12 | 10 | |||||
MC-070 | 50-80 | 2.7 | 25 | 110 | 103 | 100 | 120 | 12 | 10 | |||||
MC-090 | 80-100 | 3.4 | 25 | 110 | 103 | 100 | 120 | 12 | 10 | |||||
MC-120 | 100-130 | 4.8 | 25 | 110 | 103 | 100 | 120 | 12 | 10 | |||||
MC-150 | 130-150 | 5.8 | 25 | 110 | 103 | 100 | 120 | 12 | 10 | |||||
MC-180 | 150-180 | 6.9 | 25 | 110 | 103 | 100 | 120 | 12 | 10 | |||||
MC-250 | 200-250 | 9.6 | 25 | 110 | 103 | 100 | 120 | 12 | 10 | |||||
MC-350 | 250-350 | 13.4 | 25 | 110 | 103 | 100 | 120 | 12 | 10 | |||||
MC-400 | 360-430 | 15.2 | 25 | 130 | 140 | 135 | 165 | 14 | 14 | |||||
MC-500 | 470-530 | 19.2 | 25 | 130 | 140 | 135 | 165 | 14 | 14 | |||||
MC-600 | 530-650 | 22.8 | 25 | 130 | 140 | 135 | 165 | 14 | 14 | |||||
MC-700 | 650-700 | 26.6 | 25 | 130 | 140 | 135 | 165 | 14 | 14 | |||||
MC-850 | 700-850 | 33.6 | 25 | 130 | 140 | 135 | 165 | 14 | 14 | |||||
MC-1000 | 850-1000 | 38 | 25 | 130 | 140 | 135 | 165 | 14 | 14 | |||||

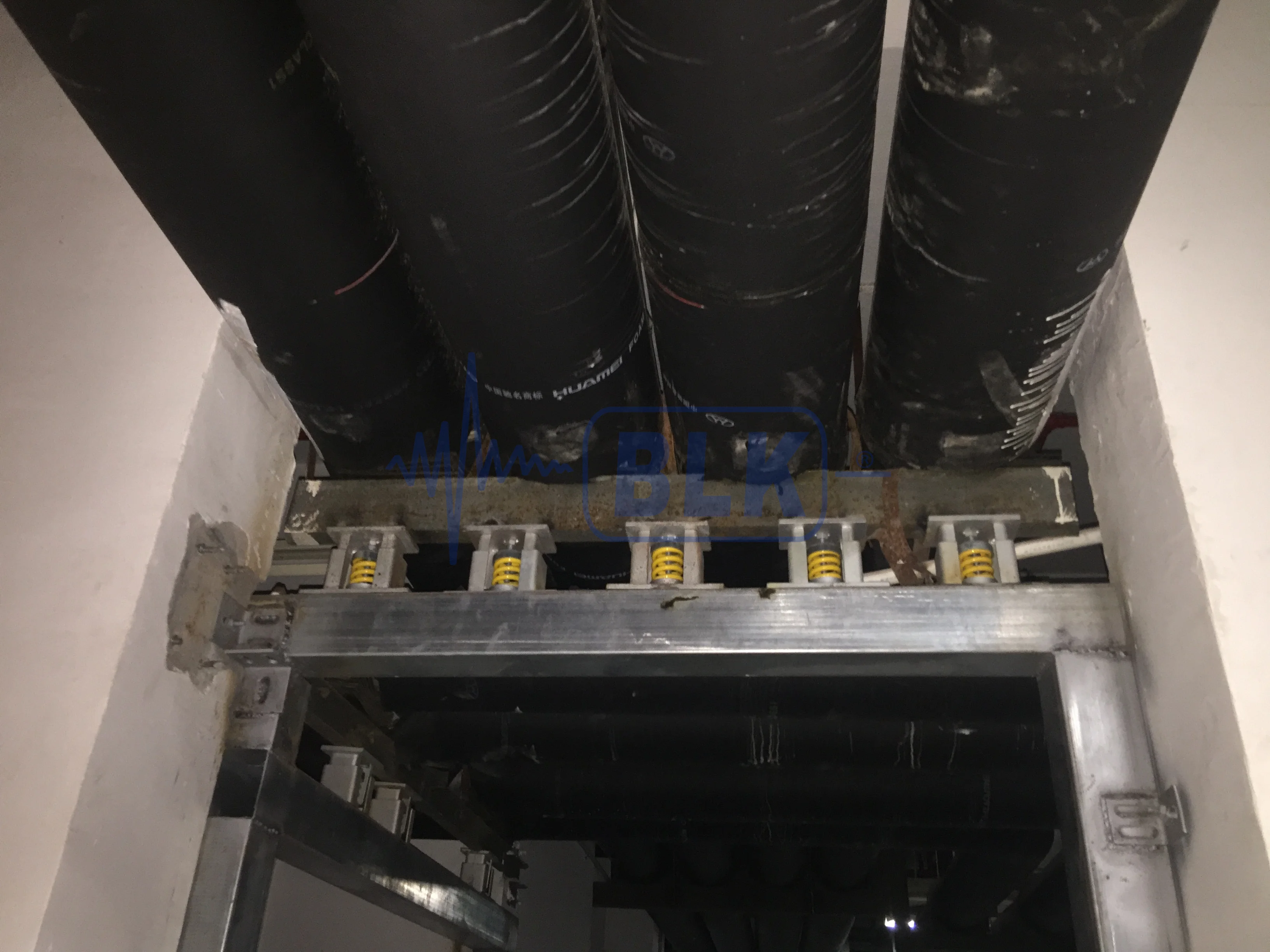

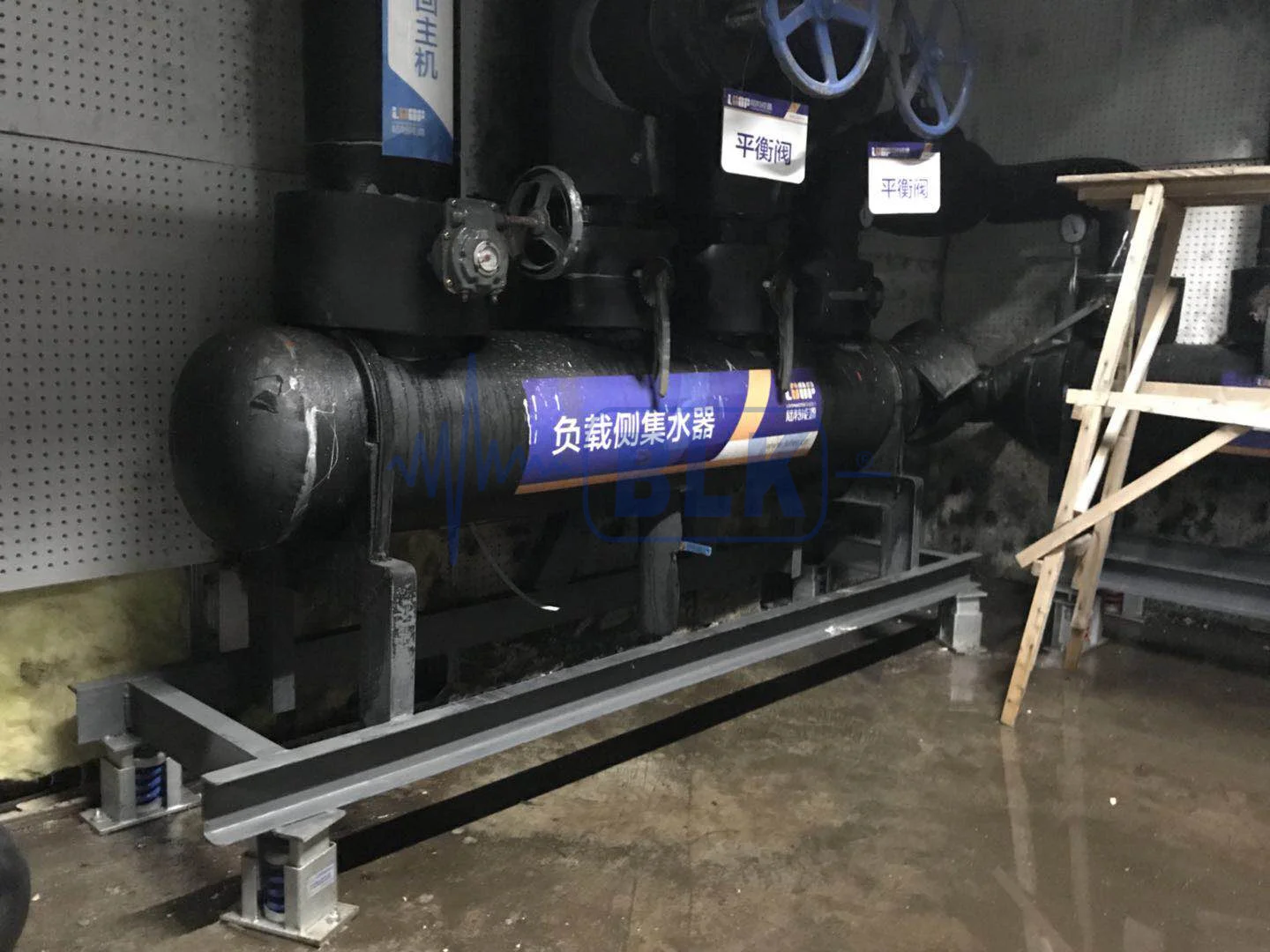

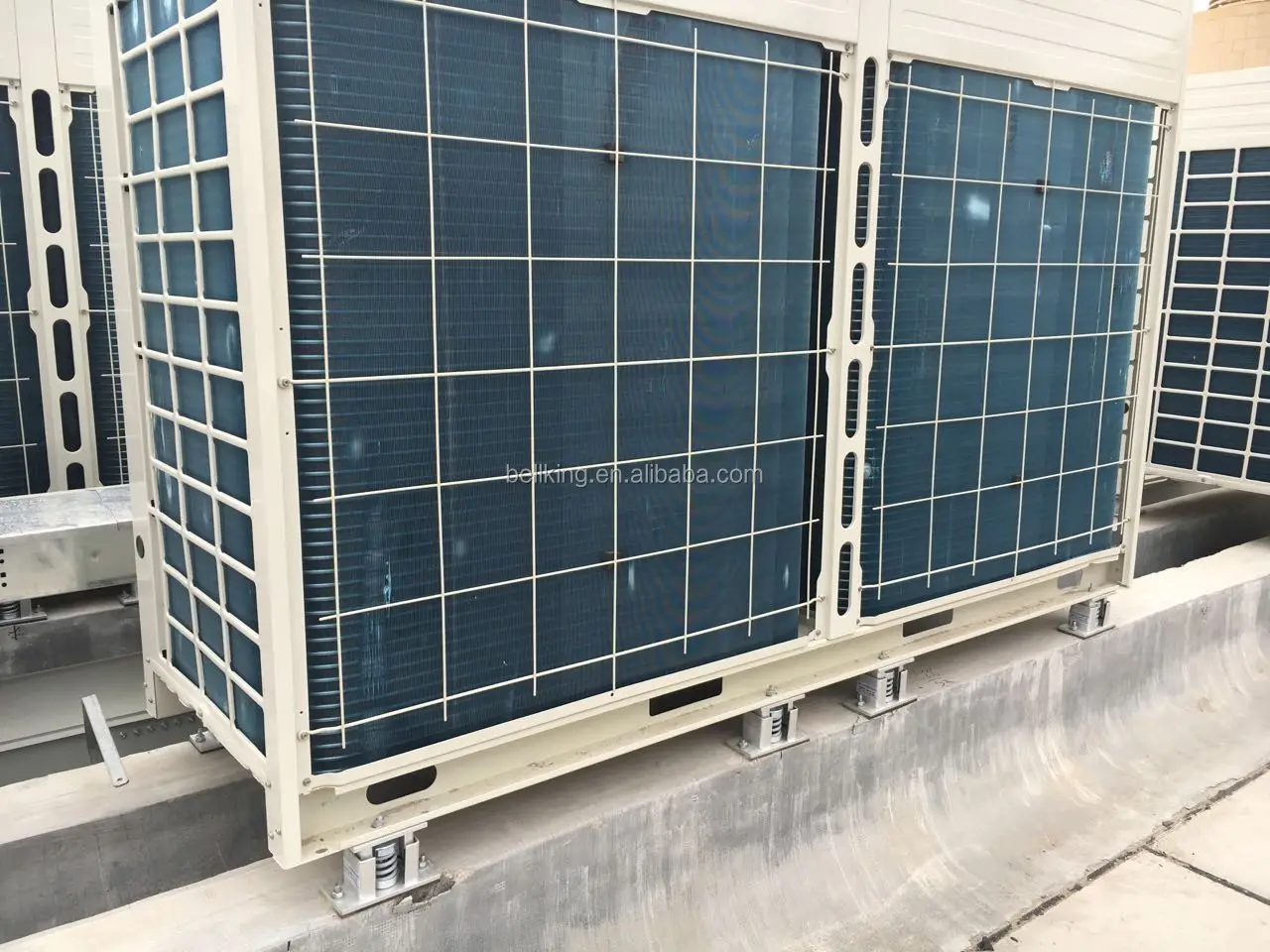

Application
Related Products
Packing&Shipping
Packing: Cartons & Wooden cases
Shipping: Door-to-Door Air Freight & FOB & CFR
After Sales Service
1.Free one-year warranty. Goods received within 15days of quality problems can be returned for replacement.
2. Provided the product instruction manual. The installation method can be guided on line.
3. The professional technicians shall make shock absorption scheme according to the actual situation on the spot.
Company Introduction
Bellking vibration reduction equipment manufacturing(Kunshan)Co.,Ltd is a modern high-tech enterprise committed to providing integrated solutions to vibration control problem for various industries. It has many years of experience in producing industrial workshop damping vibration and micro-vibration absorbing products.
All of our products are developed independently with reference to the latest technology,thus making the product orientation and quality always walk in the forefront of the industry.In recent years,our company have applied for more than 10 patents.What’s more, it was honored ”Jiangsu Private Technology Enterprise” in 2015 and “High-tech Enterprise”in 2017,which increased our strength of scientific and technological innovation and core competence greatly.
We nurture trusting collaborations with our customers and partners by providing quality,safety,prized experience and technological know-how. Building successes together!
FAQ
Q : Are you trading company or manufacturer?
A: We are manufacturer of industrial workshop damping vibration and micro-vibration absorbing products with many year experience in China.
Q: How long is your delivery time?
A: If we have stock, we can delivery immeditary. If no stock, depends on QTY, but normally no more than 20 working days.
Q: What's the weight and measurement for the product?
A: Different size with differenct amount, please contact us for details.
Q: Can the products be manufactuered by customer's requirement?
A: Yes, OEM service available
Q: What do you need to know for fast quotation?
A: It would be highly appreciated if we have the details of detailed drawing for OEM order, model, end connection type, flange standard and material, medium, pressure, temperature and other working conditions.
Q: Visting company is allowed or not?
A: Yes, we welcome customers visiting our company. We are located in Kunshan, Jiangsu Prov., China
