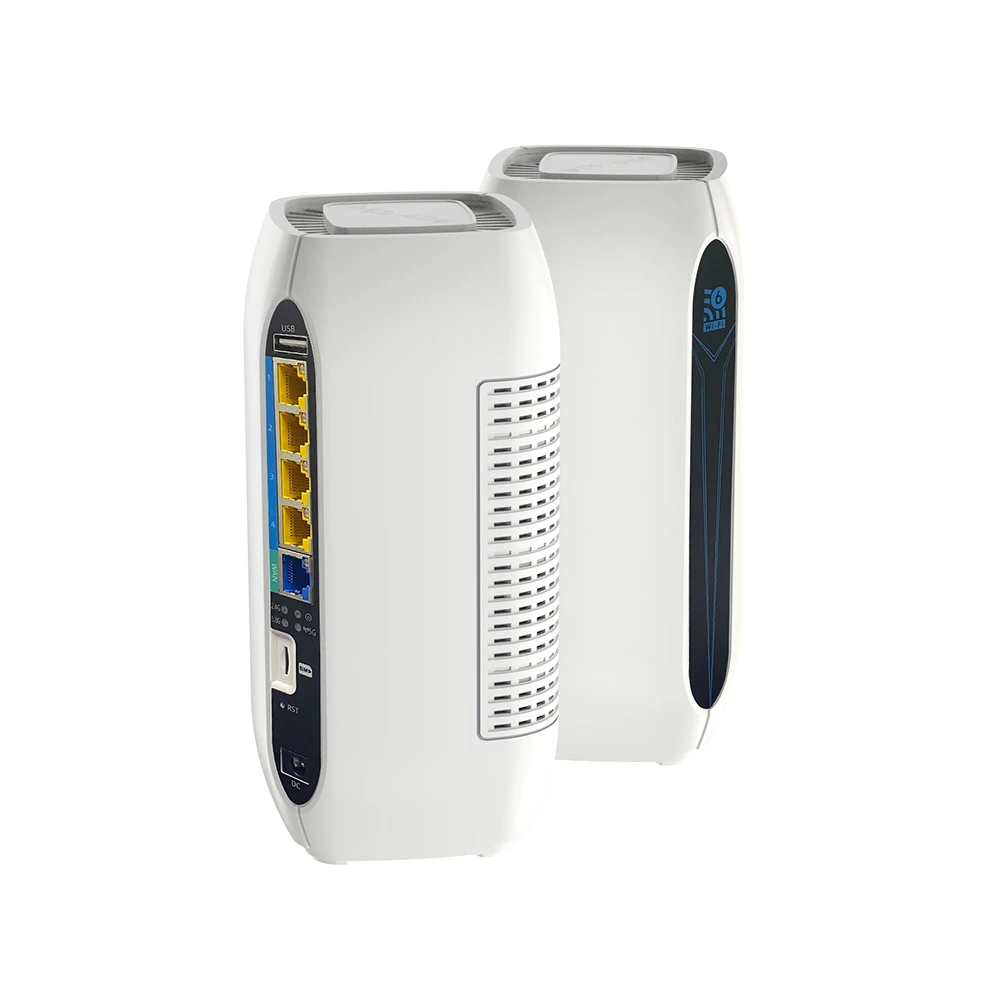

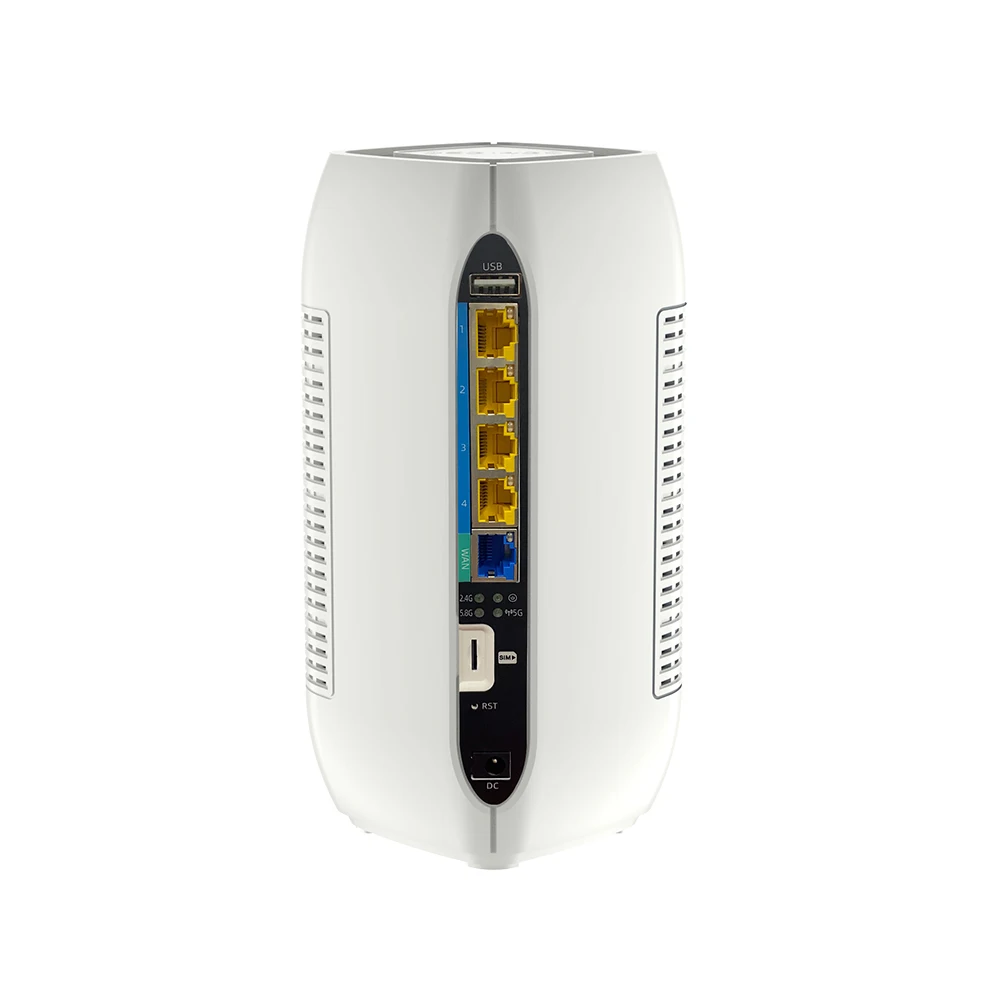

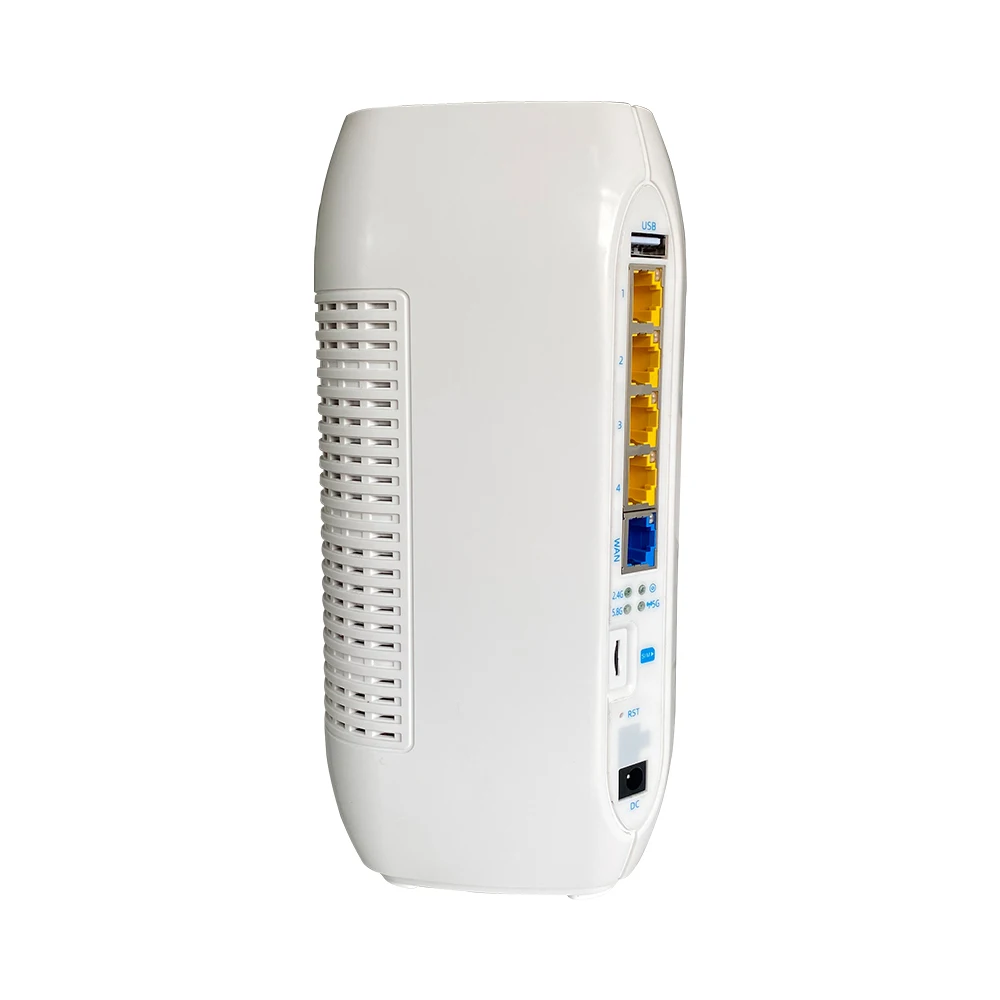

Vehicle Bus Hot Selling 5G CPE Router 3000Mbps WiFi 6 Wireless 2.4G 5.8G Support SA/NSA Dual band 5G Modem router
- Category: >>>
- Supplier: Shenzhen Zhibotong Electronics Co. Ltd.
Share on (1601008460312):
Product Overview
Description
Product Description
Using MT7981B solution gigabit port wifi6 5G 3000Mbps with two SIM card slots wireless router
Reminder: The price on the Alibaba platform does not include the 4G/5G module, if you want to install the module, please contact me.
1 review
1.1 Brief overview
This document describes the electrical characteristics, RF performance, dimensions and application environment of the Z8102AX-M2. With the introduction
of this document, end users or developers can quickly understand the hardware
functions of Z8102AX-M2. Z8102AX-M2 is a 5G/4G+WIFI6 home CPE router, which can access the
Internet through 5G/4G mobile communication dial-up or 1000Mbps WAN port, and then share the Internet network through wireless WiFi 6 and 1000Mbps wired LAN.
1.1 Brief overview
This document describes the electrical characteristics, RF performance, dimensions and application environment of the Z8102AX-M2. With the introduction
of this document, end users or developers can quickly understand the hardware
functions of Z8102AX-M2. Z8102AX-M2 is a 5G/4G+WIFI6 home CPE router, which can access the
Internet through 5G/4G mobile communication dial-up or 1000Mbps WAN port, and then share the Internet network through wireless WiFi 6 and 1000Mbps wired LAN.
1.2 Reference standards
Related standard specifications:
1)USB3.0/USB2.0 bus standard
2)PCI- Express bus standard
3)SIM/USIM interface standard
4)IEEE802.11n/g/b/a/ac/ax
5)IEEE802.3/802.3u/802.ab
6)PCI Express M.2 Specification Rev1.1
7)5G/4G mobile communication standard, specifically determined by the
selected 5G/4G mobile communication module
8）5G dual sim router with both work same time Active-Active
1)USB3.0/USB2.0 bus standard
2)PCI- Express bus standard
3)SIM/USIM interface standard
4)IEEE802.11n/g/b/a/ac/ax
5)IEEE802.3/802.3u/802.ab
6)PCI Express M.2 Specification Rev1.1
7)5G/4G mobile communication standard, specifically determined by the
selected 5G/4G mobile communication module
8）5G dual sim router with both work same time Active-Active
3 Product main features
1) Using MT7981B solution, ARM Cortext-A53 dual-core CPU, main frequency up
to 1.3GHZ
2)Adopt independent WIFI6 chip, MT7976CN, the speed is up to 3000Mbps
3)High-speed 1GB DDR4, with 128MB SPI NAND Flash

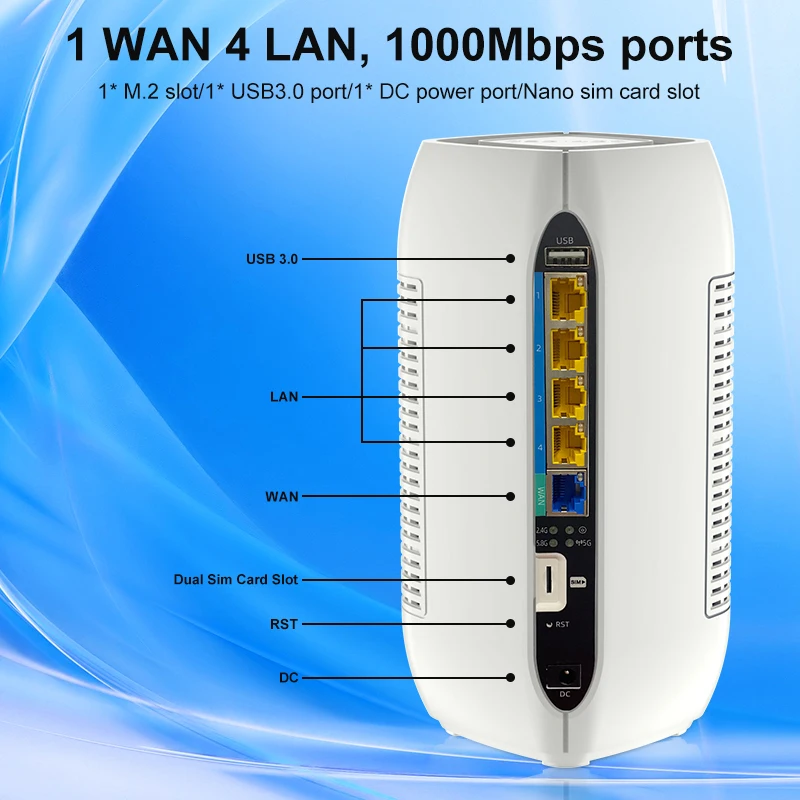

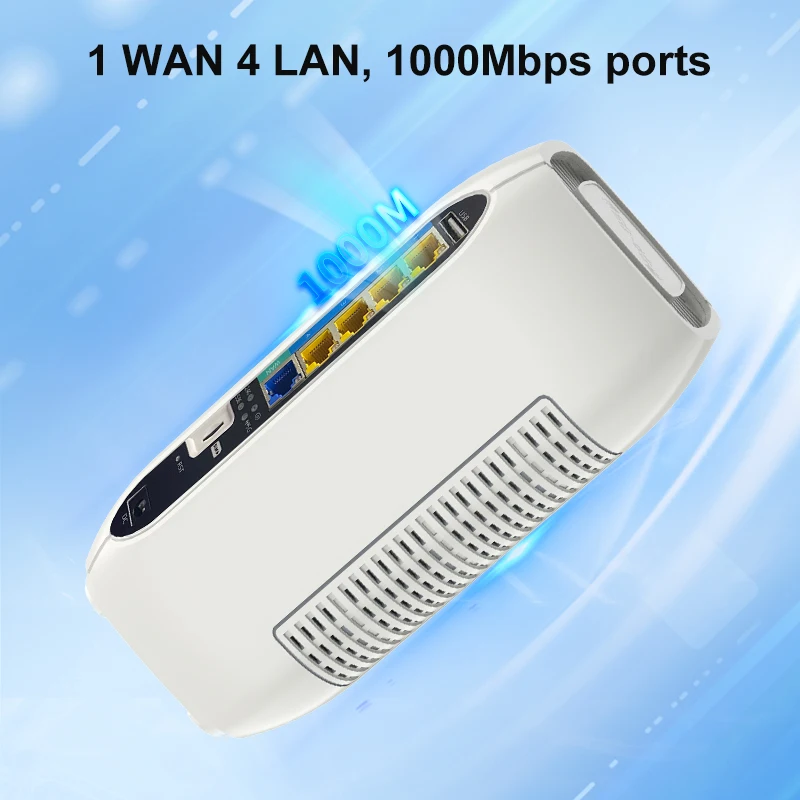

4)1WAN+4LAN 1000M adaptive network port, support automatic flip (Auto
MDI/MDIX).. 5)Support "one-key flashing mode", that is, long press the reset button to enter the
rescue flashing mode... 6)Support "one-key" MESH networking... 7)Built-in 2 M.2/Mini-PCIE standard interfaces (choose one of the two), which can
be used to connect to 5G/4G mobile communication modules
8)External standard Nano SIM card (small card) interface and built-in eSIM (QFN-8
6mmx5mm) card interface, support SIM/USIM card
9)External high-gain WIFI antenna, 360-degree wireless signal without dead angle
10） 5G dual sim router with both work same time Active-Active
1) Using MT7981B solution, ARM Cortext-A53 dual-core CPU, main frequency up
to 1.3GHZ
2)Adopt independent WIFI6 chip, MT7976CN, the speed is up to 3000Mbps
3)High-speed 1GB DDR4, with 128MB SPI NAND Flash
4)1WAN+4LAN 1000M adaptive network port, support automatic flip (Auto
MDI/MDIX).. 5)Support "one-key flashing mode", that is, long press the reset button to enter the
rescue flashing mode... 6)Support "one-key" MESH networking... 7)Built-in 2 M.2/Mini-PCIE standard interfaces (choose one of the two), which can
be used to connect to 5G/4G mobile communication modules
8)External standard Nano SIM card (small card) interface and built-in eSIM (QFN-8
6mmx5mm) card interface, support SIM/USIM card
9)External high-gain WIFI antenna, 360-degree wireless signal without dead angle
10） 5G dual sim router with both work same time Active-Active
Specification
item | value |
With Modem Function | NO |
Standards And Protocols | Wi-Fi 802.11g, Wi-Fi 802.11b, Wi-Fi 802.11n, Wi-Fi 802.11ac, Wi-Fi 802.11a, Wi-Fi 802.11ax |
Wi-Fi Supported Frequency | 2.4G & 5G |
Supports WDS | Yes |
Supports WPS | Yes |
Wi-Fi Transmission Standard | 802.11b |
Wired Transfer Rate | 10/100/1000Mbps |
2.4G Wi-Fi Transmission Rate | 1200 Mbps |
Encryption Type | WPA2, WPA, WEP |
Type | Wired and Wireless |
Application | Network Security |
Function | Voip, FireWall, QoS, VPN, SDK available |
LAN Ports | 4 |
WAN Ports | 1 x10/100/1000Mbps |
5G Wi-Fi Transmission Rate | None |
Product name | wifi6 5G wireless router |
SIM card slot | 2 SIM Card Slots |
Chipset | MT7981B |
Power interface | DC5.5*2.1MM |
Botton | 1 reset button, 1 MESH button |
4G/5G interface | 2 *M.2 ports |
RAM | DDR4 1GB |
Flash | Nor Flash 16MB(Choosable) SPI NAND Flash 128MB EMMC 8GB (Choosable) |
Routing system exception | Module dialing exception |
restart the whole system | Only restart the module |
Packing & Delivery
1.Neutral packing :1pcs/ box,20pcs /carton.
2.OEM packing can be accepted.
2.OEM packing can be accepted.
