Product Overview
Description
Product Description

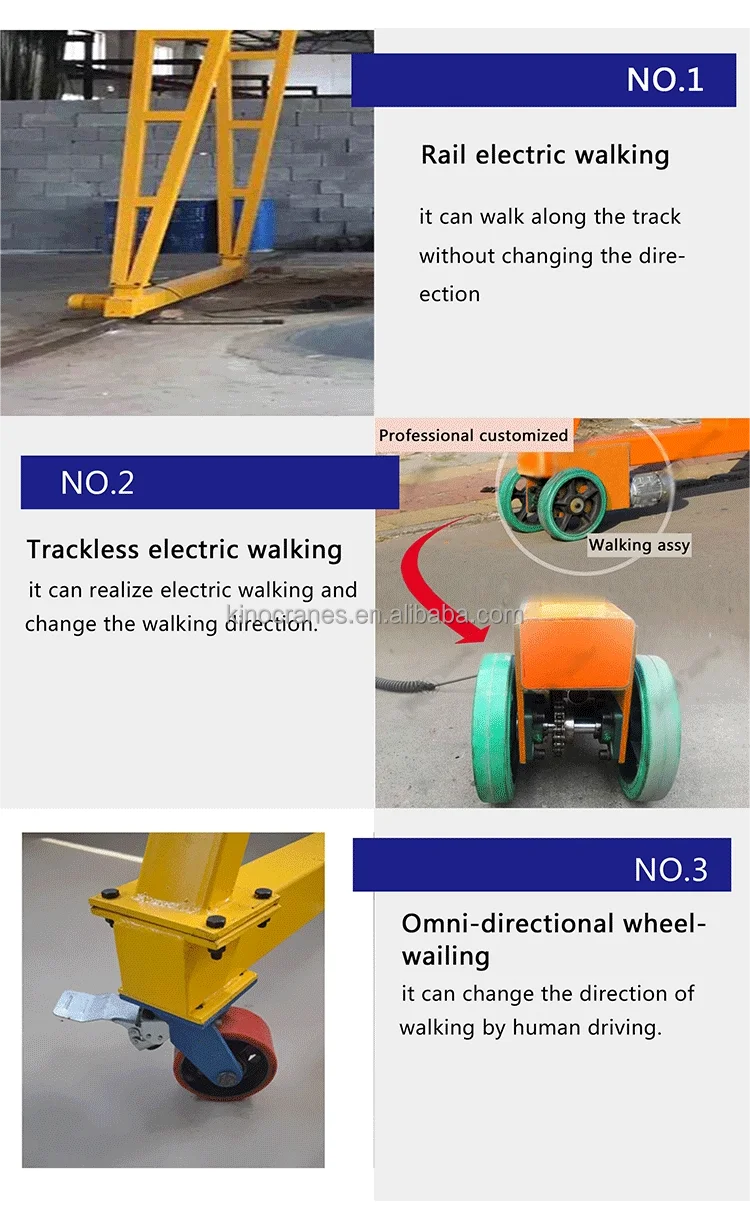

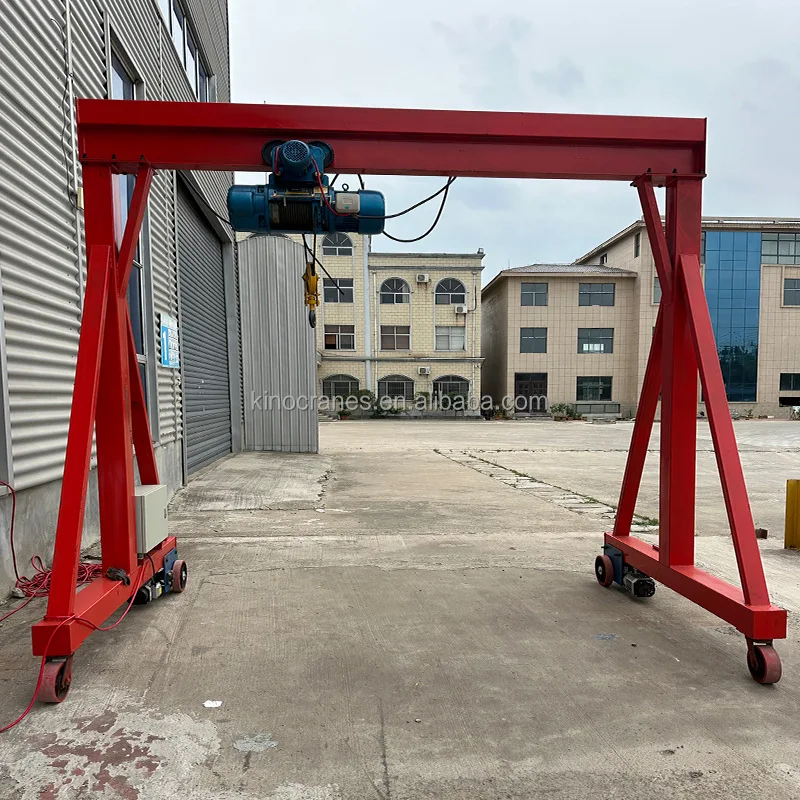

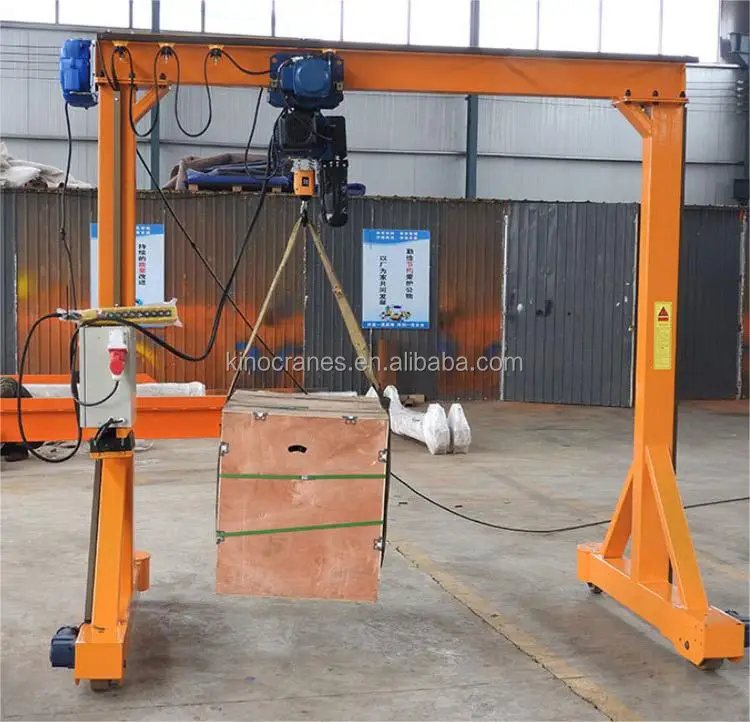

Trackless small gantry crane is a portable crane that does not require fixed rails for movement. It is designed to be easy to move, can be turned at will, and can be powered to walk when carrying a load. It can be equipped with an optional drive device with a clutch, and can be converted between electric and manual without the need for a special track system. These cranes are typically used in applications that require flexibility and mobility, such as workshops, warehouses, or outdoor construction sites. The trackless function allows the crane to maneuver into position without being restricted by a specific track, making it suitable for a variety of working environments. This type of gantry crane is typically smaller in size and can be used to lift and move lighter loads within a limited area.
Product Design

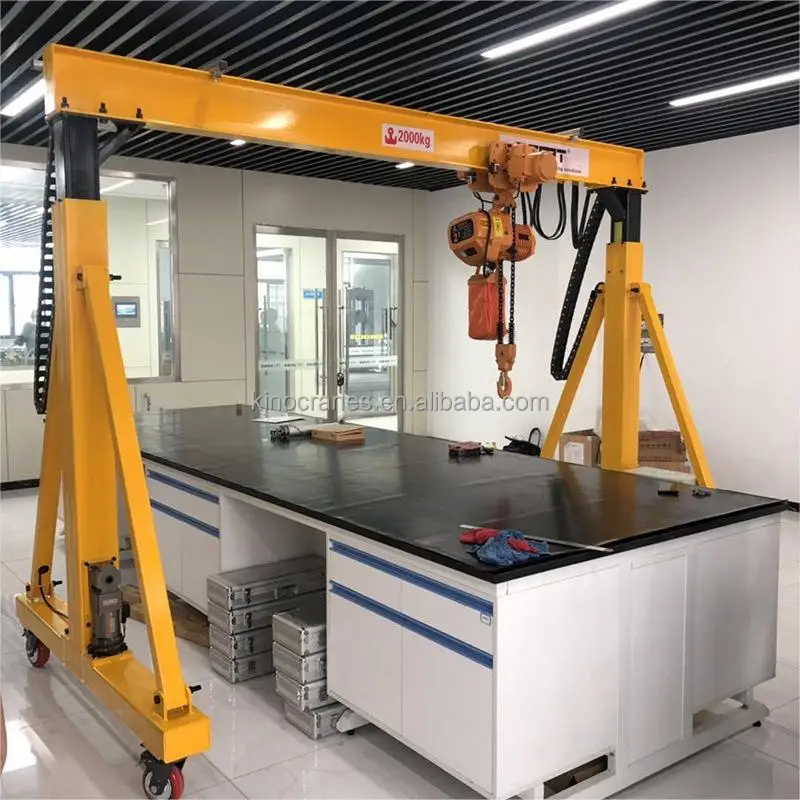

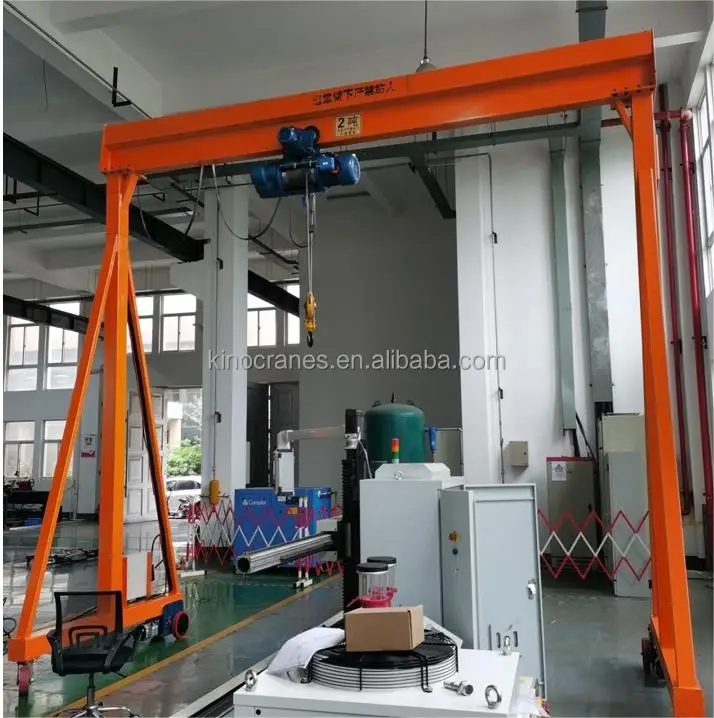

Product Display

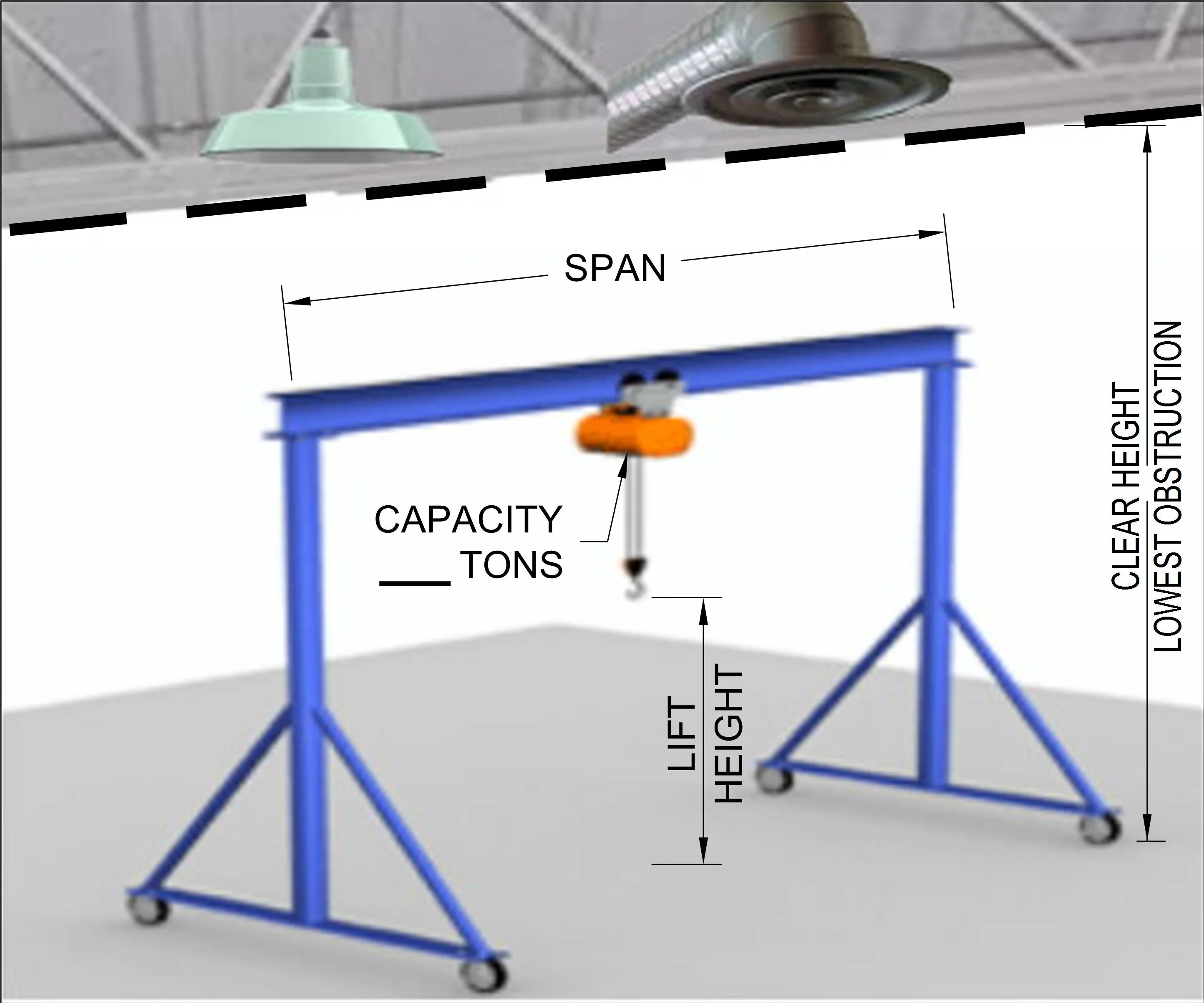

Technical Date
Type | Capacity/t | Equiment Height/mm | Effective lifting height/mm | Outer span/mm | Inner span/mm | H/mm |
PT3 | 1 | 4000 | 3390 | 4000 | 3760 | 410 |
1 | 5000 | 4390 | 4000 | 3760 | 410 | |
2 | 4000 | 3215 | 4000 | 3720 | 535 | |
2 | 5000 | 4215 | 5000 | 4720 | 535 | |
3 | 4000 | 3015 | 4000 | 3660 | 685 | |
3 | 5000 | 4015 | 5000 | 4660 | 685 | |
5 | 4000 | 2910 | 4000 | 3560 | 740 | |
5 | 5000 | 3910 | 5000 | 4560 | 740 | |
7.5 | 4000 | 2700 | 4000 | 3560 | 900 | |
7.5 | 5000 | 3700 | 5000 | 4560 | 900 | |
10 | 4000 | 2670 | 4000 | 3560 | 880 | |
10 | 5000 | 3670 | 5000 | 4560 | 880 |

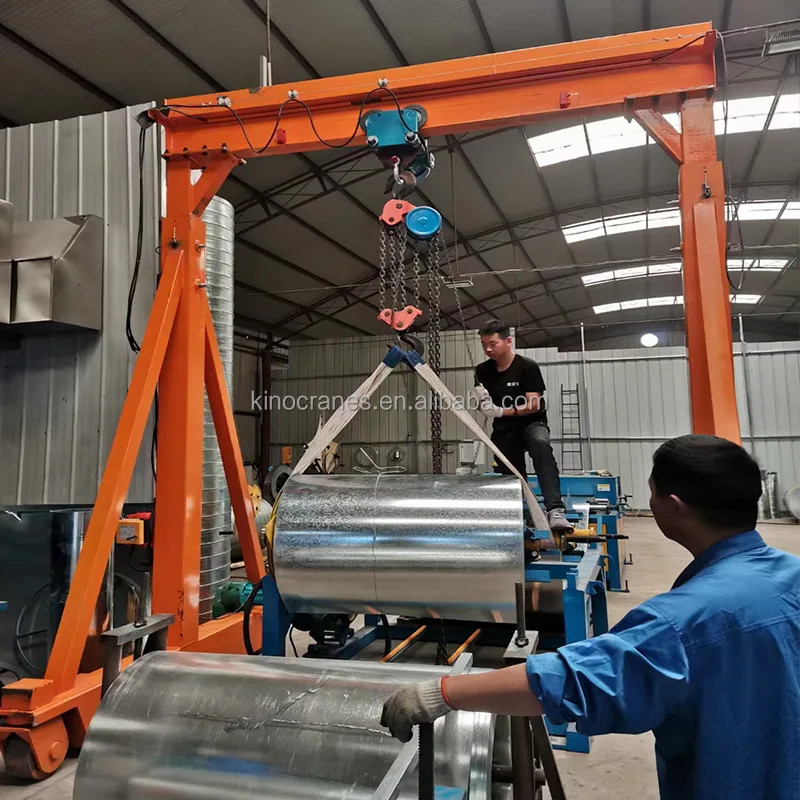

Application
