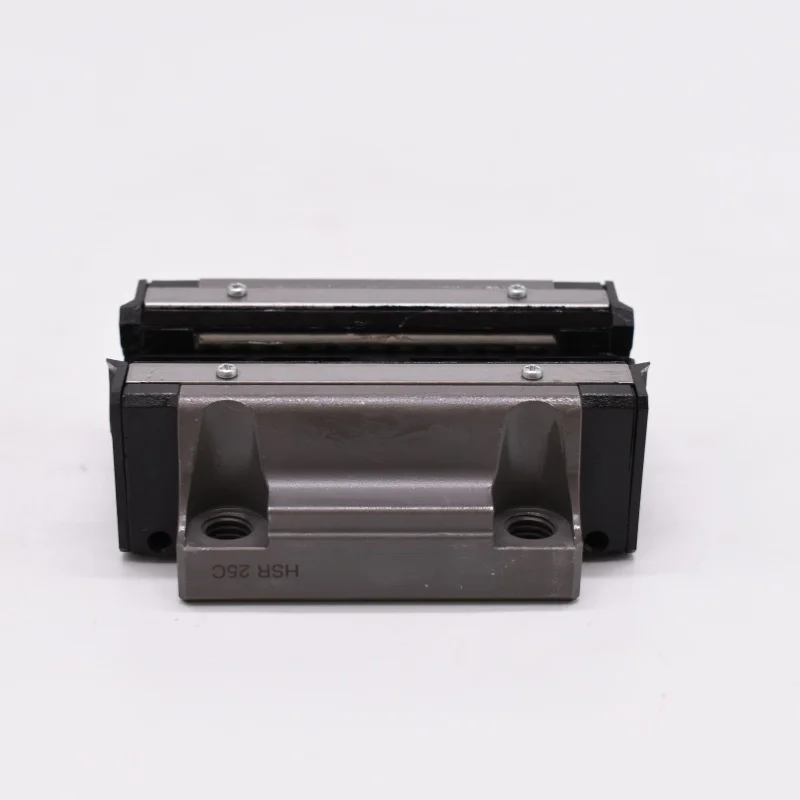

SYBR HSR25C1SS linear slides manufactures with high performance steel linear guides for automation equipment and machine tool
- Category: >>>
- Supplier: Shanghai Songyi Bearing Co. Ltd.
Share on (1601008497166):
Product Overview
Description
Product Description
SYBR develops and provides a large number of linear motion systems products, Ball Screws and Actuators. All of these are used in various types of industrial equipment such as machine tools, semiconductor manufacturing machines and industrial robots.To respond to diversifying requirements, SYBR has been enhancing its high-performance and high_x005fquality products that can be used in widely varying operating environments.Select the most suitable product from our broad array of product lineups that respond to various applications.
Features & Benefits
1.Large permissible load
2.Highly rigid in all directions
3.High positioning repeatability
4.Running accuracy can be obtained easily
5.High accuracy can be maintained over a long period
6.Smooth motion with no clearance
7.Superbly high speed
8.Easy maintenance
9.Can be used in various environments
2.Highly rigid in all directions
3.High positioning repeatability
4.Running accuracy can be obtained easily
5.High accuracy can be maintained over a long period
6.Smooth motion with no clearance
7.Superbly high speed
8.Easy maintenance
9.Can be used in various environments

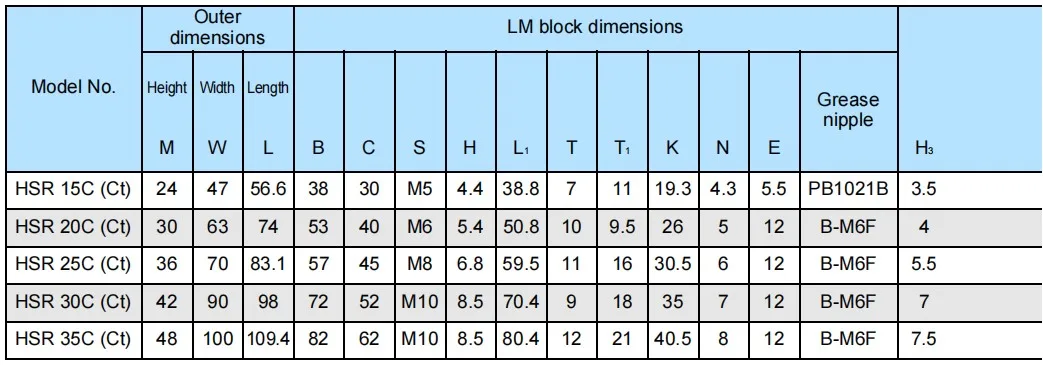

Specification
Note) Pilot holes for side nipples＊＊ are not drilled through in order to prevent foreign material from entering the product. SYBR will mount grease nipples per your request. Therefore, do not use the side nipple pilot holes ＊＊ for purposes other than mounting a grease nipple.

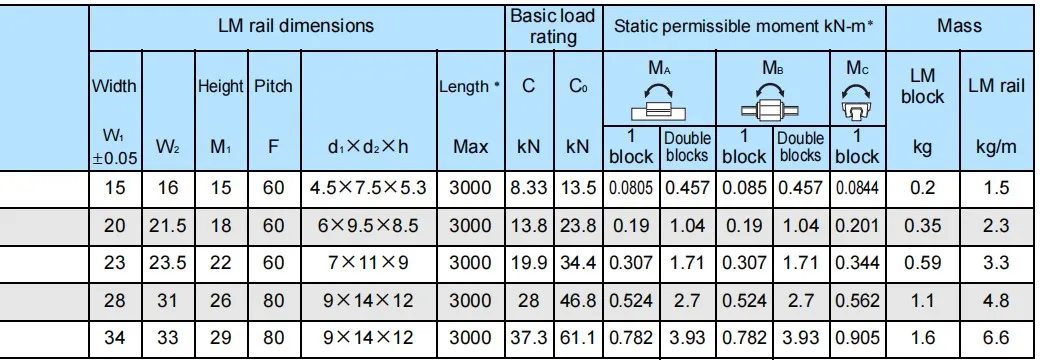

The maximum length under “Length＊” indicates the standard maximum length of an LM rail.
Static permissible moment＊: 1 block: static permissible moment value with 1 LM block
Double blocks: static permissible moment value with 2 blocks closely contacting with each other
The maximum length under “Length＊” indicates the standard maximum length of an LM rail.
Static permissible moment＊: 1 block: static permissible moment value with 1 LM block
Double blocks: static permissible moment value with 2 blocks closely contacting with each other

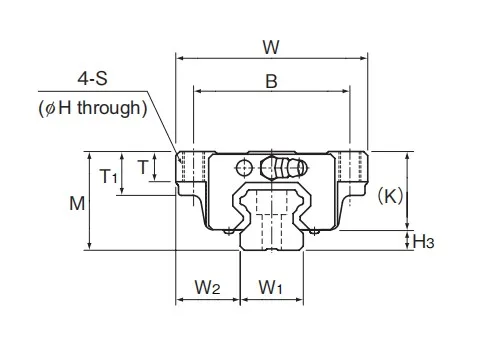

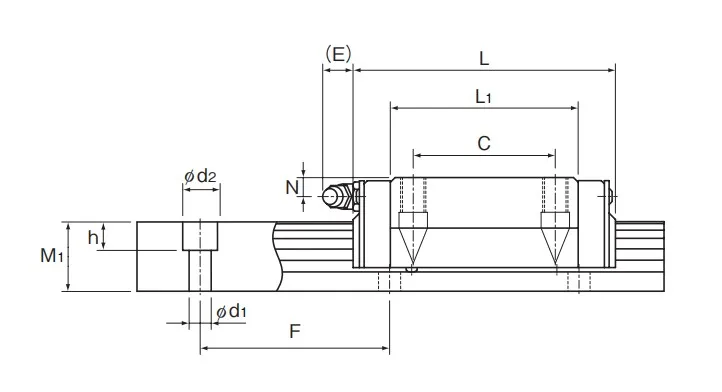

basic load rating - radial - static c0 - kn | 36.4 |
rail dimensions - d1xd2xh - mm | 7x11x9 |
block dimensions - s x l - mm | m8 |
block dimensions - b - mm | 57 |
outer dimensions - widthw - mm | 70 |
preload | no preload |
basic load rating - radial - dynamic c - kn | 27.6 |
rail dimensions - pitch f - mm | 60 |
block dimensions - c - mm | 45 |
outer dimensions - lengthl - mm | 83.1 |
outer dimensions - heightm - mm | 36 |
Size | 25 |

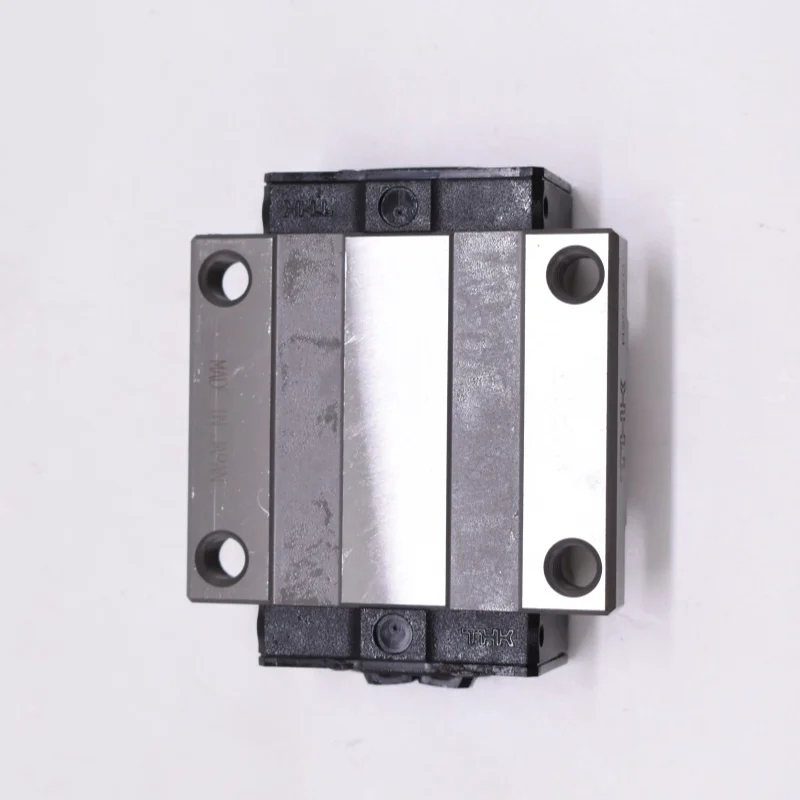

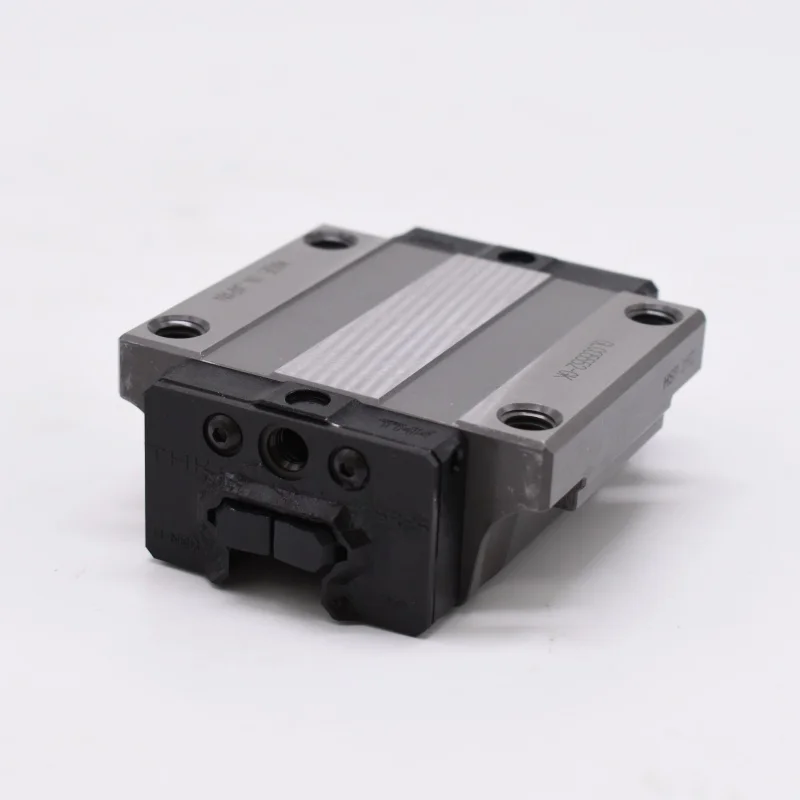

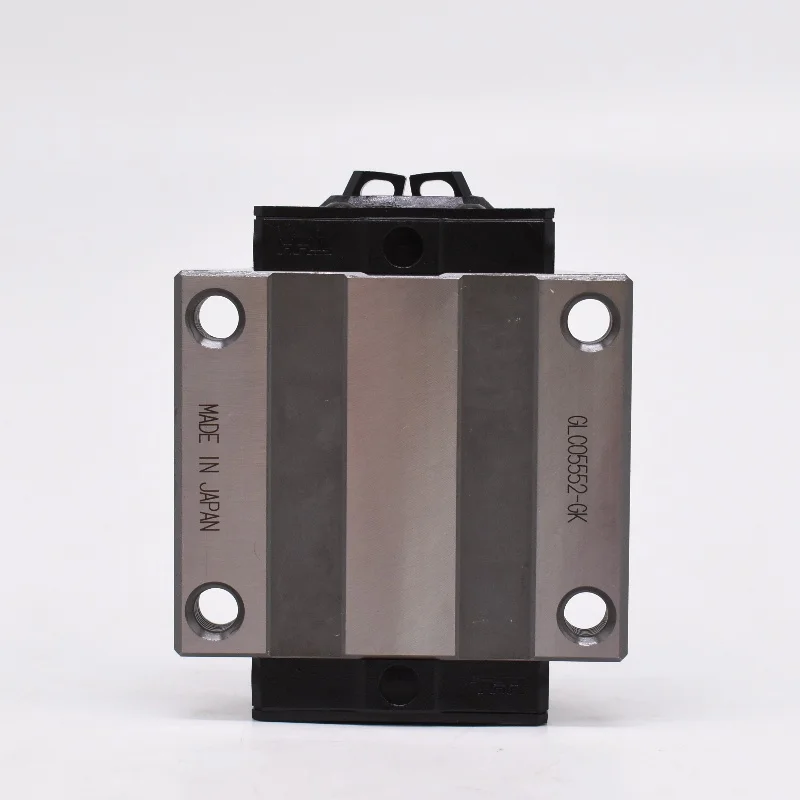

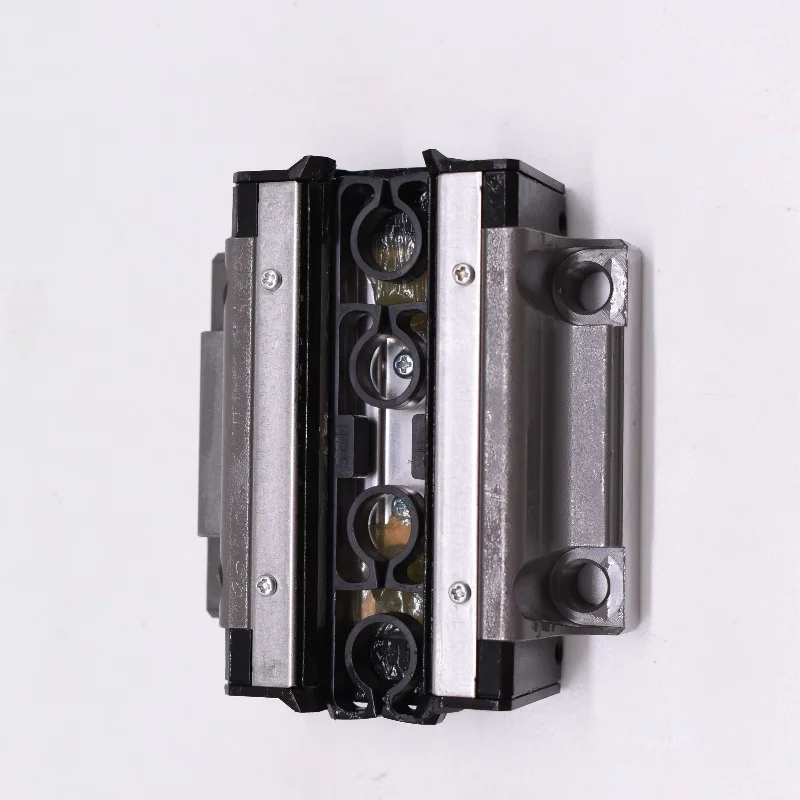

Details Images
Application

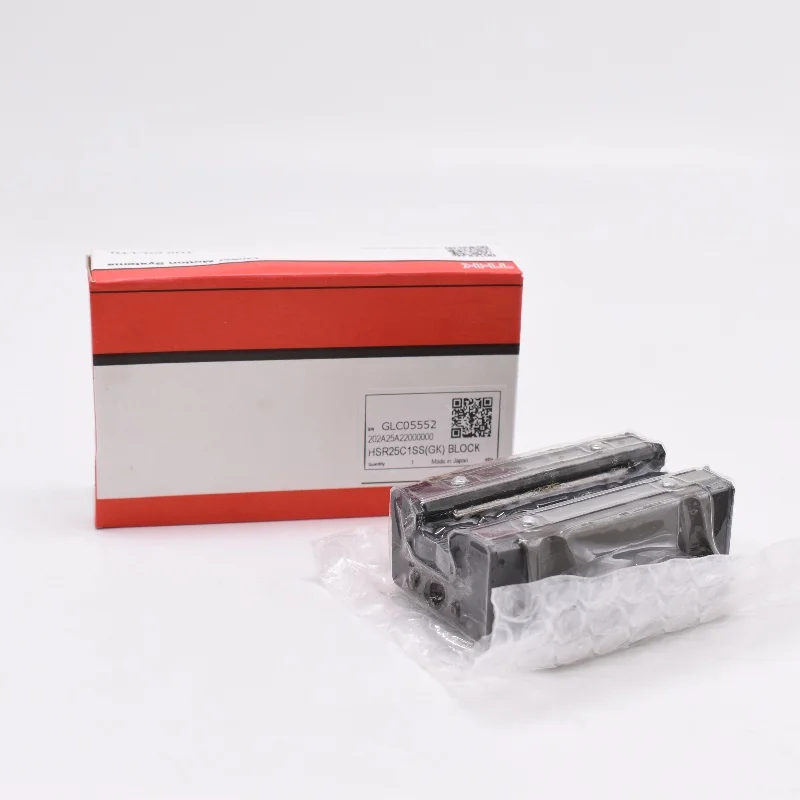

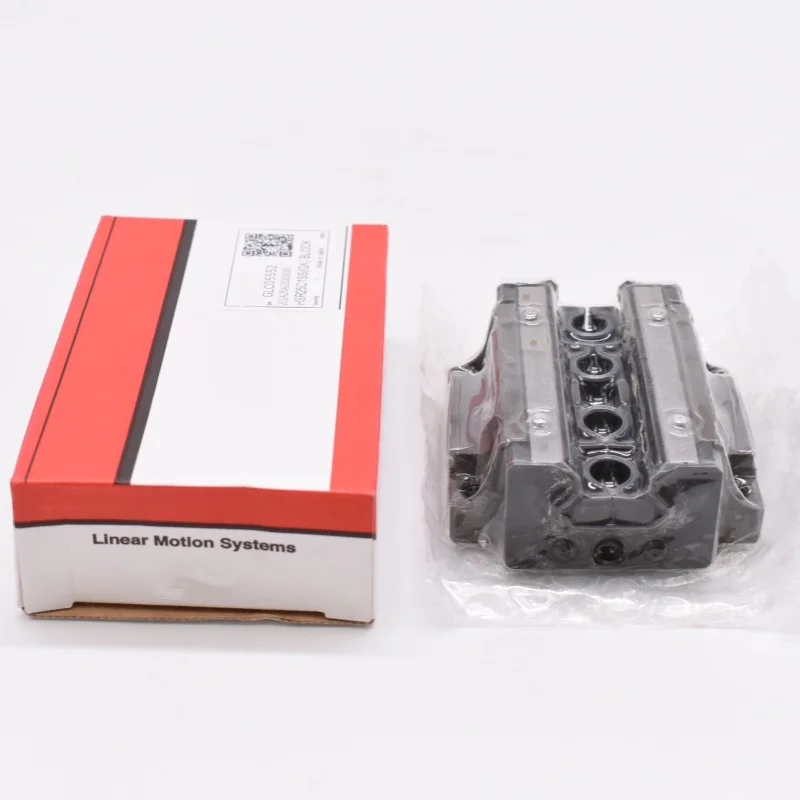

Packing & Delivery
Company Profile
Shanghai SY Bearing CO., LTD is a professional global supplier of bearings and Linear Motion System .We are Founded in 1999 and located in Shanghai city, We have our own factory，mainly provide and customize our own brand SYBR bearings and linear guide systems to meet the different needs of customers.Meanwhile We stock world famous brands of bearings and linear guide system from different countries. Famous brand Bearings come from CHINA, GERMANY,SLOVAKIA, SWEDEN, JAPAN, AUSTRIA, MALAYSIA, FRANCE, USA, ITALY and so on. Famous brand Linear Motion System come from GERMANY,JAPAN, CHINESE TAIWAN, ROMANIA, KOREA, CHINA and so on. We have complete warehousing & logistics system and best after-sale service, therefore we got to know many clients in the world like America, Europe, Africa and the Middle East.By ceaselessly improve our product and service, we have confidence in cooperating with every potential customer.
