Product Overview

Description




Description:

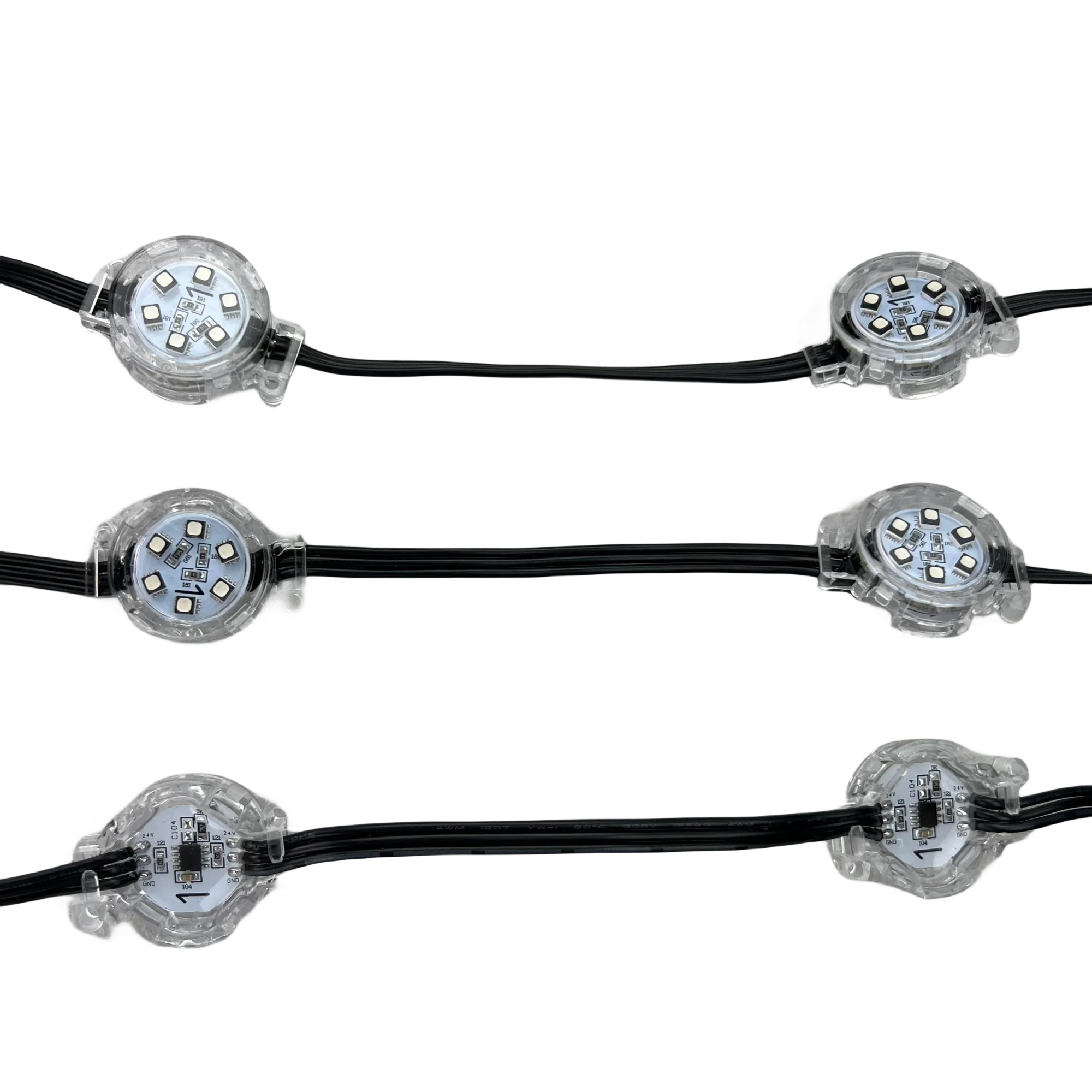

20 Pixels/String 30mm 24V WS2811 LED Addressable RGB Pixel Module IP68 Flat Clear Cover Black Wire 1.44W/Pixel,10cm/15cm/20cm









Specification:





















































































Part No



LD-WS2811-30mm-24V-IP68-RGB-B



Color



RGB full color Addressable;each module as one pixel;takes 3


dmx channels



LED Qty



6pcs high bright 3535 SMD RGB LED



Input Volt



DC24V



Max current



60MA



Max Power



1.44W



Driver method



Constant current circuit

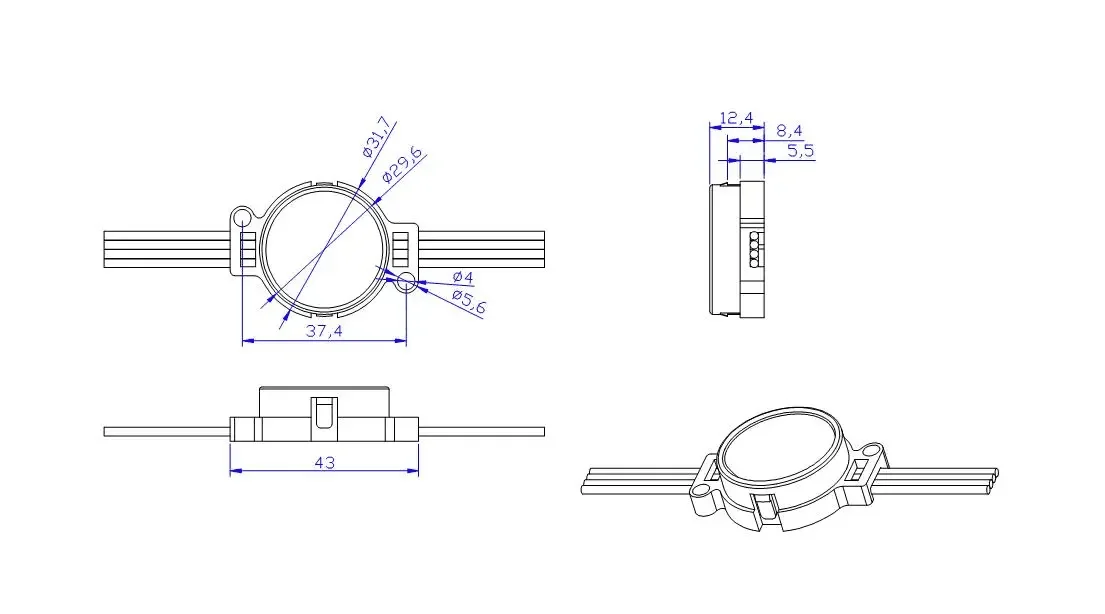

Dimension



30mm diameter



Viewing angle



150-180degree



Protection Level



IP68 waterproof;outdoor used



Certification



CE and RoHS



Quantity of each set



20pcs LEDs together



Standard wire length



10cm/15cm/20cm/30cm wire spacing from side to side of the case


3Pin 18AWG Black Wire



Housing



flat clear PC case



Fixed way



screw



Lifespan



35000 hours



Warranty



3 years



Operation temperature



-40-50



Store temperature



-50-60






waterproof connector at the ends:


3 core xConnect pigtails 20cm long:


https://www.aliexpress.us/item/2251832869744835.html





Permanent Track Aluminum Profile(channel) for 3cm pixel module;30mm open hole, 1m long


https://www.aliexpress.com/item/1005005699967230.html



standard pinout diagram for our pixel lights:


for pigtails:


Brown:                  24V +
Yellow:                  data
Blue:                    GND


Input end:                male connector(screw end with bare pin)


Output end:             female connector(with hole)





Recommended Controllers:


APP bluetooth & WIFI/SD card/Artent SPI etc

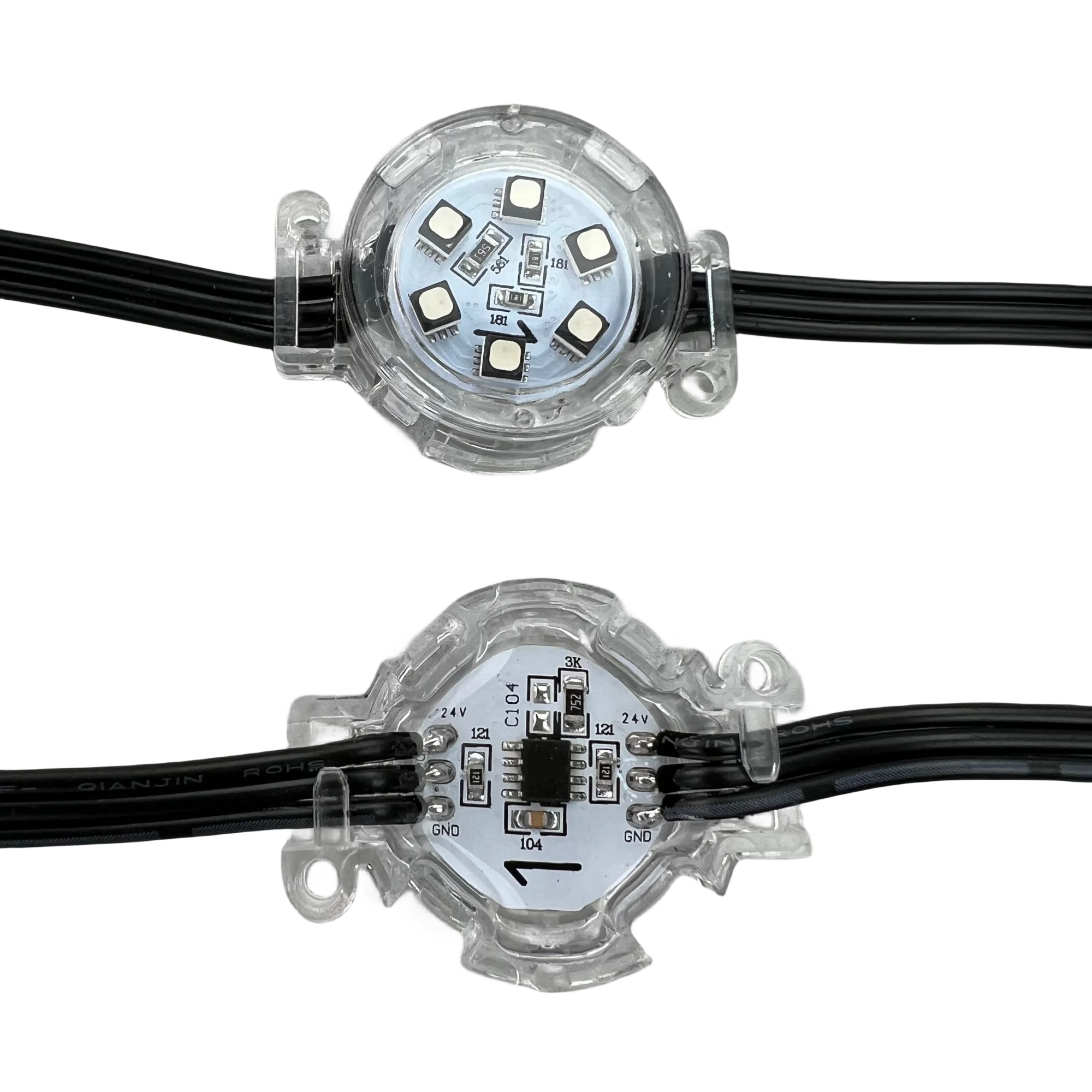

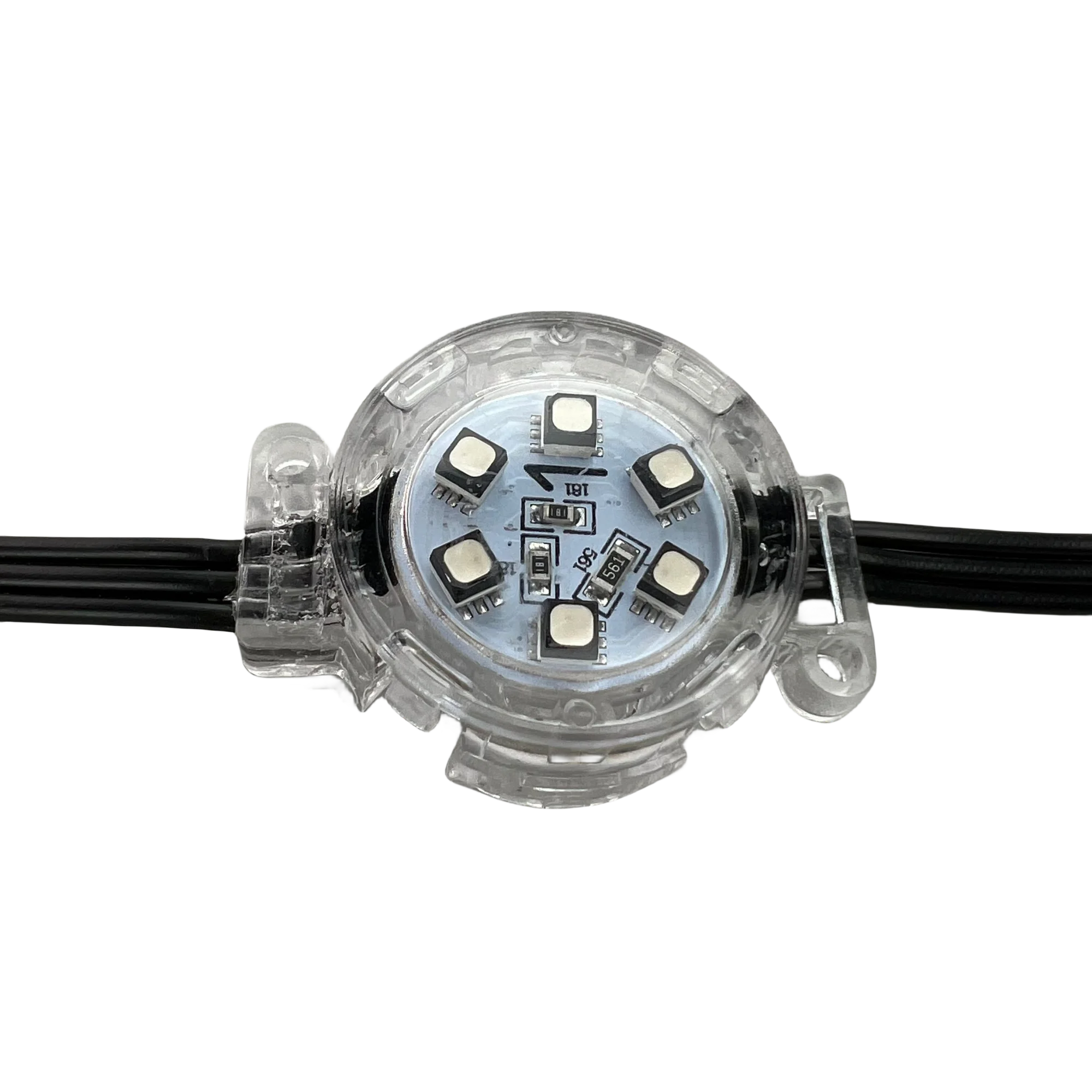

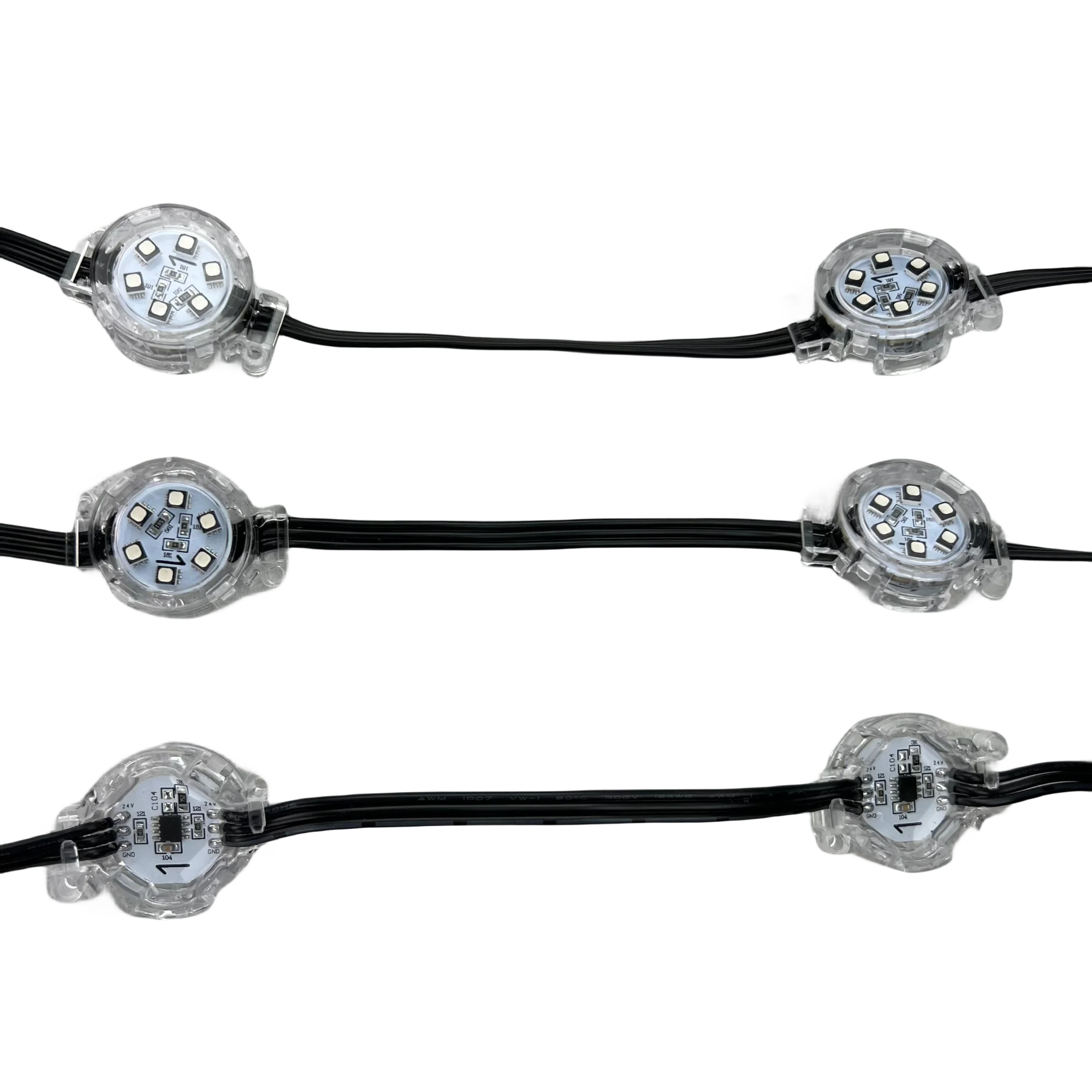

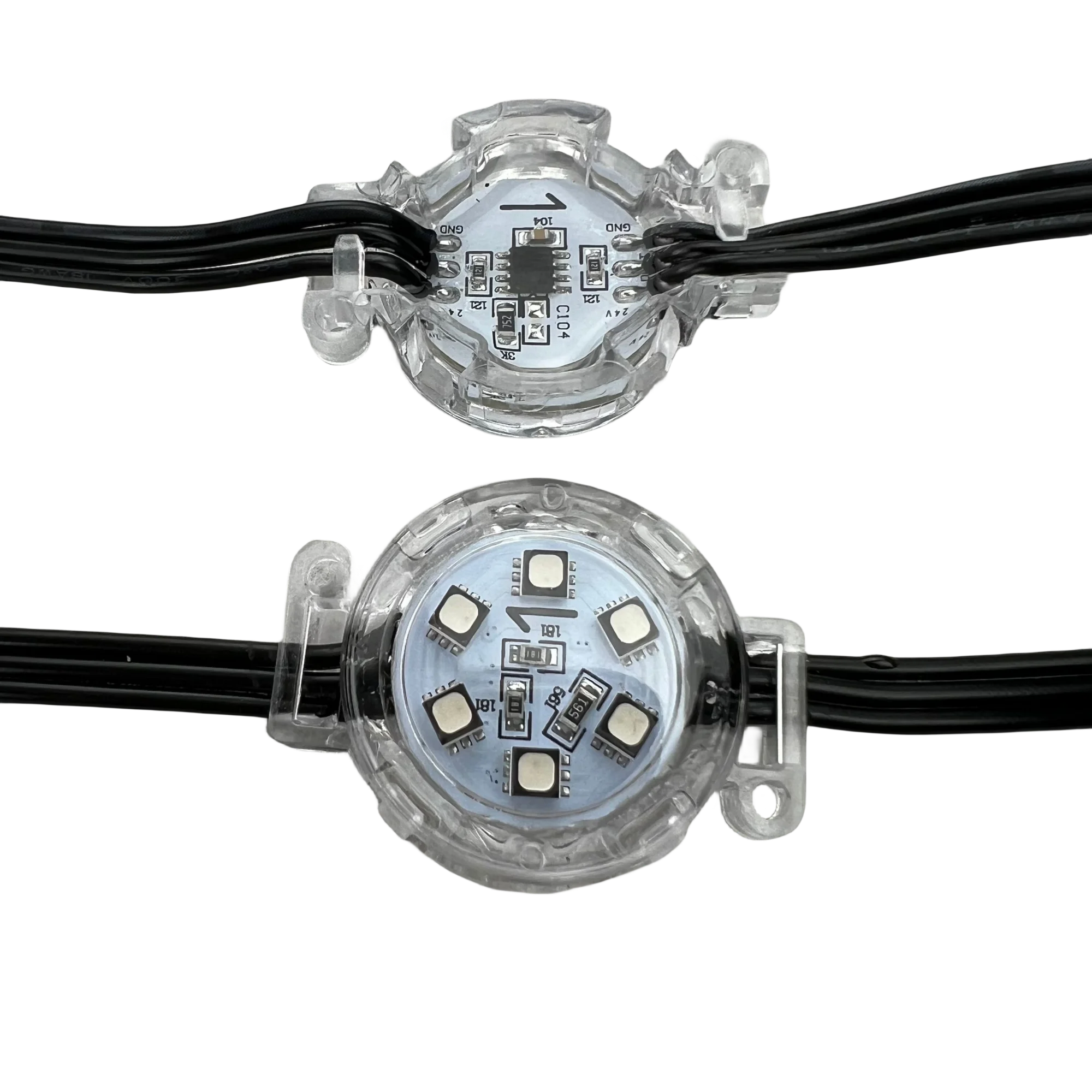

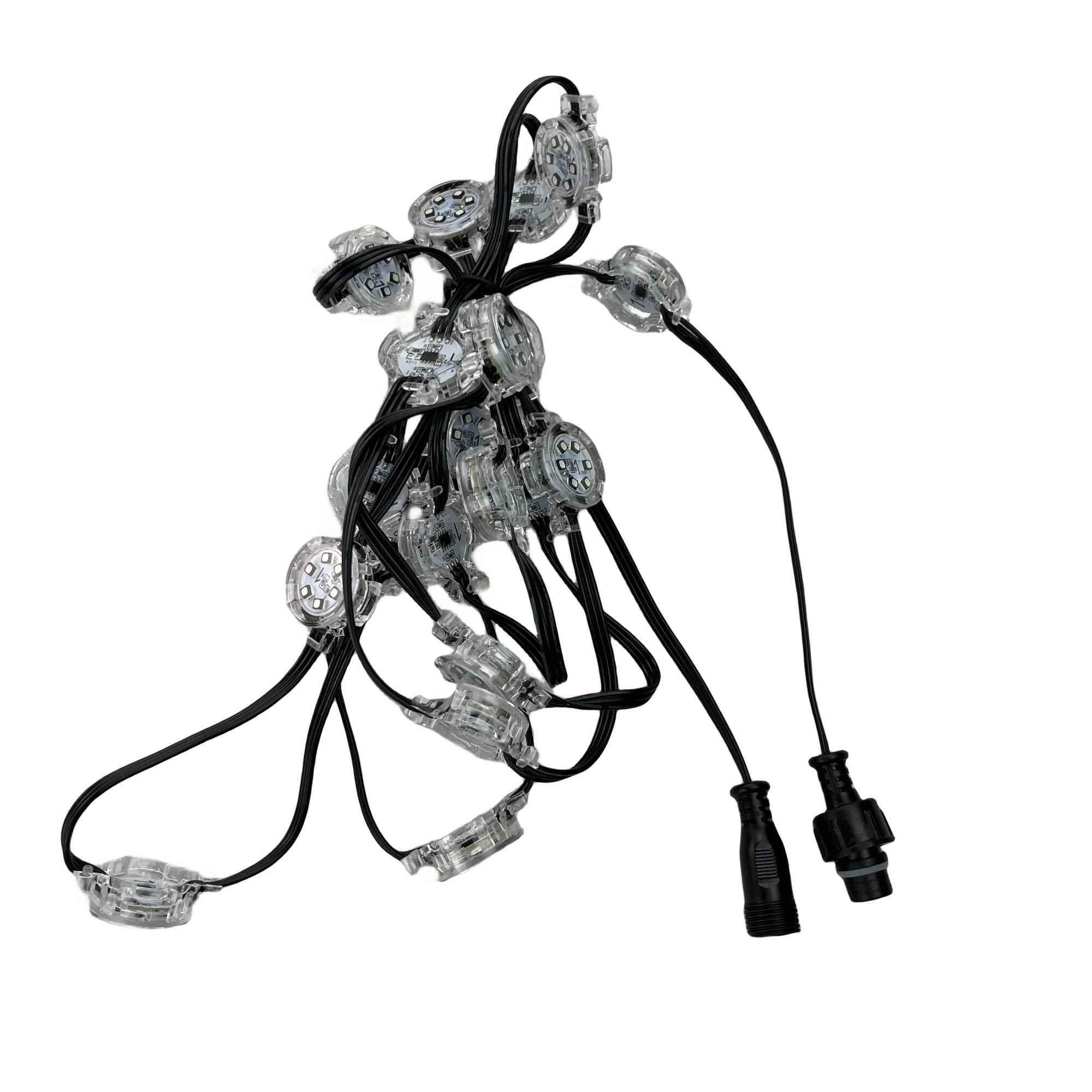

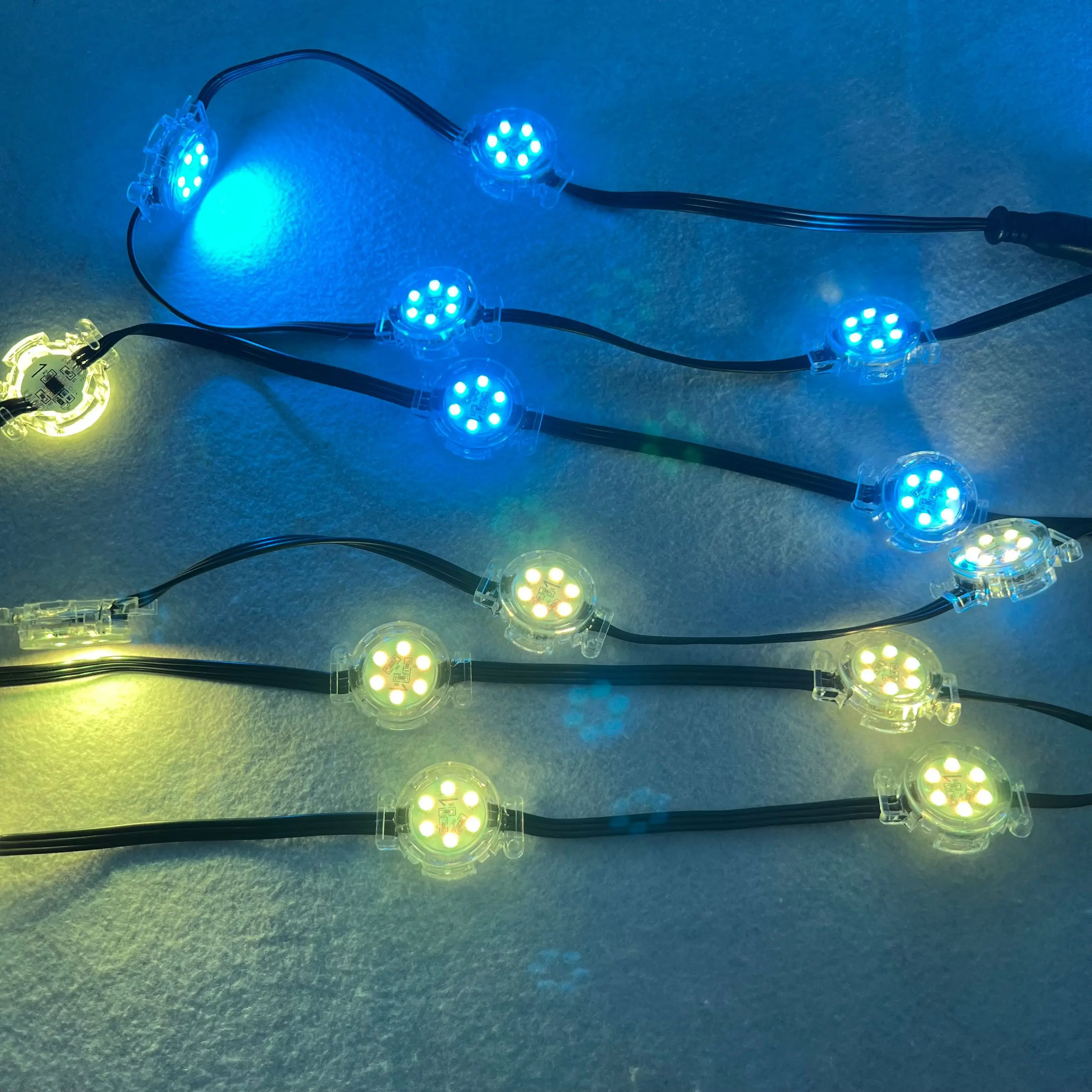

sizeQQ20231129190759_QQ20231129190735_QQ20231129190729_QQ20231129190804_QQ20231129190714QQ20231129190743_QQ20231129190720_
