Acrylic Resin For Aerosol Paint Production Line Turnkey Project 100 Liter 100L Laboratory Chemical Process Reactor
- Category: >>>
- Supplier: Foshan Jct Machinery Co. Ltd.
Share on (1601008528784):
Product Overview
Description
JCT elmers school glue making equipment
1. The whole line:
1). Reactor
2). Condenser (horizontal or vertical)
3). Heating system (oil furnace, or steam system, hot water system)
4). Vacuum system
5). Cooling system
6). Packing system
7). Other auxiliary machine: glue cutter, glue dryer ( for hot melt glue...)
NOTE:
And reactor is the most important part for the whole line, which decides the final quality of the glue!
2. Instruction of the reactor:
1). The chemical reacting equipment.
2). Widely used in resins, glue,adhesives, paint, cosmetics, and other chemical production.
3). Mechanical seal.
4). Inverter for frequency control.
5). Jacketed type, outside pipe type, outside & inside pipe type.
6). Heated by oil, water, steam or electric.
7). Three-layers paddle style, made of stainless steel.
8). Consists of body, gears, mixing devices, heating devices, cooling devices, seal composition.
9). Equipped with distillation column, condenser, water separator, collecting cans, filters ect.
3. The parameter of the chemical reactor:
Type | volume | Heating mode | Structure | Paddle structure | Shaft seals | Material | Remarks |
FYF-50 | 68L |
Three choices:
1.Electric heating.
2.Steam heating
3.Hot water/ oil heating |
Three choices:
1.Jacketed with oil/ water
2.Outer pipe/ tube
3.Outer and inner pipe/ tube |
Three layers:
anchor paddle + block + ribbon ; turbine type, with a dispersing disc.
|
Three choices:
1.Single mechanical seal
|
SS304/ SS316L + Q235 |
1.The power of motors, stirring speed level determined according to actual requirements.
|
FYF-100 | 115L | ||||||
FYF-200 | 220L | ||||||
FYF-300 | 330L | ||||||
FYF-500 | 535L | ||||||
FYF-1000 | 1050L | ||||||
FYF-1500 | 1550L | ||||||
FYF-2000 | 2080L | ||||||
FYF-2500 | 2600L | ||||||
FYF-3000 | 3120L | ||||||
FYF-4000 | 4120L | ||||||
FYF-5000 | 5150L | ||||||
FYF-6000 | 6150L | ||||||
FYF-8000 | 8180L | ||||||
FYF-10000 | 10200L | ||||||
FYF-12000 | 12200L | ||||||
FYF-16000 | 16200L | ||||||
FYF-20000 | 20200L | ||||||
FYF-50000 | 50300L |
Our credo - "QUALITY and SERVICE first, PROFIT second !"

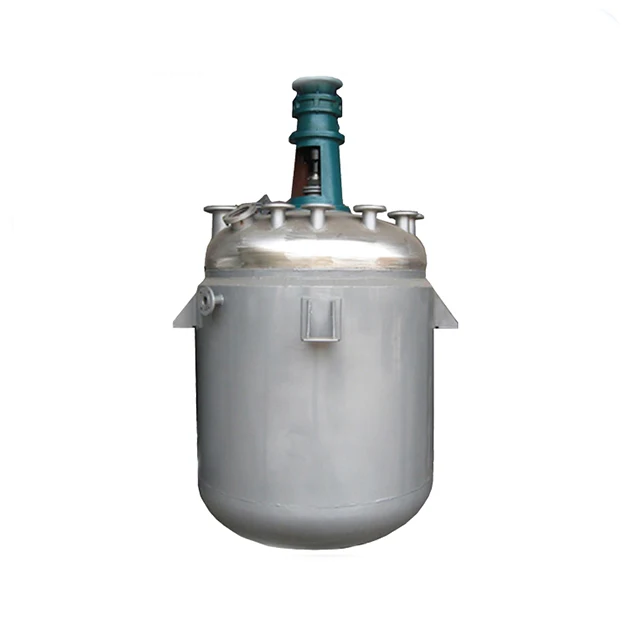

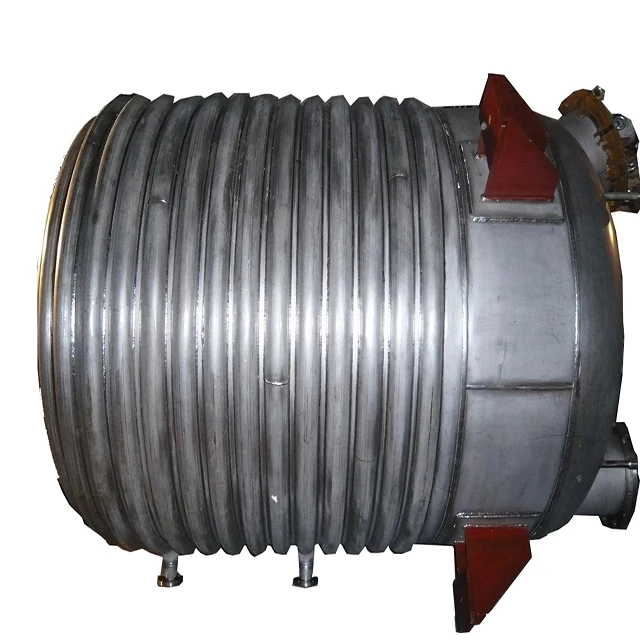

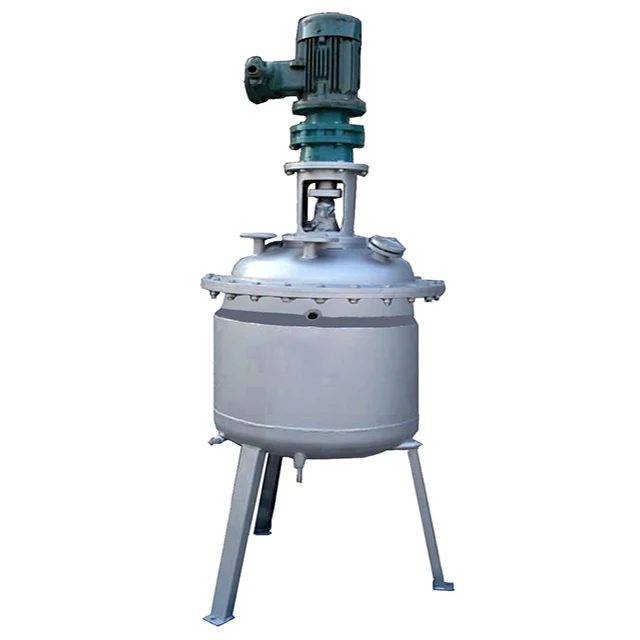

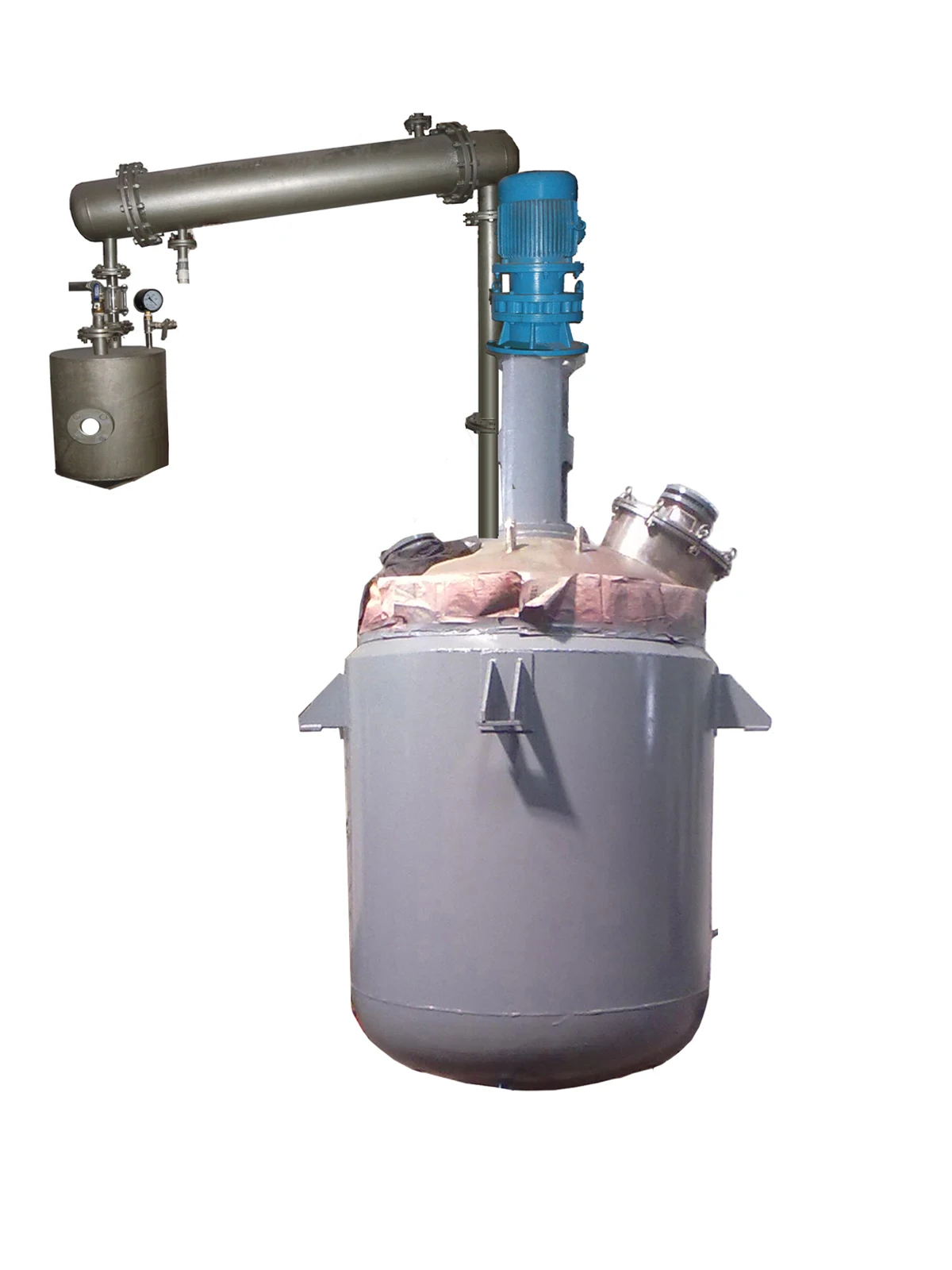

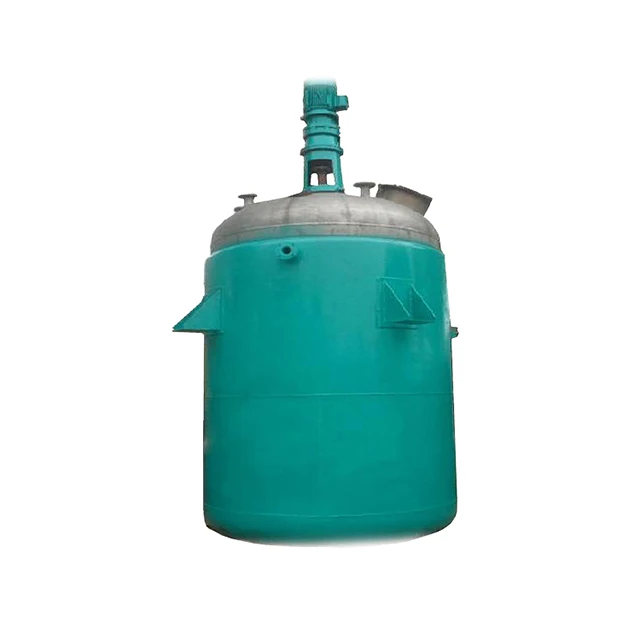

4. Pictures of the chemical reactors:
glue production line
5. Why choose us?
1). Profession:
We have focused on this area for over 10 years, and the boss of JCT is a professional engineer who has 20 years' experience in what we are
concentrating on!
2). Powerful team:
A 5-experienced-engineer designing team + a 35-skilled-technician team + a 10-passionate-sales team make up the JCT big team.
3). Achievement:
JCT was set up at 2004, through about 10 years' endeavor, our products has been sold to most important industrial district in China, such as
Guangdong, Shangdong, Jiangsu, Zhejiang, Fujian and so on. And we have edged ourselves into the top 5 in China.
From 2009, JCT started the international marketing. Now, we have set our feet in North America, Europe, South Aria, Africa etc.
Profeesional hot melt glue machinery supplier!
6.Happy moments with some of our clients
Clients from all over the world!
7.Contact information
JCT - your best choice!
JCT - your trustful partner in China.
