8000cycls 280Ah Lifepo4 3.2V 50Ah 100Ah 230Ah 280Ah 300Ah Batteries Solar Lifepo4 Battery Cell Lithium Ion Battery
- Category: >>>
- Supplier: Zhejiang Rainbow New Energy Co. Ltd.
Share on (1601008536857):
Product Overview
Description
Product Description

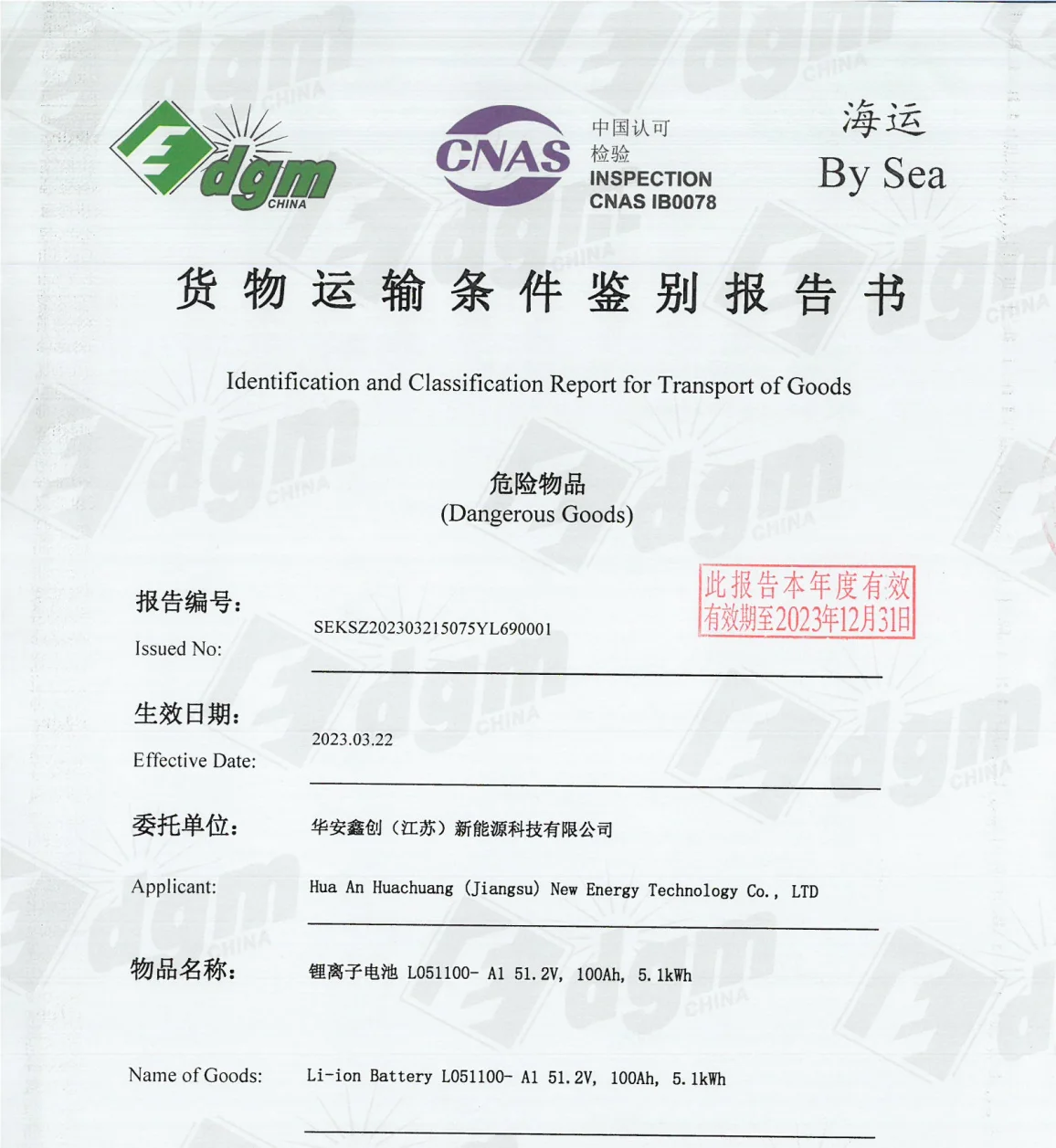

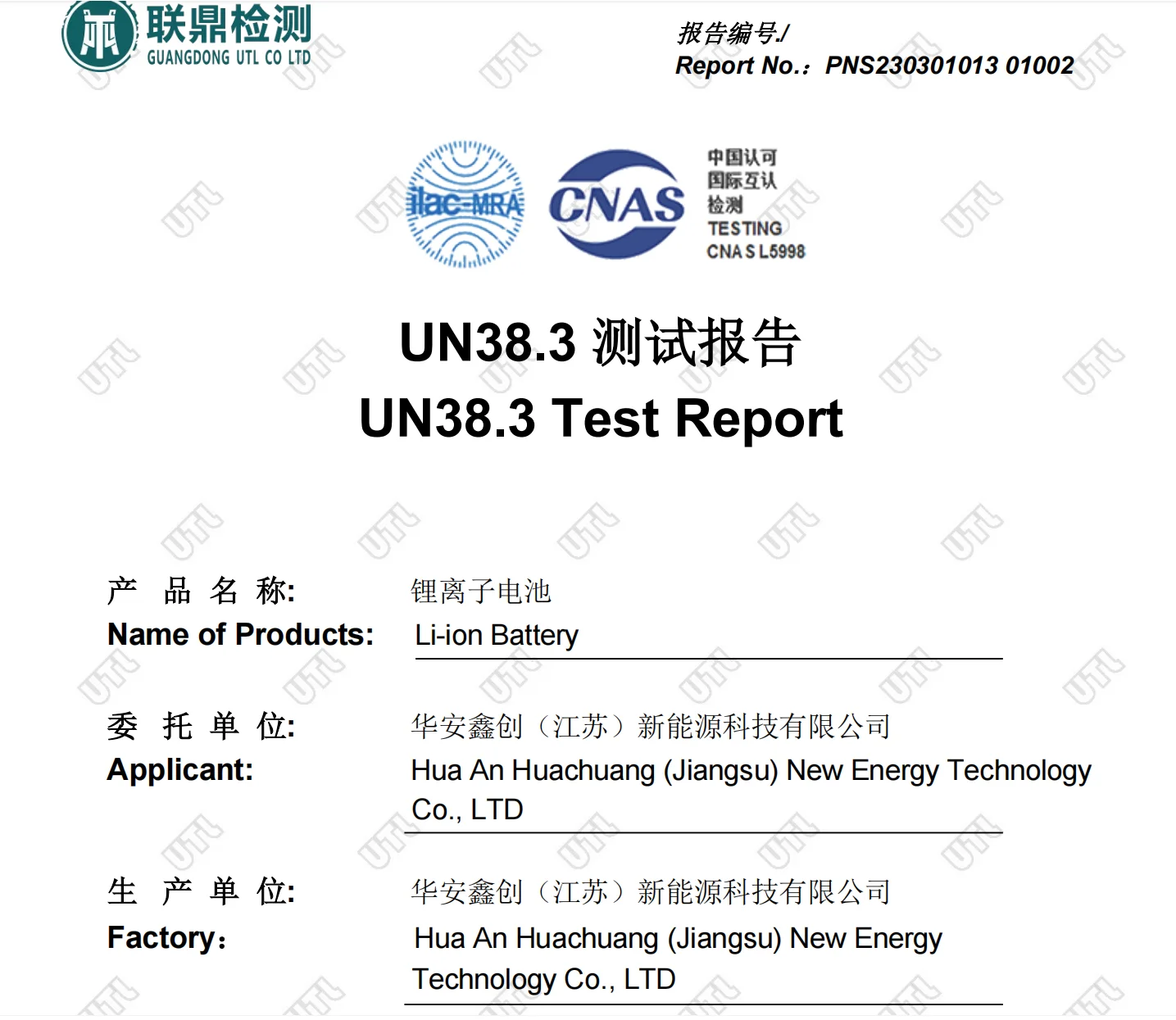

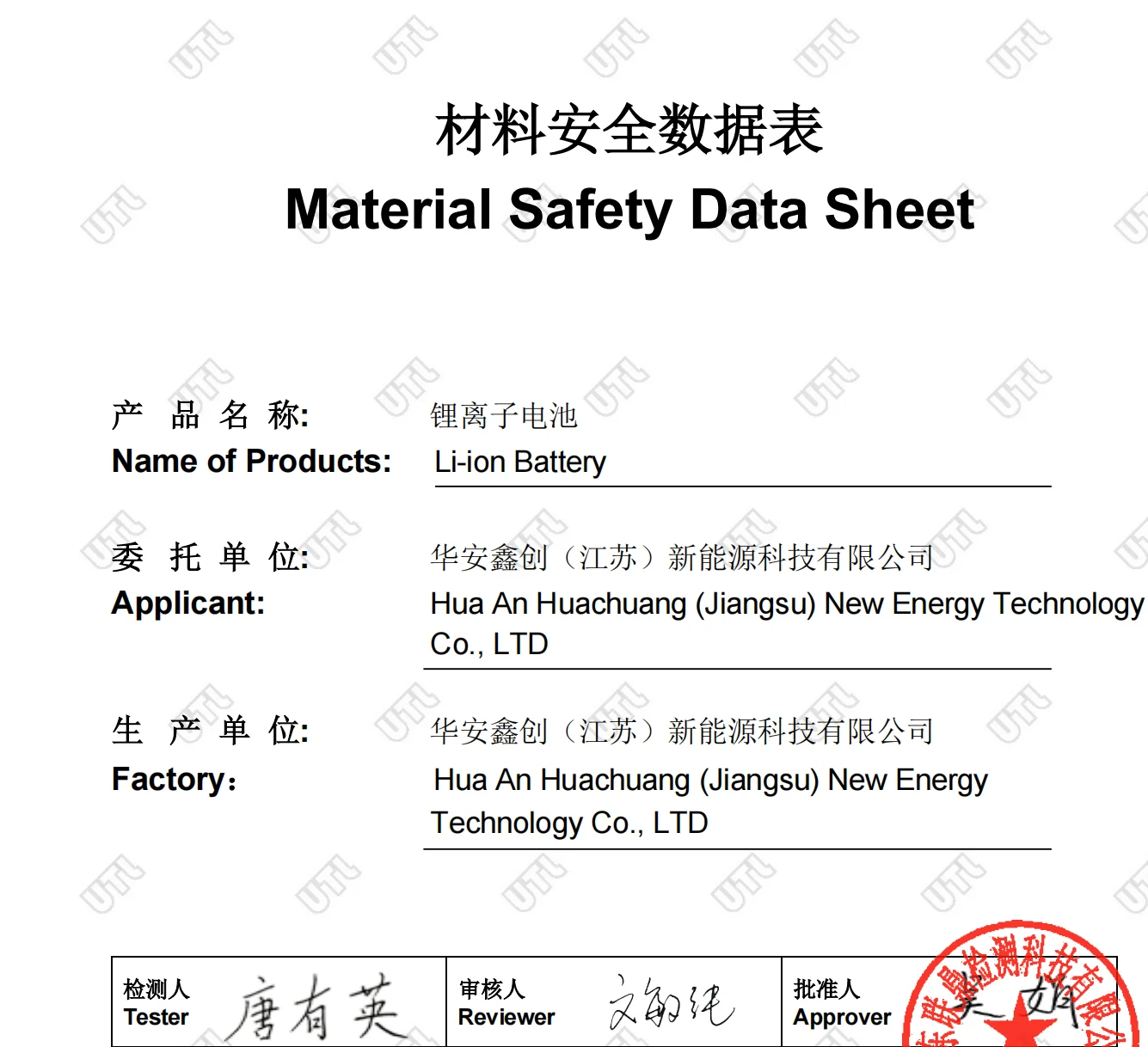

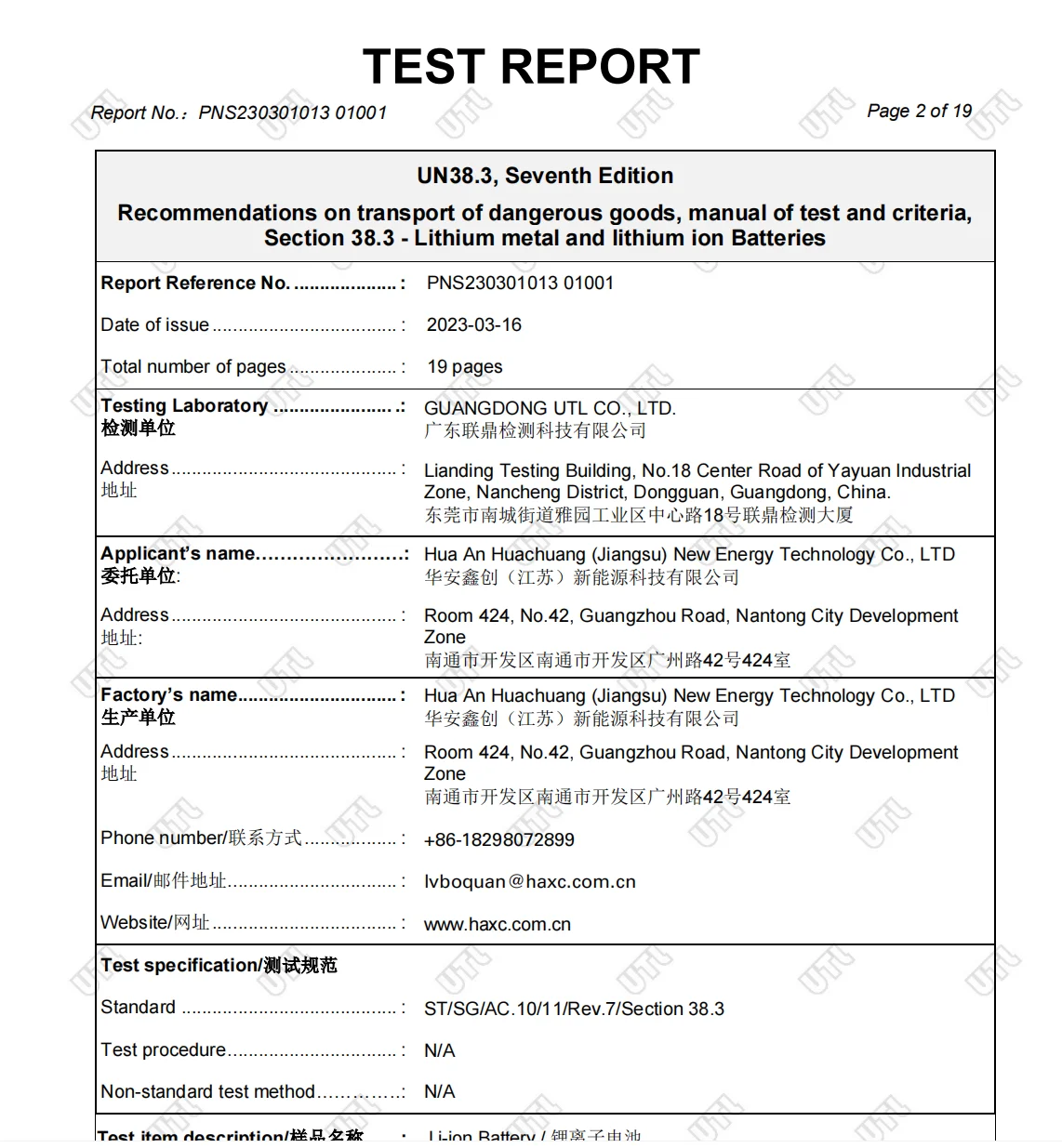

Complete certificates
Item | Parameter | Remark | ||
Nominal Capacity | 280.0Ah | (25+2) ℃, Standard charge and discharge | ||
Typical Voltage | 3.2V | |||
AC Impedance Resistance(1KHz) | ≤0.25mQ | |||
Standard chargeand discharge | Charge/discharge current | 0.5C/0.5C | ||
Cutoff voltage of charge/discharge | 3.65V/2.5V | |||
Maximum charge/discharge current | Continuous charge/discharge | 1C/1C | According to continuous/pulse charge and dischargeammeters | |
Pulse charge/discharge(30s) | 2C/2C | |||
Recommended scope of SOC | 10%~90% | N.A. | ||
Charging Temperature | 0℃~55℃ | According to continuous/pulse charge and dischargeammeters | ||
Discharging Temperature | -20℃~55℃ | |||
Storage Temperature | Short term ( within 1 month ) | -20℃~45℃ | N.A. | |
Long term ( within 1 year ) | 0℃~35℃ | |||
Storage humidity range | < 90% | |||
Self-discharge rate per month | ≤3%/month | Temperature: (25±2)℃ Storage scope of SOC: 30%-50%SOC | ||
Dimesion | Width | 173.7±0.5mm | Refer to Appendix I | |
Thickness(under 300+20 kgf 30%-40%SOC | 72,0±1,0mm | |||
Average thickness(200 pcs, under 300士20kgf,30%~40%SOC | 72.0±0.5mm | |||
High (total) | 207.5±0.5mm | |||
High(subiect) | 204.6土0.5mm | |||
Tabs Distance | 123.0+0.3mm | |||
Battery weight | 5.42±0.3kg | |||

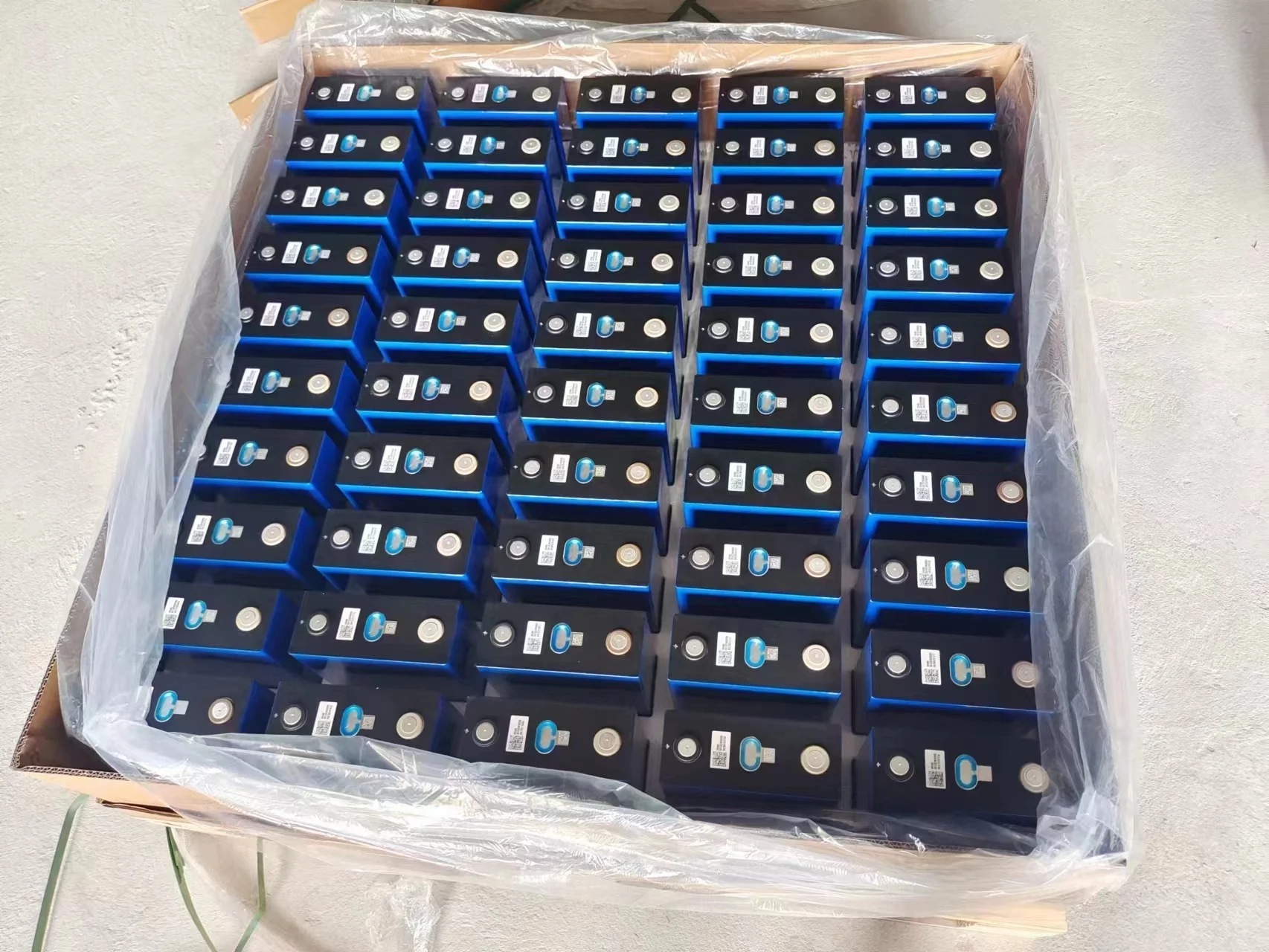

About the transportation
▲The battery (especially the high-power battery you purchased) is a special commodity, the terms of transportation are very strict, all logistics companies in China, including China Post, UPS, FedEx, DHL, are unable to directly transport electricity Pool,
▲Secondly, we will help you solve the customs clearance problem.
▲It will takes 35-45 working days for delivery .Generally, after 35-45 working days, the package will arrive at the transfer
station. After the customs clearance is completed, the package will be picked up and delivered, and the logistics information will be updated.
▲Secondly, we will help you solve the customs clearance problem.
▲It will takes 35-45 working days for delivery .Generally, after 35-45 working days, the package will arrive at the transfer
station. After the customs clearance is completed, the package will be picked up and delivered, and the logistics information will be updated.
NOTICE
• Please check the orientation of the positive and negative terminals before packaging.
•Connect the terminal or wire to the battery module, and pay attention to insulation to prevent short circuit.
• When not in use for a long time, the battery should be stored in a cool and dry place (<35°C, 30%~50% SOC, charge and discharge once every 3 months).
• Do not place the battery in direct sunlight or a heat source.
• Do not wear metal jewelry (such as rings, watches, accessories, etc.) when handling the battery unit.
• Do not place the battery outside the operating temperature range specified in this document.Prohibited matters
Do not charge beyond the maximum charging rate.
Do not disassemble or modify the battery.
Do not throw or hit the battery.
Do not pierce the battery with sharp objects (such as nails, knives, pens, electric drills).
Do not mix with other types of batteries or modular units.
Do not excessively squeeze the battery during use.
Do not use new and old batteries in PACK at the same time.
Do not place the battery in a high temperature greater than 60°C.
Do not put the battery in a microwave oven or high-pressure container.
Do not use conductive materials to connect the positive and negative terminals (such as metals, wires).
•Connect the terminal or wire to the battery module, and pay attention to insulation to prevent short circuit.
• When not in use for a long time, the battery should be stored in a cool and dry place (<35°C, 30%~50% SOC, charge and discharge once every 3 months).
• Do not place the battery in direct sunlight or a heat source.
• Do not wear metal jewelry (such as rings, watches, accessories, etc.) when handling the battery unit.
• Do not place the battery outside the operating temperature range specified in this document.Prohibited matters
Do not charge beyond the maximum charging rate.
Do not disassemble or modify the battery.
Do not throw or hit the battery.
Do not pierce the battery with sharp objects (such as nails, knives, pens, electric drills).
Do not mix with other types of batteries or modular units.
Do not excessively squeeze the battery during use.
Do not use new and old batteries in PACK at the same time.
Do not place the battery in a high temperature greater than 60°C.
Do not put the battery in a microwave oven or high-pressure container.
Do not use conductive materials to connect the positive and negative terminals (such as metals, wires).
Specification
item | value |
Place of Origin | China |
RBCALB001 | |
Battery Type | LiFePO4 |
Application | Electric Power Systems |
Product name | Power Battery Pack |
OEM/ODM | Accepatable |
Warranty | 3years |
Keywords | Battery Lithium Lifepo4 |
Capacity | Customised |
Cycle life | 6000 Times |
Type | Li-Ion/lithium/lifepo4 |
MOQ | 1 Pcs |
Name | Battery Energy Storage |
Factory in Germany
Factory in China
The creative spirit of the Rainbow
In 1984, Paul Jelko founds ATT, with the persistence of manual work throughout. In 1989, the Rainbow Car Audio brand was officially launched in Germany and quickly became famous in Europe. In the two decades from 2001- 2021, Rainbow also began to pay attention to the high-quality development of new energy and set new energy division in Hangzhou, China 2022. It’s what drives us: First change our audiovisual world, and then change our future world！
Q1: Are you a manufacturer or a trade company?
Q8: How to deal with the faulty?
A1: We are a manufacturer , we have our own factory , we can guarantee the delivery and quality of our products.
Q2. Can I have a sample order for battery cell?
A2: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3. What about the lead time?
A3: Samples within 3 days, big order within 1-2 weeks.
Q4. How long is the warranty?
A4: Our warranty is 1 year.
Q5. How do you ship the goods and how long does it take to arrive?
A5: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q6. What about Payment?
A6:Bank Transfer (TT), Paypal,Western Union,Trade assurance; 30% the amount should be paid before producing,the balance 70% of the payment should be paid before shipping.
Q7. Is it OK to print my logo on product?
A7: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q8: How to deal with the faulty?
A8: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.1%. Secondly,during the warranty period, we will repair or replace defected products.
