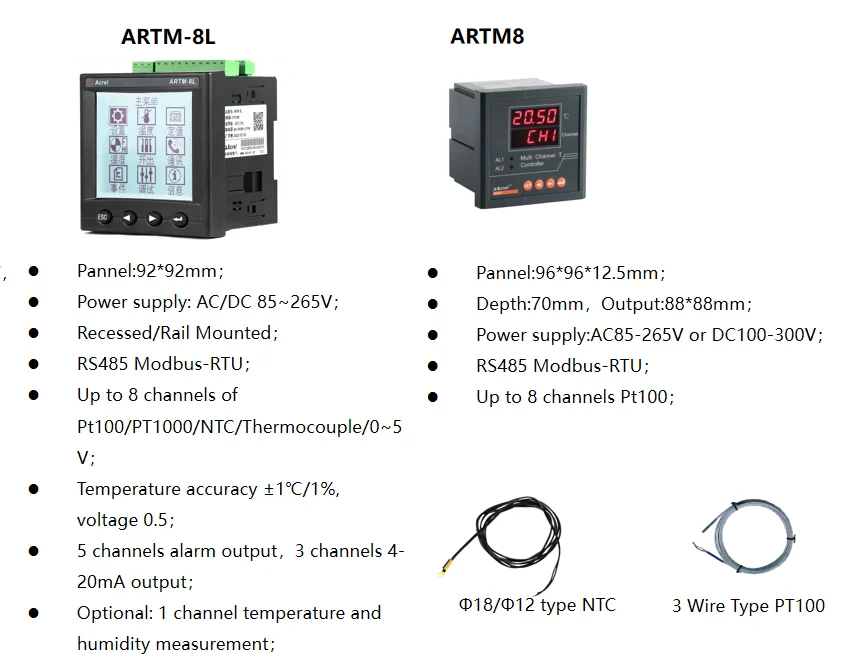

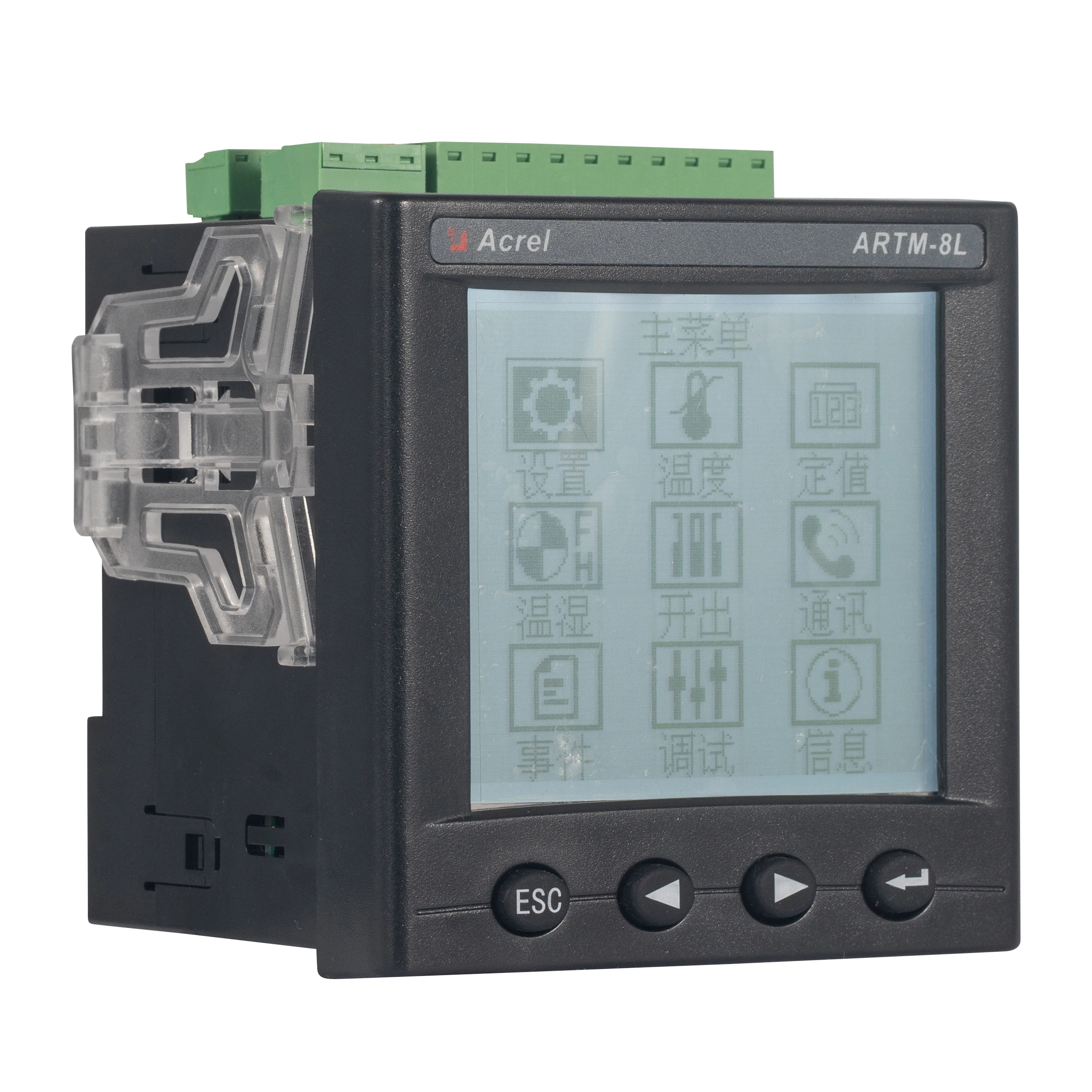

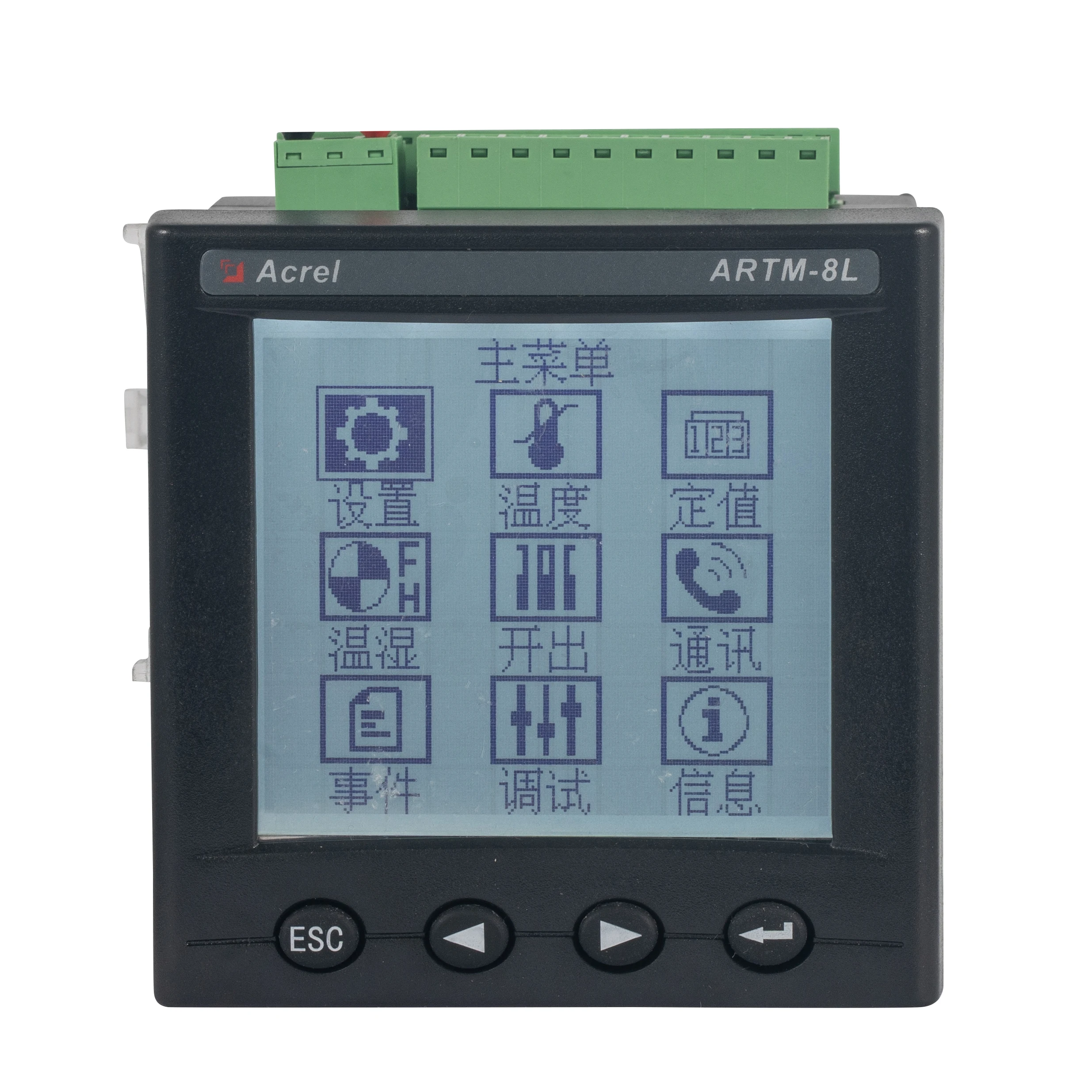

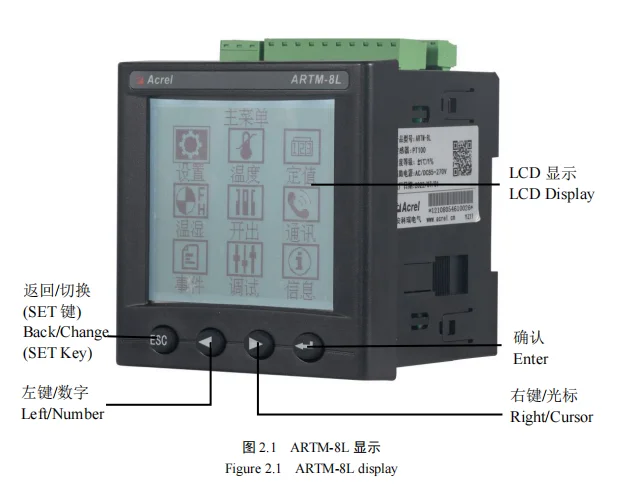

ARTM-8L Multi Channels Wired Temperature Monitoring Data Display Device
ARTM-8L temperature inspection instrument is suitable for multi-channel temperature measurement and control. It can be connected to NTC, PT100/PT1000, thermocouple sensors, 0~5V input, and is suitable for contacts in high and low voltage switch cabinets, transformer windings, motor
windings and It is very suitable for temperature measurement in other thermal power plants, hydropower stations and other occasions.
windings and It is very suitable for temperature measurement in other thermal power plants, hydropower stations and other occasions.
Item | Acrel ARTM-8L PT100 Wired Smart Multi Channel Intelligent Temperature Monitor Device Rs485 Lcd Display |
Installation method: | embedded installation |
Communication interface | Standard 1-channel RS485 interface (Modbus-RTU protocol) |
Input signal | NTC: R25=10.00kΩ; B25/50=3380K; 25NTC: R25=50.00kΩ; B25/50=4150K; NTC: R25=100.00kΩ; B25/50=3950K; NTC: R25=30.00kΩ; B25/50=3950K; PT100/PT1000: three-wire system; Thermocouple supports K, T, J, E, N types; 0~5V |
Temperature measurement range | NTC: -40℃～140℃; PT100: Maximum support -200℃～850℃, the actual range depends on PT100; PT1000: Maximum support -200℃～850℃, the actual range depends on PT1000; Thermocouple: Maximum support is -200℃~1372℃, the actual range depends on the thermocouple model. Measurement accuracy: NTC: ±1℃; PT100/PT1000: -200℃~200℃, ±1℃; +200℃~850℃, ±1%; Thermocouple: 1%; 0~5V: 0.5%. |
Alarm output | 5 channels are normally open, corresponding to the low alarm value and high alarm value of each channel respectively |
Output capacity | AC 250V/ 5A, DC 30V/ 5A |
Temperature and humidity input | optional 1 channel, temperature accuracy ±1℃, humidity accuracy ±3% |
Transmission output | 3 channels, 4~20mA |
Application and Installation

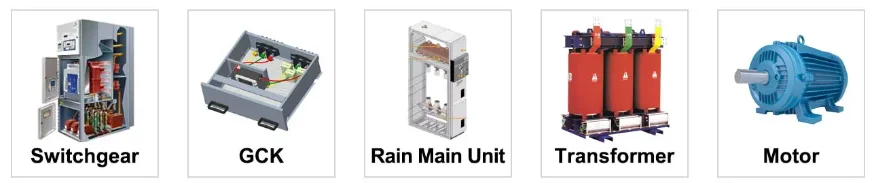

Application
Wireless temperature monitoring system is prevents potential safety hazards caused by overheating of the contact resistance caused by oxidation, looseness, dust, and other factors during operation, improves equipment safety, timely, continuously, and accurately reflects the operating status of the equipment, and reduces the accident rate of the equipment.
Features
ARTM-Pn wireless temperature measuring equipment is installed with the front panel embedded. First, make a square hole on the switchgear surface to the specified size. Then, separate the two brackets from device and embed the device into the square hole. Finally, push and lock the brackets.
Transformer internal temperature monitoring
Factors such as transformer iron loss, copper loss, short circuit between coil turns, and poor air circulation in the installation site can cause the temperature of the transformer to rise abnormally, resulting in a shortened service life of the transformer. In severe cases, the transformer may even be burned.
From a safety perspective, it is recommended to use a wired temperature measurement solution. It is recommended to embed PT100 in the transformer and connect the PT100 to the ARTM-8L display device for temperature collection and display.
From a safety perspective, it is recommended to use a wired temperature measurement solution. It is recommended to embed PT100 in the transformer and connect the PT100 to the ARTM-8L display device for temperature collection and display.
Motor internal temperature monitoring
Due to abnormal vibration of the motor or winding short circuit, turn-to-turn short circuit,
phase-to-phase short circuit and other factors, the motor causes internal heating, leading to serious
accidents such as motor burnout.
From a safety perspective, it is recommended to use a wired temperature measurement solution. It
is recommended to embed PT100 in the motor and connect the PT100 to the ARTM-8L display device
for temperature collection and display.
phase-to-phase short circuit and other factors, the motor causes internal heating, leading to serious
accidents such as motor burnout.
From a safety perspective, it is recommended to use a wired temperature measurement solution. It
is recommended to embed PT100 in the motor and connect the PT100 to the ARTM-8L display device
for temperature collection and display.
Wiring Diagram
PT00/PT100 Wiring Diagram
NTC Wiring Diagram
thermocouple wiring diagram

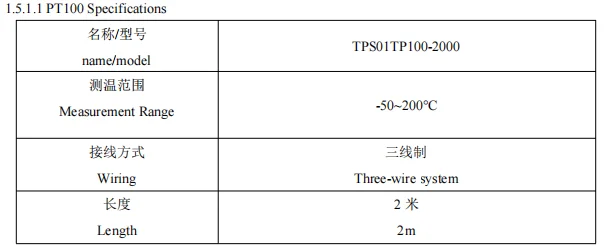

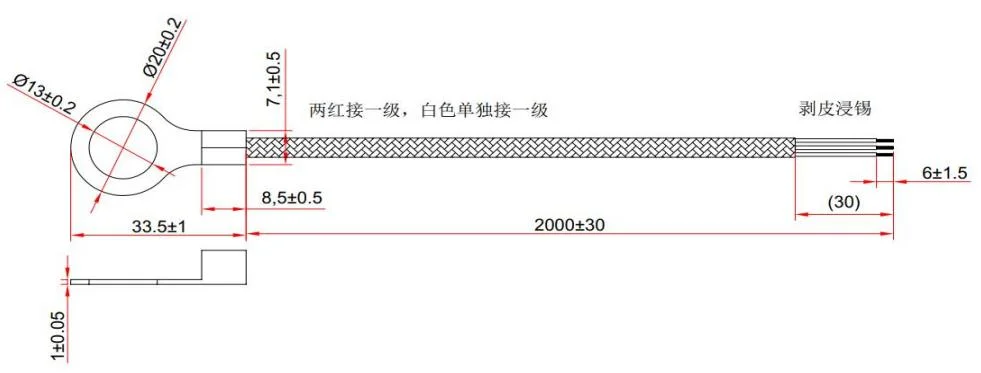

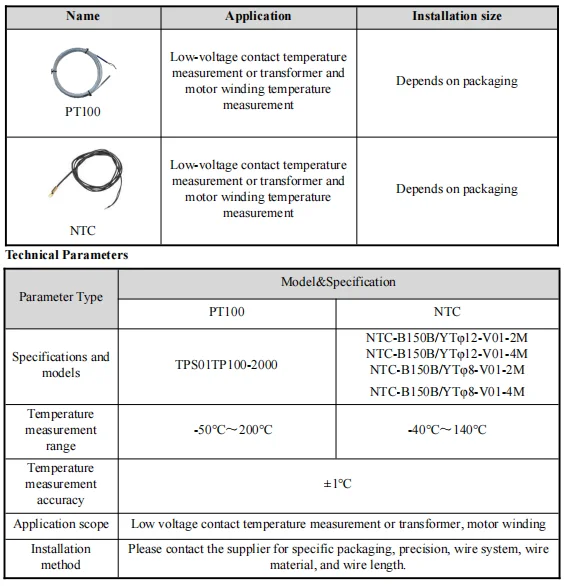

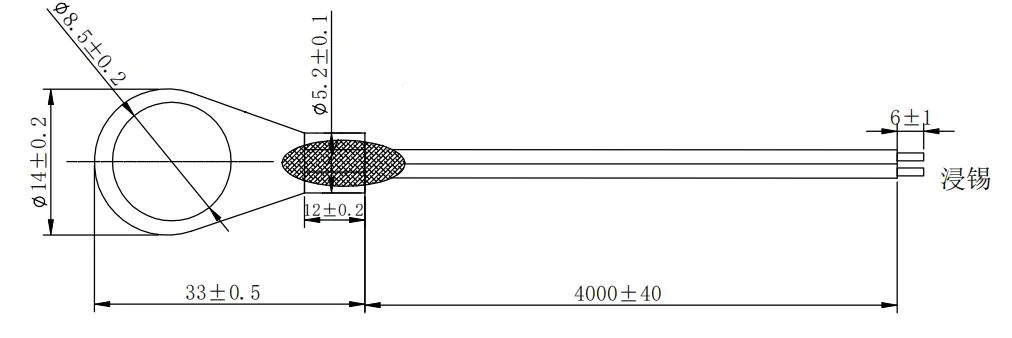

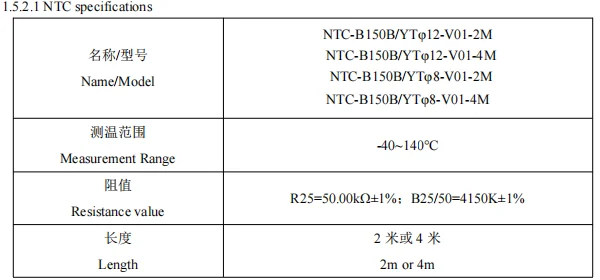

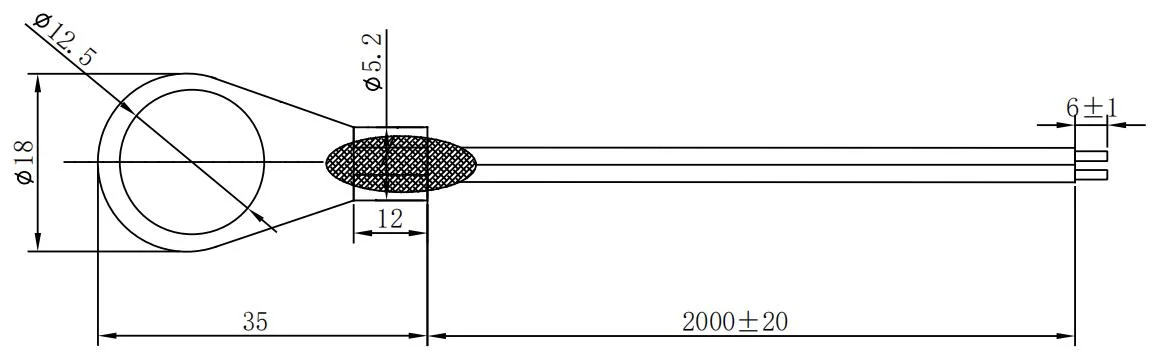

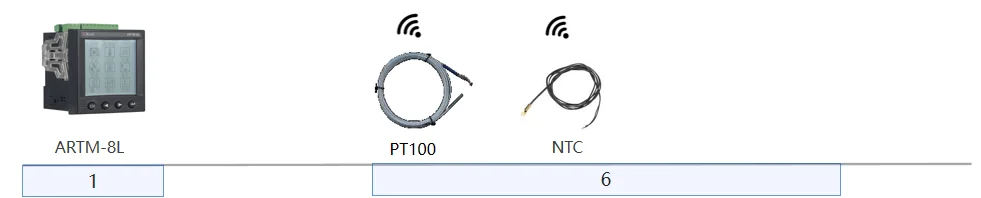

Accessories Specification
Solutions and Related Produtcs
1. Wired temperature measurement of electrical contacts in high and low voltage cabinets

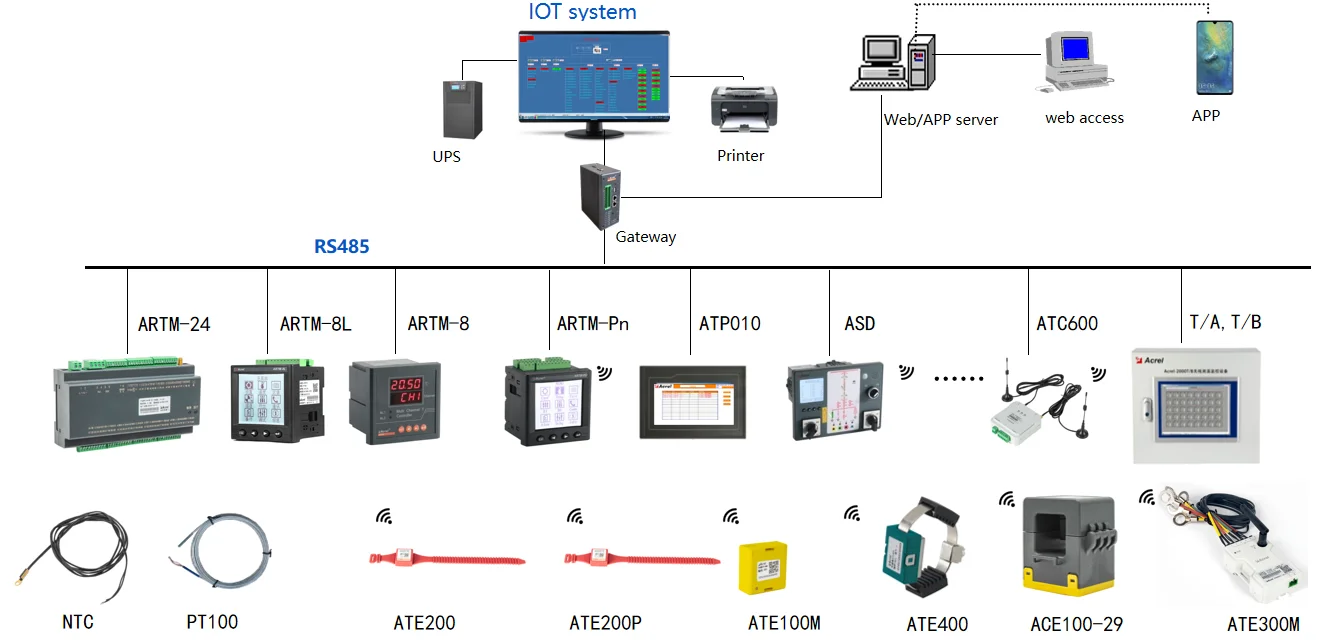

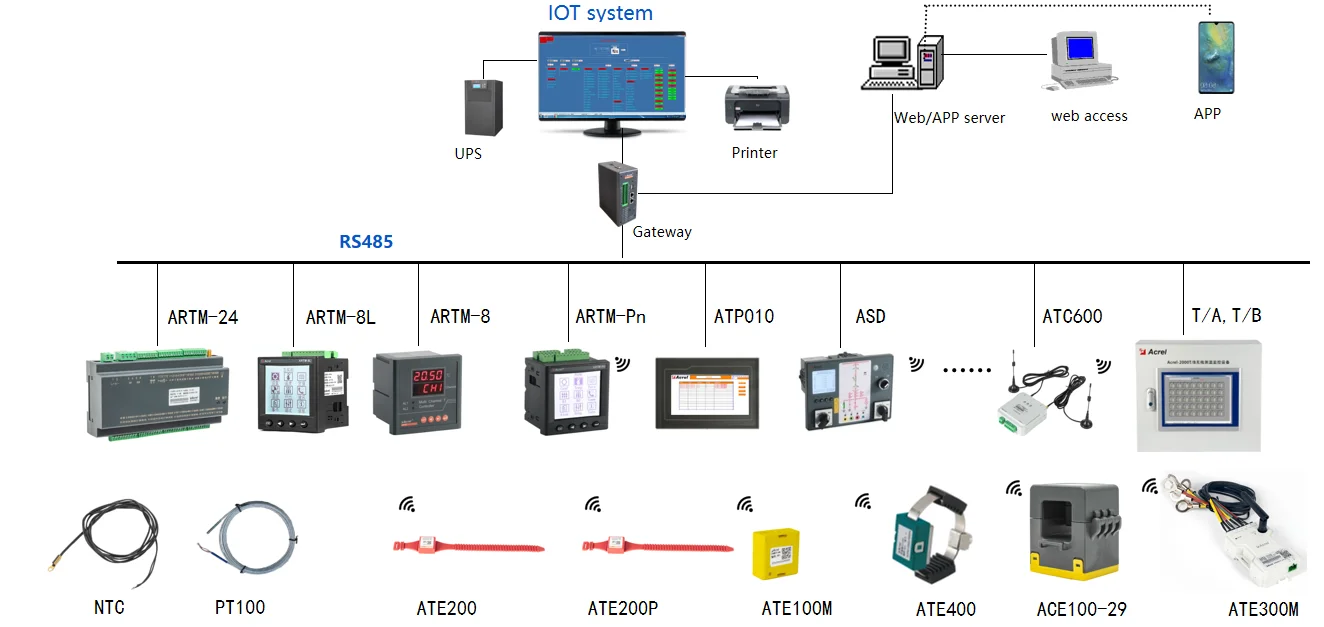

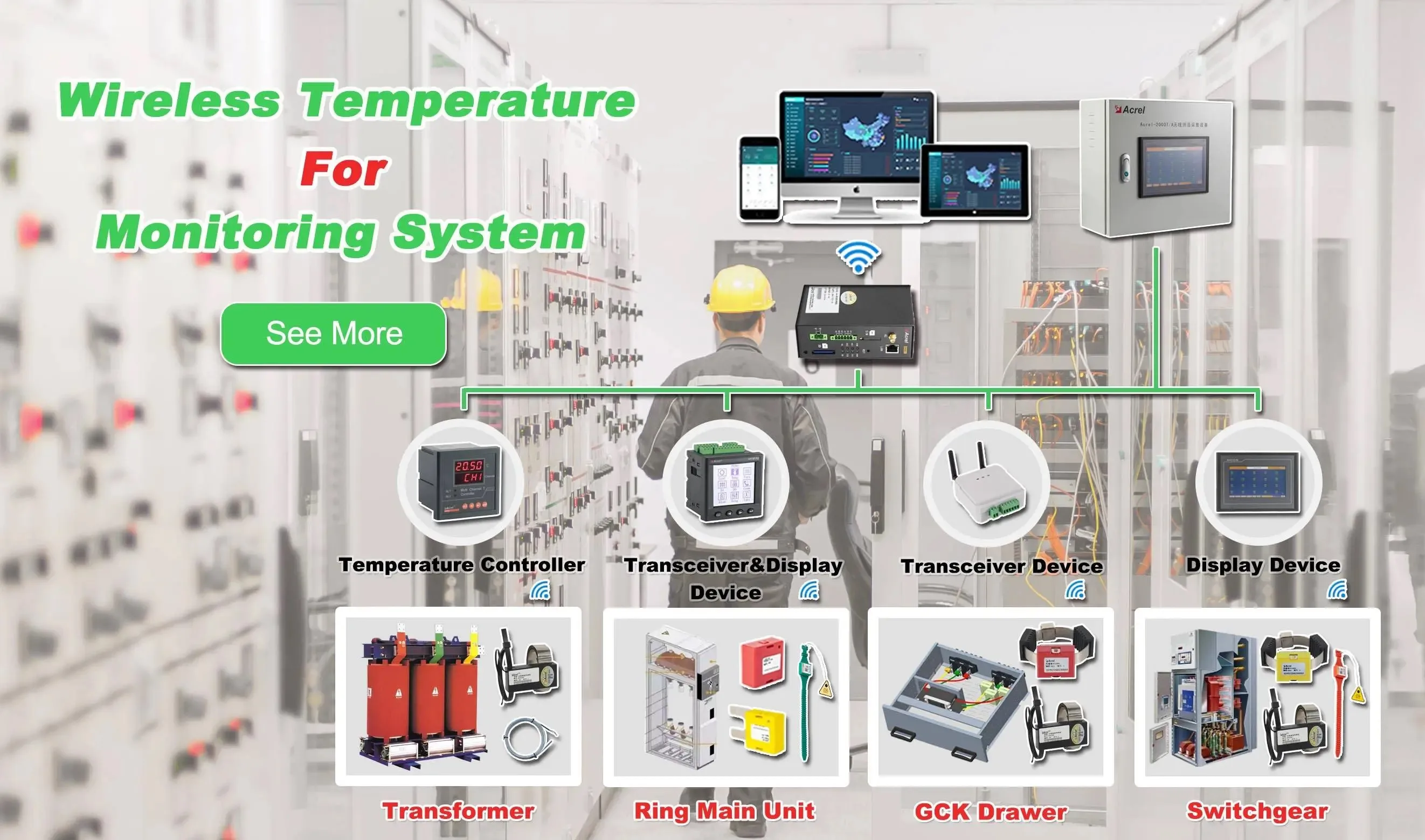

2. Wireless temperature monitoring system-IOT system
