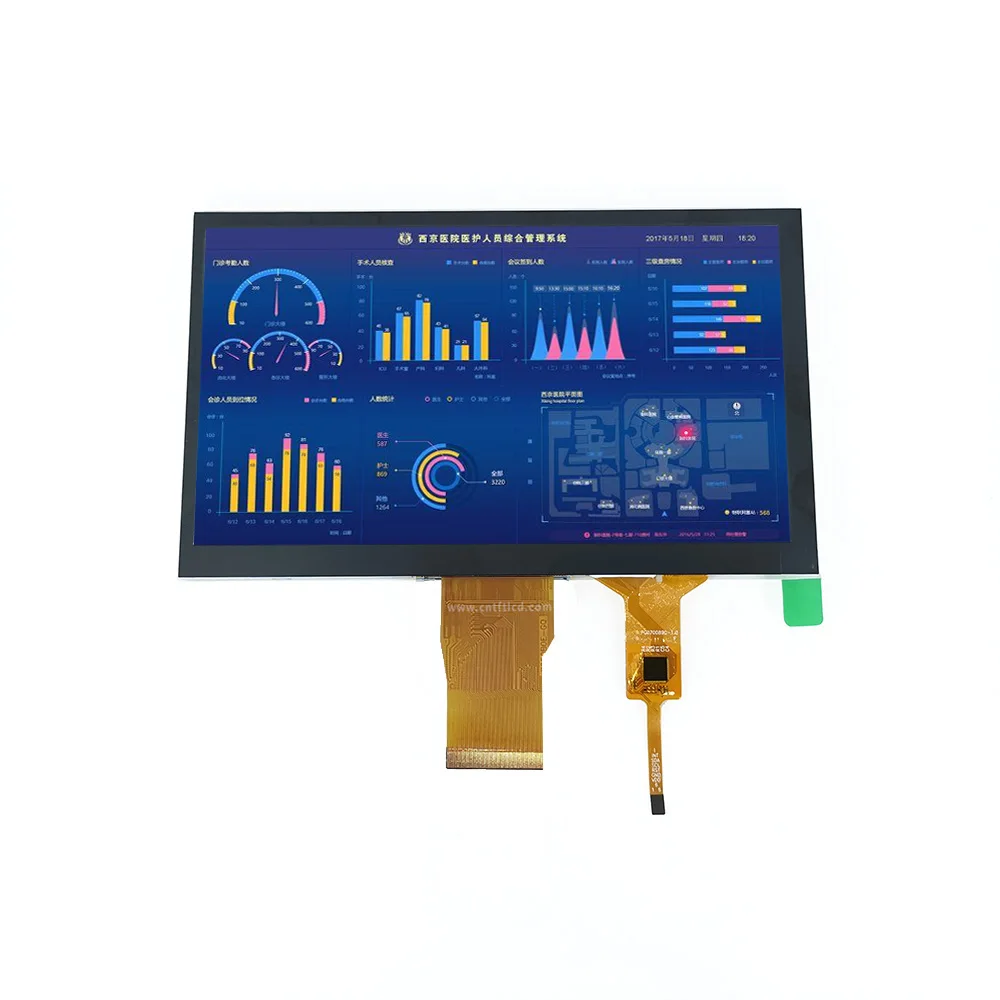

High Resolution Ips Screen RGB Interface 50pin Graphic 1024x600 Dot matrix 7 inch tft lcd display 50 pin fpc
- Category: >>>
- Supplier: Shenzhen Wu He Tian Cheng Technology Co. Ltd.
Share on (1601008564489):
Product Overview
Description
High Resolution Ips Screen RGB Interface 50pin Graphic 1024x600 Dot-matrix 7 inch tft lcd display 50 pin fpc
Function Feature:
1. 800x480 7 inch tft lcd with RGB interface
2. The LCD support to produce with capacitive touch panel or resistive touch panel
3. OEM and ODM service is acceptable. The development charge can returned.
4. Application: Automotive display, Digital phone frame, Netbook PC, Tablet & Pad, MID UMPC
1. 800x480 7 inch tft lcd with RGB interface
2. The LCD support to produce with capacitive touch panel or resistive touch panel
3. OEM and ODM service is acceptable. The development charge can returned.
4. Application: Automotive display, Digital phone frame, Netbook PC, Tablet & Pad, MID UMPC
Product Paramenters
Manufacturer | |
Model Name | W070P50H1RI-40 |
Screen Size | 7.0 inch |
Screen Type | LCM, a-Si TFT-LCD |
Pixel Number | 1024(RGB)×600 , SVGA |
Arrangement | RGB Vertical Stripe |
Active Area(mm) | 154.08(W)×85.92(H) mm |
Outline(mm) | 164.9(W)×100(H) ×5.1(D) mm |
Bezel Area(mm) | 156.7(W)×89.1(H) mm |
Treatment | Anti-glare |
Luminance | 400 cd/m² (Typ.) |
Contrast Ratio | 500 : 1 (Typ.) (TM) |
Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) Left / Right / Up / Down |
Response | 25 (Typ.)(Tr/Td) ms |
Good View at | IPS |
Work Mode | TN, Normally White, Transmissive |
Color Depth | 262K , 50% NTSC |
Backlight | 3S9P WLED , 20K hours ,No Driver |
Net Weight | 154.0g (Typ.) |
Used for | Industrial Application |
operating frequency | 60Hz |
Touchscreen | without |
Signal Type | Parallel RGB (1 ch, 8-bit) , 50 pins , FPC |
Voltage Supply | 3.3V (Typ.) |
Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C |
Package | 530×355×255 mm |
Details Images

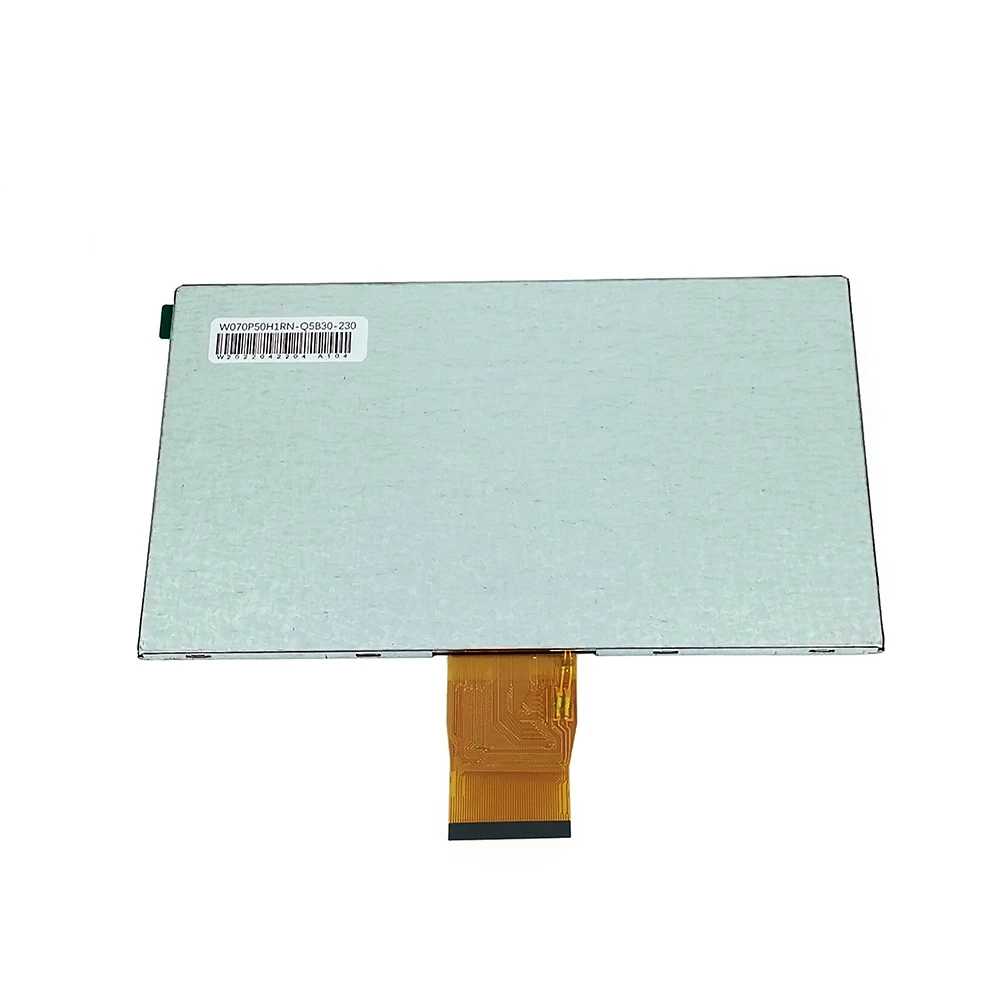

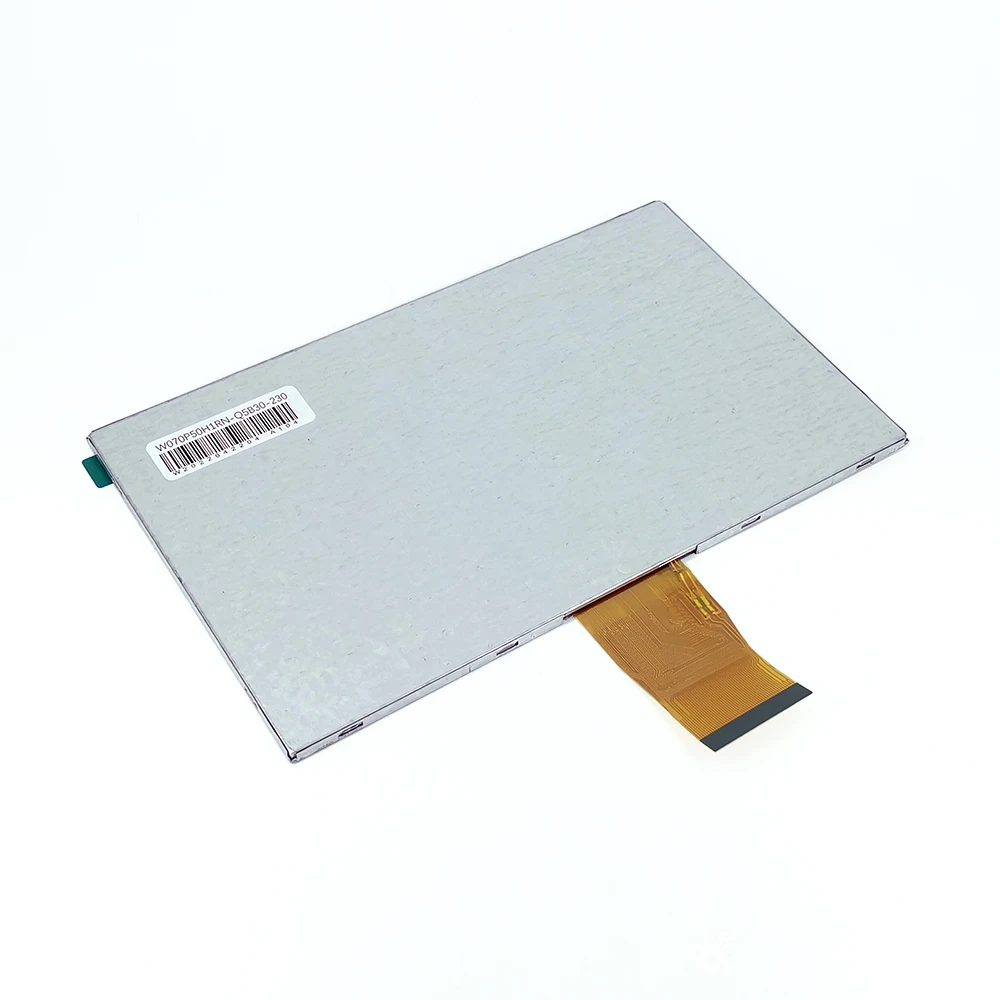

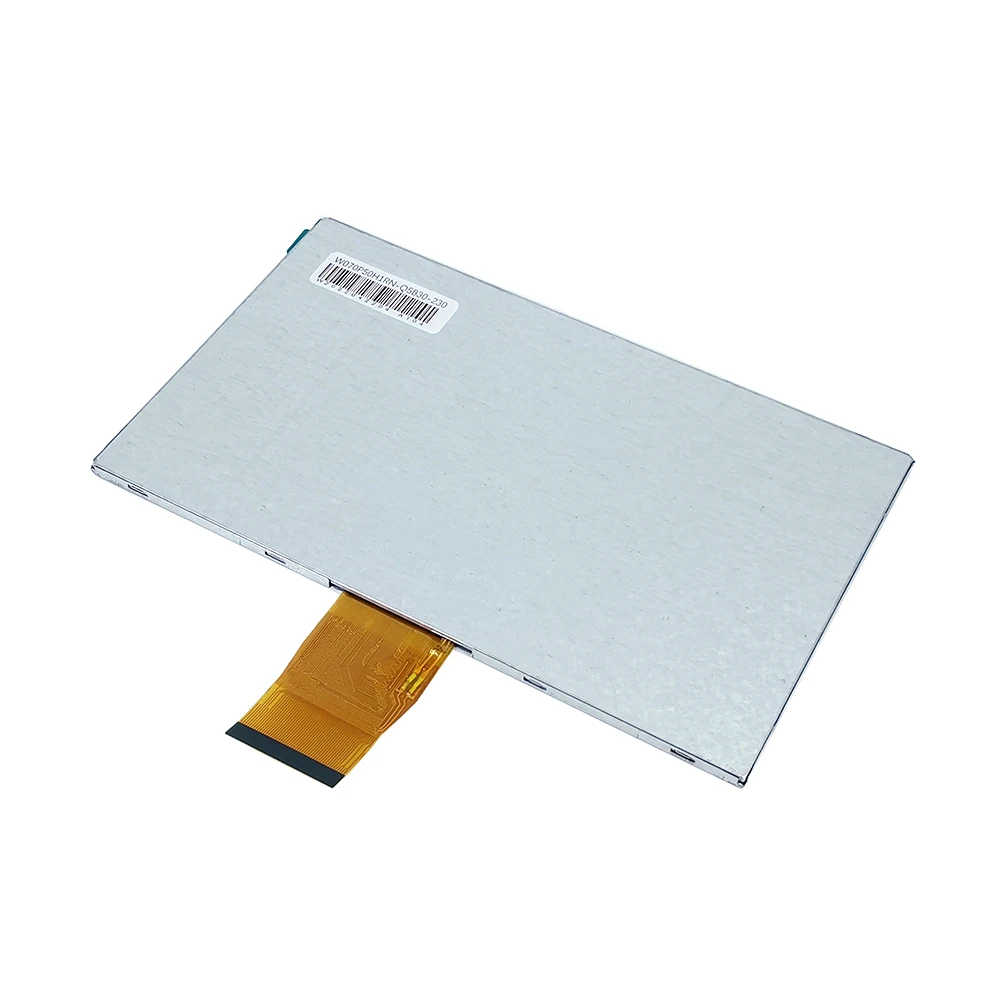

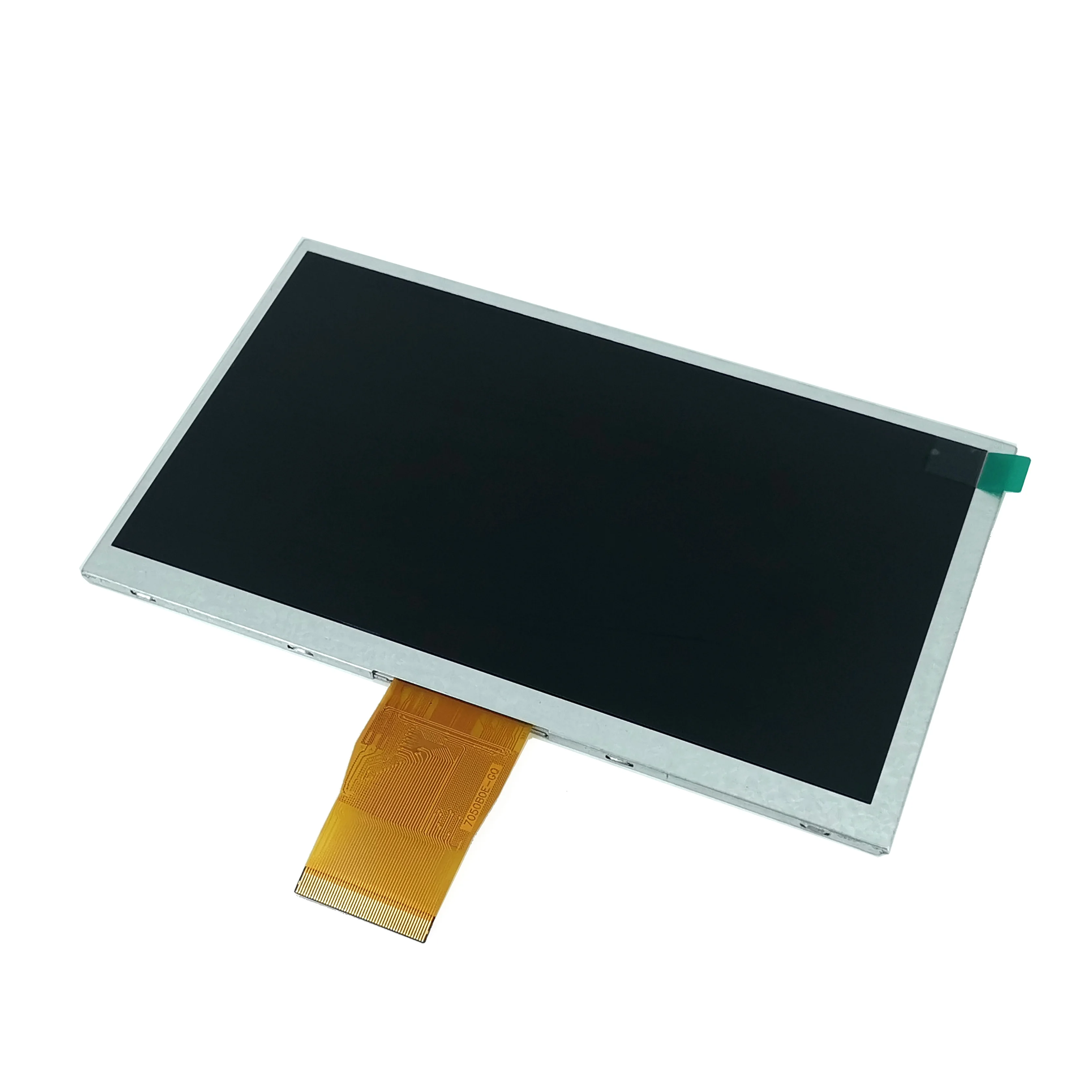

High Resolution Ips Screen RGB Interface 50pin Graphic 1024x600 Dot-matrix 7 inch tft lcd display 50 pin fpc
High Resolution Ips Screen RGB Interface 50pin Graphic 1024x600 Dot-matrix 7 inch tft lcd display 50 pin fpc
Size | Model No | Resolution | Interface | Brightness | Viewing angle | Touch Screen |
0.96 inch | MC096VX | 128x64 | IIC | 350 | IPS | nc |
1.54 inch | W015P18S1SI | 128x128 | SPI | 200 | 6 O'clock | NC |
2.0 inch | W020P18S1SI | 240*320 | SPI | 1000 | IPS | RTP/CTP |
2.4 inch | W024P18S1SN | 240*320 | SPI | 300 | 6 O'clock / IPS | RTP/CTP |
2.4 inch | W024P40S1RN | 240*320 | RGB | 300 | 6 O'clock / IPS | RTP/CTP |
2.4 inch | W024P37S1CI | 240*320 | MCU | 300 | 6 O'clock / IPS | RTP/CTP |
2.8 inch | W028P18S1SN | 240*320 | SPI | 400 | 12 O'clock / IPS | RTP/CTP |
2.8 inch | W028P40S1RI | 240*320 | RGB | 400 | 12 O'clock / IPS | RTP/CTP |
2.8 inch | W028P37S1CN | 240*320 | MCU | 400 | 12 O'clock / IPS | RTP/CTP |
3.2 inch | W032P18S1SN | 240*320 | SPI | 300 | 12 O'clock / IPS | RTP/CTP |
3.2 inch | W032P40S1RI | 240*320 | RGB | 300 | 12 O'clock / IPS | RTP/CTP |
3.2 inch | W032P37S1CN | 240*320 | MCU | 300 | 6 O'clock / IPS | RTP/CTP |
3.34 inch | W034P17MI | 320*320 | MIPI | 600 | IPS | RTP/CTP |
3.4 inch | W034P17MIB | 800*800 | MIPI | 350 | IPS | RTP/CTP |
3.5 inch | W035P54S1RN | 320*240 | RGB / SPI | 1000 | 12 O'Clock | RTP/CTP |
3.5 inch | W035P54S1RI | 320*240 | RGB / SPI | 1000 | IPS | RTP/CTP |
3.5 inch | W035P40H1RN | 320*480 | RGB / MCU | 300 | 12 O'Clock | RTP/CTP |
3.5 inch | W035P40H1RI | 320*480 | RGB / MCU | 300 | IPS | RTP/CTP |
3.5 inch | W035P40H2RI | 640*480 | RGB / SPI | 300 | IPS | RTP/CTP |
4.3 inch | W043P40S1RN | 480*272 | RGB | 300 | 12 O'Clock | RTP/CTP |
4.3 inch | W043P40S1RN-1000 | 480*272 | RGB | 1000 | 12 O'clock | RTP/CTP |
4.3 inch | W043P40S1RI | 480*272 | RGB | 300 | IPS | RTP/CTP |
4.3 inch | W043P40S1RI-1000 | 480*272 | RGB | 1000 | IPS | RTP/CTP |
4.3 inch | W043P40H2RI | 800*480 | RGB | 300 | IPS | RTP/CTP |
4.3 inch | W043P40H2RI-1000 | 800*480 | RGB | 1000 | IPS | RTP/CTP |
4.82 inch | W043P24H1MI | 480*1120 | MIPI | 280 | IPS | RTP/CTP |
5.0 inch | W050P40S1RN | 480*272 | RGB | 300 | 12 O'Clock | RTP/CTP |
5.0 inch | W050P40H1RN | 800*480 | RGB | 500 | TN | RTP/CTP |
5.0 inch | W050P40H1RI | 800*480 | RGB | 500 | IPS | RTP/CTP |
5.0 inch | W050P40H1RI | 800*480 | RGB | 1000 | IPS | RTP/CTP |
5.0 inch | W050P24H5MI | 1080*1920 | MIPI | 380 | IPS | RTP/CTP |
7.0 inch | W070P40S1RN | 800*480 | RGB | 300 | 12 O'Clock | RTP/CTP |
7.0 inch | W070P50S1RN | 800*480 | RGB | 400 | 12 O'Clock | RTP/CTP |
7.0 inch | W070P50S2RN | 800*480 | RGB | 400 | 12 O'Clock | RTP/CTP |
7.0 inch | W070P50S3RN | 800*480 | RGB | 400 | 12 O'Clock | RTP/CTP |
7.0 inch | W070P50H3RN | 1024*600 | RGB | 400 | IPS | RTP/CTP |
7.0 inch | W070P40H1LN | 1024*600 | LVDS | 400 | 12 O'Clock | RTP/CTP |
7.0 inch | W070P40H1LI | 1024*600 | LVDS | 400 | IPS | RTP/CTP |
7.0 inch | W070P30H1MI | 1024*600 | MIPI | 300 | IPS | RTP/CTP |
7.0 inch | W070C30H2MI | 720*1280 | MIPI | 300 | IPS | RTP/CTP |
7.0 inch | W070C31H1MI | 800*1280 | MIPI | 260 | IPS | CTP |
8.0 inch | W080P50S2RN | 800*480 | RGB | 400 | 12 O'Clock | RTP/CTP |
8.0 inch | W080P40H1RN | 1024*600 | RGB | 400 | 12 O'Clock | RTP/CTP |
8.0 inch | W080C30H1MI | 800*1280 | MIPI | 260 | IPS | CTP |
8.0 inch | W080C31H1MI | 800*1280 | MIPI | 260 | IPS | CTP |
8.0 inch | W080C40H1MI | 800*1280 | MIPI | 260 | IPS | CTP |
8.0 inch | W080C40H4MI | 1200*1920 | MIPI | 500 | IPS | CTP |
9.0 inch | W090P50S3RN | 800*480 | RGB | 300 | 12 O'Clock | RTP/CTP |
9.0 inch | W090P50H3RI | 1024*600 | RGB | 300 | 12 O'Clock | RTP/CTP |
9.0 inch | W090C40H1MI | 800*1280 | MIPI | 300 | IPS | CTP |
10.1 inch | W101P50H1RN | 1024*600 | RGB | 300 | 12 O'Clock | RTP/CTP |
10.1 inch | W101P50H1RI | 1024*600 | RGB | 300 | IPS | RTP/CTP |
10.1 inch | W101P40H1LI | 1024*600 | LVDS | 300 | IPS | RTP/CTP |
10.1 inch | W101P30H1MI | 1024*600 | MIPI | 300 | IPS | RTP/CTP |
10.1 inch | W101C31H2MI | 800*1280 | MIPI | 300 | IPS | CTP |
10.1 inch | W101C40H3MI | 800*1280 | MIPI | 300 | IPS | CTP |
10.1 inch | W101C30H1MI | 1280*800 | MIPI | 300 | IPS | CTP |
10.1 inch | W101C40H1LI | 1280*800 | LVDS | 300 | IPS | CTP |
10.4 inch | W104P401LN | 1024*768 | LVDS | 500 | 12 O'Clock | RTP/CTP |
11.6 inch | W116C30H1EI | 1920*1080 | eDP | 300 | IPS | CTP |
13.3 inch | W133C30H1EI | 1920*1080 | eDP | 300 | IPS | CTP |
15.0 inch | W150C30H1EI | 1920*1080 | eDP | 300 | IPS | CTP |
15.6 inch | W156C30H1I | 1920*1080 | eDP | 300 | IPS | CTP |
Factory show
Applications
Drive control board Kit
Support resolution：
800*480, 800*600, 1024*600, 1024*768
800*480, 800*600, 1024*600, 1024*768
Signal input：
1. HD MI input x1
2. VGA input x1
3. AV input x1
4. keyboard
Power ：
1. DC 12V input.
