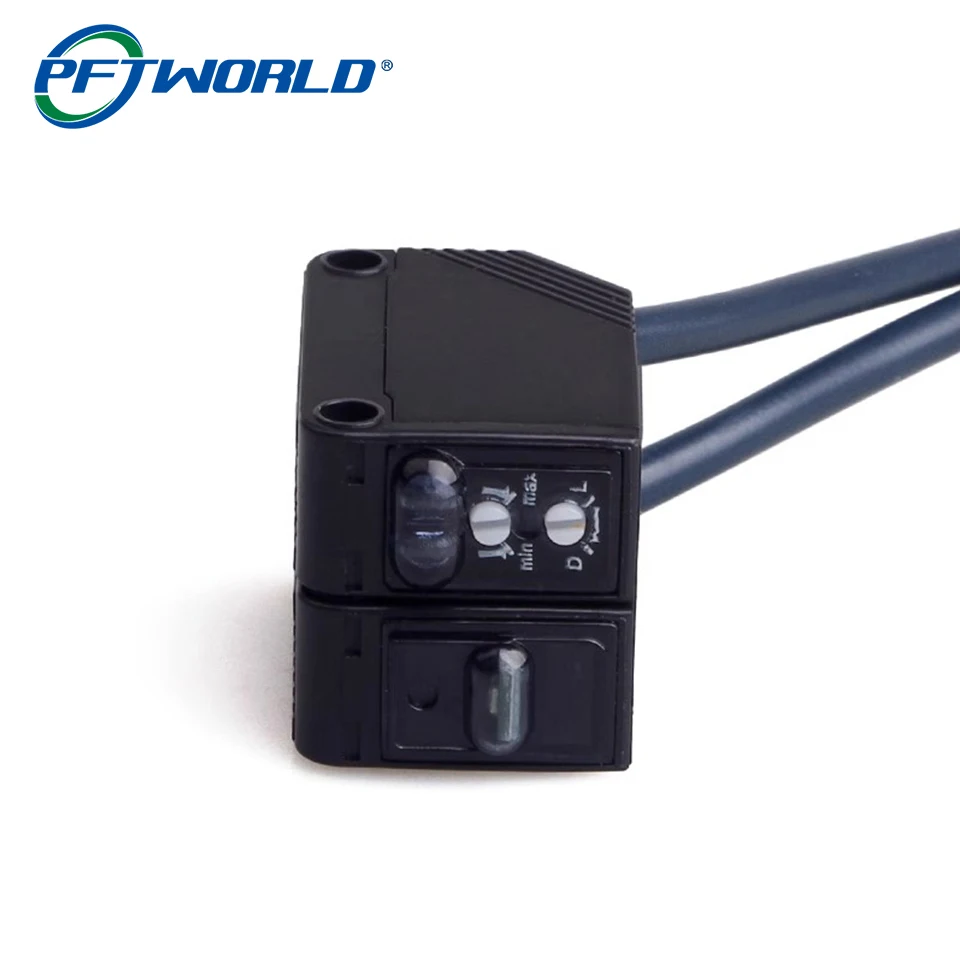

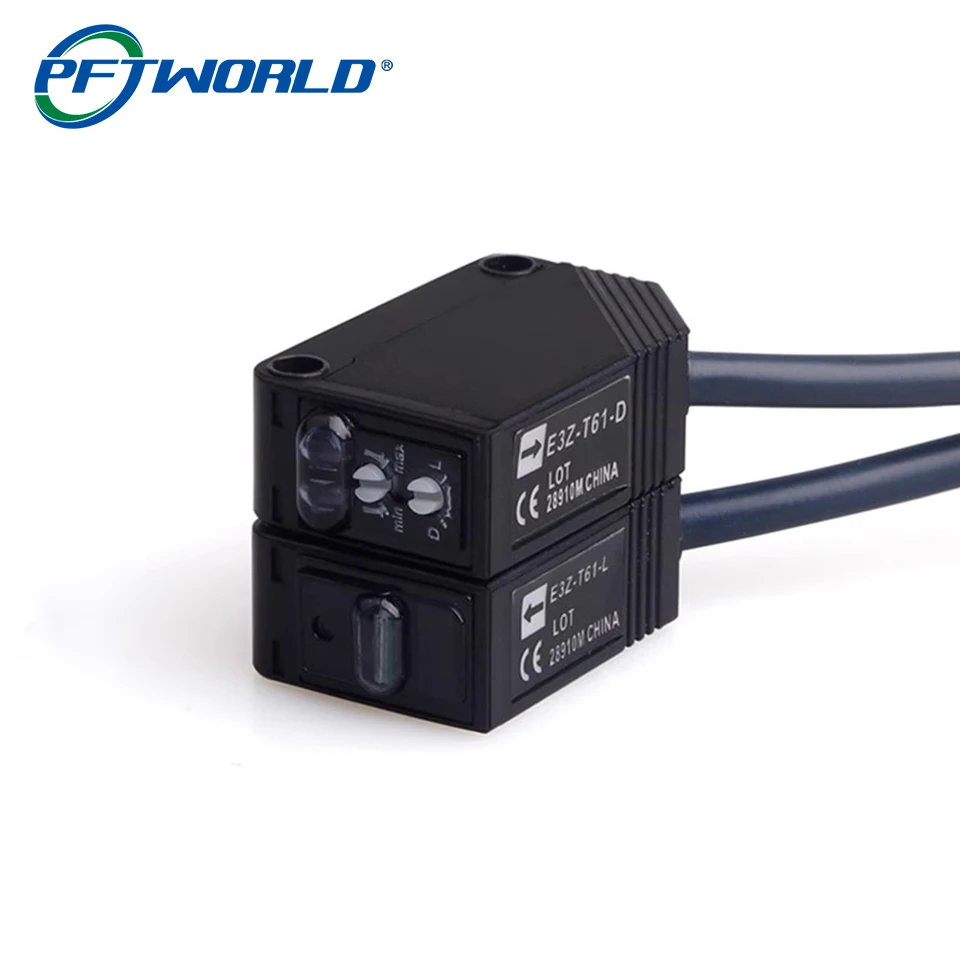

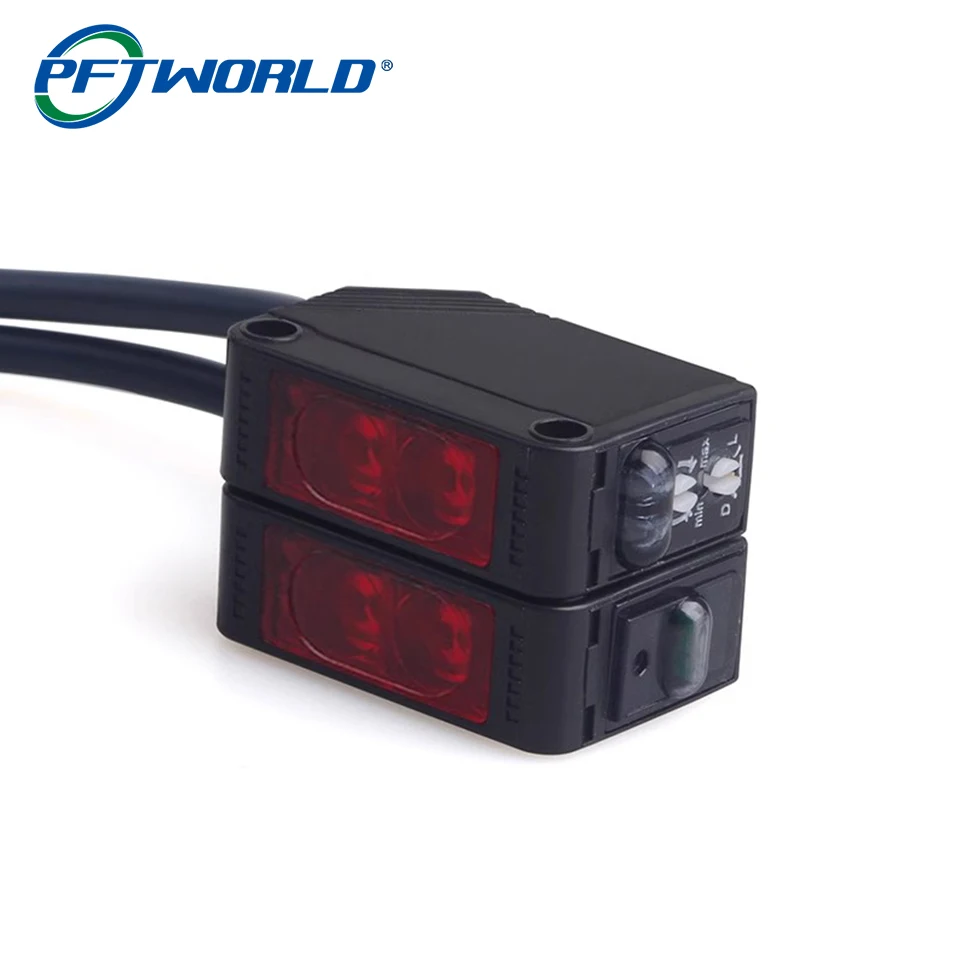

E3Z T61 NO/NC 24V NPN Reflection Infrared Radiation Inductive Proximity Photoelectric Switch Sensor
- Category: >>>
- Supplier: Shenzhen Perfect Precision Product Co. Ltd.
Share on (1601008601038):
Product Overview
Description
Photoelectric sensor E3Z series
Parameters | E3Z-D61 | E3Z-D62 | E3Z-D81 | E3Z-D82 | E3Z-T61 | ||||
Triode Form | NPN | NPN | PNP | PNP | NPN | ||||
Sensing Distance | 3-20CM | 5-50CM | 3-20CM | 5-50CM | 20-350CM | ||||
Parameters | E3Z-R61 | E3Z-R81 | E3Z-LS61 | E3Z-LS63 | E3Z-T81 | ||||
Triode Form | NPN | PNP | NPN | NPN | PNP | ||||
Sensing Distance | 20-200CM | 20-200CM | 1-30CM | 1-5CM | 20-350CM | ||||
Reflective Form | diffuse reflective | ||||||||
Action State | Switchable "L" NO, "D" NC | ||||||||
Input Voltage | DC 12-24V | ||||||||
Line Number | DC 3-wire (brown positive blue negative black signal wire) | ||||||||
Pointing Angle | Projection angle 3-5° | ||||||||
Detection Distance | Non-transparent objects over 1MM | ||||||||
Light Source (Wavelength) | Infrared luminescence (950) | ||||||||
Output Current | 300MA | ||||||||
Current Consumption/H | Below 1.5 | ||||||||
Circuit Protection | Reverse connection protection Short circuit protection Surge protection | ||||||||
Response Time | 2Ms | ||||||||
Sensitivity Adjustment | tail section regulator | ||||||||
Ambient Illumination | Subject to light surface illumination incandescent lamps affect distance attenuation | ||||||||
Ambient Temperature Range | When working: -25°C~80°C When saving: -40°C~80°C | ||||||||
Ambient Humidity Range | When working: 35%~80% When saving: 35%~95% | ||||||||
Electrical Insulation Resistance | 200MΩ | ||||||||
Protective Structure | IEC specification IP57 | ||||||||
Strongly Affect | 110~55HZ double amplitude 1.55MM,Z,X each direction 2H | ||||||||
Link Method | Lead-in type (line length 2 m) | ||||||||
Material | Housing: ABS Lens: Methacrylate Knob: POM Cable: PVC | ||||||||
Application
Automobile maintenance
Logistics transportation
Printing
Automation
spinning and weaving
machinery
Factory display
Shenzhen Perfect Precision Products Co., Ltd. is precision engineering manufacturer located in South China Shenzhen, specializing
in the supply of high quality sensor, We are a group company setting R&D, manufacture, sales and service as one.
We have rich experience in many industries and we are proud to work closely with our customers to enhance their products.
We feature an experienced engineering team with IATF16949& ISO 9001:2015 quality system that is adaptable enough to cater for
one-off prototypes through to production in volume. Our dedicated “Planning and Estimating Team' can evaluate and price all your
requirements in a timely fashion. Always based on perfect quality and good service, we are highly praised by foreign investors.
We sincerely welcome you and look forward to cooperating with you for a bright future.
in the supply of high quality sensor, We are a group company setting R&D, manufacture, sales and service as one.
We have rich experience in many industries and we are proud to work closely with our customers to enhance their products.
We feature an experienced engineering team with IATF16949& ISO 9001:2015 quality system that is adaptable enough to cater for
one-off prototypes through to production in volume. Our dedicated “Planning and Estimating Team' can evaluate and price all your
requirements in a timely fashion. Always based on perfect quality and good service, we are highly praised by foreign investors.
We sincerely welcome you and look forward to cooperating with you for a bright future.
Certifications
Packaging & Delivery
We will customize the suitable cartons for packing , also accept custom packing. For example, we can help you to customize the carton with your logo, but it will need extra cost of printing the logo

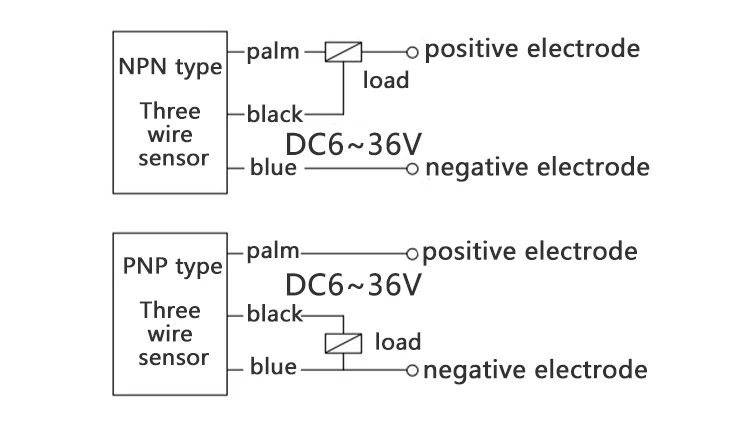

Product Wiring Diagram
Normally open
When metal objects are not sensed, the contact points are always in a disconnected state
When sensing a metal object, the contact is always in a closed state
Normally closed
When metal objects are not sensed, the closed contacts are always in a closed state
When sensing a metal object, the contact is often closed and always in a disconnected state
Attention

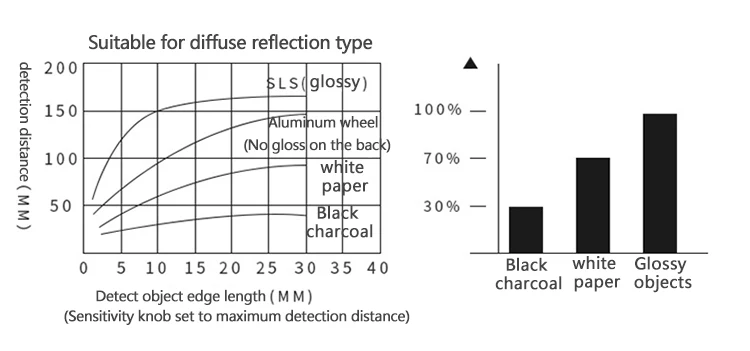

1.Detection of objects of different materials with different detection distances, as follows
2.Installation: vary depending on the size, color and surface of the detected object, generally installed within 90% of the
detection distance
3.The testing surface should be regularly cleaned of buildup to avoid affecting performance
4.Operating ambient temperature: -25°~+65°; relative humidity: 35~95%HR
5.Vibration: Endurance: 10~55Hz reamplitude 1.5mm, X,Y 2 hours each
6.Impact: Endurance: 500 m / s (50 g each), 10 times each in X, Y, Z direction
7.For use in strong magnetic field environments, shielded conductors are recommended
detection distance
3.The testing surface should be regularly cleaned of buildup to avoid affecting performance
4.Operating ambient temperature: -25°~+65°; relative humidity: 35~95%HR
5.Vibration: Endurance: 10~55Hz reamplitude 1.5mm, X,Y 2 hours each
6.Impact: Endurance: 500 m / s (50 g each), 10 times each in X, Y, Z direction
7.For use in strong magnetic field environments, shielded conductors are recommended
