High Repurchase Rate Digital 3 Three Phase TTR Meter Handheld Transformer Turn Ratio Tester for PT CT Instrument Transformer
- Category: >>>
- Supplier: Weshine Electric Manufacturing Co. Ltd.
Share on (1601008608052):
Product Overview
Description
Discount Benefits
Products Description
The transformer turns ratio test, or TTR test, confirms that the transformer has the correct ratio of primary turns to secondary turns. Using this test correctly can help to identify tap changer performance, shorted turns, open windings, incorrect winding connections and other faults inside transformers. Weshine’s range of TTR testers are robust to withstand the harsh conditions that some transformer testing in. The range includes varying features to simplify and speed up testing as well as 3 phase TTR testers and PT and CT TTR testers.

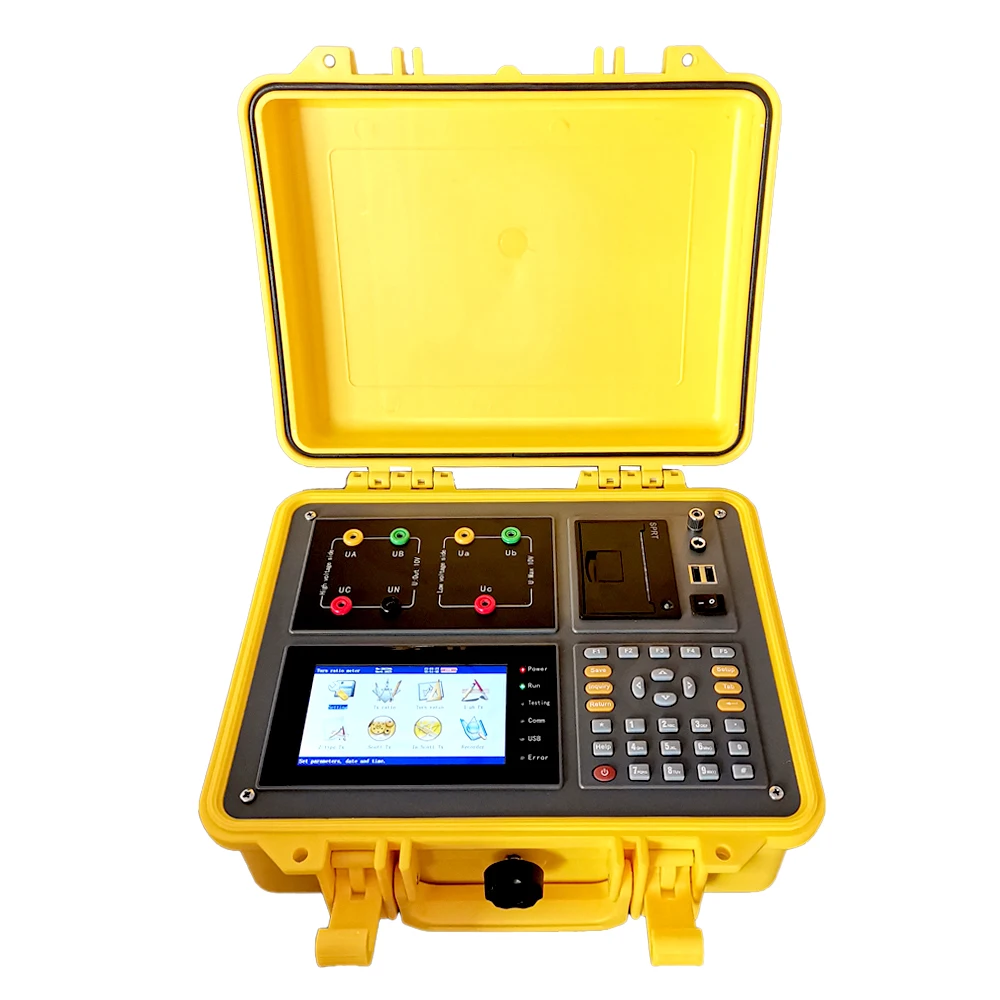

The VS-6628 Series of three-phase transformer turns ratio test sets are designed to measure the turns ratio of power, instrument, and distribution transformers in a substation or manufacturing environment. A rugged and robust design makes these instruments well suited for use in a variety of harsh environments. Our leads are specially designed to provide the necessary flexibility needed in cold weather.
For further information on Weshine's Service Solutions, contact our 24/7 online sales representative on alibaba.com or you may
PRODUCT INFORMATION | ||||||

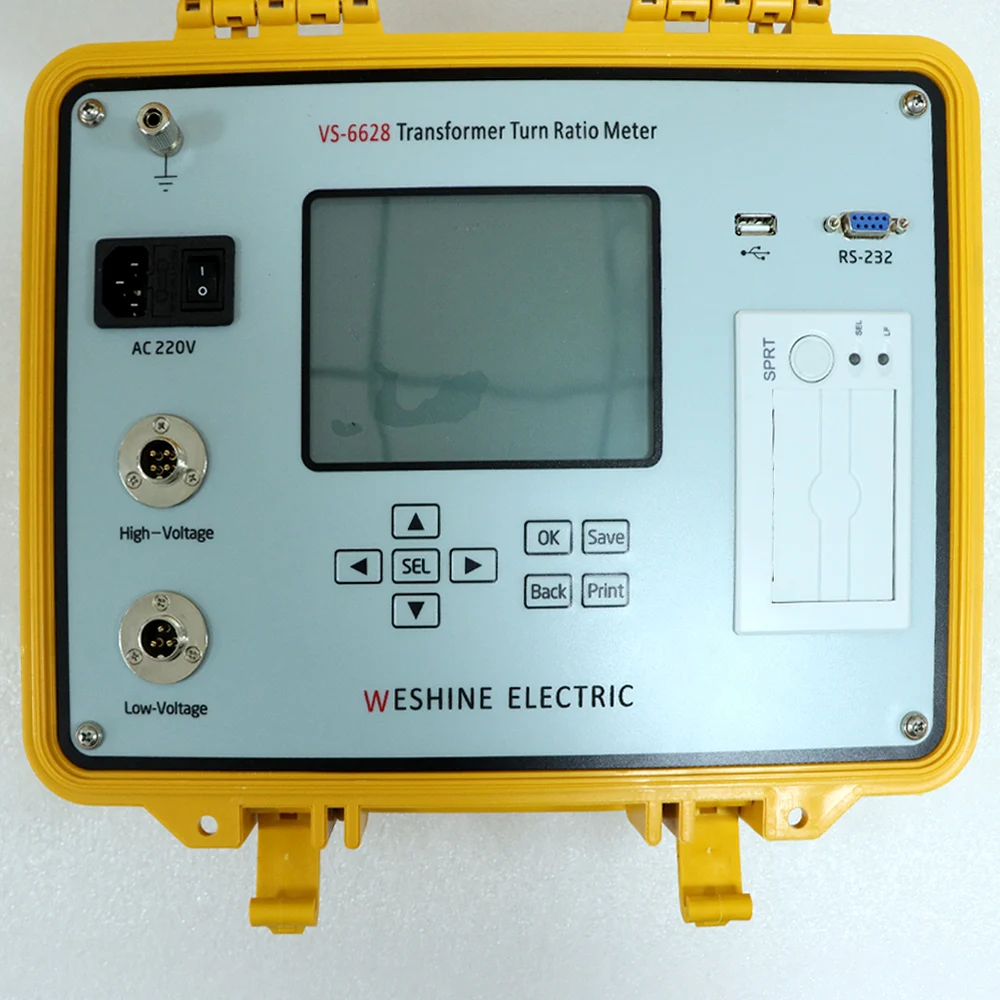

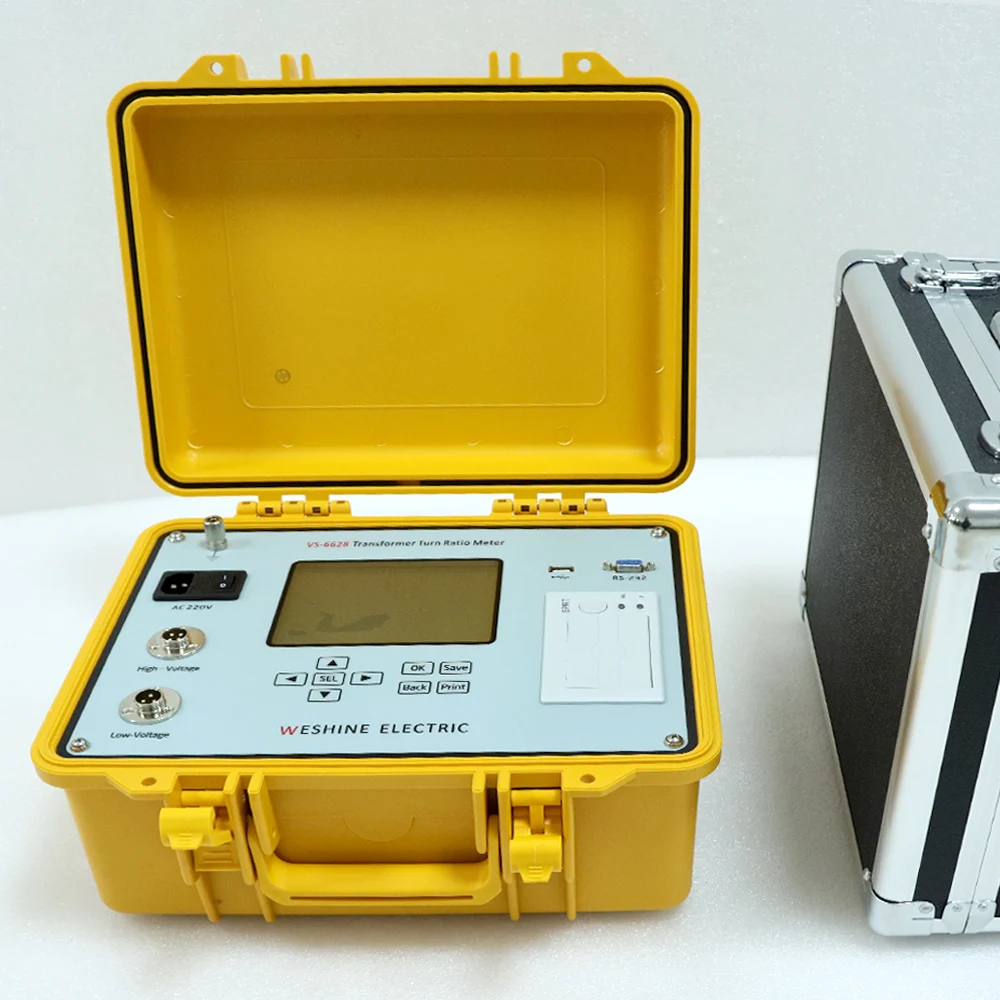

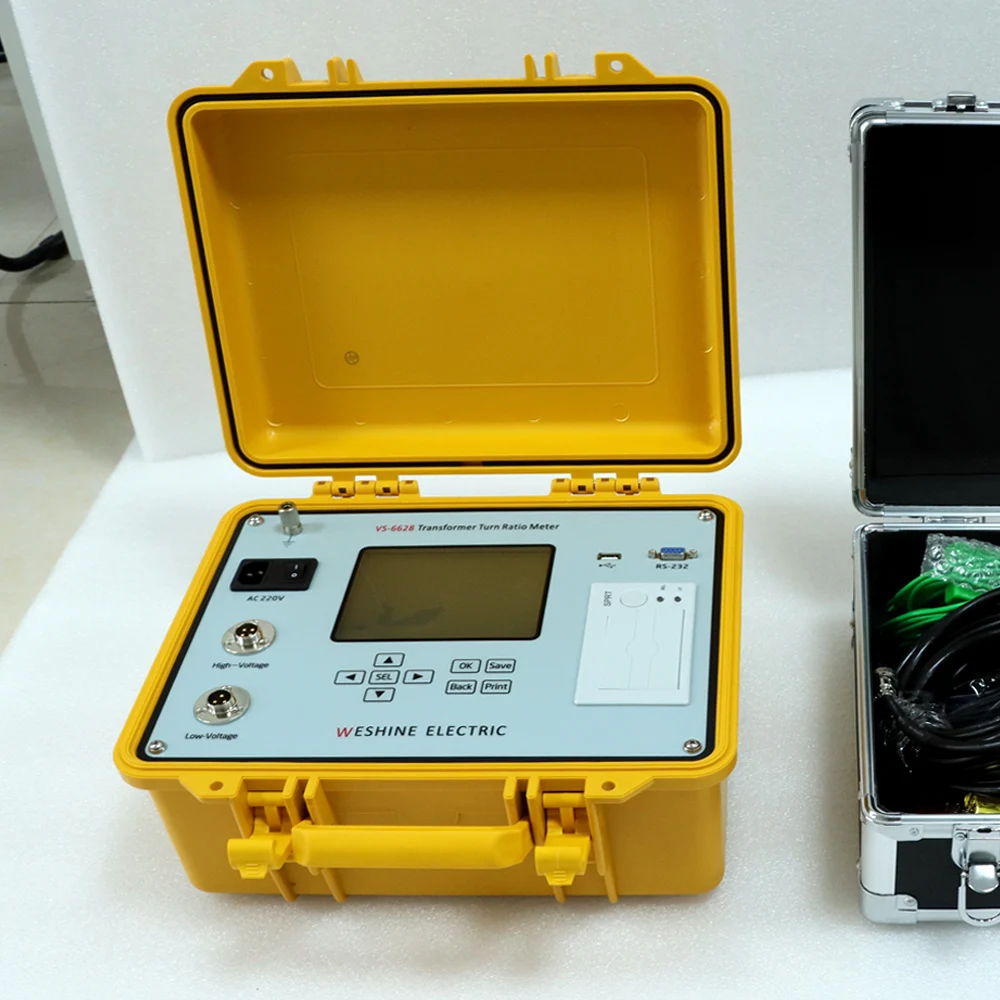

Product Name | TRANSFORMER TURNS RATIO TESTER | |||||
Model Number | VS-6628 | Test Range | 0.9 ~ 10000 | |||
Accuracy | 0.2% | Certificates | CE; EMC; LVD; ISO; | |||
Typical Application | Tests turns ratio, phase displacement and polarity. | Certificates | CE; EMC; LVD; ISO; | |||
Aids in Identifying | * Shorted coils * Open circuits * Incorrect connections * Internal faults or tap-changer defects in step regulators as well as in transformers | |||||
Dimensions | 345 x 295 x 175 mm | Weight | 5 kg | |||
Recommend Products

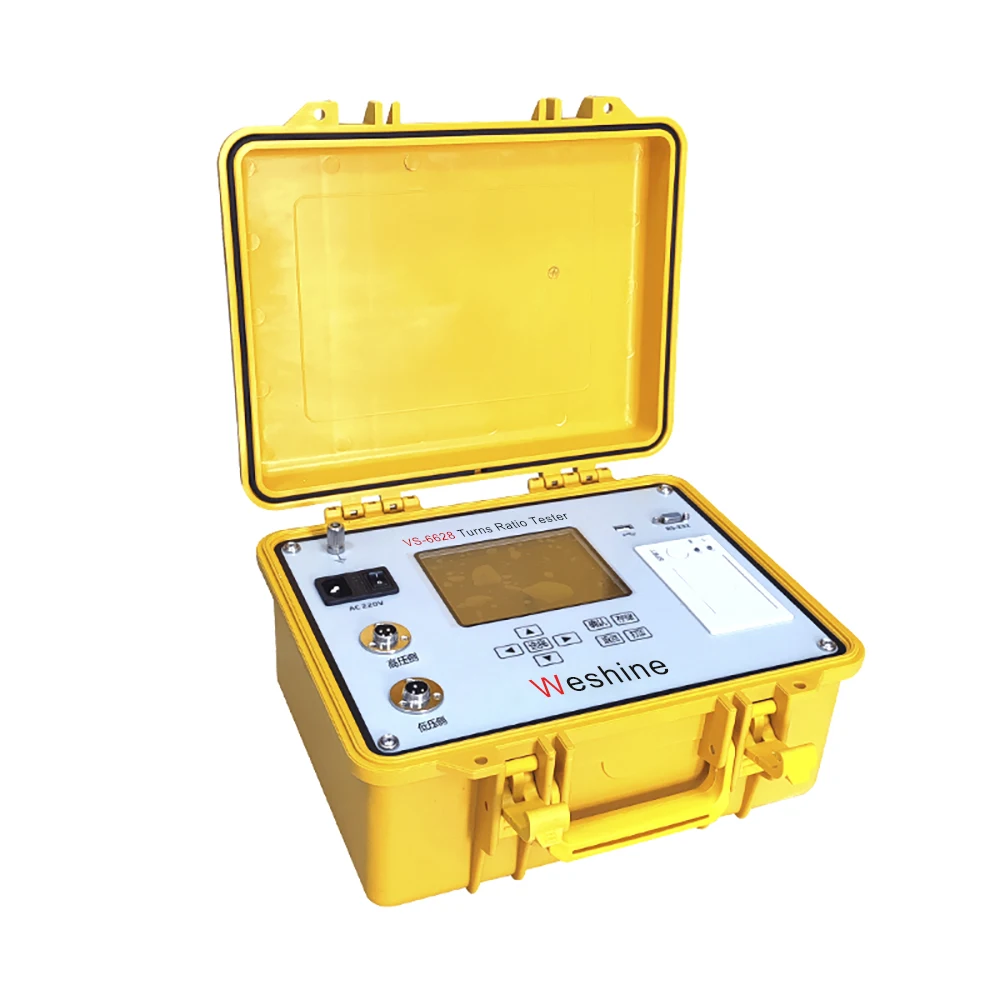

VS-6628
TRUE 3 PHASE TURNS RATIO TESTER
* Single- or 3-phase turns ratio
* Tests turns ratio, polarity, vector group and phase deviation
* Unmatched accuracy (±0.1%)
* Blind test/one-button test
* Soft start and soft stop
Its aids in identifying:
* Shorted coils
* Open circuits
* Incorrect connections
* Internal faults or tap-changer defects in step regulators as well as in transformers
Its aids in identifying:
* Shorted coils
* Open circuits
* Incorrect connections
* Internal faults or tap-changer defects in step regulators as well as in transformers

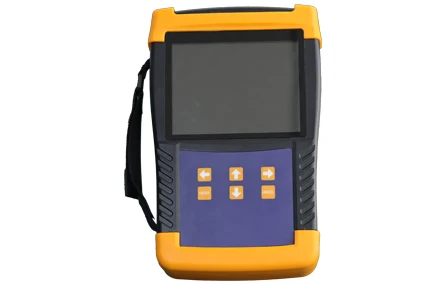

VS-6628A
HANDHELD TURNS RATIO TESTER
* Single- or 3-phase turns ratio
* Tests turns ratio, polarity and vector group
* Unmatched accuracy (±0.1%)
* Fully automatic; fast; easy-to-use; handheld; robust; lightweight
* RS232 for data transfer and printing
* 6-inch super industrial high-brightness color LCD screen, still visible under strong sunlight.
VS-6628T
SPECIAL TRANSFORMER TURNS RATIO TESTER
SPECIAL TRANSFORMER TURNS RATIO TESTER
* Tests Turns ratio, phase angle, error, tapping position, tapping value
* Unmatched accuracy (±0.1%)
Typical application:
* Power transformer(delta, wye/star, zig-zag)
* Scott transformer
* Inverse Scott transformer
* Power transformer(delta, wye/star, zig-zag)
* Scott transformer
* Inverse Scott transformer

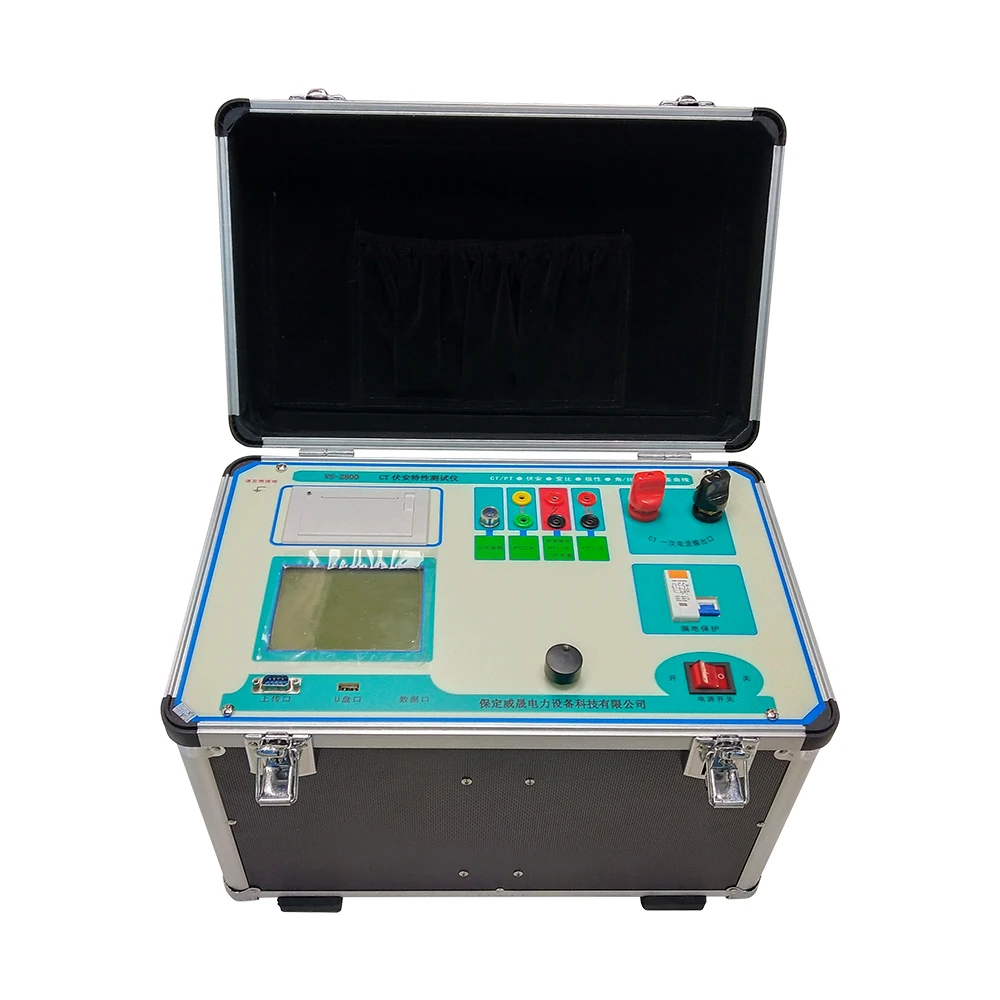

VS-2088
VT AND CT ANALYZER (POWER FREQUENCY)
* Power frequency (50Hz)
* 0 ~ 2500 Vrms, 5 Arms, peak: 20 A* Current output up to 1000A
* Performs Secondary Burden tests
Typical application:
* CT grouped testing includes Demagnetization, Knee Points, Ratios, Saturation Curves, Winding Resistances, Polarities and Phase Deviation...
* VT testing including Demagnetization, Ratio, Winding Resistance, Polarity and Phase Deviation...
* VT testing including Demagnetization, Ratio, Winding Resistance, Polarity and Phase Deviation...

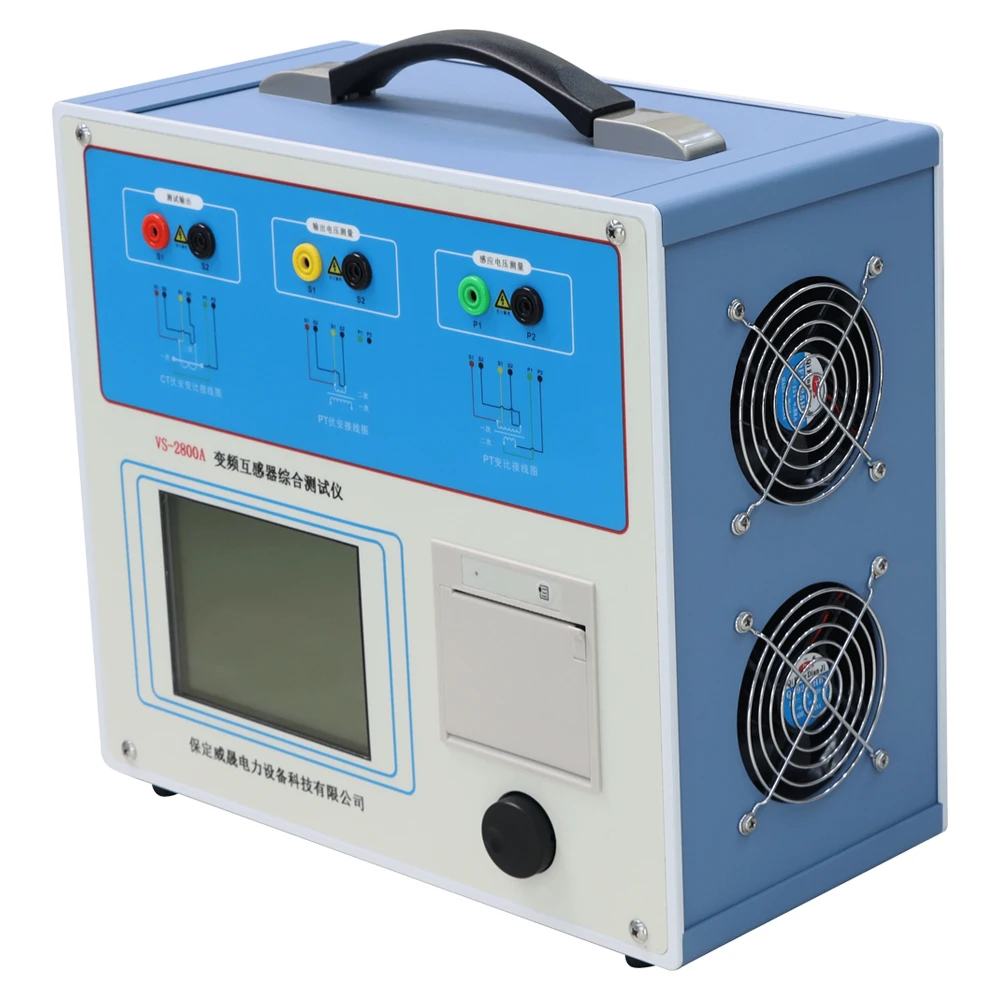

VS-2088A
VT AND CT ANALYZER (VARIABLE FREQUENCY)
* Variable frequency
* 0 ~ 220 Vrms, 5 Arms, peak: 20 A
* Current output up to 150A
* Performs Secondary Burden tests
Upgraded on the basis of VS-2800:
* Variable frequency effective avoid the iron core resonance causes overvoltage.
* Less than 16 lb (8Kg), smallest and lightest unit on the market.
* Especially suitable for the test of Transient Current Transformer.
* Especially suitable for the test of Transient Current Transformer.
