Q 100B metallographic automatic cutting machine Metal sample cutting machine
- Category: >>>
- Supplier: Dongguan Redstone Equipment Co. Ltd.
Share on (1601008613196):
Product Overview
Description
PRODUCT DESCRIPTION
Product Introduction

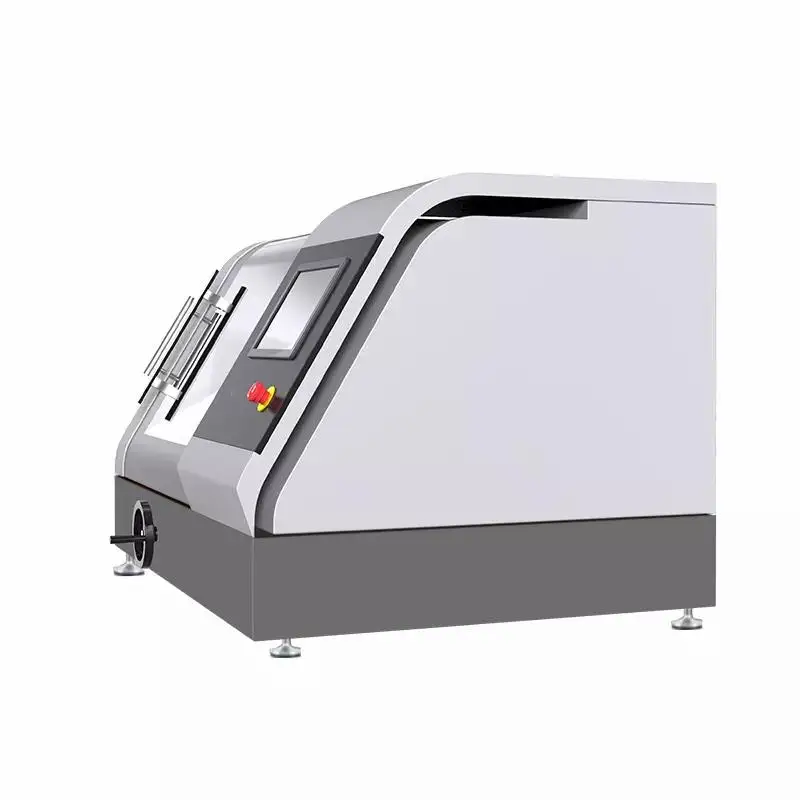

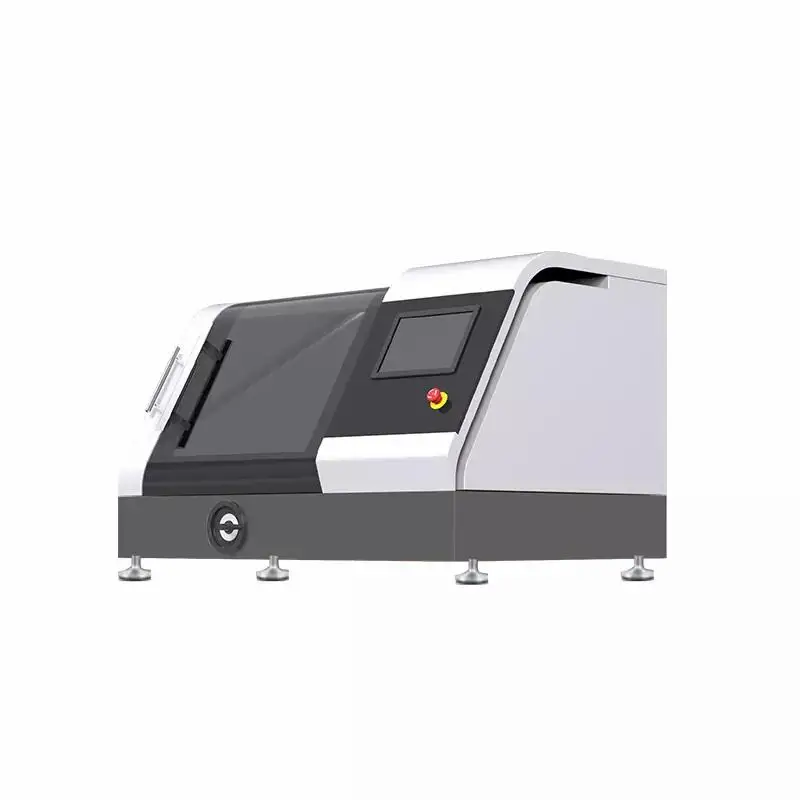

The Q-100B cutting machine is composed of a body, an electrical control box, a cutting chamber, a motor cooling system, cutting grinding wheels, and other components. This cutting machine can not only cut circular workpieces with a diameter of less than 100mm, but also rectangular specimens with a height of 100mm and a depth of less than 200mm. The machine cools the sample through a cooling system to prevent overheating and tissue damage during the cutting process. This machine can also set the cutting speed for cutting different samples, thereby improving the quality of cutting samples. The machine is capable of both manual and automatic cutting. After cutting with a large volume, it is more convenient for the cutter to use and is an essential sample making equipment for metallographic testing in colleges, factories, and enterprises
Brief account
The WYL series intelligent automatic metallographic cutting machine adopts PLC control, with a high degree of automation; Reduce the workload of operators; By using a split type double-layer mobile positioning platform for precise positioning and continuous cutting and sampling without loosening the cut sample, the operator can meet the desired sampling specifications. This machine adopts stepless speed regulation and supports online speed regulation during the cutting process to achieve reasonable sampling of some composite, superhard, and special workpieces. During the cutting process, the cutting stroke is constantly tracked and displayed. After the completion amount reaches the set stroke, it automatically resets and stops. Realize intelligent one click automatic cutting.333
SPECIFICATION
model | Q-100B | ||||||
purpose | Suitable for cutting workpieces of various metal and non-metallic materials | ||||||
power supply | 380V/50HZ | ||||||
Maximum cutting diameter | 100MM | ||||||
Workbench size | 340 * 210MM | ||||||
Spindle speed | 2800 R/MIN | ||||||
Cutting blade specification | 350 * 2.5 * 32MM | ||||||
Boundary dimension | 1120 * 840 * 800MM | ||||||
Cooling system | automatic (water cooled 2 channels) | ||||||
Water tank capacity | 60L | ||||||
Motor power | 3KW | ||||||
FAQ
Q. Are you a manufacturer or a trading company?
A. We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.
Q. Our country's power supply and plug are different. How do you solve it?
A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries.
Q. How long is your delivery time? If I want to customize the instrument, how long does it take?
A.1. lf the goods are in stock, it is 5-10 days. 2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.
Q. How to pay?
A.T/T, LIC, D/P, etc., it is recommended to use Alibaba Trade Guarantee.
Q.How is the package of goods? Delivery methods?
A.1. Standard export fumigation sign wooden box packaging
2. Express, air, sea shipping according to customer requirements, find the most suitable way.also accept LC at sight.
A. We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.
Q. Our country's power supply and plug are different. How do you solve it?
A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries.
Q. How long is your delivery time? If I want to customize the instrument, how long does it take?
A.1. lf the goods are in stock, it is 5-10 days. 2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.
Q. How to pay?
A.T/T, LIC, D/P, etc., it is recommended to use Alibaba Trade Guarantee.
Q.How is the package of goods? Delivery methods?
A.1. Standard export fumigation sign wooden box packaging
2. Express, air, sea shipping according to customer requirements, find the most suitable way.also accept LC at sight.
