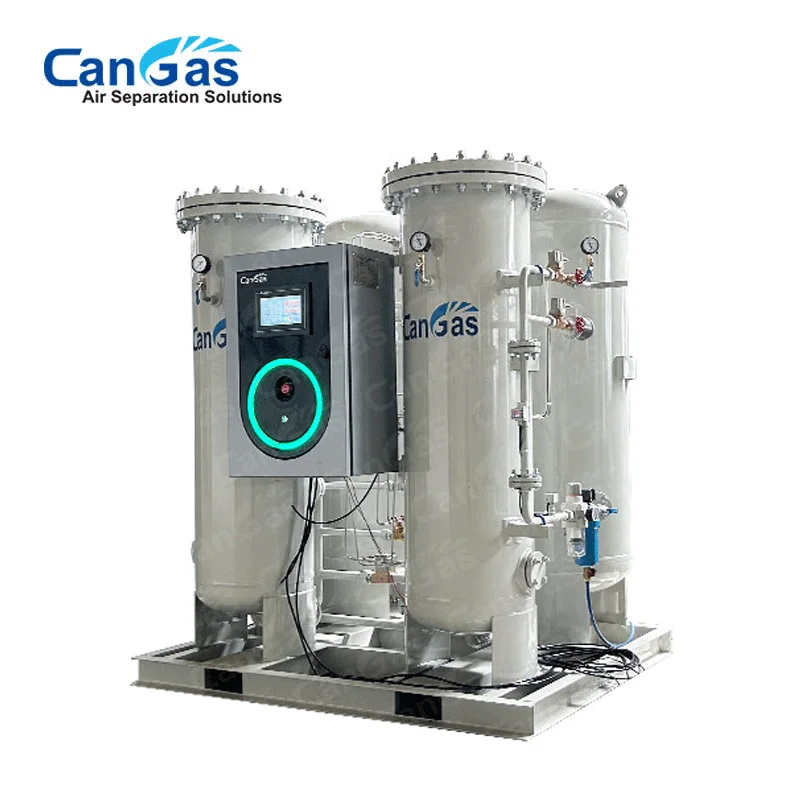

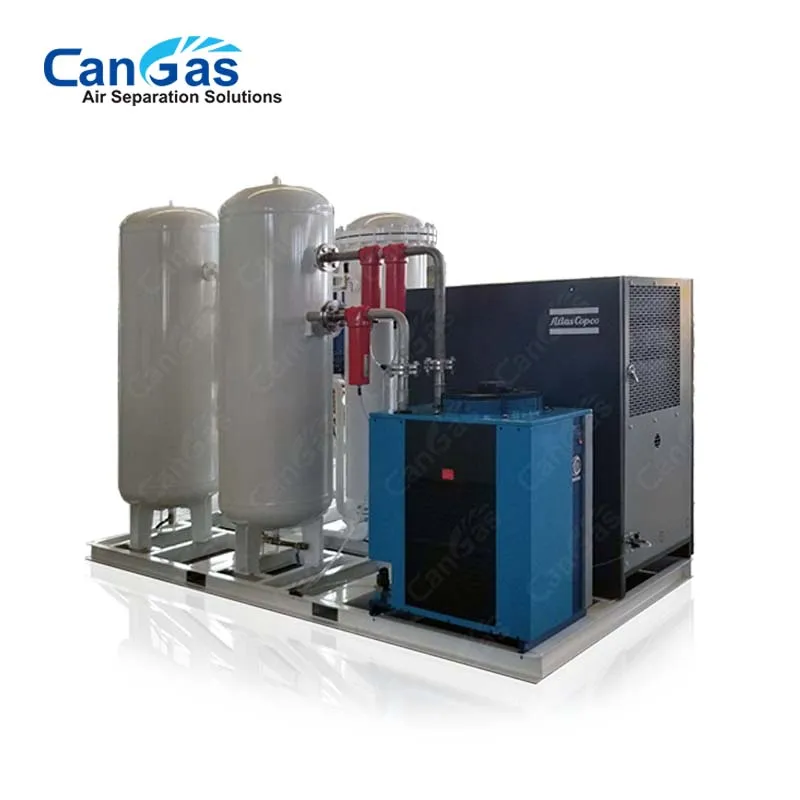

99.999% purity industrial PSA nitrogen generator provides comprehensive nitrogen gas solutions for laser cutting equipment

99.999%  purity  industrial  PSA nitrogen generator provides comprehensive nitrogen gas solutions for  laser cutting equipment

• Purity: Nitrogen gas used in laser cutting usually needs to be of high purity. Usually the purity of nitrogen is required to reach 99.99% or higher to ensure that there are no impurities or bad gases during the cutting process. High-purity nitrogen can help improve cut quality and reduce oxidation on the material surface.


• Pressure: Nitrogen pressure depends on specific cutting equipment and materials. In general, the nitrogen pressure used in laser cutting is usually between 6 and 20 bar (87 and 290 psi). The exact pressure setting should be adjusted according to the requirements of the cutting machine and material.


• Gas Flow: In addition to purity and pressure, gas flow is also a factor to be aware of. Proper gas flow can help to effectively remove molten metal and waste from the cutting area, thereby improving cutting results. The gas flow setting should be adjusted according to the specific cutting parameters and material type.


• Safety precautions: When using nitrogen for laser cutting, you need to pay attention to the following safety precautions:


• Ensure the safety of gas cylinders and gas supply systems, following relevant safety practices and regulations.
  Avoid nitrogen leakage during operation and ensure that the operating environment is well ventilated.
  Regular inspection and maintenance of cutting equipment and gas supply systems to ensure their proper functioning and safety.

1. Operational Principle

PSA nitrogen generation adopts a carbon molecular sieve as an adsorbent whose capacity of adsorbing the oxygen in the air shall be larger than that of adsorbing the nitrogen in the air. By means of a valve opened and closed with PLC, two columns a&b can be shifted in circulation for pressured adsorption,de-pressured dis-adsorption in turn so as to separate the oxygen and nitrogen in the air, thus a nitrogen gas with purity demanded can be made.

2. Specification

·Flow: 3~2000Nm3/h

·Purity: 99%~99.999%

·Pressure: Customized according to laser cutting pressure

·Dew point:-70℃

.Operation time: 24/7

CANGAS PSA nitrogen production equipment is divided into: 95%,97%, 98%, 99%, 99.5%, 99.9%, 99.99%, 99.995%, 99.999%,99.9995% according to nitrogen purity, for your choice.

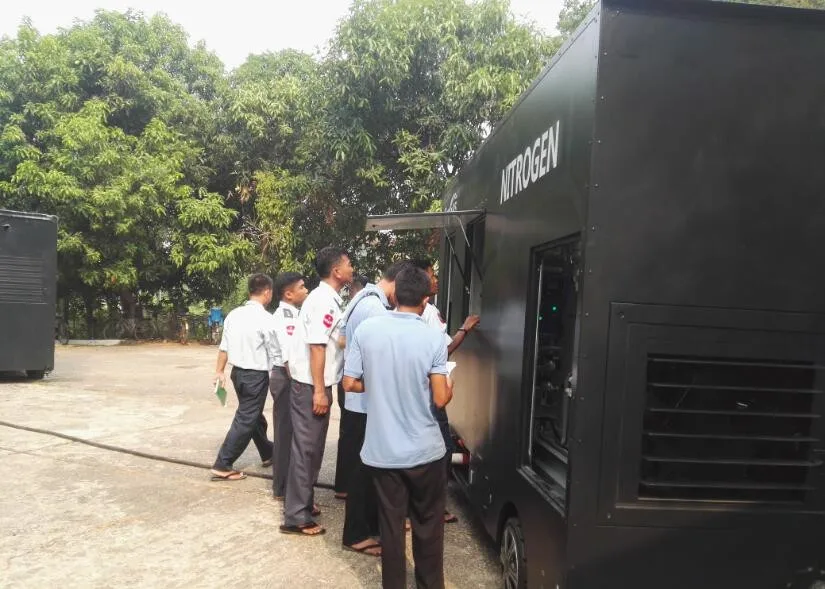

Nitrogen Generator type: PSA N2 generator, Membrane nitrogen generator,  Skid mounted type, small box type, container type, trailer type, truck type.

3. Typical application

CANGAS PSA N2 generator application:

Electronics industry: Nitrogen protection for semiconductors and electronic components

Atmosphere protection in SMT production
Heat treatment: bright annealing, protective heating, powder metallurgy and magnetic material sintering, etc.
Food industry: Equipped with LJ sterilizing filter, which can be used for nitrogen-filled packaging, grain storage, fresh-keeping of vegetables and fruits, and wine sealing and preservation.
Coal industry: underground explosion-proof and coalfield fire-fighting and extinguishing.
Chemical industry: nitrogen blanketing, replacement, cleaning, pressure conveying, chemical reaction agitation, chemical fiber production protection, etc.
Petroleum and natural gas industry: petroleum refining, nitrogen-filled purge and leak detection of containers and pipelines, and oil extraction by nitrogen injection.
Pharmaceutical industry: Nitrogen-filled storage of Chinese and Western medicines, pneumatic conveying of nitrogen-filled medicines, etc.
Others: metallurgical industry, rubber industry, aerospace industry, etc...

Nitrogen gas is generally used in two key areas in conjunction with laser technology applications

1) As a blanketing or “assist” gas

Oxidization of certain materials can be a very undesirable problem caused by the application of heat in the presence of oxygen. It can produce discoloration and cause a carbon layer to form on the cut edge.
This can affect the appearance of the finished product or cause a lack of adhesion for any coating
or paint finish on the oxidized surface.

Due to its inert properties, nitrogen gas prevents oxidization of the cut edge by allowing the laser to operate in an oxygen-free environment. The nitrogen gas pressure is also used to clear the cut, by blowing away the molten material. This produces a clean edge without any residual material sticking to the underside of the material (sometimes referred to as ‘dross’).

2) To purge the path, the laser beam travels along to the target area.

On many laser-generating machines, the beam is produced in one section and has to be directed to the point of use in another section. The laser beam is generally contained within hollow, sometimes telescopic, tubes and flexible bellows and is focused and reflected by various lenses and mirrors to the target area. To prevent the beam from distorting and to maintain power and intensity, the beam path needs to be kept clear of dirt particulate and any other contaminants that could cause it to diverge or lose power.

The lenses and water-cooled mirrors also need to be kept free of dirt, condensing hydrocarbons, and water vapor that could otherwise cause the burning and marking of these expensive components. Nitrogen is the ideal medium to use for beam guideway purging as it is dry, clean, oil-free, and has a very low contaminating content.

4. Main features

•  Fast and stable on-site nitrogen production, with a minimum of 10 to 20 minutes to
  produce qualified nitrogen.


• Applied more efficient and stable molecular sieves and unique PSA energy-saving
  technology, lower energy consumption.


• The standard configuration includes molecular sieve water pollution protection alarm
  device and multi-molecular sieve protection technology to ensure that the nitrogen
  generator can run stably for a longer period of time.


• The air tank, the nitrogen tank and the nitrogen generator are prefabricated in the
  same way, and the user installation on site is simple and quick.



• Optional CANBUS multi-function monitoring system and Wi-Ctrl remote wireless
  monitoring system can realize local monitoring and remote monitoring of the
  equipment, and realize remote upgrade of the system. The operating conditions of the
  system are under control.


• Proprietary nitrogen purity control technology to meet the needs of a variety of
  nitrogen applications in different industries.


• A number of patented technologies and original technology applications, equipment
  upgrades, energy saving and environmental friendly.


• The surface treatment of the equipment adopts the powder electrostatic spray
  process, which is beautiful and durable.


• 7*24 hours comprehensive and professional service.


• Can be customized to meet petrochemical, pharmaceutical and food, ASME,
  explosion-proof, classification society certification and other special institutions

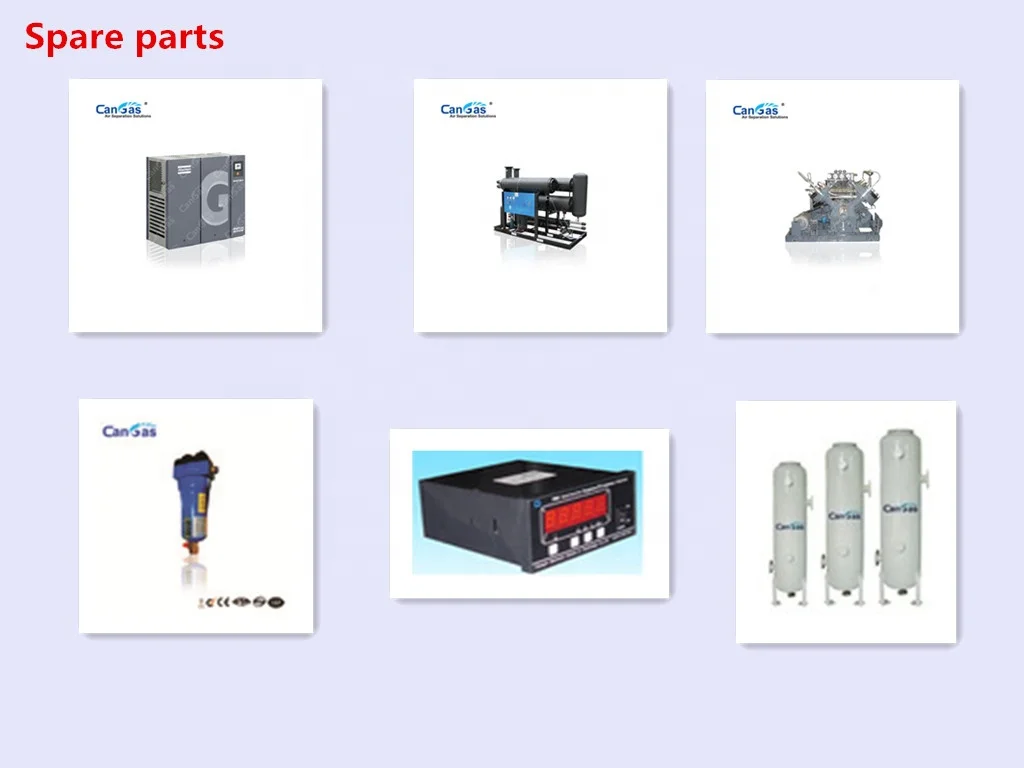

5. Main products&key parts

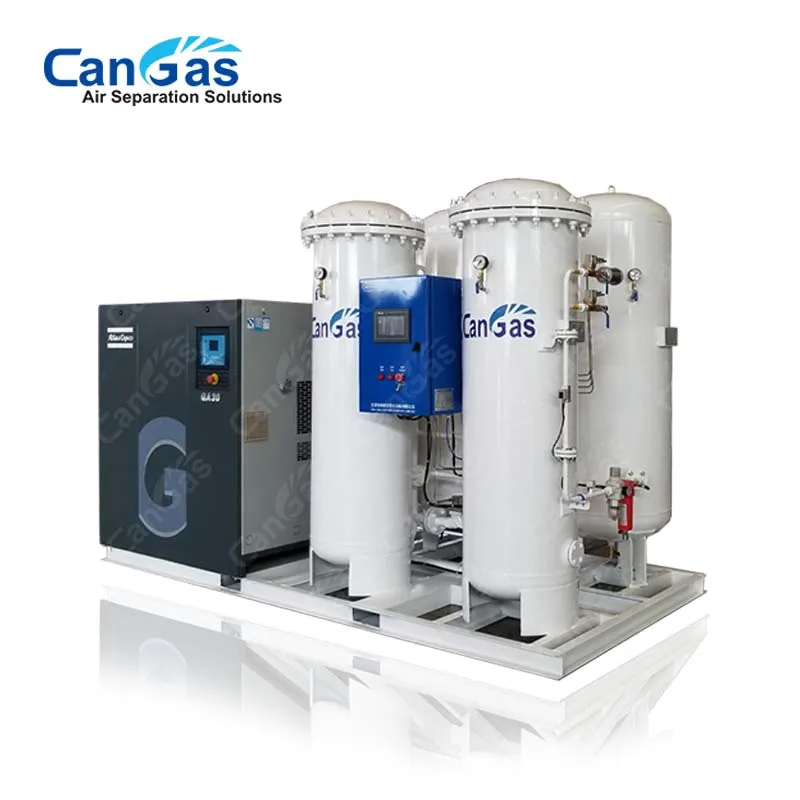

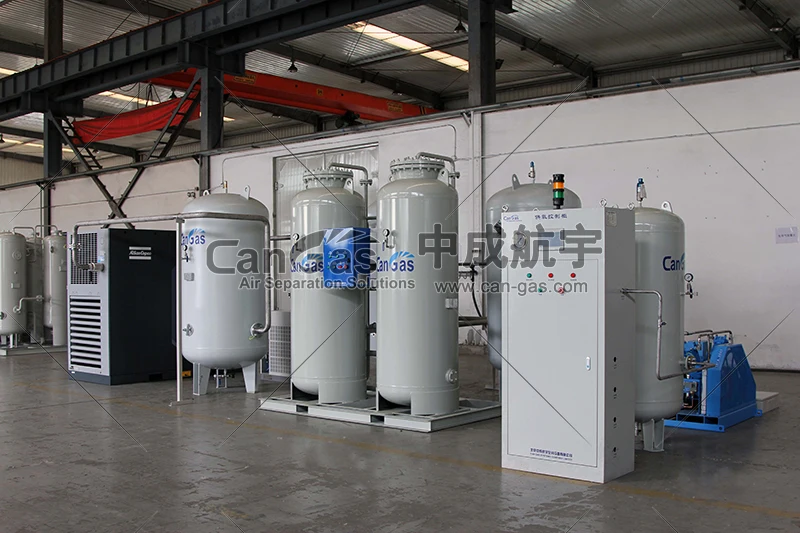

CANGAS CAPN PSA nitrogen generator equipment composition and functions of each part:

• Main components of nitrogen production equipment:


• 1. Air compressor,


• 2. Air dryer


• 3. PSA nitrogen production device,


• 4. Nitrogen analyzer


• 5.Air&N2 buffer tanks


• 6.PLC/HMI


• Two basic conditions required for nitrogen production:


• 1. Compressed air


• 2. Power supply

• Air post-treatment and purification system: It is composed of a freeze dryer, three-stage precision filters for water, oil, and dust removal, and an automatic drain.


• Freeze dryer function:Freeze drying is used to remove water and cool air. The pressure dew point of the purified compressed air is 2-10℃, the oil removal rate is 99.999%, and the dust particles are less than 0.01u to ensure that the adsorbent is not polluted. Provide sufficient protection for carbon molecular sieve and ensure the service life of carbon molecular sieve.


• Air buffer tank function:Improve the continuity of the output airflow and the stability of the pressure.


• Pressure swing adsorption adsorption nitrogen production system:It consists of A and B adsorption towers, pneumatic valves, unqualified emptying and instrument control systems.


• The double adsorption tower performs alternate adsorption and regeneration, completes nitrogen and oxygen separation, and continuously outputs nitrogen.


• Automatic control system: It is mainly composed of programmable PLC controller, indicating instrument, on-line display of purity analysis, and unqualified alarm.


• Nitrogen buffer tank:Composed of nitrogen buffer tank and output pressure regulating valve. Function: The nitrogen output from the main engine system is injected into the nitrogen buffer tank to ensure the continuous supply of nitrogen and the output pressure regulating valve is composed. The pressure can be adjusted by the pressure reducing valve.

CANGAS are always international players and leaders in the air separation field in the world cooperating with international famous brands to make ourself stronger and trustworthy. There are over 4,000 units of CanGas® air separation products running well in over 97 countries all over the world till now, and they are still running well.

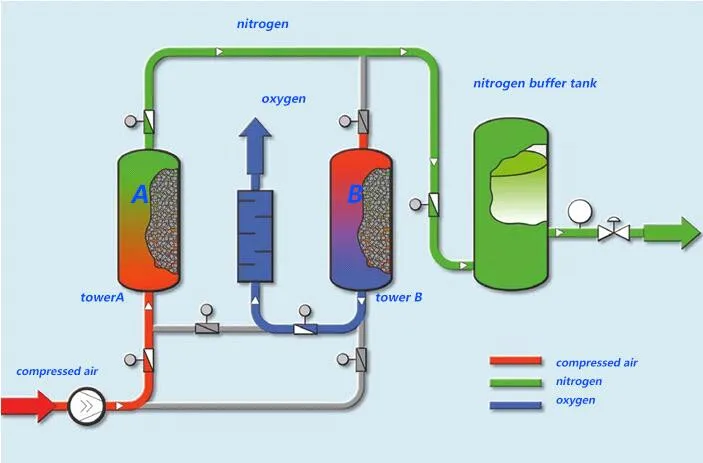

6. The basic processing flow chart

7. Production Capacity

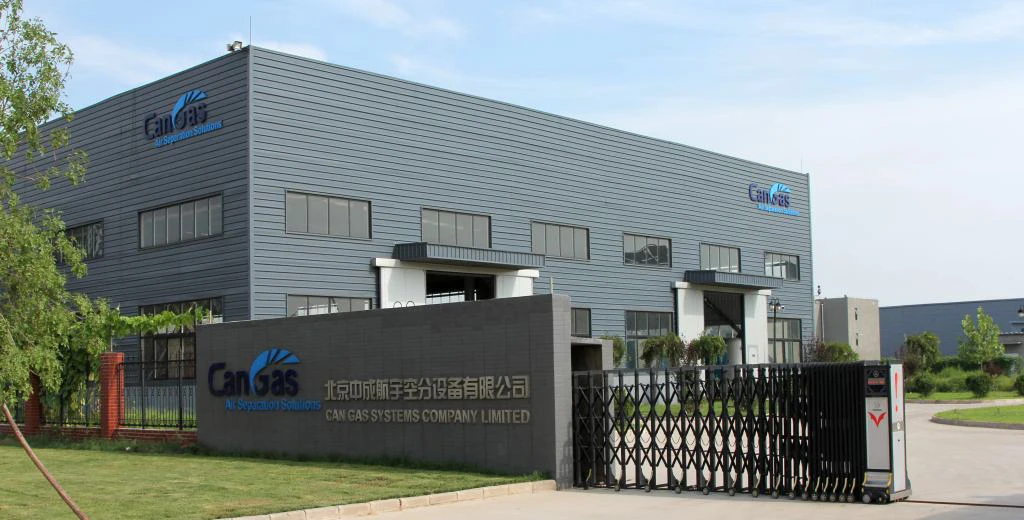

 CANGAS Systems Co., Ltd. identified as the Beijing Key High-tech Corporation, is one of the initial companies involved in air separation industry. CANGAS is committed to continuously providing core value to customers in all industries. With 28,000 square meters’ production base, five national patents and ISO9001:2008 Certificate of Quality Management System Certification, CANGAS has been an integration of R&D, design, manufacture, sales, service. Over the past ten years, CANGAS has successfully provided over 4000 sets of air separation systems for many industries in over 97 countries and regions.

8. Global Aftersales Service Team

The Guarantee/Warranty Period shall be a period of twelve (12) months after on-site startup & commissioning or eighteen (18) months after shipment, whichever occurs first.

If any trouble or defect, originating with the design, material, workmanship or operating characteristics of any Goods, arises at any time during GUARANTEE/WARRANTY period, CAN GAS shall, at his own expense and as promptly as possible, make such alterations, repairs and replacements as may be necessary to permit the Goods to function in accordance with the specifications and to fulfill the foregoing guarantees.

 Site service

CAN GAS can do paid services of on-site startup, commissioning, installation supervision, training, by providing purchaser with the services of qualified English-speaking engineers at users site, by sending English-speaking engineer to users site.

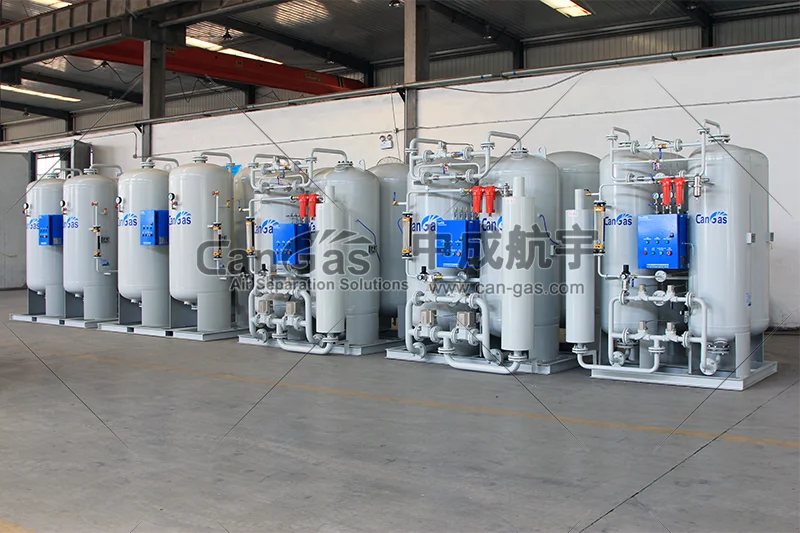

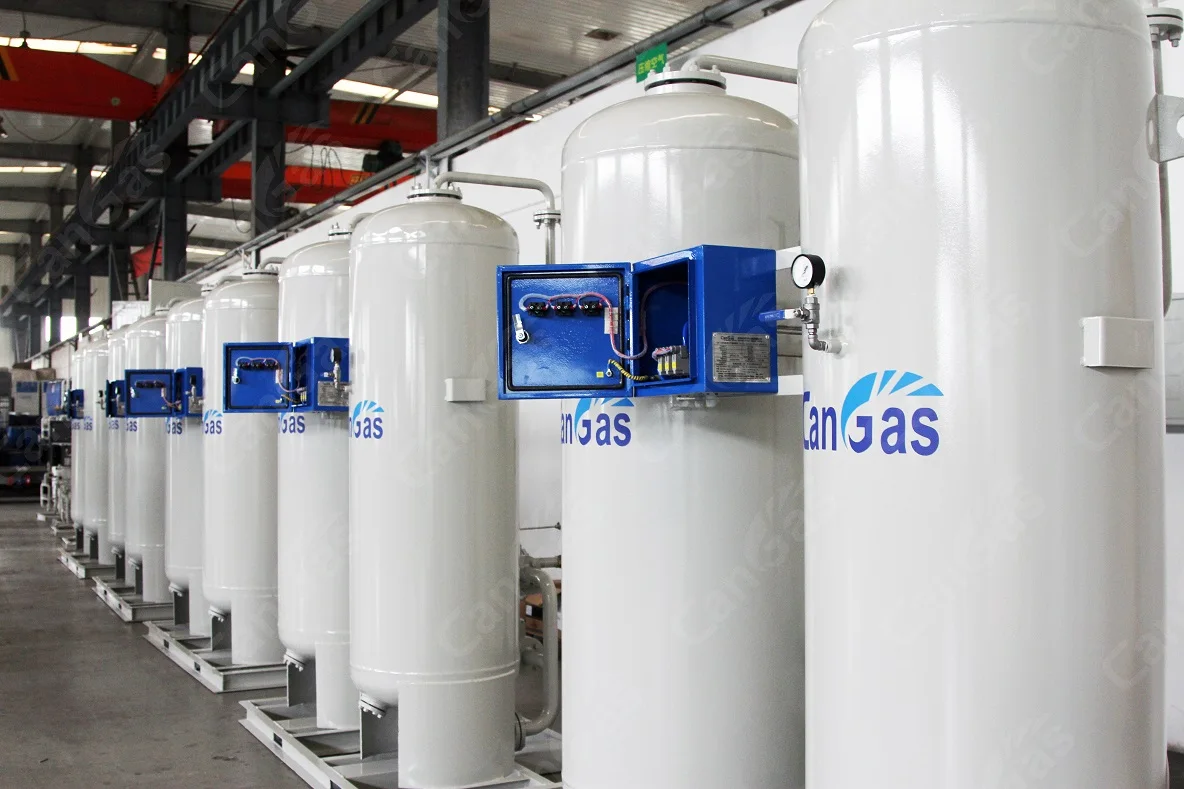

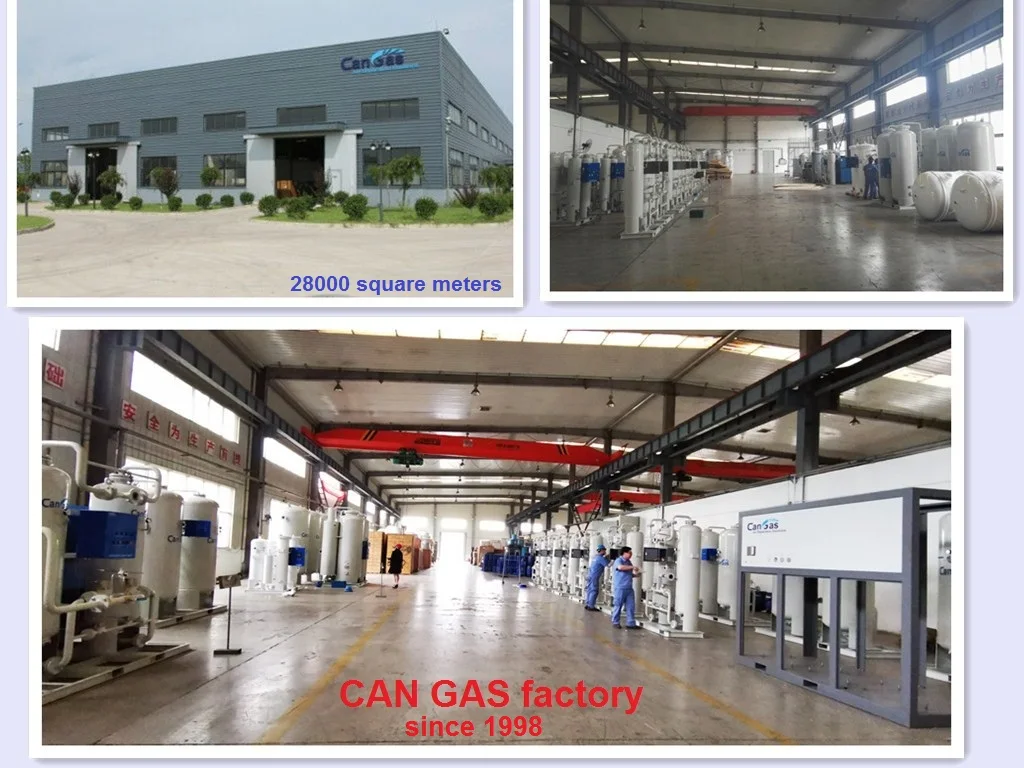

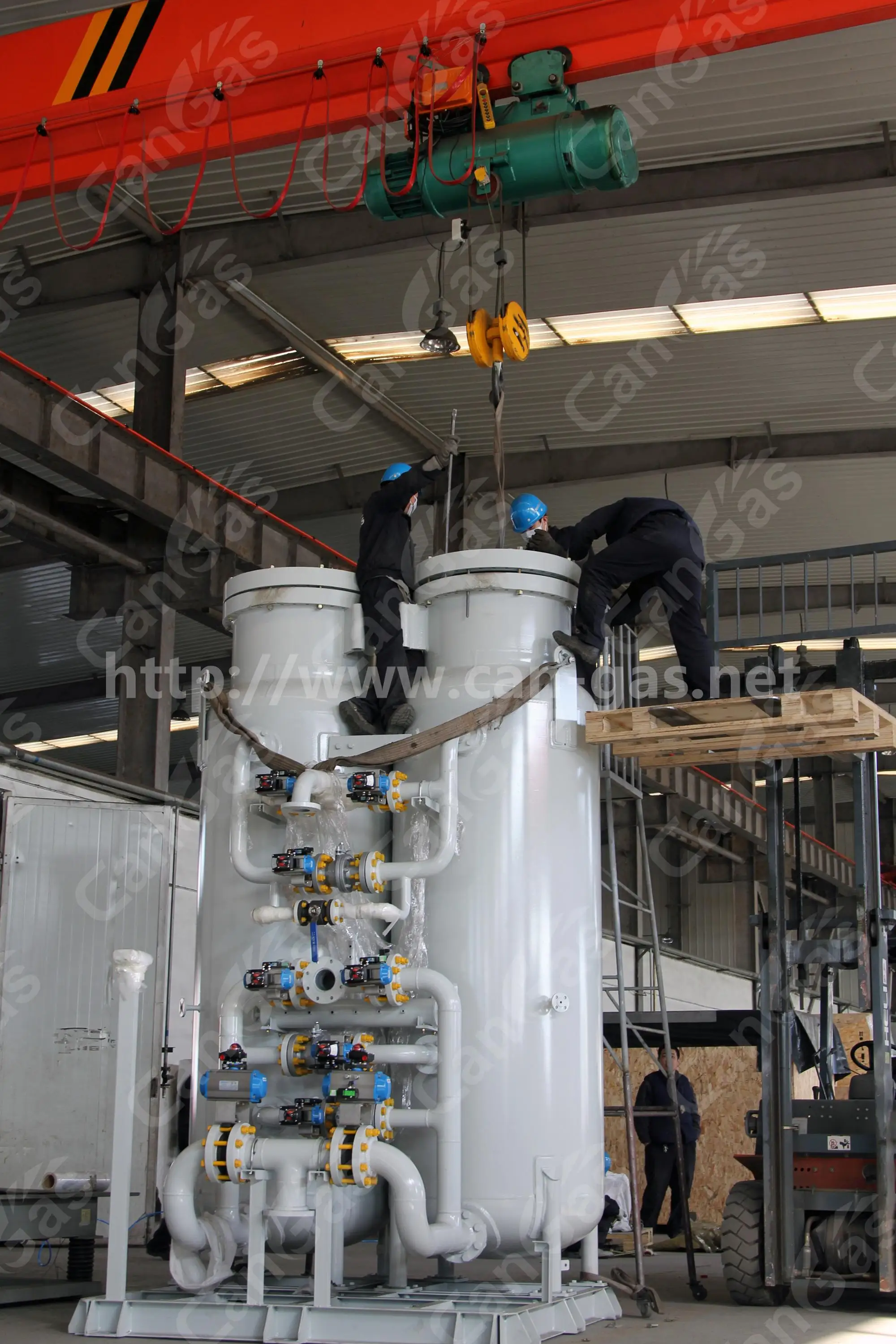

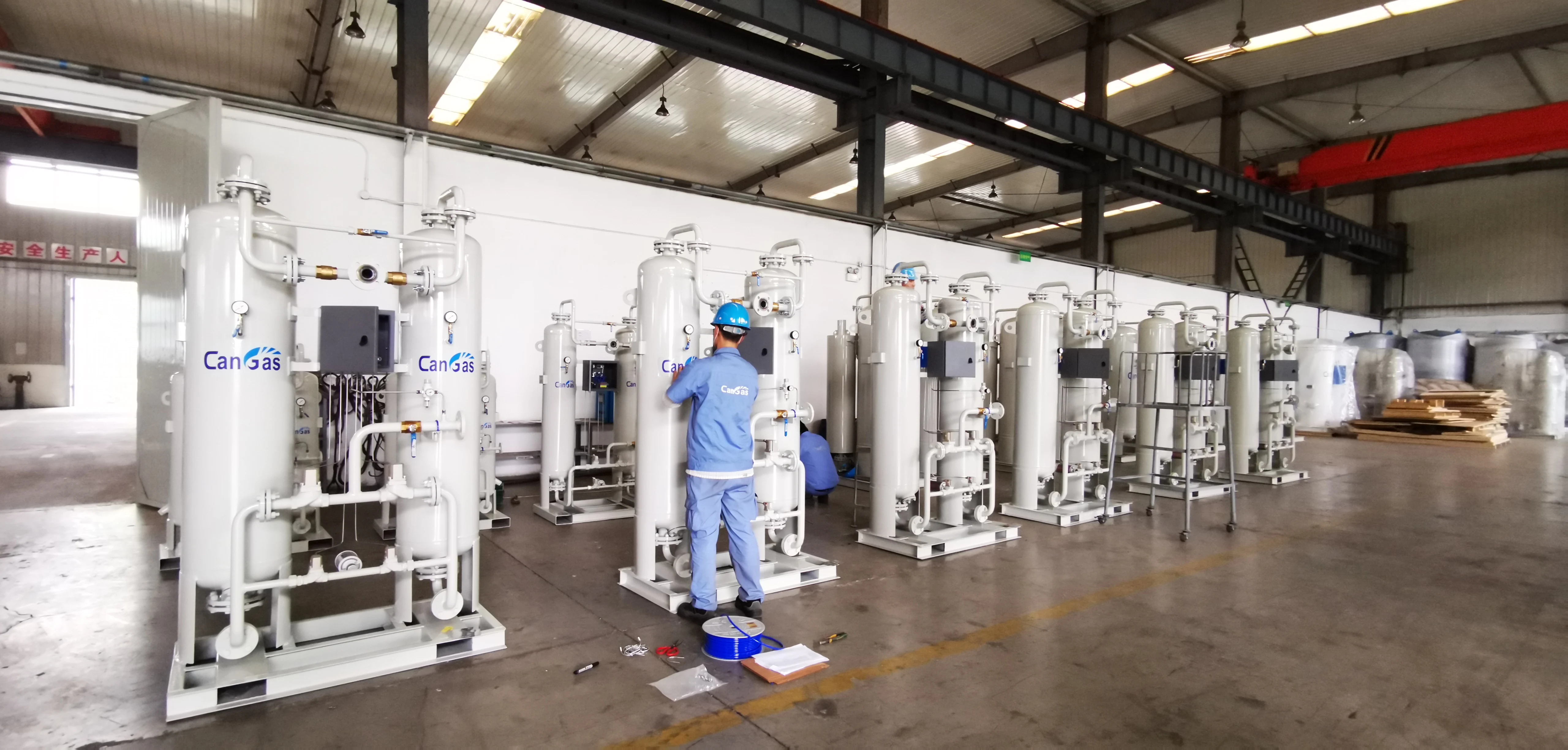

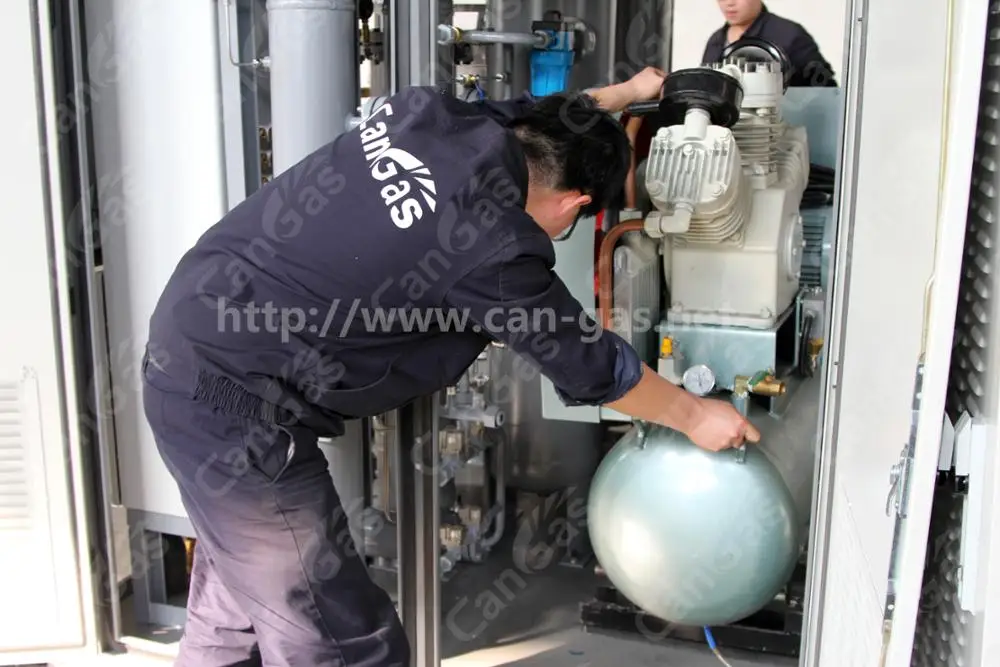

 9. Our workshop

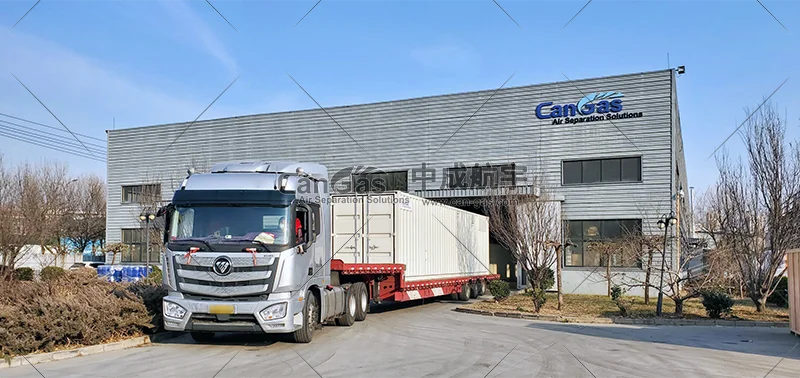

10. Packing and Delivery
