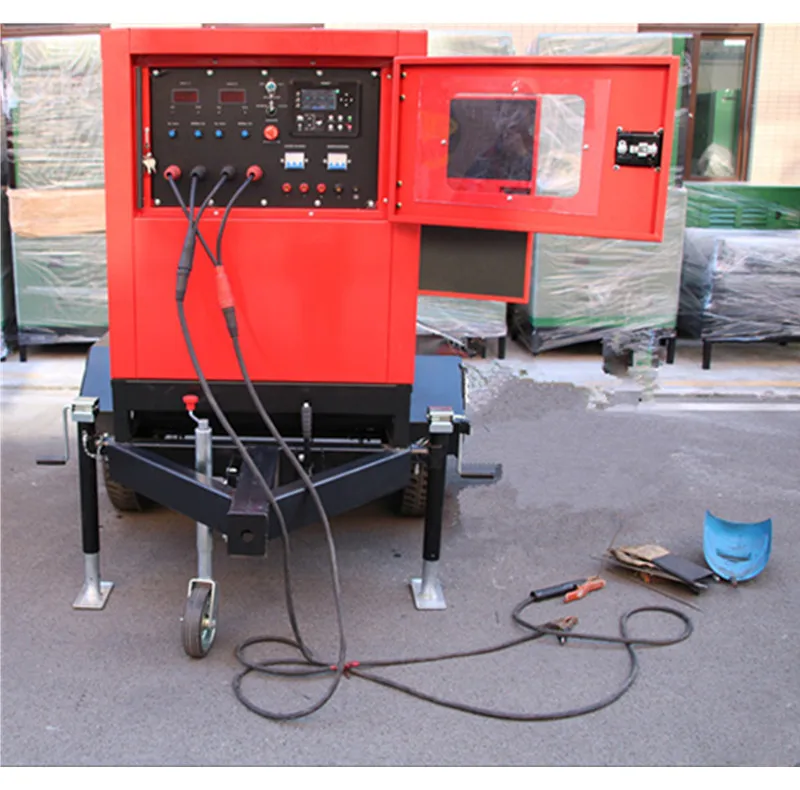

Industrial welder diesel chinese welding machine 350a 400a 500A Mig tig arc welding generator in dubai

Product Overview

Description

Industrial welder diesel chinese welding machine 350a 400a 500A Mig tig arc welding generator in dubai











Model	GPW 500 Single Handle
Welding output
Welding Processes	MMA			TIG			FCAW
Open Circuit Voltage (V)	80			80			80
Current Range (A)	30-500			30-500			30-500
External Characteristic Curve	Drop Characteristic			Drop Characteristic			Flat Characteristic
Generator output
Power	20kw
Excitation Type	AVR Brushless Excitation
Frequency	50Hz
Phase	Three Phase					Single Phase
Output Voltage/Power	AC 400V/20Kw					AC 230V/6.9Kw
Engine
Fuel	Diesel
Rated Power	30kw
Rated Speed	1500 RPM
Low Temperature	Pre-heated Start
Warning Type	Water Temperature /Oil Pressure/Battery Voltage
Fuel  Capacity	60L
Cooling Method	Water-cooled
Fuel Consumption	6.2L/hr
Complete appliance
Weight	700kg
Dimension(mm)	1850×850×1374
Protection Class	IP23



 Engine Features:



1. Industrial heavy duty engine



2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection



3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler



4. Machinery or electronic governing



5. Fuel injection pump



6. Electric motor starting system



7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner



8. Low discharge, and low fuel consumption



9. Installed conveniently and maintain easily



Control system:



1.  Automatic alarm system: the unit has the acousto-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current.



2. Operation display:



   a) Unit voltage, tri-phase load current and frequency display



   b) Water temperature, oil pressure display



   c) Fuel level, fuel temperature display



   d) Audible and visual alarm lamps and buzzers
