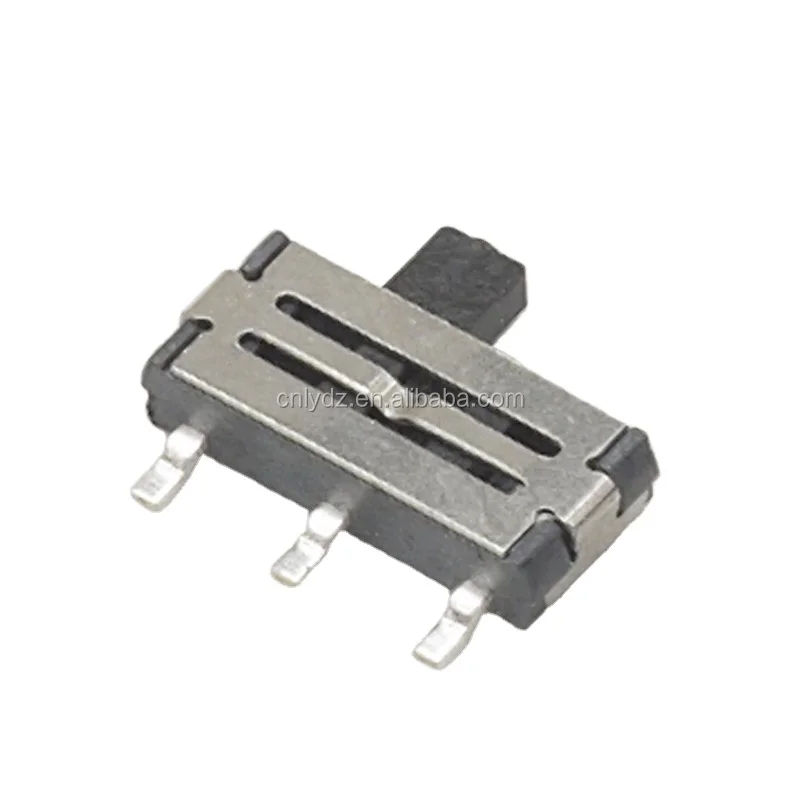

SMT Sliding switch 3-pin toggle switch Small touch switch LY-SS09
SMT Sliding switch 3-pin toggle switch Small touch switch LY-SS09
SMT Sliding switch 3-pin toggle switch Small touch switch LY-SS09
SMT Sliding switch 3-pin toggle switch Small touch switch LY-SS09

SMT Sliding switch 3 pin toggle switch Small touch switch LY SS09

Share on (1601008893656):


Price:$0.03 - $0.05

Quantity:


Product Overview

Description





































Rating30mA. 6 VDC
Insulation resistance100M Ω   min.500V DC
Dielectric strength500V DC for 1 min
Contact resistance70mΩ  max
Operating temperature range-10℃  to  +70℃
Lifetime10000cycles min.
Operating force120 ±  50gf 180  ± 50gf 200  ± 80gf
Travel1.5  ± 0.2mm
