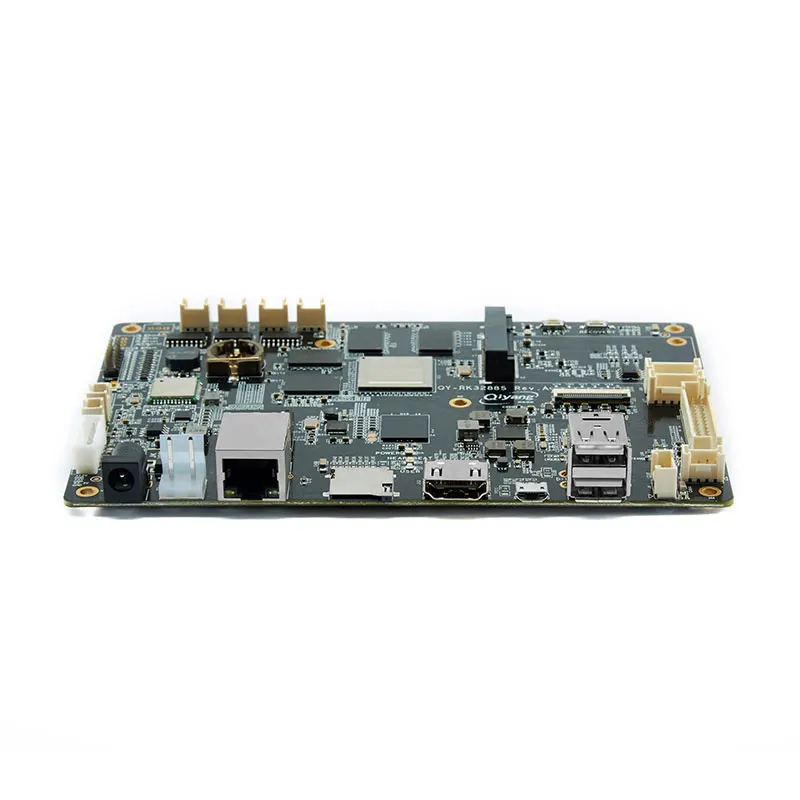

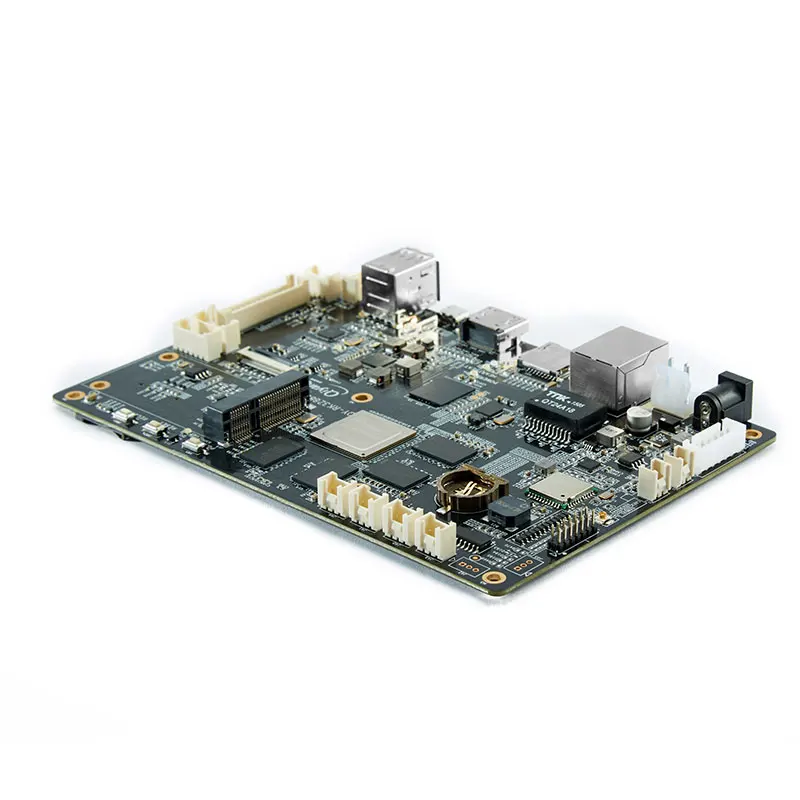

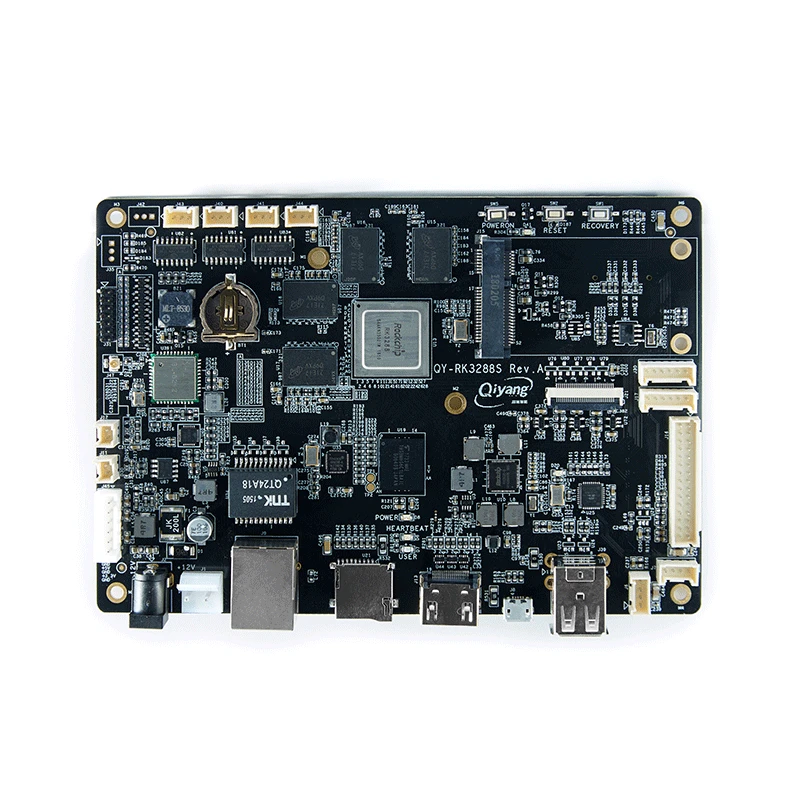

MIPI DSI ARM RK3288 Embedded Android Board with Cortex A17 DDR3 Wi Fi/BT android system development board
- Category: >>>
- Supplier: Zhejiang Qiyang Intelligent Technology Co. Ltd.
Share on (1601008951813):
Product Overview
Description
Product Description

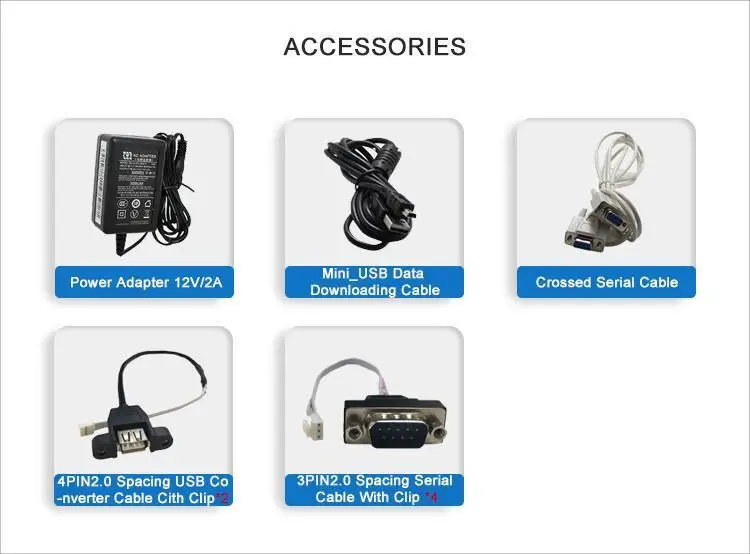

Accessories
Packing & Delivery

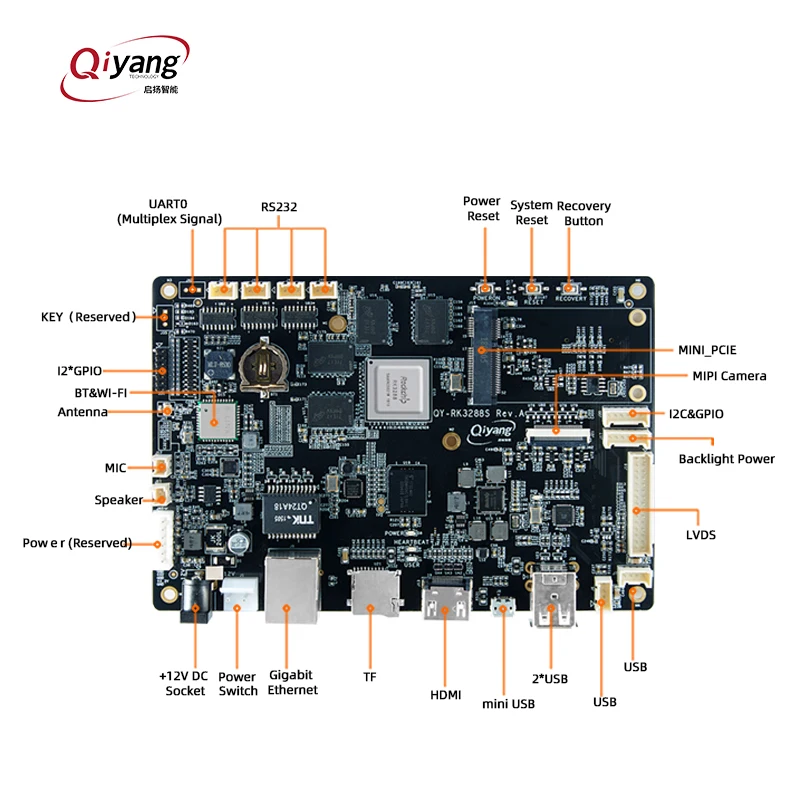

Product Paramenters
CPU | QY-RK3288S(2GB+8GB) | ||||||
Architecture | Cortex-A17 Quad-Core | ||||||
Frequency | 1.8GHz | ||||||
GPU | Mali-T764, support AFBC | ||||||
RAM | DDR3 SDRAM, 4*512MB, total 2GB | ||||||
Flash | 8GB EMMC | ||||||
UART | 5*RS232 (4*RS232,1*Debug) | ||||||
Ethernet | 1*10M/100M/1000Mbps | ||||||
USB | 1*USB OTG, 4*USB HOST | ||||||
Wi-Fi/BT | Onboard Wi-Fi&BT Module | ||||||
I2C | Standard I2C capacitive screen connection | ||||||
Display Interface | 1*Dual-channel LVDS interface, support 30Bit ； HDMI,support HDMI2.0,MAX.4K*2K@60Hz | ||||||
Audio | MIC,Speaker | ||||||
Camera | 1*MIPI-CSI | ||||||
Storage interface | TF card | ||||||
SIM Card | SIM Card | ||||||
Other | Reset Circuit,RTC | ||||||
Power Supply | +12V, Support +9V~+16V | ||||||
Operating System | Android 5.1 | ||||||
SIZE | 156mm*106mm | ||||||
Power Consumption | ≤3W | ||||||
Operating Temperature | -10℃~+60℃ | ||||||
Working Humidity | 5% ~ 95%, non-condensing | ||||||
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
