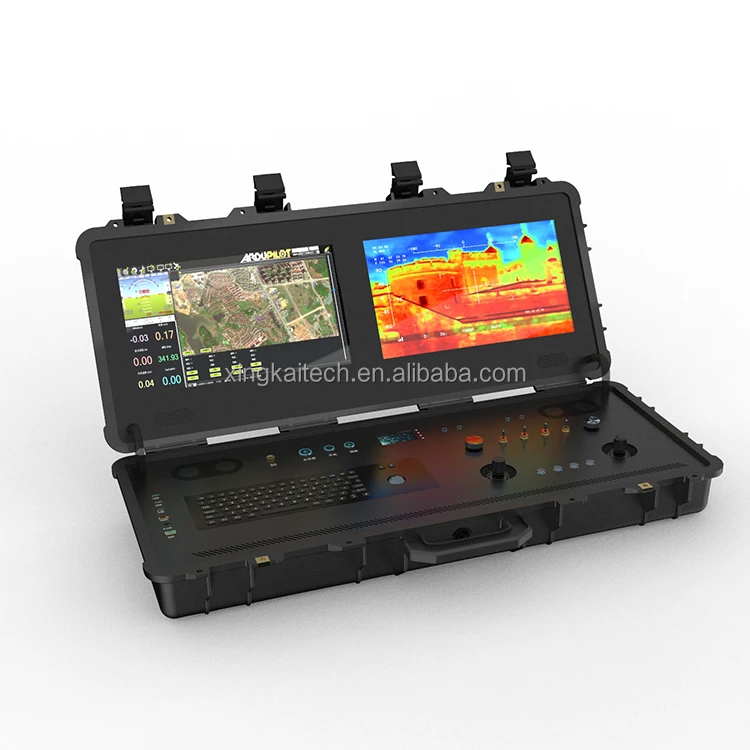

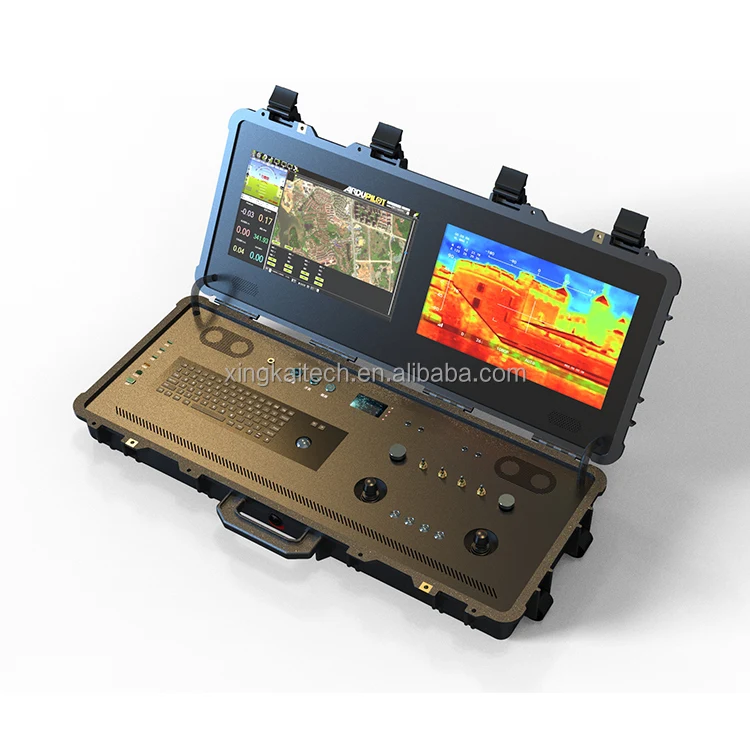

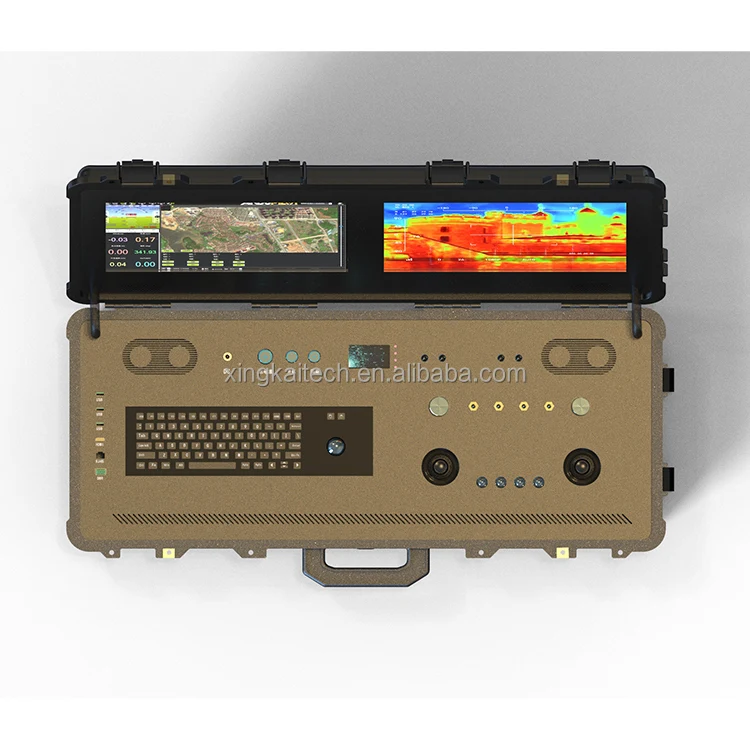

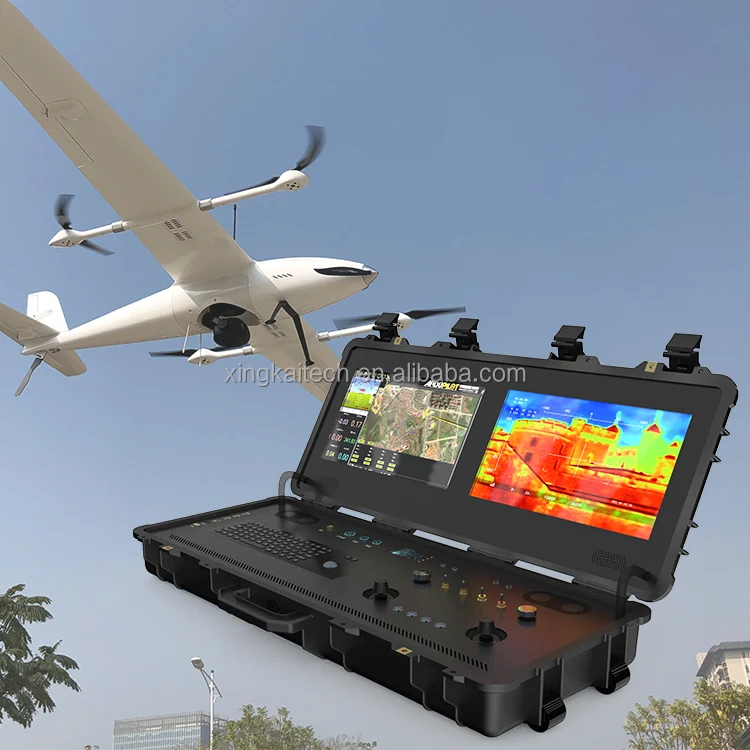

Dual Screen Drone Ground Control Station for UAV Drone Agricultural Spray UAV Industrial Ground Control System Drone Accessories
- Category: >>>
- Supplier: Shenzhen Xingkai Technology Co. Ltd.
Share on (1601008967076):
Product Overview
Description
Product Description
Product Name | XK-F203 |
Function | Drone Ground Control Station |
Package | Packed in a Professional Shipping Box |
1. Product Description
XK-F203 provides the function such as mission planning, attitude control, payload control, remote monitoring, real-time video display, etc. The off-the-shelf portable ground control station (GCS) is a flexible and universal solution for controlling unmanned vehicles and payloads.
2. Product Specification
Technical Parameter | ||
Box Type | Military three-proof safety box | |
Overall Dimensions | 968MM(L)*406MM(W)*155MM(H) | |
Weight | Less than 20KG | |
Shell material | PVC | |
IP rating | IP67 | |
Working Temperature | -20°C~ 60°C | |
Colour | Military green | |
Portable Features | Built in pull rod, external lifting cover | |
Operation Panel | ||
Panel material | 3K Carbon fiber plate | |
Interface support | USB*3,RS232*1,DC IN,HDMI,RJ45 | |
Feeder and interface | N,SMA | |
Human-computer interaction | Industrial mouse button suit | |
Audio input / output | Microphone, speaker | |
Antenna interface | antenna interface of the radio link | |
Switch parameters | Main power supply, power on key, link power supply | |
Others | Industrial cooling fan | |
Industrial Control Host | ||
Processor | i9 CPU + NVIDIA RTX A4000 | |
Operating system | Windows 10 | |
Memory | 16G | |
Hard disk | 256G | |
I/O Interface | USB,Network port,Serial port,HDMI | |
Left and right dual display | ||
Dimensions | 17.3inches | |
Resolution ratio | 1920*1080 | |
Screen scale | 16:9 | |
Backlight type | LED | |
Maximum brightness | 1000nit(Automatic induction regulation) | |
Input interface | HDMI | |
Remote lever and button functions | ||
Joysticks | *2 Industrial joysticks with Hall's sensors | |
Paddle | *4 | |
Knob | *2 | |
Push-button | *4 | |
Communication protocol | USB HID External settings | |
Battery & Power | ||
Display contents | Current voltage, current,current residual capacity, power, etc | |
Management system protection | Overcurrent protection,overvoltage protection, lowvoltage protection, overcapacity protection | |
Battery protection | Overcurrent protection, overtemperature protection, overvoltage protection and low voltage protection | |
Power Supply | 220V | |
Related Products
Packing&Shipping
Packing: Packed in a professional shipping box
Port: Yantian, Shekou or Hong Kong
Company Introduction
Our R&D team has over 20 years of professional technical experience in design, develop, build, support and delivery ot end-to-end communications&advanced networkings. The company attaches great importance to the construction of the R&D team, with a team who with extensive industry experience and accumulation in the fields of RF communication, Baseband unit, and images processing.
Our products range includes mimo mesh network, tactical radio, software detined radio, tactical data link, ip encoder, there has also been continued demand in the areas of C2/C3/C4ISR/C5ISR mission systems, border and perimeter security systems, unmanned aircraft systems, unmanned surtace vessels, remote controlled systems, and homeland security solutions, law enforcement and also covering film, broadcast and live stream activities that who can't risk communication failure.
