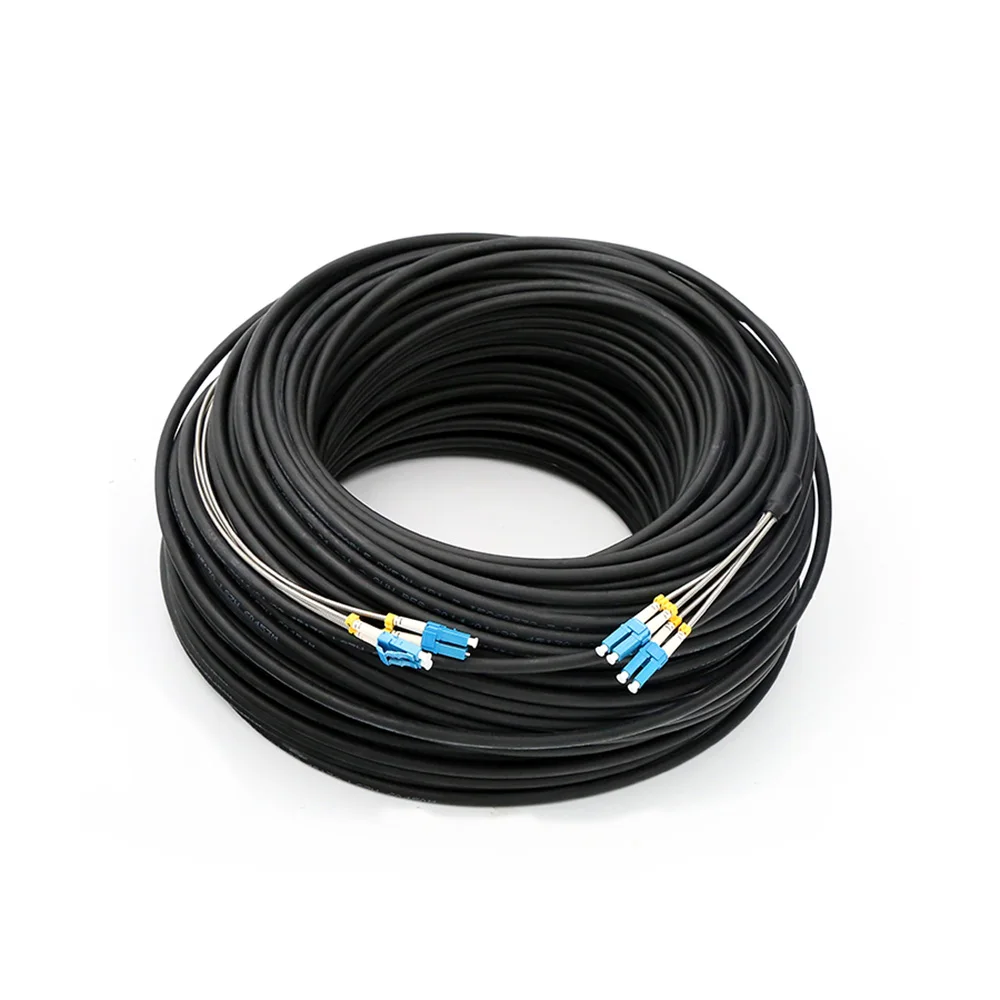

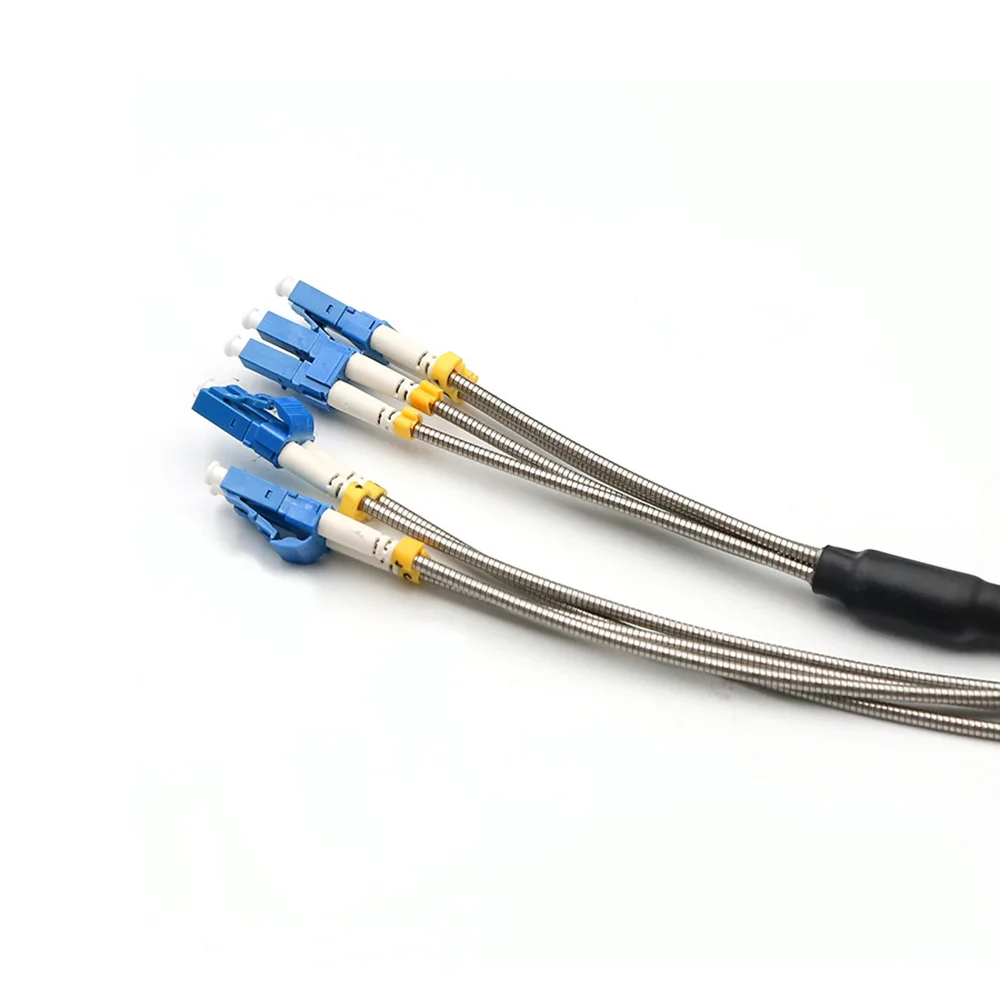

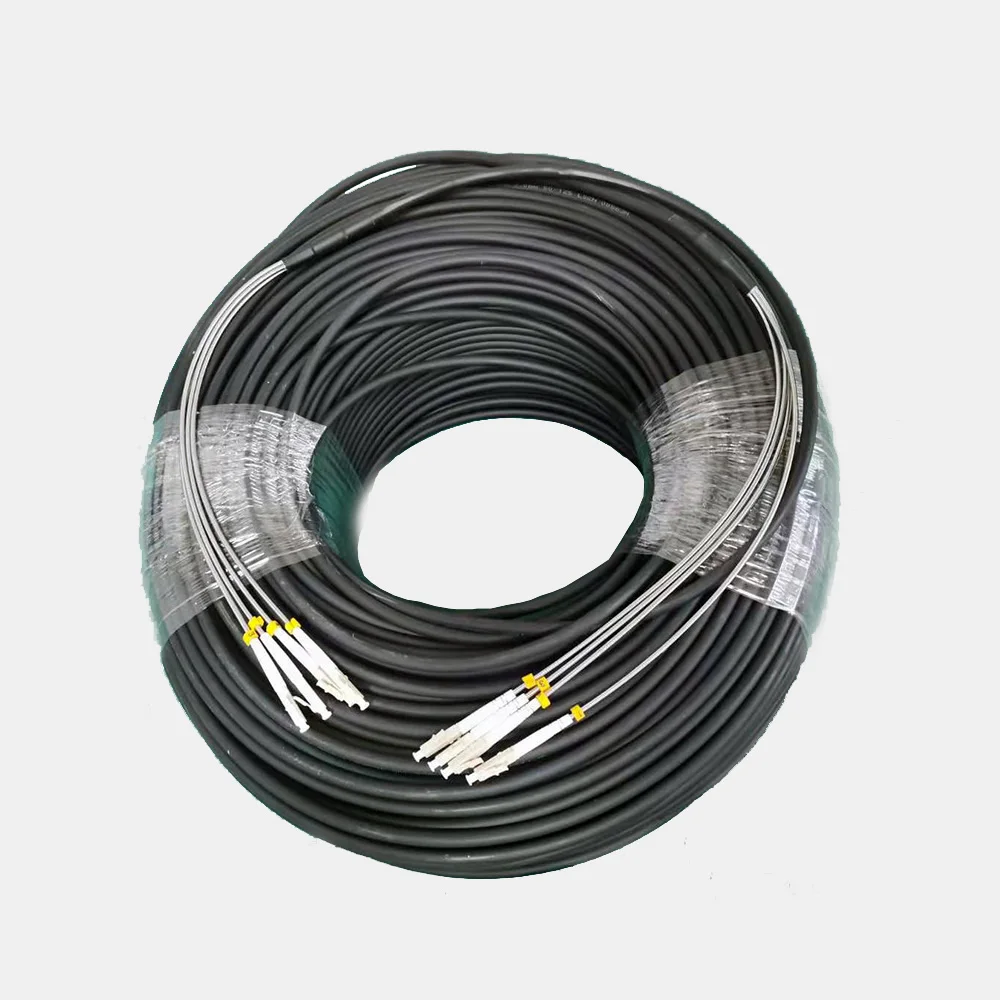

LC LC Armored Fiber Optic Patch Cable Indoor Outdoor RRU RRH CPRI Singlemode 4 Core 7.0mm Telecommunication Equipment Sps Ip42
- Category: >>>
- Supplier: Hangzhou Huaxun Technology Co. Ltd.
Share on (1601008972330):
Product Overview
Description
Product Description
CPRI fiber patch cable is the ideal design for outdoor fiber cable applications. Such product can meet the FTTA(fiber to the Antenna) program requirements for outdoor environment conditions. Especially in the 3G, 4G, Base station (BBU to RRU). CPRI fiber patch cable are rapidly becoming the standard connector interface.
Product Overviews
Advantages
1.Easily add/install jumper cables for a future expansion.
2.Low insertion loss and added loss.
3.Height of attenuation.
4.Flexibility with small bending radius and excellent cable routing properties.
5.End-face geometry and quality superior than IEC and Telcordia standards.
6.The material in the jumpel cable are all-weather and UV-resistant.
7.Mechanical performance: IEC 61754-20 standard.
8.RoHS and REACH materials compliant.
Application
1.Multi-purpose Outdoor.
2.For connection between distribution box and RRH(RRU).
3.Deployment in Remote Radio Head cell tower applications.
FTTA & FTTH Base station, BTS installation, BBU to RRU Indoor/outdoor building cabling – Harsh environments application – Long haul networking -Direct burial and aerial lashing
Production Flow
Technical Parameters
Connector: PDLC--DLC/PDLC | |
Item | Parameter |
Insertion loss | Single mode:Typical l value≤0.15dB;Maximum≤0.30 |
| Multi mode:Typical l value≤0.15dB;Maximum≤0.25 |
Return loss | SM: ≥ 60dB (APC); ≥ 50dB (UPC) MM:≥ 35dB (UPC) |
Mechanical Characteristics | |
Test | Conditions |
Endurance | 500 matings |
Vibration | Frequency: 10 to 55Hz,Amplitude: 0.75mm |
Cable retention | 400N (main cable); 50N (connector part) |
Strength of coupling mechanism | 80N for 2 to 3mm cable |
Cable torsion | 15N for 2 to 3mm cable |
Fall | 10 drops, 1m drop height |
Static lateral load | 1N for 1h (main cable); 0.2N for 5min (ranch part) |
Cold | -25°C, 96h duration |
Dry heat | +70°C, 96h duration |
Change of temperature | -25°C to +70°C, 12 cycles |
Humidity | +40°C at 93%, 96h duration |
