Hydrogen Gas Generator/Hydrogen Generation from water electrolyzer/electrolysis green hydorgen plant with Output 5Nm3 machine

Product Overview

Description

Hydrogen gas generator/Hydrogen generation plant with output 5Nm3

Factory high purity oxy/hydrogen generator plant with low price



Designed for easy installation and for safe, reliable, unattended operation, Beijing SinoHy Energy Co., Ltd. offers on-site, on-demand industrial gas generators to supply ultra pure hydrogen and oxygen for a variety of applications including power plant cooling, metal processing, float glass manufacturing, wholesale gas, small chemical, and semiconductor production. Multiple generators can be used to meet specific gas requirements and redundancy needs. SinoHy Energy's engineering team routinely designs and provides necessary support equipment, piping, and conduit systems for complete hydrogen plants.

Product Advantages

Ø  Ultra Pure Gas:

Ultra pure (99.999%) gas generation with continuous purity monitoring increases equipment life, saving considerable maintenance and replacement costs.

Ø  Proven Reliability:

 Durable stainless steel process components maximize system life. Demonstrated life span of 25+ years.

Ø  Comprehensive Installation:

Every BJ CEI  hydrogen generator system is fully assembled and skid-mounted for trouble-free shipping and simple installation.

Ø  Fully Tested:

Each unit thoroughly factory-tested to meet national standards and exceed industry codes.

Ø  On-Demand Gas Delivery:

     - Pressure up to 3.2 Mpa

     - Maximum flow delivery ranges from 2 m3/h to 600 m3/h

     - Higher flow delivery ranges available to meet your specific hydrogen requirements

Ø  Custom Engineered Design:

Custom-engineered hydrogen-generating solutions are available for optimum integration with existing plant infrastructure.

Ø  Professional Maintenance and Promotion of old Chinese-made hydrogen generators

Good reference and experience in maintenance and promotion of old Chinese-made hydrogen generators.

Ø  Safe, Unattended Operation:

    - Fully automatic operation with on-board diagnostics

    - Minimal onboard gases and no sparking components

    - Redundancy control system design

    - Remote monitoring and operation option



Our service

Pre-Sales Service

* Inquiry and consulting support.

* Technical proposal support.

* View our Factory.

After-Sales Service

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.



Technical Detail

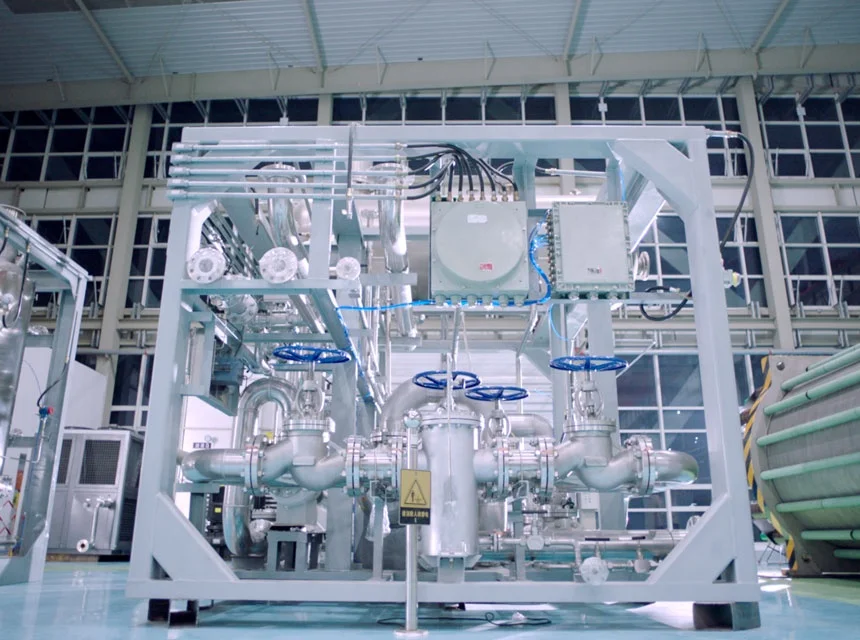

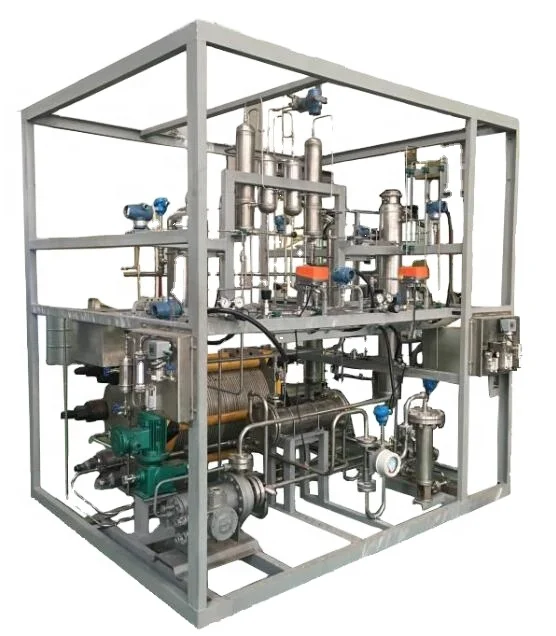

    Skidded-type Hydrogen generation system by water electrolysis:

	HGA	HGB	HGC	HGD	HGE	HGF	HGG
Pressure	3.2MPa				1.6 MPa
H2 production(m3/h)	5	10	20	60	100	200	500
O2 Production(m3/h)	2.5	5	10	30	50	100	250
Rated Current(A)	500	920	1670	2480	4600	6600	6600
Rated Voltage(V)	50	52	56	114	102	142	280
KOH Solution Flow(m3/h)	0.4	0.6	1	3	5	8	14
Feedwater Consumption(Kg/h)	5	10	20	60	100	200	500
Cooling Water Consumption(t/h)	1	2	4	12	16	28	52
Dilute KOH Consumption(Kg)	30	60	180	230	460	1000	2200
Concentrated KOH Consumption(Kg)	60	120	400	500	1000	2200	4800
Transformer Capacity(KVA)	45	80	200	500	800	1600	4000







1. We specialize in • Water Electrolysis Hydrogen/Oxygen generator design, production, sale, operation, maintenance, training, overhaul, upgrading, replacement, related equipment, spare parts supply, etc., • Hydrogen Station Application Solution Provider, • Hydrogen Energy Strategy Consulting, investment, construction and operation and other services

2. We are the National High-tech enterprise of hydrogen energy and owns more than 20 technology patents, ranked in the top three among domestic peers;

3. We own the most complete and diverse product line and service based on water electrolysis hydrogen generation system and application solutions;

4. The elite technology R&D, production, sale, after-sales service and management team, also experienced engineering team with on-site service. We can also supply overseas service.

5. More than 10 years with rich project experience in the different Industries and energy fields and with related authoritative qualifications.

6.Strategic Exclusive Partners in China:

• China's top Hydrogen Energy Research Institute: Dalian Institute of Chemical Physics, Chinese Academy of Sciences

• Europe and the United States hydrogen energy leading brands: the famous American military and energy group-Teledyne and the world's top 500 nuclear power giant-Areva group H2GEN hydrogen energy company

• EU's famous hydrogen energy consulting and think tank company-Hinicio

• Three hydrogen station auxiliary product partners: German PRO-CHEM inspection instrument
