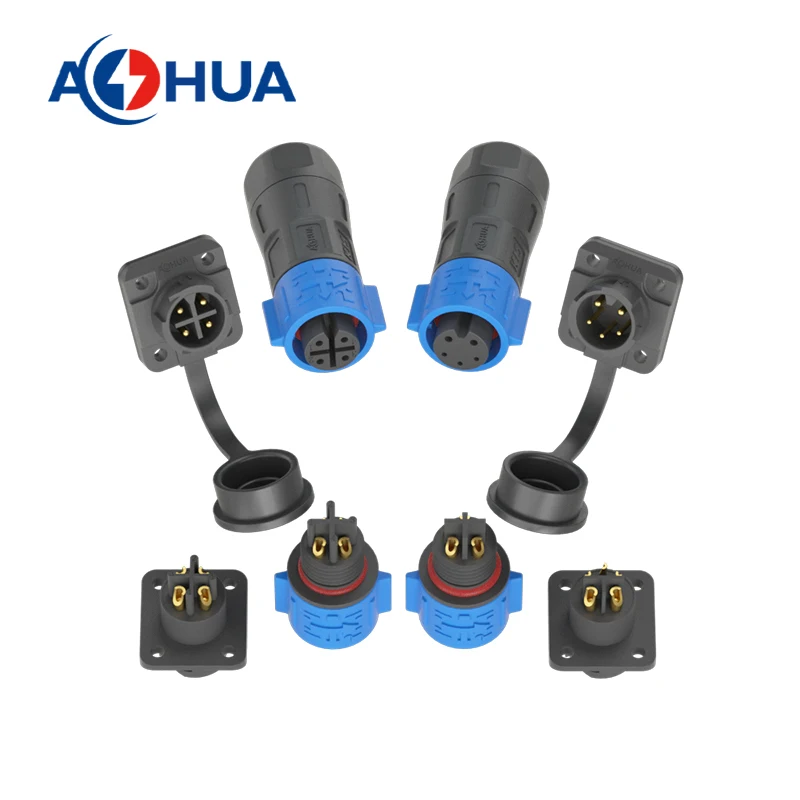

AOHUA Livestock Breeding Lighting Waterproof Connector K15 3pin Assembly Male Female panel Mount Push Lock Fast Connector
- Category: >>>
- Supplier: Shenzhen Aohua Electric Corporation Limited
Share on (1601009017530):
Product Overview
Description
Product Description
We are a professional manufacturer with 15 years rich experience in Outdoor Led lighting waterproof cable industry with product up to 18 series,more than 3000 varieties.
1)Provide customized Service
2)One-stop lean factory.
3)Reasonable and competitive price.
4)Lead time and quality are controlled.
There are some hot selling products as below:
1)Provide customized Service
2)One-stop lean factory.
3)Reasonable and competitive price.
4)Lead time and quality are controlled.
There are some hot selling products as below:
Assembly Connector | Wire to wire /Wire to panel waterproof connector,L/T screw type connector |
Over-mold Connector | Nylon/PVC /Metal /Aviation waterproof connector,DC connector |
T Connector | Over-mold T waterproof connector |
Y Connector | Over-mold Y waterproof connector |

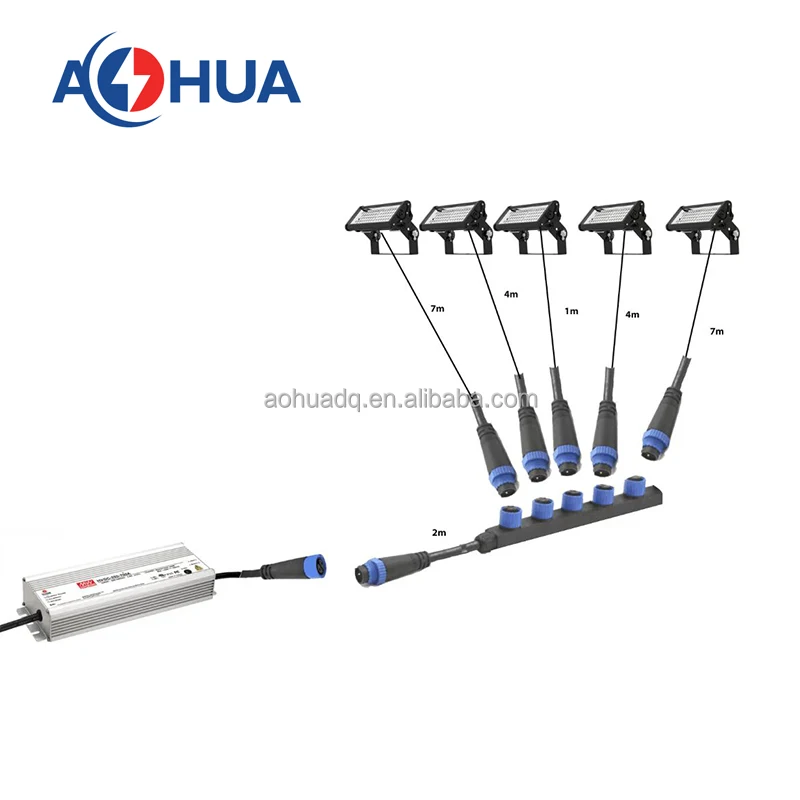

Distributor Connector | M15/M19/M20 Series(1to2/3/4/5/6) LED waterproof connector |

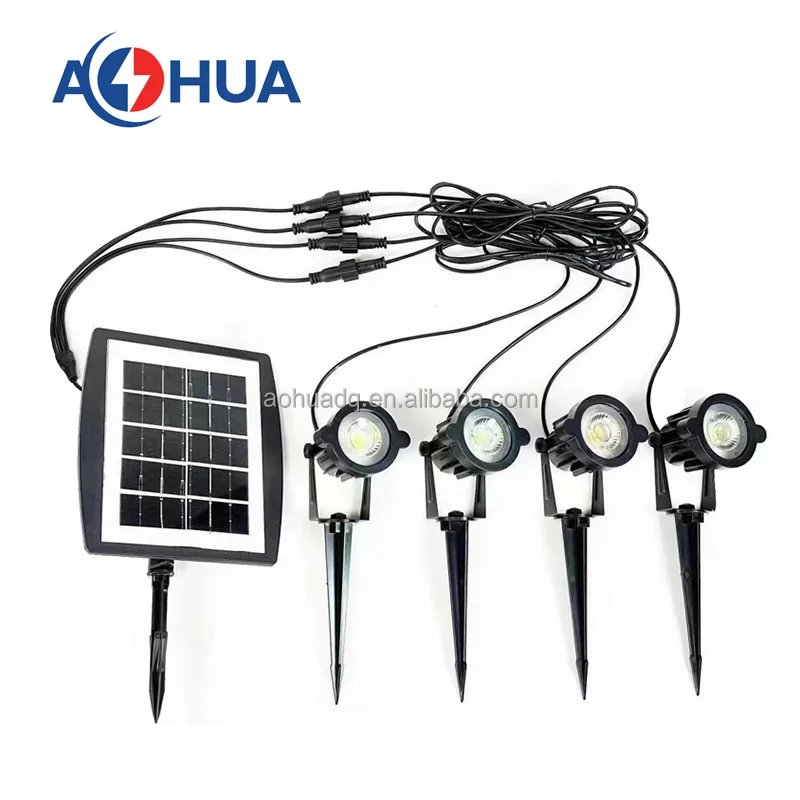

Outdoor led lighting, LED panel screens, solar energy inverter, medical device, electrical equipment,marine equipment ,control systems, automation equipment,electric vehicle,etc...

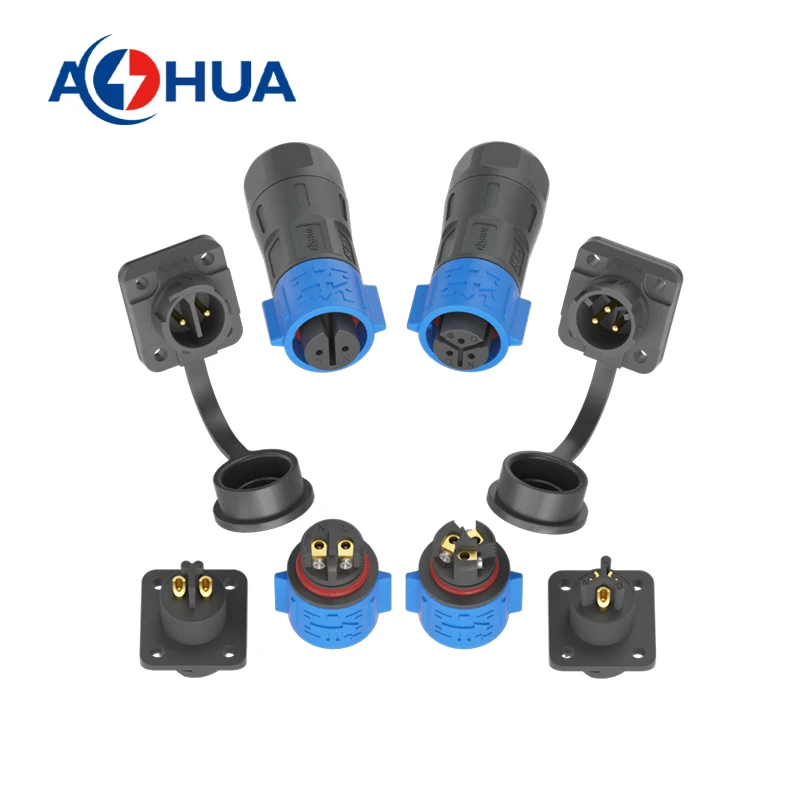

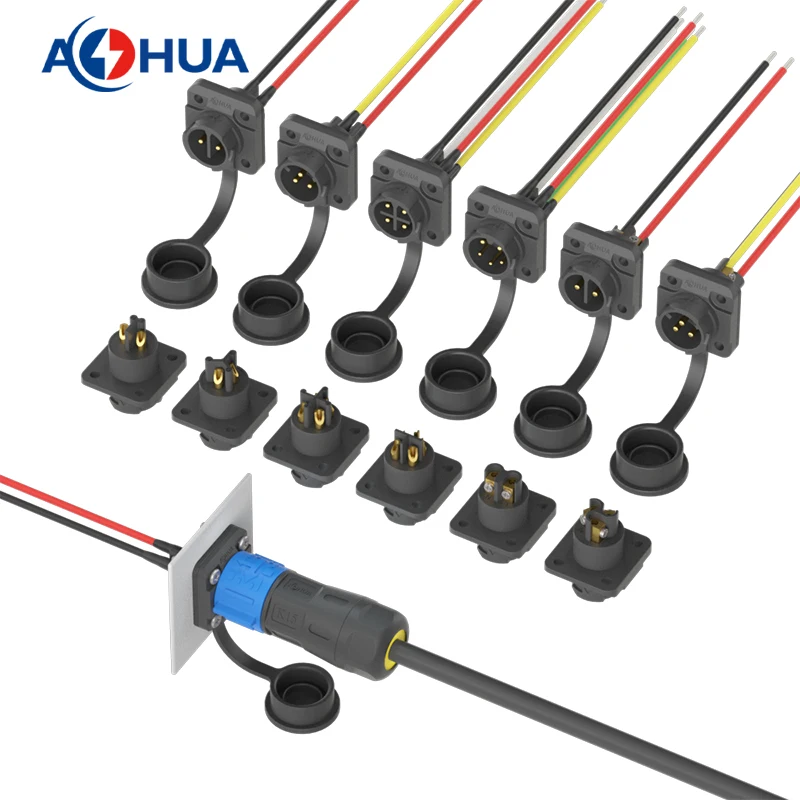

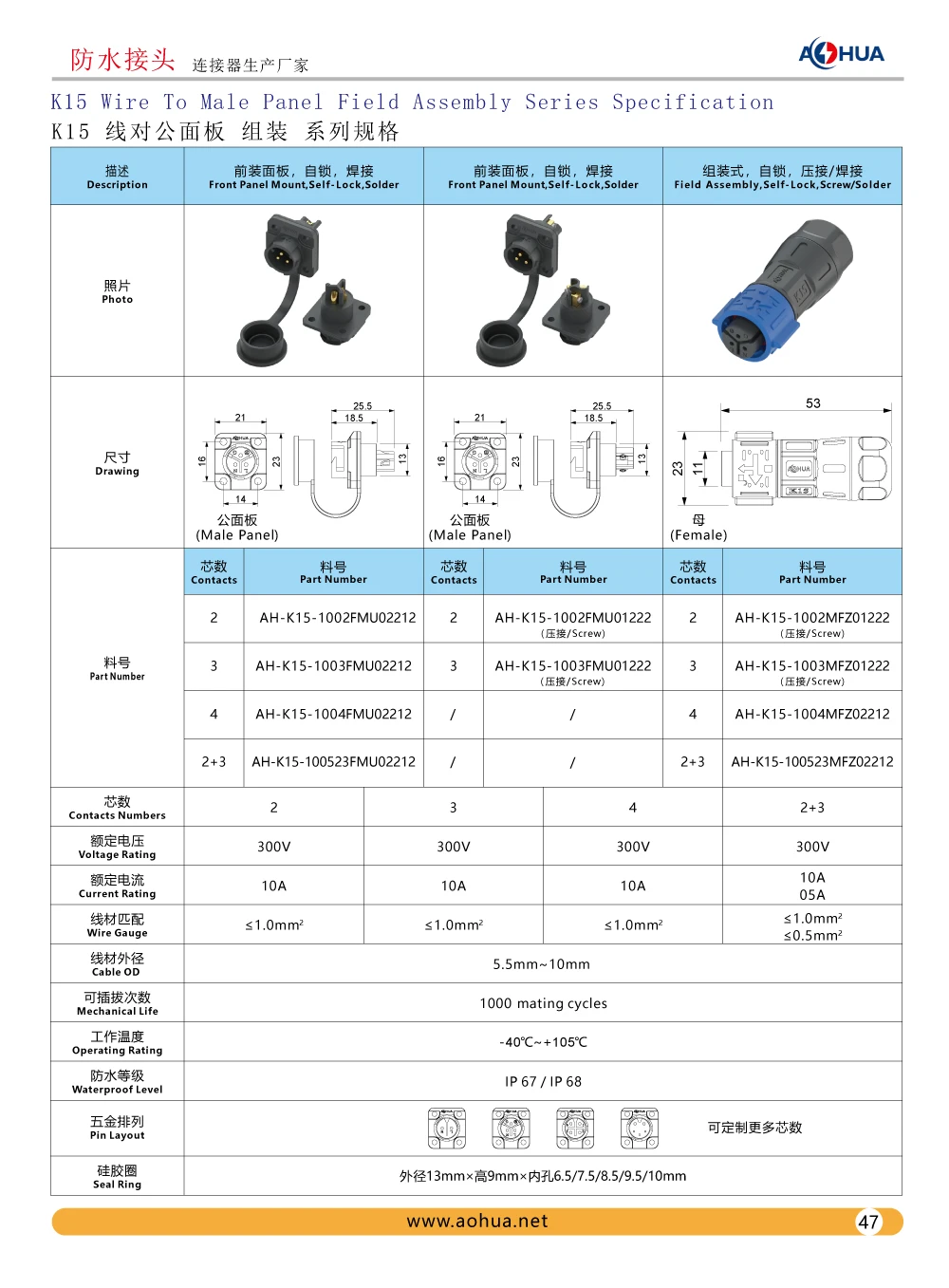

AOHUA Livestock Breeding Lighting Waterproof Connector K15 3pin Assembly Male Female panel Mount Push Lock Fast Connector
Shell Material | Nylon PA66 UL94-V0 |
Pins Material | Gold-plated Brass |
Seal ring and o-ring materials | Silica gal ,rubber |
Pins number | 2pin,3pin(Screw or Solder type) 4pin,2+3pin(Solder type) |
Gender | Male and Female |

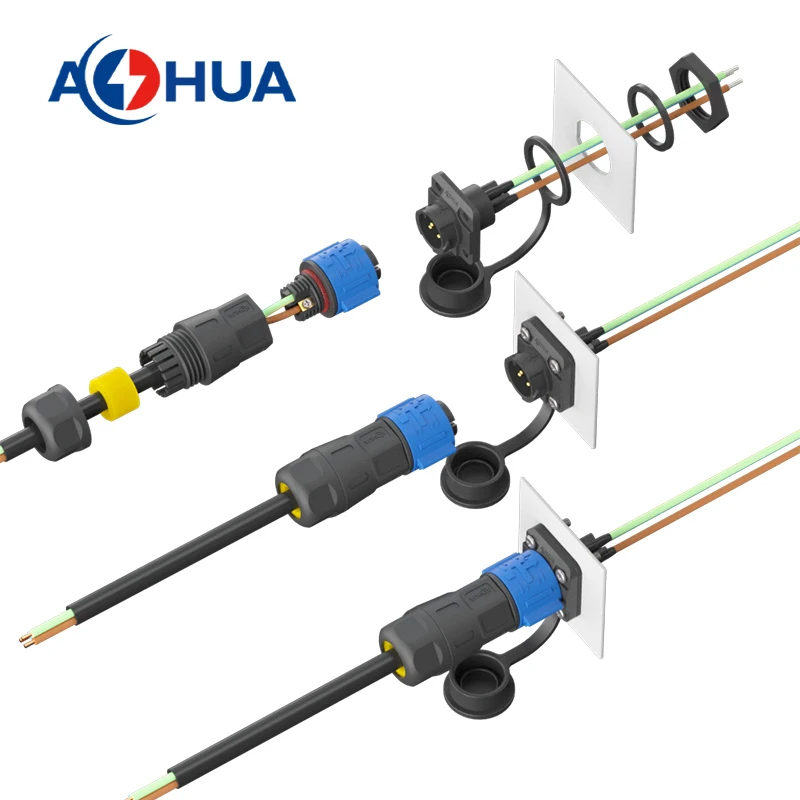

consists of a few parts | Male Panel core, Female core,Housing,Screw-nut,Seal ring and O-ring |
Connector type | Assembly male and female self-lock(push /fast lock)type cable connector |
Function | Airtight,protection cable, waterproof,dustproof,dampproof... |
Waterproof Rate | IP67/IP68 |
Mechanical Life | 1000 Mating Cycles |
Cable OD | 5.5mm~10.0mm |
Wire Gauge | Max 1.5mm² |
Seal Ring | 13*9*6.5/7.5/8.5/9.5/10.0mm |
Be Used For | Both cable to cable (in-line) connection |
Certificate | CE/RoHS/ISO9001... |
Operating Rating | -40℃~+105℃ |

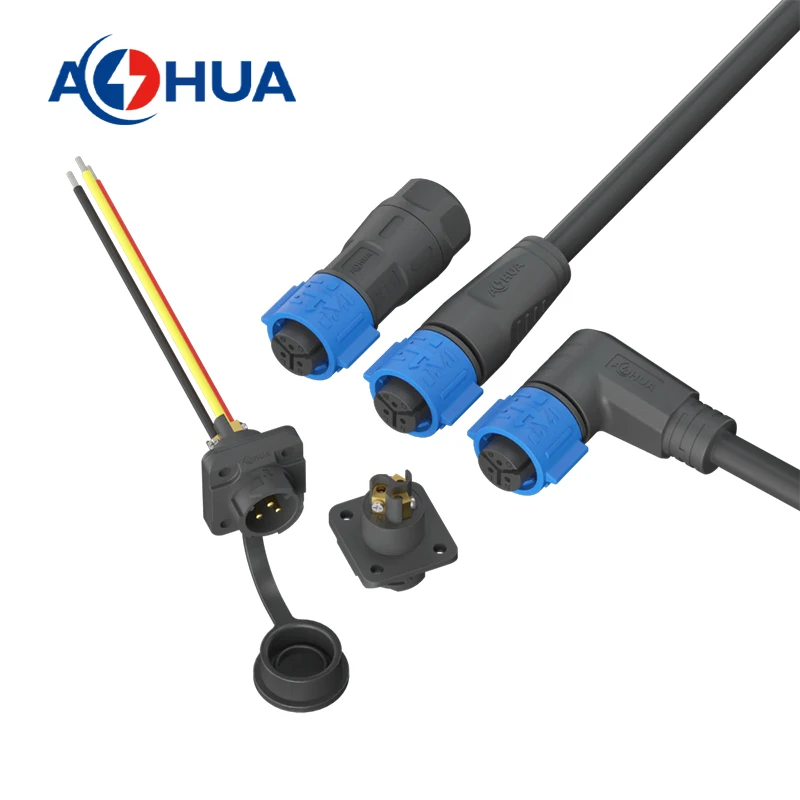

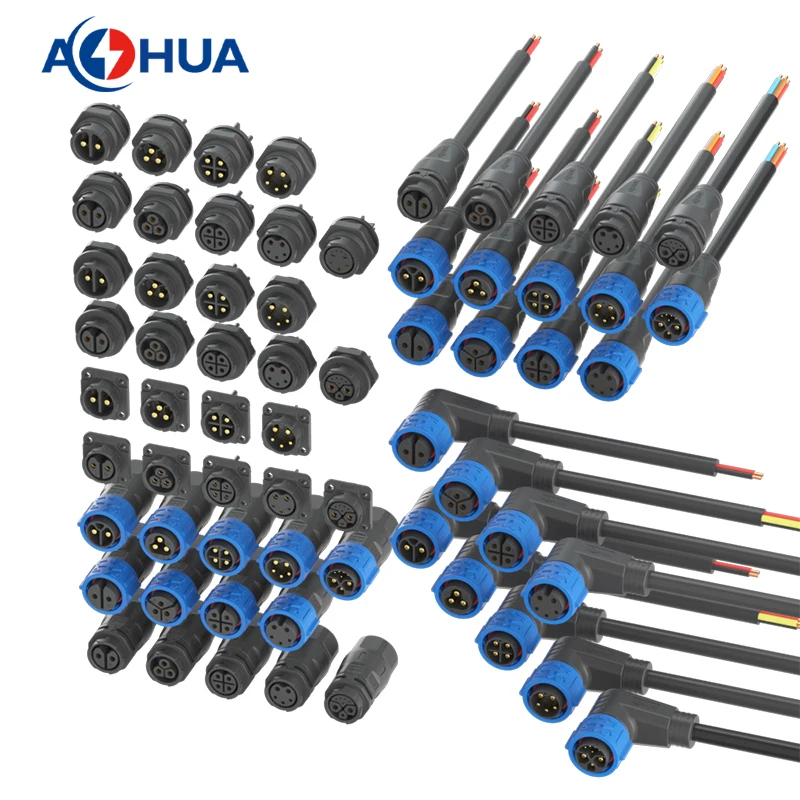

There are other Self-lock/push lock connectors to meet your neeeds | Assembly wire to wire type,wire to panel type,elbow type,pre-wired type |

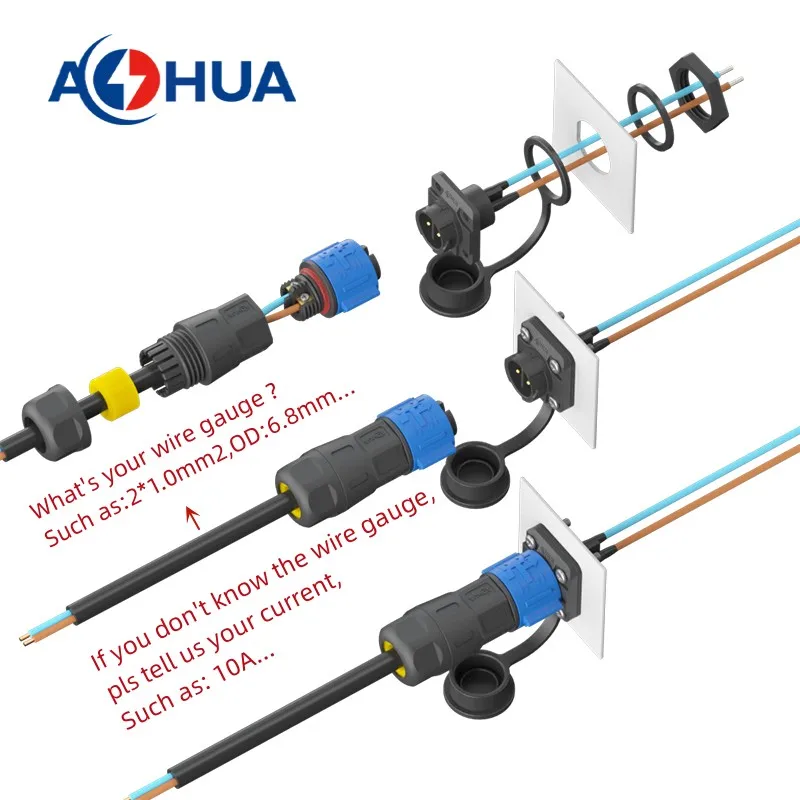

Pls lets us know more information about your cable before purchasing, thanks.
1.What's your cable gauge?
Such as:3*1.0mm2...
Such as:3*1.0mm2...
2.What' your cable outer diameter?
Such as:7.2mm...
3.How much current you need this connector to work for?
Such as:10A
Then we will select a right seal ring size for the connector.
Such as:7.2mm...
3.How much current you need this connector to work for?
Such as:10A
Then we will select a right seal ring size for the connector.

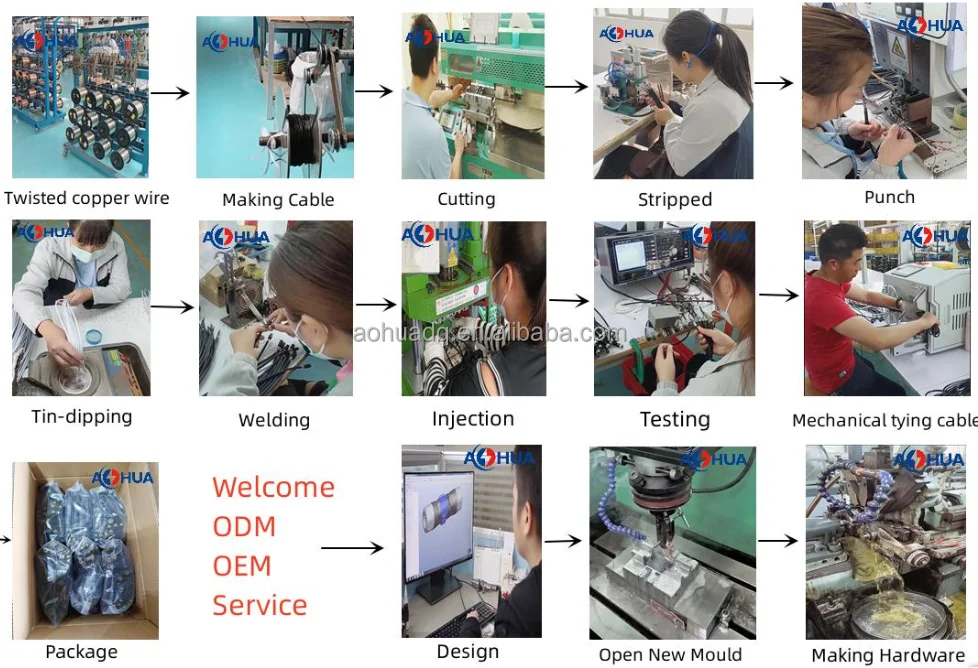

Company Profile

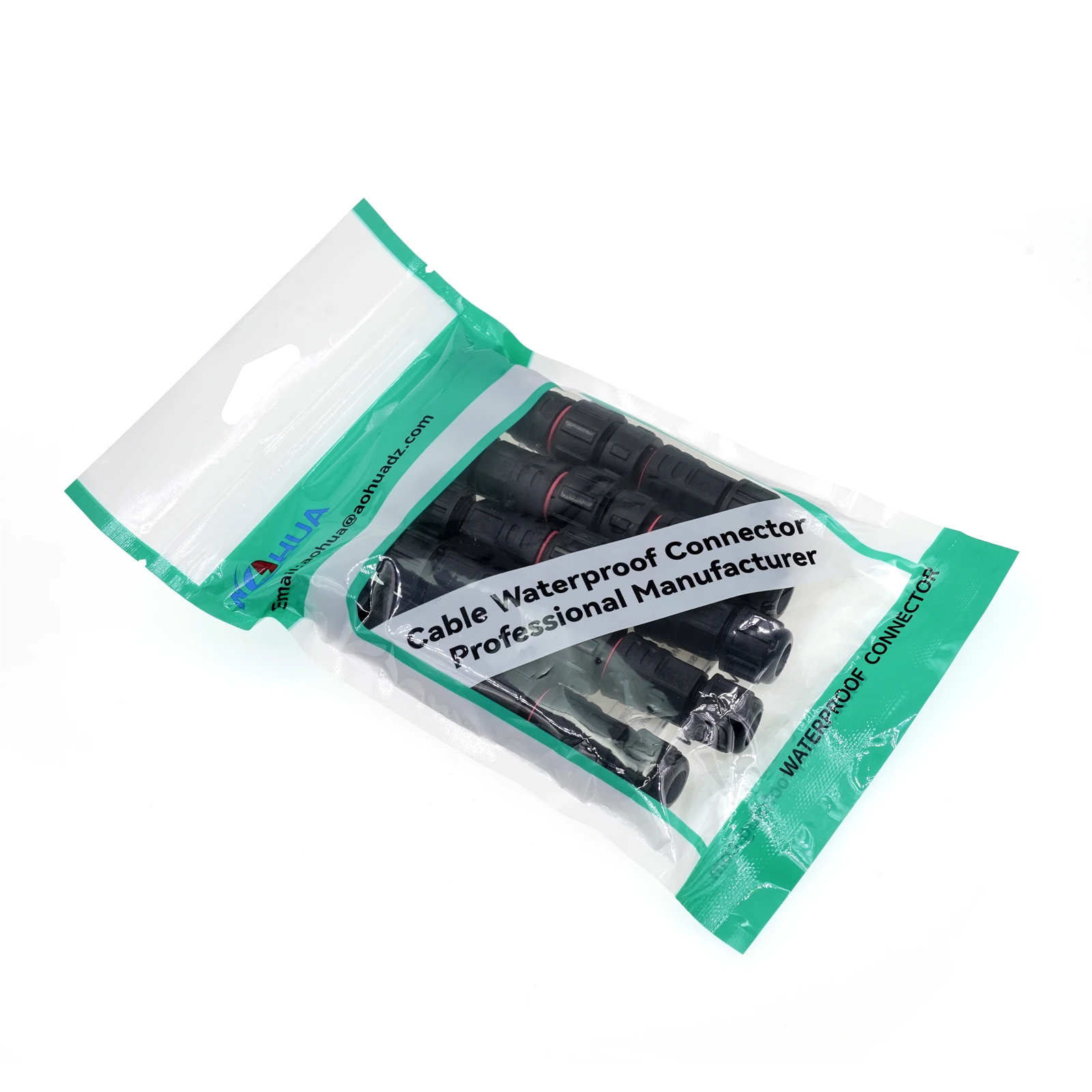

Packaging&shipping
FAQ
1.Q:Are you a factory or trading company?
A:We are a factory from China. OEM&ODM service is available,welcome to contact us.
2.Q:How can I get samples?
A: Please tell me your courier number and your detail address,you need to pay for freight charges by yourself,but the samples is free.
3.Can I choose other packing but carton?
A:Please kindly contact us,your requirement is considered.
4.How do I make sure I can get good products in your company?
A:Our factory has gained ISO9001,ISO14001,and we pay great attention to the quality of products, we are a professional manufacturer with more than 10 years experience in Waterproof connector industry, we prefer to build up a long relationship with clients,we are selected by many domestic and foreign engineering and enterprises.
5.Q:Can you give me some advise about how to buy a correct product?
A:It's my pleasure to help you first of all.If you are interested in our products,one of the most effective and time-saving ways is that you show your drawing to us what you want,if you are not sure.We can give you a solution promptly.
6.Q: The product I need is different from your product specification,but I like your company's product very much.What should I do?
A:Any requirement from customers will be considered since we stick customer service to the center.The products you looking for can be customized by our professional R&D team.
7.What is your payment terms?
A:T/T 30% as deposit,and 70% before delivery.We'll show you the photos of the products and packages before you pay the balance.
8.Q:How to contact with you?
A:Please give me your email,it is the best and the most effective method to keep in touch with each other,and i can provide you with professional solutions in the shortest time.
9.Q:Can I visit your factory?
A:Welcome to visit our factory,it is the best way to know more about us,we believe that you will be more firm to choose us to be your supplier.
1.Q:Are you a factory or trading company?
A:We are a factory from China. OEM&ODM service is available,welcome to contact us.
2.Q:How can I get samples?
A: Please tell me your courier number and your detail address,you need to pay for freight charges by yourself,but the samples is free.
3.Can I choose other packing but carton?
A:Please kindly contact us,your requirement is considered.
4.How do I make sure I can get good products in your company?
A:Our factory has gained ISO9001,ISO14001,and we pay great attention to the quality of products, we are a professional manufacturer with more than 10 years experience in Waterproof connector industry, we prefer to build up a long relationship with clients,we are selected by many domestic and foreign engineering and enterprises.
5.Q:Can you give me some advise about how to buy a correct product?
A:It's my pleasure to help you first of all.If you are interested in our products,one of the most effective and time-saving ways is that you show your drawing to us what you want,if you are not sure.We can give you a solution promptly.
6.Q: The product I need is different from your product specification,but I like your company's product very much.What should I do?
A:Any requirement from customers will be considered since we stick customer service to the center.The products you looking for can be customized by our professional R&D team.
7.What is your payment terms?
A:T/T 30% as deposit,and 70% before delivery.We'll show you the photos of the products and packages before you pay the balance.
8.Q:How to contact with you?
A:Please give me your email,it is the best and the most effective method to keep in touch with each other,and i can provide you with professional solutions in the shortest time.
9.Q:Can I visit your factory?
A:Welcome to visit our factory,it is the best way to know more about us,we believe that you will be more firm to choose us to be your supplier.
