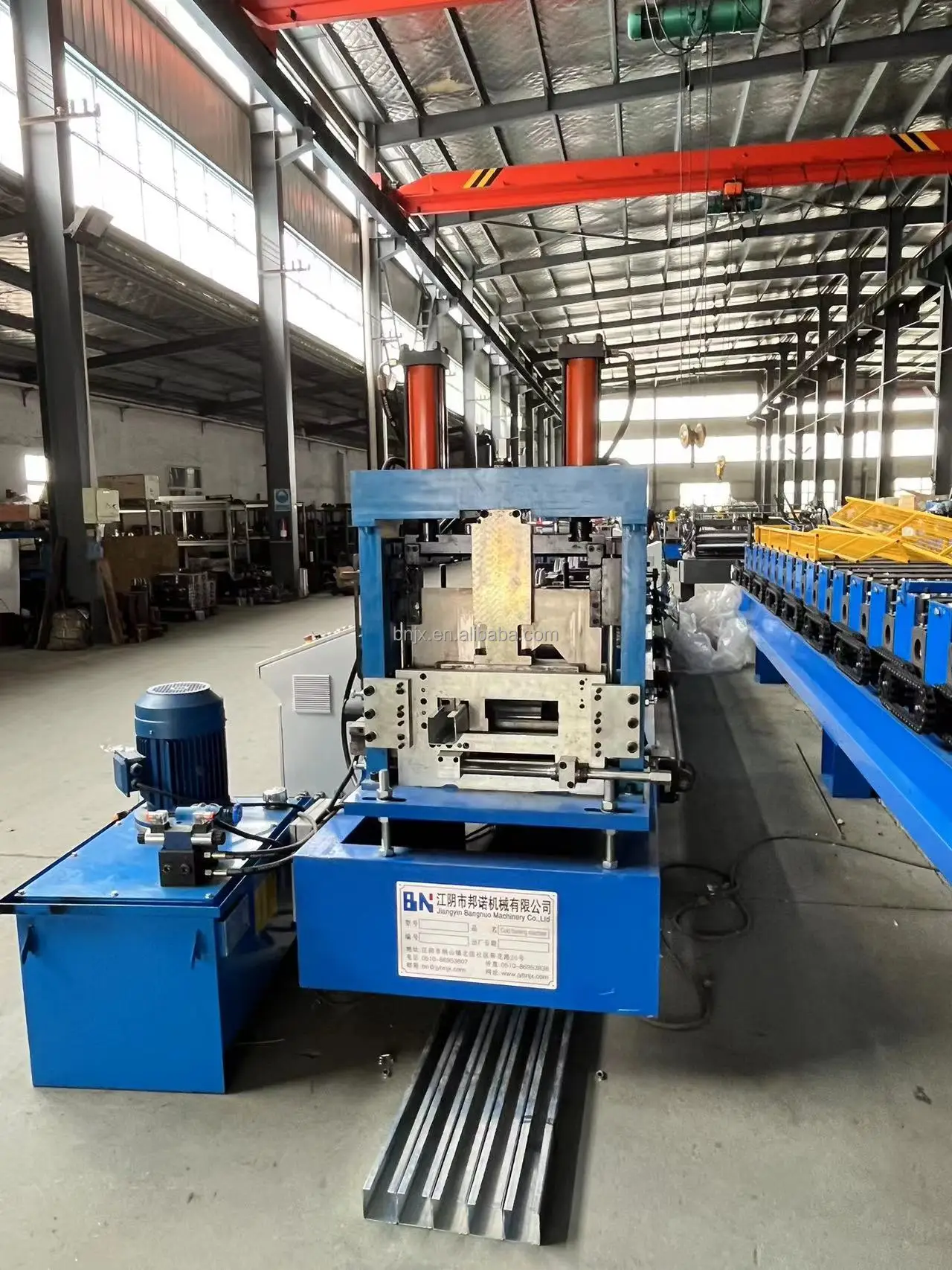

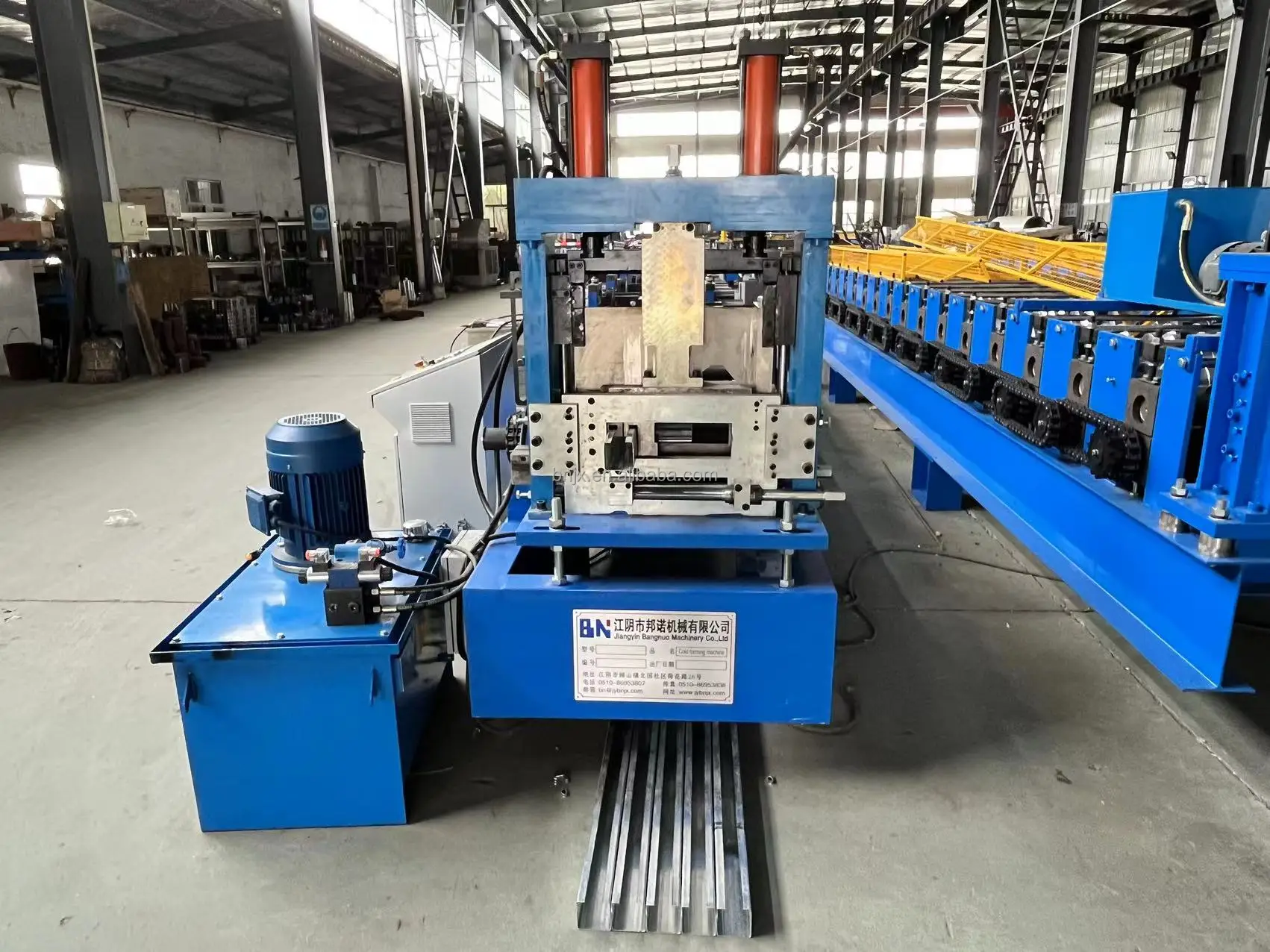

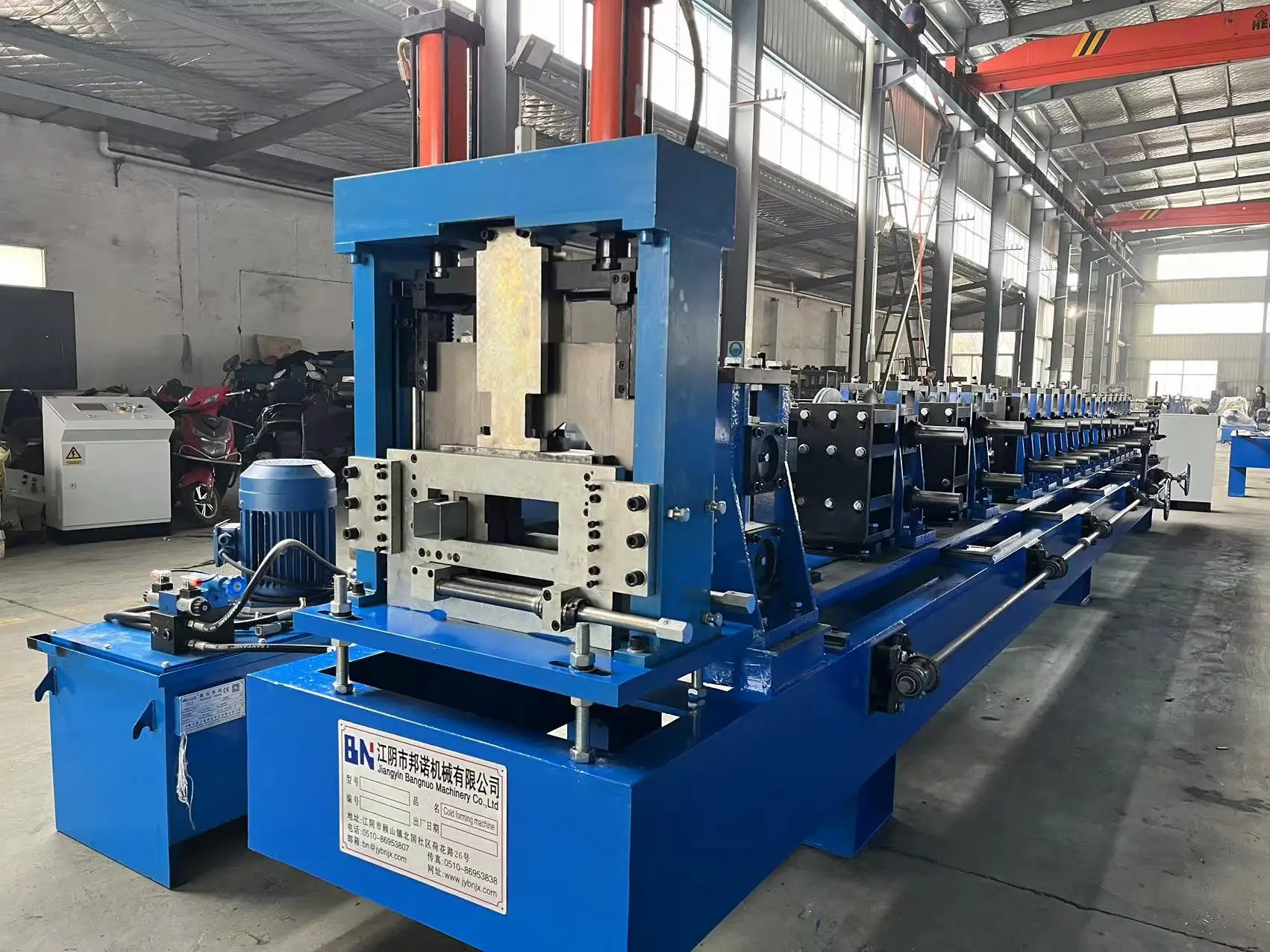

2024 High Precision C Purlin Profile Machine Purlin Forming Making Machine C Z Steel Frame Purlin Cold Roll Forming Machine
- Category: >>>
- Supplier: Jiangyin Bangnuo Machinery Co. Ltd.
Share on (1601009020790):
Product Overview
Description
Product Description
Main Features
1. Keel size as per your drawing
2. Compact and elegant
3. PLC automatic control
4. Touch screen operation

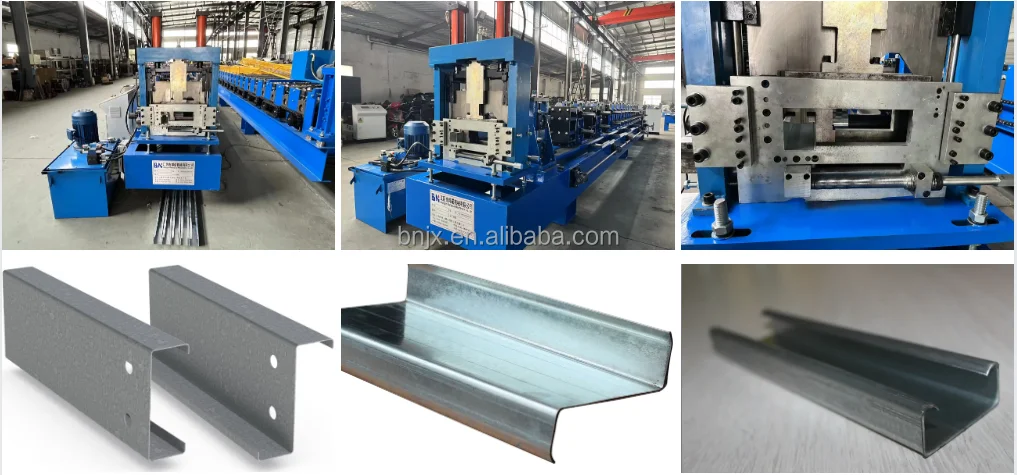

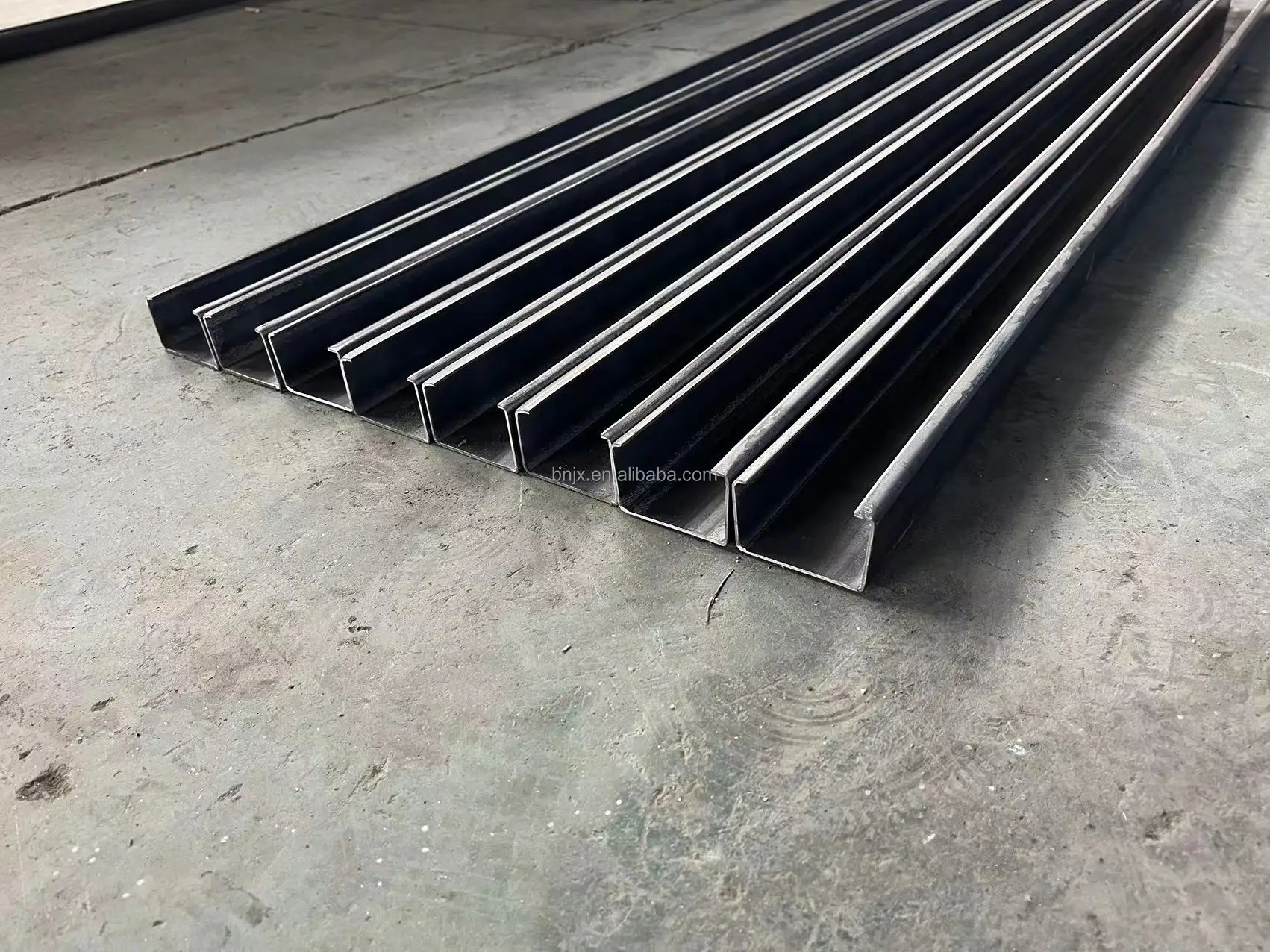

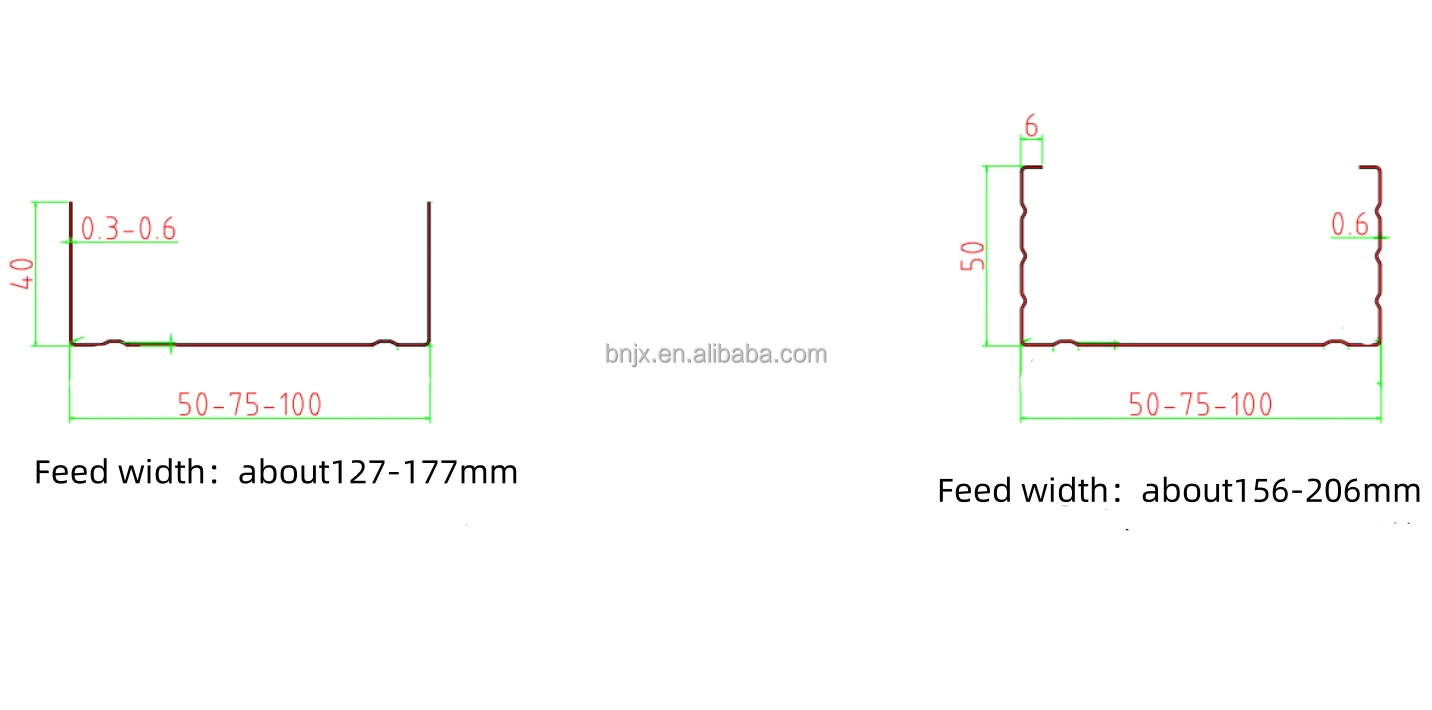

profile
Equipment Flowsheet

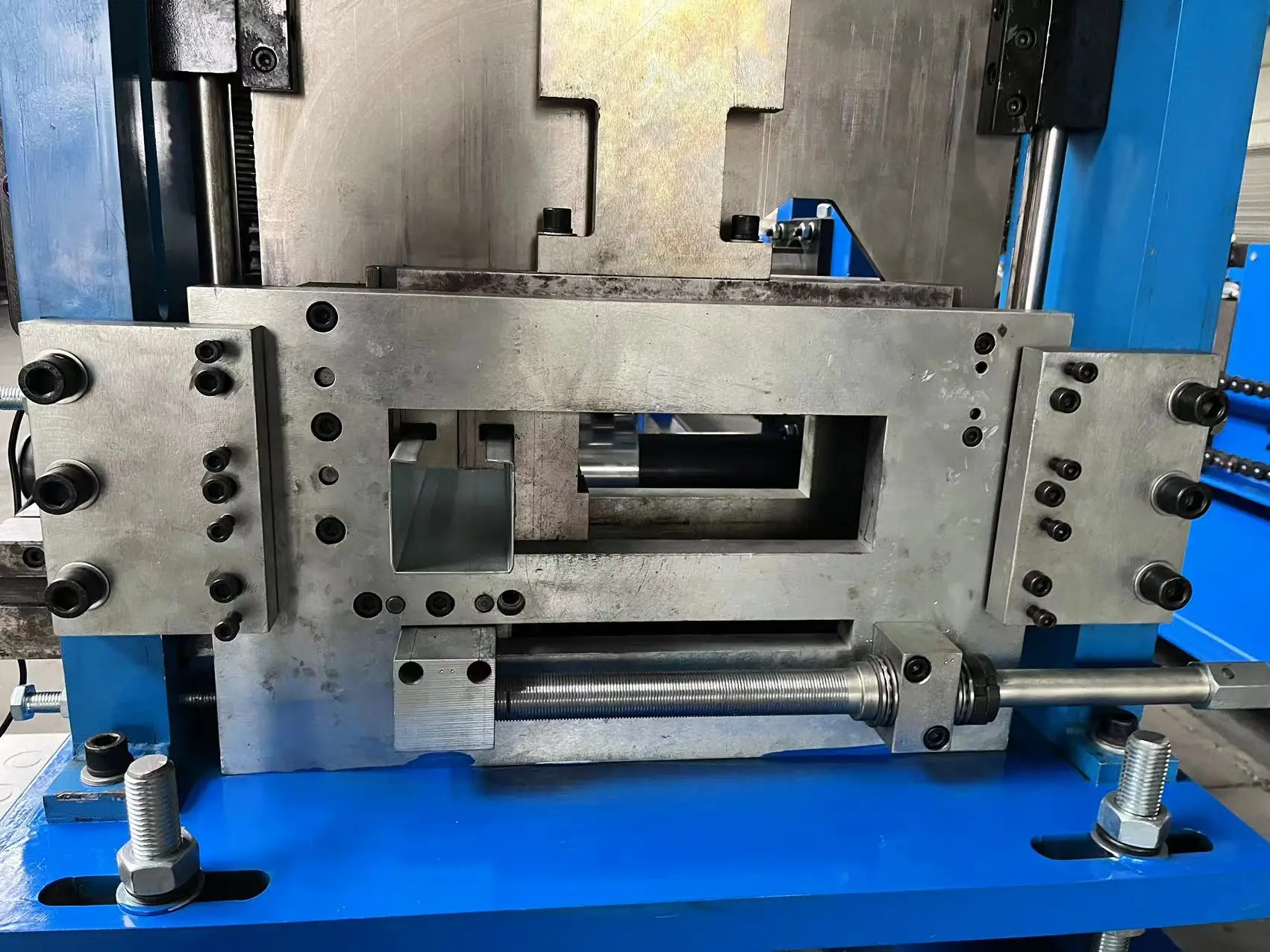

De-coiler→feeding→roll forming→rectify→post cutting →output table
Detailed Technology
3T manual decoiler | ||
Width of feeding | 300mm | |
Dimensions | 1700mm*1000mm*800mm | |
Bound of expand &fight | 420mm-510mm | |
Capability | 3000 Kg | |
Way of feeding | manual | |
Color | blue | |
Forming Section | |
Thickness range | 0.4-0.7mm GI sheet |
Main motor power | 4kw, AC motor, side motor to save space (Brand: Guomao which made in China) |

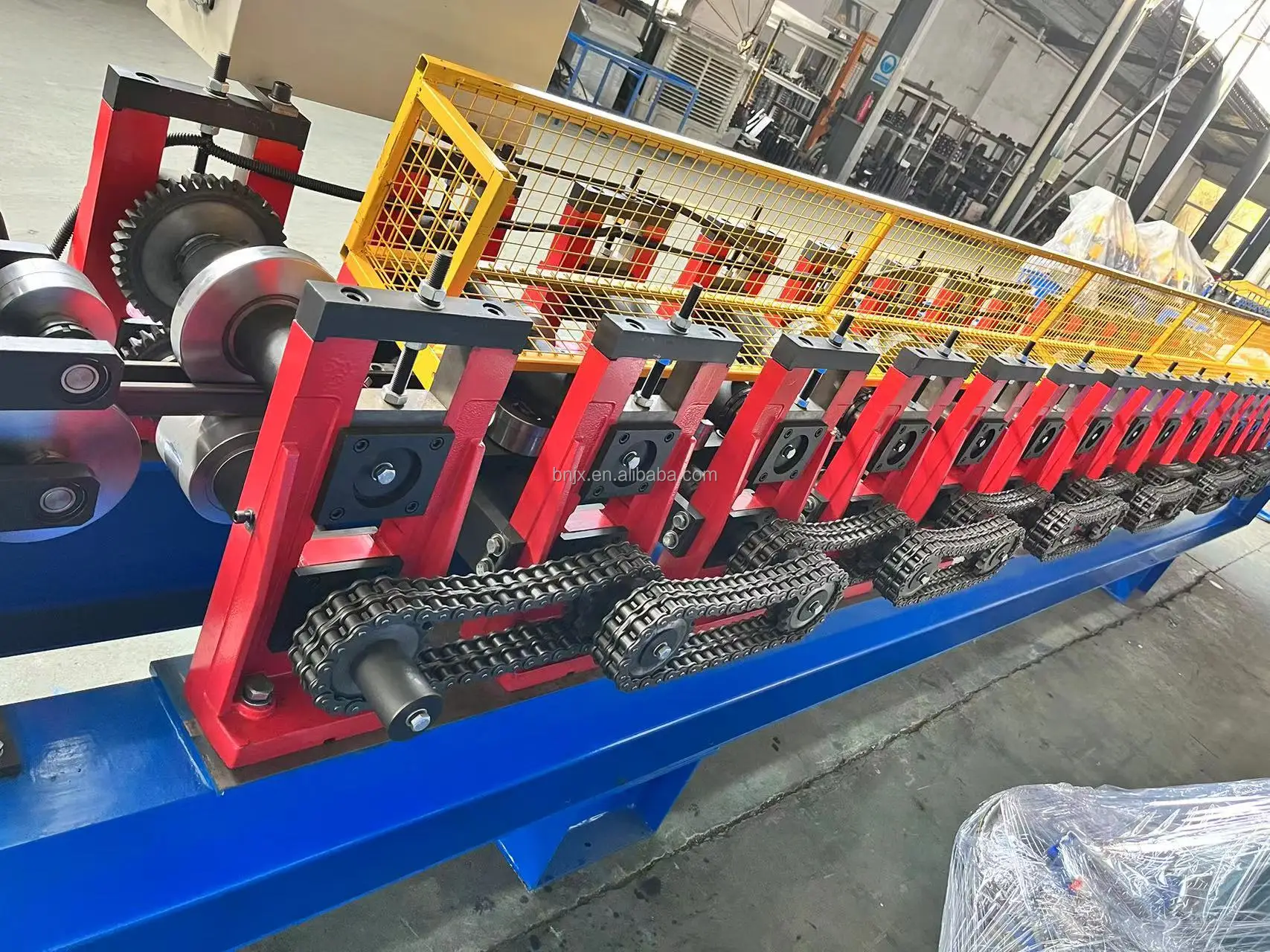

Roll station | about 8stations +1 station of rectify |
Shaft diameter | ￠56mm |
Roller material | SAE1045, hardness and chrome plated surface |
Machine roll forming speed | 0-15m/min |
Transmission | by chain, one inch |
manual out table | ||
Frame | welding by tube | |
Size | 2.0m long*0.3mwide*0.9mhigh | |
One out table with support rolle | ||
Supporter roller | ASTM 1045 with chrome | |
Diameter of rollers | 55mm | |
Quantity | 2units | |
Hydraulic station | |
Hydraulic power | 3kw |
Working pressure | 12Mpa adjustable |
Solenoid valve | 1 groups |
Hydraulic oil | 46# hydraulic oil |
Color | Blue (or base on customer request) |
Quantity | 1 |
Control desk | ||
Programmable setting of profile length and quantity | ||
Automatic stopping of the equipment after completion of the cutting programme will be provided. | ||
language | English and Chinese | |
Voltage, Frequency, Phase | 380 V, 50 Hz, 3Phase | |
Control panel | Button-type switch and touch screen | |
Unit of length | millimeter | |
PLC brand | Panasonic | |
FAQ
Q1.Does one machine can only produce one size?
Not exactly. It depends on the type and version of machine you need.
Q2.Do you have after sales support?
Yes,we are happy to give advice and also have skilled technicians available to maintain the machine if needed.
3. You are trade company or factory?
We are Manufacturer,and also a CE manufacturer.
4.How long the machine could be made?
Normally speaking, high precision roll forming machine could be made out with 40 working days.If you need machines in hurry, we
can make it for you less than a month.
5. Do you provide customized?
Sure, we can design the equipment according to the data of the structural section you provide.Our engineers can offer the best
professional solution to our worldwide clients.Meanwhile we can provide door-to-door service.
6.How to visit your factory?
By high speed train from Shanghai to Wuxi, half an hour.You can also fly directly to Wuxi.
7.What's the warranty period?
12 months warranty period, starting from the date of the successful installation and commissioning of the equipments at the
Buyer’s Installation site.
8.May we visit your factory?
Sure,Warmly welcome to our factory at any time.
Not exactly. It depends on the type and version of machine you need.
Q2.Do you have after sales support?
Yes,we are happy to give advice and also have skilled technicians available to maintain the machine if needed.
3. You are trade company or factory?
We are Manufacturer,and also a CE manufacturer.
4.How long the machine could be made?
Normally speaking, high precision roll forming machine could be made out with 40 working days.If you need machines in hurry, we
can make it for you less than a month.
5. Do you provide customized?
Sure, we can design the equipment according to the data of the structural section you provide.Our engineers can offer the best
professional solution to our worldwide clients.Meanwhile we can provide door-to-door service.
6.How to visit your factory?
By high speed train from Shanghai to Wuxi, half an hour.You can also fly directly to Wuxi.
7.What's the warranty period?
12 months warranty period, starting from the date of the successful installation and commissioning of the equipments at the
Buyer’s Installation site.
8.May we visit your factory?
Sure,Warmly welcome to our factory at any time.
9. How to get a quotation?
1. Give me the dimension drawing and thickness, it is very important.
2. If you have requirements for production speed, power, voltage and brand, please explain in advance.
3. If you don't have your own outline drawing, we can recommend some models according to your local market standard.
Certifications
Company Profile
Jiangyin Bangnuo Machinery Co.. Ltd. is a professional manufacturer dedicated Color light steel construction . C. Z steel equipment and rolling, bending molding equipment enterprises. with the design and manufacture of various types of steel sheet thickness roll forming production line strength.
Company specializing in the productian of Dagong machines, foor plate machine, guardrail plate machine, corrugated tie machine , shearing machine, sub-board machine , highway guardrail , tile machine equipment , automatic tile press , iron Piva machine, iron tile machine, all automatic C-shaped steel machine. glazed tile machine
TRANSPORT
No additional packaging,
firmly fixed in containers
with belt and wood.
suitable for sea transportation
