product name

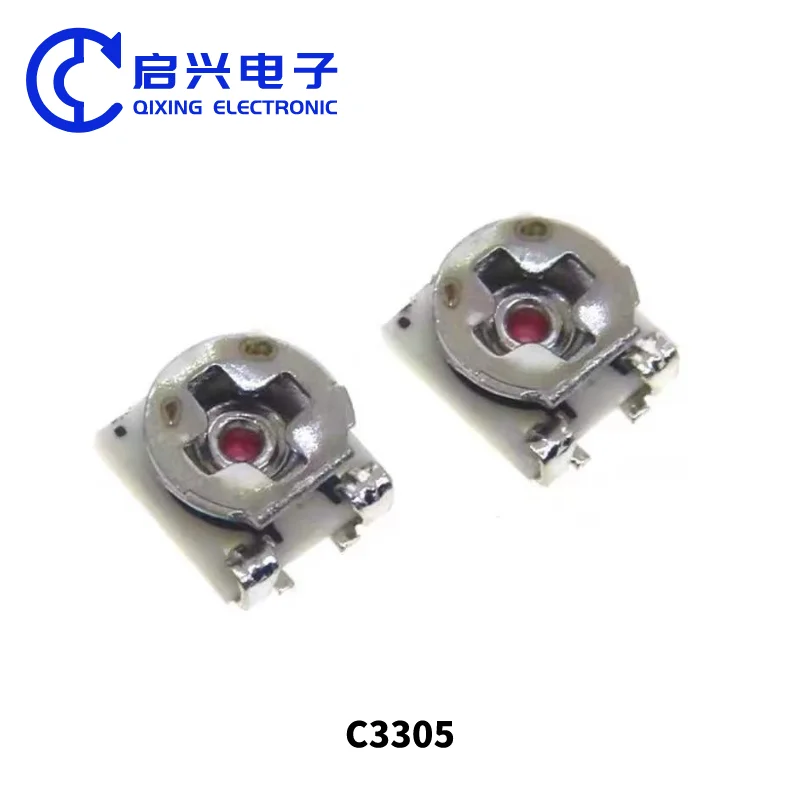

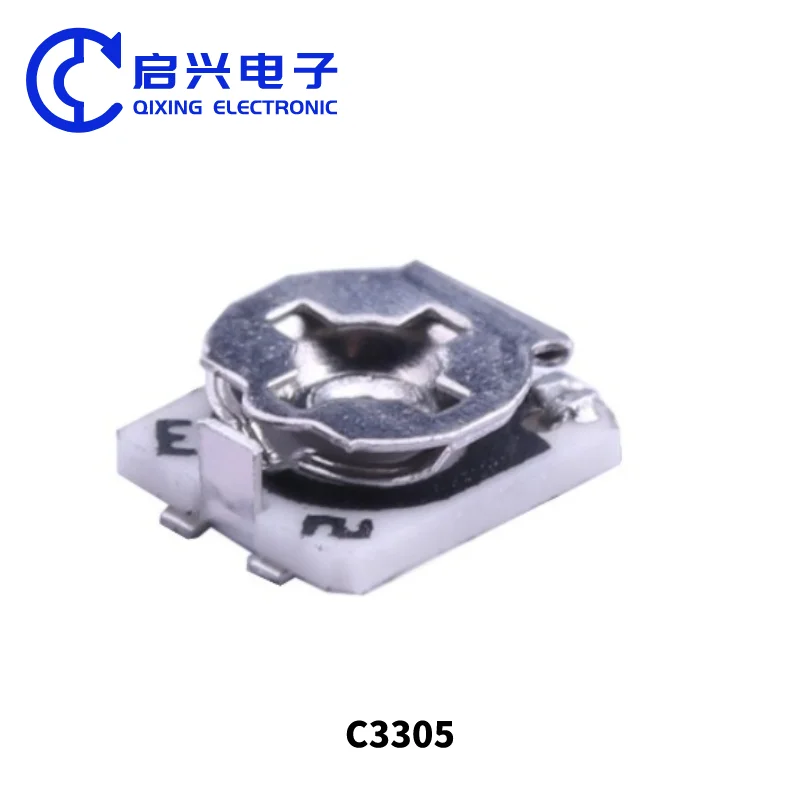

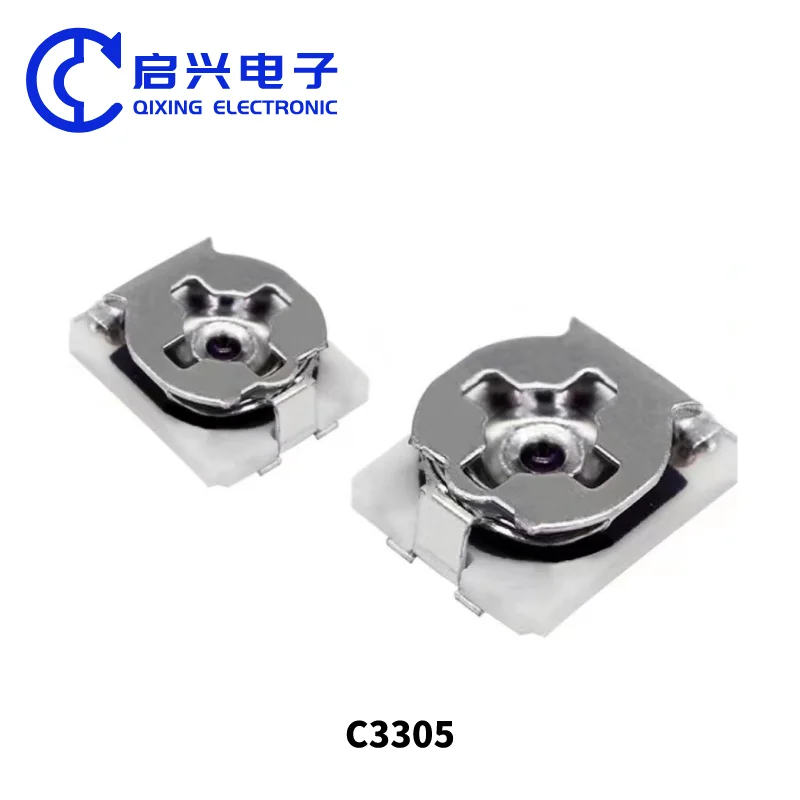

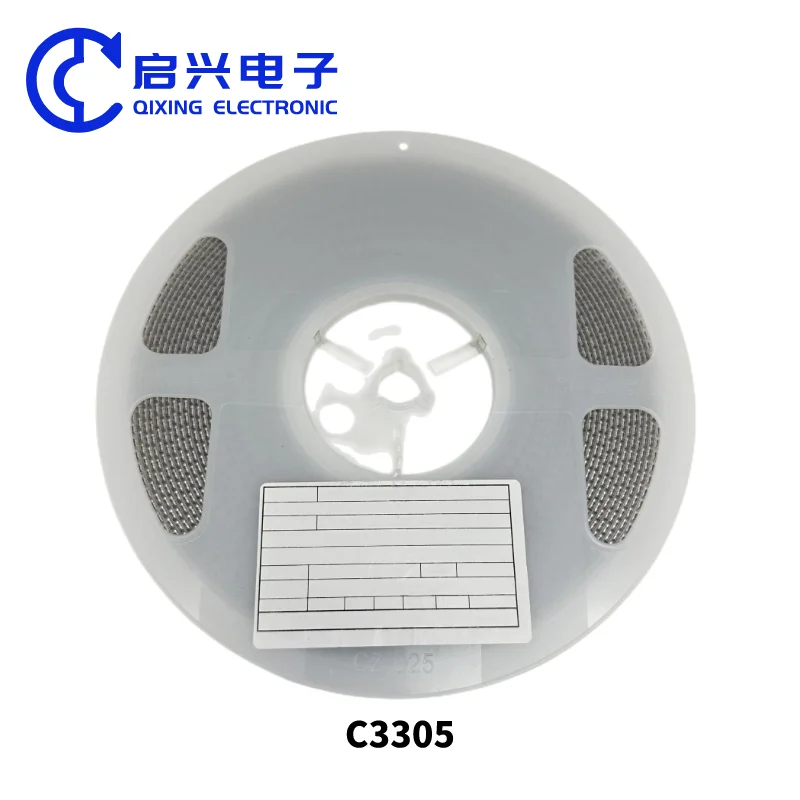

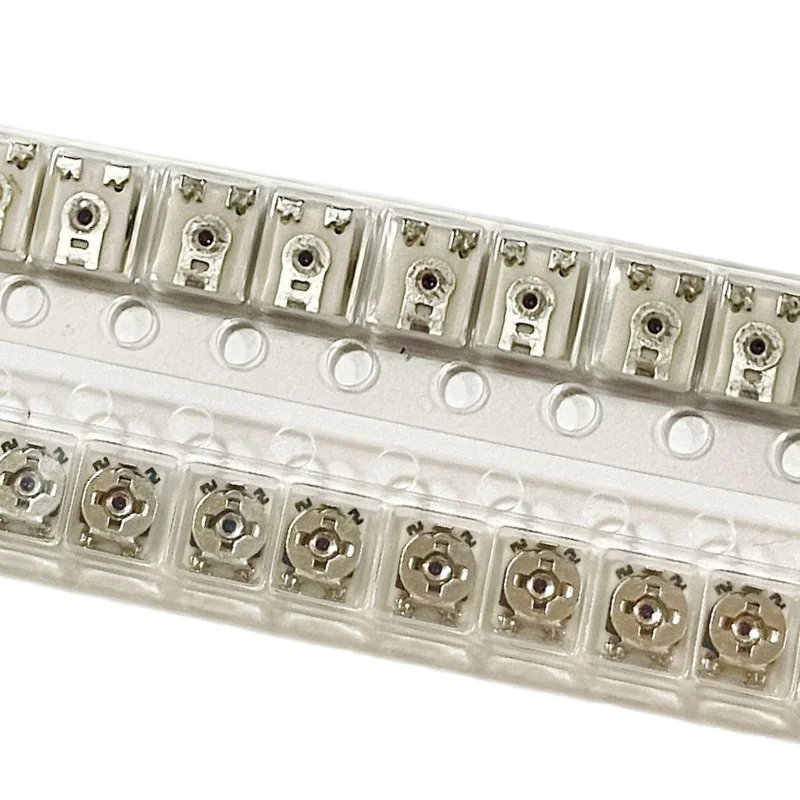

C3305 Single Ring Glass Glaze Patch Pre adjusted Potentiometer Patch adjustable resistance fine-tuning potentiometer Original integrated circuits electronics components

product description

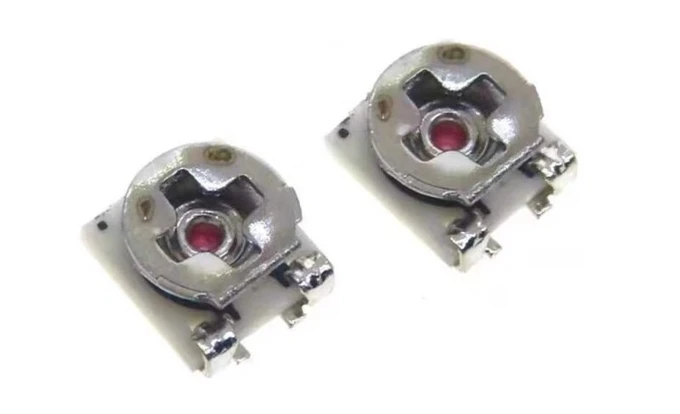

The 3x3 chip potentiometer is composed of a resistor body and a rotating system. The chip potentiometer represents an adjustable component fixed on the PCB circuit board by soldering. When a voltage is applied between the two fixed contacts of the PCB board by the resistor body of the potentiometer, the position of the contact point on the resistor body is changed by rotating the system. The main parameters of a 3 * 3 chip potentiometer and a 3x3 adjustable resistor are resistance value, resistance adjustment error, resistance range, resistance change characteristics, and rated power. 3 * 3 chip potentiometers are widely used in electronic devices, circuit control boards, amplifiers, instruments, and other products that require smaller component volumes. They can be used for volume control in audio and radio systems.

Single coil metal glass glazed chip potentiometer C3305 resistance values: 100R, 200R, 300R, 500R, 1K, 2K, 3K, 5K, 10K, 20K, 30K, 50K, 100K, 200K, 500K, 1M.

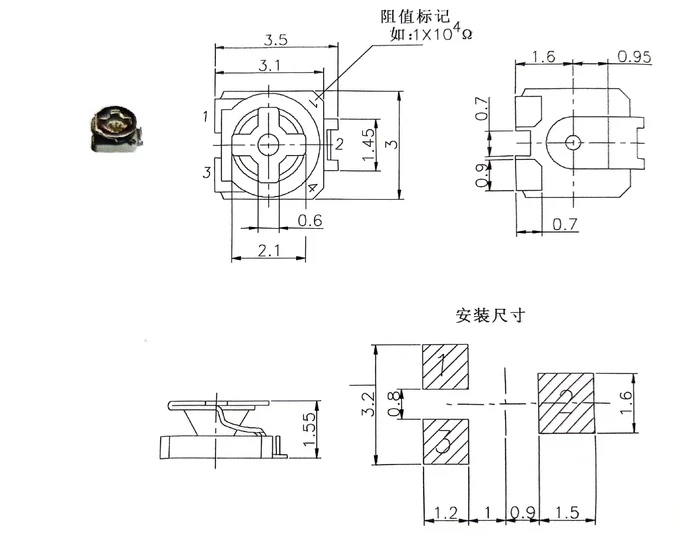

Product size

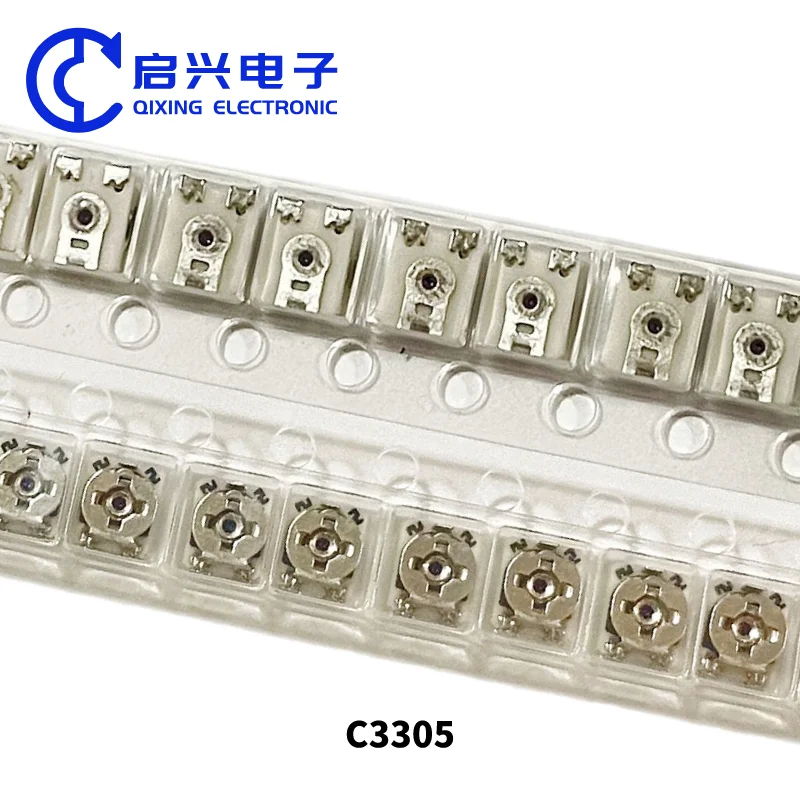

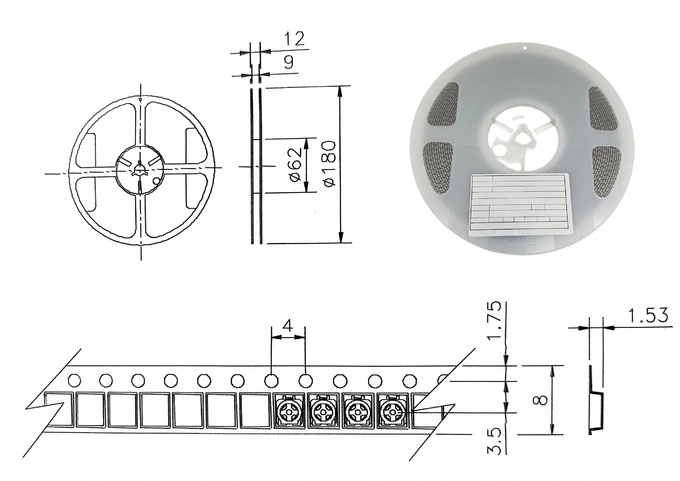

Product packaging

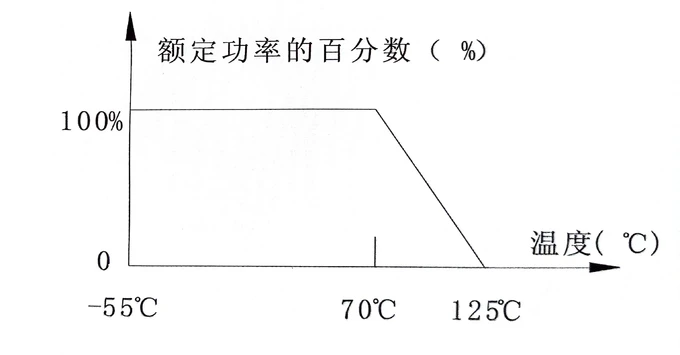

Power Reduction Curve

Specification parameters



rical Characteristics			Range of nominal resistance			100Ω~1MΩ
			Resistance tolerance			±25%
			Terminal resistance			≤±1%R or 10Ω
			Contact resistance variation (CRV)			≤±2%R
			Insulation resistance			≥ 500MΩ (100V AC)
			Max working voltage			50V
			Effective electrical travel			≥210°
Environment Characteristics			Rated power			0.1W ( 300V max)
			Temperature range			-55°C~+125°C
			TCR			±250×10-6/°C
			Collision (390m/S2, 4000 times)			R≤±1%R
			Vibration (10-500HZ, 0.75mm, 6h)			R≤±1%R, Uab/Uac≤±2%R, Electrical break≤100μS
			Temperature variation (-55°C/30min, +125°C/30min, 5 cycles)			R≤±2%R, Uab/Uac≤±2%R
			Climate category (IEC68-2-2)			R≤± (10%R+0.1Ω), Insulation Resistance ≥100MΩ
			Electrical endurance (0.25W, 1000h)			R≤± (5%R+0.1Ω)
			Mechanical endurance (200 cycles)			R≤± (20%R+0.5Ω)
			Steady damp heat (IEC68-2-3, Ca, 96h)			R≤± (10%R+0.1Ω), Insulation Resistance≥100MΩ
Physical Characteristics			Total mechanical travel			360°
			Starting torque			2-20mN.m
			Soldering conditions			240℃-260℃(5 second
			Standard pacdage			2000pcs/reel





application area:

The CC305 single coil metal glass glaze pre adjustable potentiometer has a wide range of applications in various electronic devices and circuits, including communication equipment, audio equipment, power regulation, instrumentation, and control circuits Automotive electronics, lighting equipment, etc

product catalog:

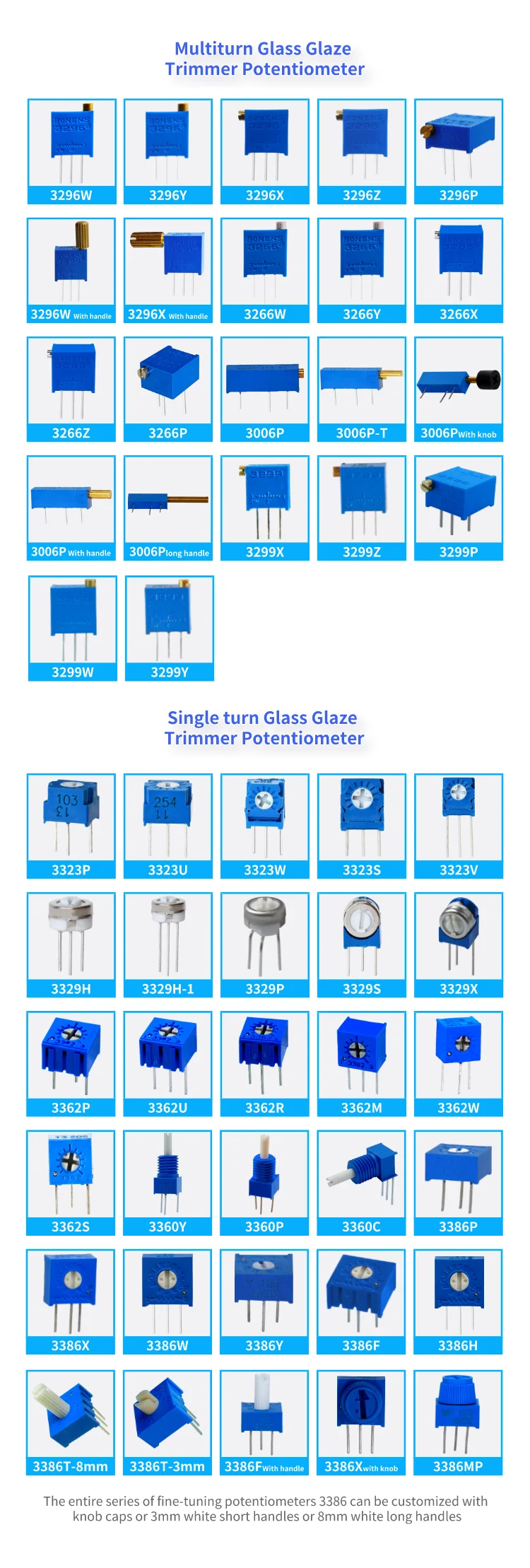

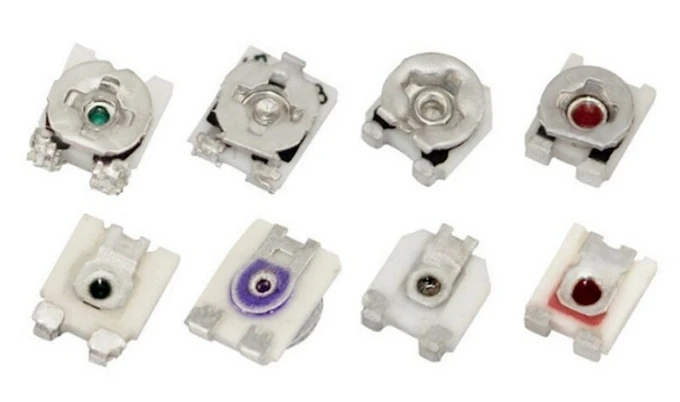

There are two types of glass glaze pre adjustment potentiometers: multi turn micro adjustment potentiometers and single turn micro adjustment potentiometers. There are 3296 series, 3266 series, 3006 series, and 3299 series for multi turn metal glass glaze pre adjustment potentiometers. There are 3323 series, 3329 series, 3362 series, 3386 series, and 3360 series for single turn micro adjustment potentiometers
