Acrel AEW100 D160R CE 470MHz Wireless temp monitor 3 Phase Energy Power Meter With Cts Piercing Connect
- Category: >>>
- Supplier: Jiangsu Acrel Electrical Manufacturing Co. Ltd.
Share on (1601009054267):
Product Overview
Description
Product Description

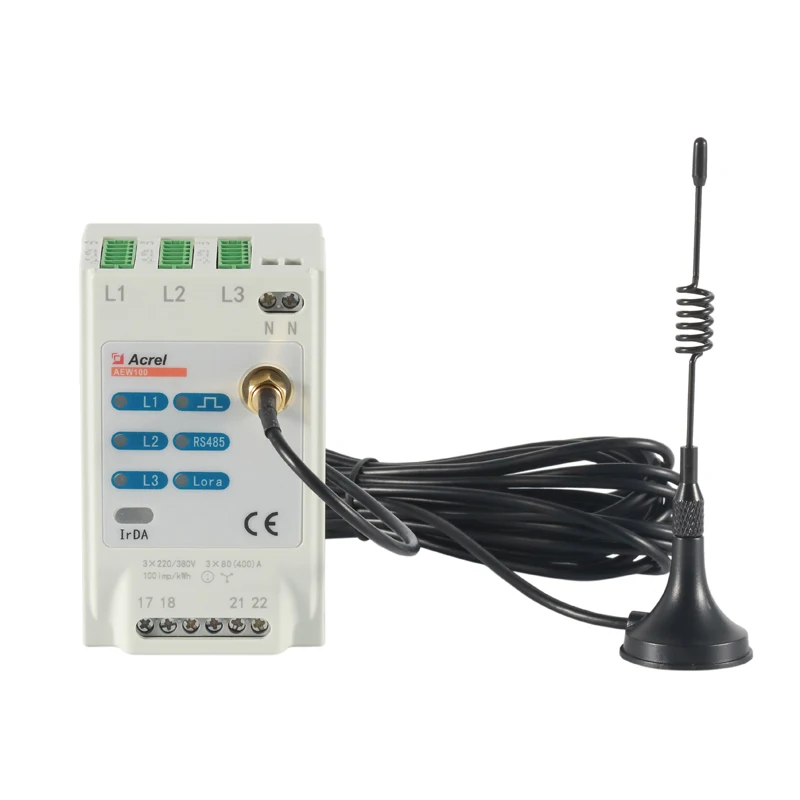

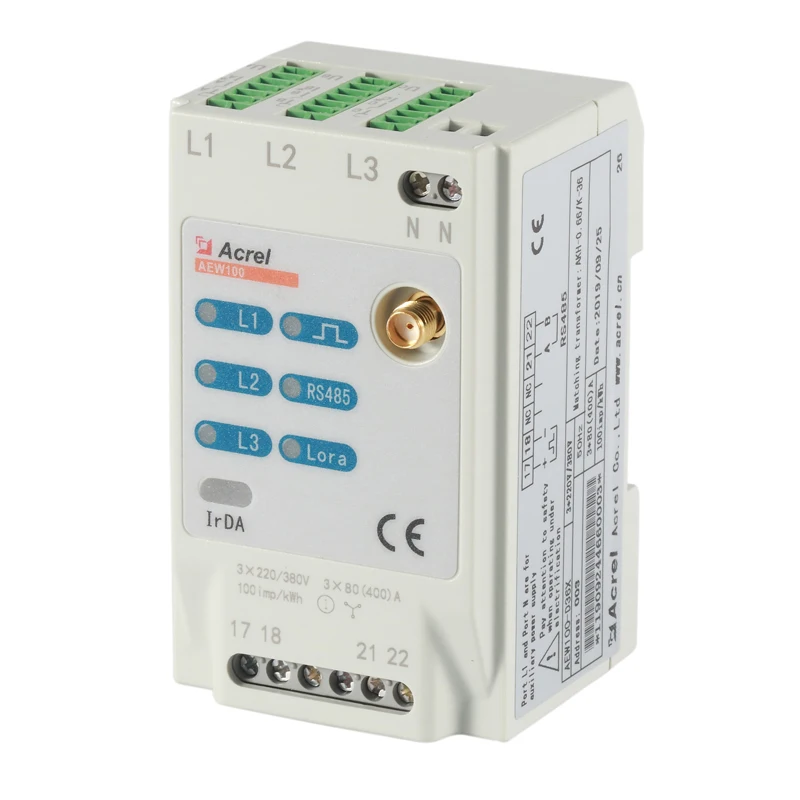

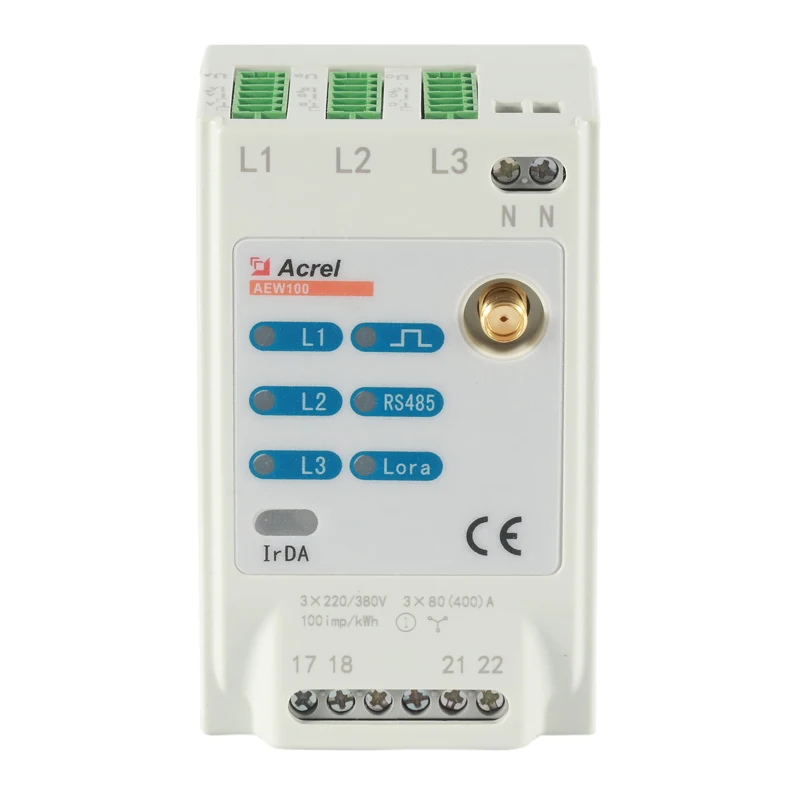

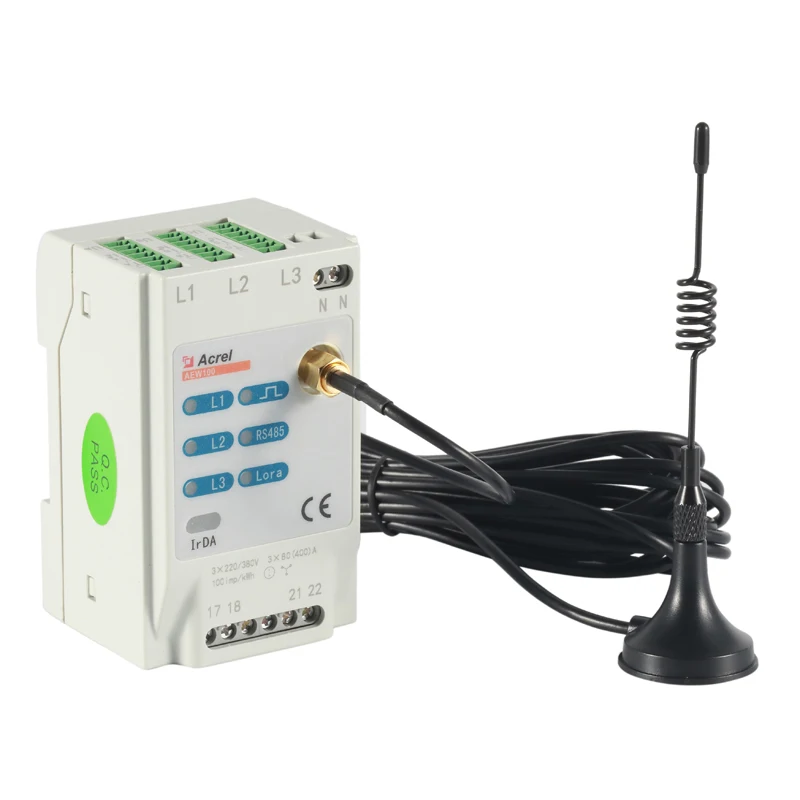

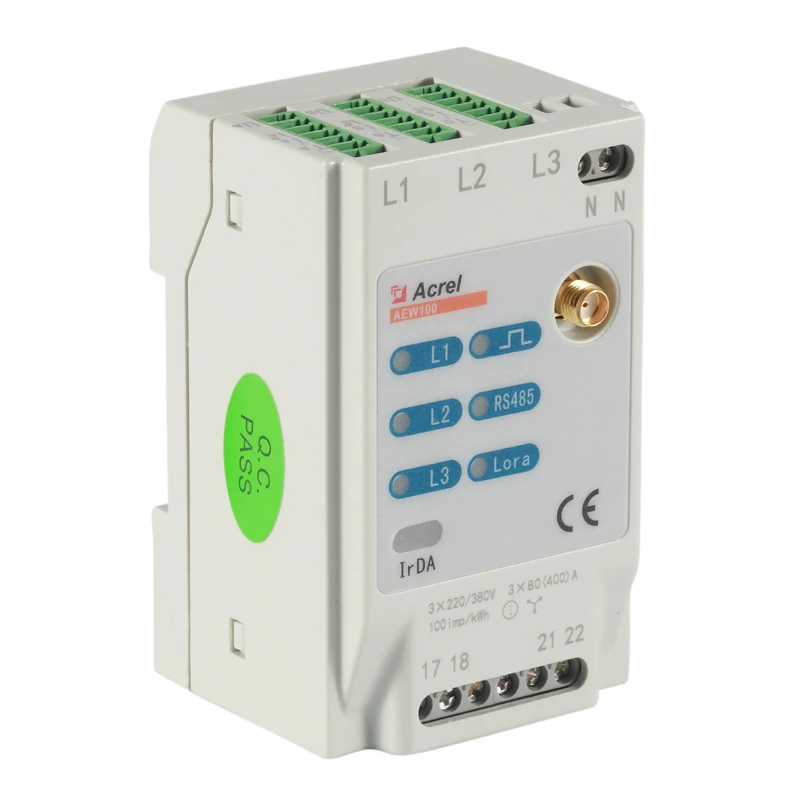

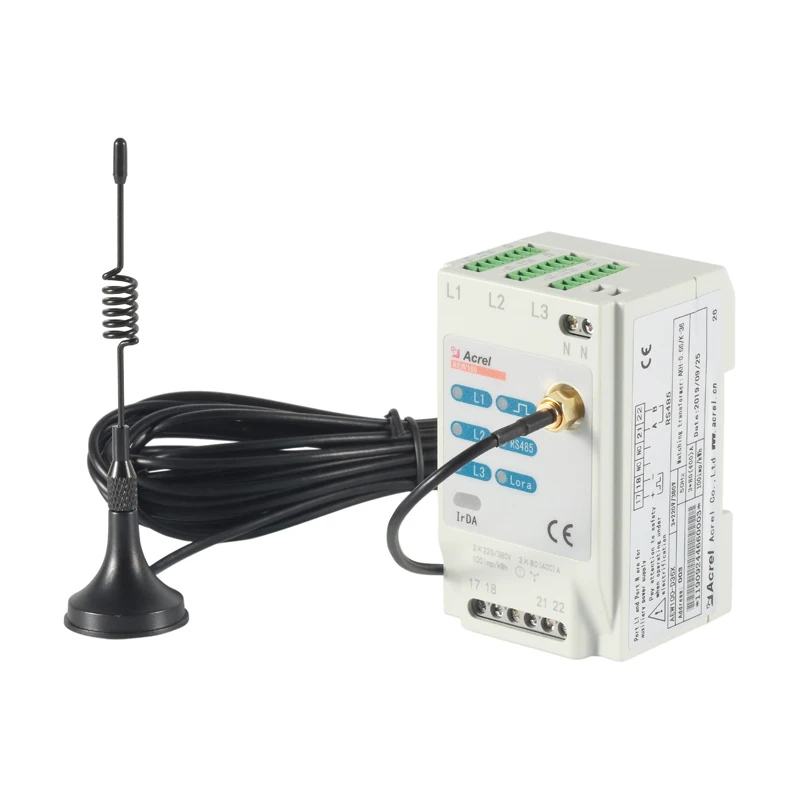

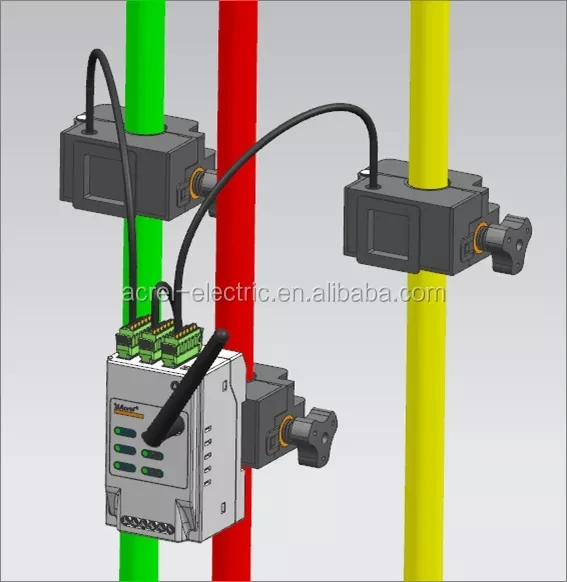

AEW 100 wireless measurement module is mainly used for metering three phase active energy on low voltage network. There are
functions like RS485 communication and wireless communication on 470MHz in order to help customers check, get and manage the value
of energy consumption. This kind of production can be installed in distribution box flexibly, achieving the different demand of
measurement and statistics of distribution on different areas and different loadings.
functions like RS485 communication and wireless communication on 470MHz in order to help customers check, get and manage the value
of energy consumption. This kind of production can be installed in distribution box flexibly, achieving the different demand of
measurement and statistics of distribution on different areas and different loadings.
Function
Accuracy
Active energy: Class 1
Frequency
Range: 50Hz
Pulse output
1 channel for kWh Constart: 6400imp/kWh
400imp/kWh、200imp/kWh、100imp/kWh、60imp/kWh
Consumption
≤2VA
Auxiliary power supply
220VAC
Active energy: Class 1
Frequency
Range: 50Hz
Pulse output
1 channel for kWh Constart: 6400imp/kWh
400imp/kWh、200imp/kWh、100imp/kWh、60imp/kWh
Consumption
≤2VA
Auxiliary power supply
220VAC
Specification
Model | AEW100-D100R(3 pieces φ20mm split core current transfomers included 3X200(1000)A,3X400(2000)A) | |||||
Technical data | ||||||
Input | Net | three-phase three-wire,three-phase four-wire | ||||
Frequency | 45~65HZ | |||||
Voltage | rated value | 3X220/380V,3X380V | ||||
reference frequency | 50Hz | |||||
power consumption | <2VA(every phase) | |||||
Current | rated value | 6A,100A,200A,400A | ||||
input current | 3×1.5(6)A,3×20(100)A, 3×40(200)A,3×80(400)A,3×120(600)A | |||||
start current | 1‰Ib(1.5(6)A) ,4‰Ib | |||||
power consumption | <2VA(max current) | |||||
Accuracy | Active energy accuracy | class 1 ,0.5S (current 3×1.5(6)A using AKH-0.66/K-20 CT) | ||||
temperature accuracy | ±2℃ | |||||
Pulse | pulse duration | 80±20ms | ||||
pulse constant | 6400imp/kWh ,400imp/kWh,200imp/kWh,100imp/kWh,60imp/kWh | |||||
Communication | Lora | Transmission on 470MHz and maximum distance in open areas is 1km | ||||
Infrared communication | The constant baud rate is 1200 | |||||
Interface | RS485(A+,B-) | |||||
dielectric | Shielded twisted pair conductors | |||||
Protocol | Modbus RTU,DL/T645-07 | |||||
Optional function | Temperature measuring(TN) | |||||
Environment | temperature | working temperature:-20~55℃ storage temperature:-30~70℃ | ||||
humidity | ≤95%(without condensation | |||||
altitude | <2000m | |||||
Basic functions | ||||||
three phase(I,U,P,Q,S,PF,F measuring),total positive and negative active electrical energy counting, total positive and negative reactive electrical energy counting; | ||||||
2-31st harmonic and total harmonic analysis, sub-phase harmonic and fundamental harmonic electrical parameters(voltage,current and power); | ||||||
RS485,470HZ Lora communication,infared communication; | ||||||
current value 100A,200A and 400A,active energy accuracy class 1 and reactive energy accuracy class 2 | ||||||

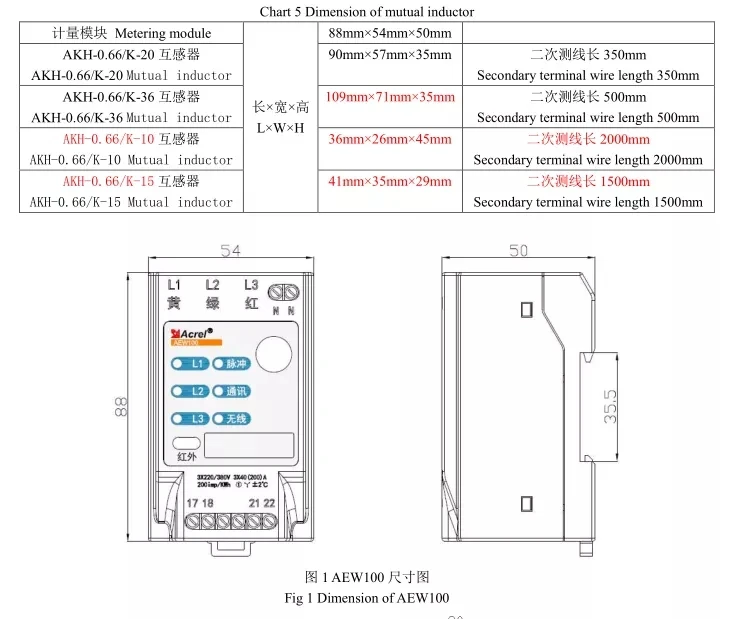

Dimensions and wirings
