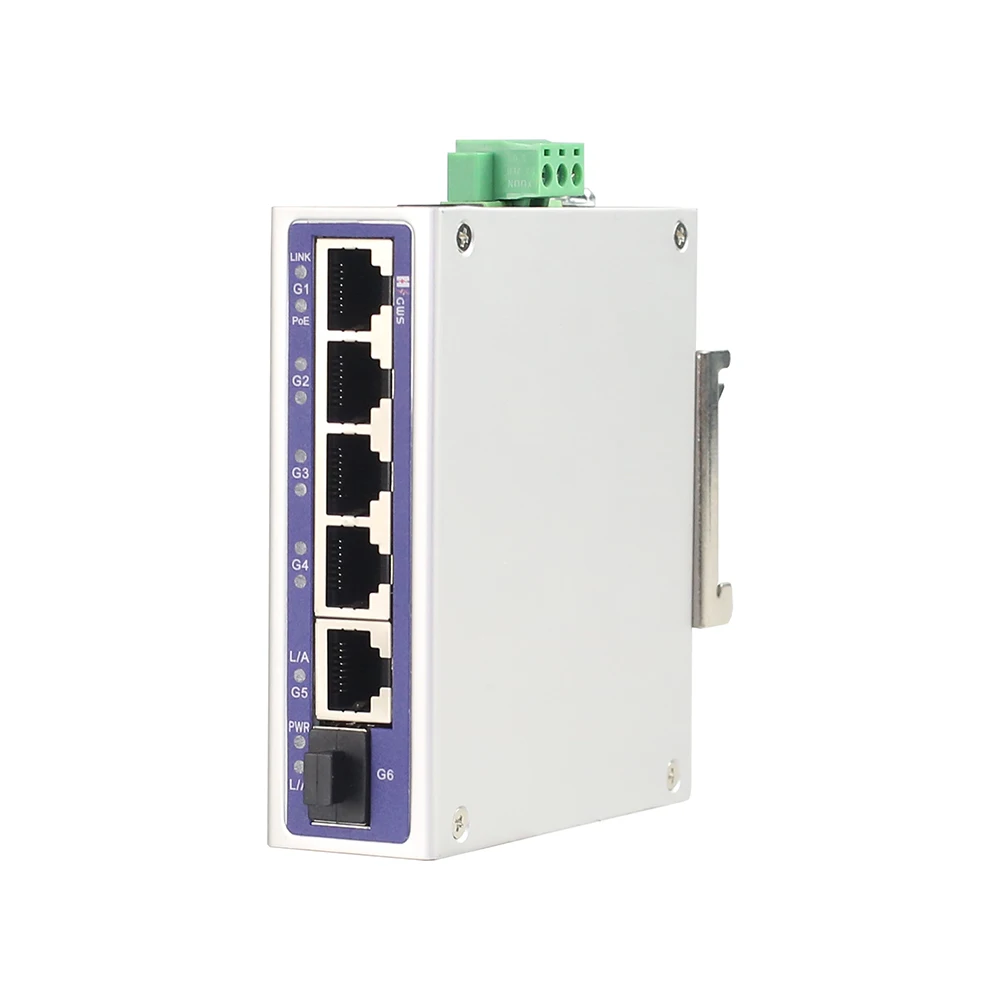

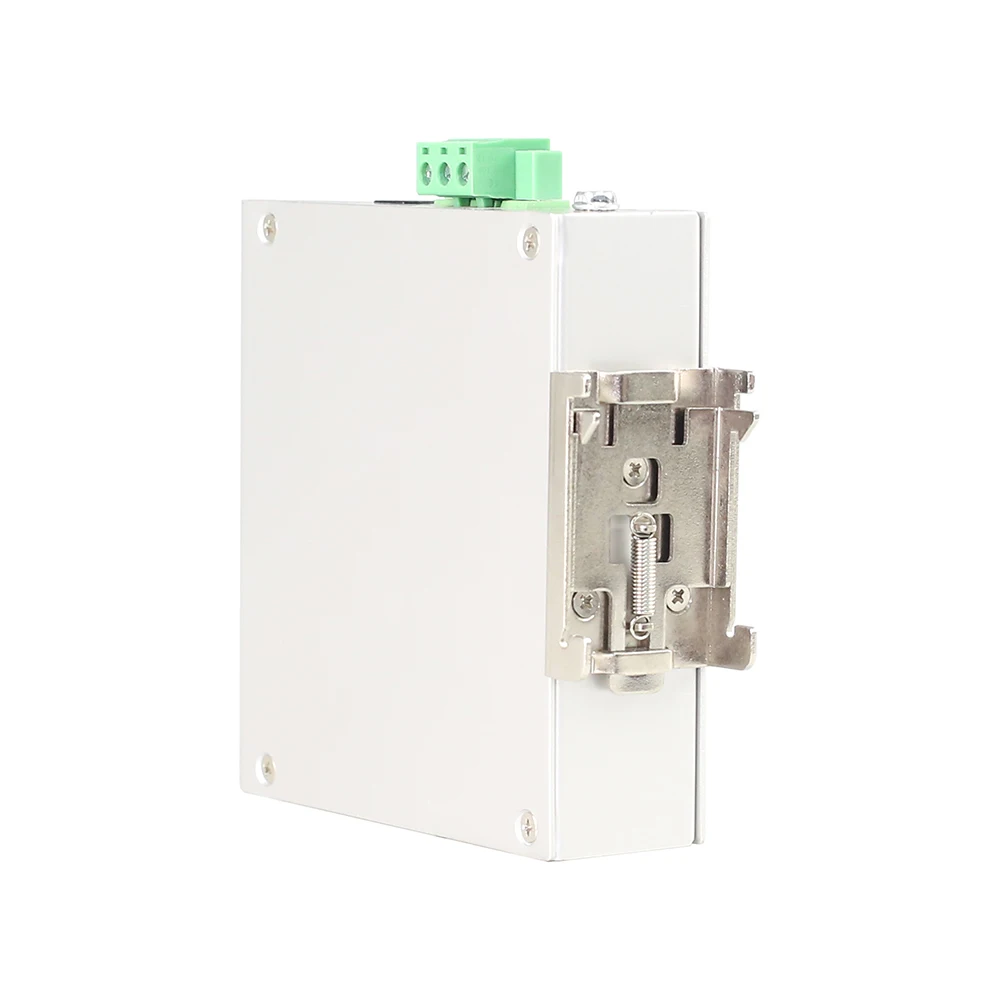

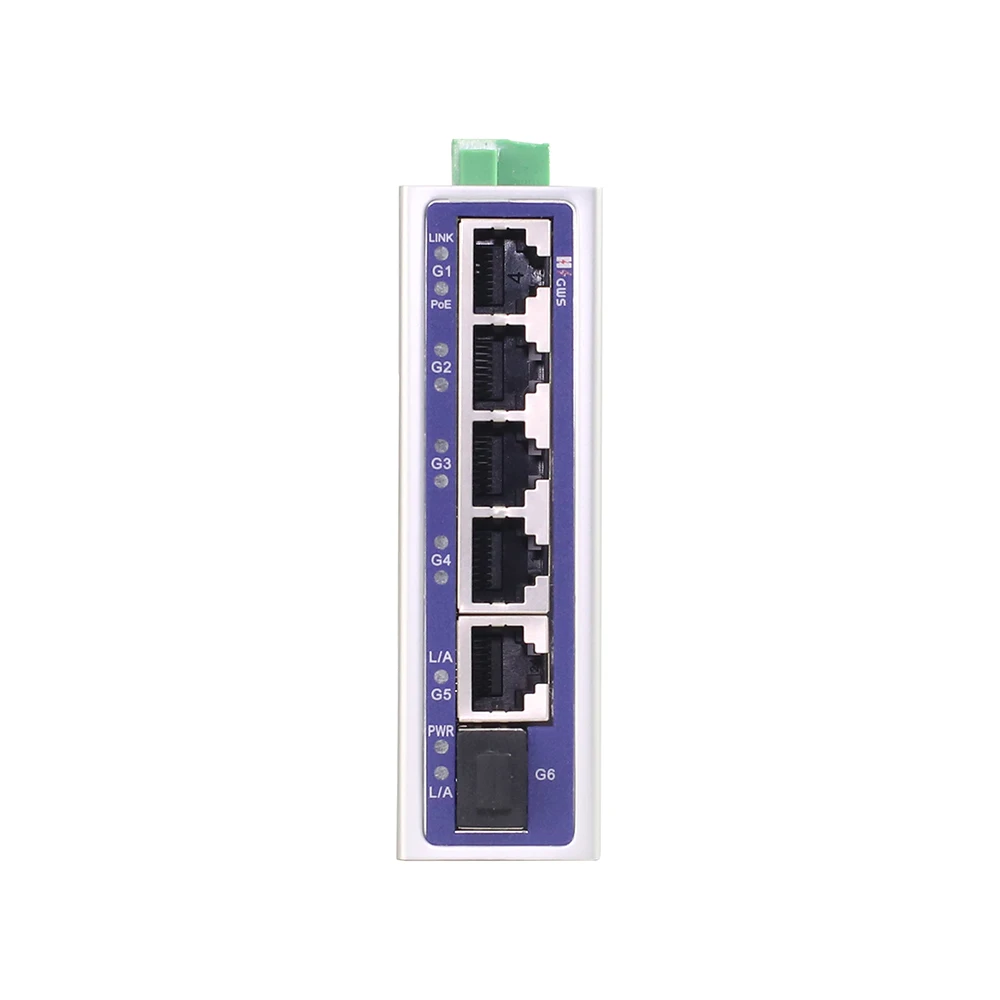

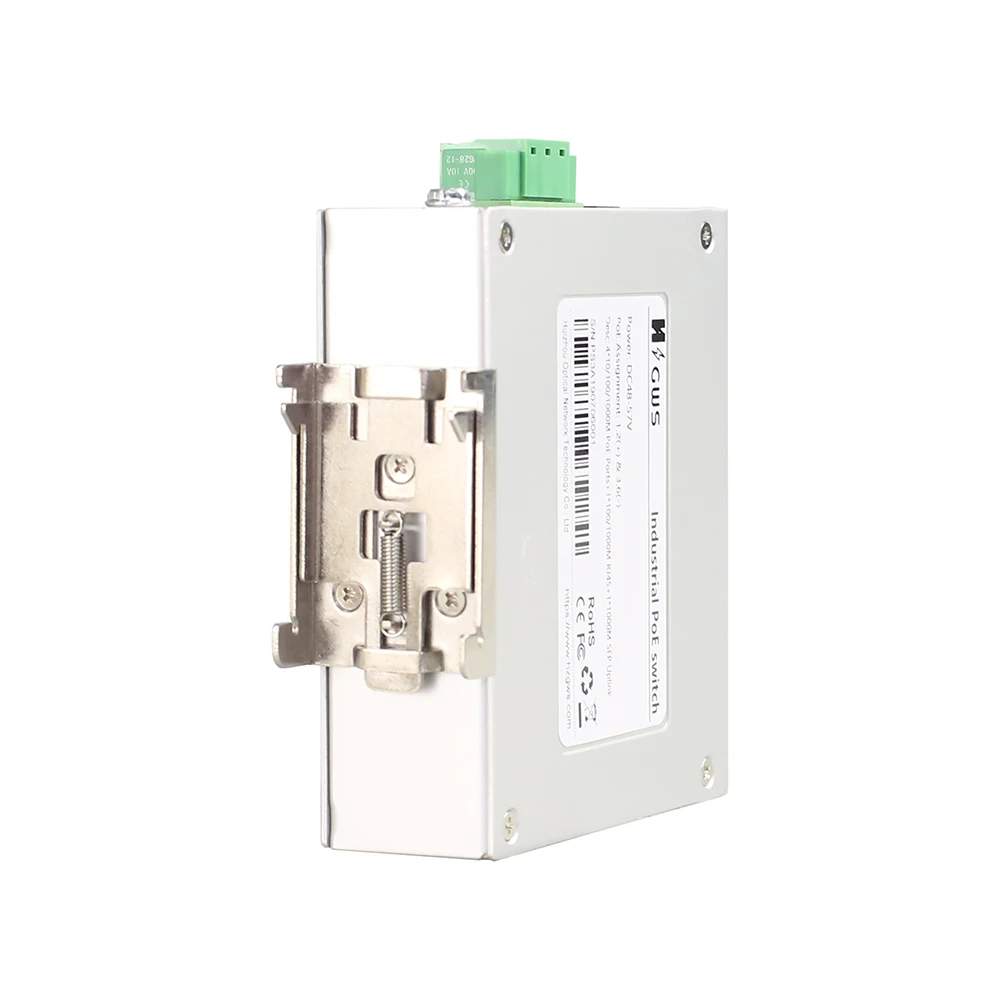

Unmanaged Fast 5*10/100/1000M POE 1*1000M SFP Din rail industrial Fiber Switch dual power for Security Camera system

Model

GWS-IPS3064PFG

Interface Characteristics

Fixed Port

4*10/100/1000Base-T PoE ports (Data/Power)
1*10/100/1000Base-T uplink RJ45 port (Data)
1*1000Base-X uplink SFP fiber slot port (Data)
2 sets of V+, V- redundant DC power port (3P Phoenix terminal+DC5521 Jack)

Ethernet Port

Port 1-5support 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption

Twisted Pair Transmission

10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤100 meter)
1000BASE-T: Cat5e or later UTP(≤100 meter)

Fiber Port

Gigabit SFP optical fiber port, default matching optical modules (optional order single-mode / multi-mode, single fiber / dual
fiber optical module. LC)

Optical Cable

Multimode: 850nm 0 ~ 550M,
singlemode: 1310nm 0 ~ 40KM, 1550nm 0 ~ 120KM.

Chip Parameter

Network Protocol

IEEE802.3 10BASE-T, IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-X, IEEE802.3x

Forwarding Mode

Store and Forward(Full Wire Speed)

Switching Capacity

12Gbps(Non-blocking)

Forwarding
Rate@64byte

8.93Mpps

MAC

2K

Buffer Memory

2Mb

Jumbo Frame

9.2KB

LED Indicator

Power: PWR (green), Network :Link G1-G5 (green); PoE : PoE G1-G4 (green) , fiber port :L/A G6 (green)

PoE & Power Supply

PoE Port

Port 1 to 4 IEEE 802.3 af/at @POE

Power Supply Pin

1/2 (+), 3/6 (-)

Max Power Per Port

30W, IEEE802.3af/at

Total PWR / Input Voltage

60W/48VDC

Power Consumption

Standby<4W, Full load<60W/at<120W

Working Voltage

48-57VDC; 3P industrial phoenix terminal+DC5521 Jack, anti-reverse protection.

Power Supply

No, optional 48V/60W or 48V/120W industrial power supply

Physical Parameter

Operation TEMP / Humidity

-40~+75°C;5%~90% RH Non condensing

Storage TEMP / Humidity

-40~+85°C;5%~95% RH Non condensing

Dimension (L*W*H)

98*88*30mm

Net /Gross Weight

<0.2kg / <0.3kg

Installation

Desktop, 35mm DIN rail

Certification & Warranty

Lightning Protection / Protection Level

Lightning protection: 6KV 8/20us;Protection level: IP30
IEC61000-4-2(ESD):±8kV contact discharge,±15kV air discharge
IEC61000-4-3(RS):10V/m(80~1000MHz)
IEC61000-4-4(EFT): power cable:±4kV; data cable:±2kV
IEC61000-4-5(Surge):power cable:CM±4kV/DM±2kV; data cable:±4kV
IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz)
IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s
IEC61000-4-9(pulsed magnet field):1000A/m
IEC61000-4-10(damped oscillation):30A/m 1MHz
IEC61000-4-12/18(shockwave):CM 2.5kV,DM 1kV
IEC61000-4-16(common-mode transmission):30V; 300V,1s
FCC Part 15/CISPR22(EN55022):Class A
IEC61000-6-2(Common Industrial Standard)

Mechanical Properties

IEC60068-2-6 (anti vibration), IEC60068-2-27 (anti shock), IEC60068-2-32 (free fall)

Certification

CCC;CE mark, commercial; CE/LVD EN62368-1;FCC Part 15 Class B;RoHS;

Warranty

5 years , lifelong maintenance.
