10mm thickness Aerogel Insulation Blanket with double side aluminum foil
- Category: >>>
- Supplier: Jmet Corp. Jiangsu Sainty International Group
Share on (1601009091650):
Product Overview
Description
Product Description

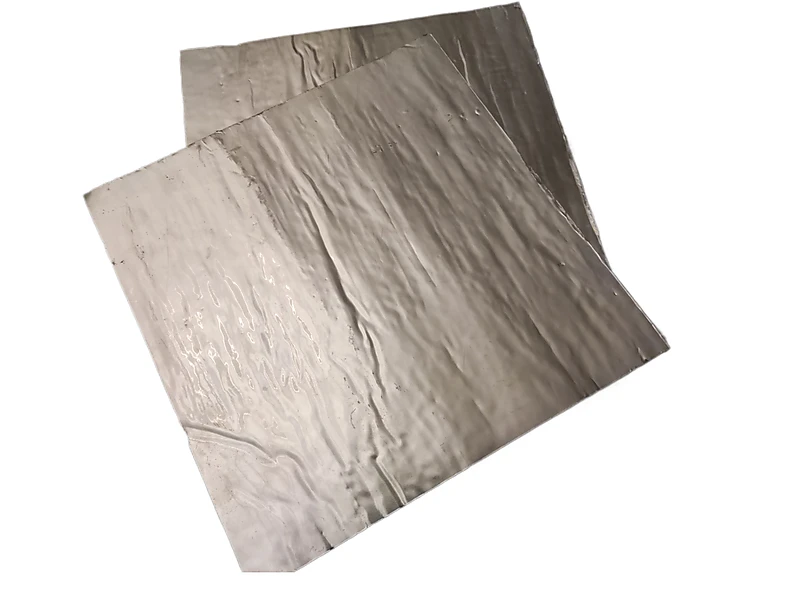

The product "Aerogel Insulation Blanket with aluminum foil " is defined as a decorative sheet. Its classification is valid for the following end use
application: it can be used in building wall, heat preservation, fire prevention and flame retardant.
Sample Description Aerogel Insulation Blanket
Color / Density White / 176 kg/m3
application: it can be used in building wall, heat preservation, fire prevention and flame retardant.
Sample Description Aerogel Insulation Blanket
Color / Density White / 176 kg/m3
Ingredient | CAS No. | EINECS No. | Percent |
Amorphous SiO2 | 112945-52-5 | 231-545-4 | 30-60% |
Glass fiber(textile grade) | —— | —— | 20-40% |
Al2SiO5 | 1344-28-1 | 215-691-6 | 10-20% |
Specification
item | value |
Warranty | More than 5 years |
After-sale Service | Online technical support, Onsite Installation, Onsite Training |
Project Solution Capability | graphic design, 3D model design, total solution for projects |
Application | Apartment |
Design Style | Traditional |
Place of Origin | China mainland |
Brand Name | UGOO |
Model Number | the thickness 3mm,5mm,6mm,10mm |
Type | UGOO |
Material | fiber glass |
Material | Fiberglass |
Application | Building Thermal Insulation |
Color | WHITE |
Thickness | 3MM,5MM,6MM,10MM |
WIDTH | 1500MM |
Density | 160-180kg/m3 |
Length | 20m |
Certificate | MSDS SGS |
Technical Data
Item | Name of Item | Standard requirement | test result | Individual assessment | ||
1 | Apperance | Flat surface, no scars, stains or tears that would prevent use | Flat surface, no marks, stains or tears that would prevent use | pass | ||
2 | Thickness | mm | 10+3.0 -1.0 | 10.7 | pass | |
3 | Density kg/m3 | 200±40 | 160 | pass | ||
4 | Heat ing permanent change(650°C,24h) | ≥-2.0 | -0.3 | pass | ||
5 | Thermal conductivity w(m.k) | Average temperature 25°C | ≤0.021 | 0.019 | pass | |
Average temperature 300°C | ≤0.036 | 0.032 | pass | |||
6 | Tensile strength | Horizontal | ≥200 | 1299 | pass | |
Vertical | ≥200 | 515 | pass | |||
7 | Maximum operating temperature | Maximum internal temperature of the speciman°C | Should not exceed 90 °C of the hot surface temperature | 592 Not exceeding hot surface temperature | pass | |
Thickness change rate% | ₋5.0─5.0 | 0 | pass | |||
Appearance change | No significant changes except for colour, no melting, sintering, degradation etc. of the specimen | No change in colour, no melting, sintering, degradation etc. | pass | |||
Product Application
Company Profile
Jmet Corp., Jiangsu Sainty International Group, the successor to Jiangsu Metals & Minerals Import & Export (Group) Corp., established in 1974, is a provinical traditional foreign trade enterprise in Jiangsu province.Thanks to development and accumlation of over three decades, the Corporation has built a contingent of high quality professional operation and management, established an internal operation and management mechanism with supply chain management at the core, brought up a large number of outstanding production enterprise and created a complete operation pattern intergrating product research and development, processing and manufacture, trade, warehousing and logistics. In 2001, it successfully passed quality certification of ISO9001:2000..
Attaching importance to further adjusting strategic development, the Corporation has created a pattern combining import and export and paying equal attention to foreign and domestic trade, which has further enhanced its ability of sustainable development, Focusing on such core business fields of steel materials, non-ferrous chemicals, iron and steel products, automobiles ang air conditioners, the Corporation mainly deals in hundreds of kinds of products in more thann ten categories, such as nonferrous metals, mineral products, steel materials, automobiles, air-conditioning equipment, refined chemicals, machinery, hardware and tools, metal castings and forgings, iron alloys, electronic products, building materials, solar energy products and light industriall products, It is the Chinese general agent of central air conditioners of Japanese Mitsubishi Heavy Industry Co., Ltd. With high quality products and services and highly competitive price, it is widely praised by customers both at home and abroad, which has laid down a solid foundation for its continuous and sound development.
Adhering to the marketing guidelines of "Being law-abiding and Creditworthy, Standardized and highly efficient, Customers first and Cooperative for a win-win result", the Corporation has been sincerely providing high quality, highly efficient, rapid and all-round services for customers both at home and abroad. We' re earnestly looking forward to strengthening cooperation with merchants both at home and abroad for concerted development.
Attaching importance to further adjusting strategic development, the Corporation has created a pattern combining import and export and paying equal attention to foreign and domestic trade, which has further enhanced its ability of sustainable development, Focusing on such core business fields of steel materials, non-ferrous chemicals, iron and steel products, automobiles ang air conditioners, the Corporation mainly deals in hundreds of kinds of products in more thann ten categories, such as nonferrous metals, mineral products, steel materials, automobiles, air-conditioning equipment, refined chemicals, machinery, hardware and tools, metal castings and forgings, iron alloys, electronic products, building materials, solar energy products and light industriall products, It is the Chinese general agent of central air conditioners of Japanese Mitsubishi Heavy Industry Co., Ltd. With high quality products and services and highly competitive price, it is widely praised by customers both at home and abroad, which has laid down a solid foundation for its continuous and sound development.
Adhering to the marketing guidelines of "Being law-abiding and Creditworthy, Standardized and highly efficient, Customers first and Cooperative for a win-win result", the Corporation has been sincerely providing high quality, highly efficient, rapid and all-round services for customers both at home and abroad. We' re earnestly looking forward to strengthening cooperation with merchants both at home and abroad for concerted development.
