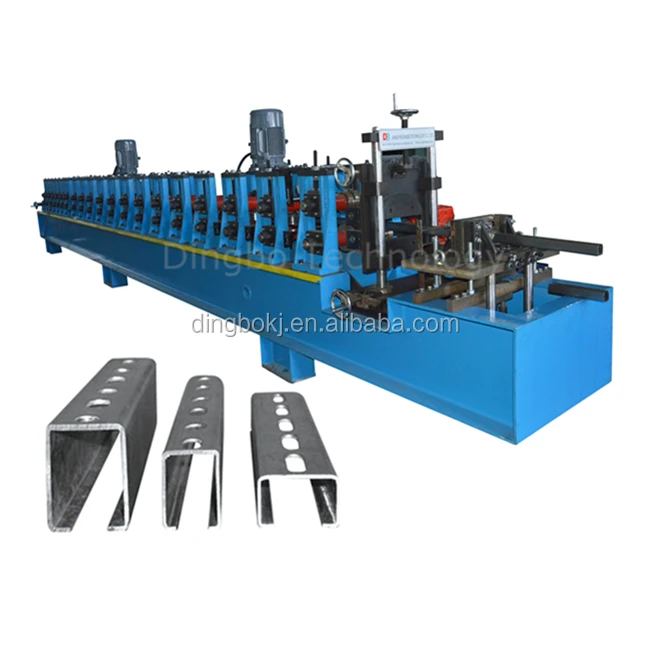

U Shape Unistrut Channel Purlin Roll Forming Machine Solar Panel Frame Manufacturing machine Strut Roll forming Line
- Category: >>>
- Supplier: Jiangyin Dingbo Technology Co. Ltd.
Share on (1601009182703):
Product Overview
Description

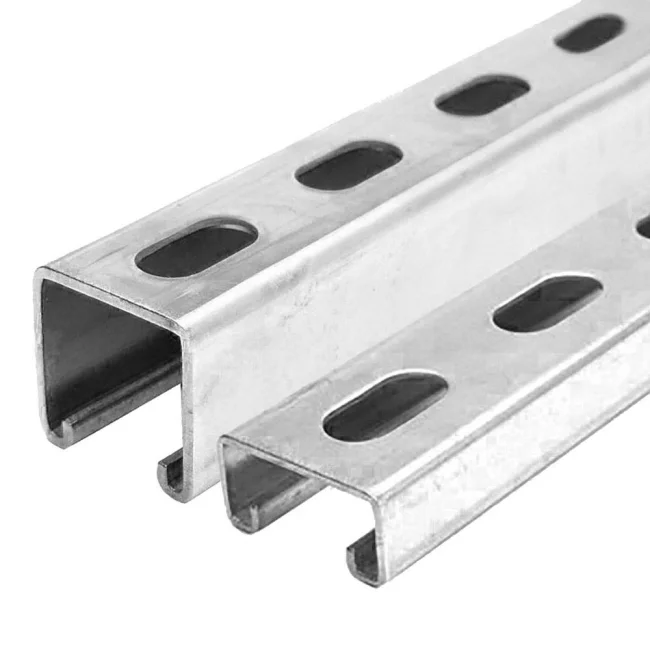

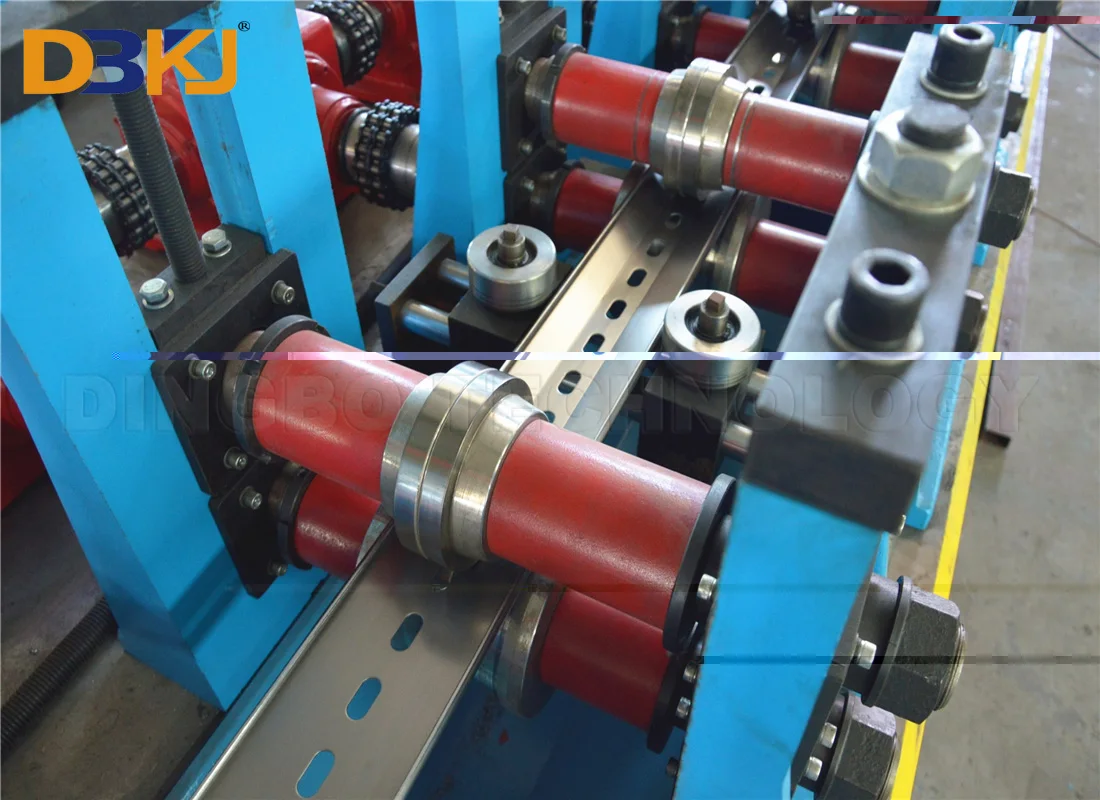

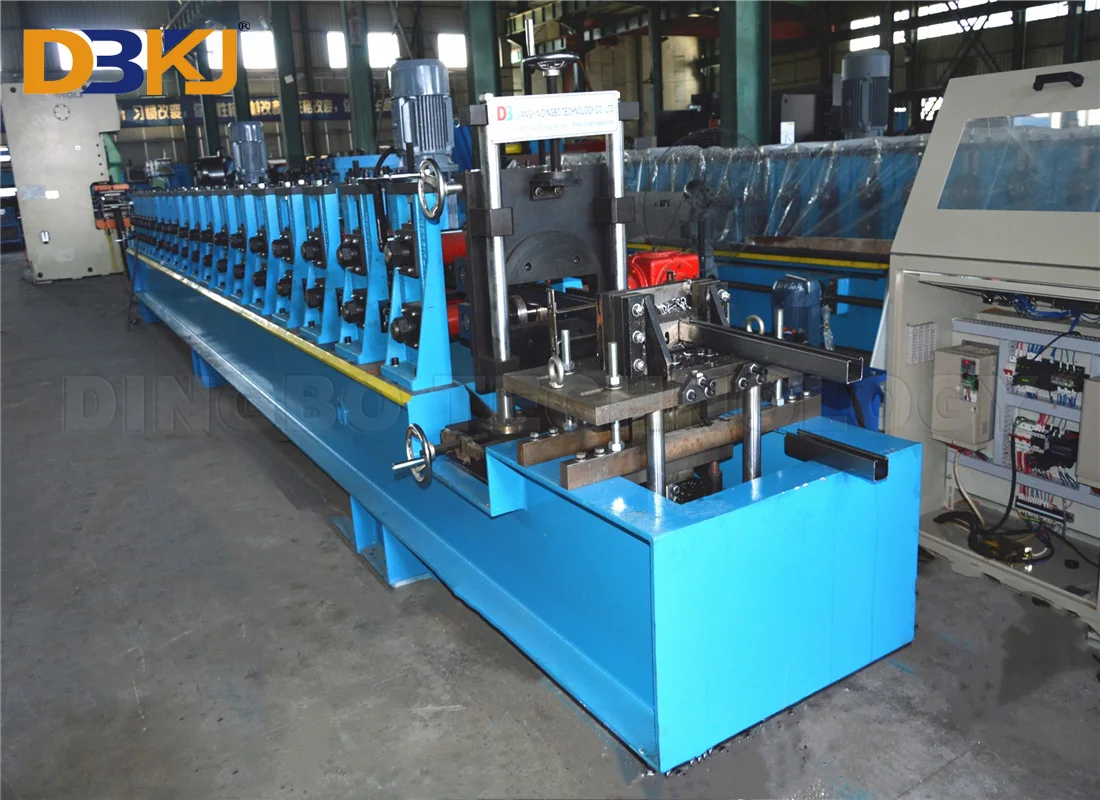

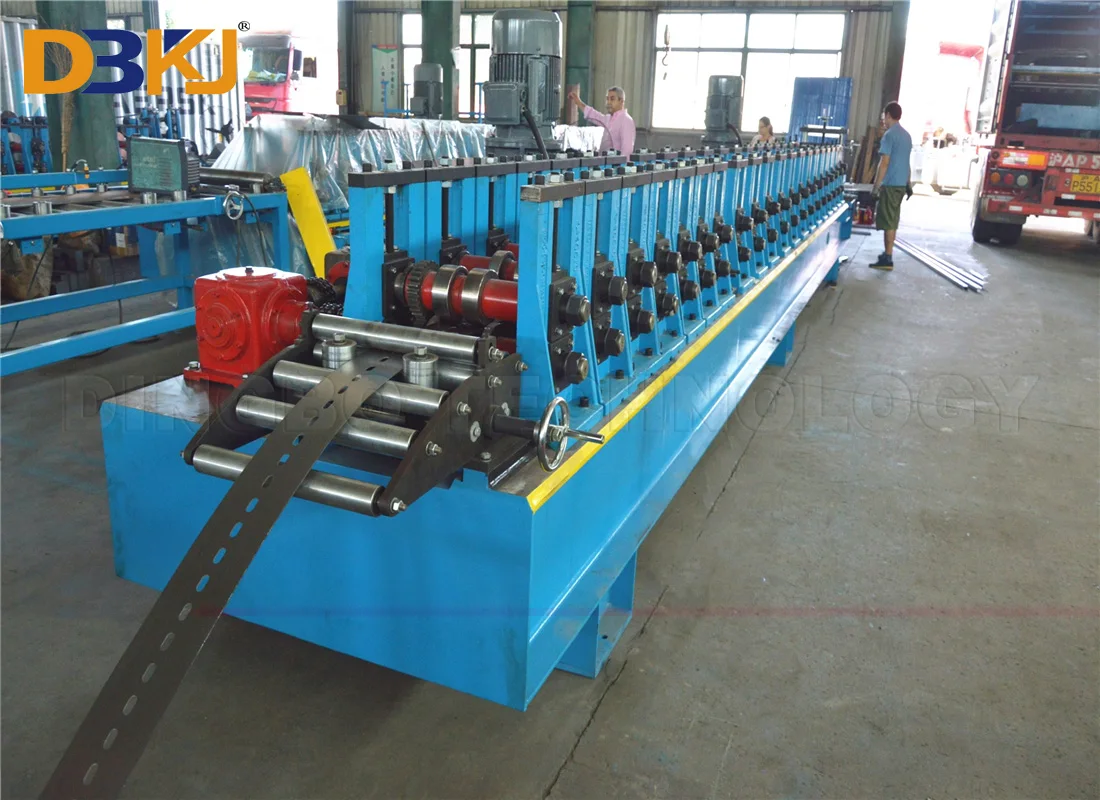

U Channel Roll Forming Machine
Product Descriptions
The U Channel Roll Forming Machine is technically capable of producing steel purlins of 2 to 3mm (common thickness), sometimes 5mm for special applications.
For most U purlins, punching can be used. Purlin raw material can be steel coil, chrome plating coil, etc.
Our machine can produce U purlin of different sizes 80mm-300mm (standard) by replacing the roller gasket.

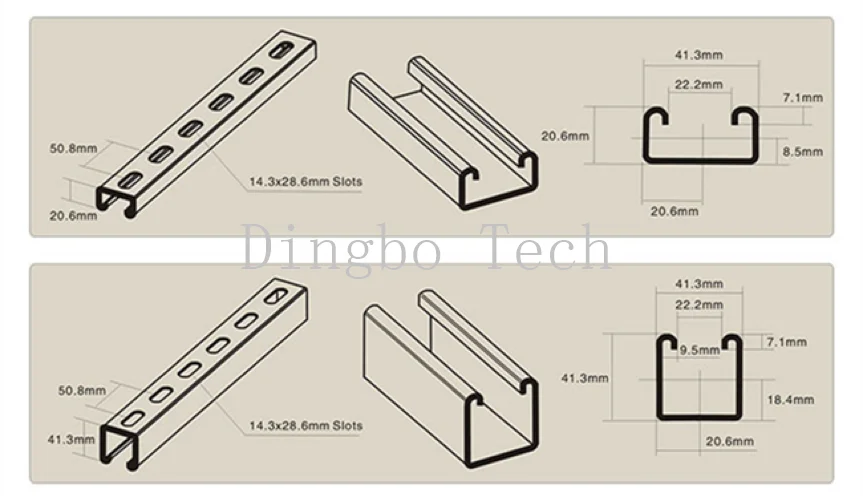

Profile drawing

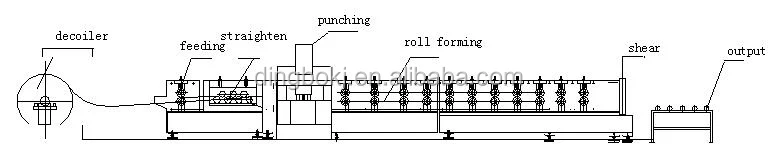

Working Flow
Manual Uncoiler -- Feeding -- straighten -- Punching -- Roll-forming -- shearing -- Output table
Product Parameters
1. Raw material type: Steel coil/Galvanized coil
2. Thickness: 1.5-3.0mm
3. Roller material: GCr15/Cr12
4. Forming Stations: 20stations
5. Control type: PLC
6. Driven type: By Gearbox
7. Main power: 2x11 kw
8. Cutting Blade Material: Cr12Mov

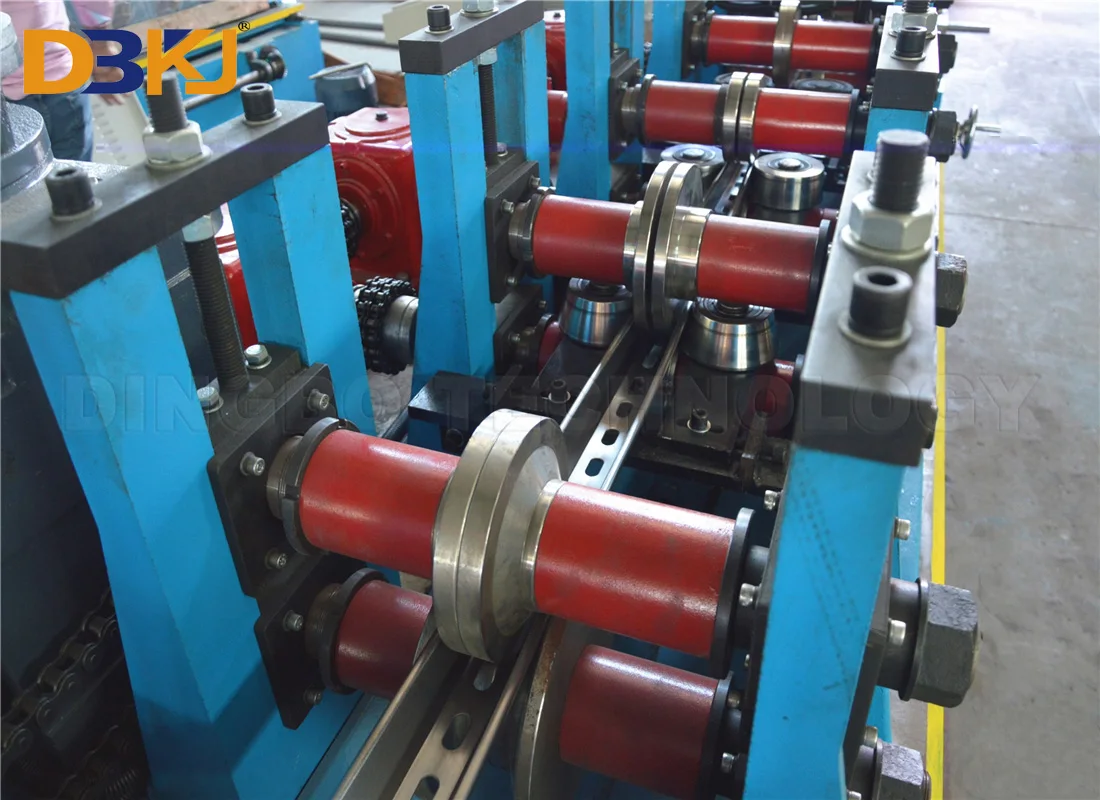

Main Components
No. | Name | Qty |
1 | Manual uncoiler | 1 |
2 | Main roll forming machine | 1 |
3 | PLC Control box | 1 |
4 | Hydraulic station | 1 |
5 | Output table | 2 |
our exhibition

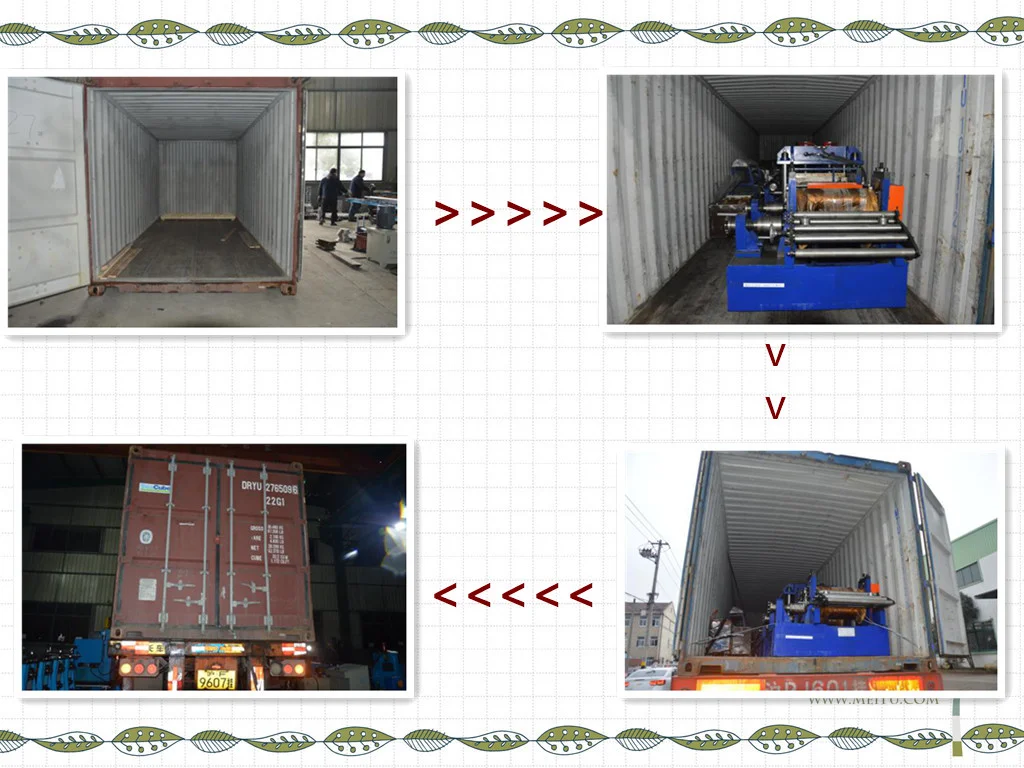

Packaging & Shipping
We will order container before the delivery date, arranging the land before customs declaration, and we inspect each part of the machine before shipment. We put the molding machine into the container for comprehensive fixing, and the transportation safety is very high. We always remind drivers to pay attention to road safety.
Customers visit
FAQ
1. Q: What's the warranty period? (24hours online)
12 months warranty period, starting from the date of the successful installation and commissioning of the equipment at the Buyer’s Installation site. During which all parts damaged because of quality problem will be changed for free.
2. Q: Do you have installation and commissioning service?
A.If buyers come to our factory to inspect, the training to install and operate is provided face to face. If not, manual and video is provided to show how to install and operate.
B. If buyer need we will send technician to buyer site to do installation and commissioning and training.
C.installation and commissioning cost: One engineer will visit Buyer’s workshop for installing, commission and training. The buyer has to pay USD100/per day and visa fee, air tickets fee, accommodation and food, necessary communication, etc.
(Normally ,It takes about a week to install )
3. Q: What’s your after-sales service ?
We provide 24-hour online service for our customers.
And we are happy to give advice and also have skilled technicians available to maintain the machine overseas to customers’ workshop if needed.
4. Q: What's your delivery time ?
Normally we can finish production and testing within 45-70 days after receiving deposit. Some machines in stock, can be delivered at any time
5. Q: You are trading company or factory?
We are Manufacturer, and we export our machine by ourselves.
6. Q: Do you provide customized machine?
Sure, we can design the machine according to the requirement and profile drawing you provide. Our engineers can offer the best professional solution to our worldwide clients.
7. Q: How to place order ?
Inquiry---confirm the profile drawings and technical specification and price----confirm the PI---arrange the deposit or L/C---start production-- do inspection--- Shipment
8.What are your terms of payment ?
First payment: 30 % by T/T, second payment: 70% by T/T, after the successful inspection at seller’s workshop, and before delivery.
