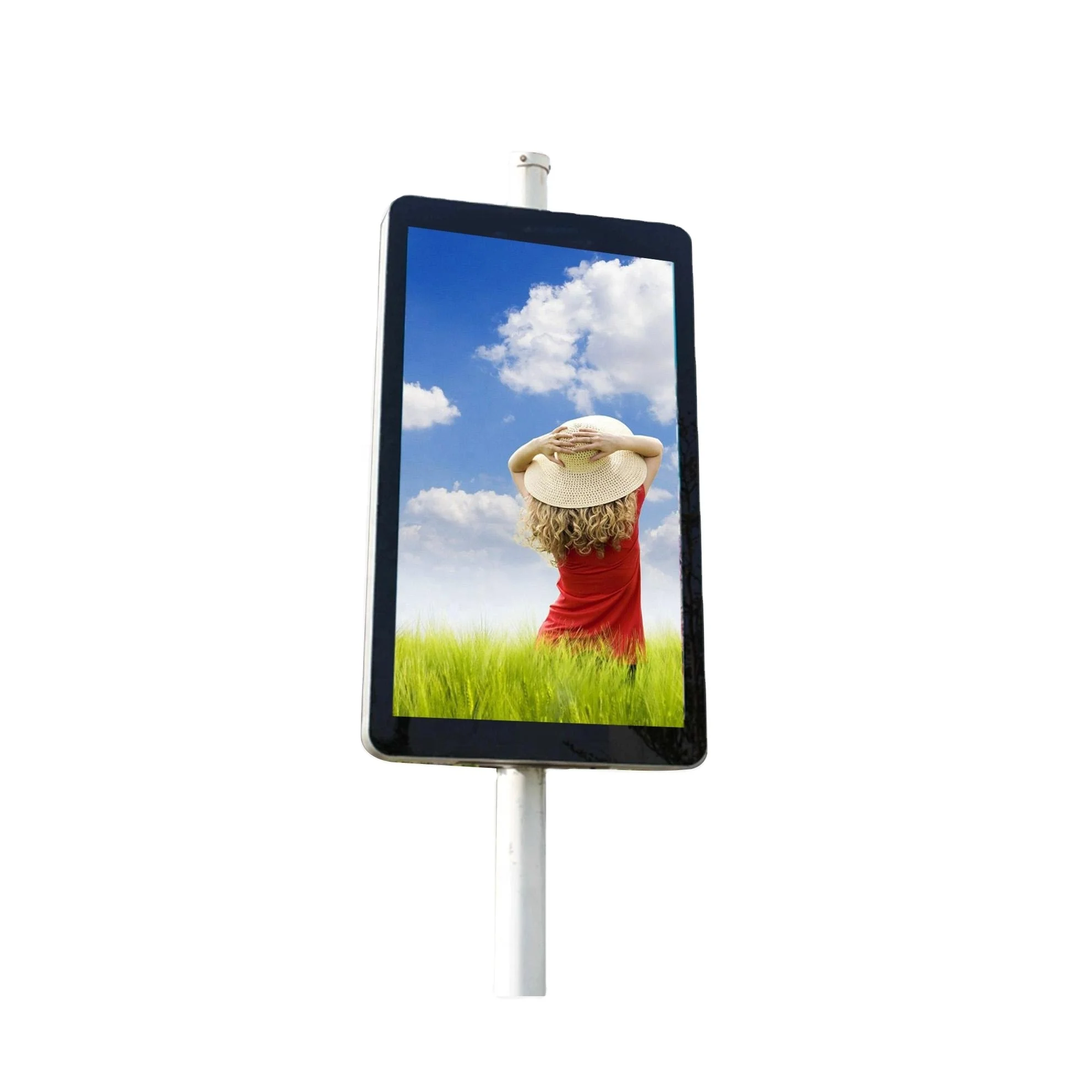

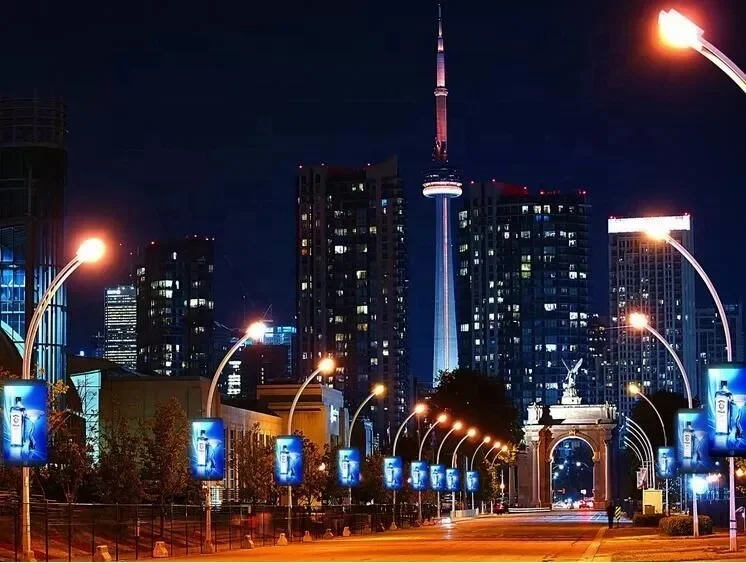

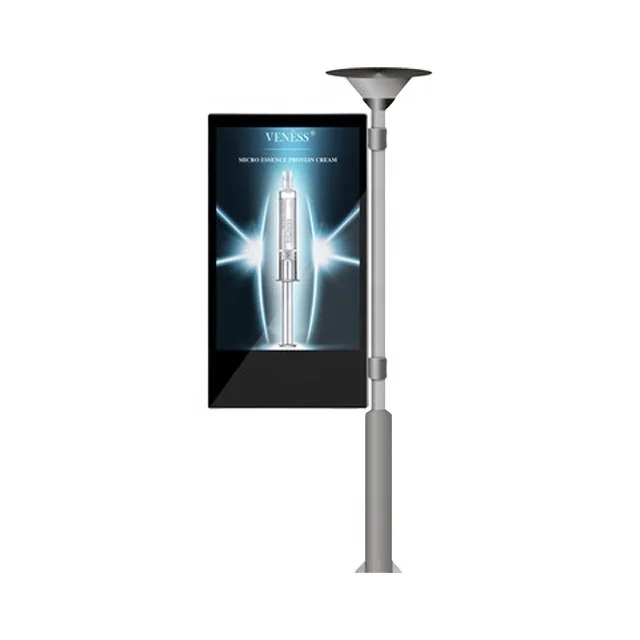

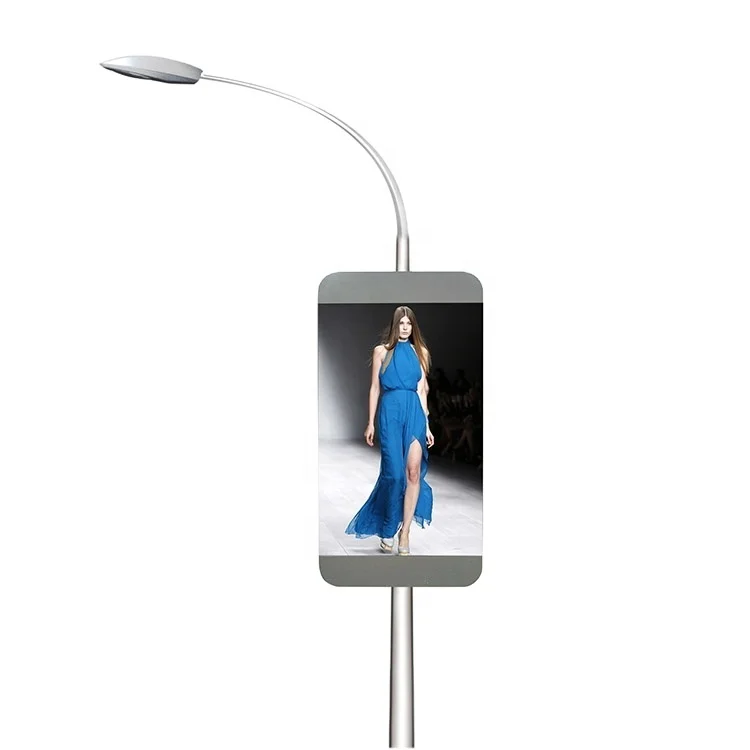

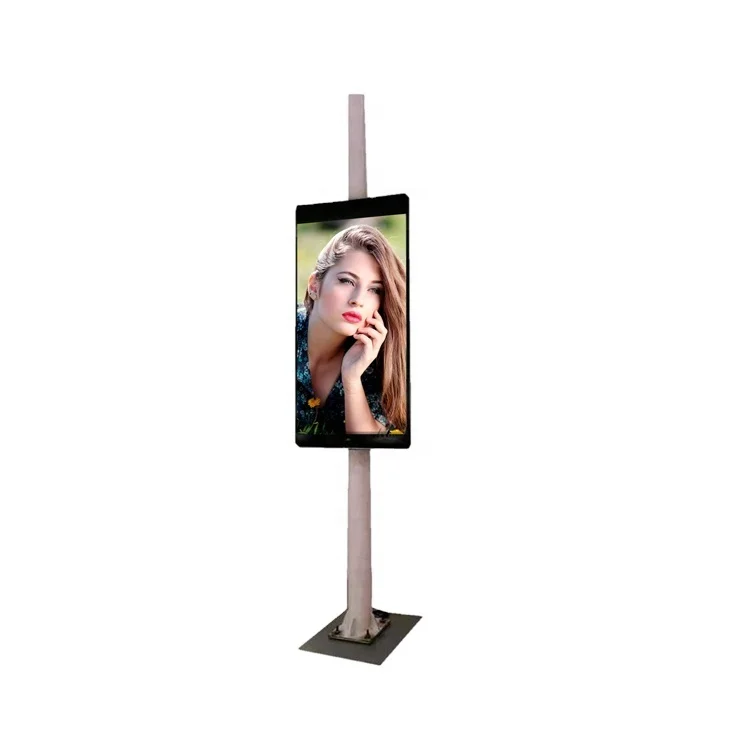

Full Color LED Screen SMD P5 Waterproof Street Lamp Pole 4G Advertising LED Billboard One Pole Outdoor LED Display
- Category: >>>
- Supplier: Shenzhen LED Visual Photoelectric Co. Ltd.
Share on (1601009189018):
Product Overview
Description
Specification
Technical parameters | Parameters values |
Pixel pitch | 6mm |
Panel size | L192mm×H192mm |
Physical density | 27889dots/sqm |
Pixel configuration | 1R,1G,1B |
Driving method | Constant current |
Scan mode | 1/8 scan |
LED Encapsulation | SMD3535 |
Display resolution | 32dots×32dots=1024dots |
Module weight | 0.37KG |
Module port | HUB75 |
Module working voltage | DC5V |
Module consumption | 30W |
Cabinet size | W768mm*H1152mm/W768mm*H1344mm/can be customize |
Cabinet weight | 45kg |
Cabinet resolution | 96dots×96dots |
Viewing angle | 140° |
Option distance | 6m-50m |
Driving device | 16016 |
Every square meter module | 27.13pcs |
Maximum power | 950W/sqm |
Frame Frequency | ≥60HZ/S |
Refresh frequency | ≥960HZ/S |
Equilibrium brightness | ≥5800CD/sqm |
Working environment temperature | -10°C~+70°C |
Working environment humidity | 10%~70% |
Display working voltage | AC46~54HZ,220V±15%/110V±15% |
Color temperature | 8500K-11500K |
Gray scale/color | ≥16.7M color |
Input signal | RF\\ RGB etc |
Control system | PCTV nonlinearity card, DVI display card,Linsn control system |
MTBF | >5000 |
Life | 100000 |
Lamp failure frequency | <0.0001 |
IP rating | The front IP65 |
Product Description

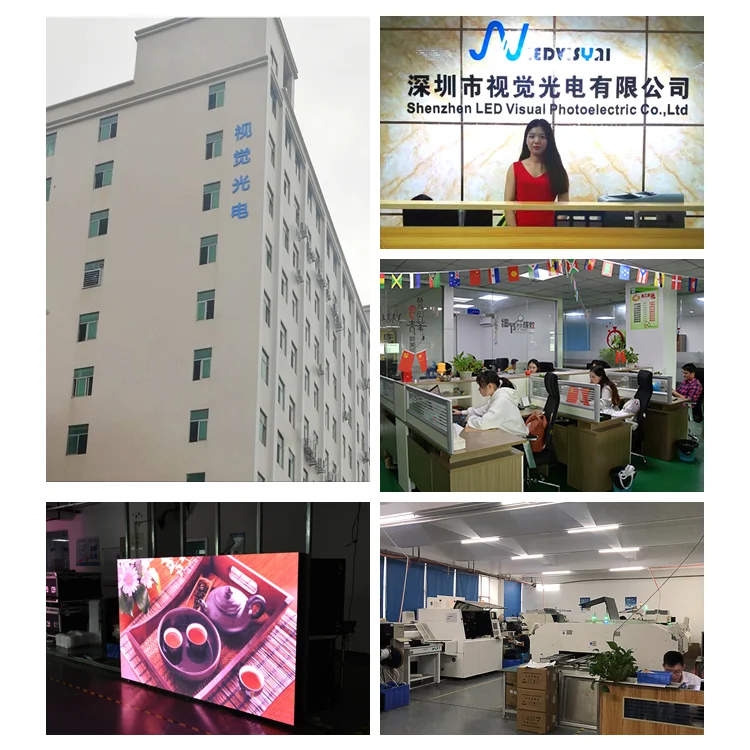

Company Profile
SHENZHEN LED VISUAL PHOTOELECTRIC CO., LTD was established in May 2016 and currently employs 30 people, 10 foreign trade salesmen, Commissioner for Thai market person, one Russian commissioner, commissioner 8 English people,It is a professional LED display manufacturer with new modern business model,Our company mainly produces indoor and outdoor LED modules and LED display for single color, Indoor and outdoor full color LED display, and peripheral series of products for LED display to foreign markets, 98% of goods are exported to foreign markets, the registered capital of two million yuan. In today's turmoil market, the company holds integrity management, customer first,do what customers think, so customers do, seek prompt the company to grow and develop in a short period of time,Now the company already exported to Belgium, Mongolia, South Korea, Thailand, Singapore, India, South Africa, Malaysia, Brazil and other export goods within only one month. Shenzhen LED Visual photoelectric Co., Ltd focus on specialized market --- advertising and brand, sports venues, events and entertainment, to provide different patterns of LED application product solutions and high-quality products and services.
Our Product advantages:
1) Price Advantage: We have our own factory ,and we have the best competitive price at the market,
2) Quality advantage: From material to finished product, from design to produce, we control all steps.
3) Service advantage: Better service at same situation, better cooperation at same service.
Our Product advantages:
1) Price Advantage: We have our own factory ,and we have the best competitive price at the market,
2) Quality advantage: From material to finished product, from design to produce, we control all steps.
3) Service advantage: Better service at same situation, better cooperation at same service.

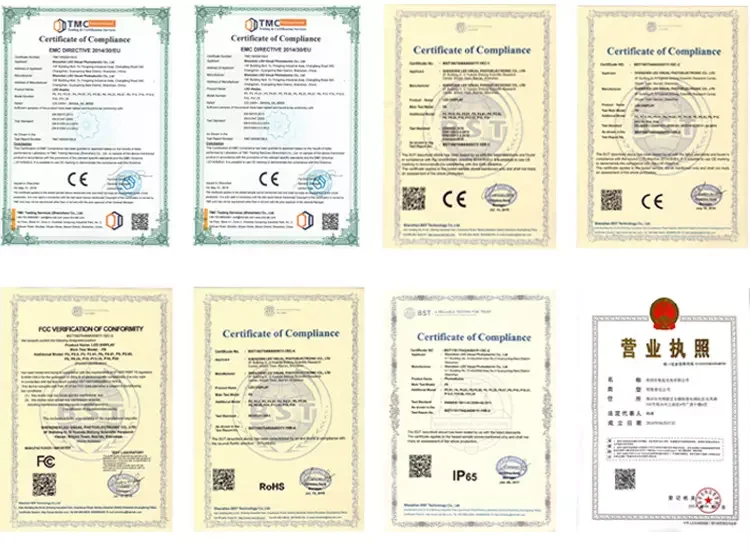

Certificates

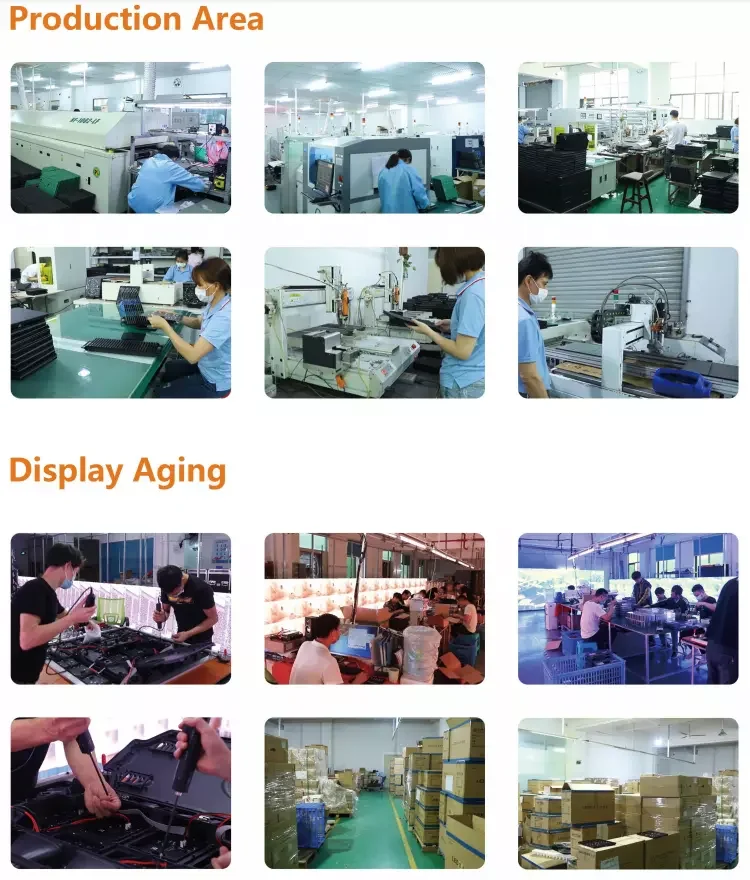

Manufacturing Technique
Packing & Delivery

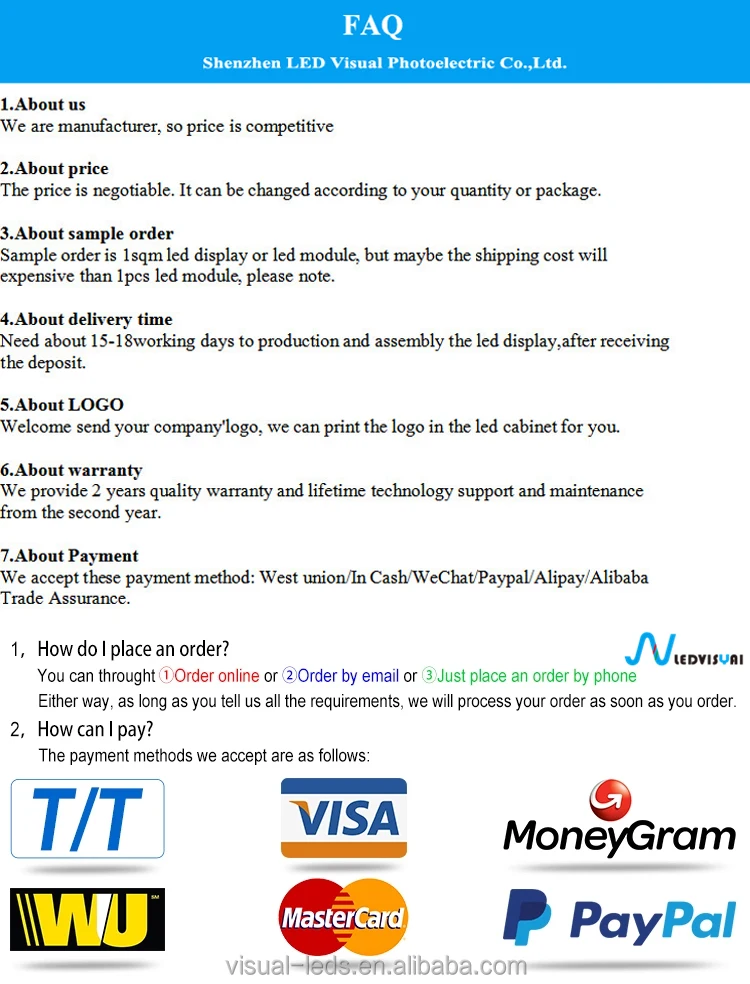

FAQ
