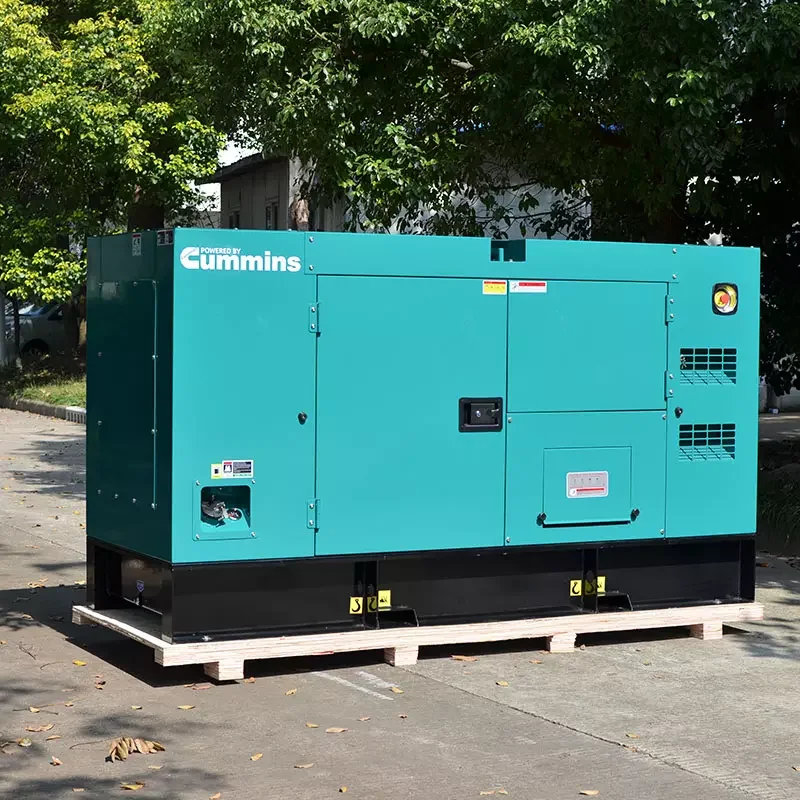

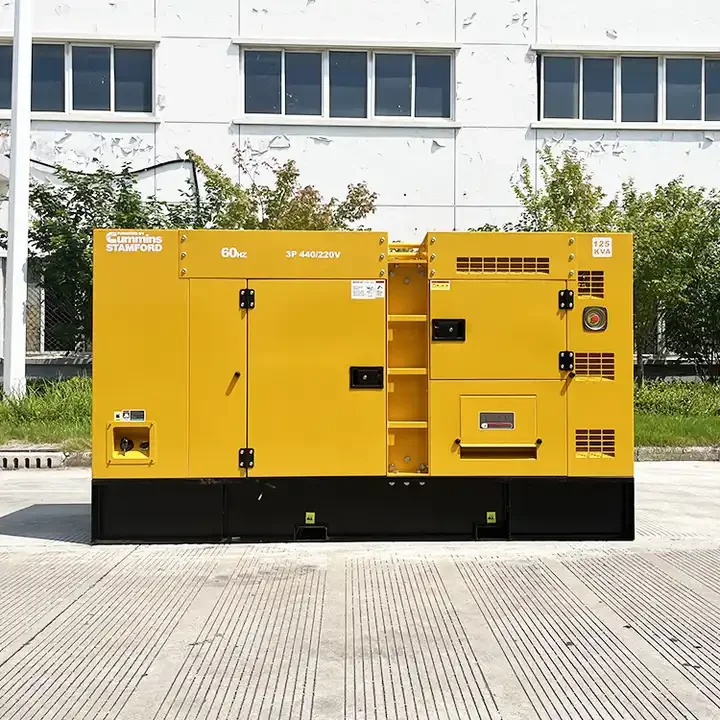

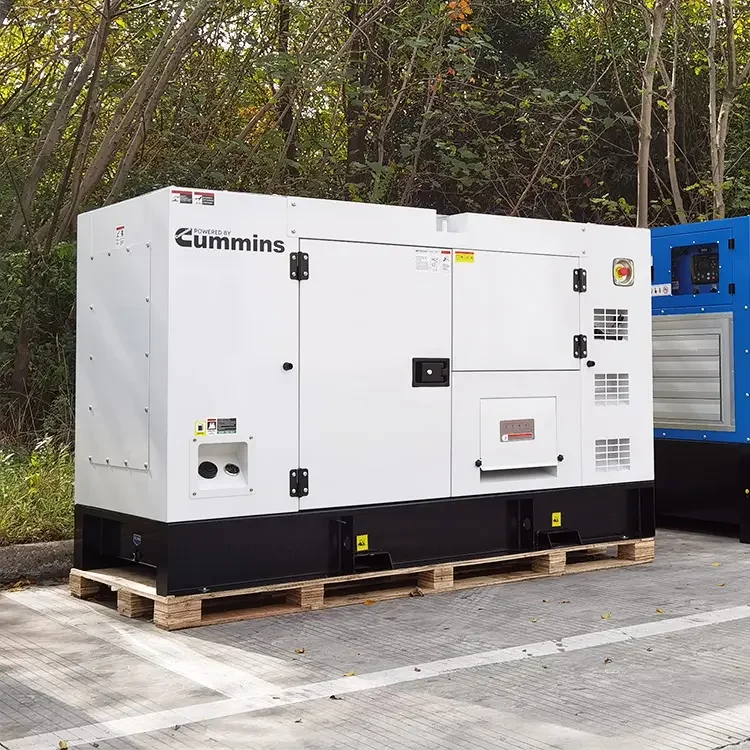

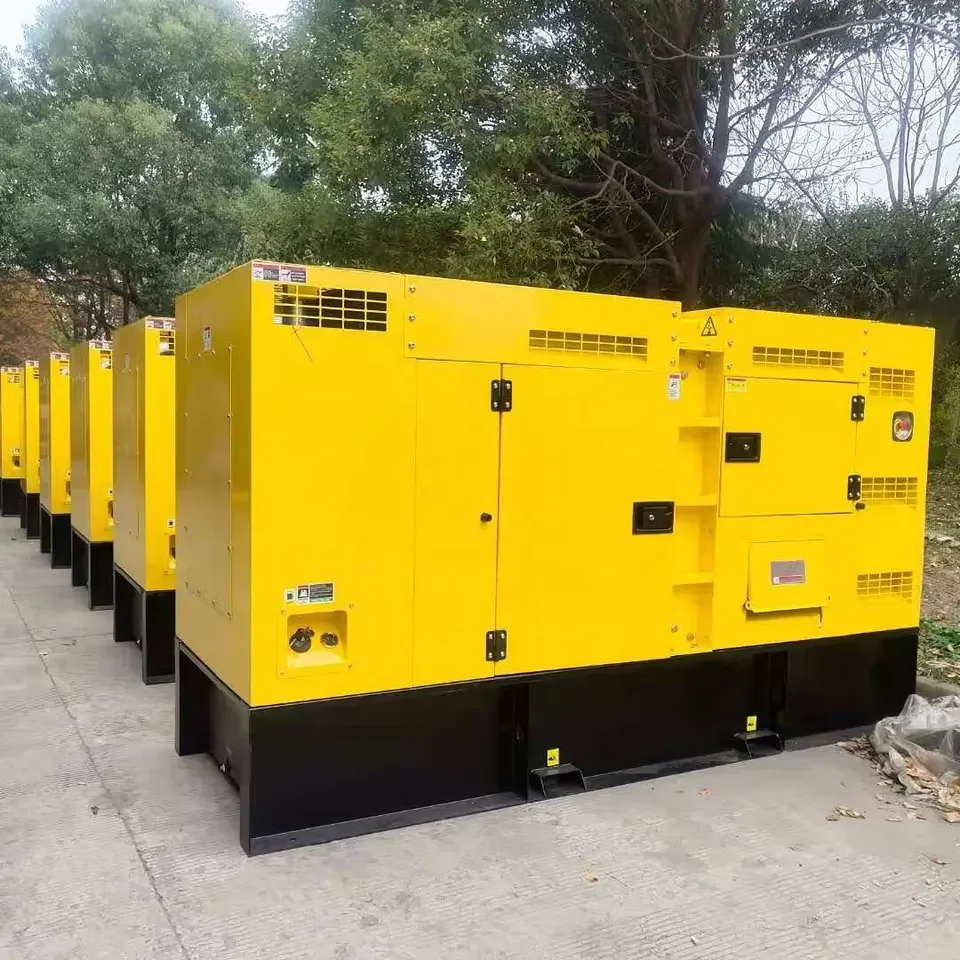

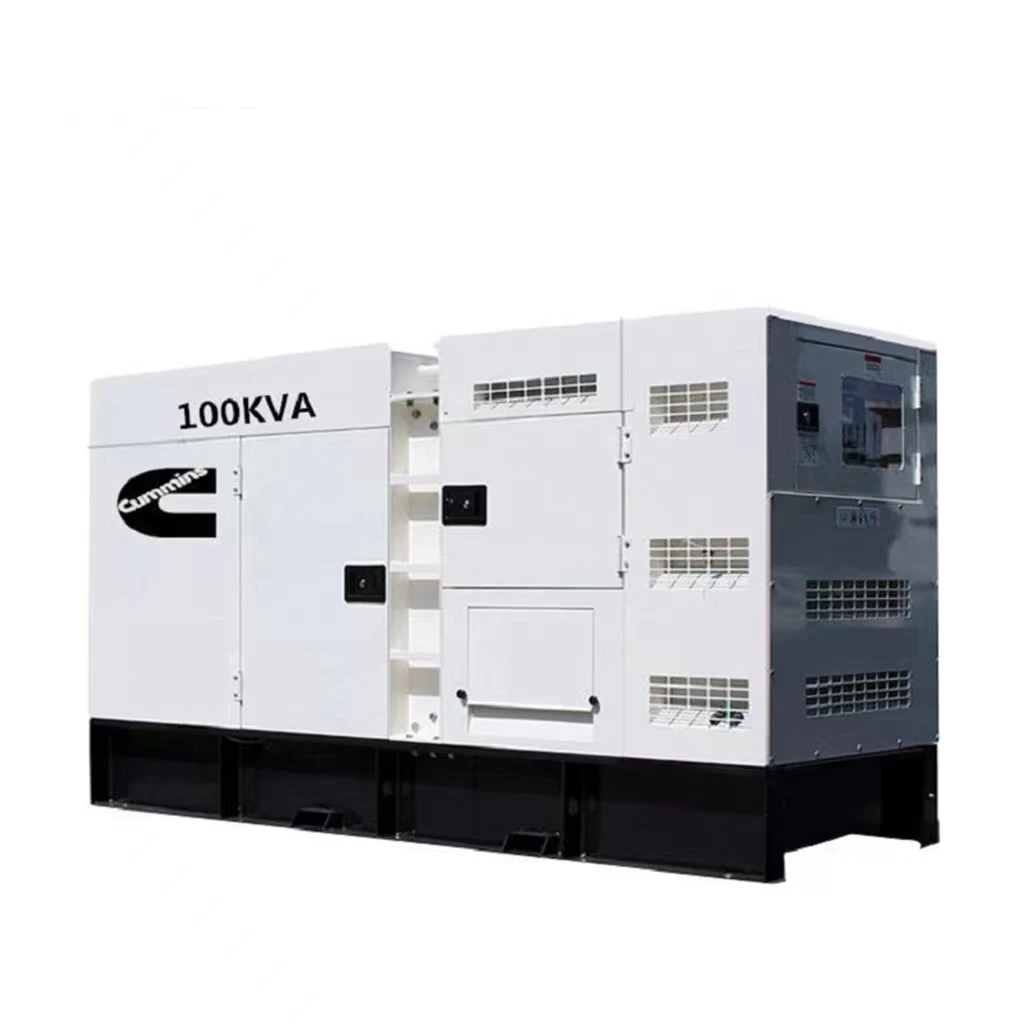

Powered by Cummins 50kva 50kw 80kva 80kw 90kw 100kva 100kw silent generator 100 kw 125 kva electric generator

Product Overview

Description

Prime power:                                                                                       PRODUCT INFORMATION

This rating is for the supply of continuous electrical power (at variable load). There is no limit on the annual hours of operation and 10% overload power can be supplied for 1 hour in 12.

Standby power:

This rating is for the supply of continuous electrical power (at variable load) in the event of a utility power failure. No overload is permitted.

General Features:

1. Every generator set is subjected to a comprehensive test program which includes 50% load, 75% load,100% load, 110% load and the checking and proving of all control and safety shut-down functions;

2. 24V DC start motor;

3. Equipped 24V high performance maintenance-free lead-acid starting batteries and connecting with cables;

4. Equipped with industrial silencer and flexible exhaust hose;

5. Designed to Comply with ISO8528/GB2820;

6. Powered by Original Cummins/Perkins engine, Stamford/Leroy Somer/Meccalte/Marathon alternator and DeepSea/ComAp/SmartGen control panel.



Powered by Cummins 50kva 50kw 80kva 80kw 90kw 100kva 100kw silent generator 100 kw 125 kva electric generator
Engine Data
Prime Power	50KW/62.5KVA
Model	Cummins 4BTA3.9-G2
Type	4 Cylinder in line,4 cycle
Displacement	3.9L
Aspiration	Turbocharged Aftercooled
Bore*Stroke	102*120mm
Governor Type	Electronic
Starting Voltage	24V
Lubricant Capacity	7.9L
Fuel Consumption Prime 100%	10.7L/h
Generator Data
Model	Original Stamford
Optional	Stamford,Leroysomer,MeccAlte,Marathon
Excited Type	Brushless,Self-Excited
Power Factor	0.8
Voltage Adjust range	>5%
Voltage Regulation	<±1%
Insulation Class	H
Protection Class	IP23
Control Panel
Model	Smartgen,Com-ap or Deepsea
Protection	High/Low Voltage,High/Low Temperaturer,High/Low Frequency,Low fuel,Low Oil,Low coolant
Function	AMF,Synchronizing,ATS,GSM
Support	RS232,RS485,USB





To save your time, if you need other brand or special customization, pls contact us directly!





Why Choose Us?

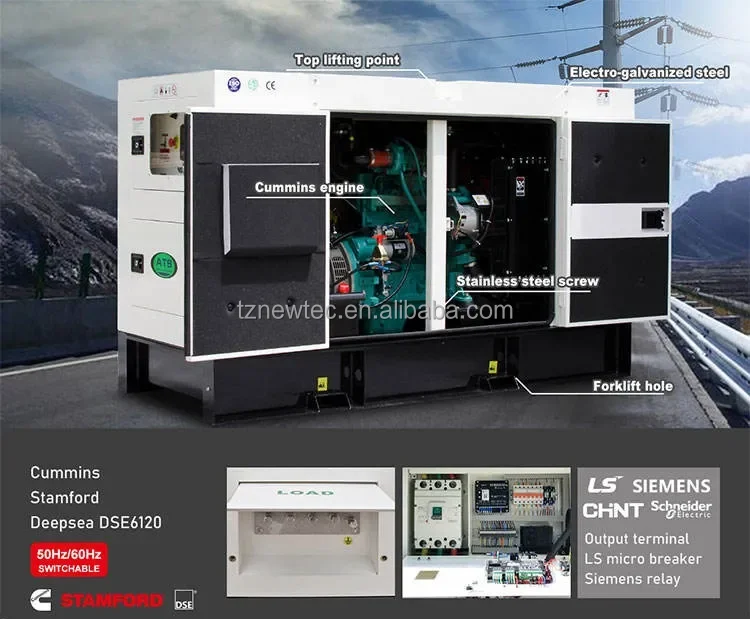

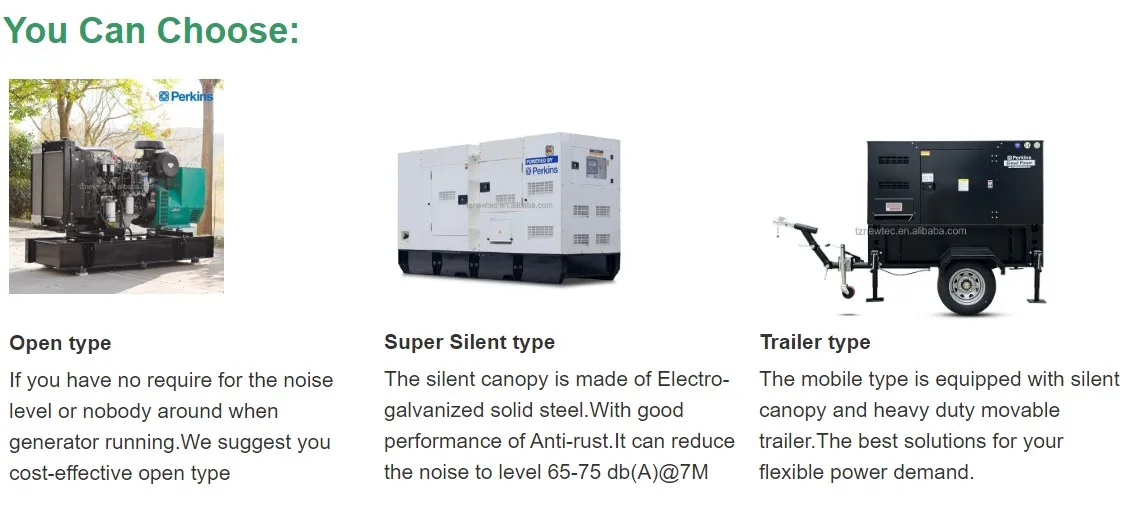

1. The soundproof canopy is made of Electro-galvanized solid steel. With good performance of Anti-rust.

 2. Inside high density sound-absorbing material can help reduce the noise to level 65 db(A)@7M.

 3. Standard top lift and forklift holes for easy transportation.





MORE PRODUCT INTRODUCTION









COMPANY INFORMATION

Newtec Power Equipment Co.,Ltd is one of the leading and largest world-wide producers and exporters for Diesel Generator (land diesel power generator&marine diesel generating set) and Gasoline Generator set from 1kva up to 2500kva. Transformed from a state owned enterprise and founded in 2005, Newtec's Factory and generators assembling centers have more than two decades of experience in the design, research and manufacturing of diesel genset in strict compliance with ISO and CE standards. Up to being now, more than 20,000 sets of high quality generaotr set from Newtec Power have been working well in many fields including railways, oil fields, Schools, hospitals, banks, supermarkets, industries, tall buildings, sea ports and military bases etc.



OEM PARTNER INFORMATION





PROJECT INFORMATION

MAIN MARKET   Philippines Thailand Malaysia Kenya Mozambique South Africa Ecuador Argentina Honduras etc



PACKING&DELIVERY INFORMATION



FAQ INFORMATION

1.Q: What is your MOQ of this item?
A:1 Set

2.Q: What is the lead time?
A:7 working days after received the 30%T/T deposit

3.Q: Is it all right to make customer's own brand name?
A:We can be your OEM manufacture with your authorization of brand.

4.Q: Where is your Loading Port?
A:Shanghai or others

5.Q: What are your payment terms?
A:30% TT as deposit,70% TT before Shipment.

6.Q: What is your company's available production capacity?
A:100 Sets per month

7.Q:What's the warranty time of diesel generators?
A:12 Months or 1000 working hours
